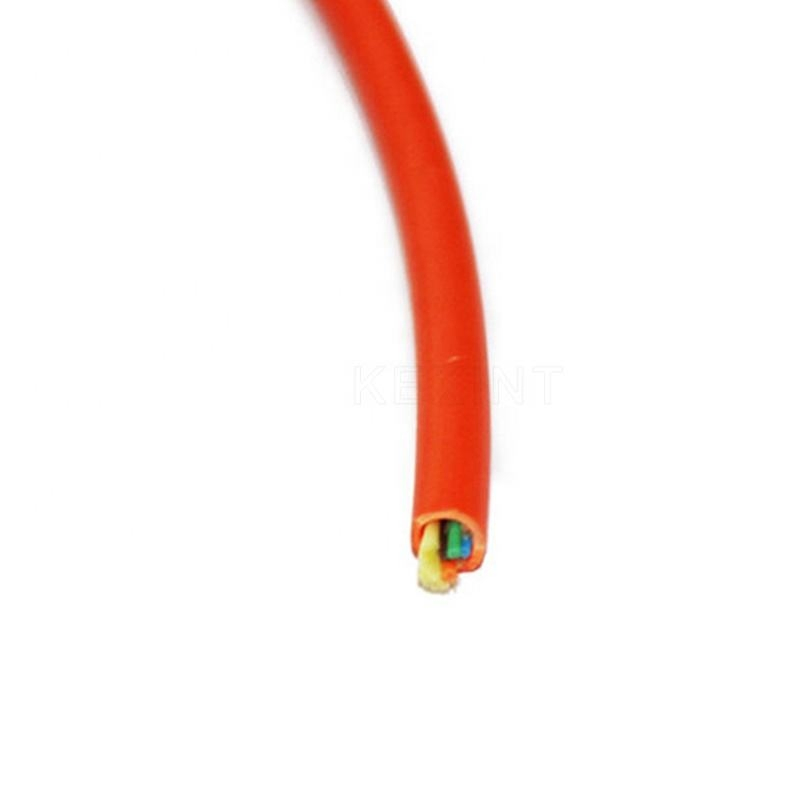

GJFJV Indoor Cable Optical Fiber Cable 1-24core Distribution Communication
GJFJV Indoor Cable Optical Fiber Cable 1-24core Distribution Communication
GJFJV Indoor Cable Optical Fiber Cable 1-24core Distribution Communication
GJFJV Indoor Cable Optical Fiber Cable 1-24core Distribution Communication
GJFJV Indoor Cable Optical Fiber Cable 1-24core Distribution Communication
1 / 5
GJFJV Indoor Cable Optical Fiber Cable 1-24core Distribution Communication
GJFJV Indoor Cable Optical Fiber Cable 1-24core Distribution Communication
GJFJV Indoor Cable Optical Fiber Cable 1-24core Distribution Communication
GJFJV Indoor Cable Optical Fiber Cable 1-24core Distribution Communication
GJFJV Indoor Cable Optical Fiber Cable 1-24core Distribution Communication

GJFJV Indoor Cable Optical Fiber Cable 1-24core Distribution Communication

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Overview & Basic Info
Model NO.
GJFJV
Material Shape
Round Wire
Lateral Pressure
>1000(N/100mm)
Tensile Strength
>10000N
Core
Single Core
Certification
RoHS, CE, ISO9001
Sheath Material
PVC, LSZH
Operating Temp
-40℃~85℃
Fiber Count
4/6/8/12 Cores
Fiber Type
G652D/G657A1/G657A2/Om1-Om4
Packaging & Delivery
Package Size
30.00cm * 30.00cm * 30.00cm
Gross Weight
4.000kg

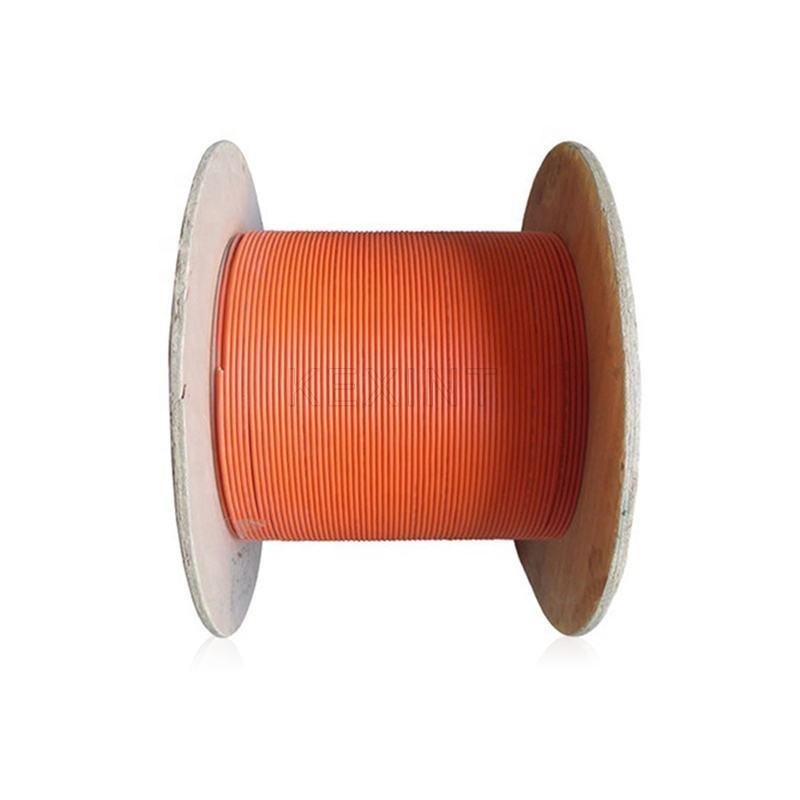

Transport Package
Wooden-Drum
Product Description

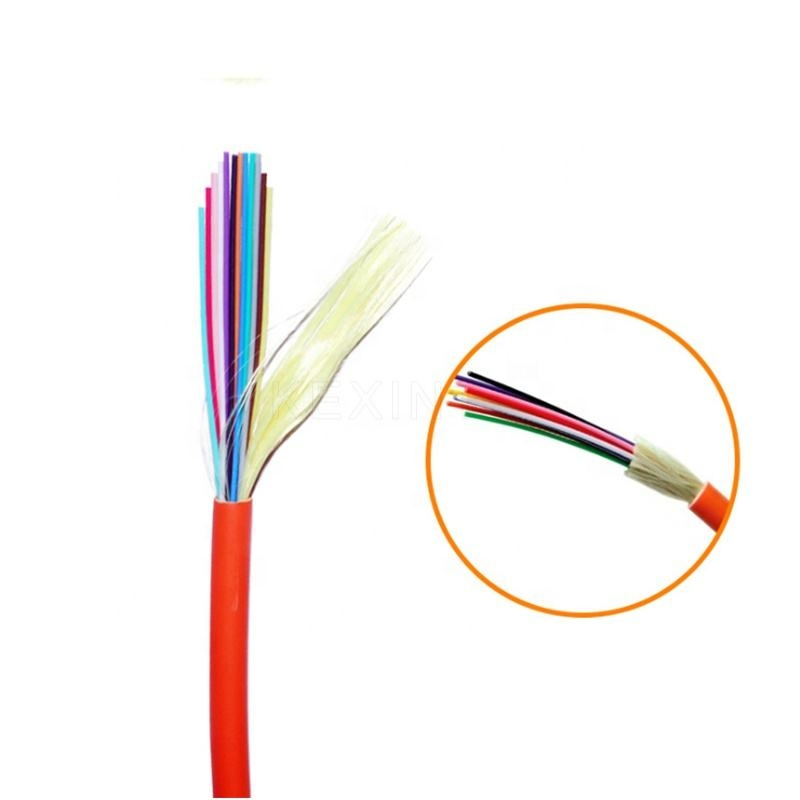

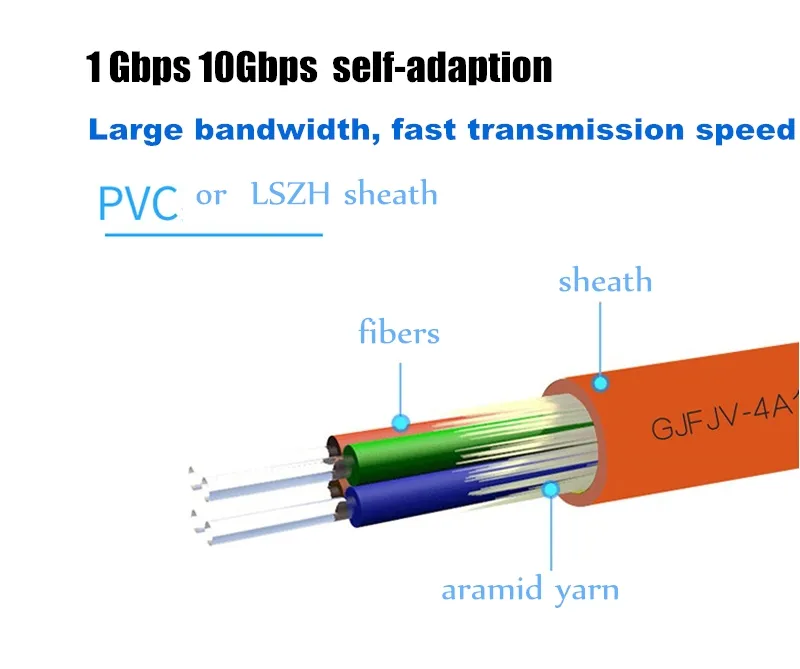

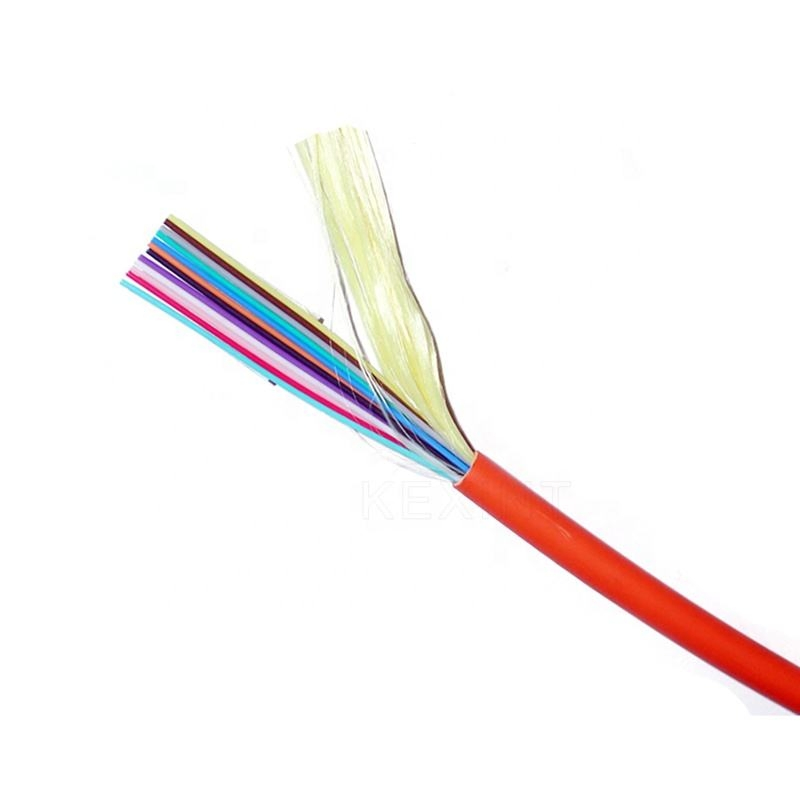

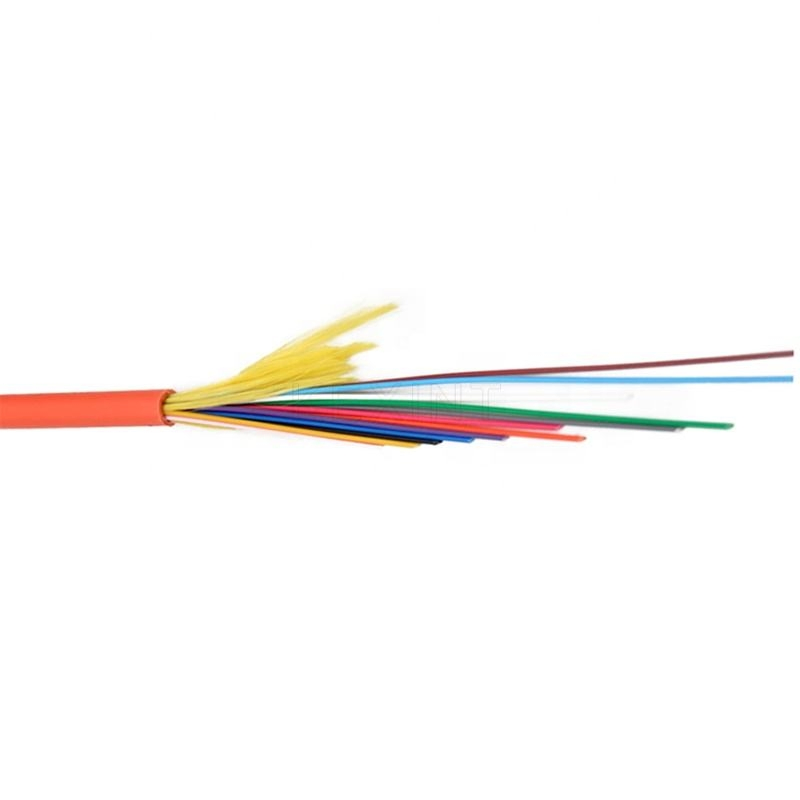

GJFJV indoor fiber optic cable is made by evenly applying strands of Aramid yarns or High strength glass yarns as the strength member over 900μm or 600μm tight buffer fibers and then is completed with PVC(LSZH) jacket.
Key Features
  • Small diameter, light weight, flame retardant, excellent strippability
  • Low-attenuation, High flexibility
  • No need for transition connector box or pigtail between tight buffer fiber and cable
  • Soft, flexible, and easy to do stripping, splicing, and cabling
  • Good mechanical and environmental characteristics
  • Kevlar yarn material ensures a good performance of tensile strength
  • 900µm tight buffer protects the fiber well
Applications
  • Suitable for Indoor distribution
  • Pigtail jumper, patch cord production
  • Optical connection of communication equipment
  • Floor installation, maintenance friendly
GJFJV Indoor Cable
Fiber Distribution
Technical Specification
No. Items Unit Specification (G.652D)
1 Mode Field Diameter (1310/1550nm) μm 9.2±0.4 / 10.4±0.5
2 Cladding Diameter μm 124.8±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter μm 245±5
6 Cladding-Coating Concentricity Error μm ≤12.0
7 Cable Cutoff Wavelength nm λcc≤1260
8 Attenuation (max.) 1310/1550nm dB/km ≤0.4 / ≤0.3
Production Display

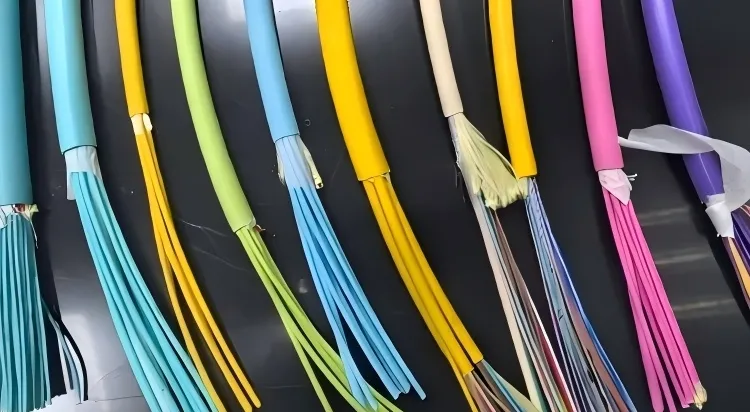

Production Line
Equipment 1
Equipment 2
Testing
Material Control
Stock
Quality Check
Frequently Asked Questions
Q1: What is the main application for GJFJV fiber optic cable?
It is primarily designed for indoor distribution, making patch cords, pigtails, and connecting communication equipment.
Q2: Does the cable support different fiber types?
Yes, it supports various fiber types including Single Mode (G652D, G657A1, G657A2) and Multi-Mode (OM1, OM2, OM3, OM4).
Q3: What jacket materials are available for this cable?
The outer jacket is available in PVC or LSZH (Low Smoke Zero Halogen) to meet different fire safety requirements.
Q4: Is the cable easy to install in tight spaces?
Absolutely. Its small diameter, lightweight design, and high flexibility make it ideal for floor installations and indoor wiring.
Q5: What provides the tensile strength in GJFJV cables?
The cable uses high-strength Aramid yarns (Kevlar) as the primary strength member to ensure excellent tensile performance.
