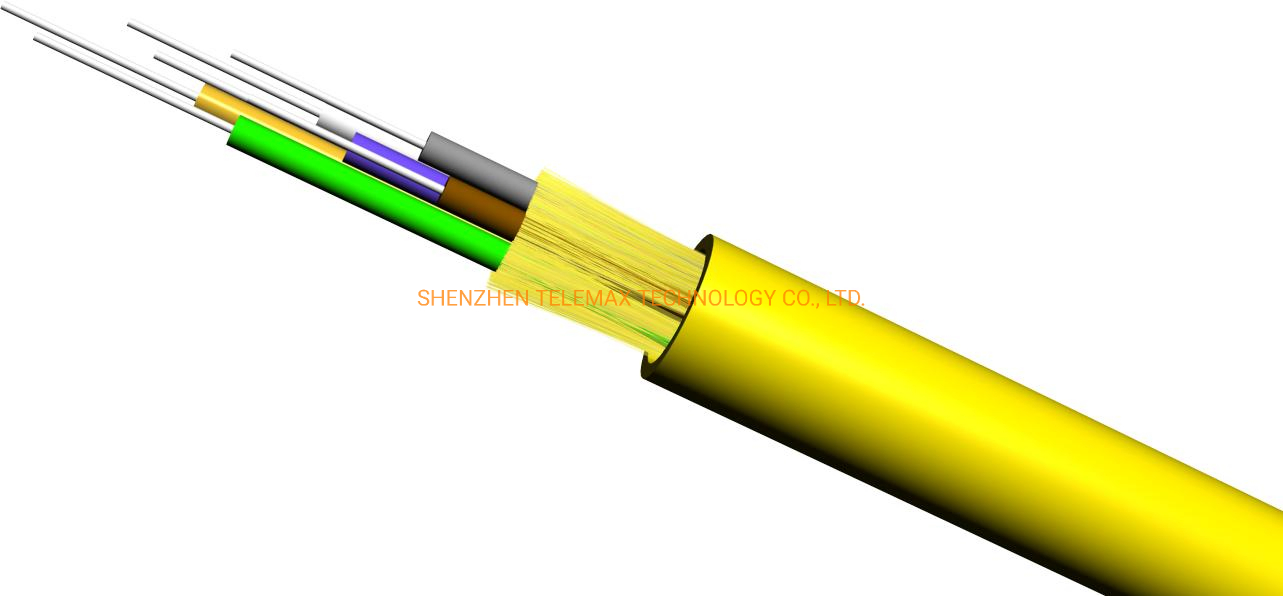

Gjpfjv Distribution Optical Fiber Cable 12 Core Fiber Optic Cable with Tight Buffered Fiber

📋

Basic Information

Model NO.:TM06MMGJFJV0024

Connection Structure:Pigtail

Material Shape:Round Wire

Lateral Pressure:100(N/100mm) < 1000(N/100mm)

Tensile Strength:100N < 1000N

Core Count:2core ~ 288core

Certification:RoHS, CE, ISO9001

Brand:OEM

Sheath Material:PVC or LSZH

Specification:6.3mm

Short Tension:400N

Cable Type:GJFJV

Customized:Available

Transport Package:Wooden Package

Origin:Made in China

HS Code:8544700000

⚙️

Technical Parameters - Single Mode Fiber

Item	Technology Parameter
Cable type	GJFJV
Product specification	6.3mm
The color of tight layer	blue,orange,green,brown,gray,white,red,black,yellow,violet,pink,aqua
The material of tight layer	PVC
The OD of tight fiber (mm)	0.85±0.05
Fiber specification	9/125
Aramid yarns	1580dtex × 14 thread
Thickness of sheath (mm)	0.90±0.1
The color the sheath	yellow
The material of sheath	PVC
The OD of sheath (mm)	6.3(±0.2)
The cable weight (Kg/km)	32.7
Minimum bending radius (mm)	10D
Attenuation (dB/km)	<= 0.4 at 1310nm, <= 0.3 at 1550nm
Short tension (N)	400
Short crush (N/100mm)	1000
Using temperature (ºC)	-20 ~ 70

📊

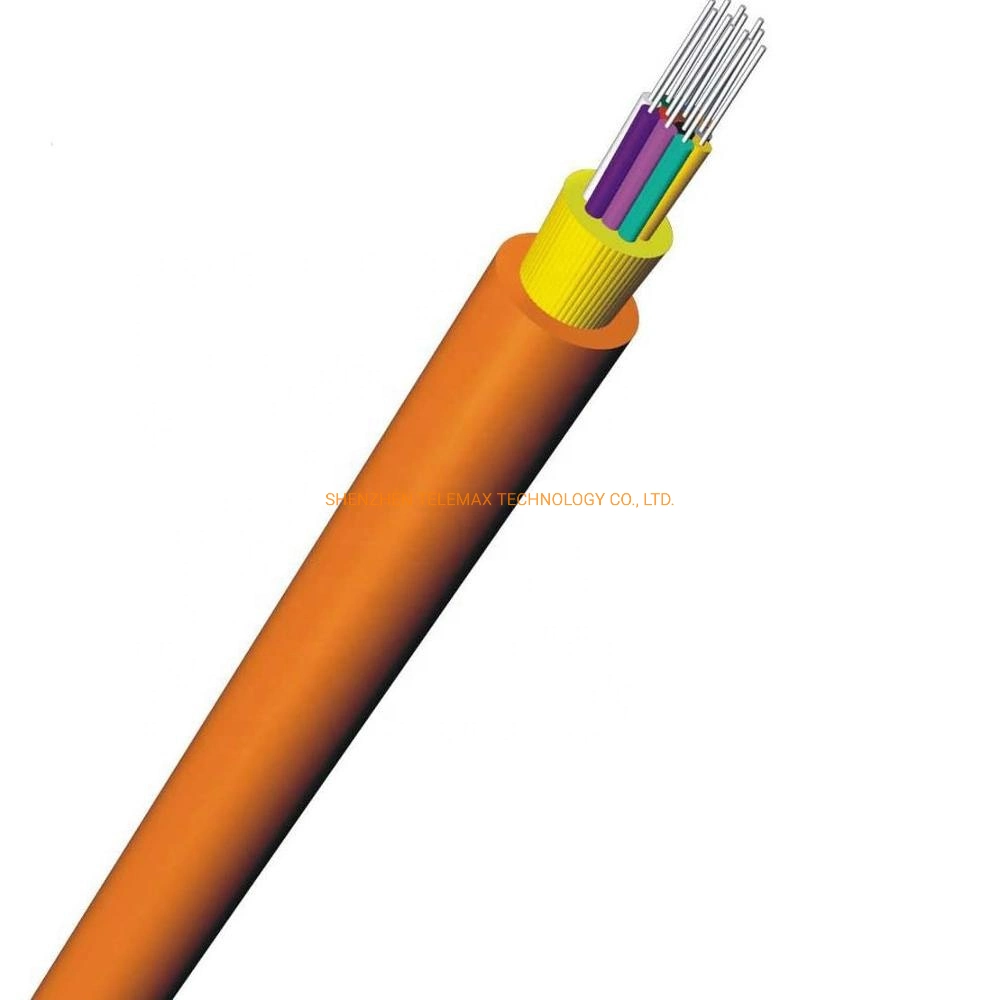

Technical Parameters - Multi Mode Fiber

Item	Technology Parameter
Cable type	GJFJV
Product specification	6.3mm
The color of tight layer	blue,orange,green,brown,gray,white,red,black,yellow,violet,pink,aqua
The material of tight layer	PVC
The OD of tight fiber (mm)	0.85±0.05
Fiber specification	50/125
Aramid yarns	1580dtex × 14 thread
Thickness of sheath (mm)	0.90±0.1
The color the sheath	orange
The material of sheath	PVC
The OD of sheath (mm)	6.3(±0.2)
The cable weight (Kg/km)	32.7
Minimum bending radius (mm)	10D
Attenuation (dB/km)	<= 0.4 at 850nm, <= 0.3 at 1300nm
Short tension (N)	400
Short crush (N/100mm)	1000
Using temperature (ºC)	-20 ~ 70

📝

Specific Requirements

1.Fiber count: 6/8/12/24/48

2.Fiber characteristic: OD 242±10um

3.Characteristic of tight buffered: OD 0.87±0.05mm

4.Thickness of buffered jacket: 0.31±0.02mm

5.24 CORE Buffered Color: blue/orange/green/brown/grey/white/red/black/yellow/purple/pink/aqua (With dashed options available)

6.48 CORE Buffered Color: Multi-layer dashed coding (dashed 1, 2, and 3)

7.Round strength member: Aramid yarn

8.Outer jacket: PVC/LSZH

📦

Package and Shipping Mark

Optical Cable Printing (White color at each meter):

✓Meter mark

✓Style of optical cable and fiber count

✓Manufacturer identification and date

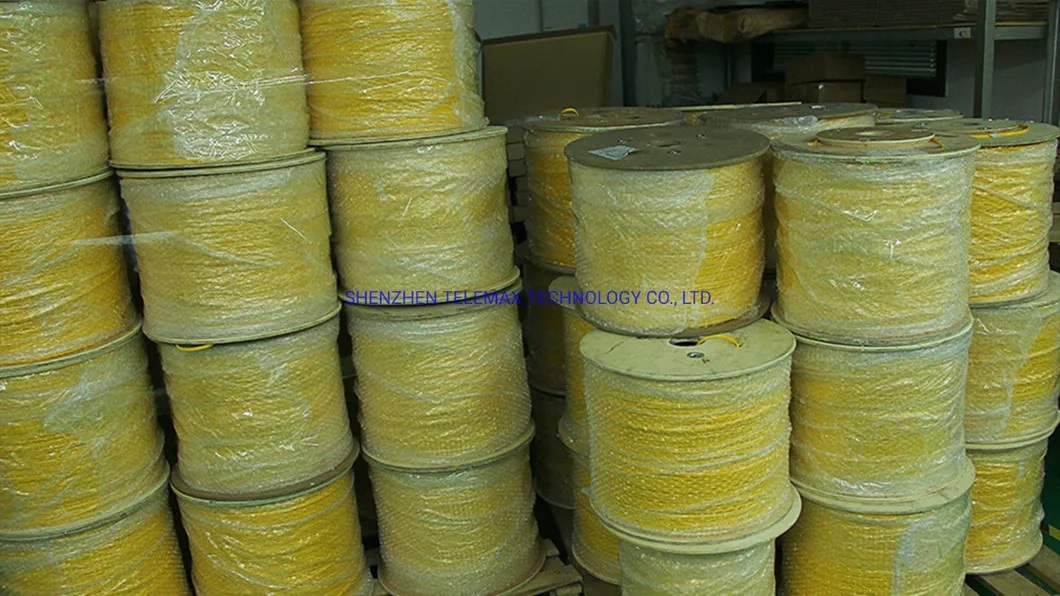

Package Standards:

✓Standard length: 1KM (customizable)

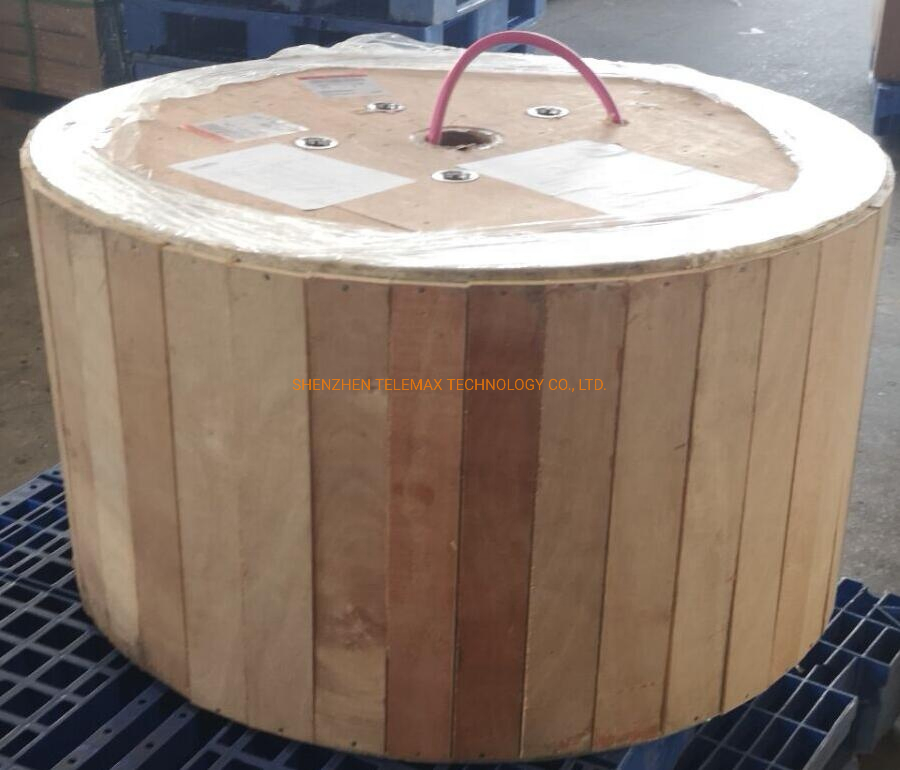

✓Packed in wooden drum or plywood drum

✓Labels include: Fiber count, Length, Gross weight (KGS), Drum amount, and Date

❓

Frequently Asked Questions (FAQ)

What is the core range available for GJFJV cables?

The GJFJV distribution optical fiber cable supports a wide range of core counts, from 2 cores up to 288 cores, making it suitable for various installation scales.

What are the temperature limitations for this cable?

The cable is designed to operate reliably within a temperature range of -20ºC to 70ºC.

Can I choose between Single Mode and Multi Mode fiber?

Yes, technical parameters are provided for both Single Mode (9/125) and Multi Mode (50/125) fiber types to meet different transmission requirements.

What materials are used for the outer sheath?

The standard outer sheath material is either PVC or LSZH (Low Smoke Zero Halogen), providing flexibility based on safety and environmental needs.

What is the standard packaging and delivery length?

The standard length is 1KM per wooden drum. However, other lengths can be negotiated based on specific project requirements.

Is the cable customized for specific color coding?

Yes, the tight buffered layers come in 12 standard colors (blue, orange, green, etc.), and for higher core counts like 24 or 48, dashed coding is available for easy identification.
