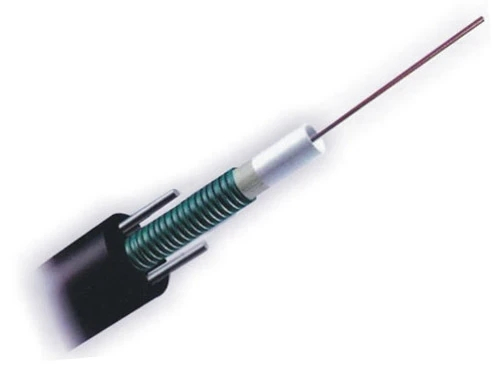

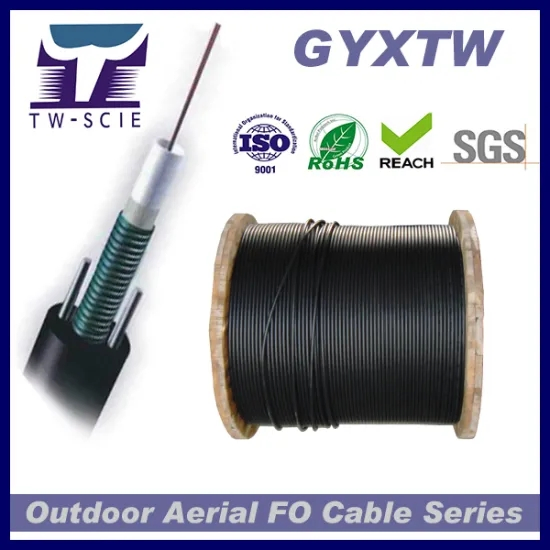

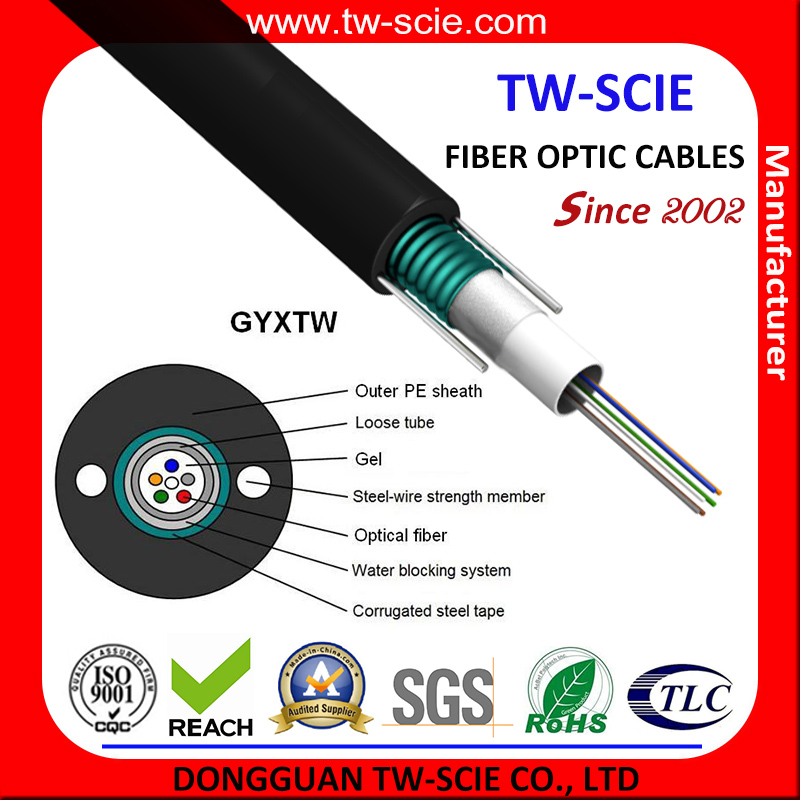

Central Loose Tube Outdoor Fiber Optic Cable GYXTW with High End Quality 12/24 Core
Central Loose Tube Outdoor Fiber Optic Cable GYXTW with High End Quality 12/24 Core
Central Loose Tube Outdoor Fiber Optic Cable GYXTW with High End Quality 12/24 Core
Central Loose Tube Outdoor Fiber Optic Cable GYXTW with High End Quality 12/24 Core
1 / 4
Central Loose Tube Outdoor Fiber Optic Cable GYXTW with High End Quality 12/24 Core
Central Loose Tube Outdoor Fiber Optic Cable GYXTW with High End Quality 12/24 Core
Central Loose Tube Outdoor Fiber Optic Cable GYXTW with High End Quality 12/24 Core
Central Loose Tube Outdoor Fiber Optic Cable GYXTW with High End Quality 12/24 Core

Central Loose Tube Outdoor Fiber Optic Cable GYXTW with High End Quality 12/24 Core

Send Inquiry

Product Description

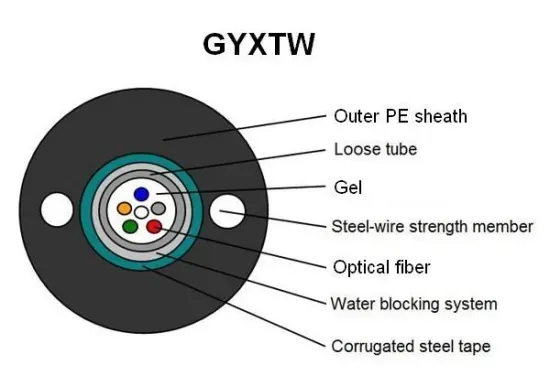

GYXTW Fiber Optic Cable
Outdoor Fiber Optic Cable Detail

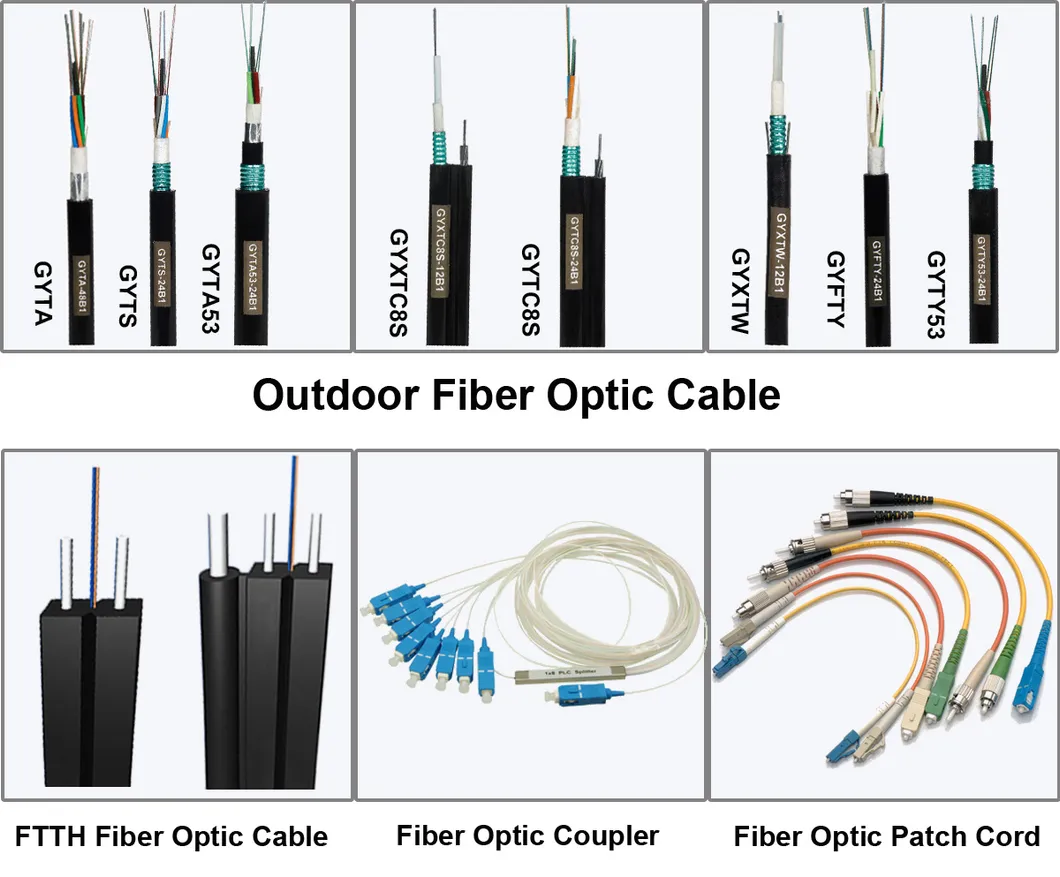

Fiber Optic Product Series

Central Loose Tube Outdoor Fiber Optic Cable (GYXTW)

The GYXTW outdoor fiber optic cable is designed with high-end quality for demanding environments. It features a central loose tube construction, ensuring optimal protection for 12 to 24 core fibers.

Applications
Suitable for ducts, aerial installations, and local area network systems.
Communication
Ideal for long-distance communication and subscriber network systems.

Technical Specifications & Structure

Moisture Protection
Single jelly compound filled loose tube and waterproof tape provide an excellent water-proof layer.
Mechanical Strength
Equipped with double-sided PE corrugated steel tape armor and parallel double steel wire as strength members.
Compact Design
Features a compact structure, light weight, and good moisture resistance.

Technical Data Table

Fiber Num. Outer Diameter (mm) Weight (kg/km) Min. Bending Radius (mm) Tension (N) Crash Loading (N/100mm)
Static Dynamic Short term Long term Short term Long term
2-12 8.9 90 10 times O.D. 20 times O.D. 1500 600 1000 300
14-24 10.2 110

Packaging & Shipping

With over 10 years of international exporting experience, we ensure firm packing and professional shipping arrangements. Our services include securing the package for long-distance transit and coordinating with top shipping companies to provide the best delivery solutions.

Industry Applications

Our products, including optical media converters, transceivers, and distribution frames, are widely utilized across various sectors:

  • Telecom
  • Electric Power
  • Railway
  • Global Export (France, India, Singapore, Malaysia)

Frequently Asked Questions

What is the primary use of GYXTW fiber optic cable?
GYXTW is an outdoor fiber optic cable primarily used for duct and aerial applications in long-distance communication and local area networks.
How many fiber cores can this cable accommodate?
This cable structure supports between 2 and 24 fibers within a single central loose tube.
What provides the moisture and water protection in this cable?
The cable uses a combination of a jelly compound in the loose tube and waterproof tape between the steel tape and the tube to ensure superior moisture resistance.
Is the GYXTW cable armored?
Yes, it features double-sided PE corrugated steel tape armor and parallel double steel wires for enhanced mechanical strength and crush resistance.
What is the bending radius for these cables?
The static bending radius is 10 times the Outer Diameter (O.D.), and the dynamic bending radius is 20 times the O.D.
What is the tension capacity of the cable?
The cable supports a short-term tension of up to 1500N and a long-term tension of 600N.
