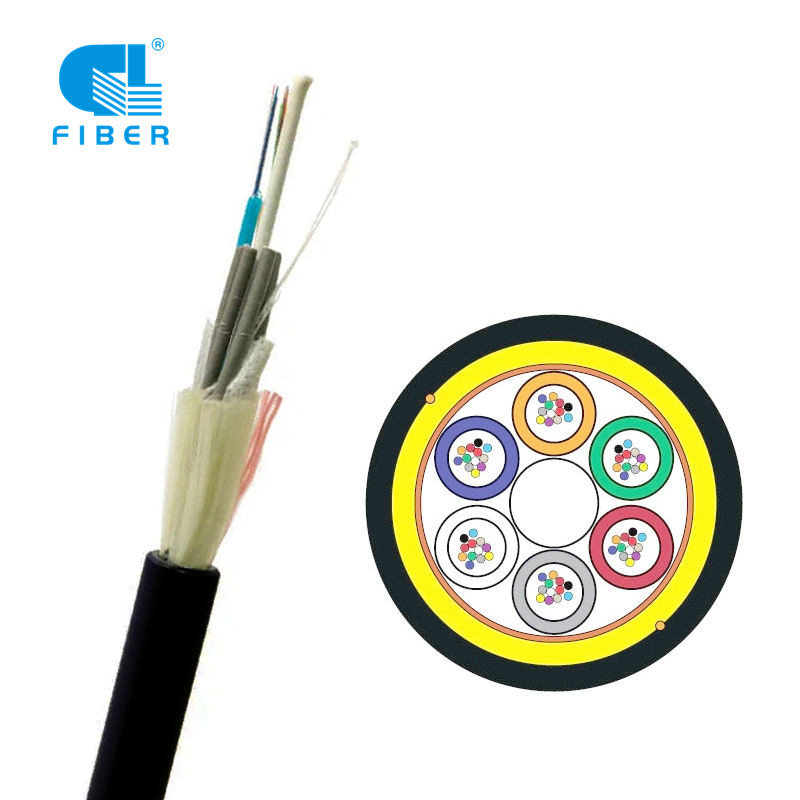

Description: Anti-rodent fiber optic cable designed with physical anti-rodent measures. Single-mode/multimode fibers are housed in loose tubes made of high-modulus plastic. The tubes are stranded around a central strength member (FRP) to form a cable core, filled with cable filling compound. An inner LSZH sheath is extruded and armored with glass yarn for superior protection, followed by a UV-resistant LSZH outer sheath.
Application: Ideal for backbone optical networks, Aerial self-supporting construction, ducts, and direct buried installations.
| Item | Parameters | Specifications |
|---|---|---|
| Optical Cable Core | 4 Tube * 6 Core | |
| Fiber Color | Blue, Orange, Green, Brown, Gray, White, Red, Black, etc. | |
| Loose Tube | Diameter | 2.0 ± 0.1mm |
| Material | High-modulus Plastic | |
| Strength Member | FRP | 2.0 ± 0.1mm |
| Inner Jacket | LSZH | 0.8 ± 0.1mm |
| Armor Layer | Glass Yarn | Anti-rodent protection |
| Outer Jacket | LSZH (UV) | 1.7 ± 0.1mm |
| Cable Diameter | Nominal | 12.2 ± 0.3mm |
| Cable Weight | Kg/KM | 125 ± 5% |
| Bending Radius | Static / Dynamic | 10D / 20D |
