XT Cabled
1 / 5

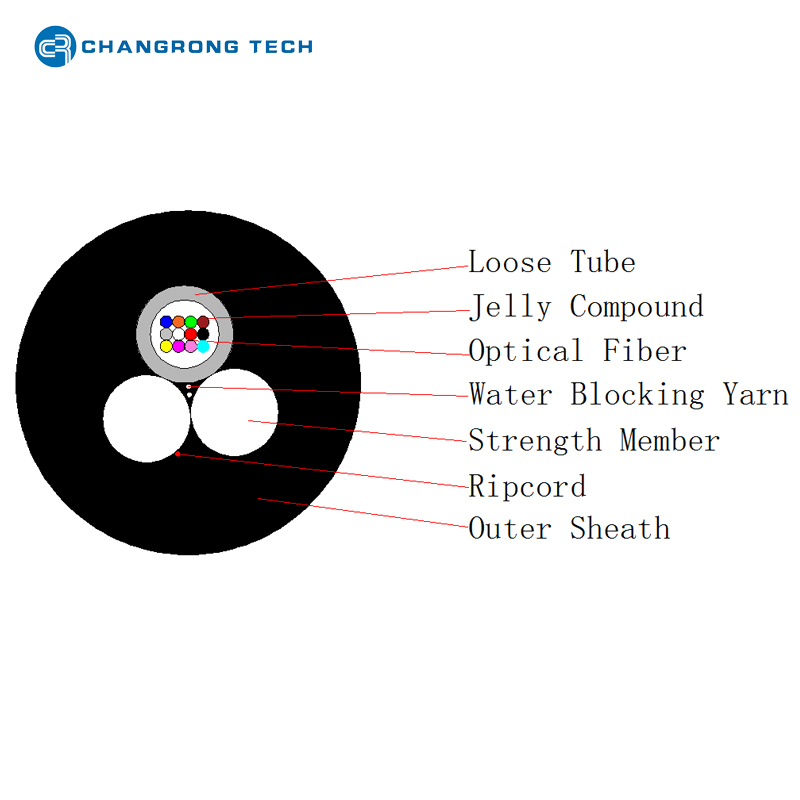

The fibers are positioned in a loose tube made of high modulus plastic and filled with gel. The tube and two FRPs are SZ stranded. The cable core is filled with water blocking yarn. Finally, PE outer jacket or AT outer jacket is completed. One ripcord is applied in the jacket to make the striping easily.
| Counts | 1-12 | 24 | ||
| Span | 80 M | 120M | 80 M | 120M |
| Cable Diameter(mm) | 6.6 | 7.6 | 7.5 | 8.2 |
| Weight(Kg/km) | 45 | 62 | 52 | 65 |
| Tensile Strength(N) | 1500N | 2000N | 1500N | 2000N |
| Crush Resistance | 2000N / 100mm | |||
| Bending Radius | Static/Dynamic: 10D/20D | |||
| Temperature (ºC) | Storage / Operation: -40ºC ~ 70ºC | |||
