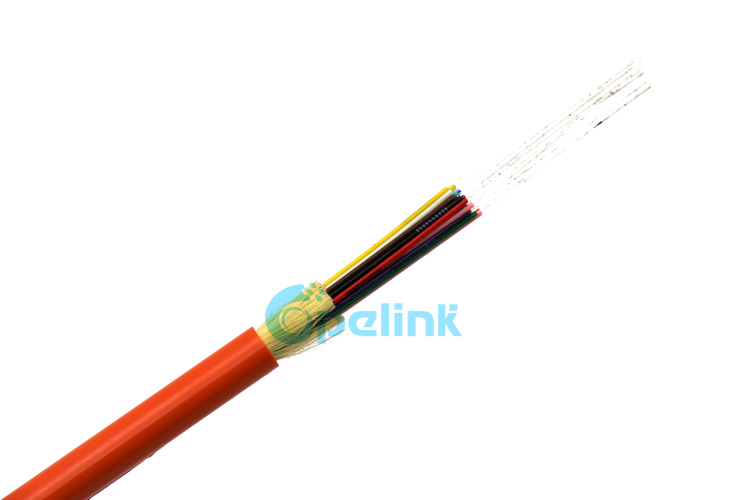

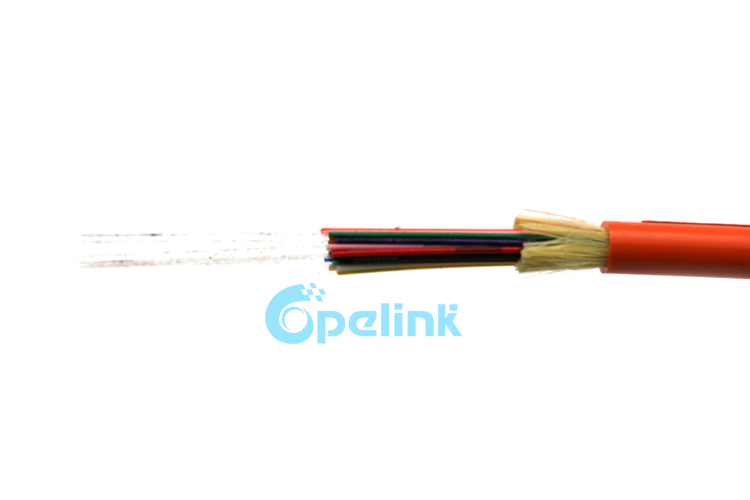

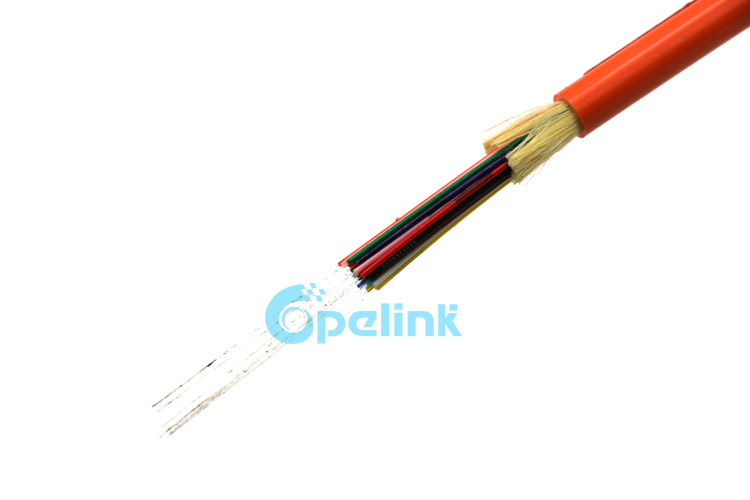

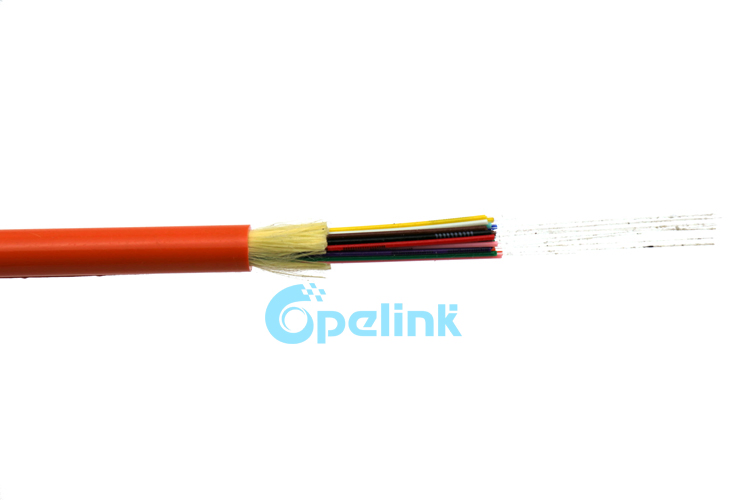

Factory Price Indoor Distribution Optical Fiber Cable with High Quality
Distribution Fiber Optic Cable belongs to Indoor optical Fiber cable, It is specially designed for indoor environmental application, and its requirements for flame retardant / fire proof / mouse proof / acid resistance are much higher than that of outdoor optical cable. Indoor optical cable is widely used in building backbone, indoor wiring and equipment interconnection system. The bending radius, core number and fire resistance of optical fiber cable are several important parameters. Our cables comply with Standard YD/T 1258.4.
- Indoor riser level and plenum level cabling
- Fiber Patchcord or pigtail production
- Interconnections between instruments and communication equipment
- Building backbone distribution

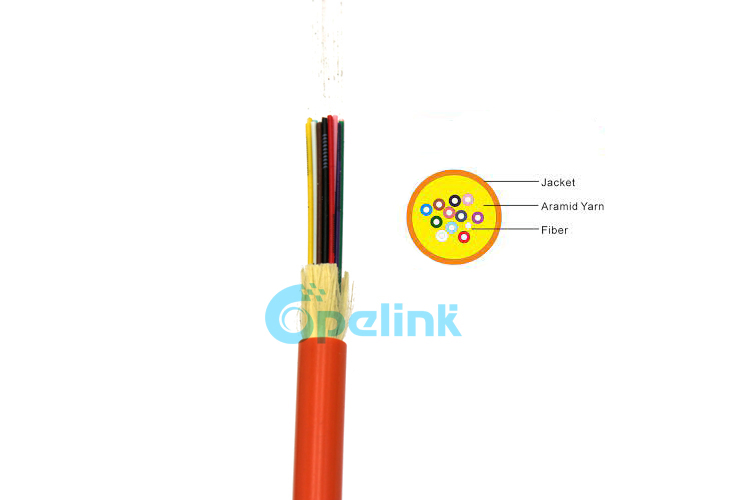

- Use of tight sleeve optical fiber, easy to peel and use
- Compact fiber with excellent flame retardant performance
- Aramid reinforced element for high tensile properties
- Corrosion resistance, water resistance, and UV protection
Mechanical Parameters
| Fiber Count |
Cable OD (mm) |
Cable Weight (kg/km) |
Tensile Strength (N) |
Crush Resistance (N/100mm) |
Bending Radius (mm) |
| PVC Jacket |
LSZH Jacket |
Long/Short Term |
Long/Short Term |
Static/Dynamic |
| 4 | 4.8±0.3 | 16 | 18 | 130/440 | 300/1000 | 20D/10D |
| 6 | 5.1±0.3 | 20 | 23 | 130/440 | 300/1000 | 20D/10D |
| 8 | 5.6±0.3 | 27 | 31 | 130/440 | 300/1000 | 20D/10D |
| 12 | 6.2±0.3 | 32 | 36 | 130/440 | 300/1000 | 20D/10D |
| 24 | 8.1±0.3 | 53 | 57 | 200/660 | 300/1000 | 20D/10D |
Frequently Asked Questions
Can I have a sample order for this distribution cable?
Yes, we welcome sample orders to test and check quality. The MOQ is 1 piece.
What is the typical lead time for production?
Samples typically take 3-5 days, while mass production orders generally require 1-2 weeks.
What are the available payment terms?
We usually accept T/T (Telegraphic Transfer) in advance and Western Union. Other methods can be negotiated.
How do you handle shipping and delivery times?
We ship via DHL, UPS, FedEx, or TNT (3-5 days). Air and sea freight options are also available for larger orders.
What is the warranty period for your fiber products?
We offer a 1-2 year warranty depending on the specific product type and application.
What happens if there is a quality issue with the batch?
If any defective products are found in a batch, we will provide replacement units to ensure your project stays on track.
