Loose Tube Double Jacket Fiber Stranded Optical Cable for Rural Broadband
Loose Tube Double Jacket Fiber Stranded Optical Cable for Rural Broadband
Loose Tube Double Jacket Fiber Stranded Optical Cable for Rural Broadband
Loose Tube Double Jacket Fiber Stranded Optical Cable for Rural Broadband
Loose Tube Double Jacket Fiber Stranded Optical Cable for Rural Broadband
1 / 5
Loose Tube Double Jacket Fiber Stranded Optical Cable for Rural Broadband
Loose Tube Double Jacket Fiber Stranded Optical Cable for Rural Broadband
Loose Tube Double Jacket Fiber Stranded Optical Cable for Rural Broadband
Loose Tube Double Jacket Fiber Stranded Optical Cable for Rural Broadband
Loose Tube Double Jacket Fiber Stranded Optical Cable for Rural Broadband

Loose Tube Double Jacket Fiber Stranded Optical Cable for Rural Broadband

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
GYTA 53
Connection Structure
Loose Tube Stranded Armoured
Material Shape
Round Wire
Allowed Lateral Pressure
>1000(N/100mm)
Allowed Tensile Strength
1000N<10000N
Core
Multicore
Certification
RoHS, ISO9001
Brand
OEM
Sheath Material
PE
Reference Standard
IEC 60794-3
Fiber Count
36/48/72/96/144/288
Installation Method
Direct Buried/Underground Duct
Product Description

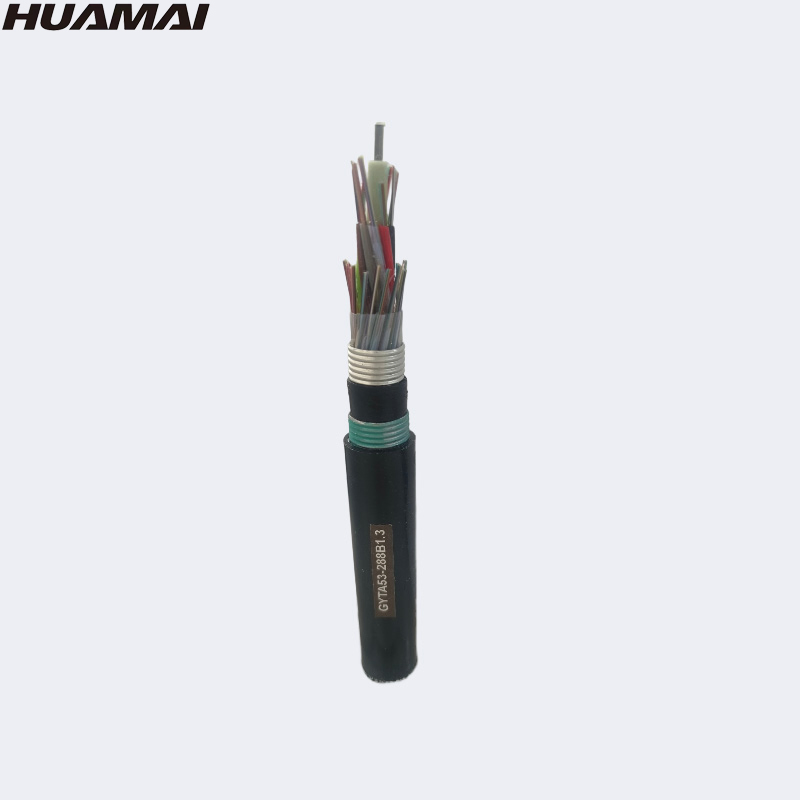

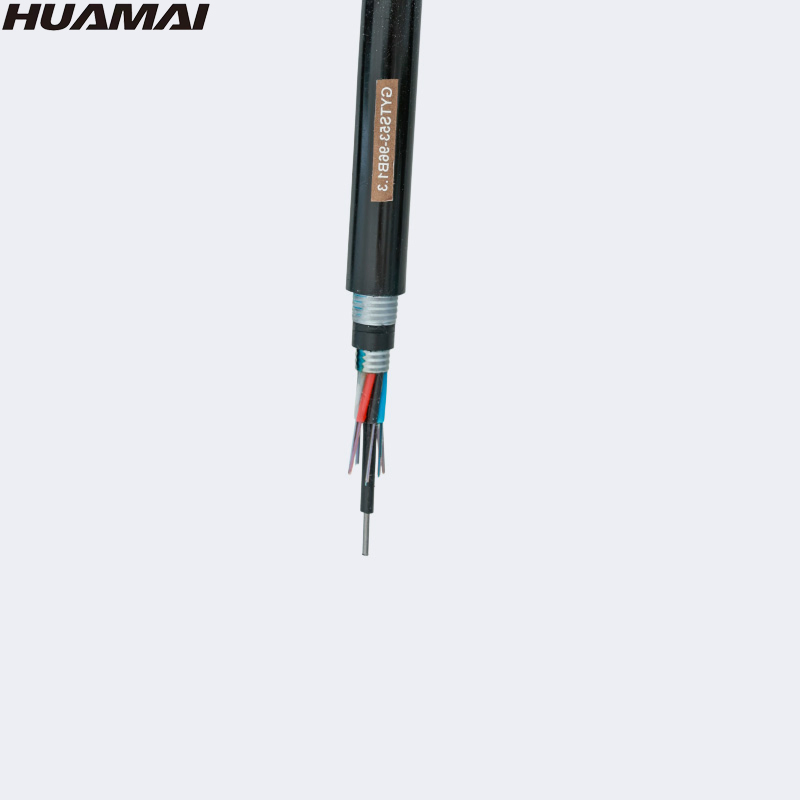

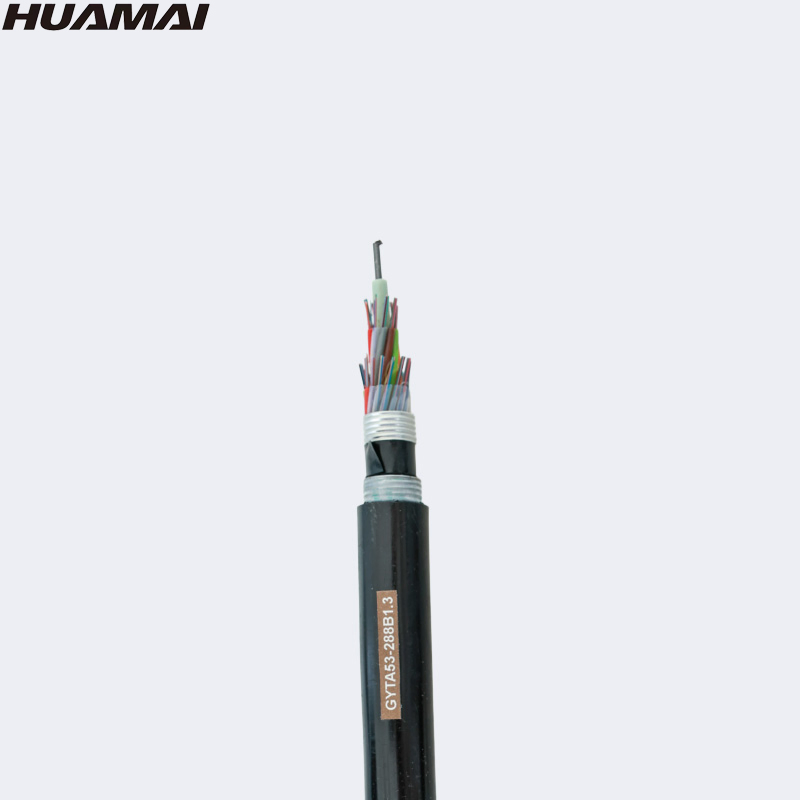

Loose tube stranded armoured double jacket optical cable

Metal core, loose tube stranded filling, double metal tape armor, double polyethylene sheath

Optical Cable Overview
✓
Standard Compliance: Built according to IEC 60794-3 reference standards.
✓
Robust Protection: The cable core is armored with metal tape outside, providing superior physical protection.
✓
Waterproofing: Fully filled with waterproofing material for effective prevention of longitudinal water seepage.

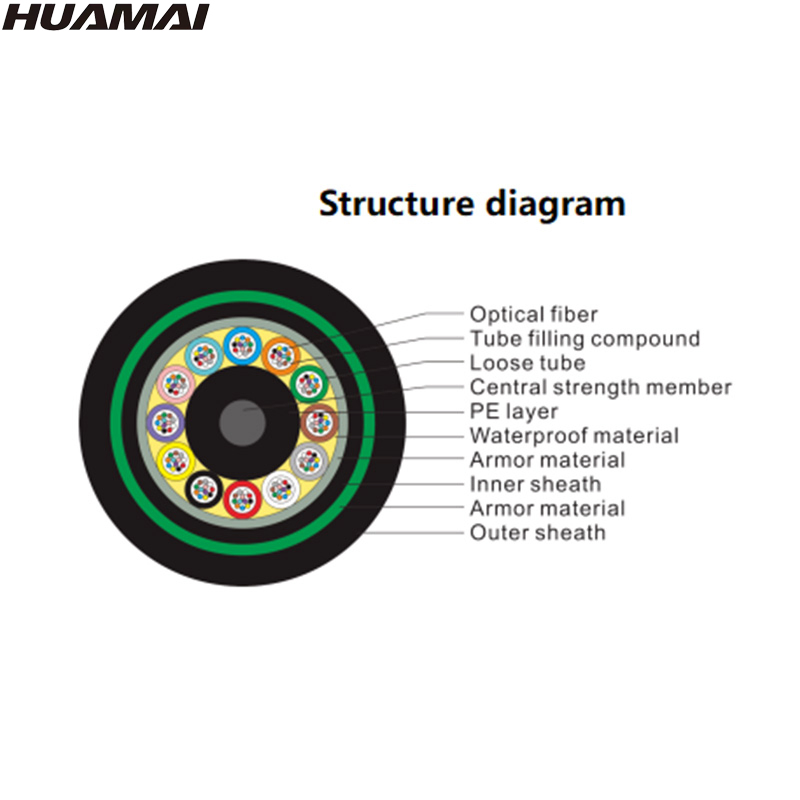

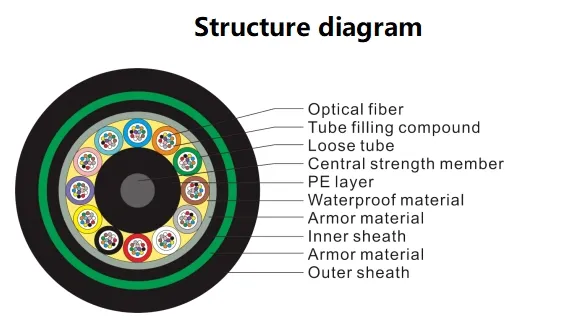

Cable Cross Section

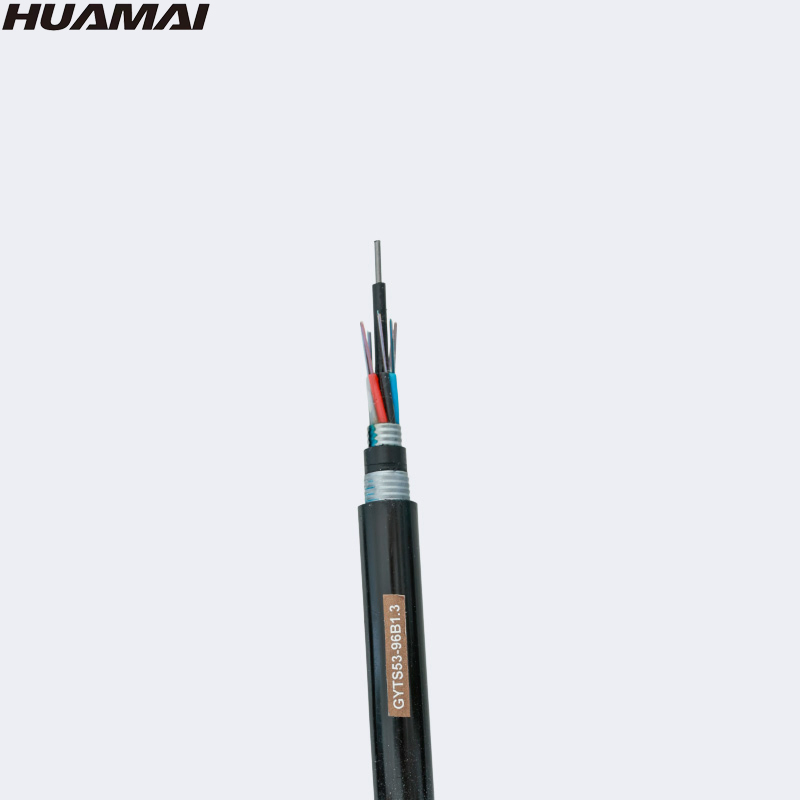

Cable Structure Detail
Technical Specifications
Fiber Count Tensile Strength (N) Crush Resistance (N/100mm) Min. Bend Radius (mm) Nominal Dia. (mm) Nominal Weight (kg/km)
Short Term Long Term Short Term Long Term Dynamic Static
36300010003000100025D12.5D12.6160
48300010003000100025D12.5D13.4185
72300010003000100025D12.5D13.4185
96300010003000100025D12.5D14.9220
144300010003000100025D12.5D17.4290
288300010003000100025D12.5D19.6365
1. D refers to the diameter of optical cable; 2. Typical values may be adjusted according to actual conditions; 3. Customized designs available.
Manufacturing Excellence

Founded in 2018, our facility has been dedicated to the optical communication field for over 8 years. As a professional fiber optic cable manufacturer and direct source factory, we specialize in a full range of indoor and outdoor optical cables. We pride ourselves on meeting diverse customization needs with a solid industrial foundation.

Our marketing and service network serves various industries including municipal, railway, urban rail transit, and national oil and gas networks. We maintain stable relationships with major global operators and equipment vendors, exporting products to North America, Southeast Asia, and other international regions.

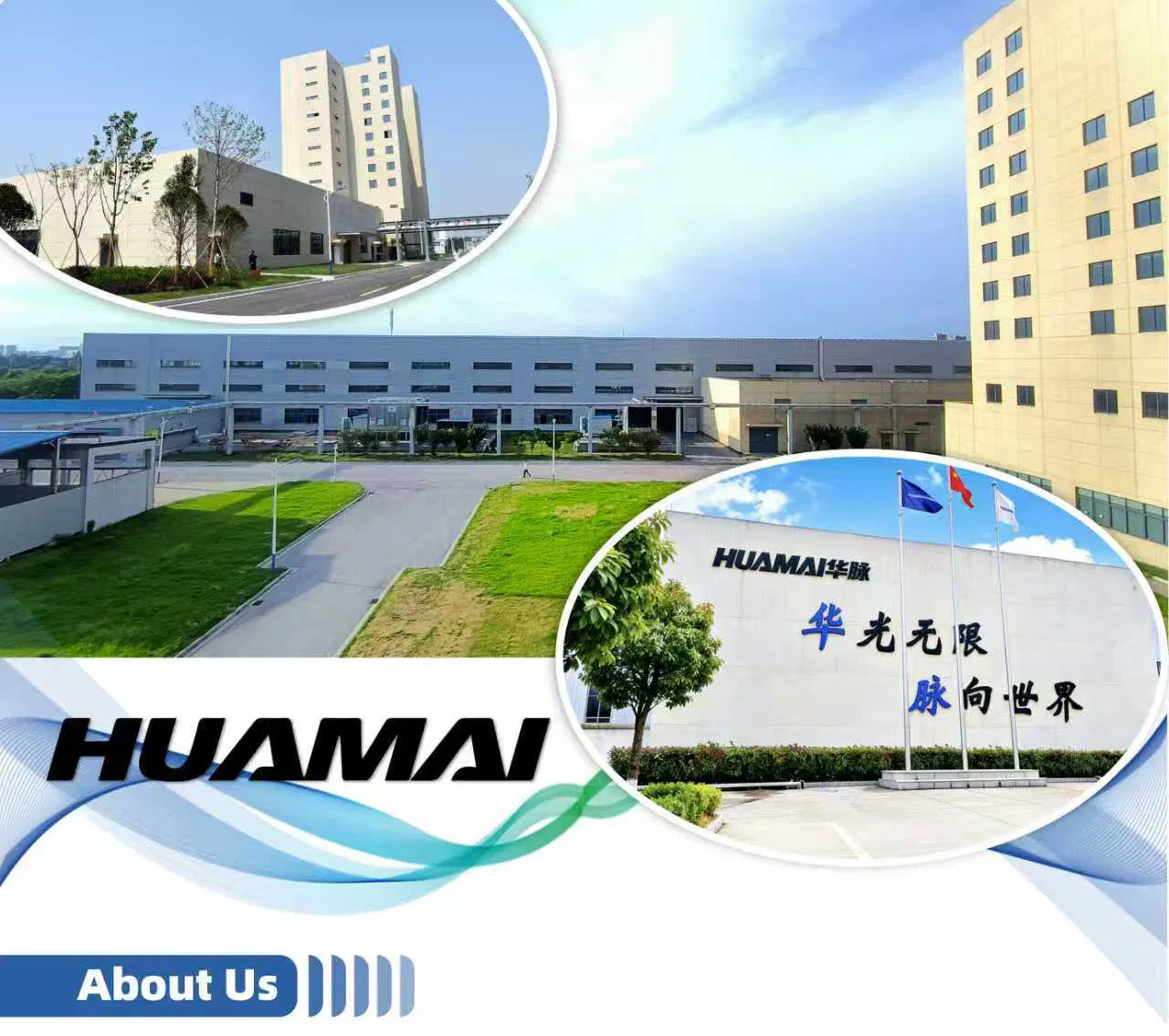

Factory View

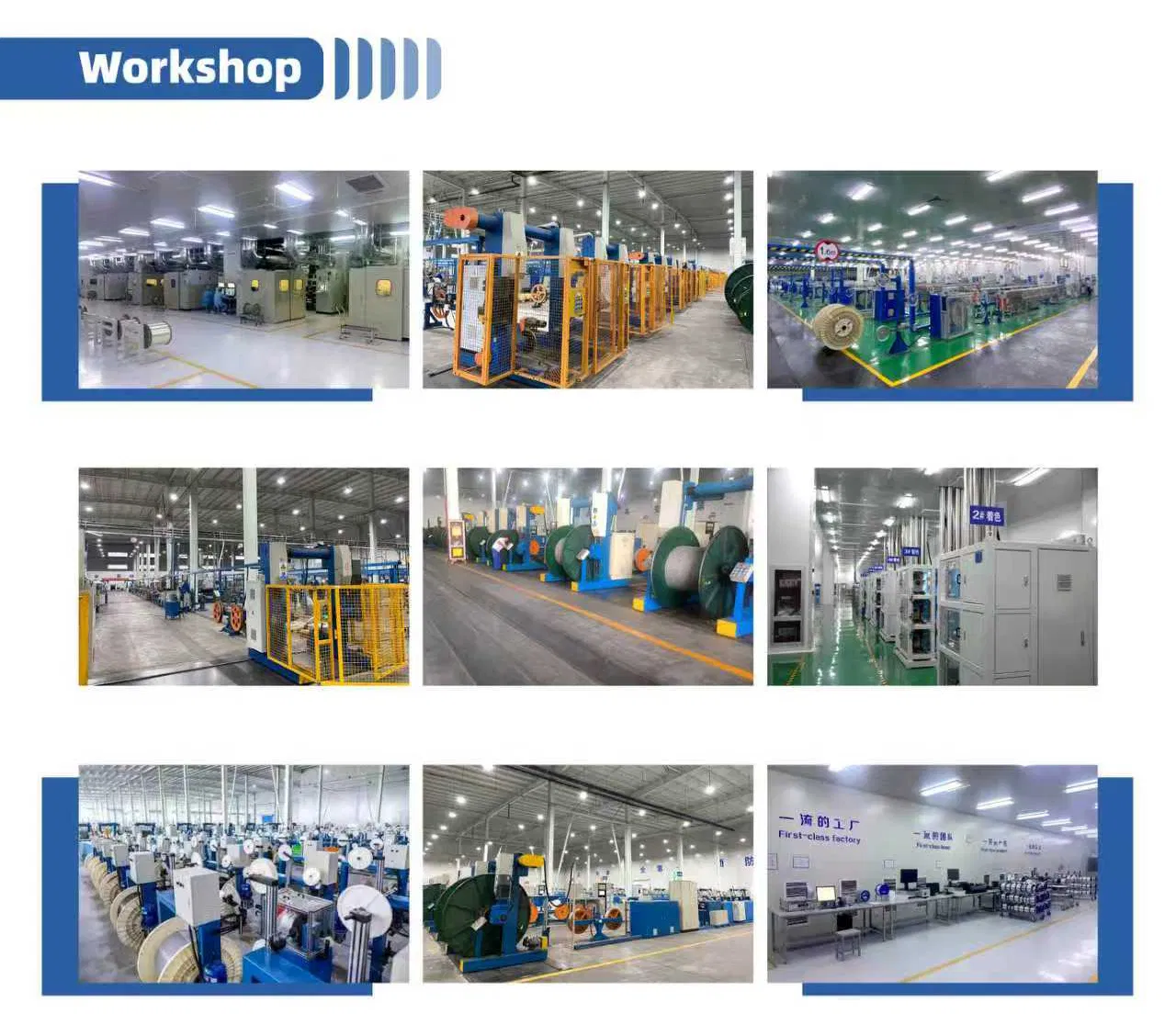

Production Line
Testing Lab
Quality Control

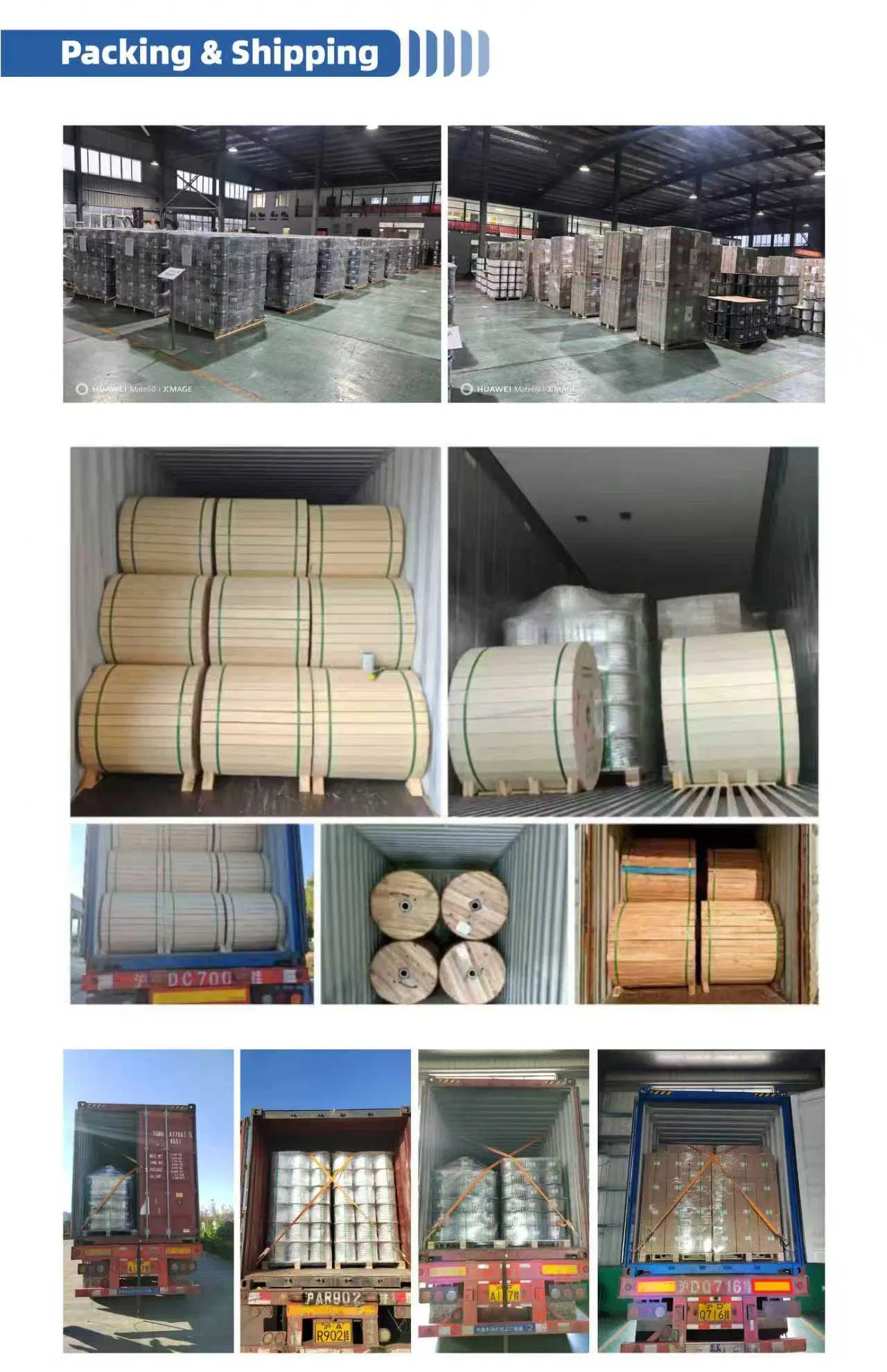

Warehouse
Frequently Asked Questions
How do you ensure quality control?
We implement 100% inspection and rigorous testing for all optical parameters before shipment.
Do you accept small orders?
Yes, we welcome small orders and are committed to supporting your business growth from any scale.
Can I order samples before placing a bulk order?
Absolutely. Samples are available for testing. A small sample fee is required, which is fully refunded upon bulk order confirmation.
What is the lead time for samples?
Sample production typically takes 7-15 days, including comprehensive quality testing. We can expedite urgent requests.
Do you offer customized products and logos?
Yes, we provide full OEM/ODM services. We can turn your specific designs or ideas into finished products.
Are your cables compliant with international standards?
Yes, our products are manufactured according to IEC 60794-3 standards and carry RoHS and ISO9001 certifications.
