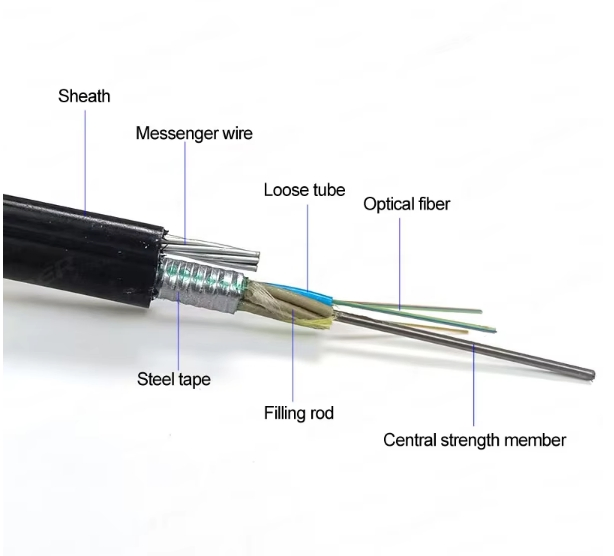

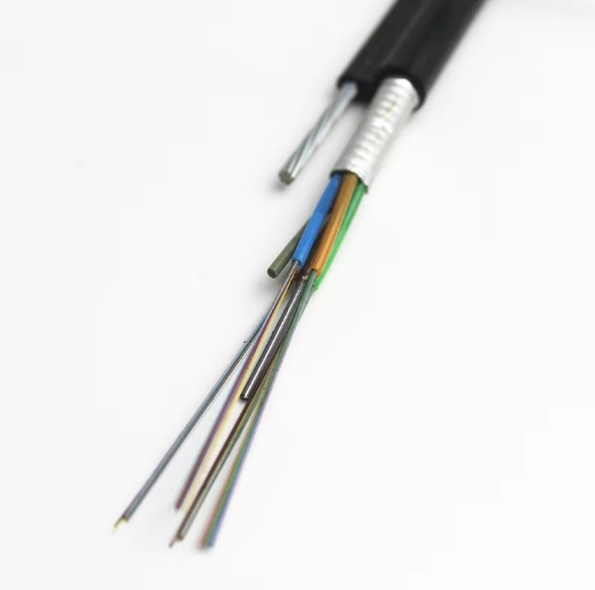

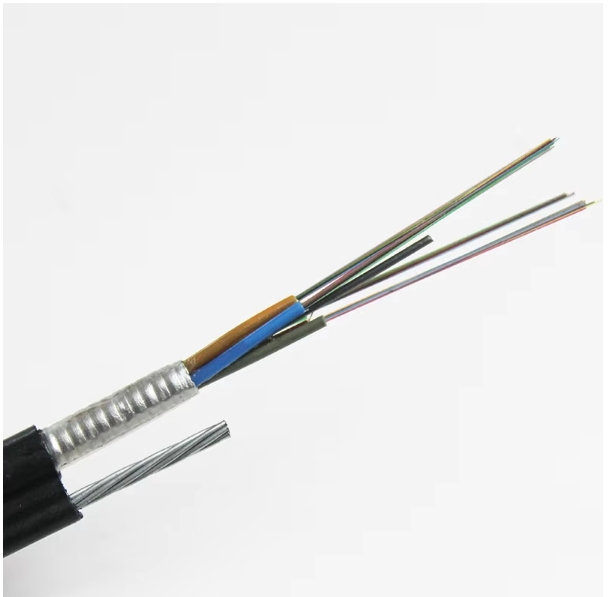

Mini Figure 8 Fiber Optic Cable 24-Core Central Loose Tube Single Mode

1 / 5

Mini Figure 8 Fiber Optic Cable 24-Core Central Loose Tube Single Mode

Customization:	Available
Application:	Communication, Telecommunication
Type:	Single-mode Fiber

Send Inquiry

Product Description

Basic Information

Model NO.GYXTC8S

Material ShapeFigure 8

Allowed Lateral Pressure100-1000(N/100mm)

Allowed Tensile Strength100N-1000N

Core TypeMulticore

CertificationRoHS, CE, ISO9001, CCC

Sheath MaterialLSZH / HDPE / PE / PVC

Number of Conductors≥ 10

Fiber Count2-144 Cores

OD6.5*11mm

ColorBlack

Fiber OptionsG652D, G657A, G655, OM1-OM4

Warranty30 Years

Production Capacity20000 Rolls/Year

Product Description

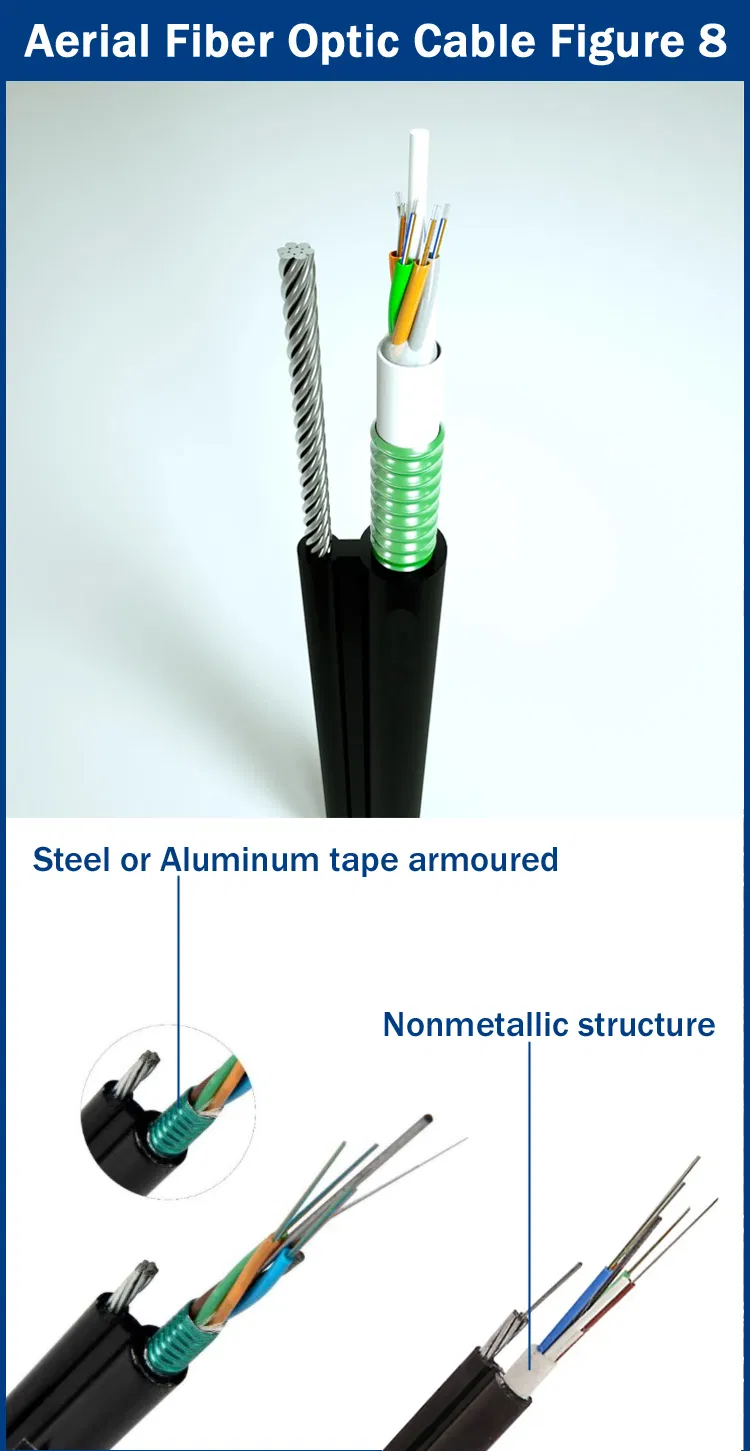

Figure 8 Aerial Fiber Optic Cable

Our Figure 8 Aerial Fiber Optic Cable is engineered for efficient and reliable outside plant (OSP) deployments. Its unique, self-supporting "figure 8" design integrates a robust messenger wire with the fiber optic unit into a single, cohesive cable. This construction eliminates the need for a separate lashing wire, significantly reducing installation time and labor costs.

Ideal for aerial applications such as Fiber-to-the-Home (FTTH) networks, backbone distribution, and long-span aerial links, this cable is built to withstand harsh environmental conditions, including wind, ice, and temperature variations.

Key Features & Benefits

Integrated Self-Supporting Design: High-strength steel or dielectric messenger allows for direct installation on poles.
Mechanical & Environmental Protection: Corrugated Steel Tape (CST) armor or PE sheath offers superior crush and UV resistance.
High Fiber Count: Available from 2 to 288 cores to meet diverse capacity requirements.
All-Dielectric Option: ADSS version available for installations near high-voltage lines.
Superior Performance: High-quality fibers guarantee low signal attenuation and high bandwidth.

Technical Specification

Category	Parameter	Specification / Value
Optical Characteristics	Fiber Type	Single-Mode (G.652.D) / Multimode (OM1-OM4)
Attenuation (SM)	Typical Value	≤ 0.36 dB/km @ 1310 nm; ≤ 0.22 dB/km @ 1550 nm
Mechanical	Tensile Strength	600 N / 1500 N (Long-term/Installation)
Mechanical	Crush Resistance	≥ 1000 N/cm
Environmental	Operating Temp	-40°C to +70°C
Construction	Sheath Material	Black Medium-Density Polyethylene (MDPE)

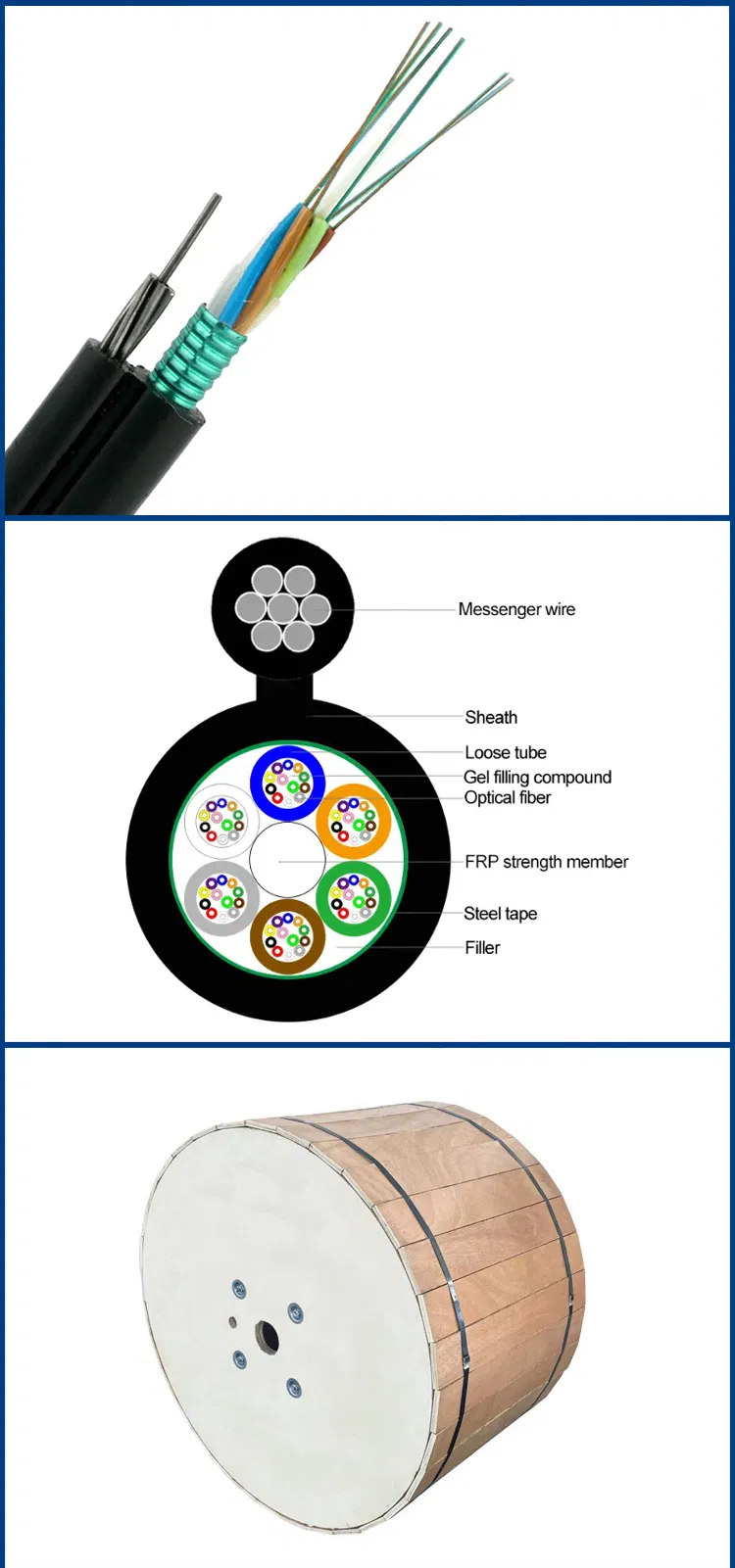

Product Display

Packaging & Certifications

Frequently Asked Questions

What is a Figure 8 fiber optic cable?

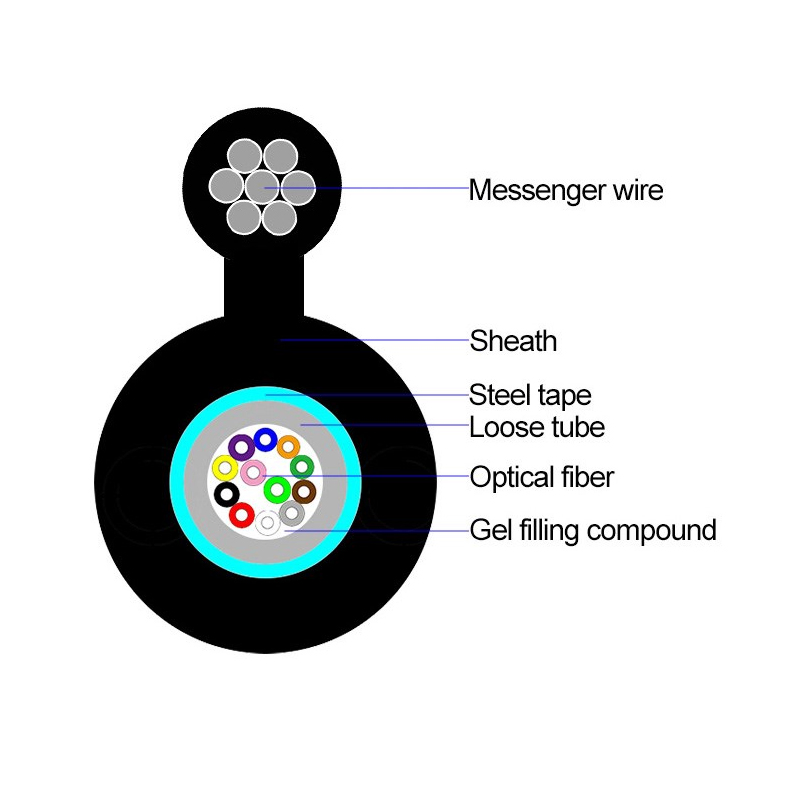

It is a type of self-supporting aerial cable where the fiber unit and a steel or FRP messenger wire are integrated into a cross-section resembling the number "8", designed for easy pole-to-pole installation.

Does this cable require extra support wires?

No, the integrated messenger wire provides the necessary tensile strength for aerial deployment, eliminating the need for separate lashing or support wires.

What are the available fiber core counts?

We offer a wide range of fiber counts, standardly from 2 cores up to 144 cores, and customizable up to 288 cores depending on your project needs.

How does the cable perform in extreme temperatures?

The cable is designed for harsh outdoor environments, with an operating temperature range of -40°C to +70°C, ensuring stable signal transmission in various climates.

Is the outer jacket UV resistant?

Yes, the high-density polyethylene (PE/HDPE) jacket is carbon-black loaded for excellent UV resistance and long-term durability in outdoor applications.

What is the standard shipping length?

The cable is typically supplied on wooden drums in lengths of 1km, 2km, or 5km per roll, tailored to your specific logistical requirements.
