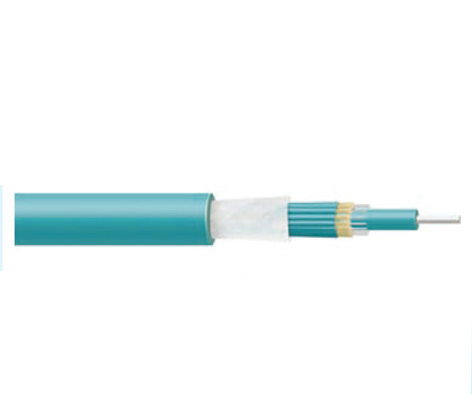

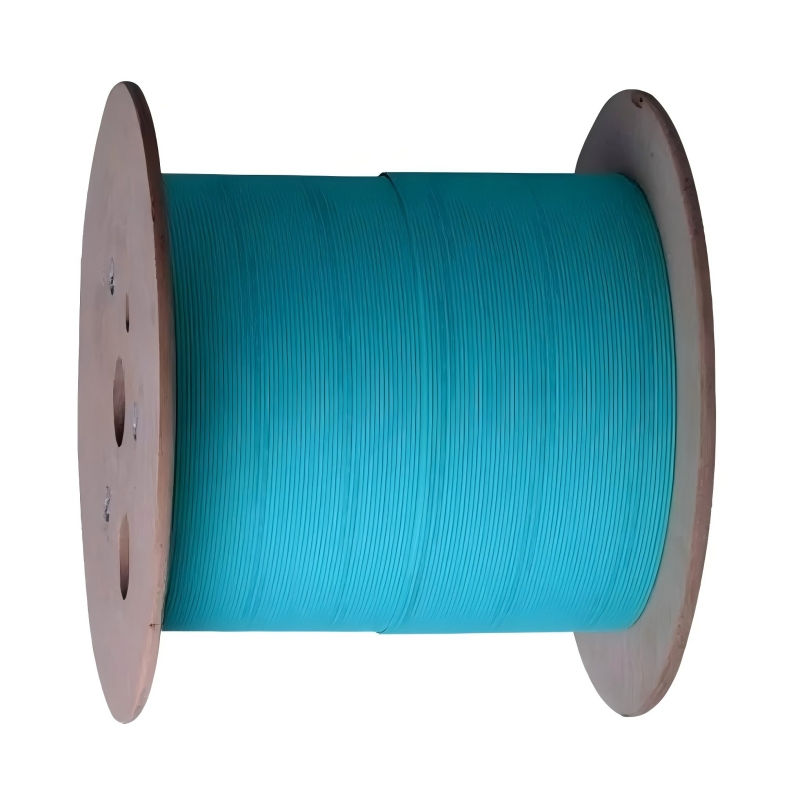

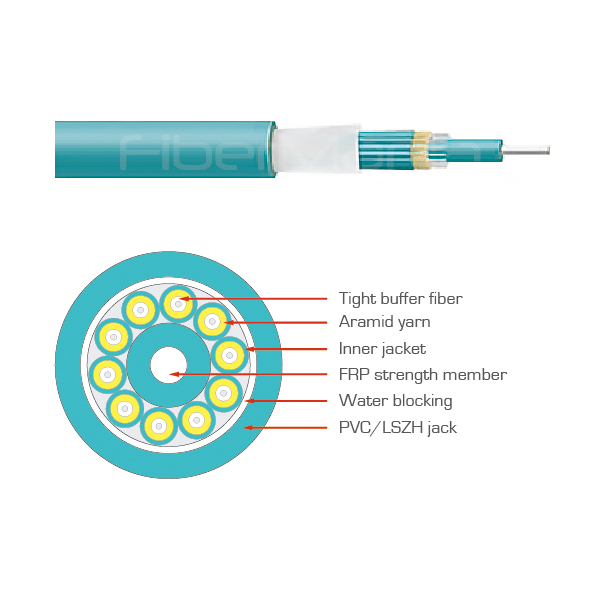

Mini Round Indoor Fiber Optic Cable GJFJV Multi-Fiber 4-12 Core Tight Buffered LSZH Compact Distribution Cable for LAN Data Center

Customization: Available
Application: Communication
Type: Multi-mode Fiber

Product Description

Overview

Fiber Optic indoor cables are used exclusively within buildings and must have a flame-retardant jacket to fit this purpose. They may be deployed in duct (conduit) or cable tray. When routing a cable within a building, you will also need to factor in fire prevention requirements. These requirements differ per country and region of the world.

Basic Information
Model NO.
FOCI-M12-G2-C-AQ-1KM
Material Shape
Round Wire
Allowed Lateral Pressure
100(N/100mm)<1000(N/100mm)
Allowed Tensile Strength
100N<1000N
Core
Multicore
Certification
RoHS, CE, ISO9001, VDE, CCC
Sheath Material
TPU, LSZH, PVC, Zrpo
Fiber Count
1-288 Cores
Color
Aqua or Custom Color
Fiber Type
G652D /G657A/ OM1/OM3/OM4/OM5
Laying Method
Indoor Cabling
Storage Temperature
-20 to +60℃
Production Capacity
10000km/Week
Key Features
Aramid yarn in each simplex cable offers high tensile strength
With independent simplex cables, it's easier to install and maintain
Flame-retardant jacket for building safety compliance
Reliable performance under both high and low temperatures
Applications
  • Indoor cablings and building backbones
  • Vertical cabling for buildings and LAN networks
  • Wiring systems with long distances indoor

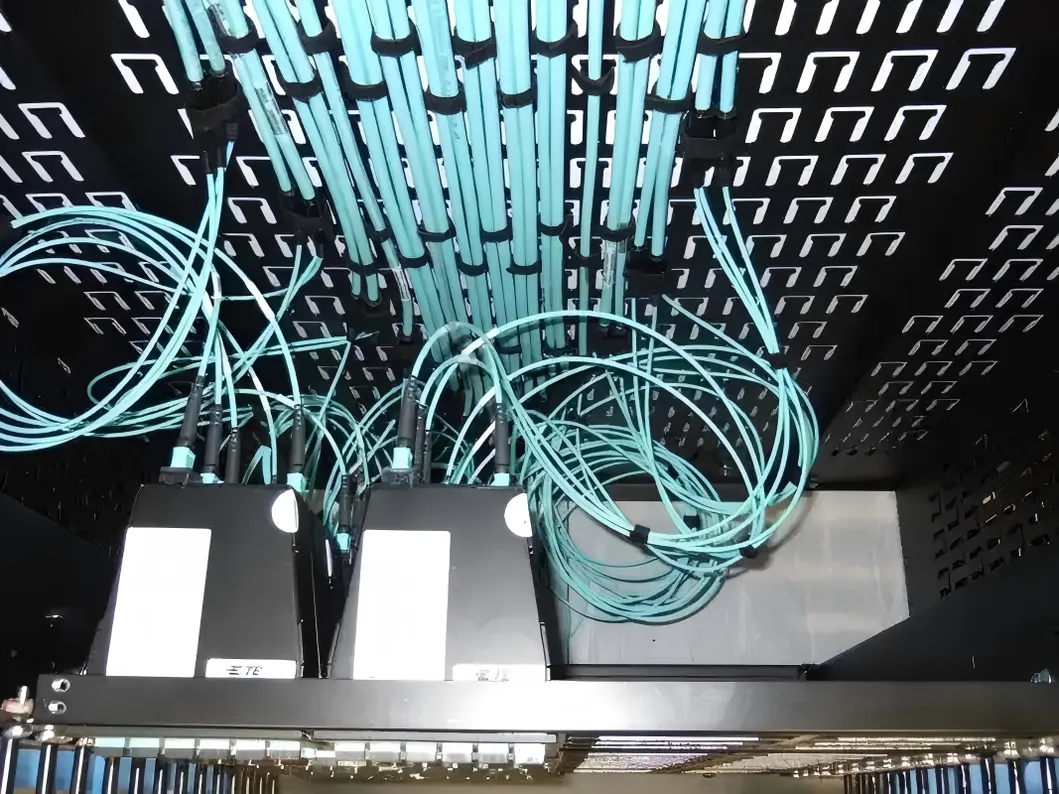

Indoor Fiber Optic Cable Application
Optical Characteristics
Fiber type Attenuation (1310/1550nm) Attenuation (850/1300nm) Bandwidth (850/1300nm) EMB (850nm) 10 GB/s Link Length
Unit Typical (dB/km) Max (dB/km) Typical (dB/km) Max (dB/km) MHz.km MHz.km m
G652D / G657A1 0.5/0.4 0.6/0.5 / / / / /
OM3-150 / / 3.0/1.0 3.5/1.5 ≥700/500 ≥950 150
OM3-300 / / 2.5/0.8 3.0/1.0 ≥1500/500 ≥2000 300
OM4-550 / / 2.5/0.8 3.0/1.0 ≥3500/500 ≥4700 550
Mechanical Parameters
Fiber Count Nominal Diameter (mm) Nominal Weight (kg/km) Tensile Load (N) Crush Resistance (N/100mm)
Short Term Long Term Short Term Long Term
2~30 13.2 162 3000 1000 3000 1000
32~48 13.8 175 3000 1000 3000 1000
50~72 14.6 205 3000 1000 3000 1000
74~96 16 230 3000 1000 3000 1000
98~144 17.6 285 3000 1000 3000 1000
Environmental Characteristics
Transport Temperature -20ºC ~ +60ºC
Storage Temperature -20ºC ~ +60ºC
Installation Temperature -5ºC ~ +50ºC
Operating Temperature -20ºC ~ +60ºC
Production Equipment

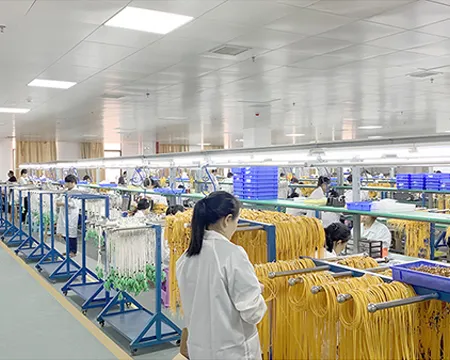

Equipment 1

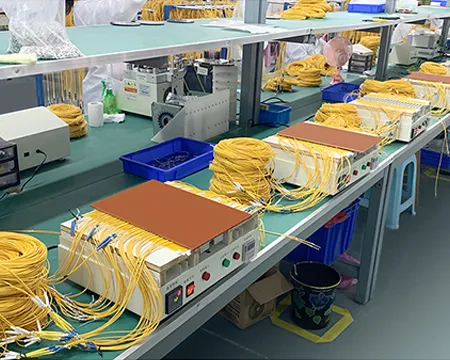

Equipment 2

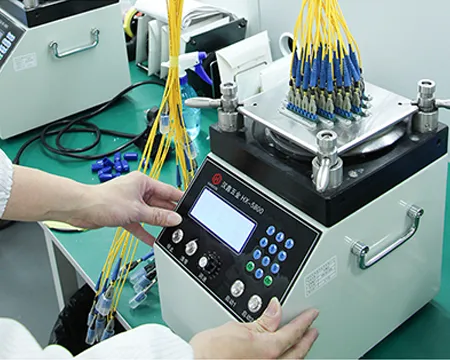

Equipment 3

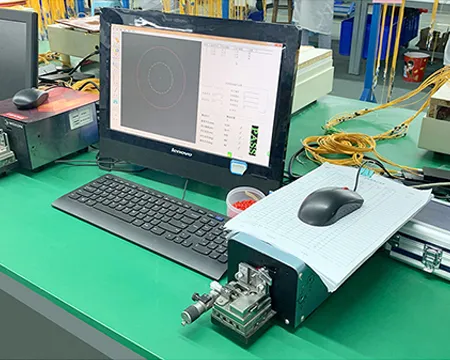

Equipment 4

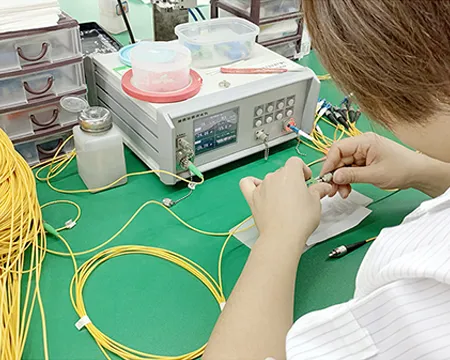

Equipment 5

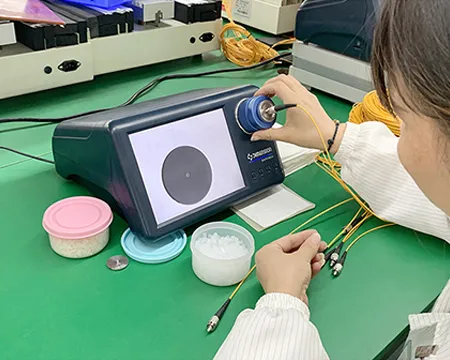

Equipment 6
Packaging & Shipping
Packaging and Shipping
Frequently Asked Questions
What is the warranty for the fiber patch cords?
We warrant that all fiber patch cords supplied are free from defects in material and workmanship for a period of five (5) years from the date of supply. Every single cable is 100% tested.
Can we customize our brand information on the fiber cable?
Yes, we can print your brand name onto the cable jacket. A minimum total cable length of 1KM is typically requested for customization.
Do you perform 3D interferometer tests?
Yes, we perform 3D tests upon customer request. We can maintain a pass rate of over 90% and up to 100% if specifically required for the project.
What is the Minimum Order Quantity (MOQ)?
MOQ applies only to special customized cable orders, usually requiring 1km as the total length. Standard items may have more flexible requirements.
Are free samples available?
Yes, we provide free samples for project evaluations, provided the total cost of the samples is under 50 US dollars.
What fiber types are available for indoor cables?
We offer a wide range of fiber types including Single-mode (G652D, G657A) and Multi-mode (OM1, OM2, OM3, OM4, OM5) to suit various network requirements.
