Basic Information
Lateral Pressure
100(N/100mm) < 1000(N/100mm)
Tensile Strength
1000N < 10000N
Certification
RoHS, CE, ISO9001, VDE, CPR B2ca
Cable Core
2/4/6/8/10/12/14/16/18/20 cores
Package Size
32.00cm * 32.00cm * 20.00cm
🔍
Product Overview

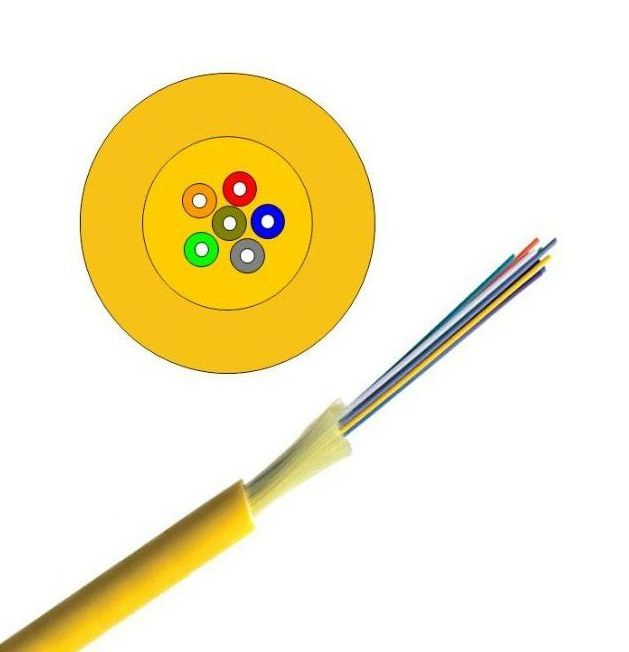

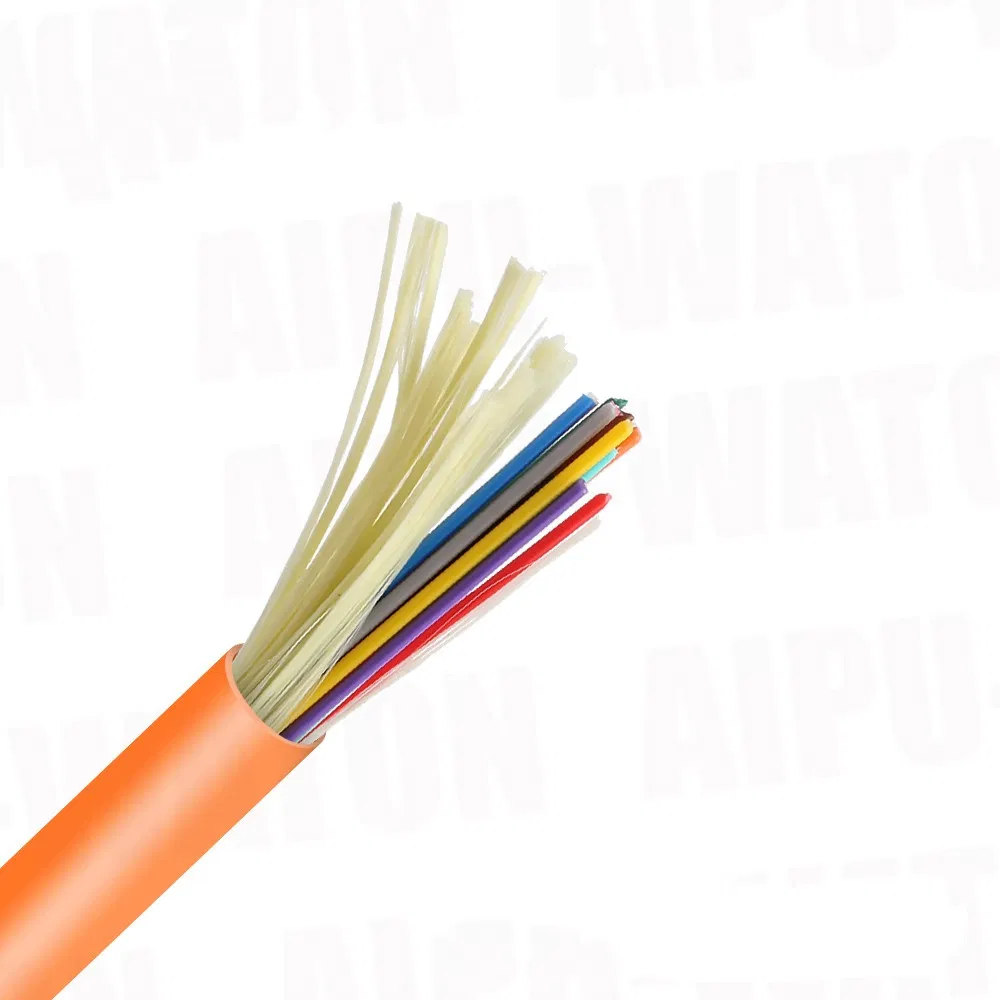

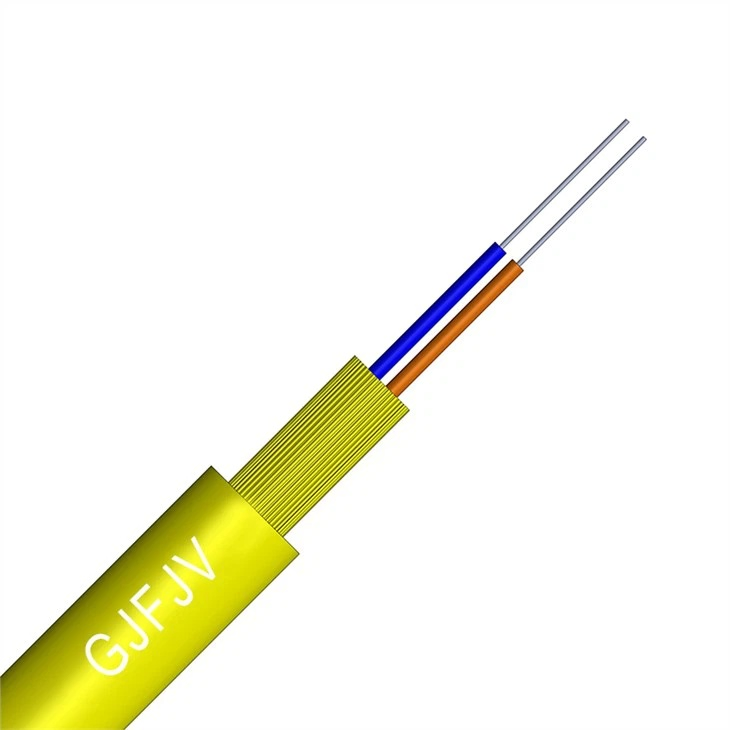

LSZH Jacket GJFJV Fiber Optical Cable

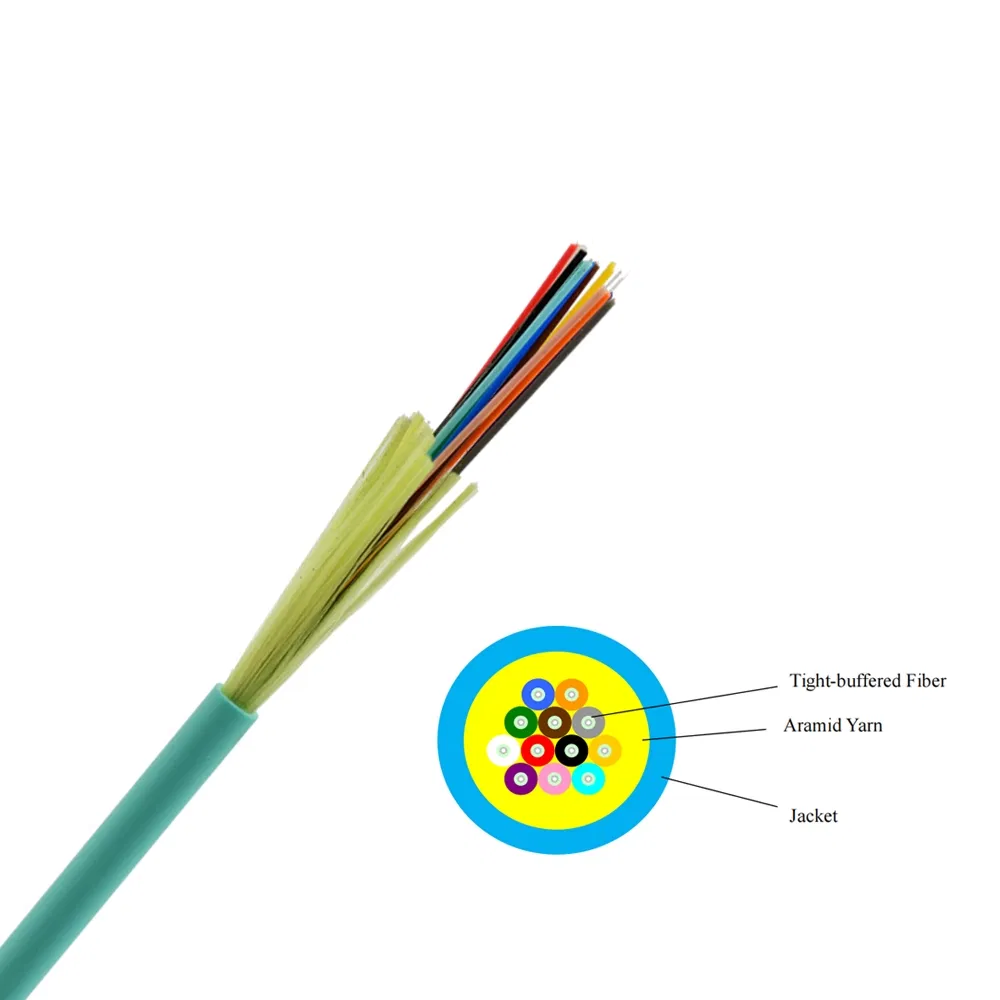

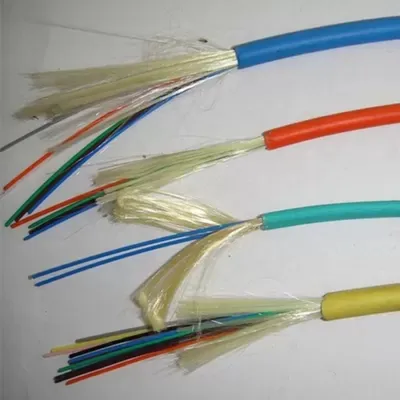

GJFJV SX Tight indoor fiber optic cable is constructed using evenly applied strands of Aramid yarns as the strength member over ф900μm or ф600μm tight buffer fibers, finished with a flame-retardant LSZH jacket.
All-dry design, green and environment-friendly.
Aramid yarns ensuring tensile strength and providing good protection for tight buffered fibres.
Metallic hose with good flexibility providing certain anti-rodent performance.
Outer sheath with flame-retardant performance, applicable to indoor installation.
Small size and light weight, easy for installation.
Applicable to indoor anti-rodent use.
📊
Technical Specifications
| Parameter |
G.652 |
G.655 |
50/125μm |
62.5/125μm |
| Attenuation @850nm |
- |
- |
≤3.5dB/km |
≤3.5dB/km |
| Attenuation @1300nm |
- |
- |
≤1.5dB/km |
≤1.5dB/km |
| Attenuation @1310nm |
≤0.36dB/km |
- |
- |
- |
| Bandwidth @850nm |
- |
- |
≥500 MHz·km |
≥200 MHz·km |
❓
Frequently Asked Questions
What is the main application of GJFJV fiber cable?
GJFJV is a multi-purpose distribution cable primarily designed for indoor use, including patch cords, pigtails, and internal wiring in communication equipment.
What are the benefits of the LSZH jacket?
The LSZH (Low Smoke Zero Halogen) jacket is flame-retardant and reduces the amount of toxic and corrosive gas emitted during combustion, making it safer for indoor public areas.
How many cores can this cable support?
This model supports a wide range of core counts, typically from 2 cores up to 20 cores, providing flexibility for different network densities.
What is the tensile strength of the GJFJV cable?
The cable features Aramid yarn strength members, offering a short-term tensile strength of up to 150N and long-term strength of 80N depending on the specific core count.
Can this cable withstand lateral pressure?
Yes, it has a crush resistance of 100N/100mm (long term) and 500N/100mm (short term), ensuring durability during installation.
Is this cable rodent-resistant?
The design includes metallic hose options and robust construction that provides a degree of anti-rodent performance for indoor environments.
