Optical Fiber Distribution Armoured Cable For Data Center

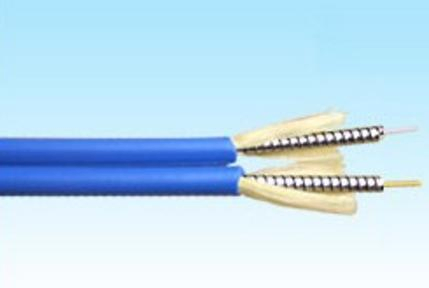

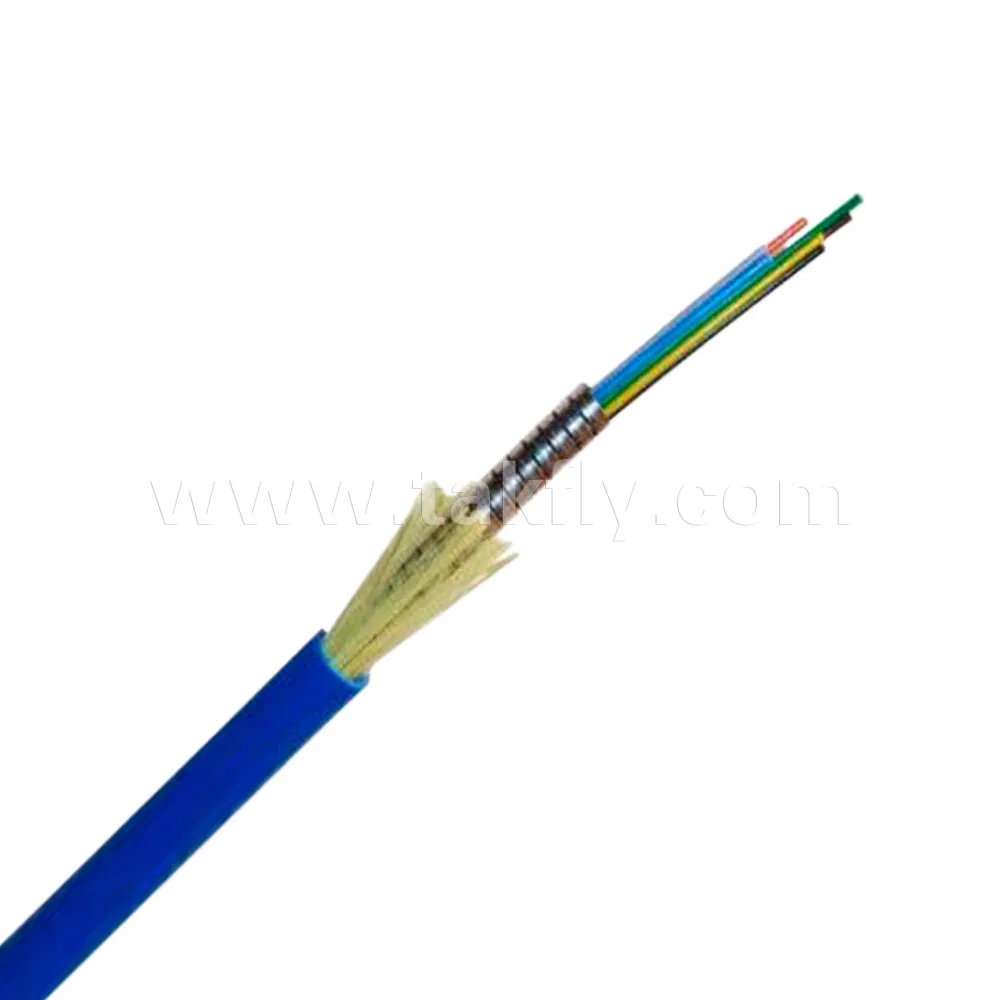

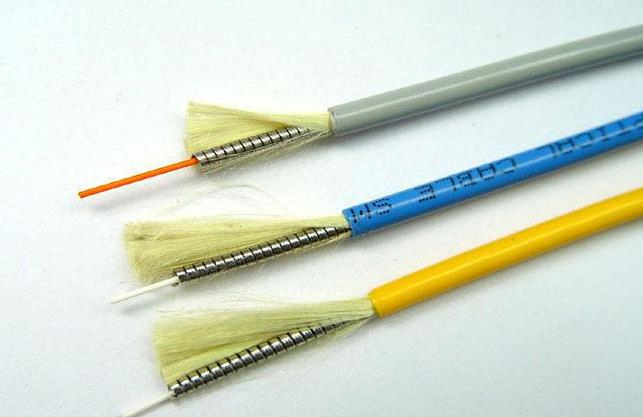

This high-performance cable utilizes 0.9mm or 0.6mm tight buffer fiber as the primary optical communication medium. The tight buffer is securely wrapped with spiral steel wire for superior protection, followed by a layer of Kevlar yarn for added strength. The cable is finished with a robust LSZH, PVC, or PU outer sheath, ensuring durability in demanding environments.

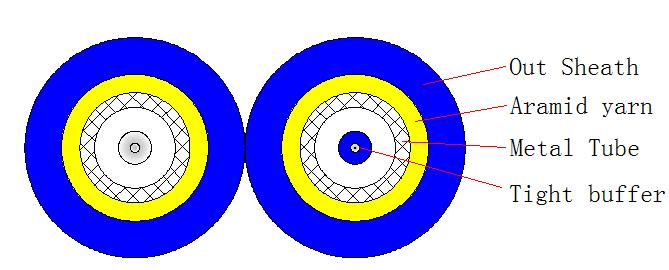

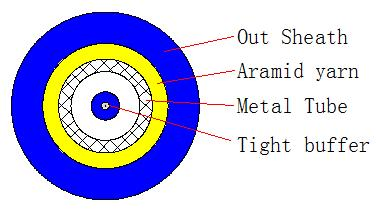

| Item | Contents | Value |
|---|---|---|
| 1. Tight Buffer | Material | PVC/LSZH |
| Diameter | Ф0.6 mm | |
| 2. Metal Tube | Material | 200CU |
| Diameter | Ф1.8 ~ 3.8mm | |
| 3. Central Strength Member | Material | Kevlar |
| Specifications | 1000D | |
| 4. Outer Sheath | Material | PVC/LSZH/PU |
| Diameter | Ф3.0 ~ 5.5mm |
| Fiber Count | Diameter (mm) | Armor Diameter (mm) | Max Tension (Short-term) | Min Bending Radius (Dynamic) | Storage Temp |
| 2 | 3.0 | 1.8 | 150N | 20D | -20~+70ºC |
| 4 | 4.8 | 2.8 | 150N | 20D | -20~+70ºC |
| 6 | 4.8 | 2.8 | 300N | 20D | -20~+70ºC |
| 8 | 5.0 | 3.2 | 300N | 20D | -20~+70ºC |
| 12 | 5.5 | 3.8 | 300N | 20D | -20~+70ºC |
