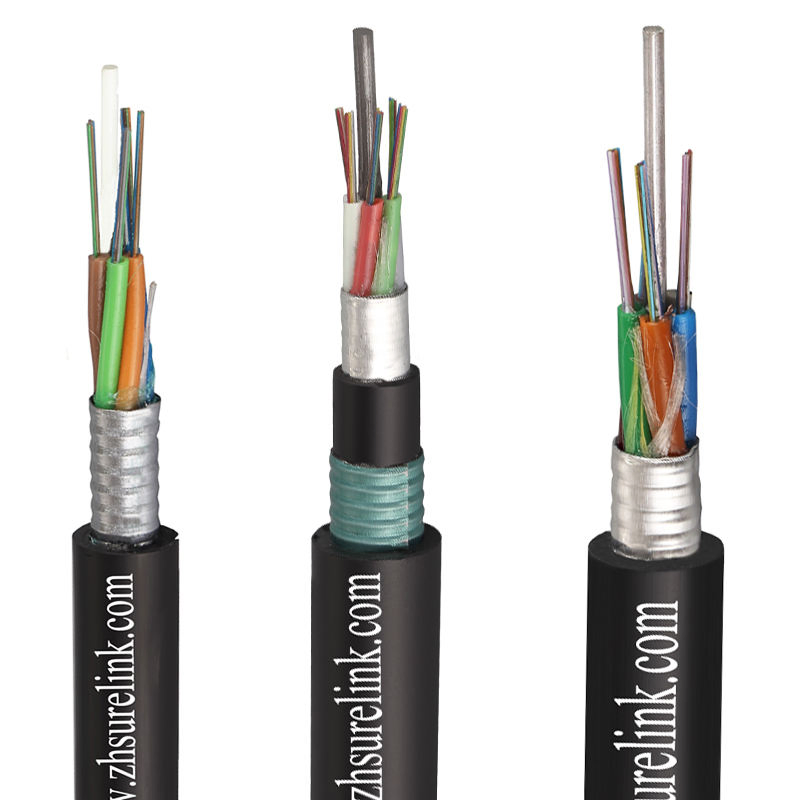

Outdoor Duct G652D G657A Single Mode 12 24 48 Core Stranded Loose Tube Armored Fiber Optic Cable GYTA GYTA53
Outdoor Duct G652D G657A Single Mode 12 24 48 Core Stranded Loose Tube Armored Fiber Optic Cable GYTA GYTA53
Outdoor Duct G652D G657A Single Mode 12 24 48 Core Stranded Loose Tube Armored Fiber Optic Cable GYTA GYTA53
Outdoor Duct G652D G657A Single Mode 12 24 48 Core Stranded Loose Tube Armored Fiber Optic Cable GYTA GYTA53
Outdoor Duct G652D G657A Single Mode 12 24 48 Core Stranded Loose Tube Armored Fiber Optic Cable GYTA GYTA53
1 / 5
Outdoor Duct G652D G657A Single Mode 12 24 48 Core Stranded Loose Tube Armored Fiber Optic Cable GYTA GYTA53
Outdoor Duct G652D G657A Single Mode 12 24 48 Core Stranded Loose Tube Armored Fiber Optic Cable GYTA GYTA53
Outdoor Duct G652D G657A Single Mode 12 24 48 Core Stranded Loose Tube Armored Fiber Optic Cable GYTA GYTA53
Outdoor Duct G652D G657A Single Mode 12 24 48 Core Stranded Loose Tube Armored Fiber Optic Cable GYTA GYTA53
Outdoor Duct G652D G657A Single Mode 12 24 48 Core Stranded Loose Tube Armored Fiber Optic Cable GYTA GYTA53

Outdoor Duct G652D G657A Single Mode 12 24 48 Core Stranded Loose Tube Armored Fiber Optic Cable GYTA GYTA53

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Connection Structure
SC
Material Shape
Round Wire
Allowed Lateral Pressure
>1000(N/100mm)
Allowed Tensile Strength
1000N<10000N
Core
Multicore
Certification
RoHS, CE, ISO9001, VDE, CCC
Sheath Material
PE
Jacket
Black Polyethylene (PE)
Fiber Options
G652D, G657A, Om1, Om2, Om3, Om4
Fiber Count
12-288
Cable Structure
Multi Loose Tube Aluminum Tape Armor
Production Capacity
30000km/Month
Product Description
24 48 Core GYTA53 Underground Direct Buried Fiber Optic Cable
Fiber Optic Cable

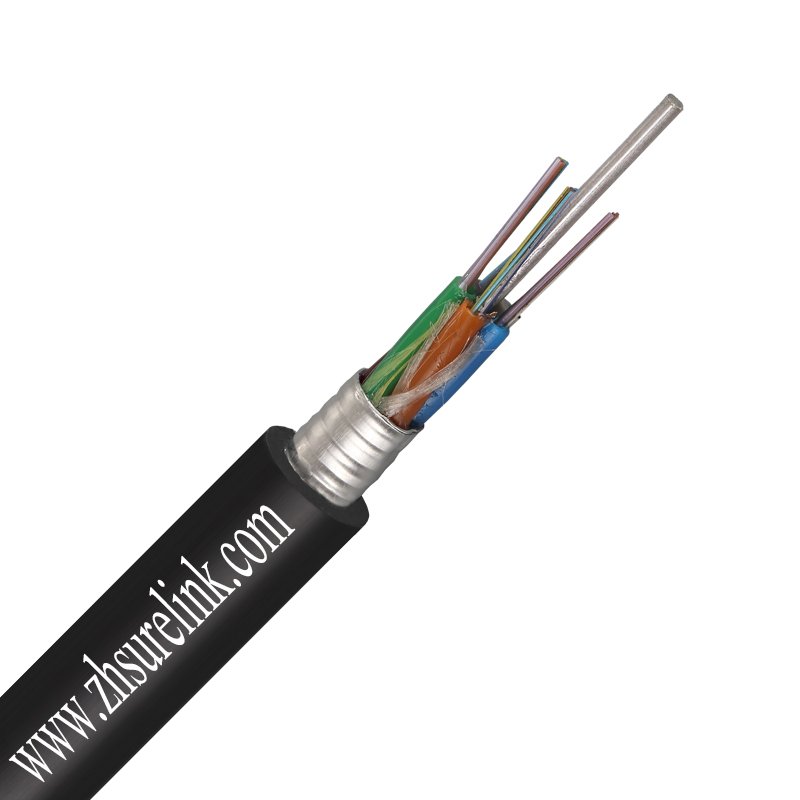

Fiber Optic Cable Structure

GYTA Armored Loose Tube Single Jacket/Single Armor fiber optic cables are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including duct and underground conduit.

Product Construction:
  • Fiber: 2-288 fiber Multi-loose tube gel-filled
  • Central Strength Member: Fiberglass reinforced Platic (FRP) or steel wire.
  • Armor: Aluminum Tape Armor
  • Outer Jacket: Black UV Polyethylene (PE)

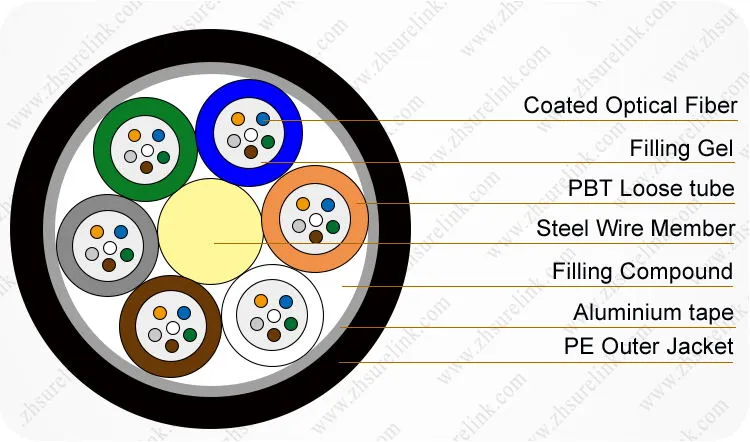

Technical Drawing
Key Features:
  • Up to 288 fibers capacity.
  • Loose tube gel-filled construction for superior fiber protection.
  • Aluminum tape armor protects cable from mechanical damage and moisture.
  • Excellent UV resistant and waterproof design.
Technical Specifications
Fiber Count Nominal Diameter (mm) Nominal Weight (kg/km) Short Term Tensile (N) Crush Resistance (N/100mm)
2~3610.310915001000
38~7211.514515001000
74~9613.517515001000
98~12014.820917001000
122~14416.624920001000
218~28819.032525001000
Packaging & Workshop

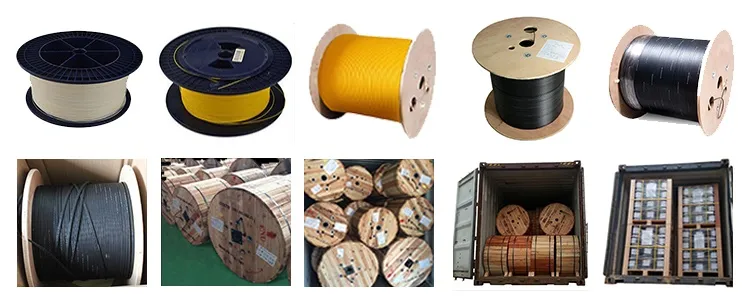

Package Details: Iron-wooden drum, fumigated wooden drum, or normal wooden drum. Drum sizes can be customized for optimal container loading.

Package Drum

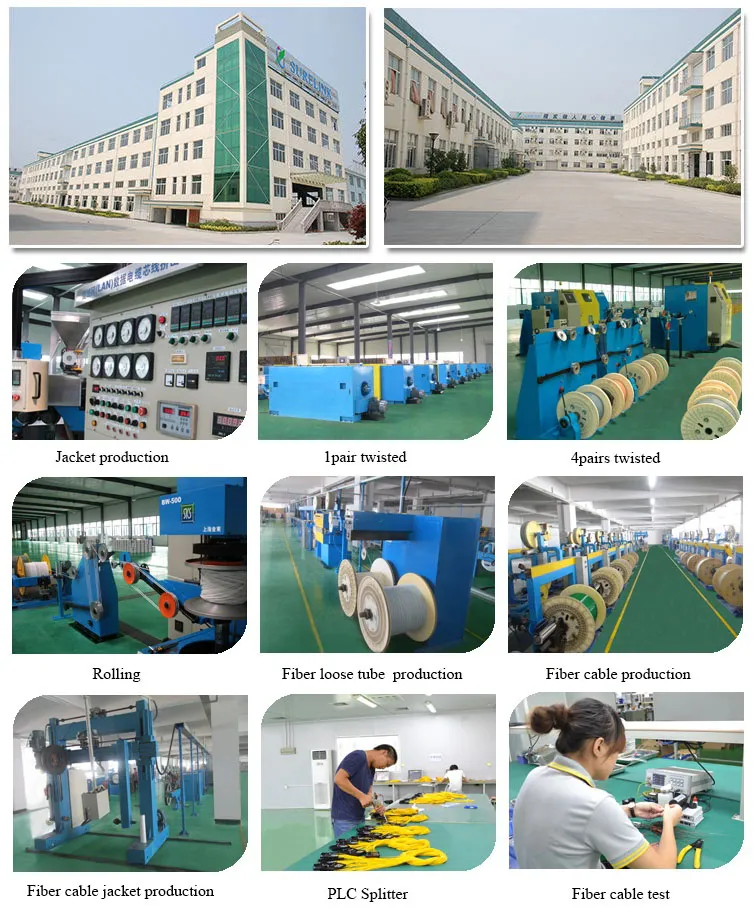

Workshop Show

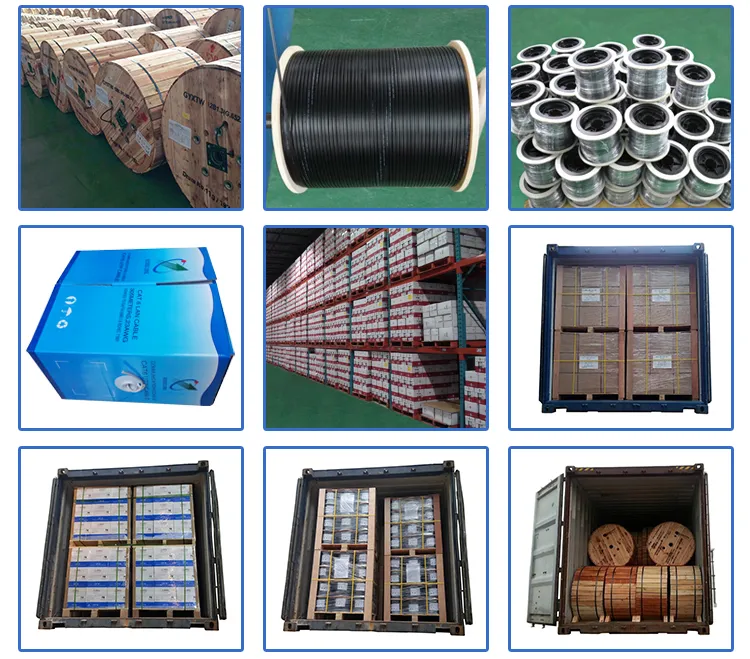

Loading and Shipping
Payment & Shipping
Payment Terms
T/T, L/C, Western Union, Paypal, Escrow
Shipping Options
Express (DHL/UPS/FedEx), Air Freight, Sea Freight
Frequently Asked Questions
What is the main application for GYTA53 fiber optic cable?
GYTA53 is primarily designed for underground direct burial and duct installations, serving as a backbone for voice or data communication between buildings.
What core counts are available for this cable?
We offer a wide range of fiber counts from 2 cores up to 288 cores to meet various network scale requirements.
How does the cable ensure moisture protection?
The cable uses a loose tube gel-filled construction combined with aluminum tape armor and a high-quality PE jacket to provide superior waterproof performance.
Is the GYTA53 cable UV resistant?
Yes, the outer jacket is made of Black UV Polyethylene (PE), which provides excellent resistance to ultraviolet radiation and environmental stress.
Can I request OEM or ODM customization?
Absolutely. OEM and ODM orders are highly welcome, including custom fiber types, jacket marking, and specific drum lengths.
What fiber types can be used in this cable?
The cable can be manufactured with various fiber options including G652D, G657A single-mode fibers, or OM1, OM2, OM3, OM4 multi-mode fibers.
