XT Cabled
1 / 5
| Model NO. | GYFY | Material Shape | Round Wire |
|---|---|---|---|
| Lateral Pressure | >1000(N/100mm) | Tensile Strength | 1000N<10000N |
| Core | Multicore | Certification | RoHS, CE, ISO9001 |
| Sheath Material | PE | Product Name | Fiber Optical Cable |
| Installation | Overhead, Pipeline, Direct Burial | HS Code | 8544700000 |

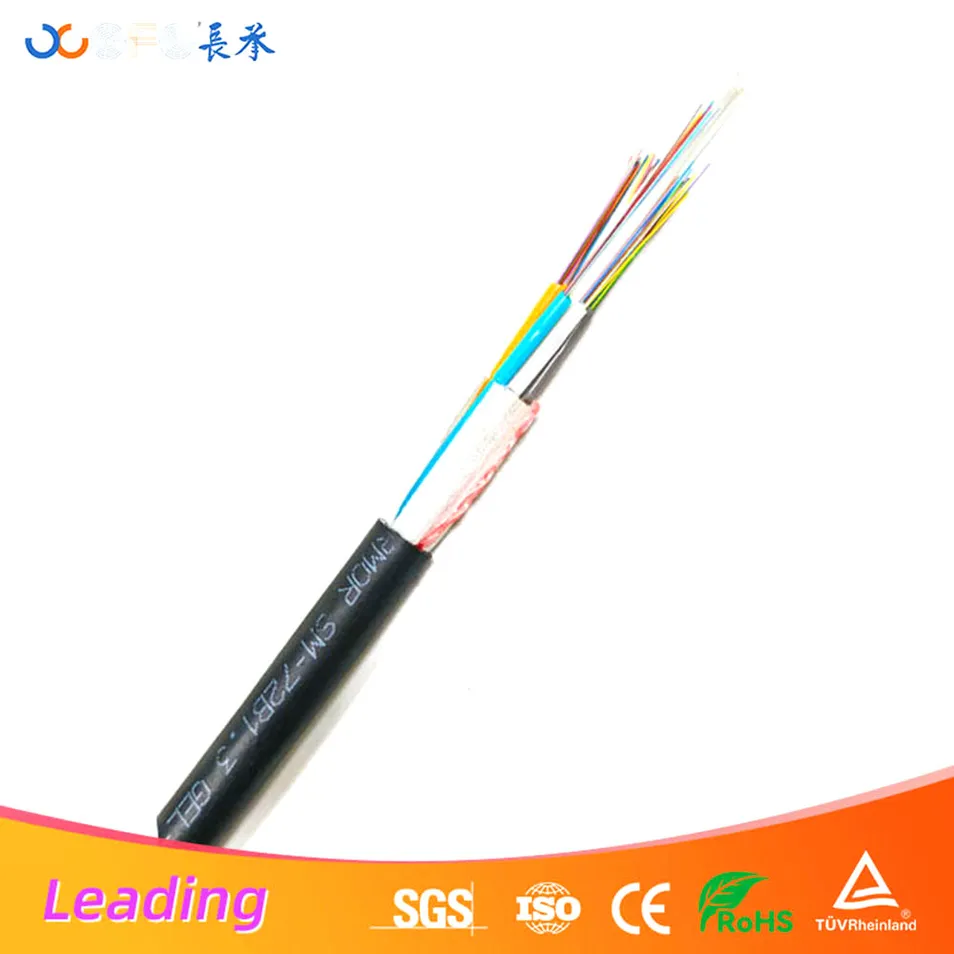

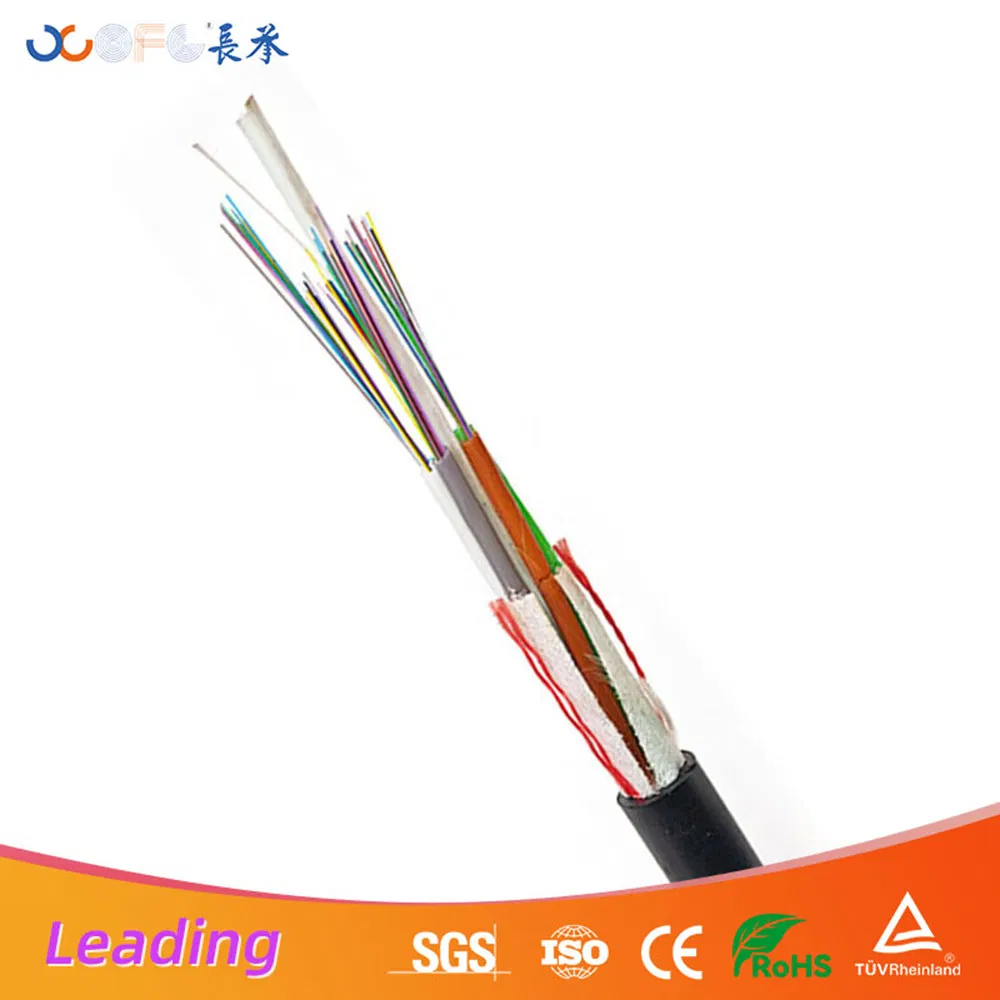

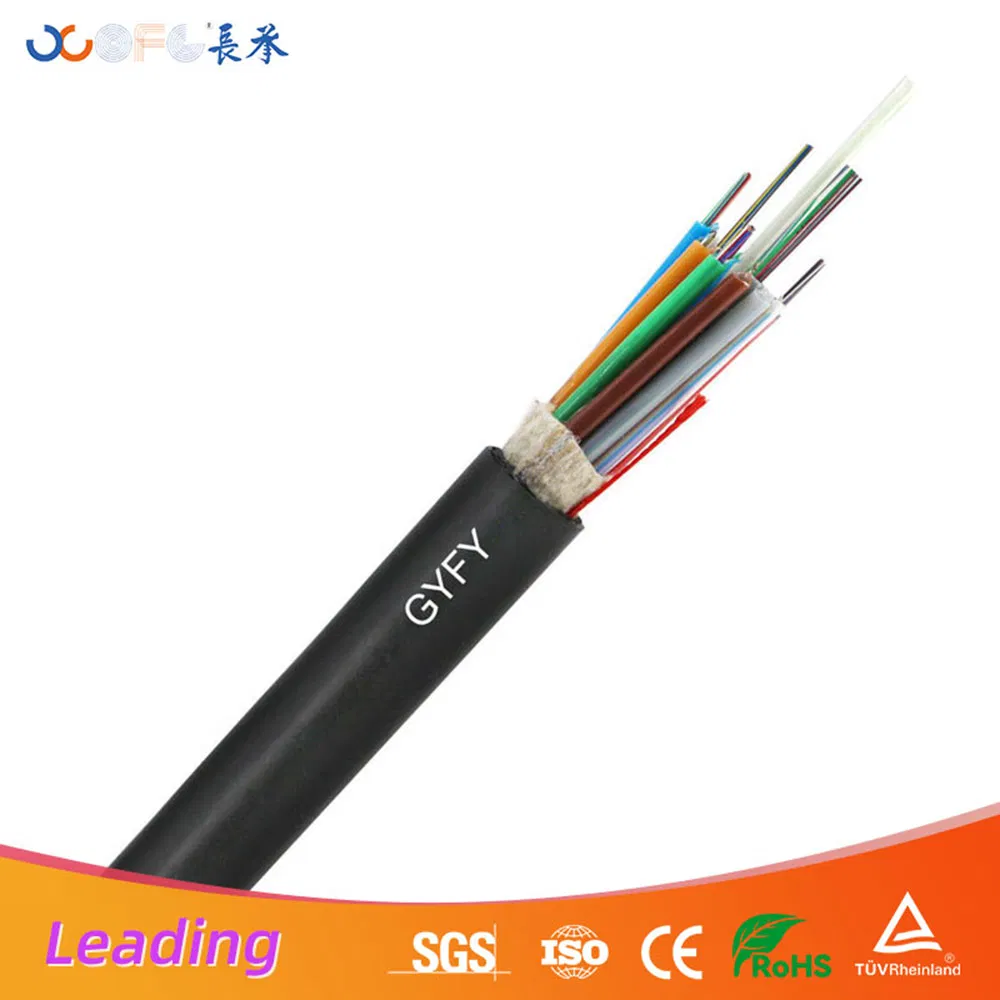

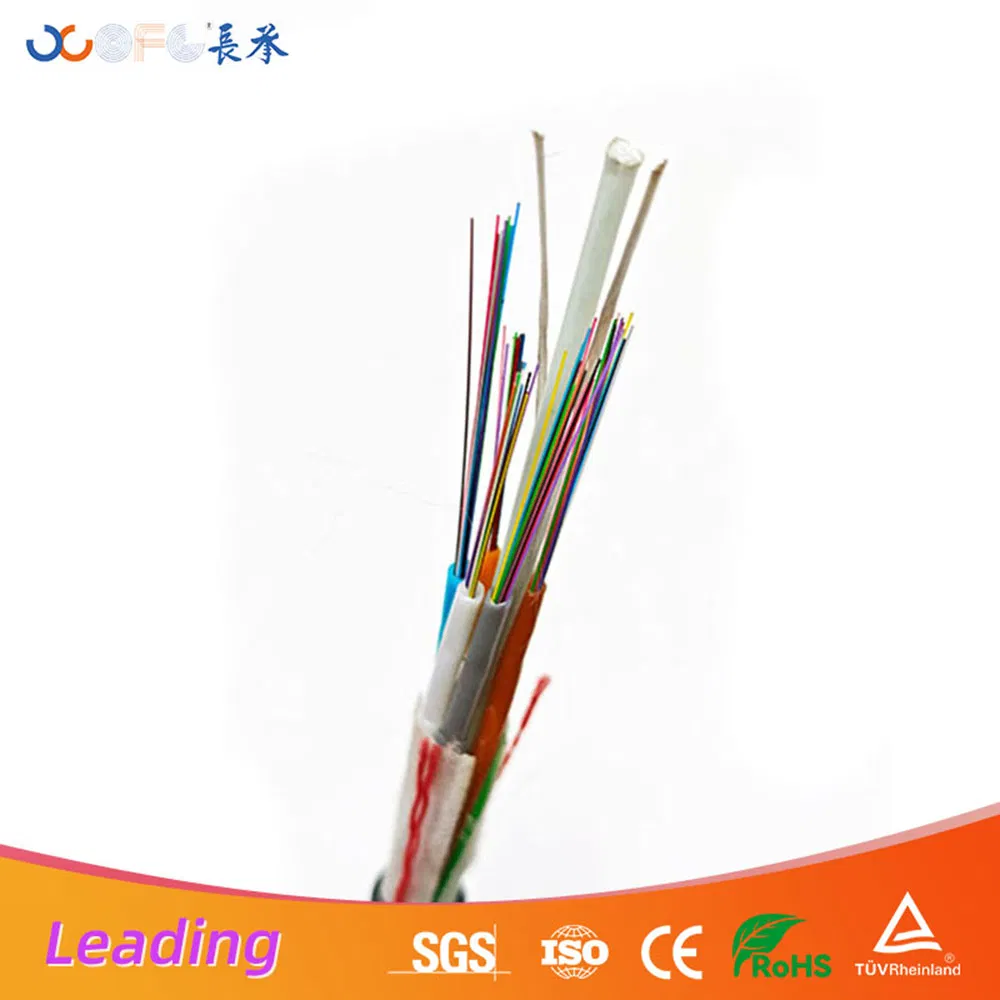

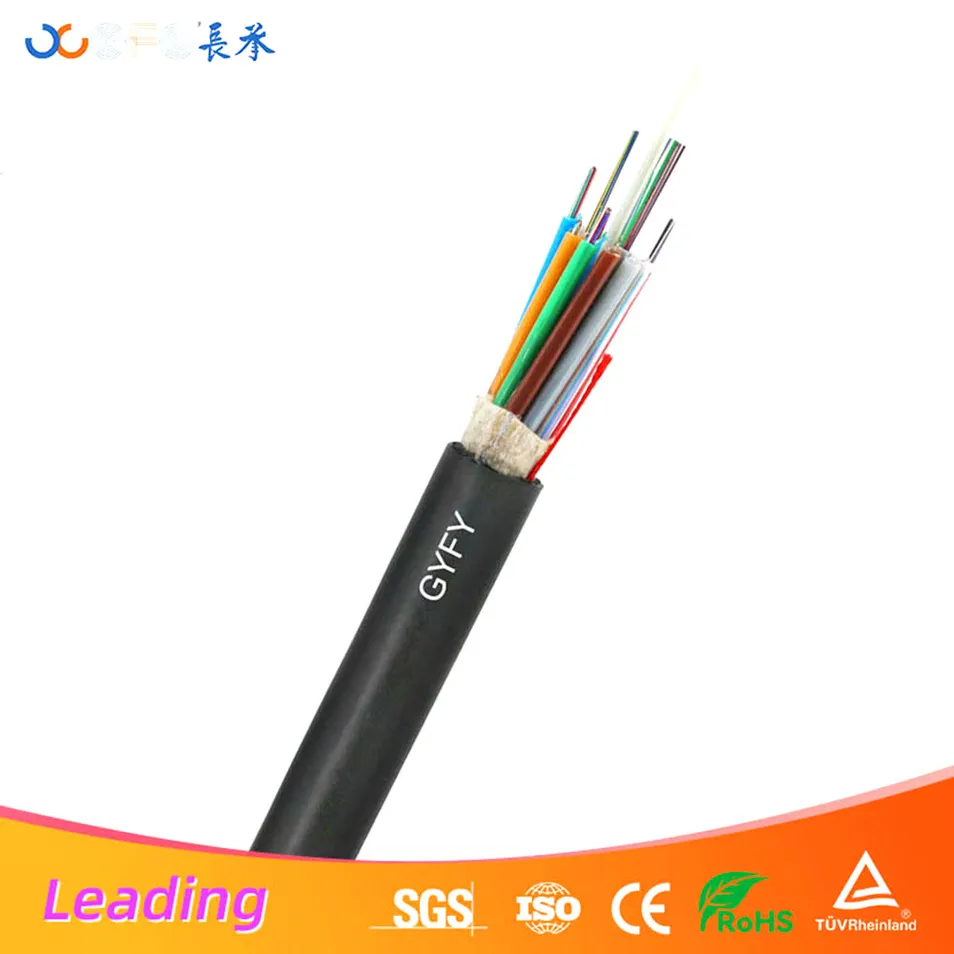

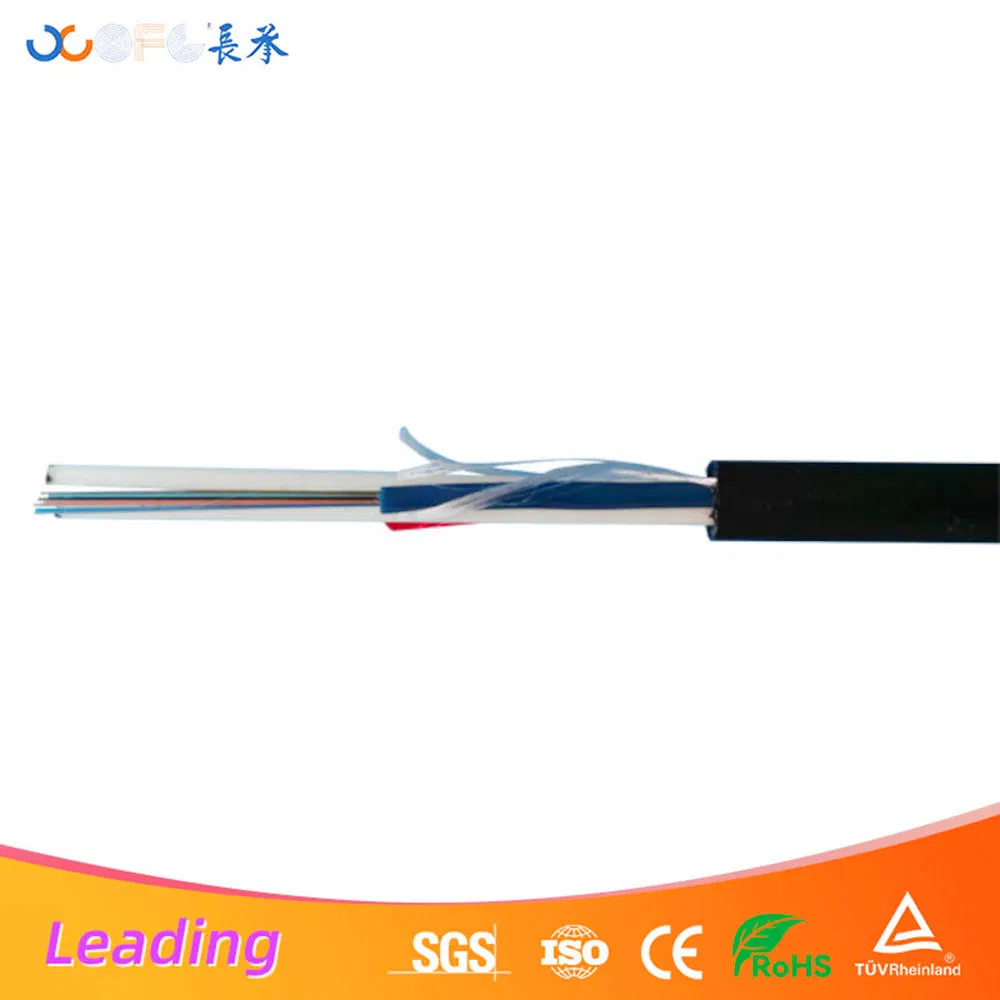

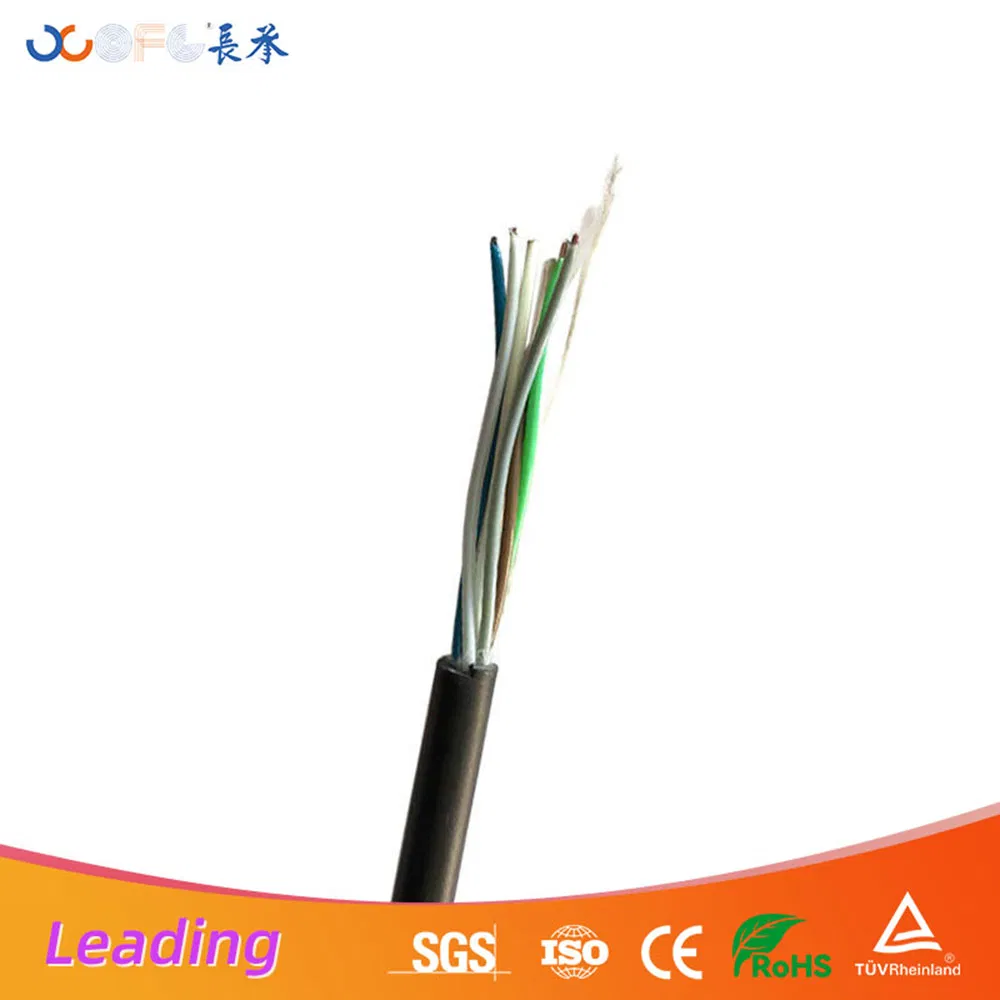

Single Jacket All-Dielectric Gel Free Stranded Loose Tube Fiber cable GYFY

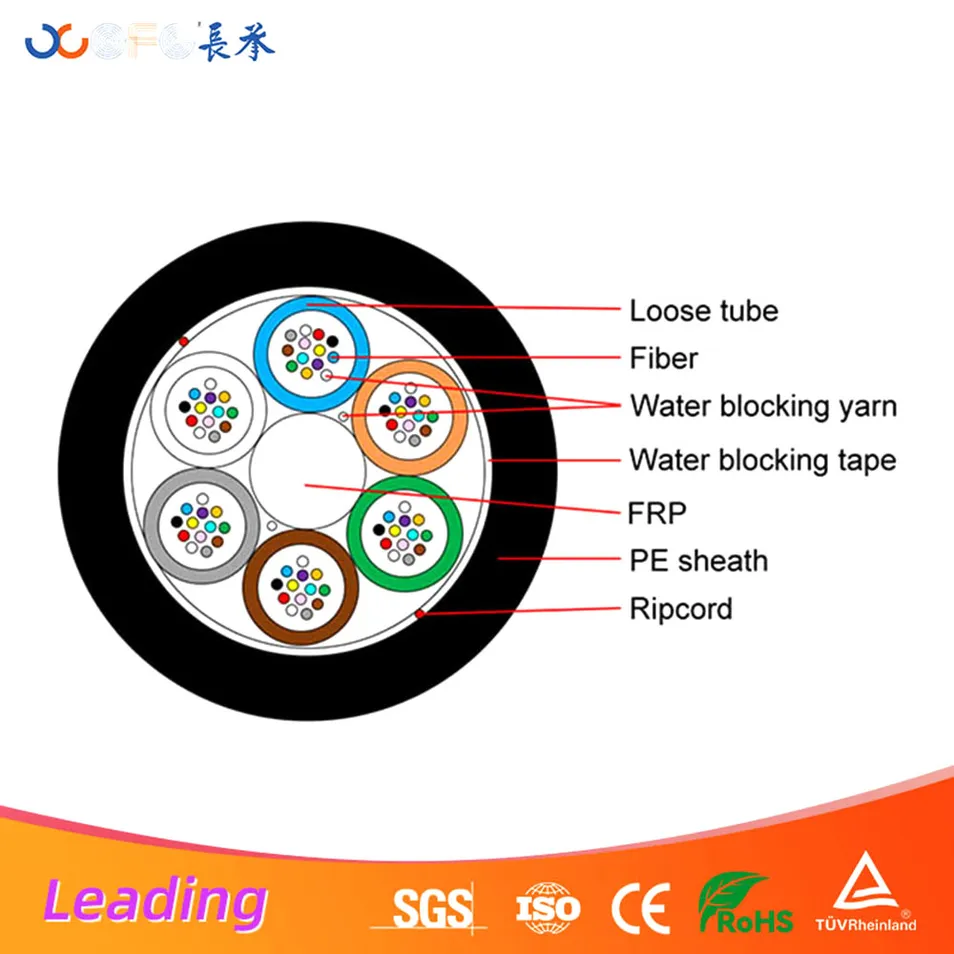

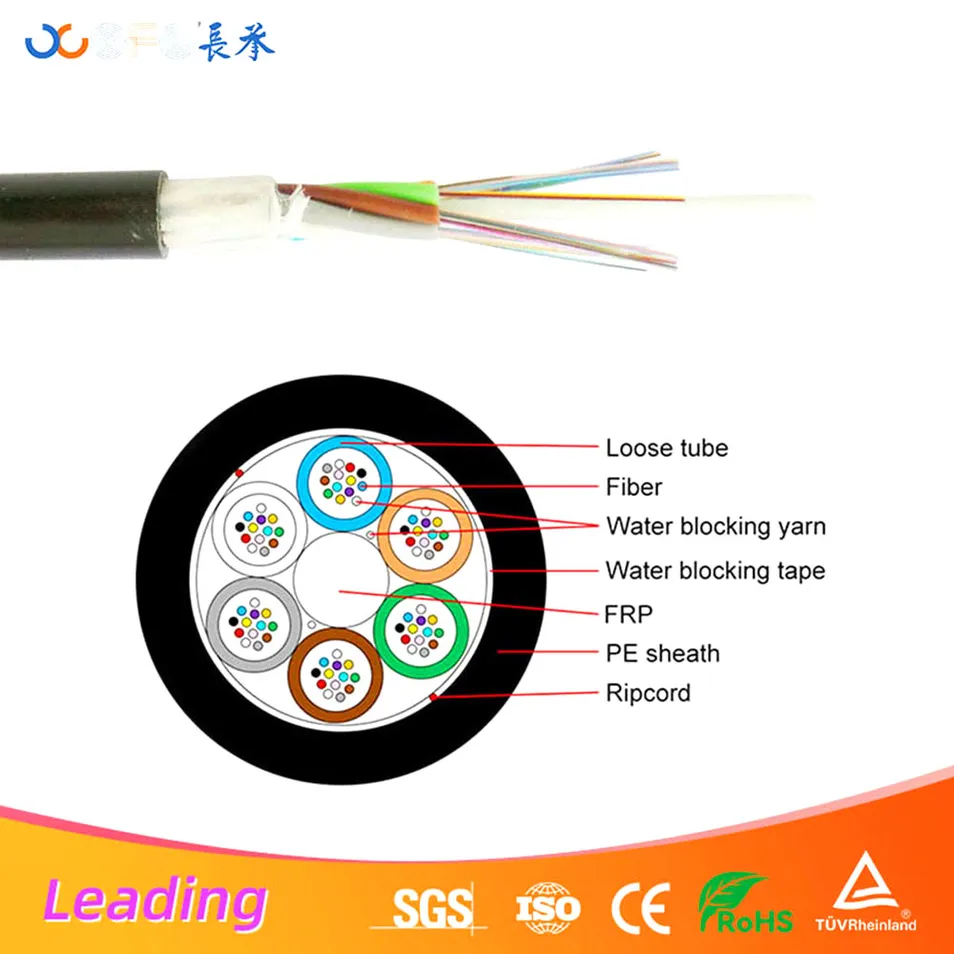

The GYFY outdoor loose tube layer stranded non-metallic optical cable involves inserting optical fibers into loose tubes made of high-modulus PBT material with internal water-blocking yarn. The center of the cable core is a non-metallic reinforcement core (FRP). The loose tubes are stranded around the central reinforcement core to form a compact circular cable core. Inside the core, water-blocking yarn and tape create a dry water-blocking layer. The cable core is then sheathed with high-quality polyethylene (PE).
| Parameter Item | Specifications |
|---|---|
| Primary Functions | Long-distance and inter-office communication |
| Main Applications | Pipeline and overhead communication wiring |
| Loose Tube Material | PBT (Diameter 2.5mm) |
| Central Strength Member | FRP (Fiber Reinforced Plastic) |
| Water Blocking | Water blocking yarns + Water blocking tape (Fully Dry) |
| Outer Sheath | MDPE / PE (Black) |
Fully dry structure
Non-metallic FRP
High Reliability
Optimized Air Blowing
