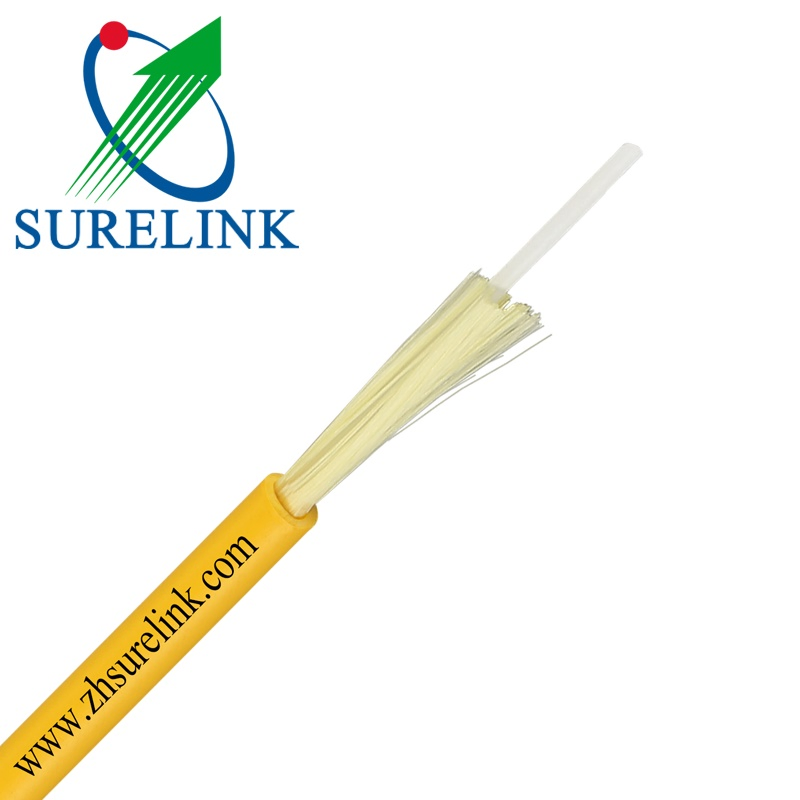

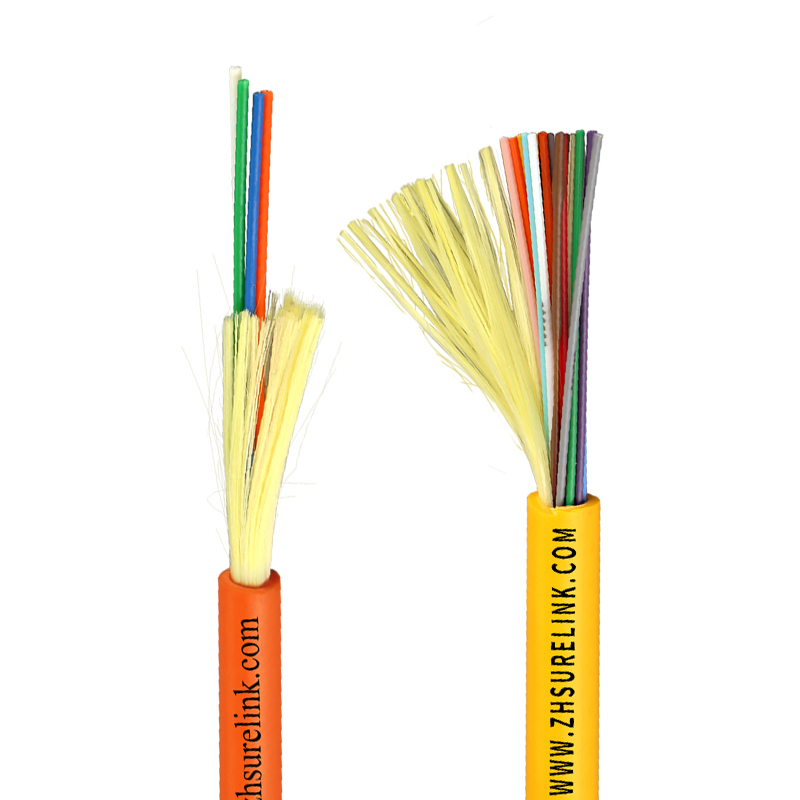

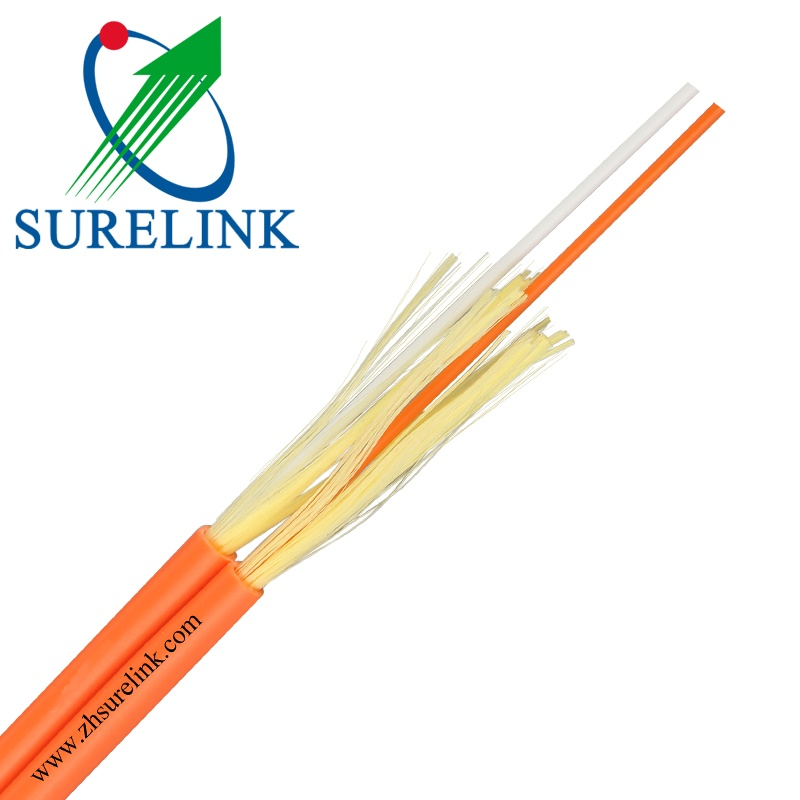

Yellow Tight Buffer Indoor Distribution Fiber Optical Cable GJFJV

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.

GJFJV

Connection Structure

Material Shape

Round Wire

Core Count

Multicore

Sheath Material

PVC / LSZH

Fiber Mode

Single Mode / Multi Mode

Tensile Strength

100N < 1000N

Outer Diameter

6.5mm-6.8mm

Certification

RoHS, CE, ISO9001, VDE, CCC

Origin

China

📍 Product Description

Yellow Tight Buffer Indoor Distribution Fiber Optical Cable GJFJV is designed for high-performance indoor connectivity. It features a flexible structure with aramid yarn strength members, ensuring durability and ease of installation.

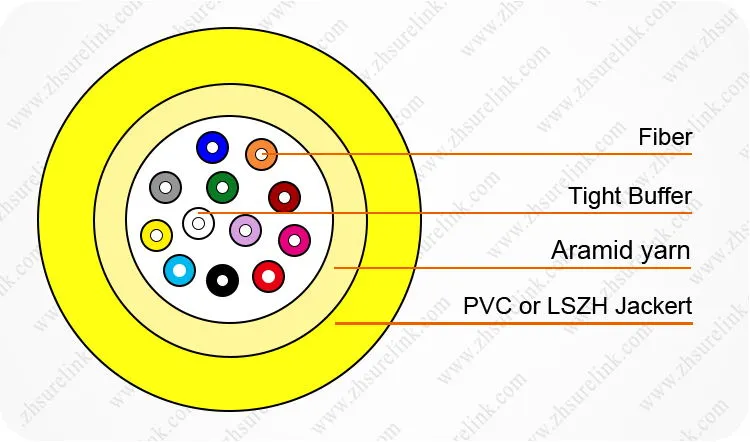

⚙ Cable Structure & Technical Parameters

Optical Characteristics:

Parameter		G.652D	50/125μm	62.5/125μm
Attenuation (+20ºC)	@850nm	-	≤3.0 dB/km	≤3.0 dB/km
Attenuation (+20ºC)	@1310nm	≤0.36 dB/km	-	-
Bandwidth	@850nm	-	≥500 MHz·km	≥200 MHz·km
Bandwidth	@1300nm	-	≥1000 MHz·km	≥600 MHz·km

✨ Product Features

✔ Small diameter and light weight for easy handling.
✔ Excellent flame retardant properties (LSZH/PVC).
✔ Superior strippability for quick termination.
✔ High flexibility and low attenuation.
✔ Working life of more than 25 years.

👨‍🔧 Mechanical Characteristics

Item	Type	MPC-02 to MPC-12 Range
Cable Diameter (mm)	Range	4.1±0.25 to 6.8±0.25
Cable Weight (kg/km)	Range	12 to 35
Tensile Strength	Short Term	150N / 120N / 100N
Crush Resistance	Short Term	500N/100mm
Bending Radius	Dynamic / Static	20XD / 10XD

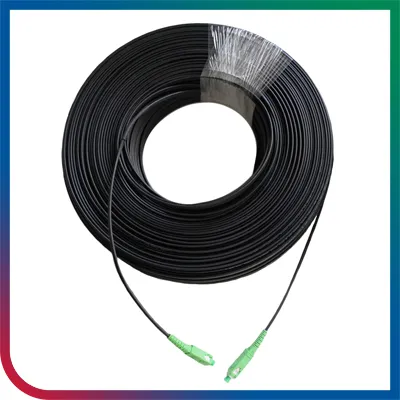

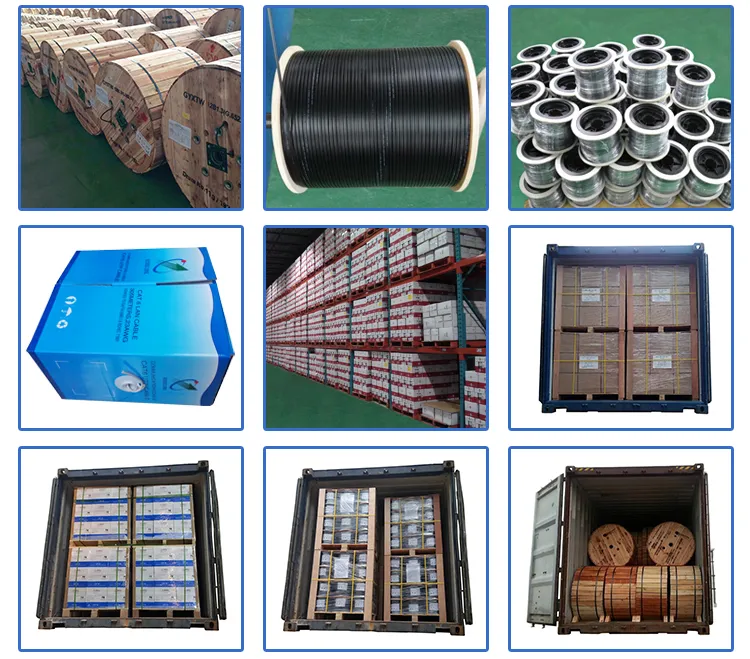

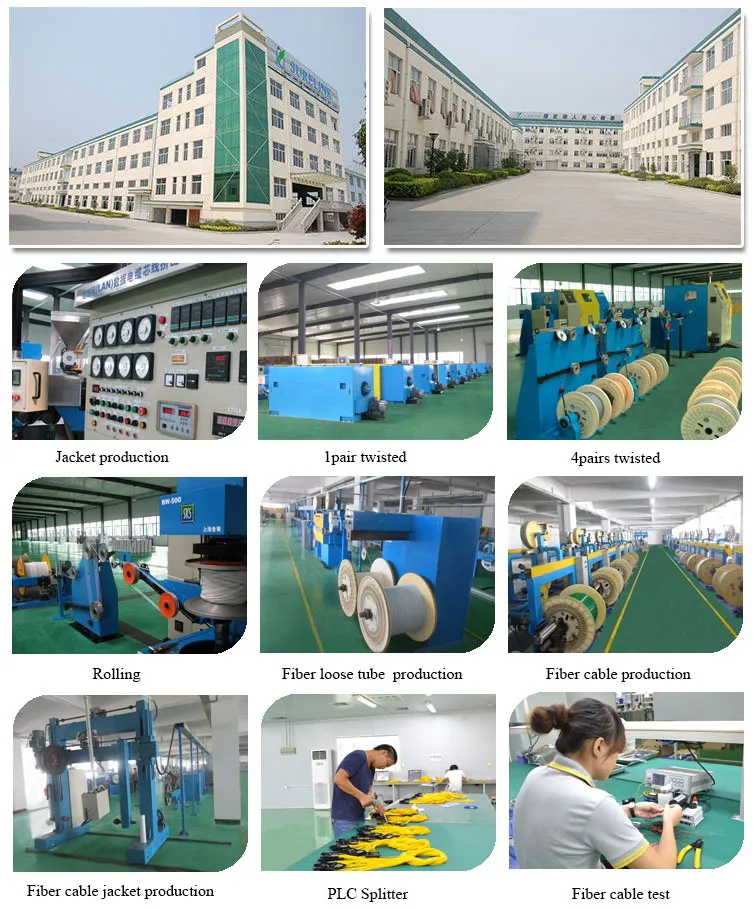

📸 Manufacturing & Packaging

❓ Frequently Asked Questions (FAQ)

1. What are the primary applications for GJFJV fiber cable?

GJFJV cables are ideal for indoor distribution in offices, commercial buildings, optical test equipment, and communication base stations.

2. Is the cable jacket fire-retardant?

Yes, we offer both PVC and LSZH (Low Smoke Zero Halogen) jacket options, which provide excellent flame retardant properties for indoor safety.

3. What is the typical lifespan of this optical cable?

Under standard operating conditions, our GJFJV fiber cables are designed to have a working life of more than 25 years.

4. Can I order both Singlemode and Multimode versions?

Yes, this cable model is available in Singlemode (G.652D) and Multimode (50/125μm or 62.5/125μm) types to suit your network requirements.

5. Which international standards does the cable comply with?

The cables comply with the YD/T 769-2003 standard and hold certifications such as CE, RoHS, and ISO9001.
