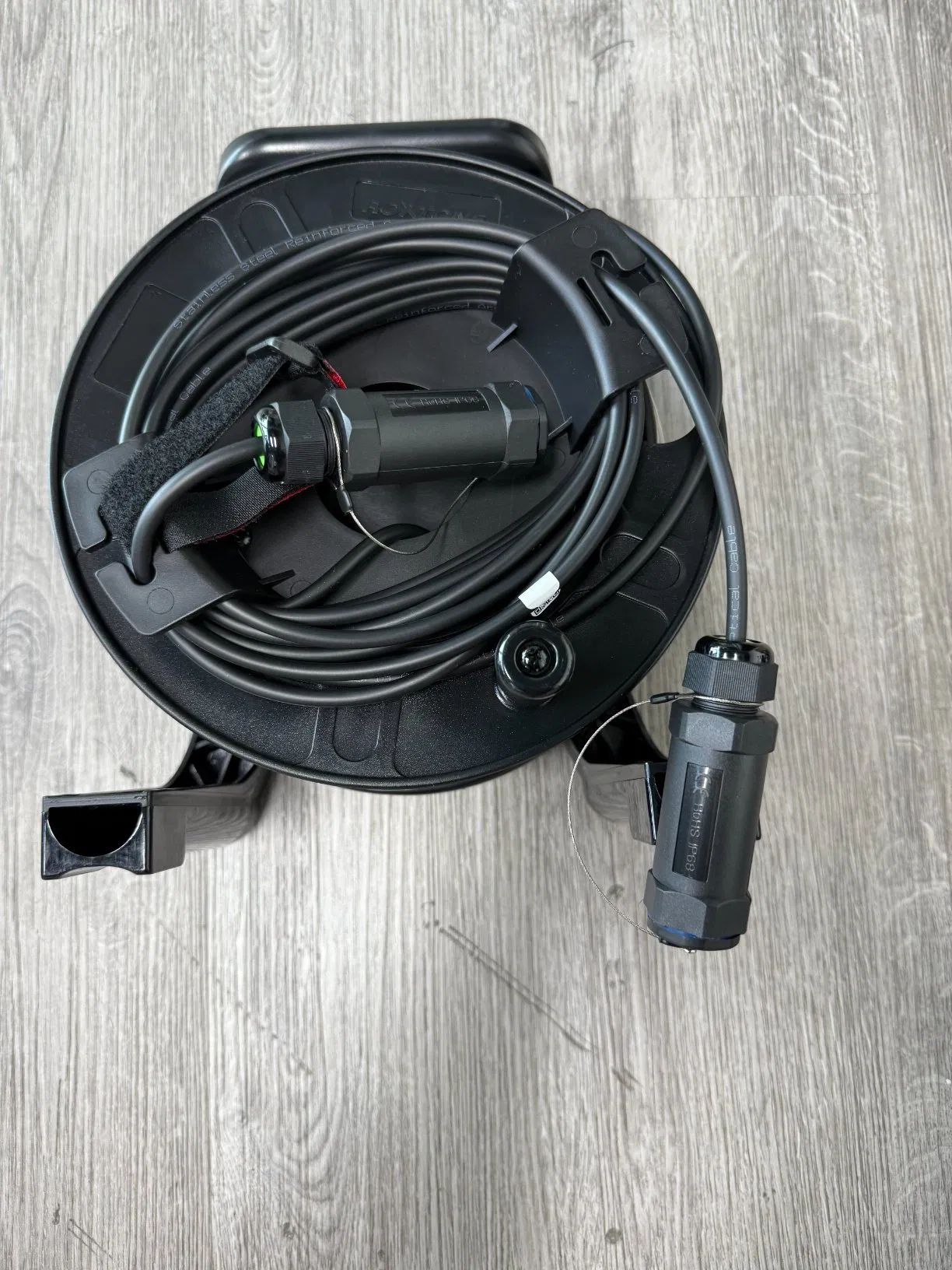

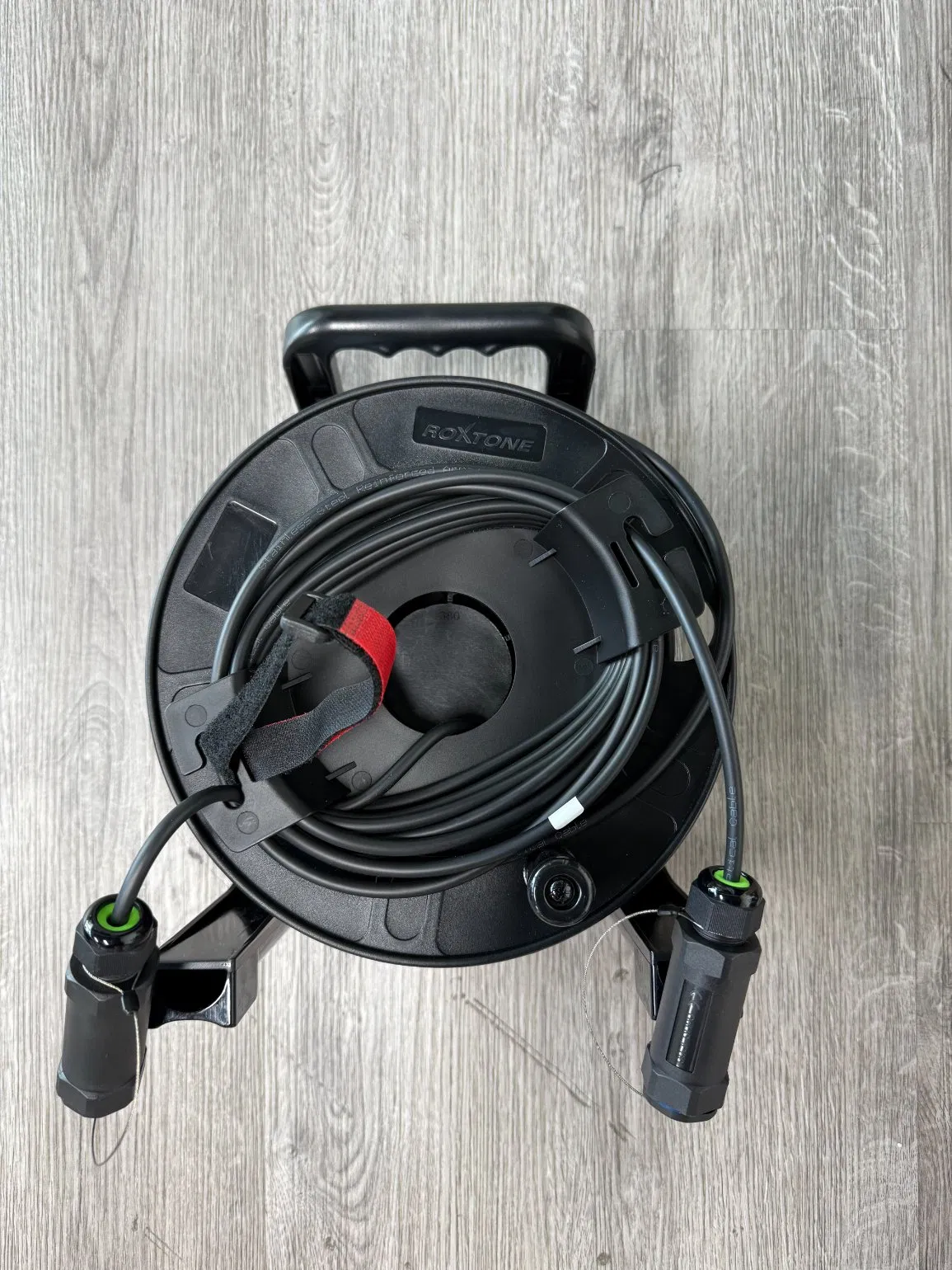

100m Outdoor Steel Armored Fiber Optic HDMI Cable Support 8K Hdcp2.3 3D

1 / 5

100m Outdoor Steel Armored Fiber Optic HDMI Cable Support 8K Hdcp2.3 3D

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Product Overview

Model NO.

Armored HDMI cable (FS-Armored HDMI 02)

Type

8K Resolution Outdoor Armored HDMI Aoc Cable

Resolution

8K@60Hz 4K@120Hz (4:4:4) Hdcp2.3, Earc and Dynamic

Wire Core

Armored Optical Fiber HDMI Cable

Bandwidth

48gbps

Material Type

Aoc Fiber Om3/Armour

Certification

RoHS, CE, ISO9001, CCC

Length Options

20m, 30m, 40m, 50m, 100m

Product Description

Armored HDMI 2.1 8K Fiber Optic Cable 48Gbps Support 3D 8K 60Hz HD Video

This armored HDMI fiber cable supports 8K@60Hz and 4K@120Hz resolutions with a 48Gbps bandwidth, featuring a durable steel armor layer for enhanced protection against interference, trampling, and bending. Its zinc alloy housing and gold-plated connectors ensure stable signal transmission.

Our Armored HDMI Active Hybrid Cable is a competitive long-reach HDMI interconnection solution. It supports a maximum data rate of 12Gbps per channel (48Gbps total) with a lightweight, flexible, and ultra-small long-term bending radius (45mm). Featuring an advanced optical engine, it provides full signal integrity up to 100m without external power.

Compatible with HDMI 2.1 standard 8K@60Hz 4K@120Hz
Backward compatible with HDMI 2.0 / HDMI 1.4
Supports HDCP 2.3 and eARC
Support 48G Bandwidth with Dynamic HDR formats
Self-detecting function for EDID information
Hybrid optical cable with fiber and copper wire
Steel armor layer for outdoor and harsh environment durability

Applications

Digital Signage & LED signboards
Medical Imaging Equipment
Airplane On-board Video Systems
Home Theater (Blu-ray, 3D video, Projectors)
Game Consoles & Professional Computers
TV Broadcast Stations & Conference Rooms
Security Systems

Technical Specifications

Absolute Maximum Rating
Parameter	Symbol	Min	Max	Unit
Power Supply Voltage	VCC	4.5	5.5	V
Operating Temperature	Top	0	50	°C
Storage Temperature	Ts	-40	70	°C
Relative Humidity	Hs	10	80	%RH

Item	Description
HDCP & DDC	HDCP 2.3 Fully Support bi-directional EDID and HDCP
Video Bandwidth	12 Gbps/x4Channel (48Gbps)
Resolution & Distance	Up to 8Kp50/60 up to 100m
O/E Converter	Source: 4 CH 850nm VCSEL	Sink: 4 CH GaAs PD
Cable Outer Diameter	4.5mm
Jacket Material	PVC/TPU (Custom available)
Power Consumption	250mW (max)

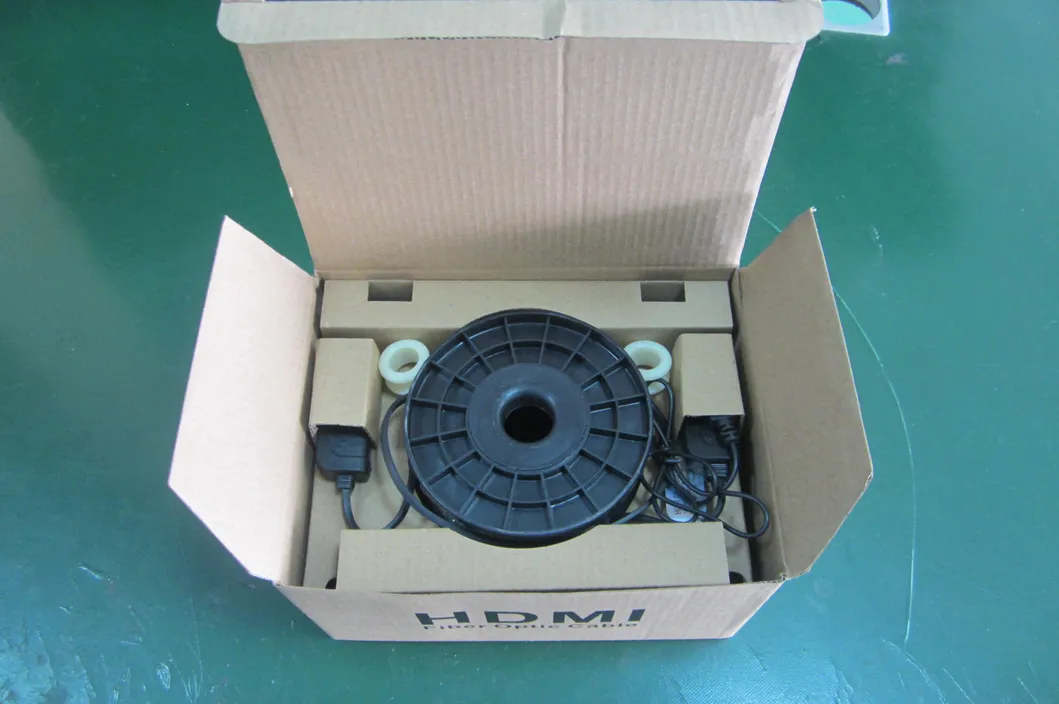

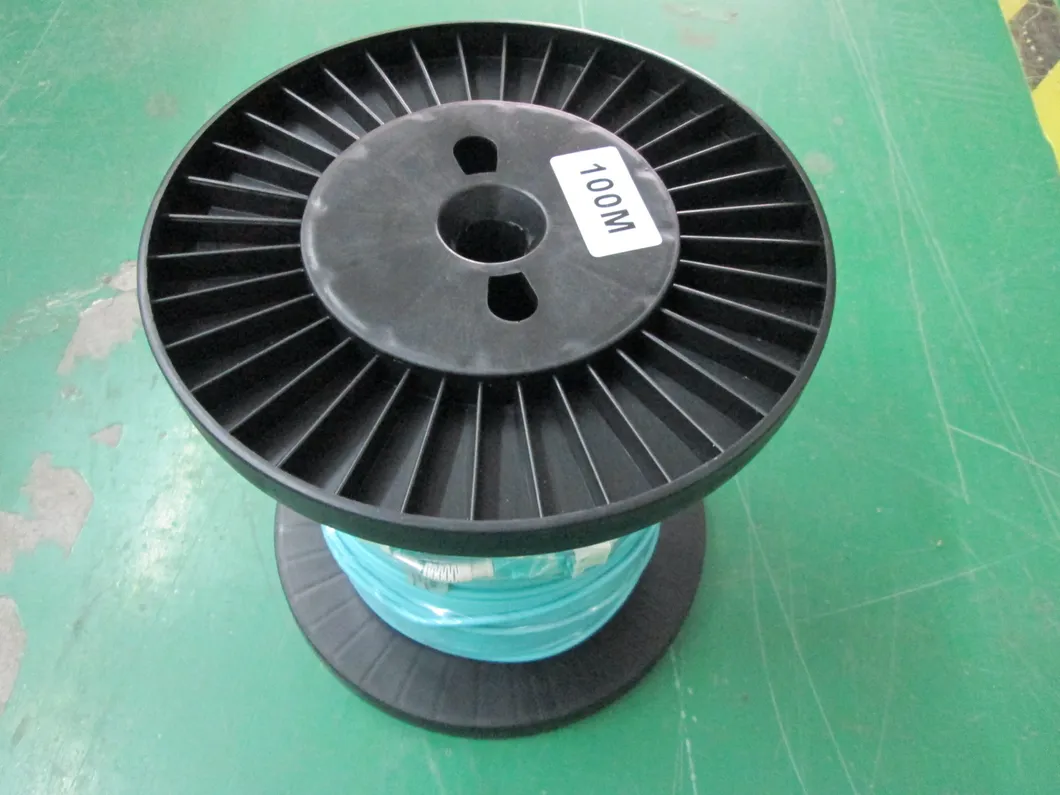

Product Visuals

Frequently Asked Questions

1. What is the maximum resolution and bandwidth supported by this cable?

This cable supports HDMI 2.1 standards, providing up to 8K@60Hz and 4K@120Hz resolutions with a total bandwidth of 48Gbps.

2. Does the cable require an external power supply?

No external power is required. The cable is a plug-and-play solution that draws power directly from the HDMI source.

3. What are the benefits of the "Armored" design?

The armored layer consists of a durable steel spiral that protects the delicate internal optical fibers from crushing, trampling, and heavy bending, making it ideal for outdoor or high-traffic environments.

4. How far can the signal be transmitted without loss?

Thanks to the active hybrid optical fiber technology, this cable can transmit crystal-clear digital signals up to a maximum length of 100 meters without signal degradation.

5. Is this cable compatible with older HDMI devices?

Yes, it is fully backward compatible with HDMI 2.0 and HDMI 1.4 standards, as well as supporting HDCP 2.3 and eARC.

6. What is the bending radius of the armored cable?

The cable features an ultra-small long-term bending radius of approximately 45mm, ensuring flexibility during installation despite its reinforced structure.
