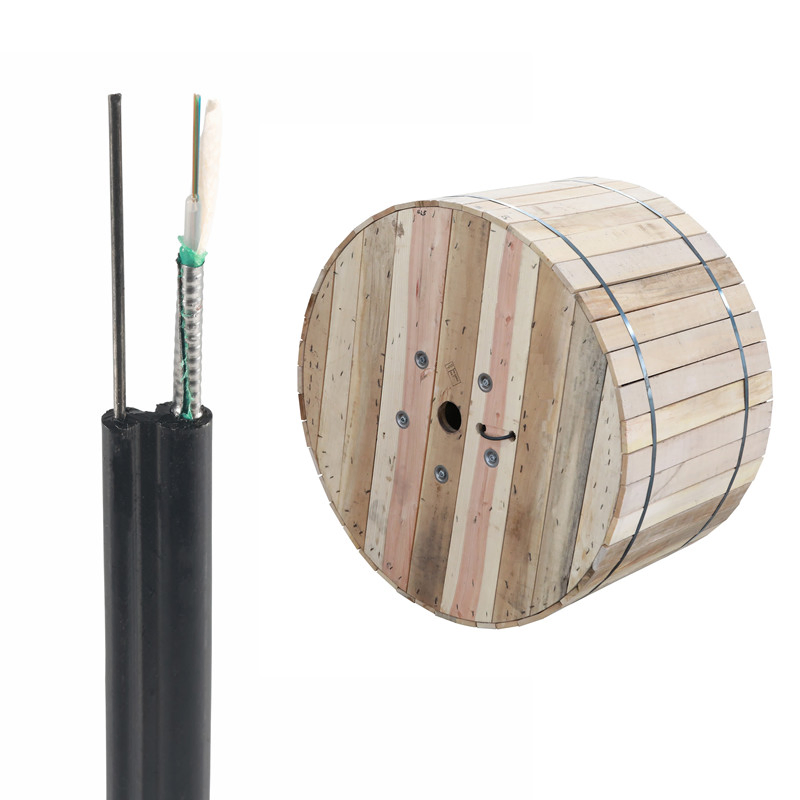

Aerial Fiber Optic Factory Supply Outdoor Armored Loose Tube Figure 8 Gyxtc8s Fibre Optic Cable Manufacturer Supplier

📋 Basic Specifications

Model NO.

GYXTC8S

Material Shape

Round Wire

Allowed Lateral Pressure

100-1000 (N/100mm)

Tensile Strength

1000N - 10000N

Certification

RoHS, CE, ISO9001, VDE, CCC

Fiber Type

G652D, Om1, Om2, Om3, Om4

Fiber Count

2-24

Tube Construction

Central Loose Tube

Outer Jacket

PE / LSZH / Flame Retardant PE

Self Support Member

2.0mm Steel Wire

Max Tension

1kn

Production Capacity

300km/Week

🔍 Product Description

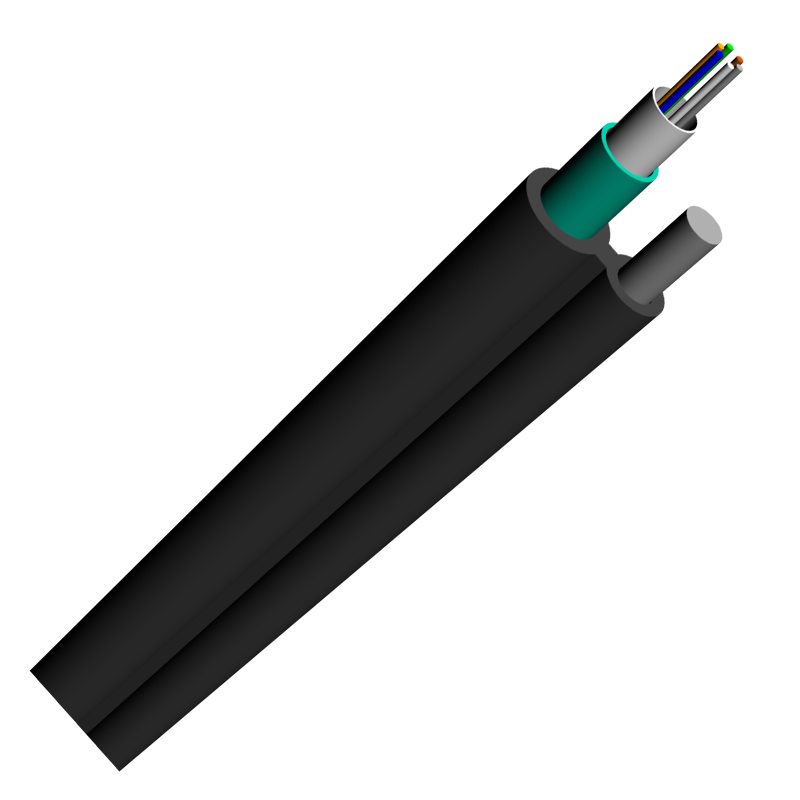

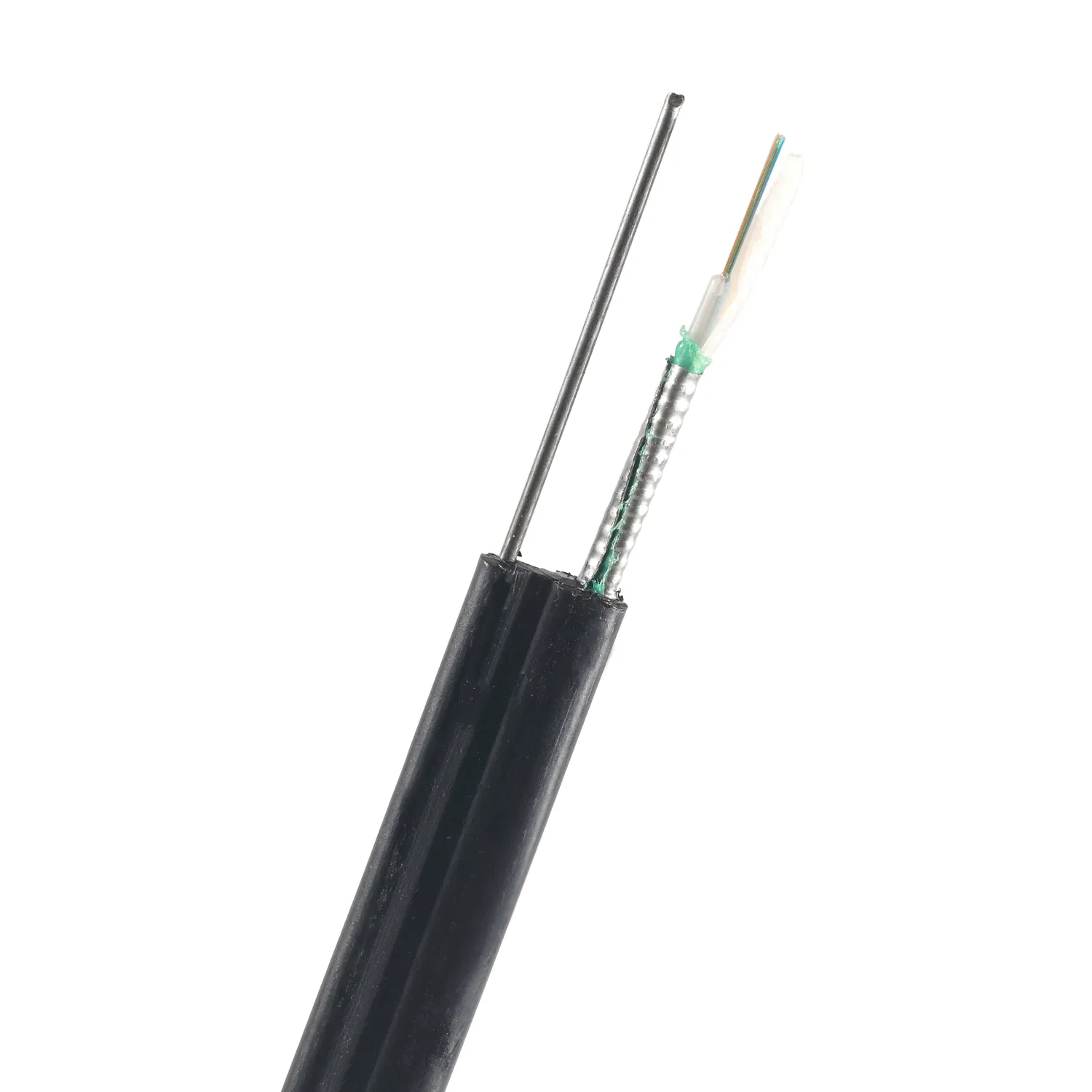

GYXTC8Y Micro Uni-Loose Tube None Armor Cable is specifically designed for aerial installations, supporting fiber counts up to 24 fibers. The figure-8 design provides excellent self-supporting performance for outdoor environments.

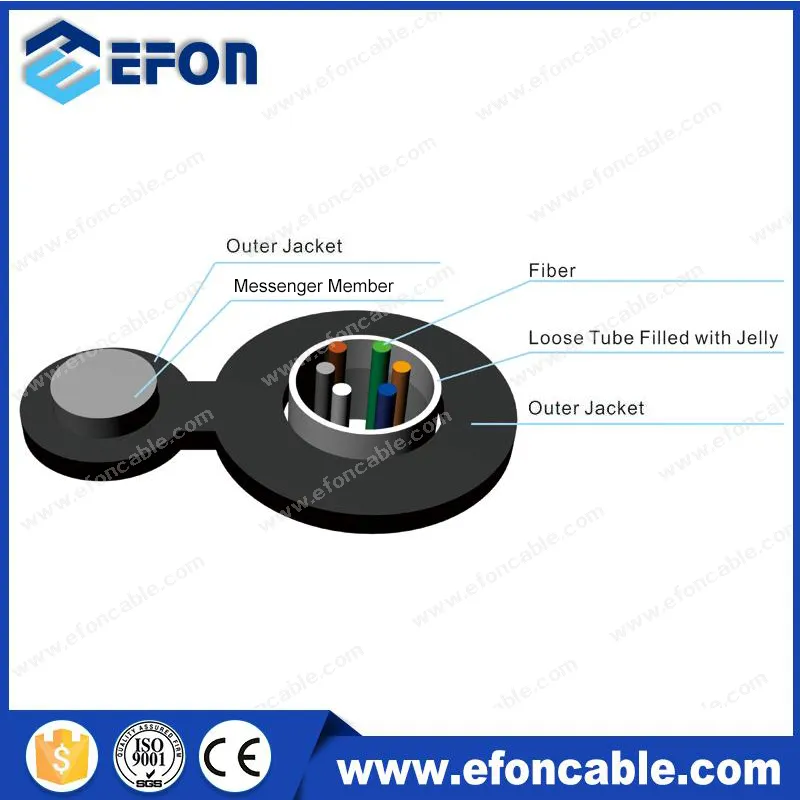

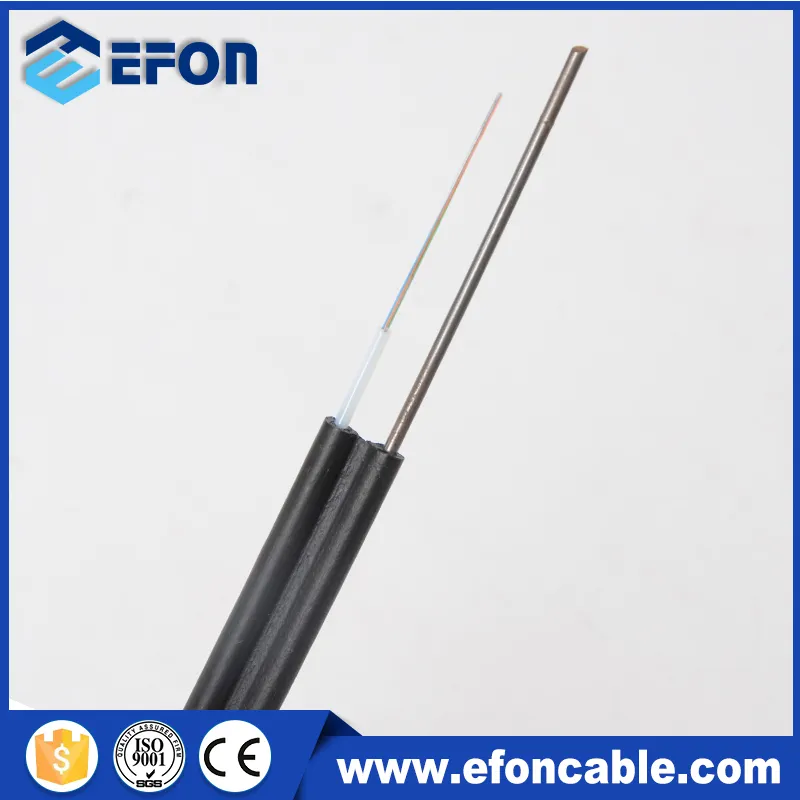

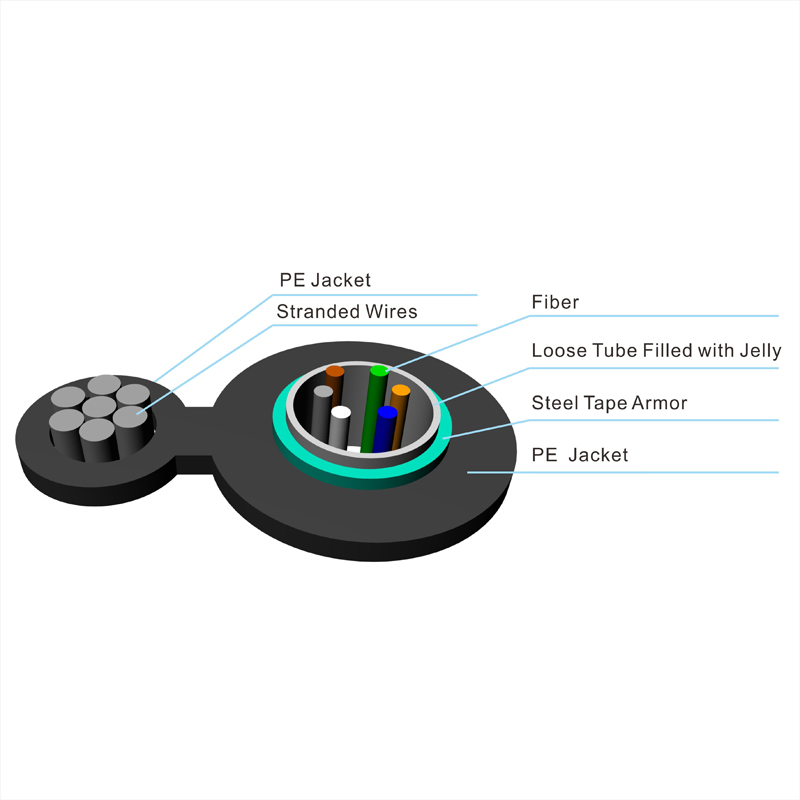

Key Construction:

Fiber: 2-24 fibers, Uni-loose tube gel-filled for protection.
Messenger Member: 2.1mm galvanized steel wire.
Outer Jacket: Black UV-resistant and waterproof polyethylene (PE).
Applications: Aerial installation, FTTx, interbuilding voice/data communication.

📊 Optical Characteristics

Fiber Type	G.652	G.655	50/125μm	62.5/125μm
Attenuation 850nm	-	-	<3.0 dB/km	<3.3 dB/km
Attenuation 1310nm	<0.36 dB/km	<0.40 dB/km	-	-
Attenuation 1550nm	<0.22 dB/km	<0.23 dB/km	-	-
Bandwidth 850nm	-	-	>500 MHz-km	>200 MHz-km

⚙️ Mechanical Performance Standards

Test Item	Standard Compliance
Max Tension Performance	IEC 60794-1-2-E
Crush Test	IEC 6079 -1-2-E3
Impact Test	IEC 60794-1-2-E4
Temperature Cycling	IEC 60794-1-2-F1
Water Penetration	IEC 60794-1-2-F5B

🖼️ Product Showcase

💳 Logistics & Warranty

Payment:

T/T, L/C, E-credit lines (Large orders); Credit cards (Small orders).

Shipping:

Delivery within 10 days via Air (small batches) or Container (large orders).

Warranty:

5 years warranty on all products. Free replacement for non-man-made issues.

❓ Frequently Asked Questions

What is the primary application of the GYXTC8S fiber optic cable?

The GYXTC8S is primarily designed for outdoor aerial installations. Its self-supporting Figure 8 design makes it ideal for hanging on poles and interbuilding communication.

What is the maximum fiber count available for this model?

This specific uni-loose tube cable supports a fiber count ranging from 2 up to 24 fibers.

Is the cable protected against environmental factors like UV and water?

Yes, the outer jacket is made of high-density polyethylene (PE) which is both UV-resistant and waterproof, ensuring long-term outdoor durability.

Which standards does the cable comply with?

Our cables are tested and produced in compliance with international standards including IEC 60794, ITU-T G.652, and carry certifications like CE, RoHS, and ISO9001.

What kind of warranty is provided?

We offer a 5-year warranty. If any non-man-made problems occur, we provide free repair or replacement services.

What is the typical lead time for an order?

Standard products are typically dispatched within 10 days after order confirmation, depending on the order size and customization requirements.
