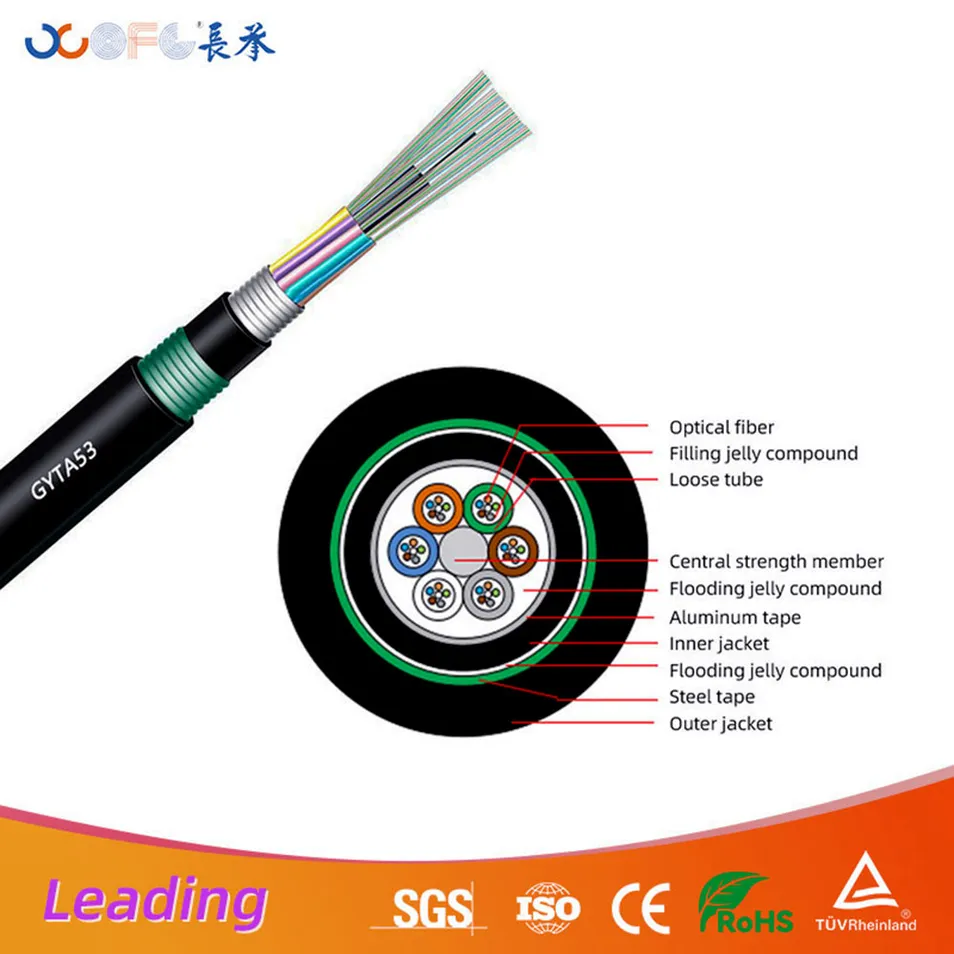

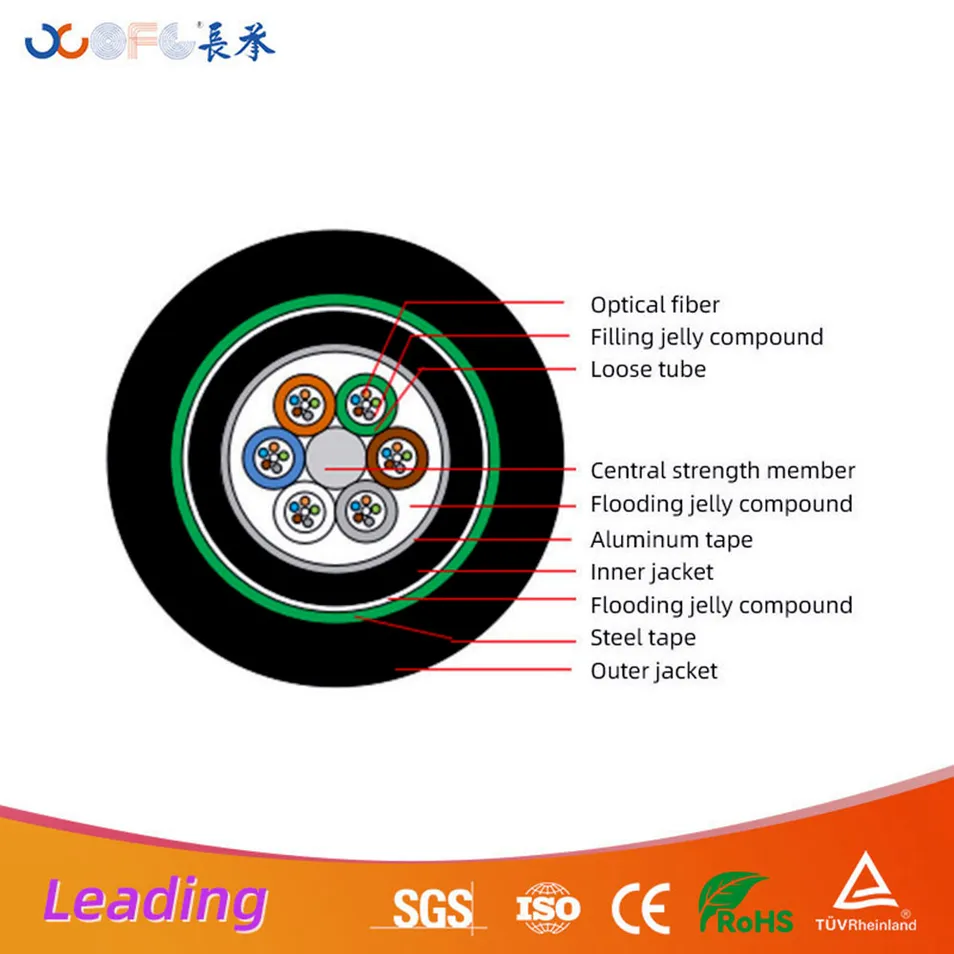

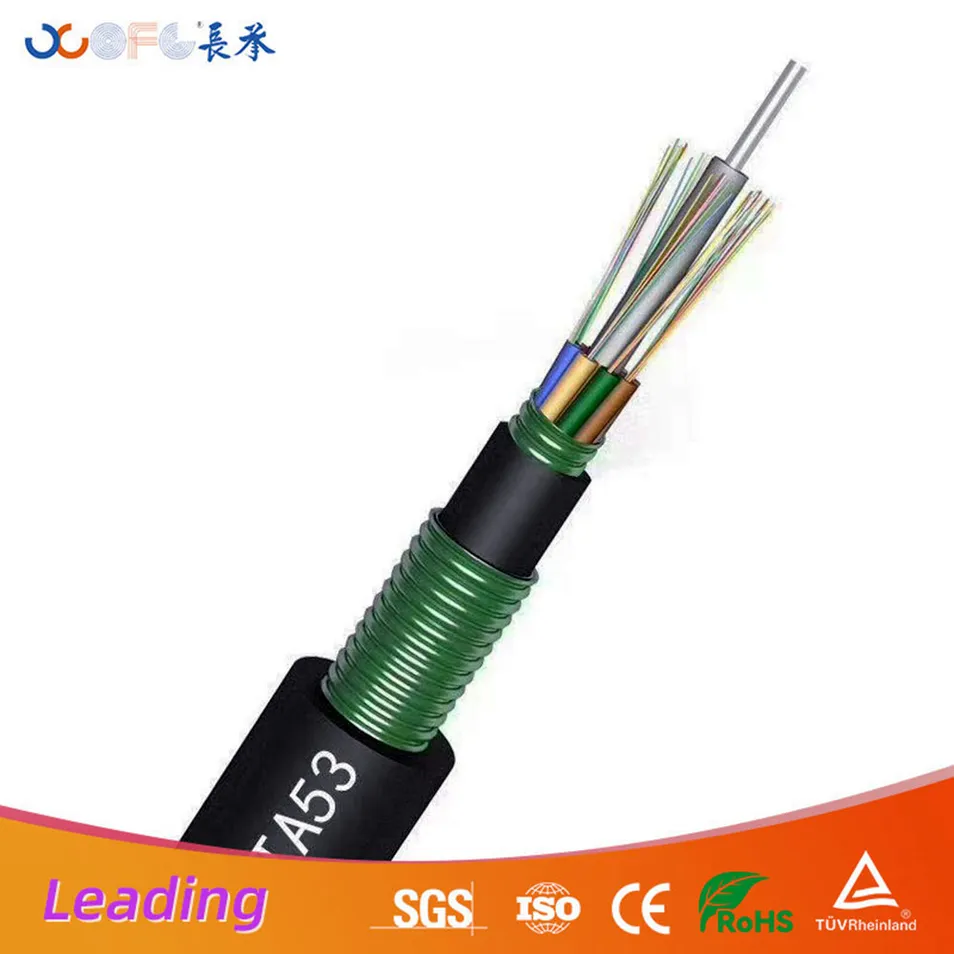

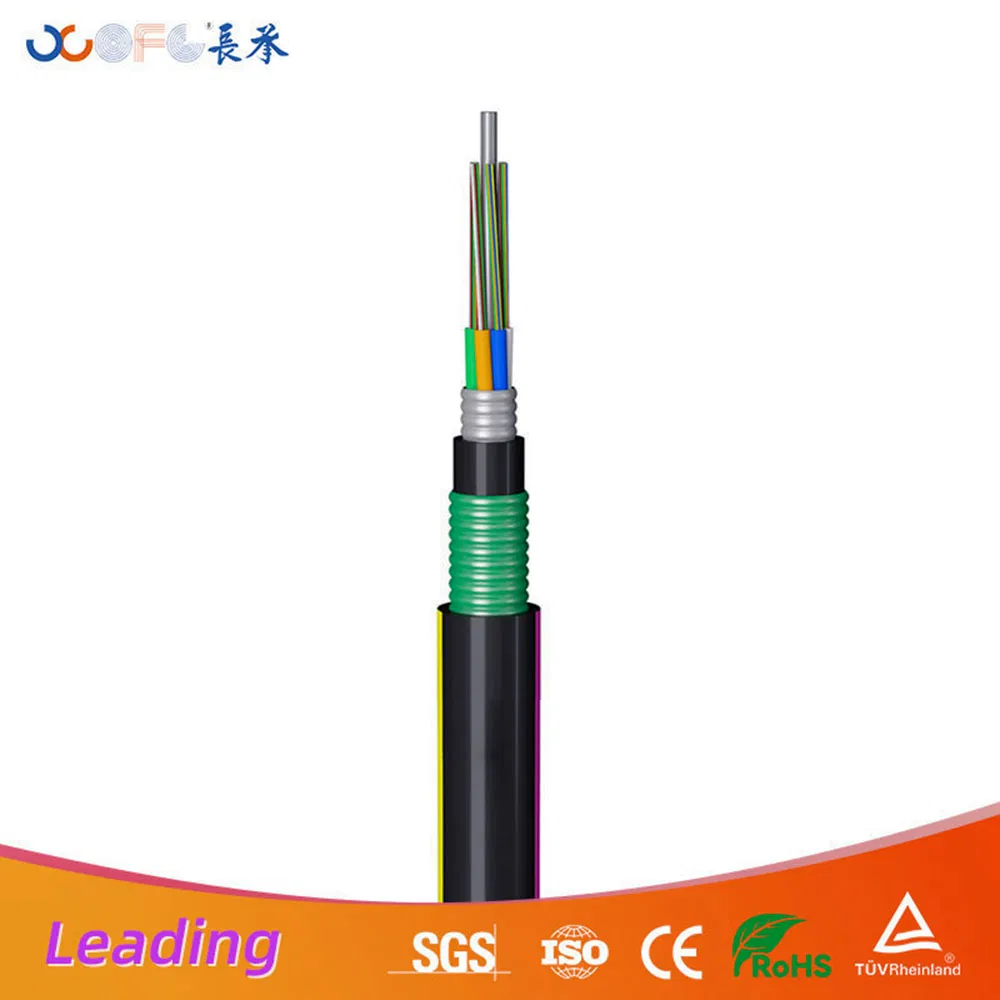

The GYTA53 fibre optic cable is constructed by placing a 250µm fibre optic cable in a high modulus material pine tube, which is filled with a waterproof compound. At the centre of the core is a metal reinforcement core, which for some cores is also extruded with a layer of polyethylene (PE). The loose sleeving and filler rope are twisted around the central reinforcement to form a compact and rounded core with gaps filled with a water-blocking filler. Plastic coated aluminium tape (APL) is wrapped longitudinally and then extruded with a layer of polyethylene.
Ideal for overhead installation along high-voltage power transmission and distribution networks.
Suitable for railway communication networks and electrified rail infrastructure.
Applications in petrochemical plants, power stations, and high-voltage industrial environments.
Cost-effective solution for extending fiber networks to remote areas using existing infrastructure.
| Fiber Number | Outer Dia (mm) | Weight (kg/km) | Tensile Strength (N) | Crush Load (N/100m) |
|---|---|---|---|---|
| 2~36F | 13.1 | 190 | 3000 | 3000 |
| 38~72F | 14.3 | 225 | 3000 | 3000 |
| 74~96F | 15.8 | 255 | 3000 | 3000 |
| 98~120F | 17.4 | 295 | 3000 | 3000 |
| 122~144F | 18.9 | 345 | 3000 | 3000 |
| 146~216F | 18.9 | 355 | 3000 | 3000 |
Double armored and double sheathed design provides strong protection against rolling, rodent bites, and external forces.
Fully sealed water blocking structure ensures stable performance against moisture and water seepage.
