Connection Structure
Other
Lateral Pressure
100(N/100mm)<1000(N/100mm)
Tensile Strength
1000N<10000N
Certification
RoHS, CE, ISO9001, VDE, CCC
Sheath Material
PE/LSZH/Flame Retardant PE/Anti-Rodent PE
Cable Structure
Uni-Loose Tube Cst Armor
Applications
Outdoor Duct and Conduit Installation
Fiber Options
Itu G652D, G657A, Om1, Om2, Om3, Om4
Installation Tensile
1500N
Bend Radius
20 X External Diameter
Strength Member
Two Parallel Steel Wire
Material of Jacket
Black Polyethylene (PE)
Production Capacity
300km/Week

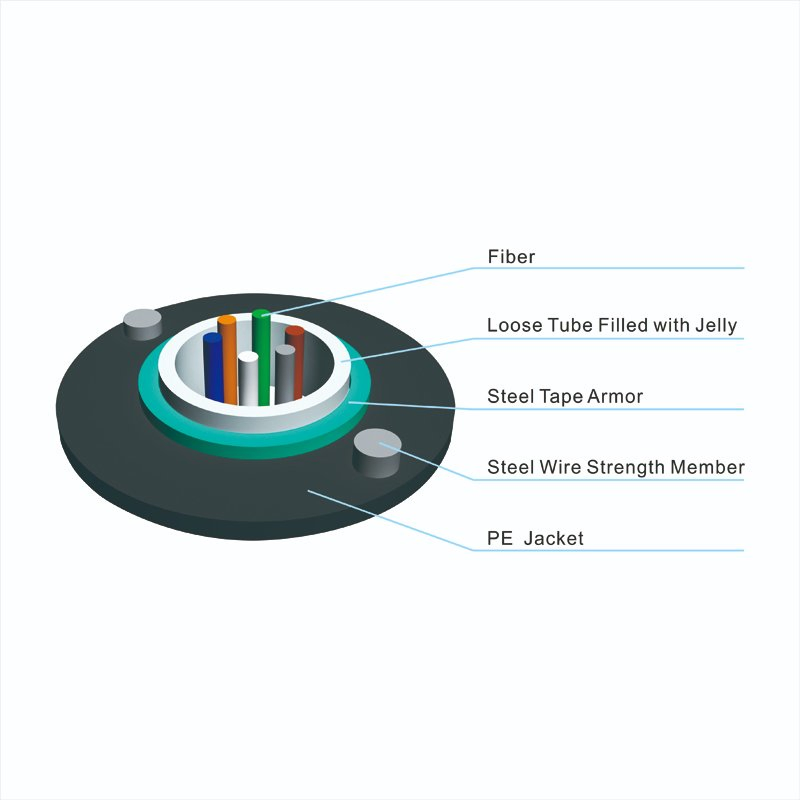

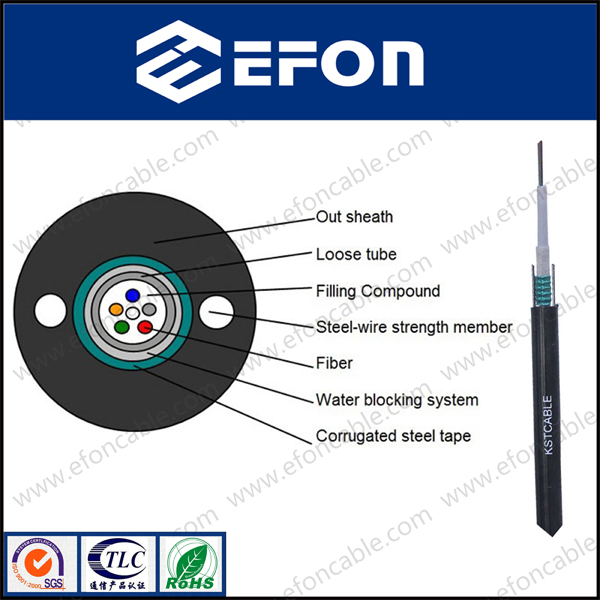

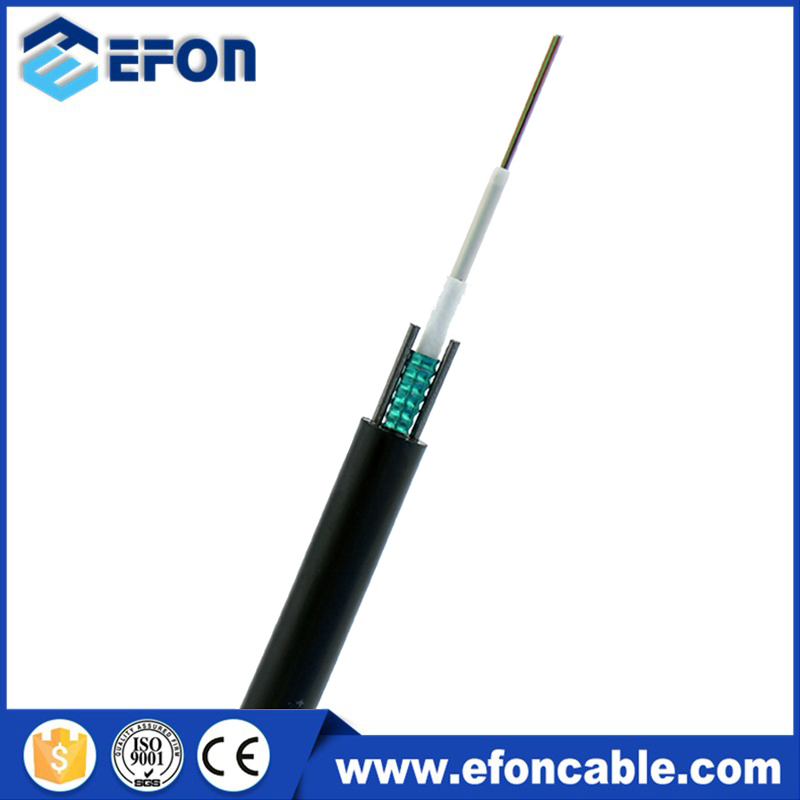

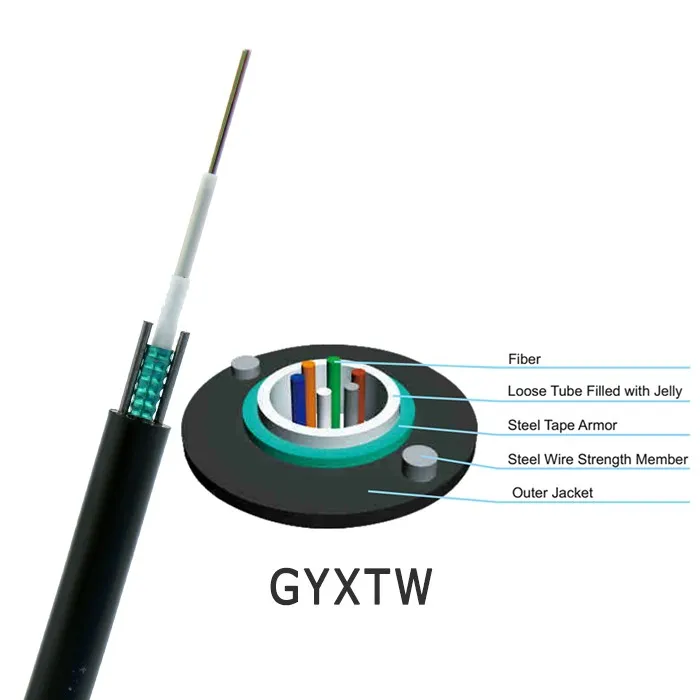

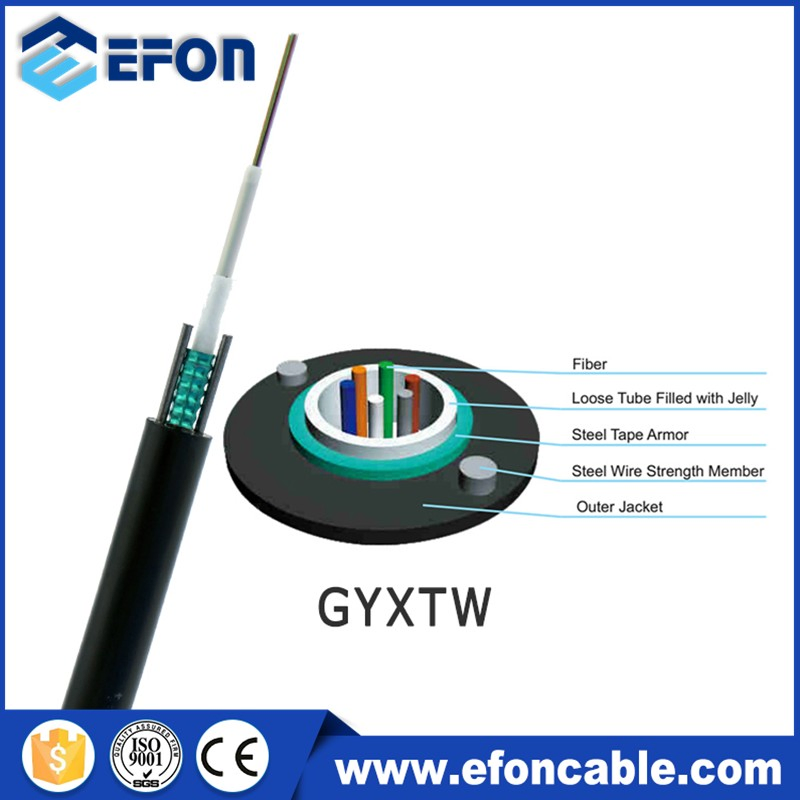

🛠️ Product Construction
- Fiber: 2-24 fibers, Uni-loose tube gel-filled
- Armor: Corrugated steel tape (CST)
- Strength Member: Two embedded parallel steel wires
- Outer Jacket: Black UV and moisture-resistant polyethylene (PE)
⭐ Key Features
✔ Uni-tube gel-filled construction for superior fiber protection.
✔ CST armor to protect cable from rodent attack and mechanical damage.
✔ Embedded steel wire provides desirable tensile strength and crush resistance.
✔ Compact design, easy to install in ducts or burial applications.
Frequently Asked Questions (FAQ)
What is the GYXTW fiber optic cable used for?
GYXTW is primarily designed for outdoor applications, specifically for installation in ducts, conduits, and direct burial scenarios where rodent protection and mechanical strength are required.
How does the corrugated steel tape (CST) armor benefit the cable?
The CST armor provides an effective barrier against rodent attacks, which is crucial for underground installations. It also enhances the cable's crush resistance and physical durability.
What is the fiber count range for the GYXTW model?
This specific cable structure supports a fiber count ranging from 2 up to 24 cores within a single uni-loose tube.
Is the GYXTW cable jacket UV resistant?
Yes, the outer jacket is made of high-density black polyethylene (PE), which is specifically designed to be UV-resistant and moisture-resistant for long-term outdoor exposure.
What provides the tensile strength in this cable?
Tensile strength is provided by two parallel steel wires embedded within the PE jacket, allowing it to withstand installation loads of up to 1500N.
What is the recommended bending radius during installation?
The recommended dynamic bending radius during installation is 20 times the external diameter of the cable to ensure no damage occurs to the optical fibers.
