GYFTY ANTI RODENT ALL DIELECTRIC OUTDOOR UG DUCT FIBER OPTIC CABLE
▶Fiber Counts: 2-288 Cores
▶Fiber Type: Single-mode fiber G652D
▶CSM (Central Strength Member): FRP
▶Anti Rodent Material: Glass Yarn
▶Buffer: Loose Tube PBT
▶Waterproof: Water Blocking Yarn & Tape
▶Sheath: MDPE/HDPE
▶Span: 80/100/120/150/200/300/400m
▶Drum Length: 2km/3km/4km
Application: Underground duct laying, Non Self-supporting Aerial Installation
Product Parameters
| Item |
Value |
| Fiber Counts | 12 | 36 | 96 |
| Tubes | 2 | 6 | 8 |
| Tube Material | PBT |
| Fiber Count/ Tube | 6 | 6 | 12 |
| OD of Tube | 2.0±0.1 mm | 2.0±0.1 mm | 2.3±0.1 mm |
| FRP Central Member | 2.2 mm | 2.2 mm | 2.5 mm |
| Anti-Rodent Member | Glass Yarn |
| Thickness of Sheath | Nominal 1.8 mm |
| Sheath Material | HDPE |
| OD of Cable | 10.5±0.3 mm | 10.5±0.3 mm | 12.7±0.3 mm |
| Cable Weight | 85 kg/km | 82 kg/km | 112 kg/km |
Key Features & Design

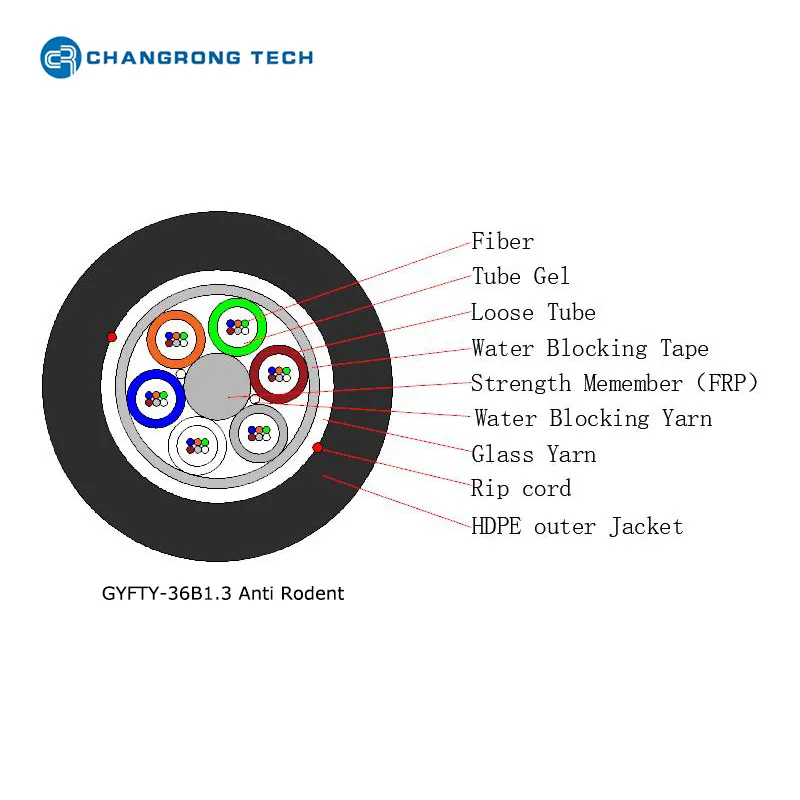

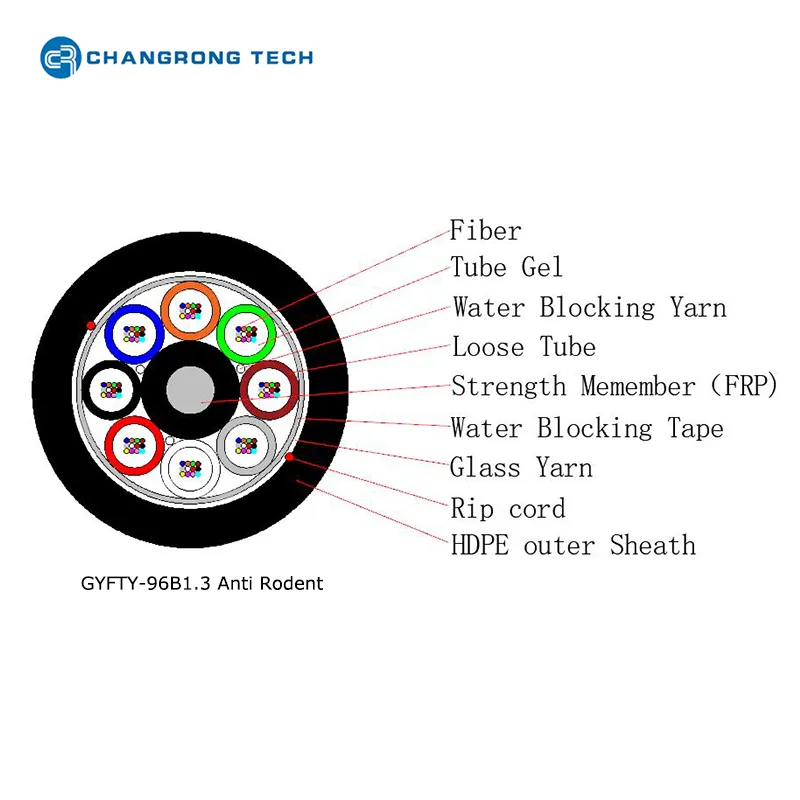

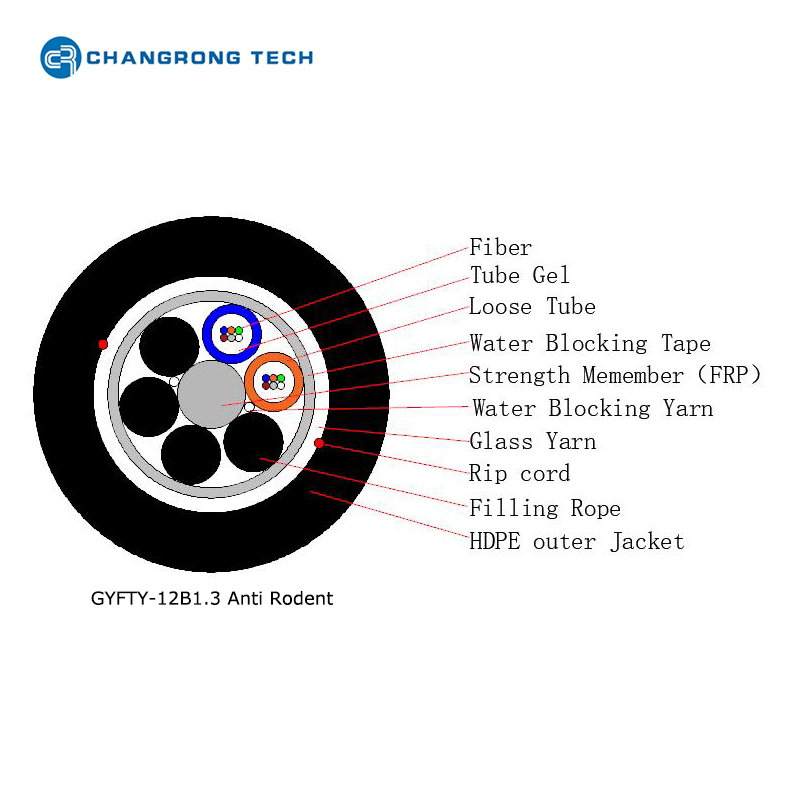

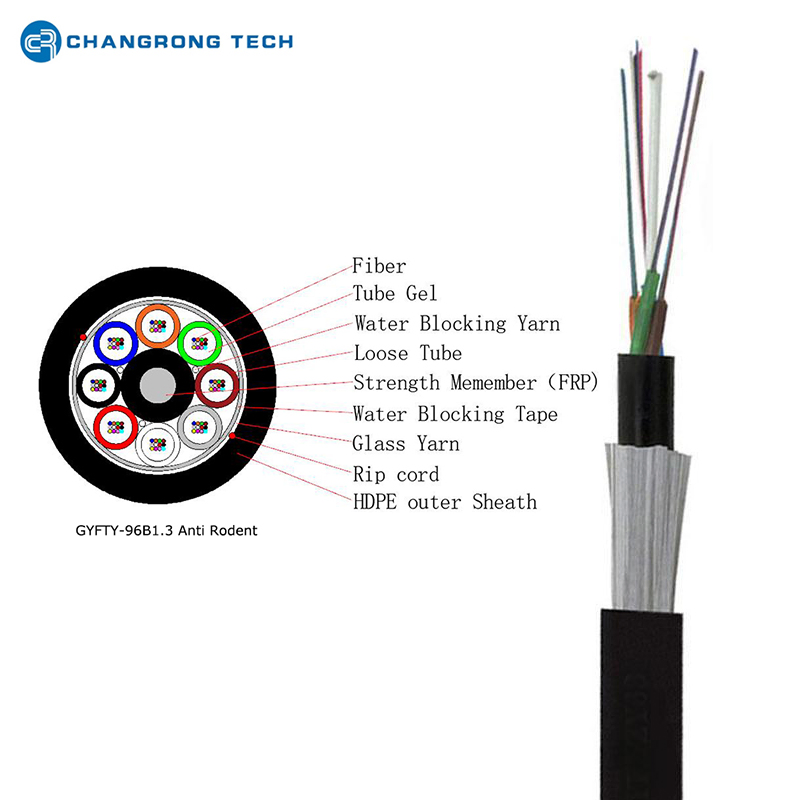

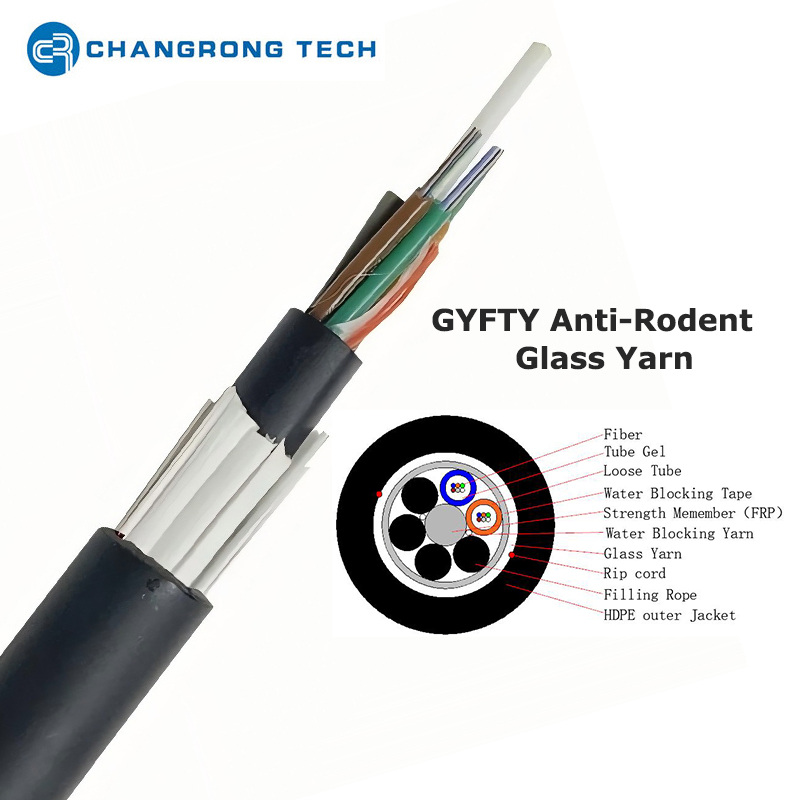

The fibers are positioned in a loose tube made of PBT filled with gel. Tubes (and fillers) are stranded around the non-metallic strength member (FRP) to form the cable core. Water blocking yarn and tape as water blocking compound around the cable core, then the glass yarn armored longitudinally outside. Finally a PE jacket is extruded.
- Good mechanical and thermal performance
- Tube gel ensures critical protection of fiber
- Stranded structure eliminating contraction of tubes
- Rugged, durable PE jacket protection against UV radiation, fungus etc.
- Crush resistance and light weight with flexibility
- Non-metallic, Anti-electromagnetic interference
- Anti Rodent: high-strength glass yarn protection
Certifications & Quality Control
ISO 9001, ISO14001, ISO45001 Certified Manufacturing
Our laboratory has passed the CNAS Certification, ensuring every meter of cable meets international standards.

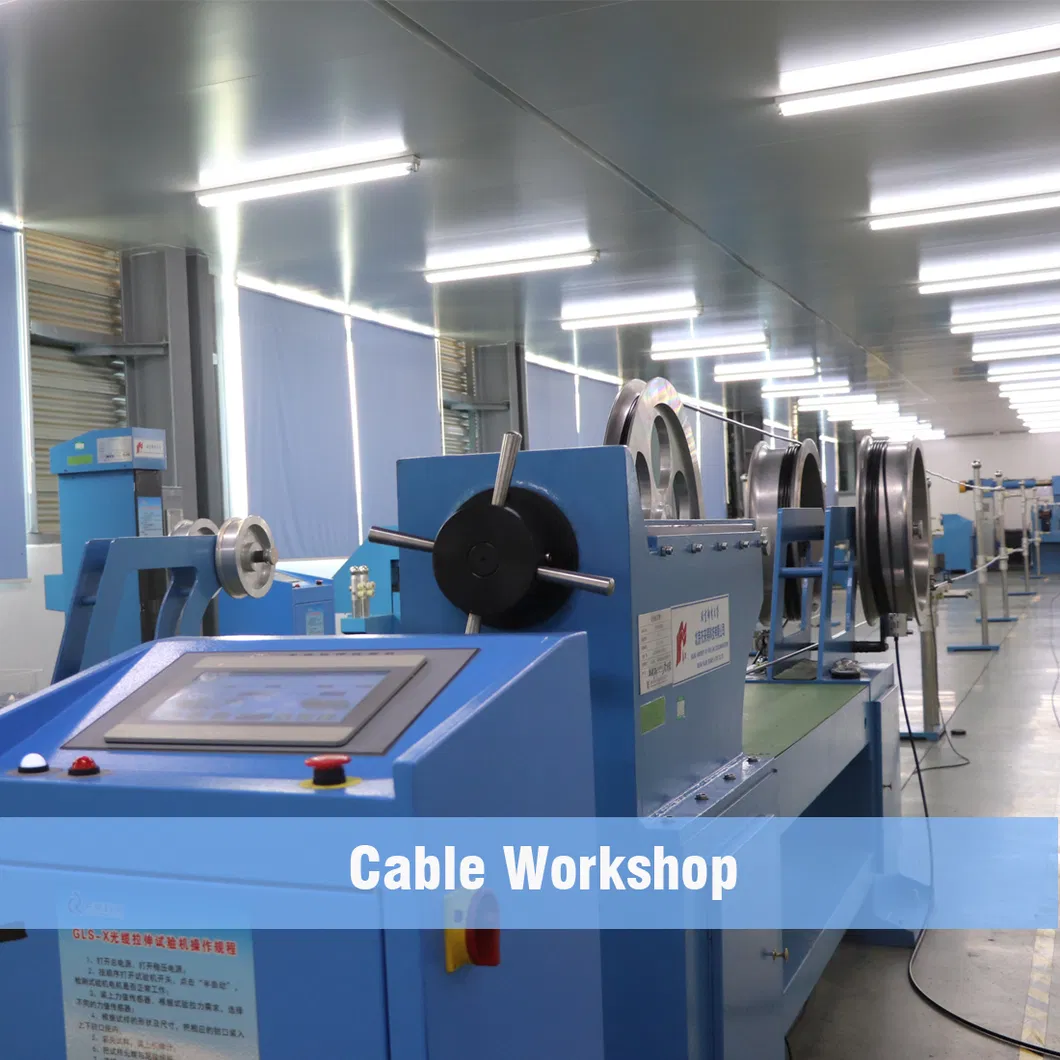

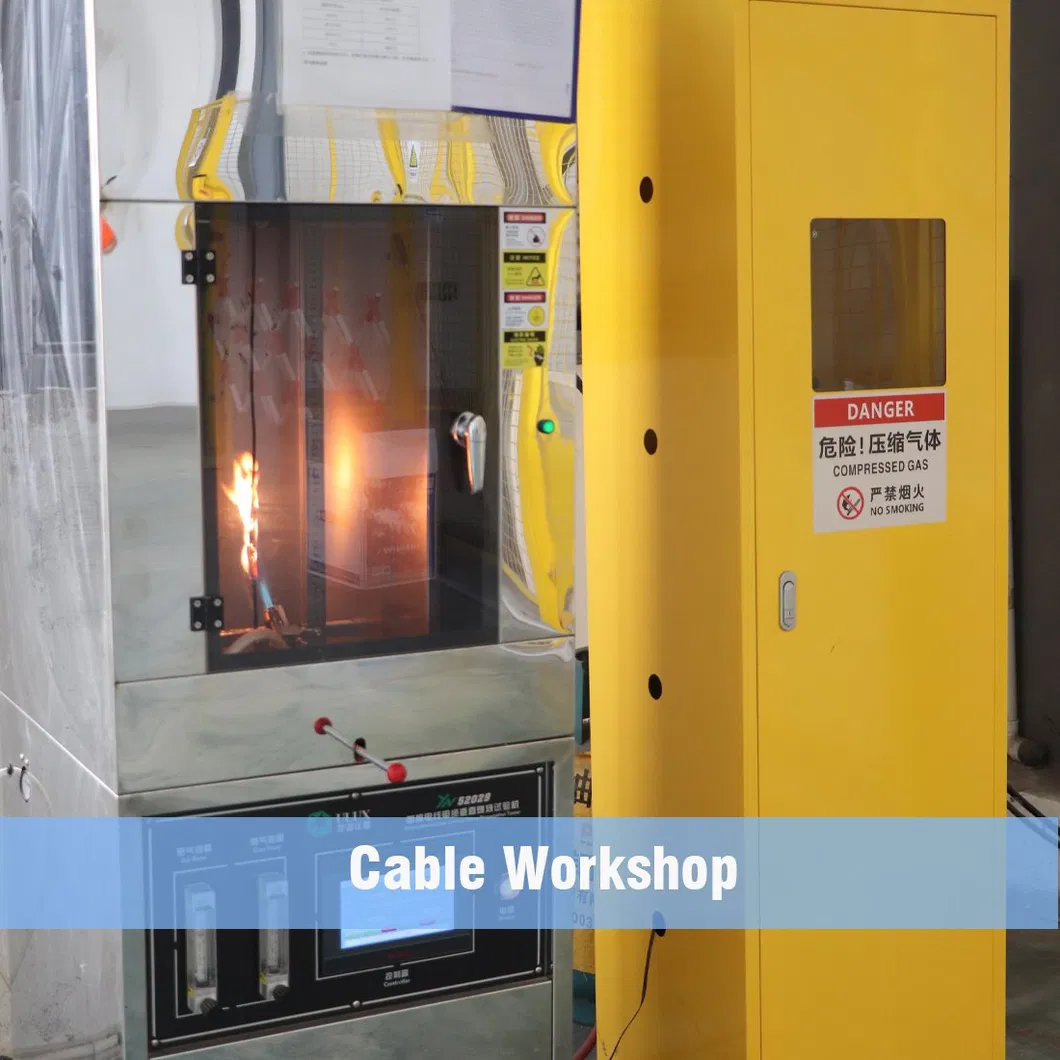

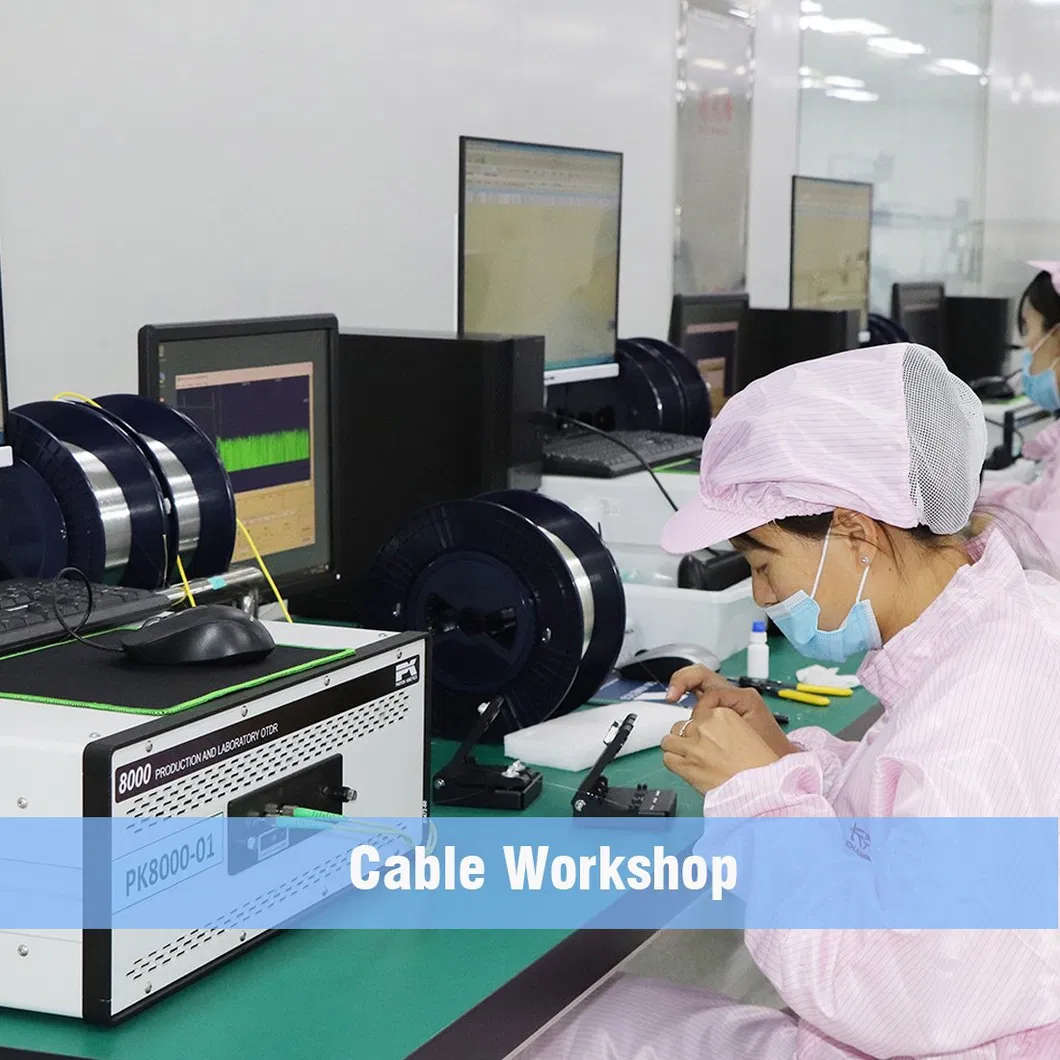

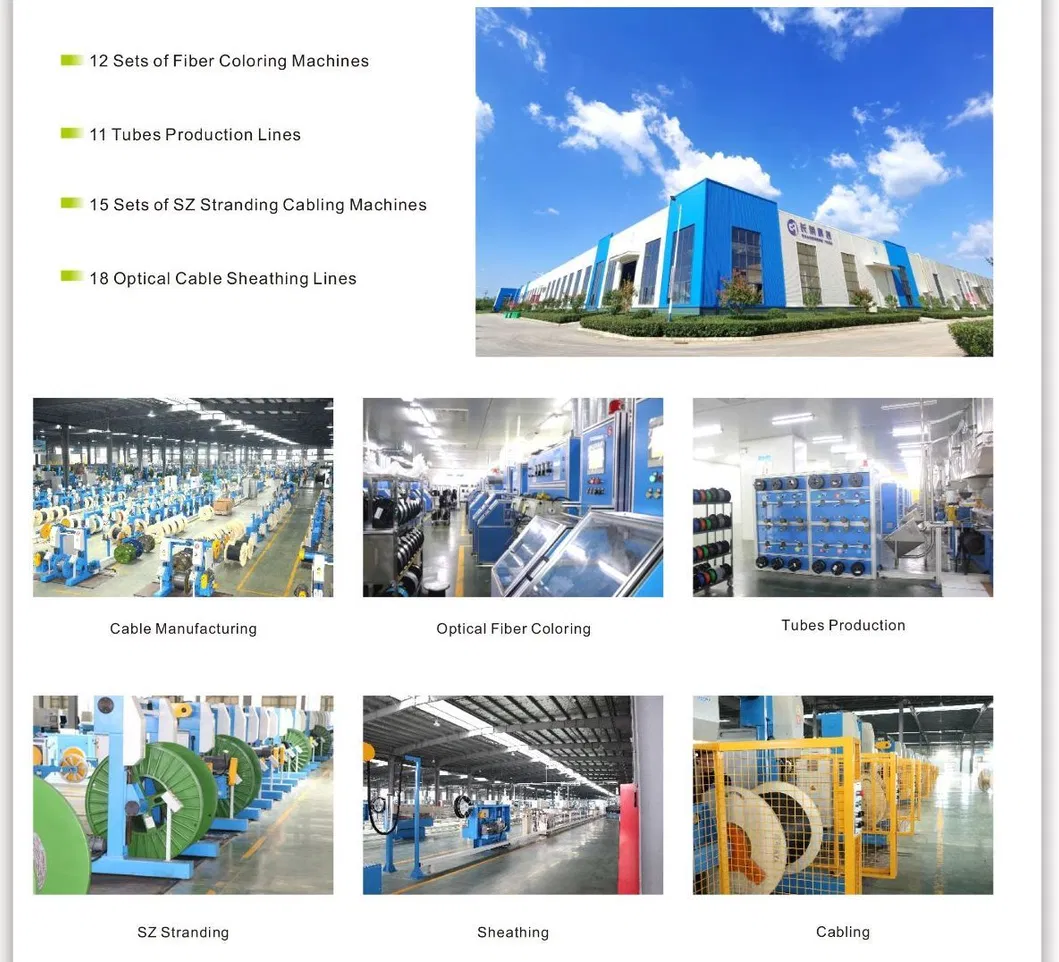

Testing & Production Capacity

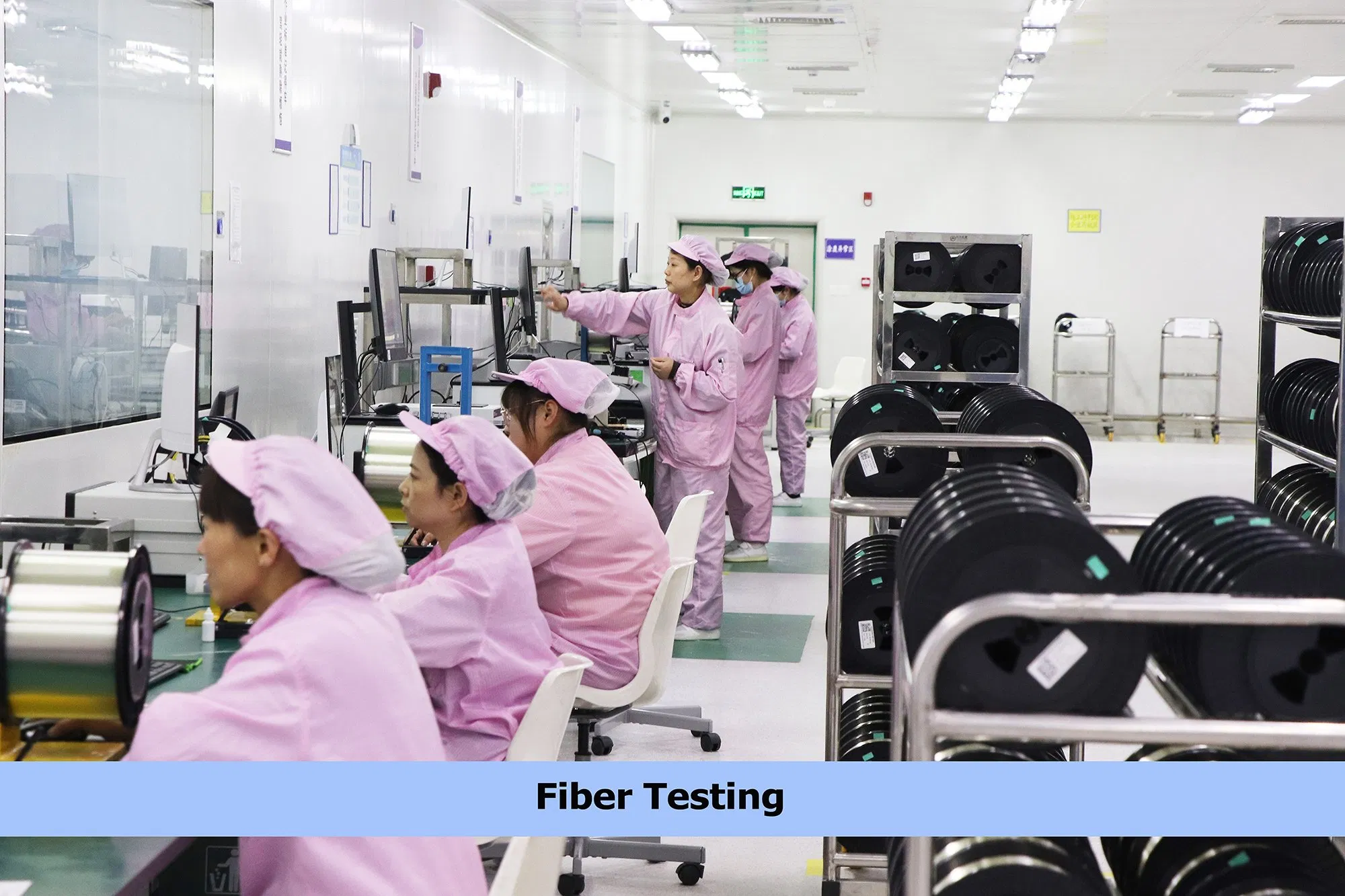

Equipped with 50 sets of Optical Cable Testing Equipment and advanced production lines to guarantee performance.

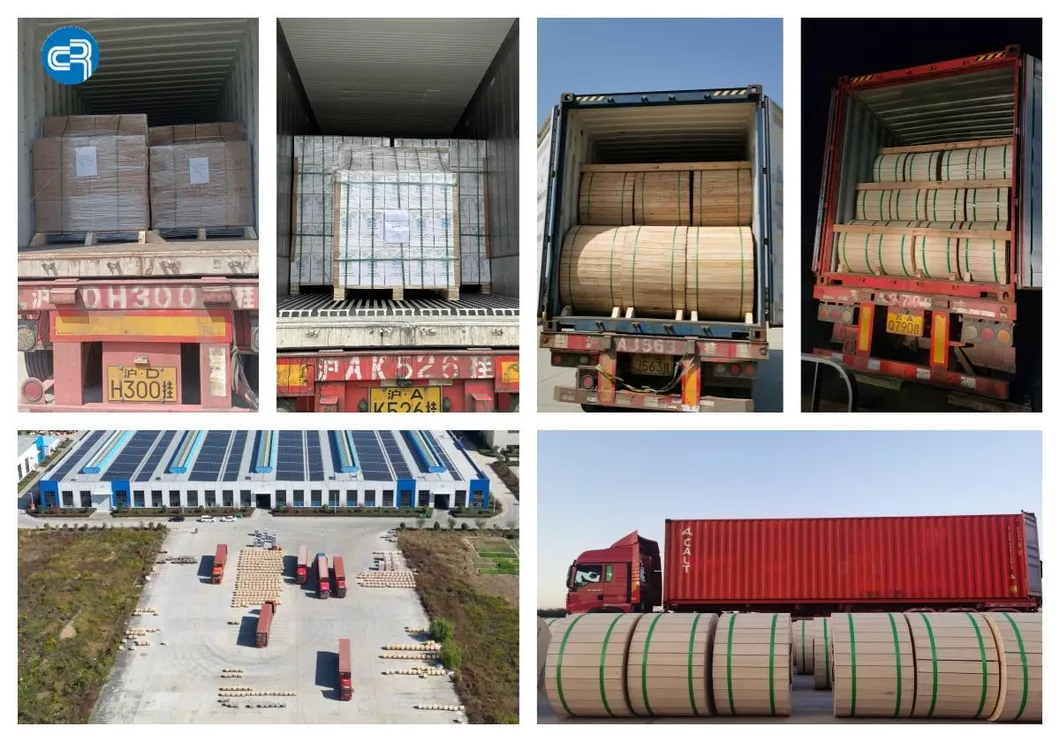

Packing & Shipping

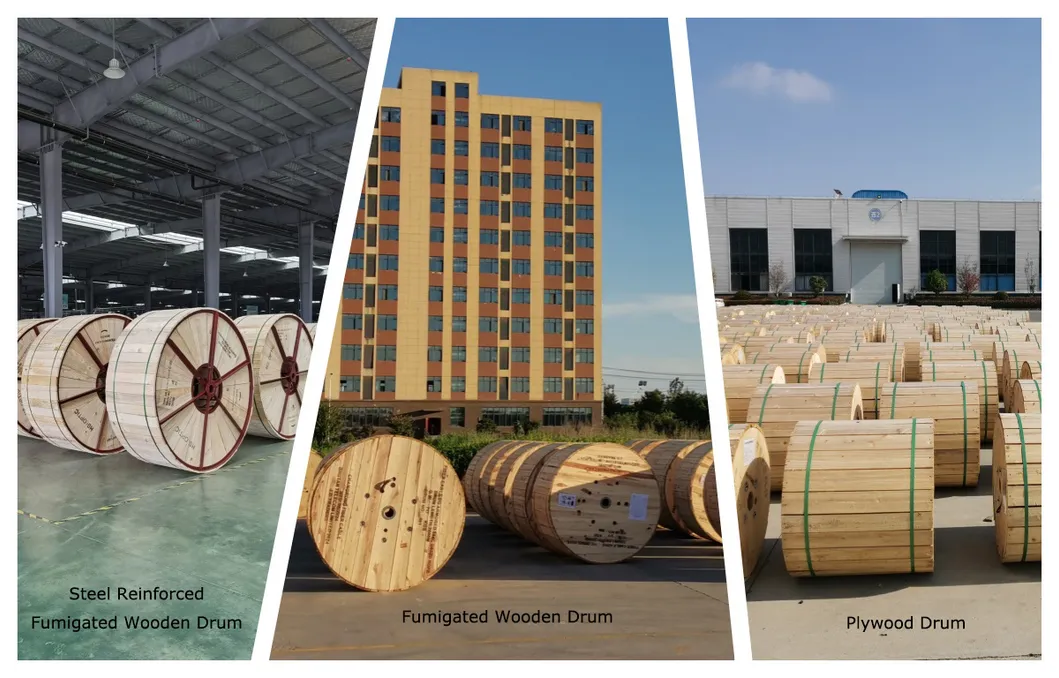

Drum Packing: Professional wooden drums for long-distance transport.
Global Shipping: Expertise in secure container loading.
Product Catalogue
Optical Fiber SM: G652D, G657A1, G657A2
Air Blown Microduct Cable: GYCFTY
All Dielectric Cable: ADSS, ASU, GYFTY
Duct Installation Cable: GYTA, GYFTA, GYTS, GYFTS
Aerial Installation Cable: GYTC8Y, GYTC8S, GYTC8A
Direct Burial Cable: GYTY53, GYTA53, GYFTY53, GYTS53
Central Uni-tube Cable: GYXTW, GYFXTY, GYFXTS
FTTH Drop Cable: GJXH, GJXFH, GJYXCH
Frequently Asked Questions
1. What makes the GYFTY cable "Anti-Rodent"?
The cable incorporates a layer of high-strength glass yarn. When rodents attempt to bite the cable, the glass fibers irritate their mouths and digestive systems, acting as a physical and psychological deterrent without using toxic chemicals.
2. Is this cable suitable for high-voltage environments?
Yes, GYFTY is an All-Dielectric cable, meaning it contains no metallic components. This makes it immune to electromagnetic interference and safe for installation near power lines or in areas prone to lightning.
3. Can GYFTY be used for both duct and aerial installation?
Primarily designed for underground duct laying, it can also be used for non-self-supporting aerial installations where it is lashed to a messenger wire.
4. How does the water-blocking system work?
The cable uses a dual-layer protection system: loose tubes are filled with a specialized water-resistant gel, and the cable core is wrapped with water-blocking yarn and tape to prevent moisture ingress.
5. What is the standard lifespan of this cable?
With its rugged HDPE jacket and UV-resistant properties, our GYFTY cables are designed for a service life of 25 to 30 years under standard operating conditions.
6. Are customized span lengths available?
Yes, we can customize the cable design to meet specific tension and span requirements ranging from 80m to 400m or more depending on the installation environment.
