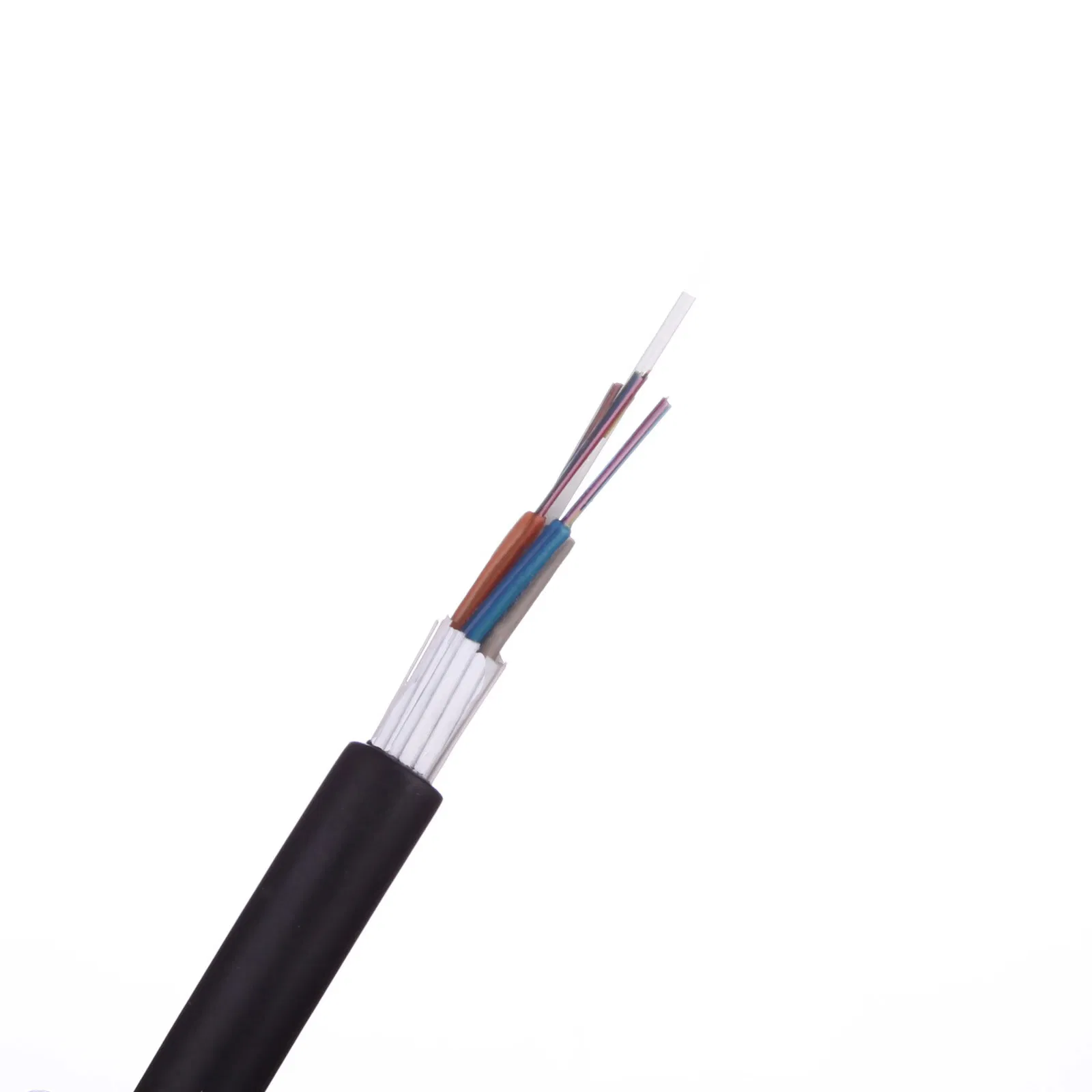

GYFTY-G Non-Metallic Fiber Optic Cable, 12-144 Core Underground Duct Anti-Rodent Glass Yarn

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information

Model NO.
GYFTY-G 12-144 Core
Connection Structure
Fiber
Material Shape
Round Wire
Allowed Lateral Pressure
>1000(N/100mm)
Allowed Tensile Strength
>10000N
Core
2 to 144 Core, Any Cores
Certification
ISO9001
Sheath Material
MDPE /HDPE Jacket
Messenger Wire
Single Steel / Stranding Steels
Operating Temperature
-10c ~+70c
Installation
Self-Supporting Aerial Cable
Fiber Type
G652D
Application
Aerial, LAN, Indoor Shaft, FTTH, Underground
HS Code
8544700000

Product Description

Cable Dimensions and Constructions

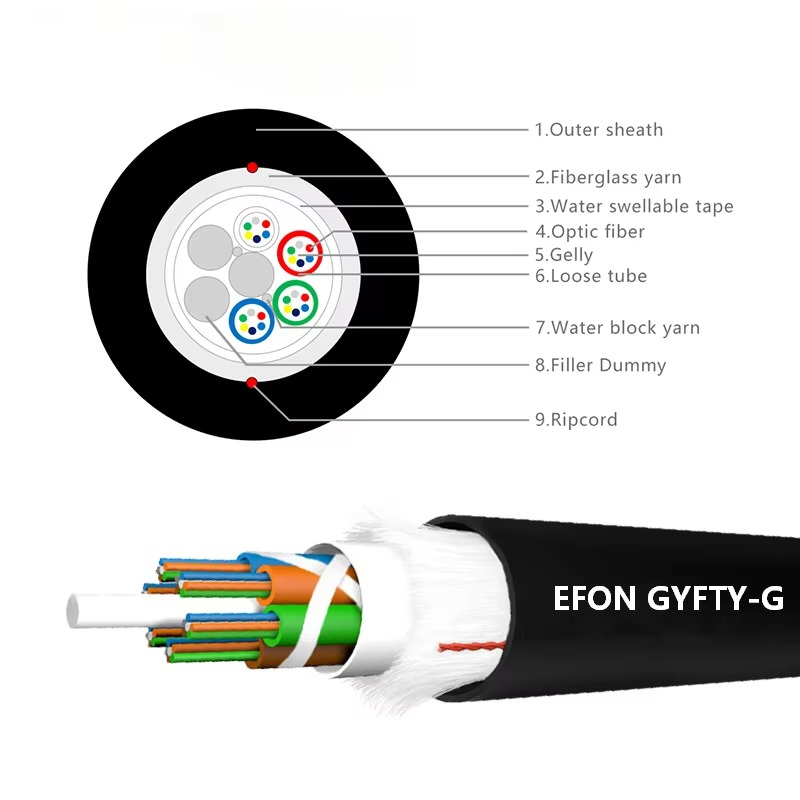

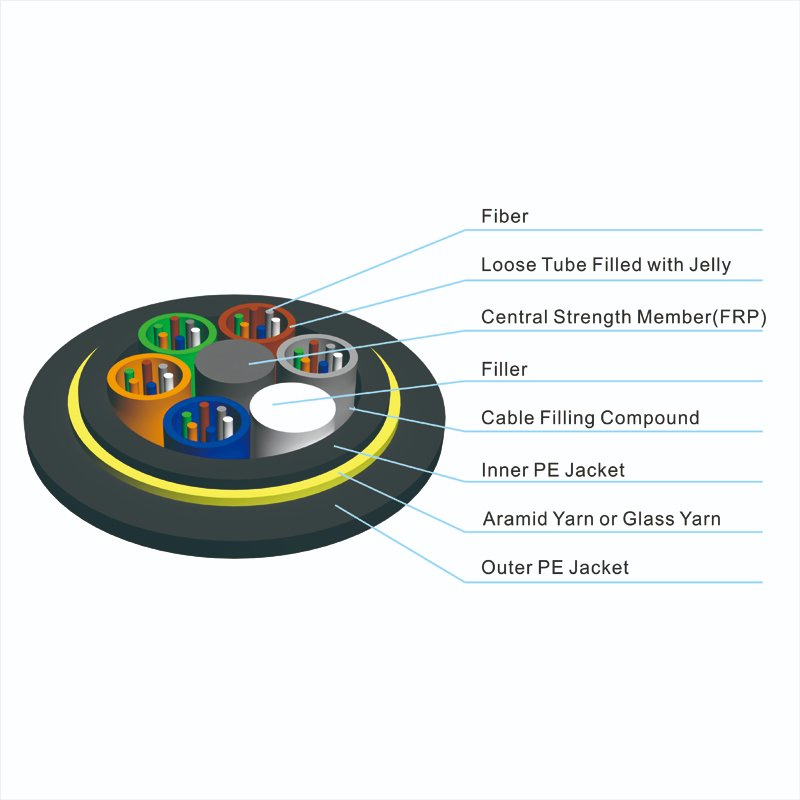

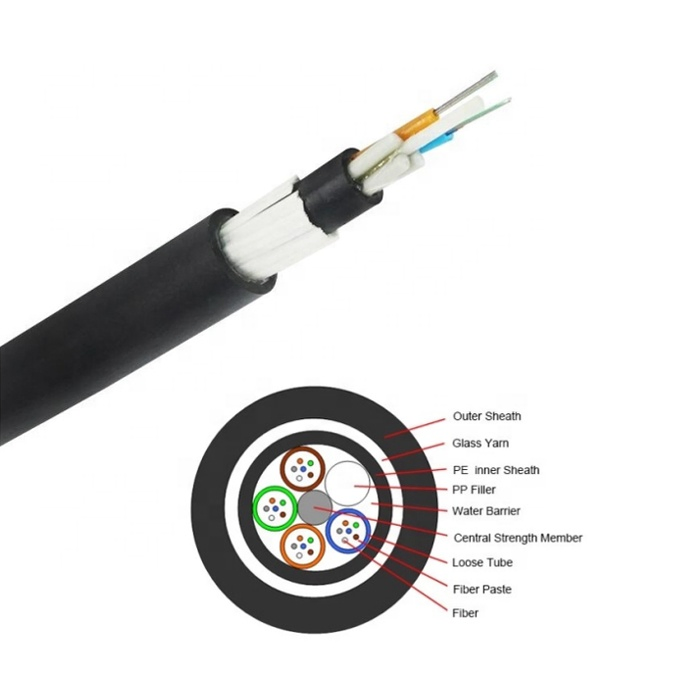

Fiber Optic Cable Construction

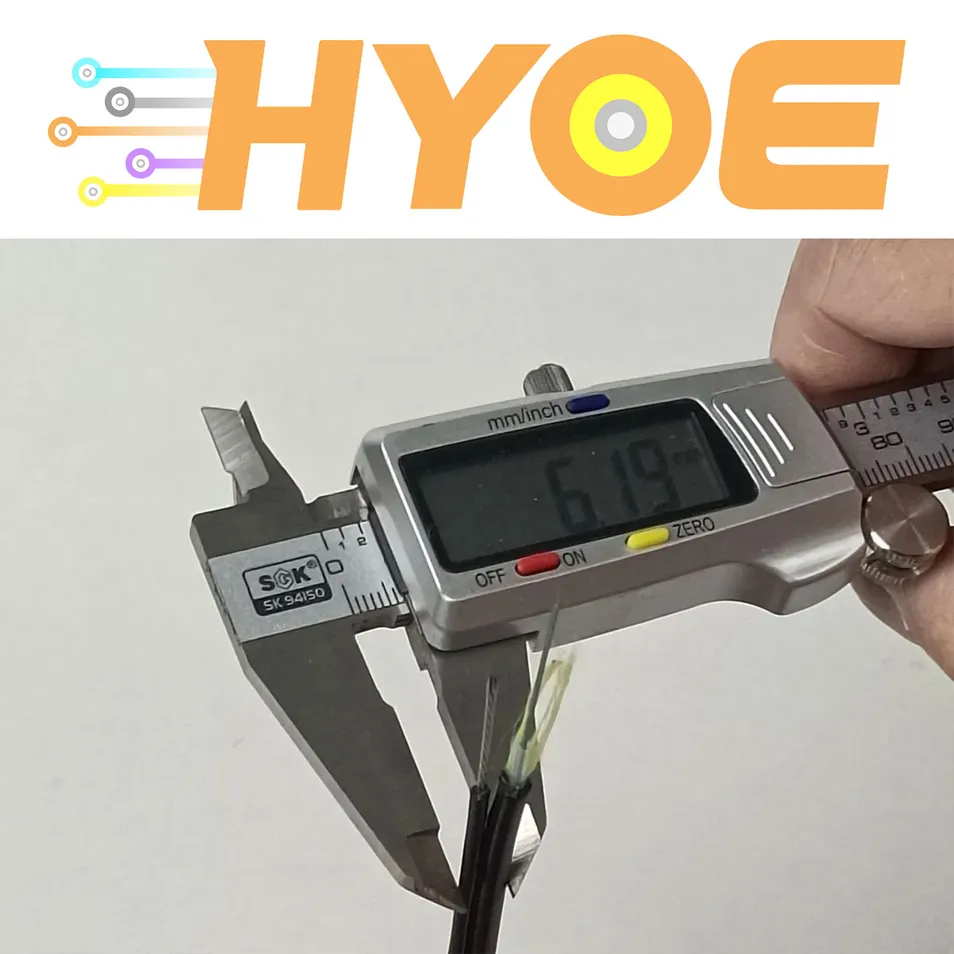

Fiber Optic Cable Dimensions
Technical Specifications Details

Technical Parameters

Model Fiber Count Dimension (mm) Weight (kg/km) Messenger Wire Tensile Strength (N) Crush Resistance Bending Radius
GYTC8A-2~602~609.5×18.3218φ1.0mm×7 steel4000/7500500/100015D/30D
GYTC8A-62~7262~7210.5×19.3240φ1.0mm×7 steel4000/7500500/100015D/30D
GYTC8A-74~9674~9612.5×20.3280φ1.0mm×7 steel4000/7500500/100015D/30D
GYTC8A-98~12098~12013.5×21.3320φ1.0mm×7 steel4000/7500500/100015D/30D
GYTC8A-122~144122~14415.0×24.3350φ1.0mm×7 steel4000/7500500/100015D/30D

Optical Characteristics

Parameter G.652 G.655 50/125μm 62.5/125μm
Attenuation (+20℃)
@850nm--≤3.0dB/km≤3.0dB/km
@1300nm--≤1.0dB/km≤1.0dB/km
@1310nm≤0.36dB/km≤0.36dB/km--
@1550nm≤0.22dB/km≤0.23dB/km--
Bandwidth (Class A)
@850--≥500MHZ·km≥500MHZ·km
@1300--≥1000MHZ·km≥600MHZ·km

Company Profile

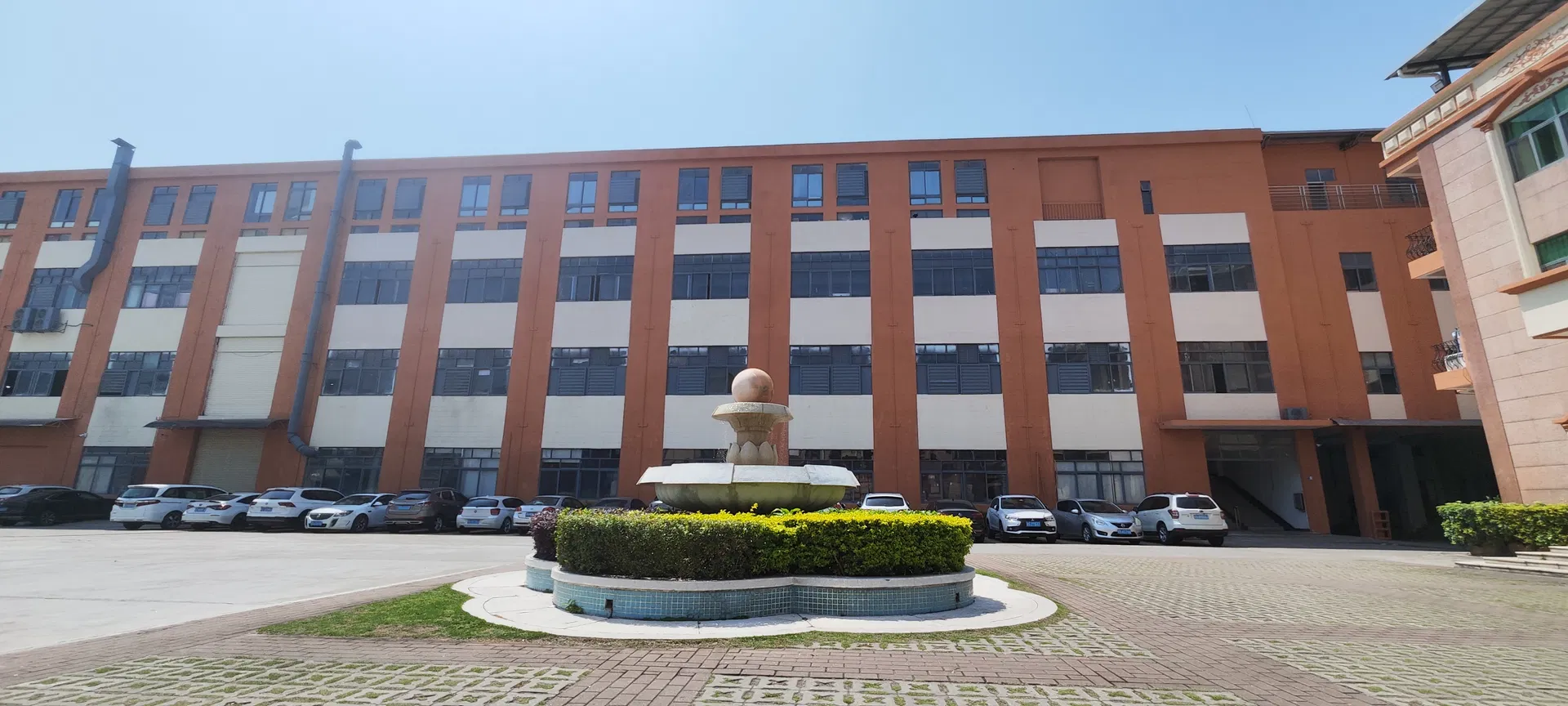

Production Facility
We specialize in manufacturing optical fiber products with nearly ten years of experience. Our core products include indoor and outdoor optical cables, especially FTTH cable, Patch cord, Optical Fiber Splitters, and ODP boxes. These products are widely used in telecommunications, data transmission, and networking applications.
Currently operating ten optical cable production lines, we provide comprehensive OEM solutions for our valued customers. All facilities are certified under both the ISO 14001 Environmental Management System and ISO 9001 Quality Management System. We boast a professional team spanning manufacturing, R&D, marketing, and logistics.

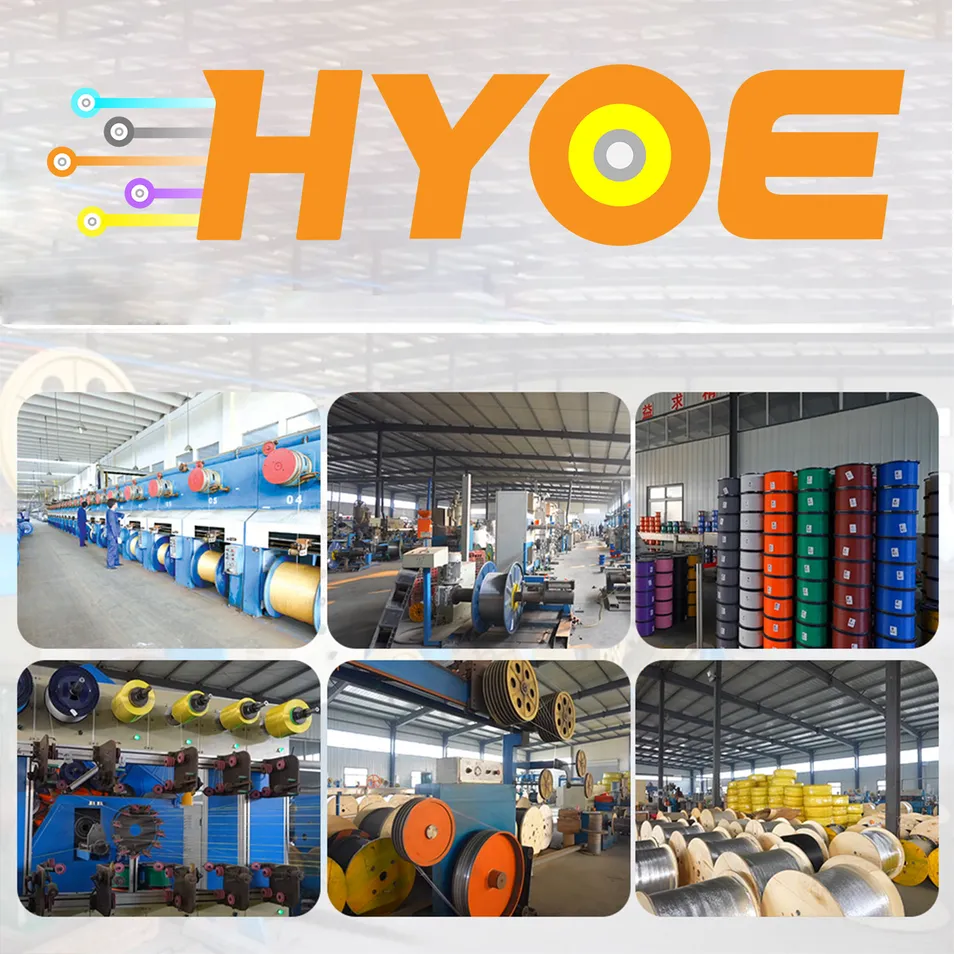

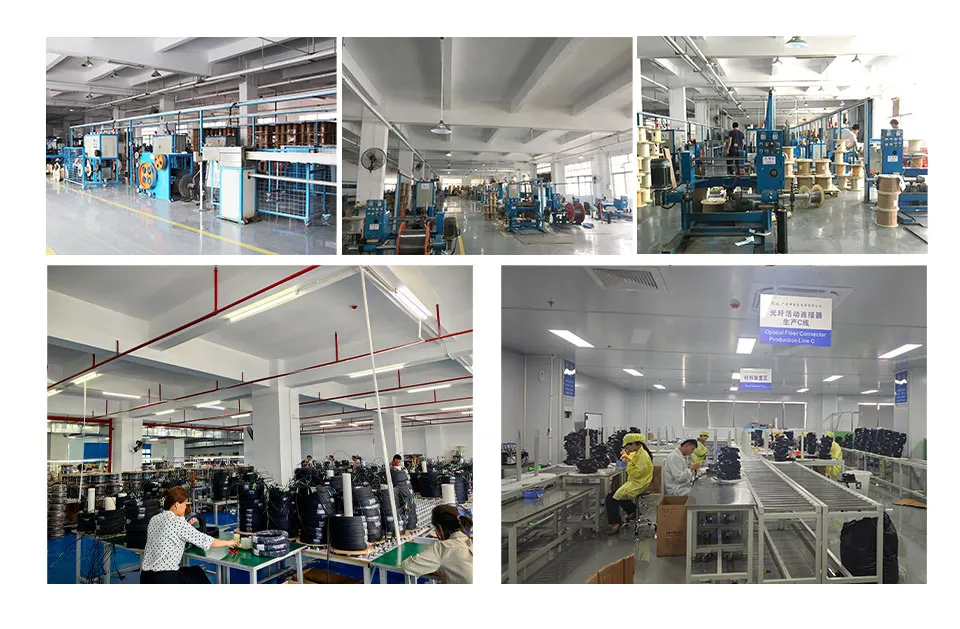

Our Team and Workshop

Quality Guarantee & Certifications

Comprehensive performance testing makes sure the cable work more secure and data transmission more reliable and stable in your network.

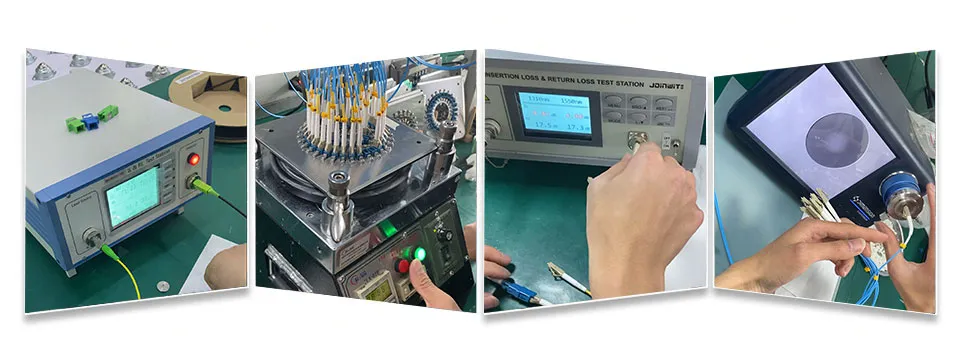

Quality Testing Process

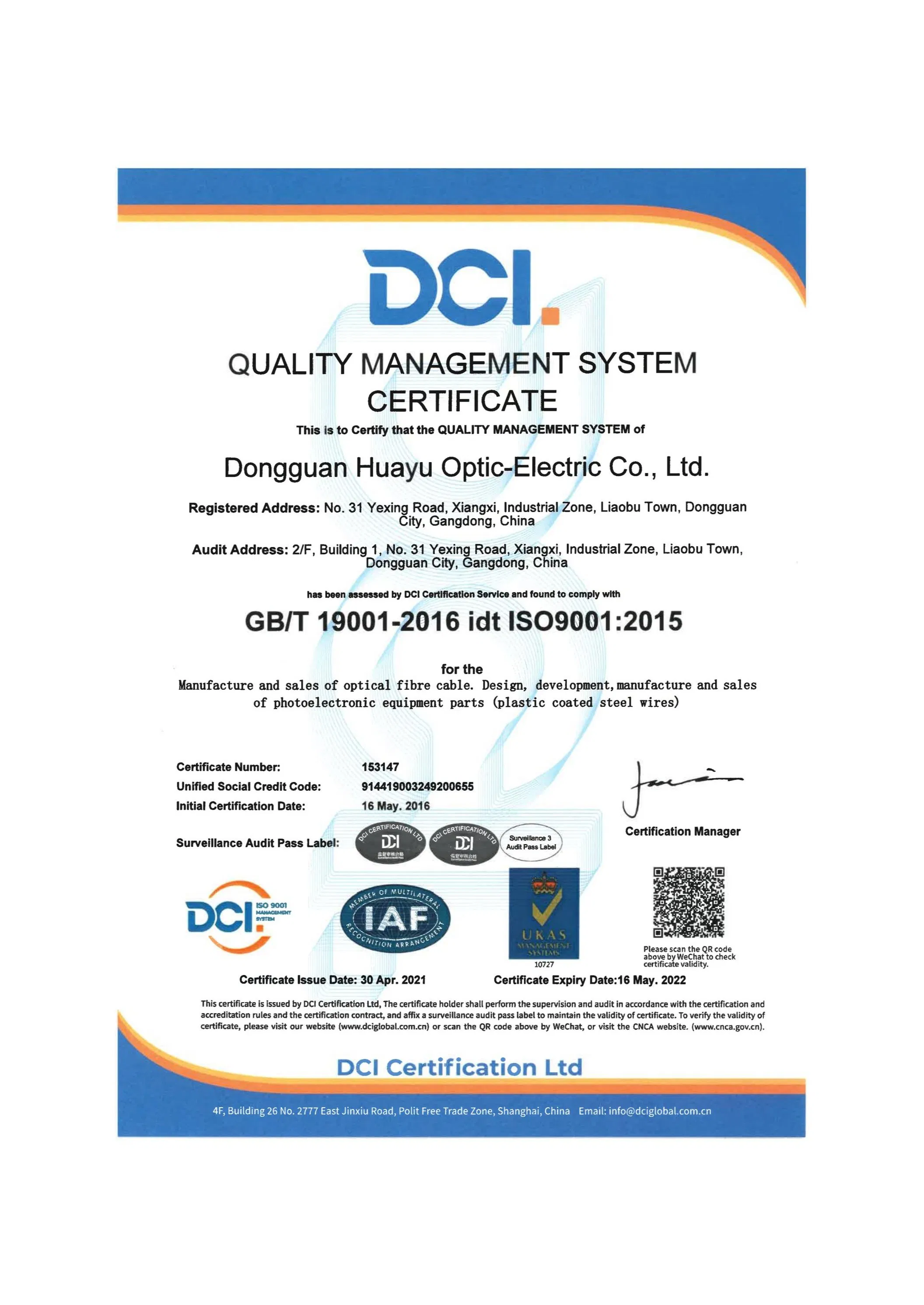

ISO Certification 1
ISO Certification 2

Global Partnerships

We are proud to be the trusted partner of global optical communication leaders. By working with the best, we consistently deliver world-class connectivity solutions through the most rigorous standards.
Industry Partners

Exhibition & Logistics

Global Exhibitions
Packaging and Shipping

Frequently Asked Questions

1. What is the typical application for GYFTY-G fiber optic cables? It is primarily used for aerial installations, LAN systems, indoor shafts, and underground ducts where non-metallic construction is required.
2. What are the benefits of the non-metallic strength member? The non-metallic FRP (Fiber Reinforced Plastic) strength member provides excellent anti-electromagnetic capability, making it ideal for installation near power lines.
3. Does this cable support rodent protection? Yes, the glass yarn layer acts as a non-metallic armor that provides effective anti-rodent protection for underground applications.
4. What is the operating temperature range for these cables? The cable is designed to operate reliably within a temperature range of -10°C to +70°C.
5. Can the fiber core count be customized? Yes, we support customization for various core counts ranging from 2 to 144 cores based on your project requirements.
6. What certifications do your manufacturing facilities hold? Our facilities are certified under ISO 9001 Quality Management and ISO 14001 Environmental Management systems.
