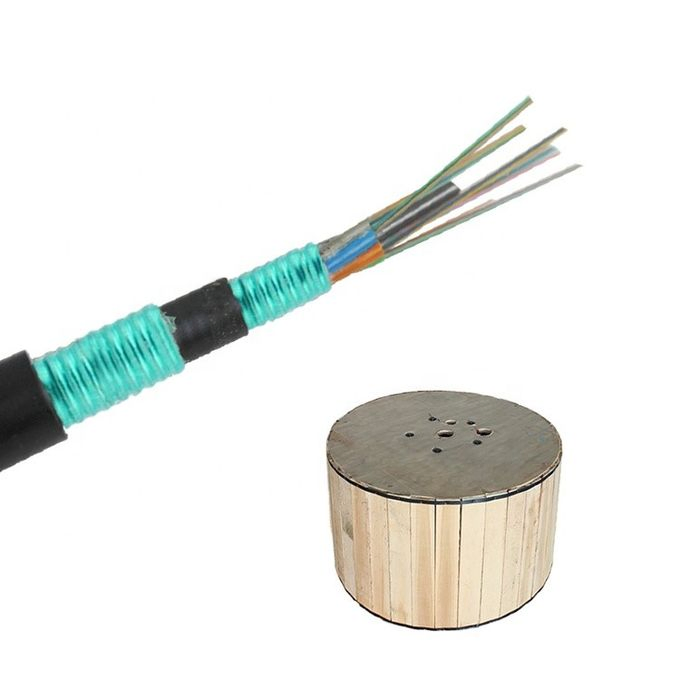

Gyfts53/GYTS53 Stranded Loose Tube Underground Duct Anti-Rodent Corrugated Steel Tape Fiber Optic Cable
Gyfts53/GYTS53 Stranded Loose Tube Underground Duct Anti-Rodent Corrugated Steel Tape Fiber Optic Cable
1 / 2
Gyfts53/GYTS53 Stranded Loose Tube Underground Duct Anti-Rodent Corrugated Steel Tape Fiber Optic Cable
Gyfts53/GYTS53 Stranded Loose Tube Underground Duct Anti-Rodent Corrugated Steel Tape Fiber Optic Cable

Gyfts53/GYTS53 Stranded Loose Tube Underground Duct Anti-Rodent Corrugated Steel Tape Fiber Optic Cable

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
GYFTS53
Connection Structure
Fiber Optic Cable
Material Shape
Round Wire
Allowed Lateral Pressure
100(N/100mm) < 1000(N/100mm)
Allowed Tensile Strength
100N < 1000N
Core
Double Core
Certification
RoHS, ISO9001, Reach
Sheath Material
LSZH, HDPE, MDPE
Installation Style
Duct & Direct Buried
Fiber Count
2-288 Core Optic Cable
Waterblocking Material
Water Blocking Tape or Filling Compound
Armour Material
Corrugated Steel/Aluminium Tape
Product Description

Stranded Loose Tube Underground Duct Anti-Rodent Corrugated Steel Tape Fiber Optic Cable

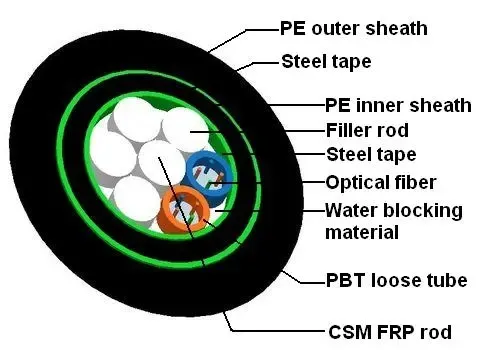

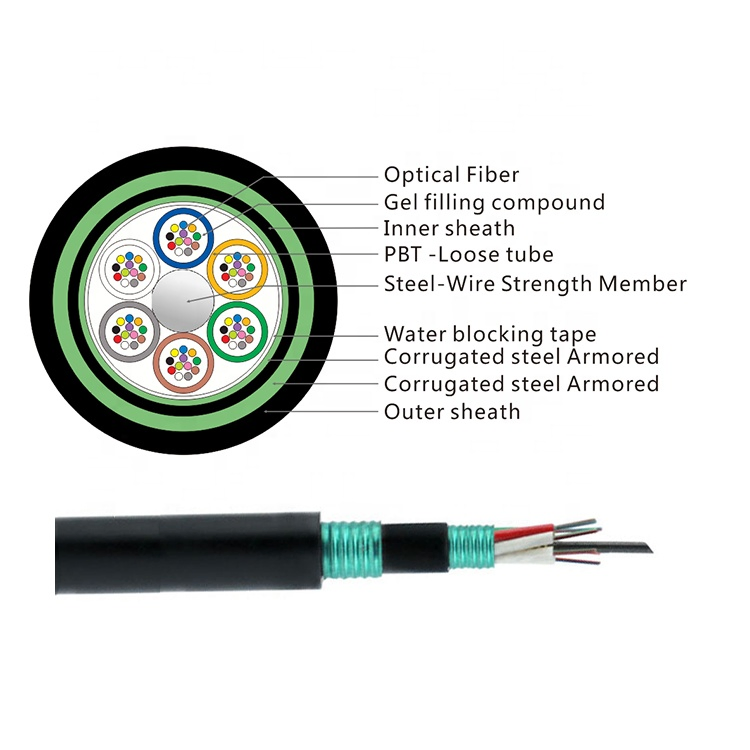

Fiber Optic Cable Structure Fiber Optic Cable Cross Section

Gyfts53 Optic Fiber Cable with Double Sheath

The cable features an aluminum tape screen, steel tape armored, and double PE sheath, making it ideal for direct buried applications.

  • Structure: Jelly filled stranded loose tube, FRP central strength member, longitudinally covered by steel tape, PE inner sheath, and outer HDPE sheath.
  • Installation: Specially designed for Direct Buried Application.
  • Fiber Type: B1.3(G652D) single mode fiber.
  • Protection: Double armor layers for excellent anti-rodent and mechanical protection.
Optical Specifications
Parameter Specification
Attenuation (dB/km) @1310nm ≤0.36 dB/km
@1383nm ≤0.32 dB/km
@1550nm ≤0.21 dB/km
@1625nm ≤0.24 dB/km
Dispersion @1285nm~1340nm -3.0~3.0 ps/(nm*km)
@1550nm ≤18 ps/(nm*km)
Cladding Diameter 125±1μm
Cable Cutoff Wavelength ≤1260nm
Proof Test 0.69 GPa
Color Identification & Manufacturing

The fibers are marked with 12 distinct colors according to EIA/TIA 598 standards for easy identification during installation.

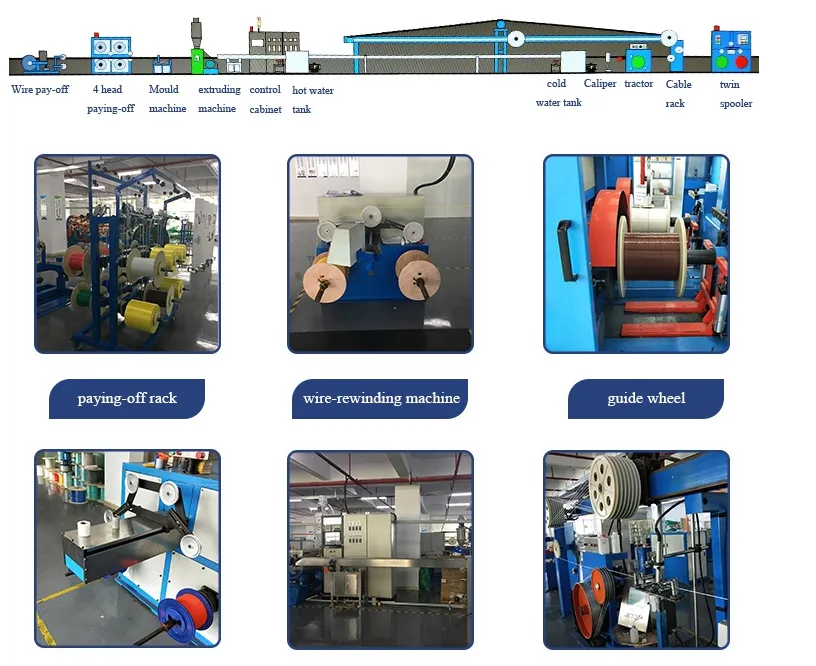

Fiber Color Code Chart Testing Equipment
Why Choose This Fiber Optic Cable?
  • Premium Fiber Brands: Utilizes high-quality fiber from YOFC and CORNING.
  • Advanced Production: Over 20 years of manufacturing experience with advanced foreign technology.
  • Rigorous Testing: Comprehensive QC including optical, mechanical, and environmental performance tests.
  • Customization: Supports OEM requirements for cable size, materials, and designs.
  • Certified Quality: Compliant with ISO9001, ROHS, and REACH standards.
Production & Exhibition
Production Facility 1 Production Facility 2 Quality Testing Cable Storage Exhibition Display
Product Overview

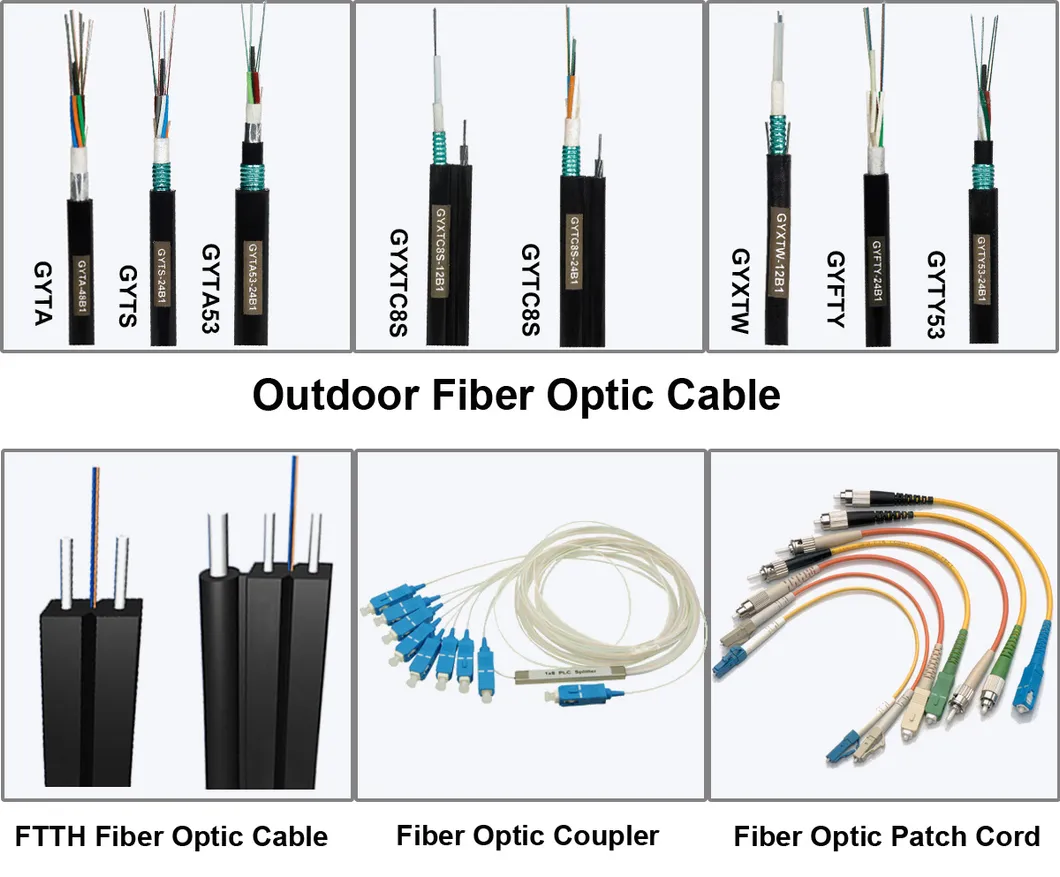

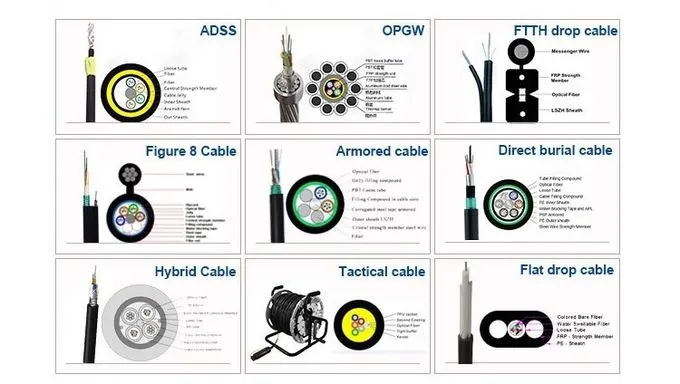

Product Range 1 Product Range 2
Frequently Asked Questions
What are the primary applications for GYFTS53 fiber optic cable?
GYFTS53 is specifically designed for underground duct and direct buried applications, providing excellent protection in harsh environments.
How does this cable protect against rodents?
The cable features a corrugated steel tape armor layer which acts as a highly effective physical barrier against rodent attacks.
What fiber types are available for this cable?
The standard configuration uses B1.3 (G652D) single-mode fiber, but it can be customized with high-quality fibers from brands like Corning and YOFC.
What sheath materials are used for the outer layer?
Depending on your requirements, the outer sheath can be made from MDPE, HDPE, or LSZH (Low Smoke Zero Halogen) materials.
What is the maximum fiber core count for this model?
This cable supports a wide range of fiber counts, typically from 2 cores up to 288 cores.
Is this cable compliant with international standards?
Yes, the cable meets several international certifications, including ISO9001, RoHS, REACH, and SGS standards.
