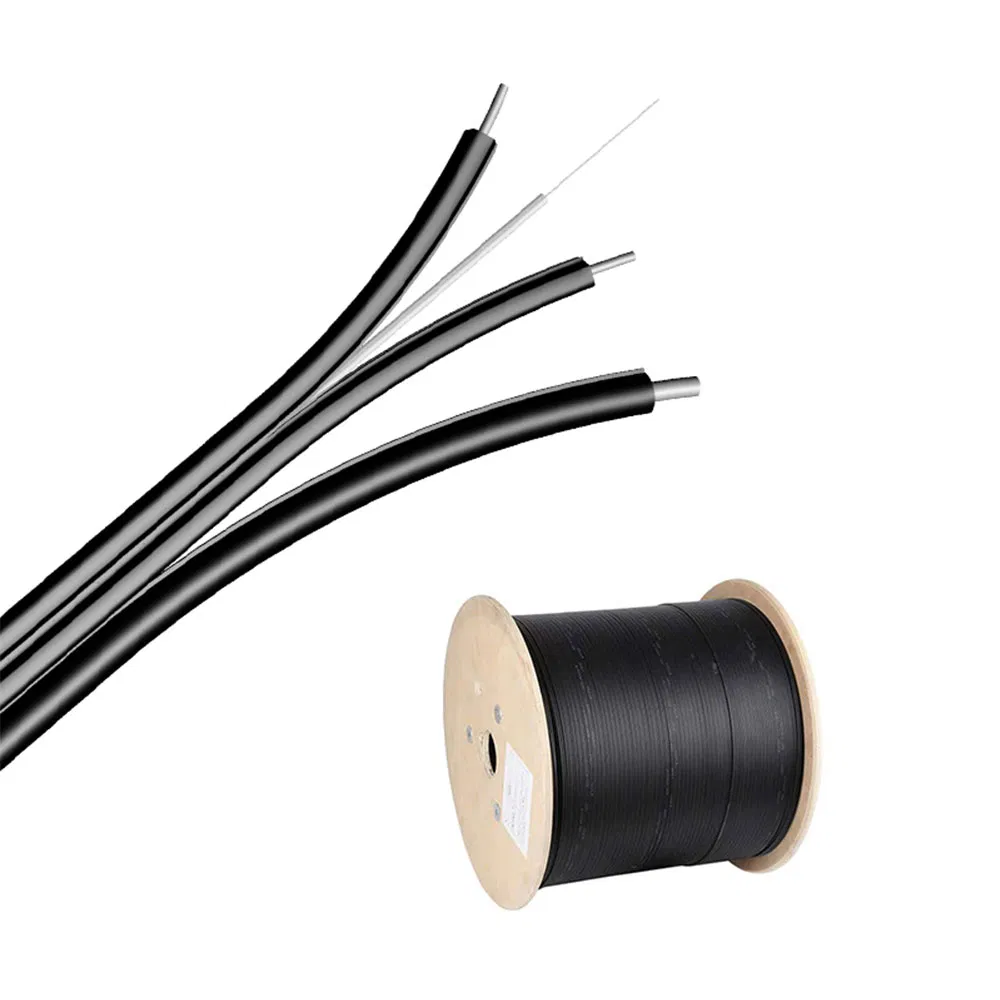

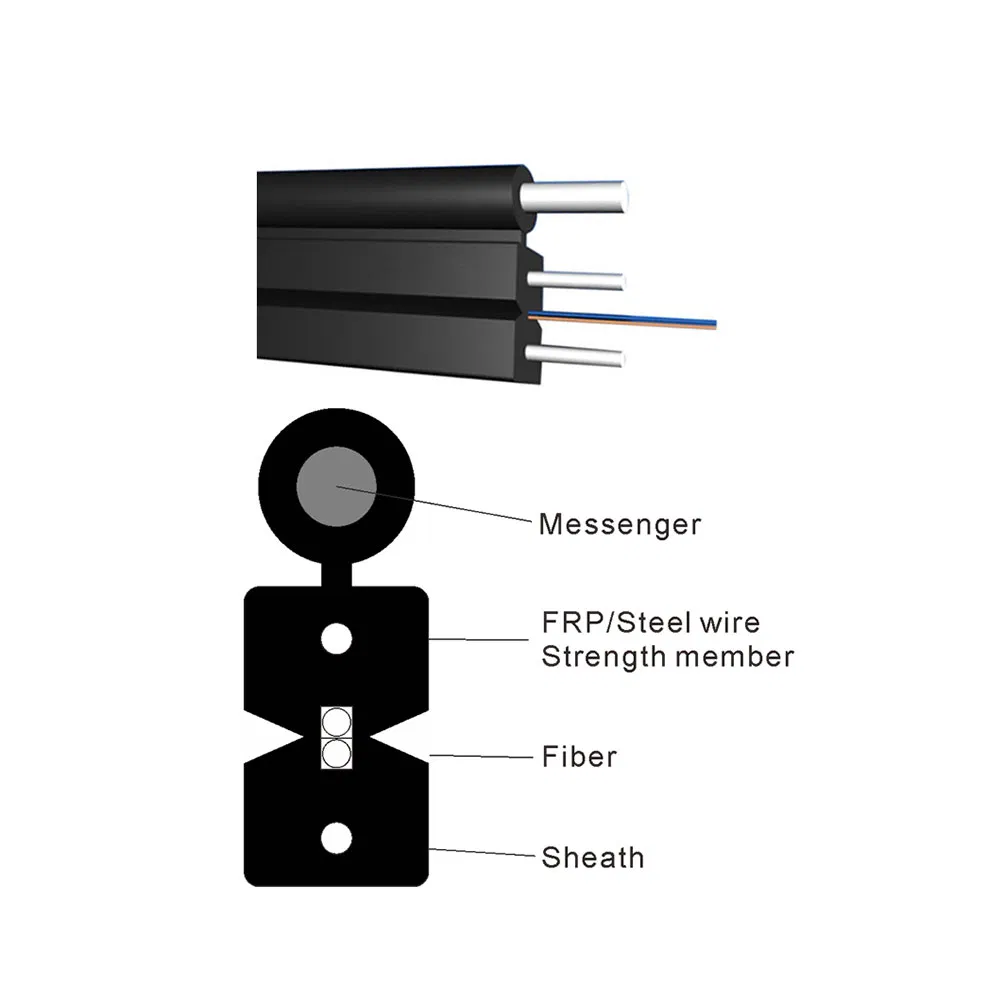

Sc/APC Upc 1core Fiber Optic Cable Underground Figure 8 Flat Drop Cable

Product Overview

Model NO.

GJYXFCH

Connection Structure

9/125(G652D G657A1 G657A2)

Material Shape

Flat Wire

Allowed Lateral Pressure

>1000(N/100mm)

Allowed Tensile Strength

100N<1000N

Core

Double Core

Certification

RoHS, CE, ISO9001

Sheath Material

LSZH

Fiber Q'ty

1 Core, 2 Core, 4 Core

Cable Size

5.0*2.0

Sheath Color

Black (White, Gray Upon Request)

Production Capacity

1,000,000m/Month

Detailed Description

SC/APC UPC 1Core Fiber Optic Cable - Underground Drop Cable

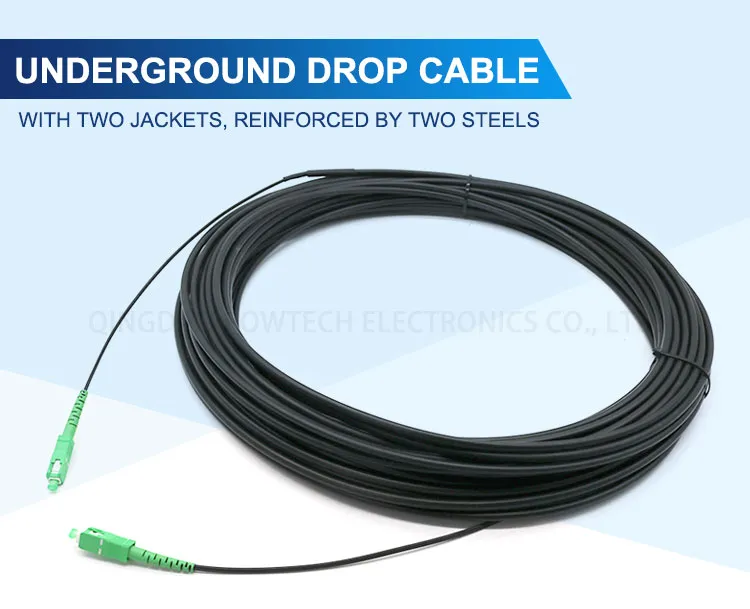

Underground Drop Cable (1Core, SC/APC, UPC)

Featuring dual jackets and reinforced by two steel strength members, this cable is designed for durable underground deployment.

Type Length: SIM-FTTH Underground Cable (1 to 300m)
Length Tolerance: L ≤15m (+0.3%), L >15m (+0.2%)

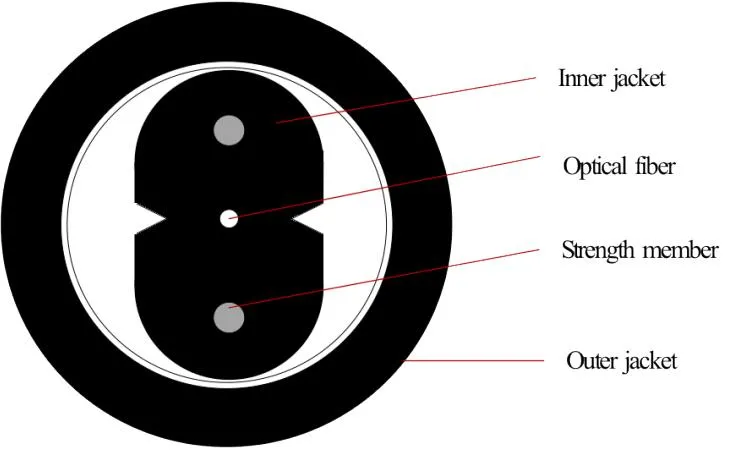

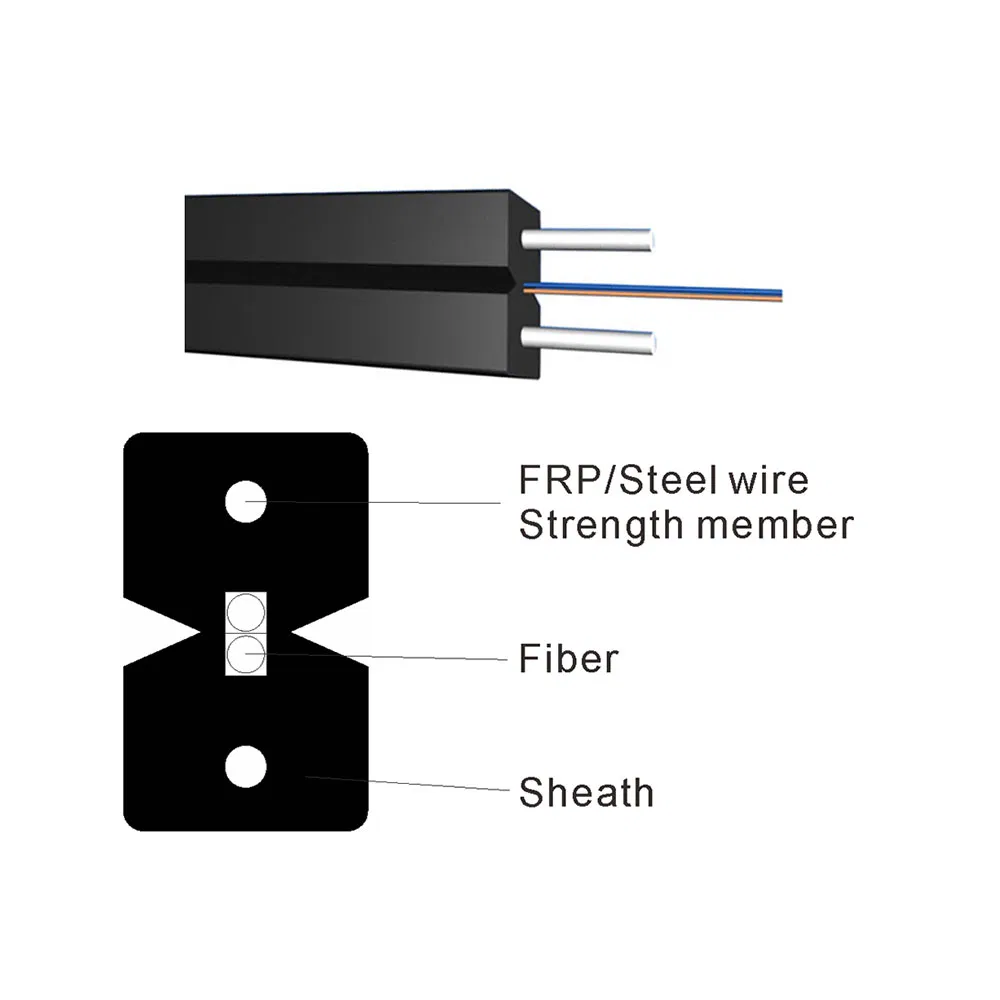

Cable Section & Assembly Specifications

Cable Sizes	5.7+/-0.3mm
Connector Type A	SC/UPC, SC/APC, SM
Insertion Loss	<=0.3+0.4l / <=0.3+0.3l (IEC-61300-3-4 Method B)
Connector Type B	SC/UPC, SC/APC, SM
Return Loss (SC UPC)	>=55dB according to IEC-61300-3-6
Return Loss (SC APC)	>=55dB according to IEC-61300-3-6

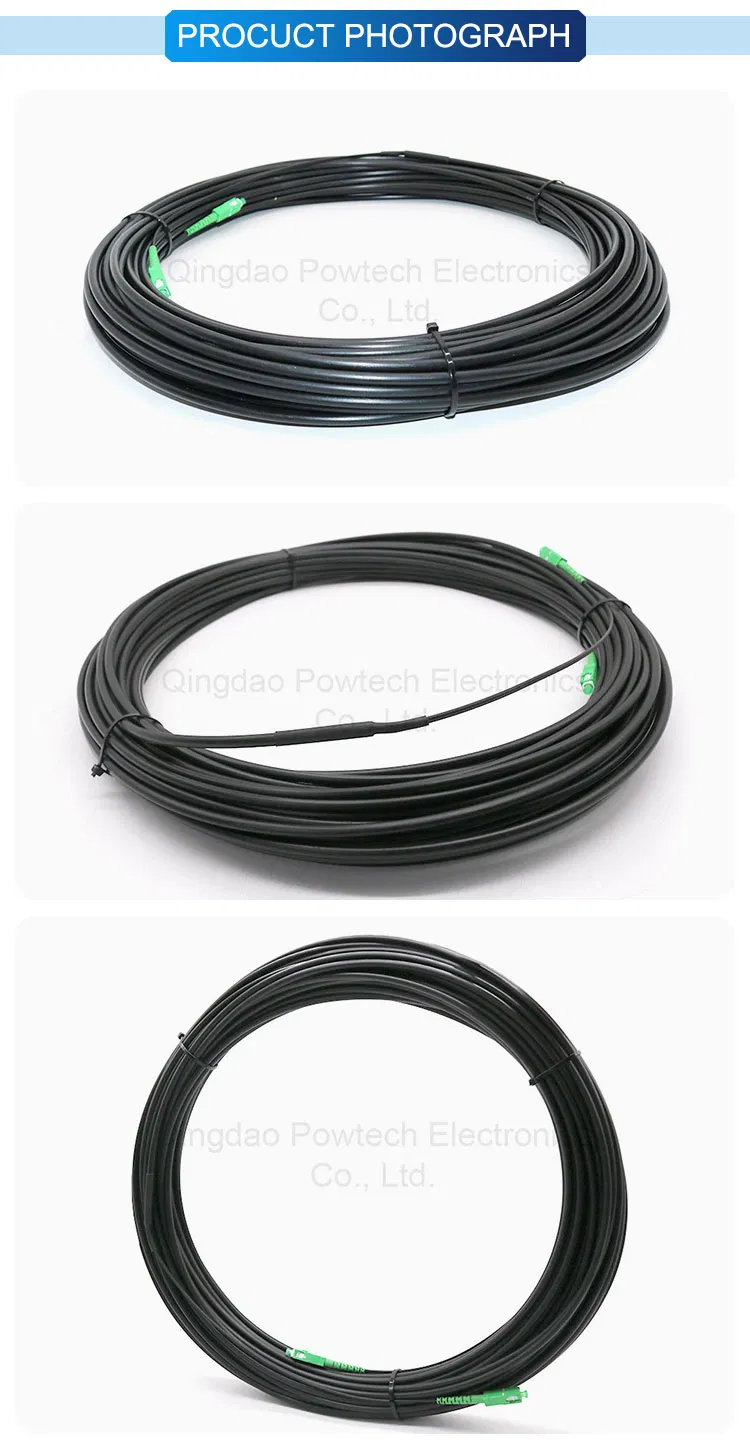

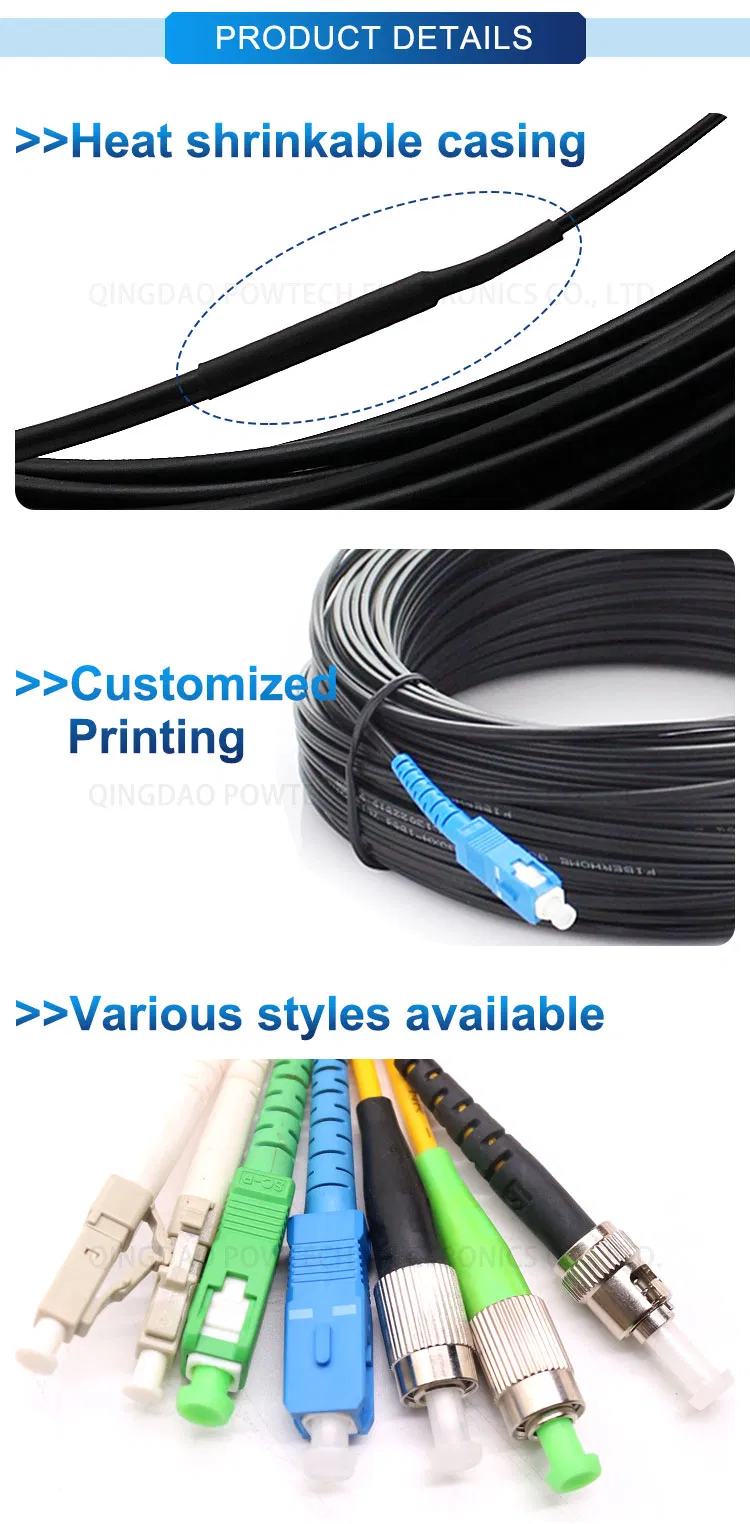

Product Gallery

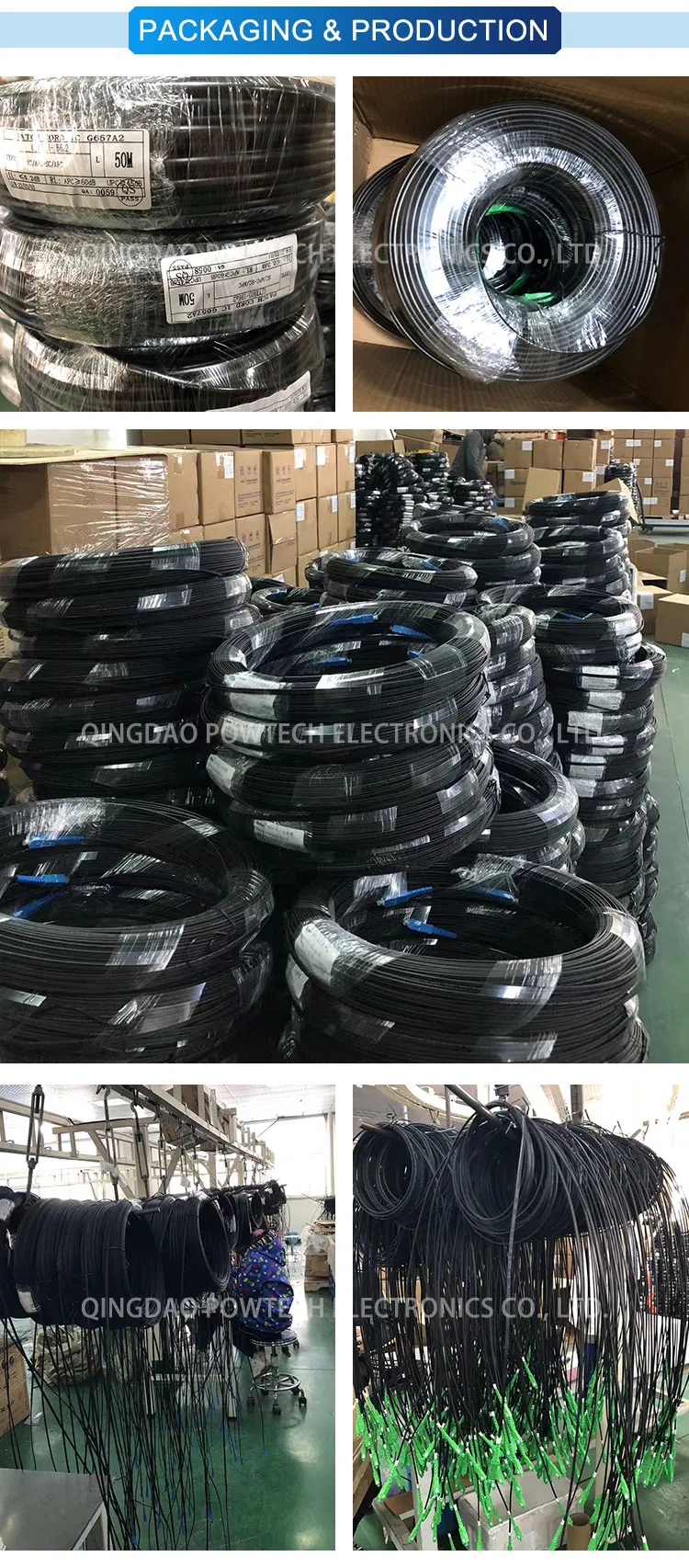

Packaging & Logistics

Package Size

15.00cm * 15.00cm * 2.00cm

Gross Weight

0.500kg

Packing Method

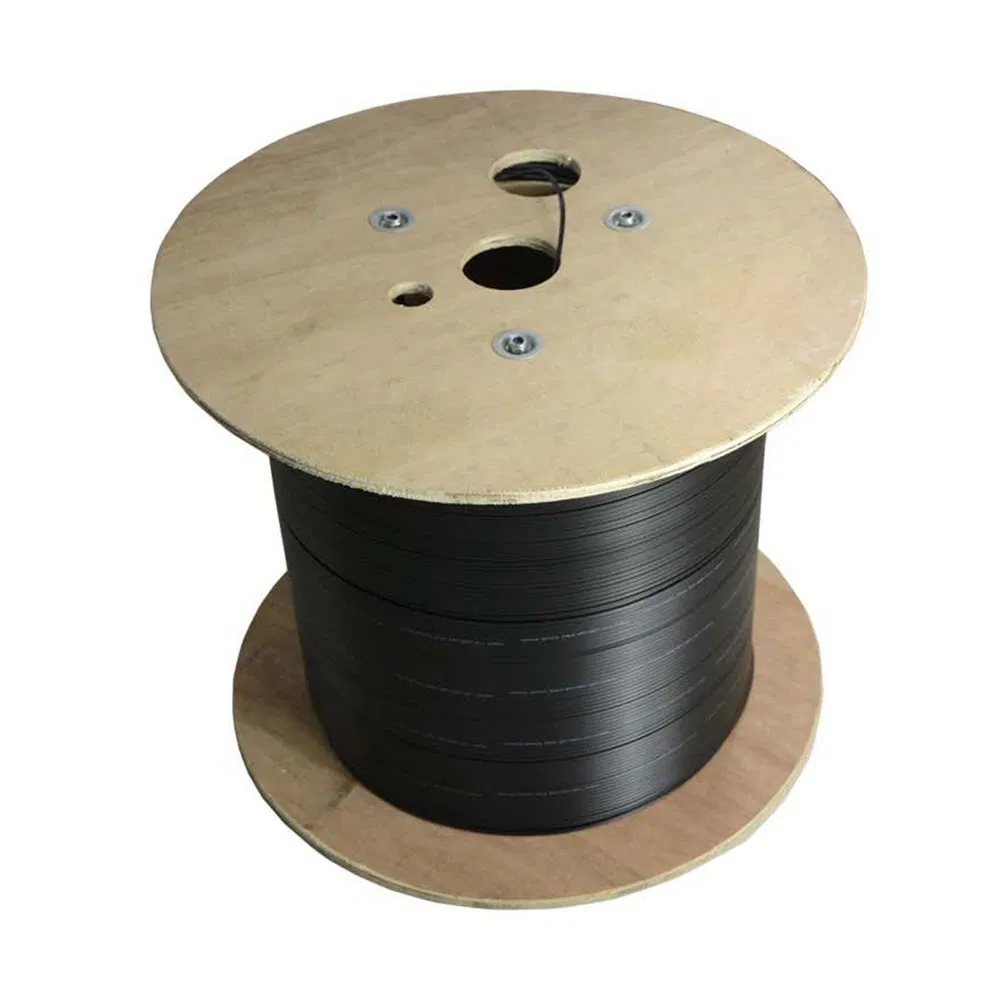

Carton + Pallet (1000m or 2000m per roll)

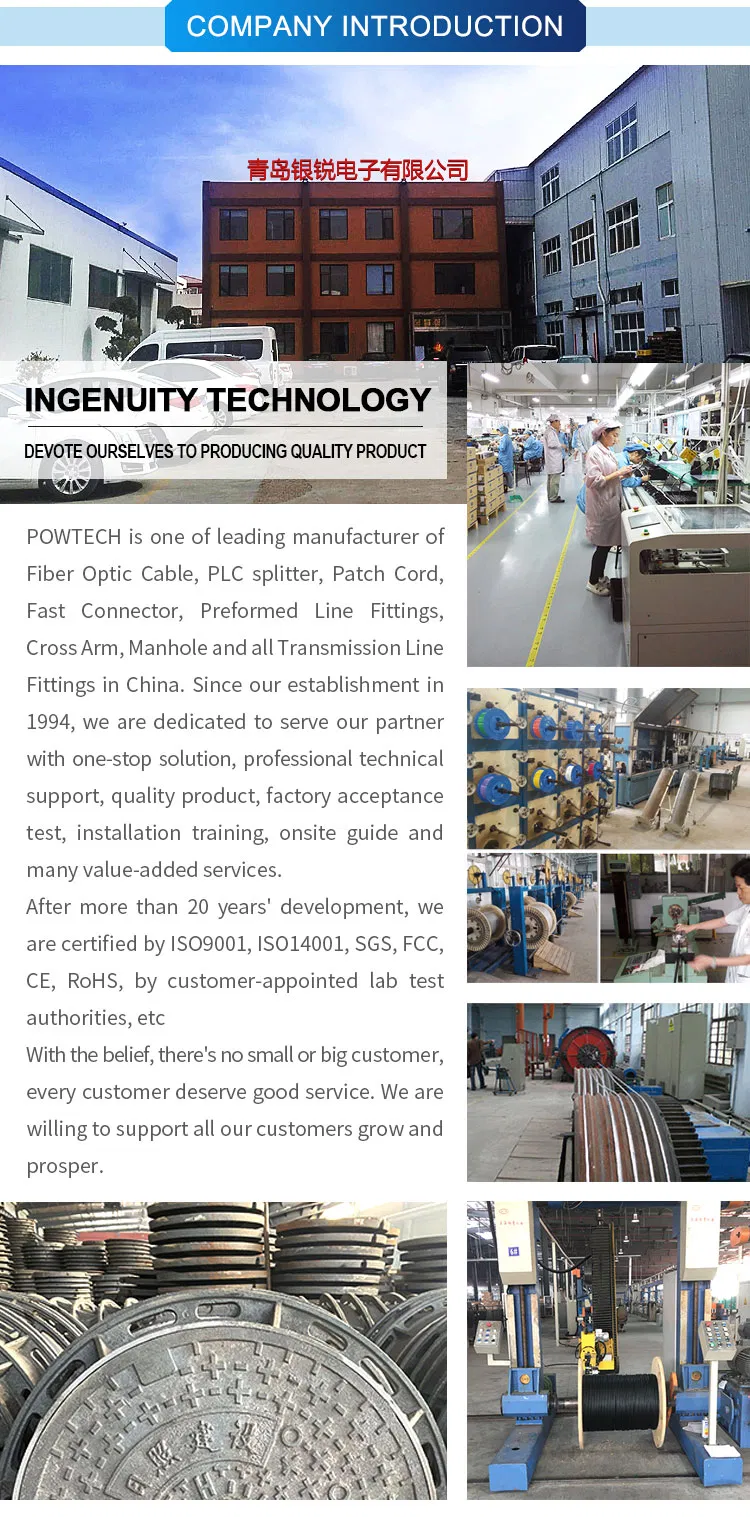

Manufacturing Excellence

About Our Solutions

Founded in 1994, we are a high-tech enterprise dedicated to providing advanced solutions for telecommunications and power transmission. With over 30 years of expertise, we combine innovation and precision engineering to deliver reliable technologies worldwide.

Core Capabilities

Optical Networks: FTTH/ADSS/OPGW cables, fiber jumpers, PLC splitters, and FAT/FDT systems.
Power Systems: Composite insulators, surge arresters, ABC clamps, and switchgear components.
Advanced Production: 50+ manufacturing units including injection molding, hydraulic presses, and extrusion lines.
Scalable Capacity: 2.5 million units annual output with rapid response supply chains.

Certificates & Global Presence

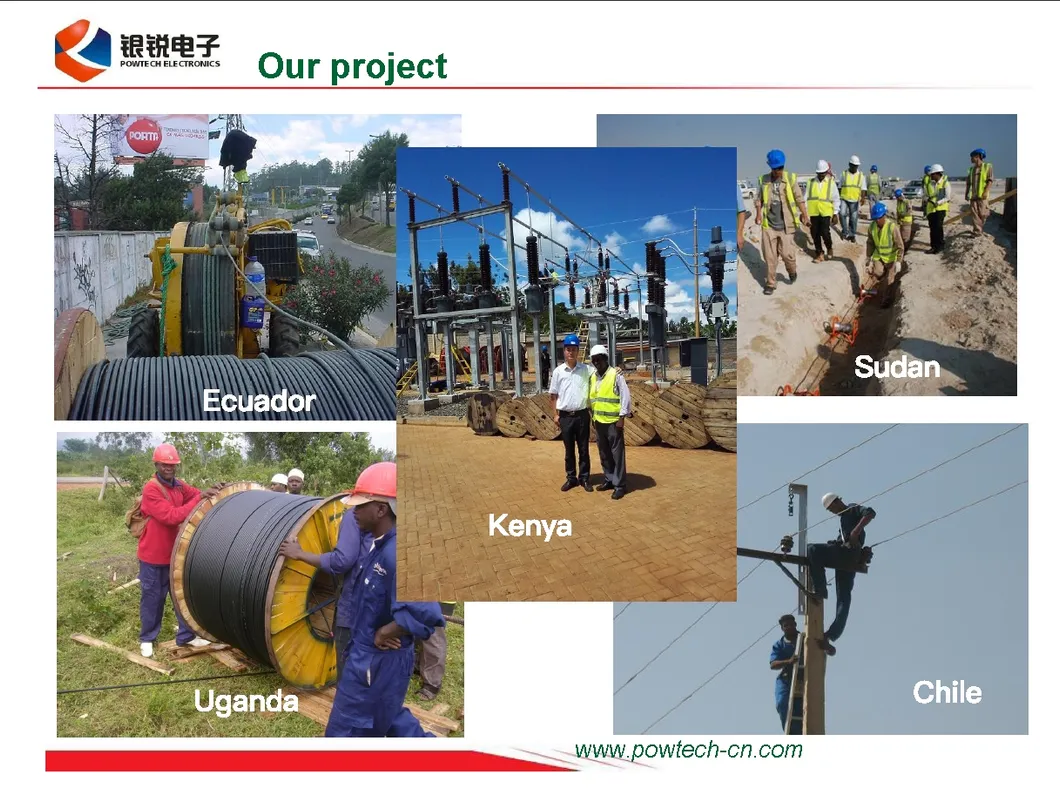

Global Projects

Frequently Asked Questions

Q1: Can you provide us with samples? Ans: Yes, we can provide 1 to 2pcs samples for free.

Q2: Do you supply customized or OEM products? Ans: Yes, customized/OEM products and artwork are available. Our designers and technicians ensure exact models according to your requirements.

Q3: Do you accept small trial orders? Ans: Yes, small trial orders are accepted.

Q4: What payment terms are available? Ans: We accept TT, LC, Alipay, and other standard methods.

Q5: Is there a discount for large orders? Ans: Yes, discounts are available on large orders. The larger the volume, the better the discount we can offer.

Q6: What is the estimated delivery time? Ans: Usually, delivery is made within 2 weeks after down payment. Very large orders may require up to one month for production.
