Product Description

Basic Info.

Model NO.

GYFXTY-FG

Material Shape

Round Wire

Allowed Lateral Pressure

100(N/100mm)<1000(N/100mm)

Allowed Tensile Strength

1000N<10000N

Core

2-24

Certification

RoHS, CE, ISO9001, VDE, CCC

Sheath Material

PE/LSZH/Anti-Rodent PE

Cable Structure

Uni-Loose Tube ADSS

Installation Tensile

1800n

Operating Temperature

-40°C~+70°C

Applications

Outdoor Aerial

Origin

China

Product Description

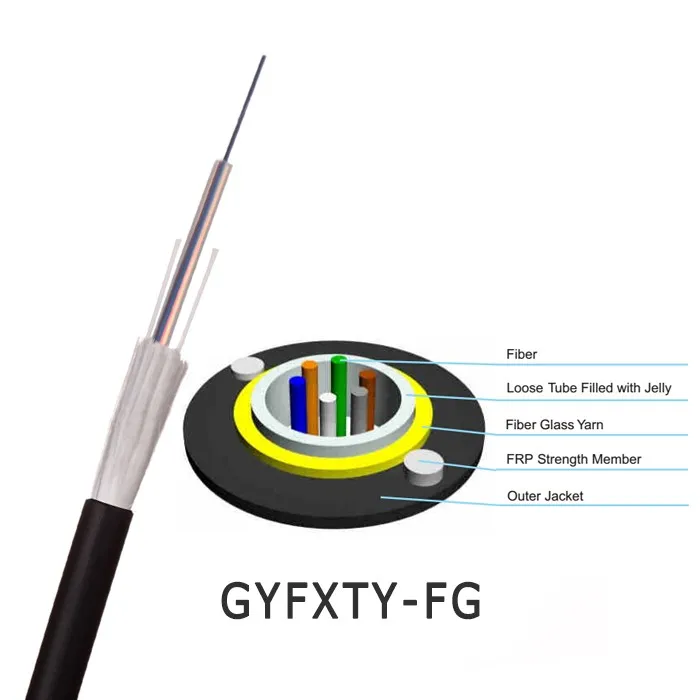

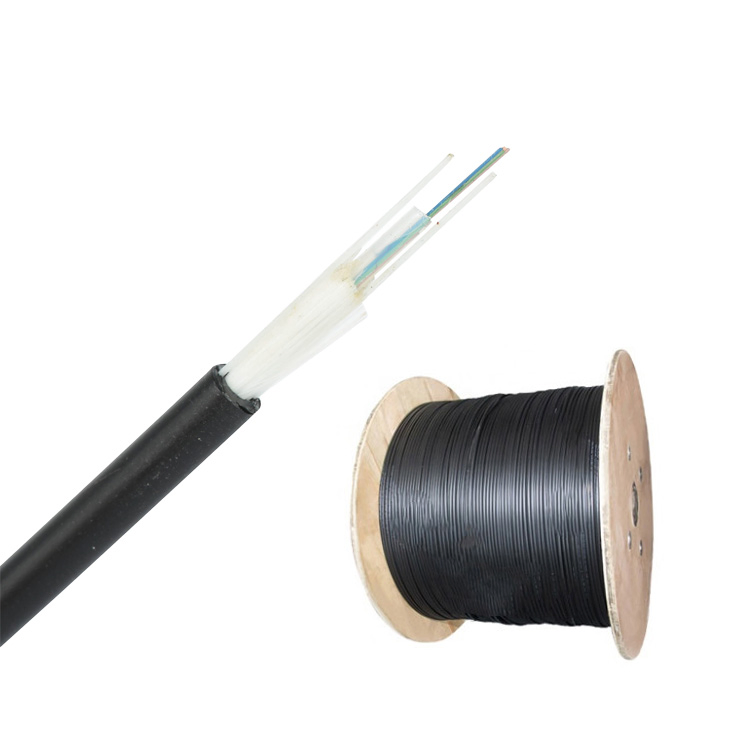

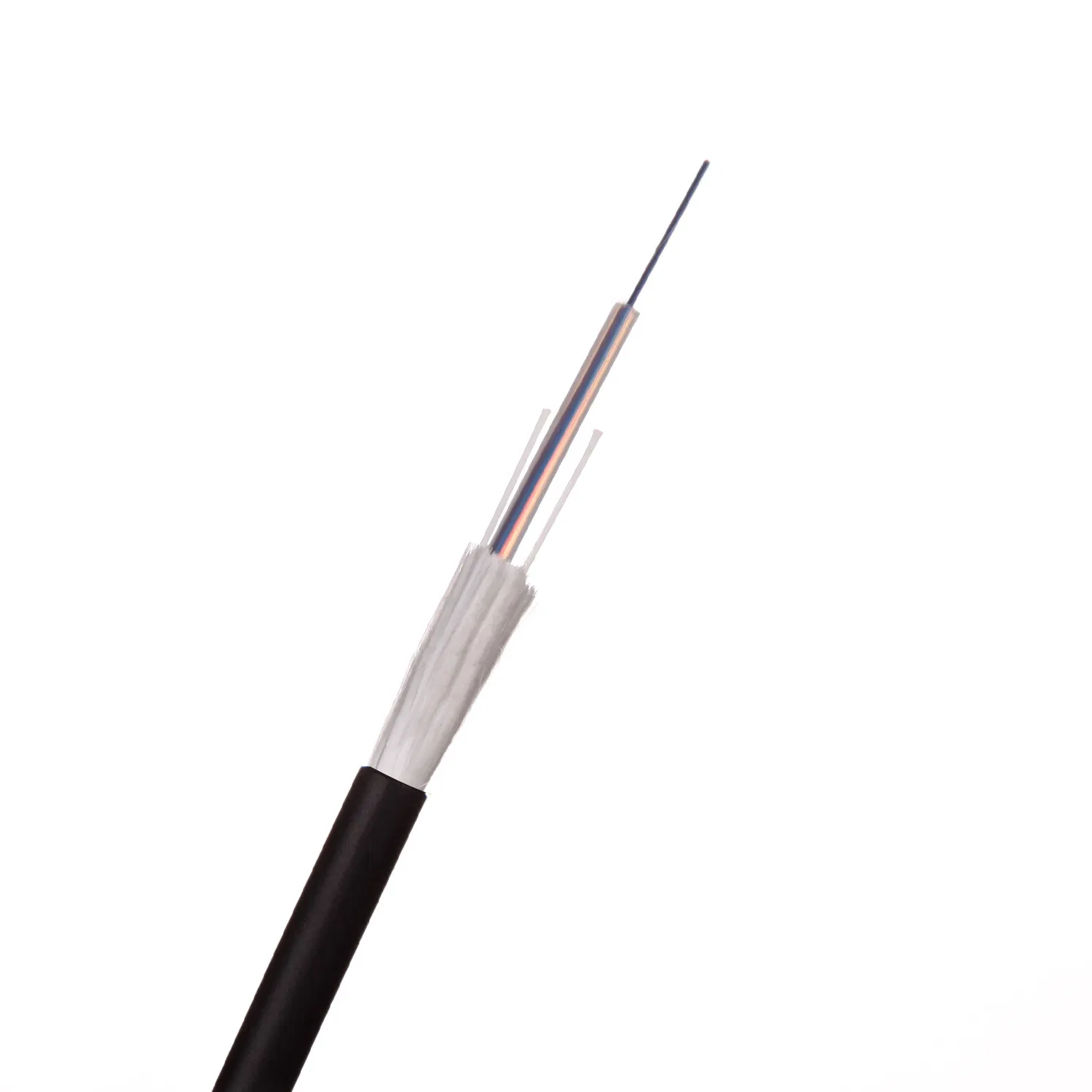

Non-Metal Uni-Loose Tube 12/24 Core Single Mode Fiber Optic Cable

GYFXTY-FG Glass Yarn Armored Uni-Loose Tube All Dielectric optical fiber cable (Span 80meter) Uni-Tube All Dielectric Aerial Drop cable is especially designed for Fiber to the Subscriber applications. It is a flat, all-dielectric cable ideally suited for self-supporting drop-type installations as well as conduit builds.

🚀 Features

Small size, Low cost.
Supports up to 24 fibers.
Uni-tube gel-filled construction for superior fiber protection.
Two parallel FRP wire and overall glass yarn to enhance tensile resistance.
Protects cable from mechanical damage.
Self-supported, no messenger needed.

📍 Applications

Duct, Aerial, FTTx, and Access Networks.

Optical Characteristics

Fiber Type		G.652	G.655	50/125μm	62.5/125μm
Attenuation	850 nm	-	-	<3.0 dB/km	<3.3 dB/km
Attenuation	1310 nm	<0.36 dB/km	<0.40 dB/km	-	-
Numerical Aperture		-	-	0.200±0.015 NA	0.275±0.015 NA

Structure & Technical Specifications (Round Drop)

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Tensile Load (Short Term)	Crush Resistance
2~12	6.5	35	1000N	1000N/100mm
14~24	7.0	40	1200N	1000N/100mm

Compliance Standards

Performance Test	Standard
Max Tension Performance	IEC 60794-1-2-E
Crush Test	IEC 6079-1-2-E3
Impact Test	IEC 60794-1-2-E4
Temperature Cycling	IEC 60794-1-2-F1
Water Penetration	IEC 60794-1-2-F5B

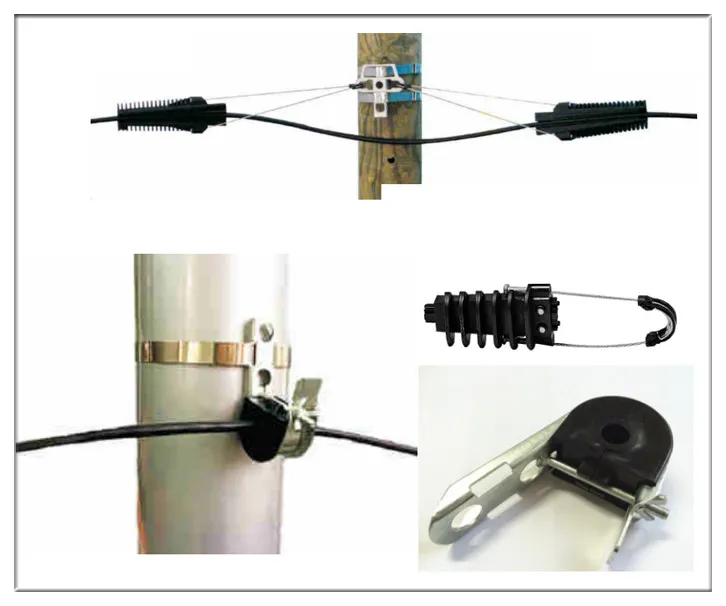

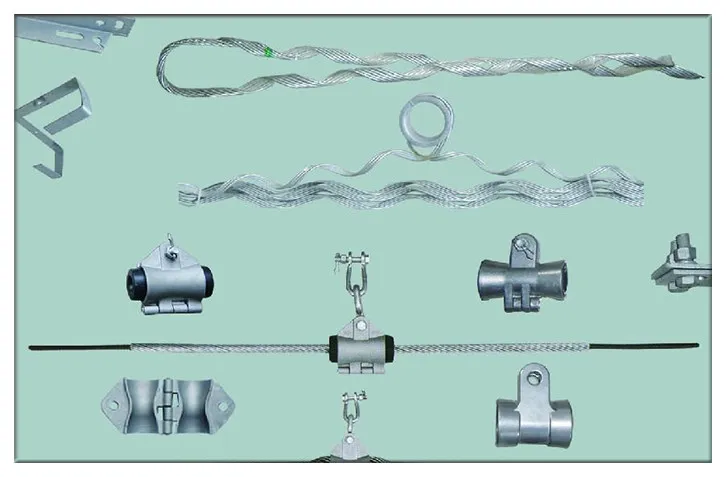

Product Gallery & Fitting

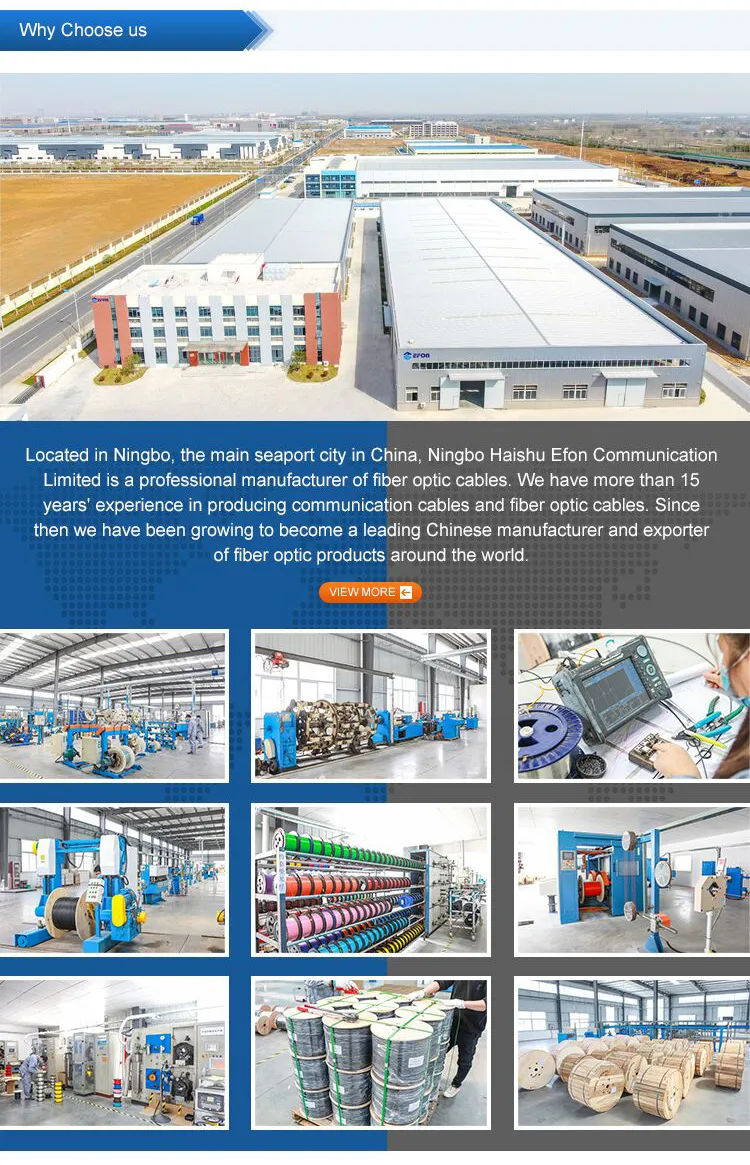

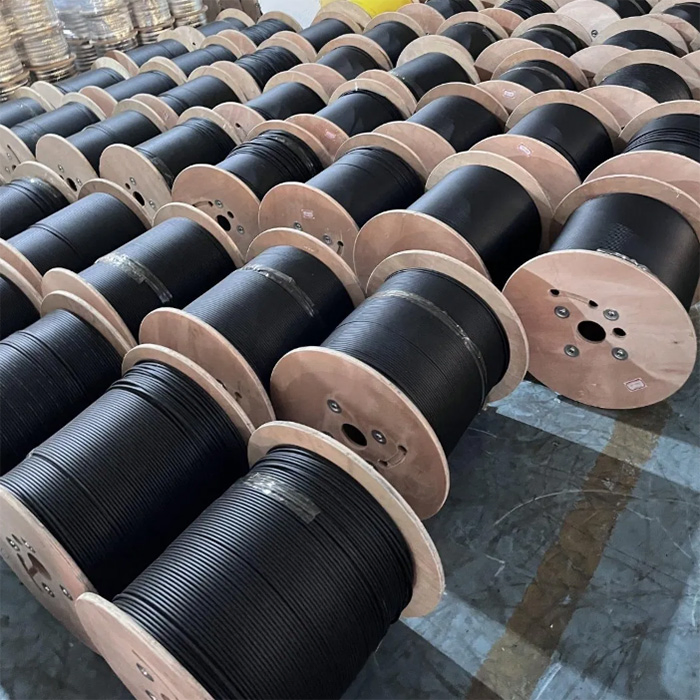

Manufacturing Excellence

Frequently Asked Questions

What are the payment options for orders?

For large orders, we offer T/T, L/C, and E-credit lines. For small sample orders, credit cards are accepted.

What is the typical delivery timeframe?

We typically dispatch products within 10 days. Small batches are shipped via air, while large bulk orders are shipped by container.

What is the warranty period for the fiber optic cables?

All products come with a 5-year warranty. We provide free repair or replacement for any non-man-made issues.

Can this cable be used for self-supporting aerial installations?

Yes, the GYFXTY-FG is specifically designed as an all-dielectric aerial drop cable, suitable for spans up to 80 meters without a separate messenger wire.

Does the cable support both Single Mode and Multi Mode fibers?

Yes, hybrid designs containing both single mode and multi mode fibers, as well as composite designs with copper conductors, are available upon request.

What is the core capacity of the Uni-Loose Tube cable?

The cable structure is compact and can accommodate anywhere from 2 up to 24 fiber cores.
