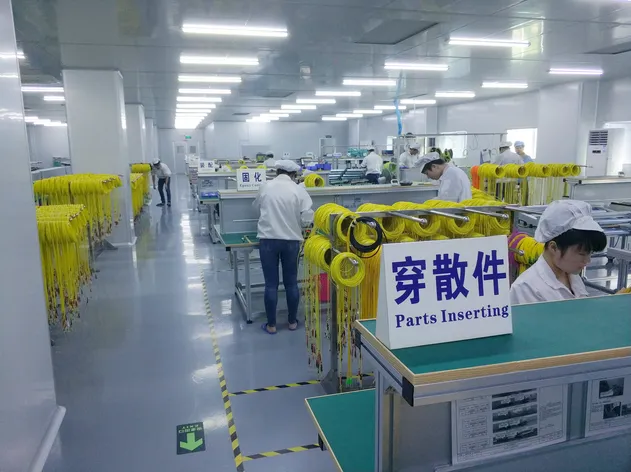

Conventional Production Process Flow:

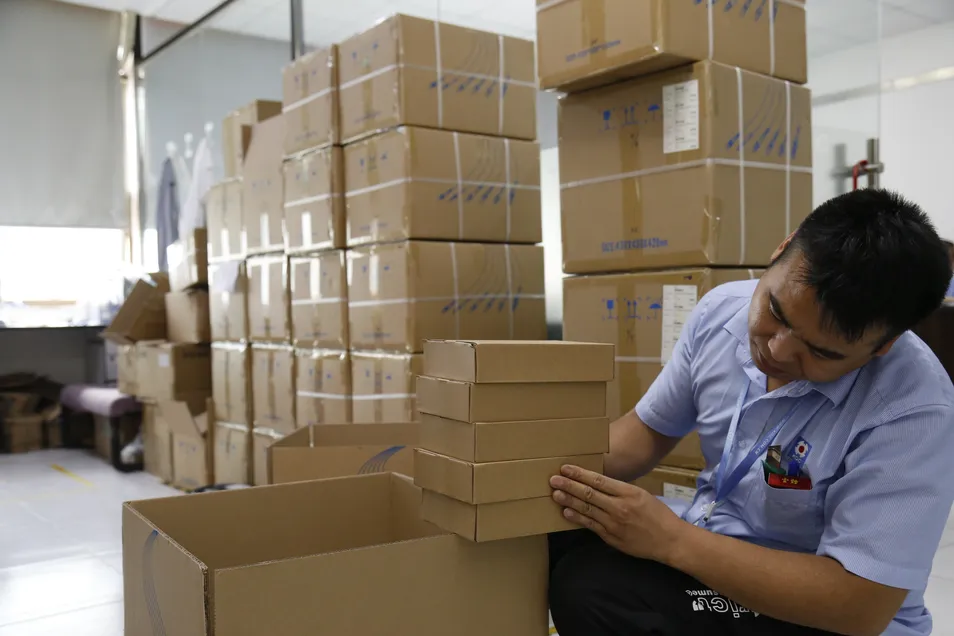

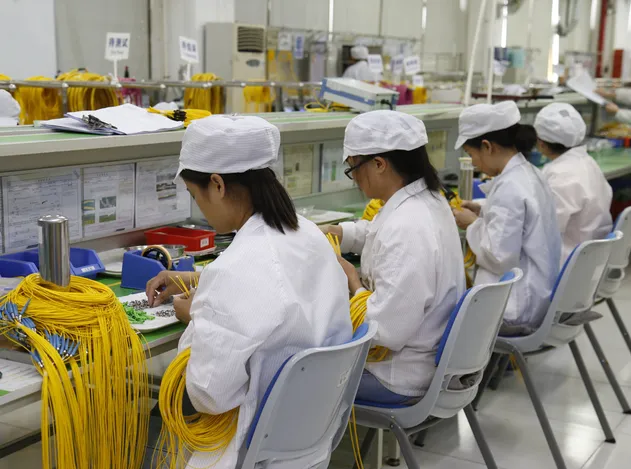

Order Confirmation → Cleaving Cable → Passing Through Components → Striping Cable & Fiber → Epoxy Defoaming → Checking & Cleaning → Polishing → Inserting Fiber & Curing → End Face Initial Inspection → Optical Indexes Testing → End Face Inspection → Assembling & Crimping → Machine Grinding → Cleaving Fiber & Manual Grinding → Tensile Test → Appearance Inspection → Packing
💡 Key Features
🚀 Applications
| ITEM | Single-mode | Multi-mode |
|---|---|---|
| Test Wavelength | 1310nm, 1550nm | 850nm, 1300nm |
| Insertion Loss | Typical ≤0.20dB, Max ≤0.30dB | Typical ≤0.15dB, Max ≤0.25dB |
| Return Loss | UPC ≥50.0dB, APC ≥60.0dB | ≥35.0dB |
| Durability | ≤0.20dB typical change, 1000 mating | |
| Operating Temp | -20ºC to +70ºC | |

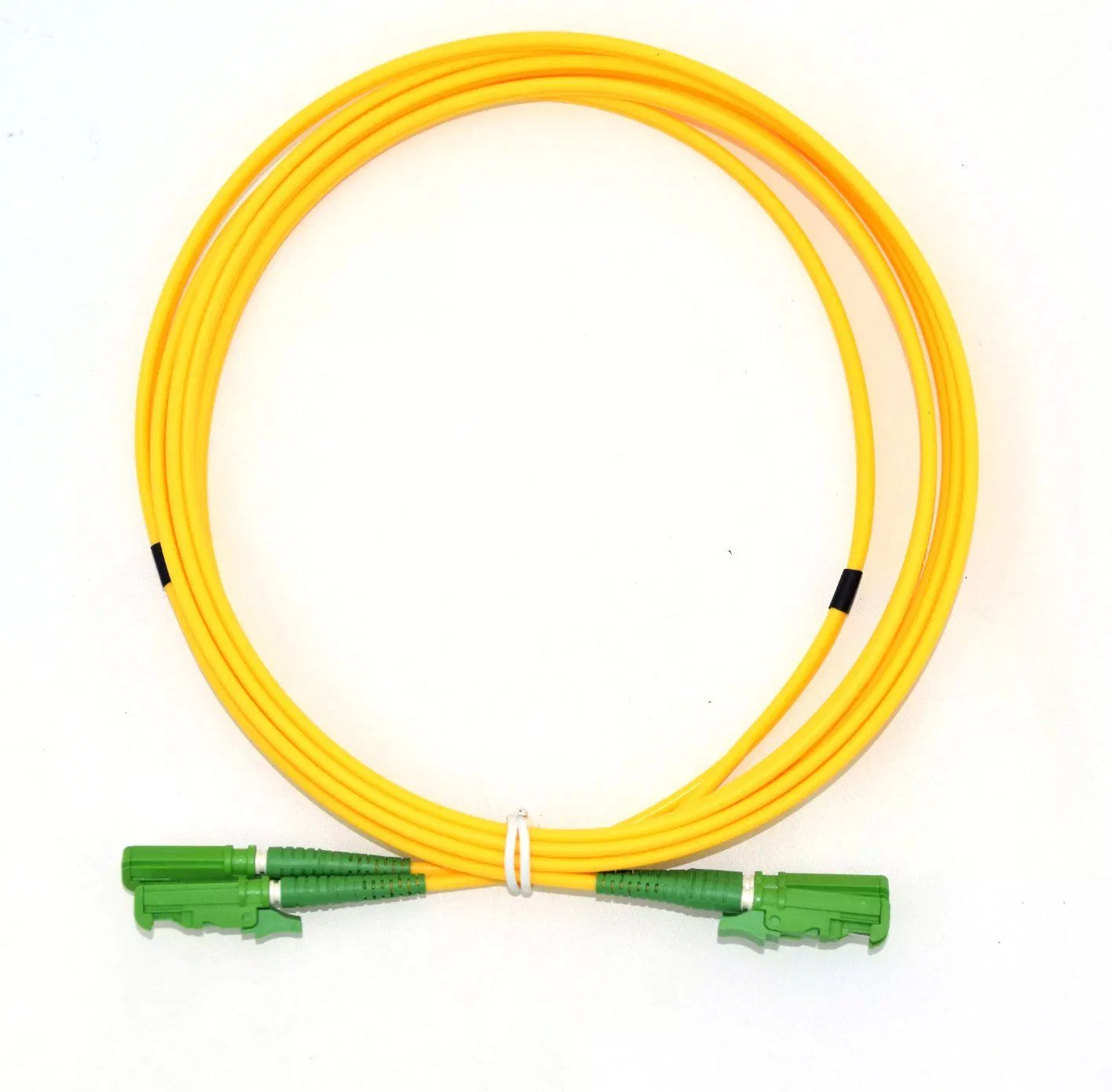

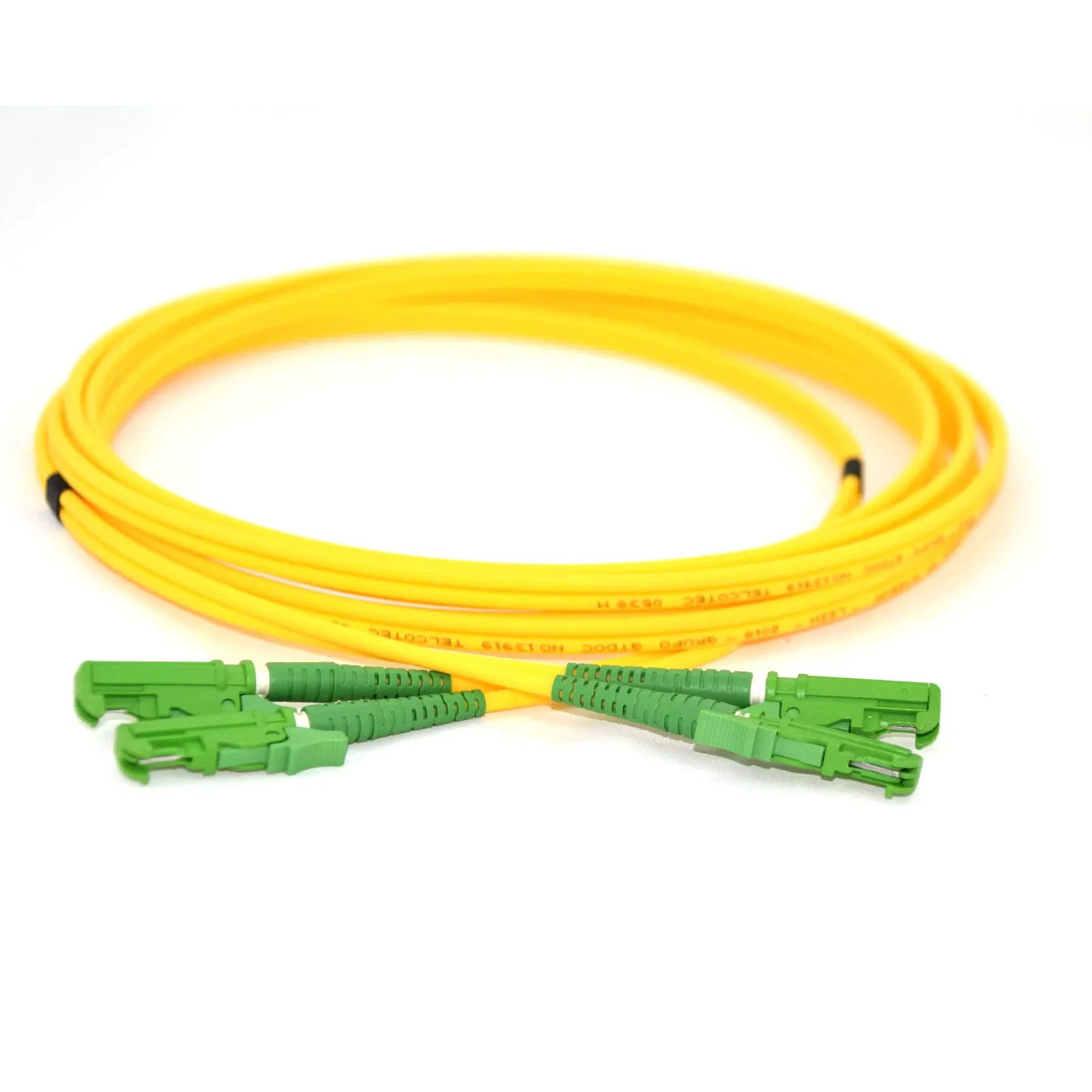

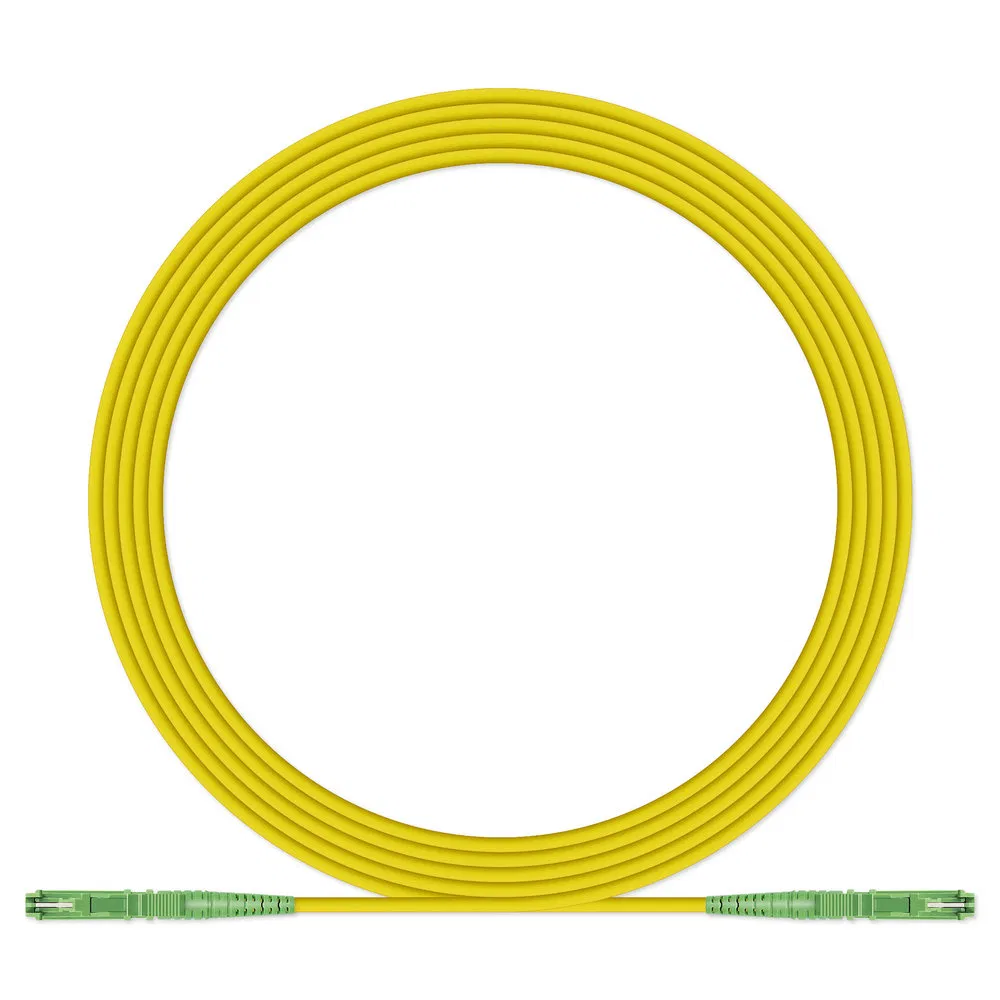

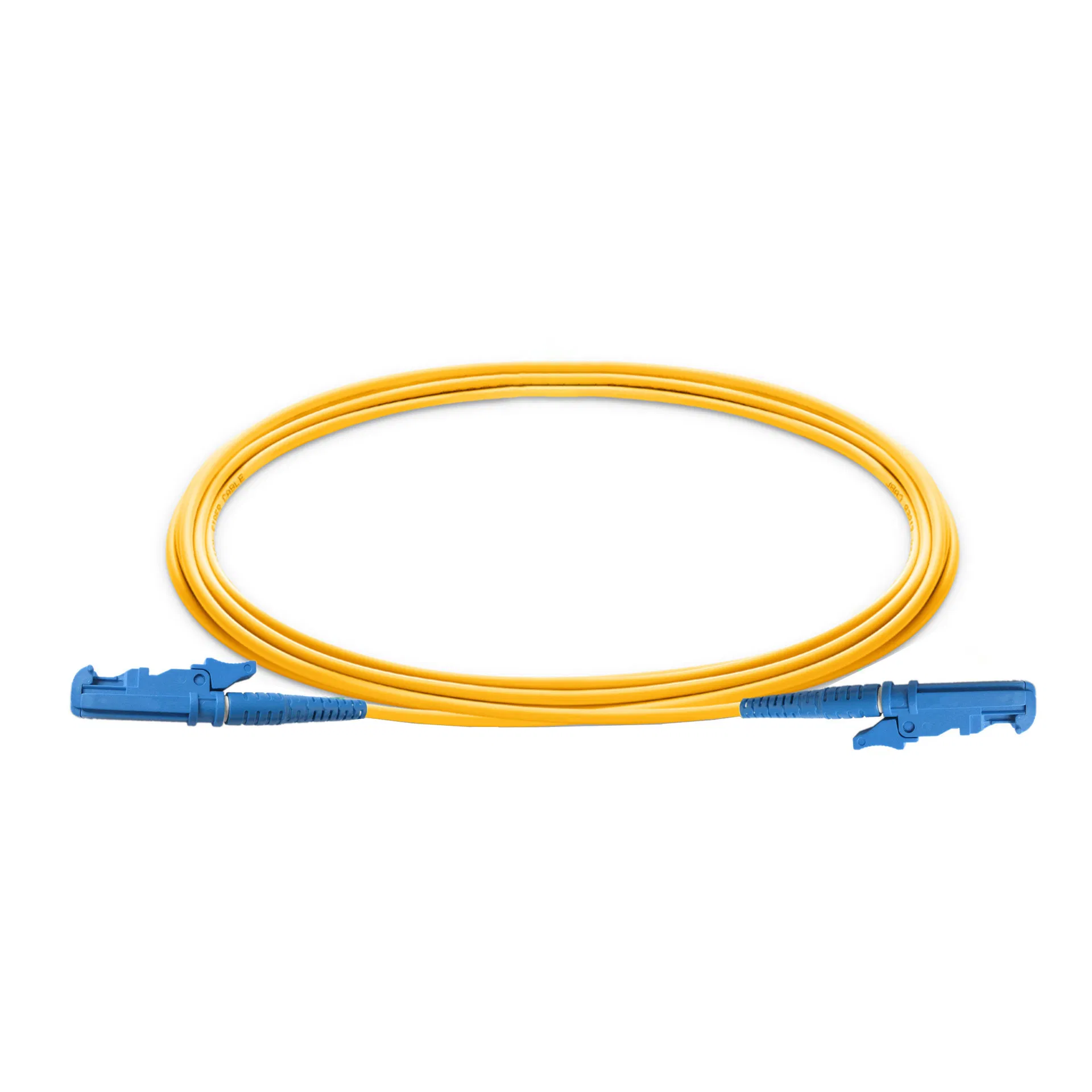

| Fiber Type | Cable Type | Connector Color | Boot Size | Polishing |
|---|---|---|---|---|
| SM 9/125μm, OM3, OM4 | Simplex / Duplex | Blue, Green, Beige | 0.9, 2.0, 2.4, 3.0mm | UPC, APC |
Over 25 Years of Industry Expertise
As a global supplier of fiber optic components since 2001, our group operates as a municipal-level high-tech enterprise. We specialize in the manufacturing of telecom solutions, fiber optic network connections, passive devices, and data center cabling. Our products are widely used by telecom operators in more than 80 countries worldwide, ensuring reliable performance and high-quality standards.
