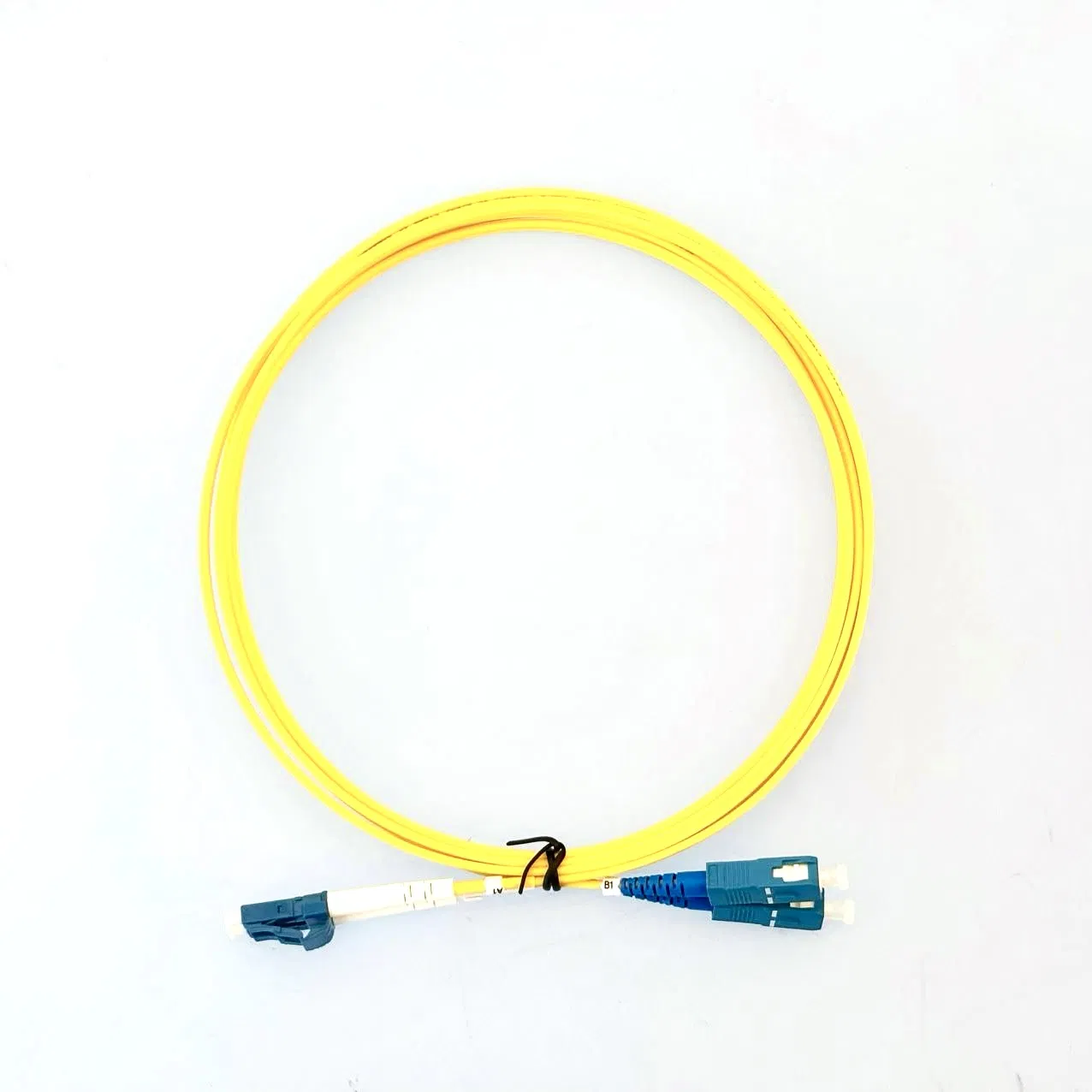

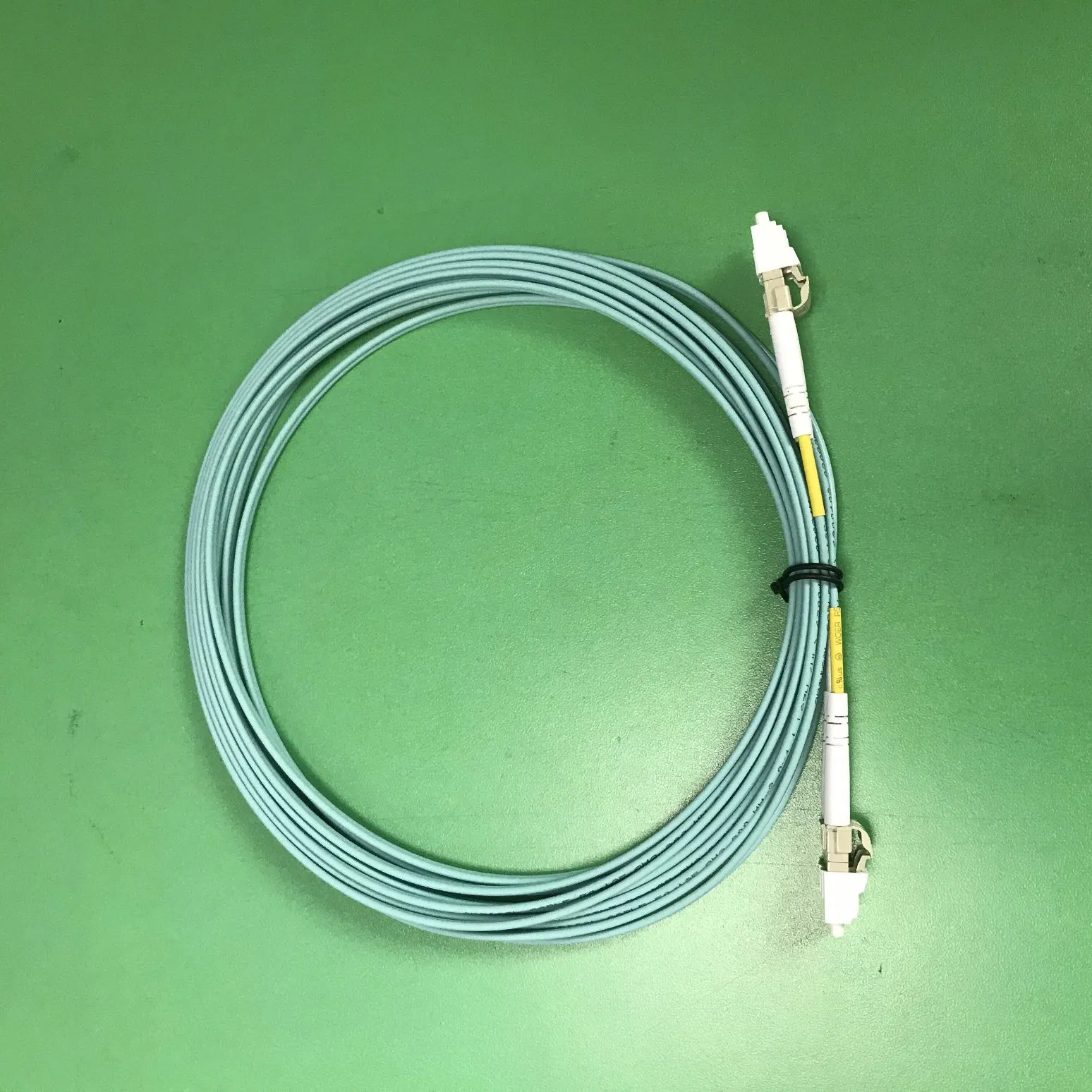

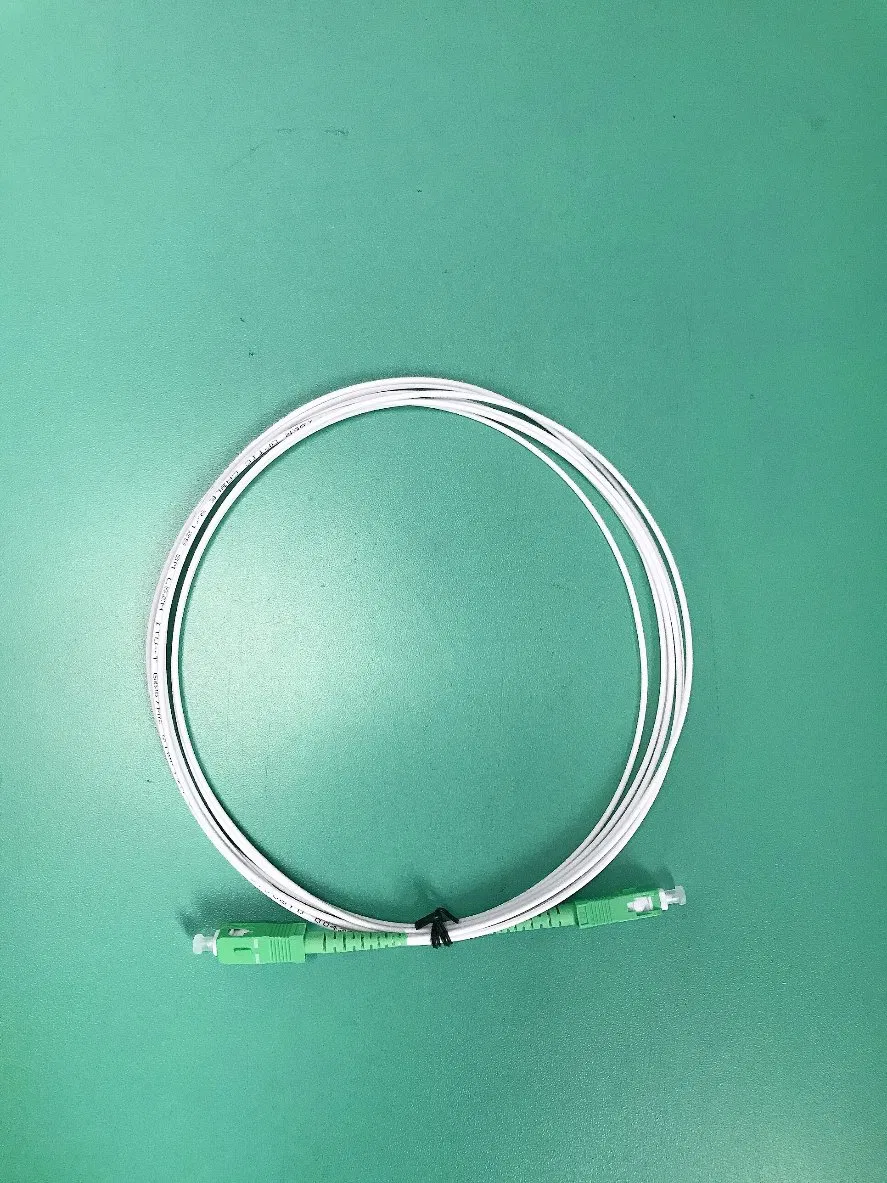

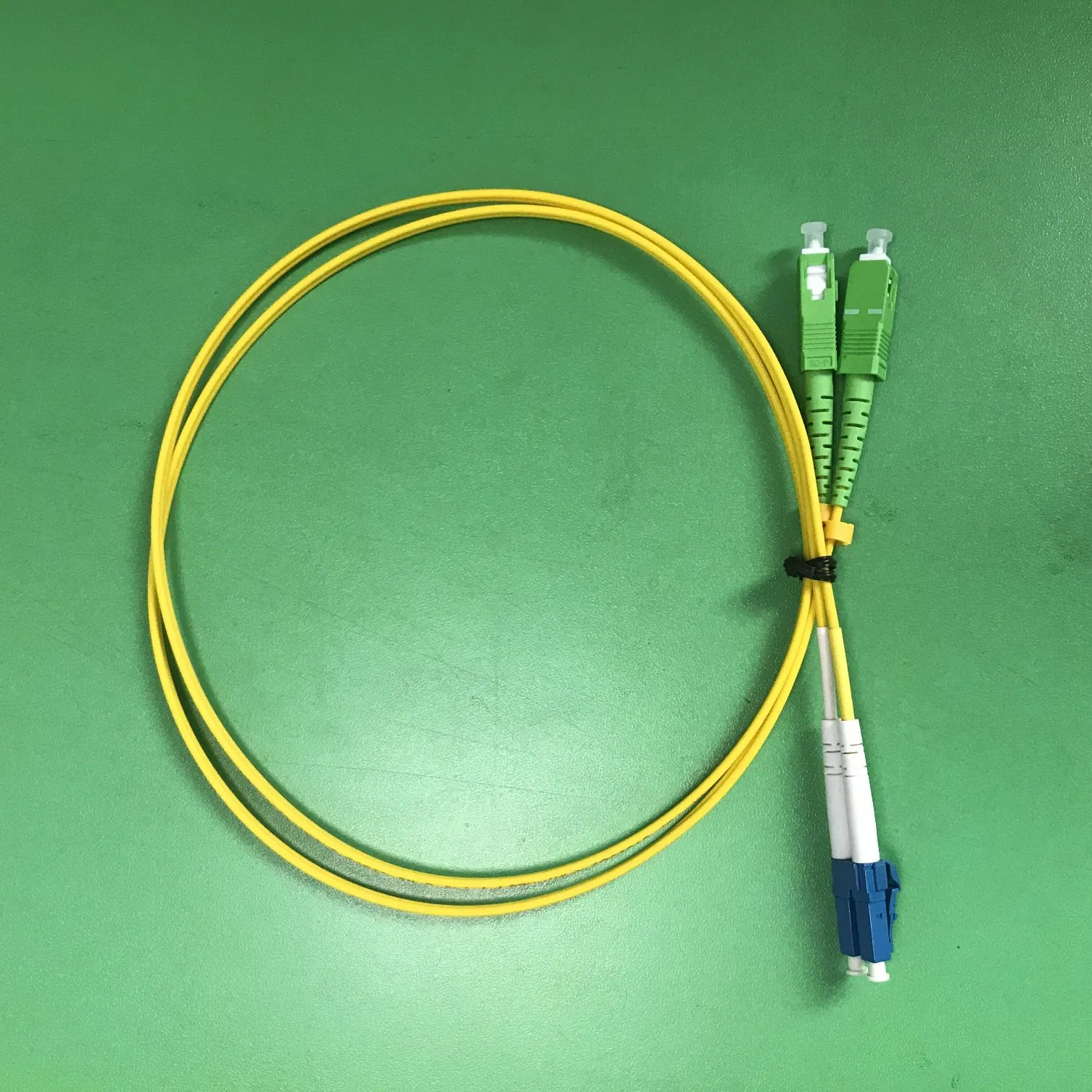

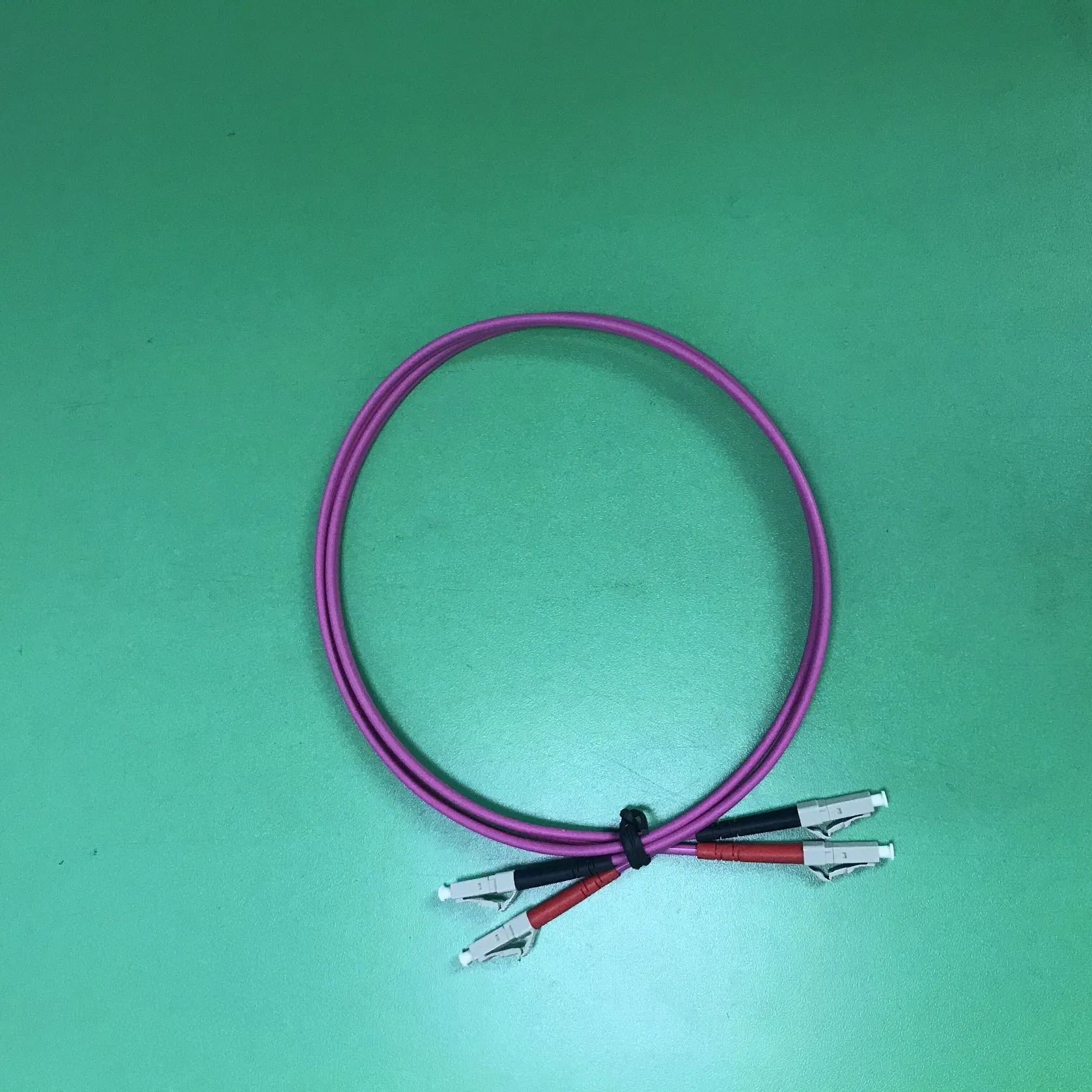

Sc-LC Single-Mode Duplex Optical Fiber Optic Cable Assembly Patch Cord Cable

Customization:	Available
Application:	Communication
Type:	Single-mode Fiber

Basic Specifications

Model NO.

SC-LC

Structure

SC, LC

Material Shape

Round Wire

Lateral Pressure

100-1000 N/100mm

Tensile Strength

100N - 1000N

Core Type

Single, Double, Multicore

Certification

RoHS, CE, ISO9001

Sheath Material

LSZH

Diameter Size

0.9mm to 3.0mm

Jacket Material

LSZH, PVC, OFNR, PE

Cable Length

1m, 2m, or Custom

HS Code

85447000

Product Overview

Key Applications

CATV and Telecommunication networks
Active device termination and Metro applications
Local Area Networks (LANs) and Wide Area Networks (WANs)
Data processing networks and Test equipment
Premise installations

Key Features

Low insertion loss and high back reflection loss
Excellent exchangeability and durability
High temperature stability
Compliant with Telcordia GR-326-CORE standards

Technical Specification

Parameter	Single Mode	Multimode
Insertion Loss	Typical≤0.2dB, Max≤0.3dB	≤0.25dB
Return Loss	≥50 dB (PC) / ≥60 dB (APC)	≥30 dB
Repeatability	≤0.1
Durability	≤0.2 dB typical change, 1000 matings
Tensile strength	>70N
Operating Temp	-40 to + 85°C

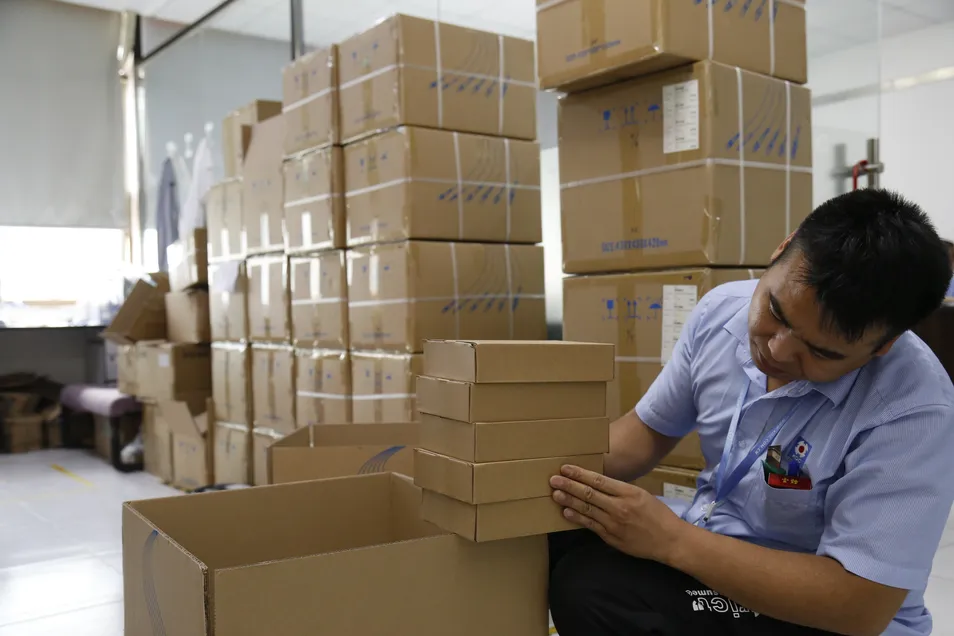

Visual Display & Production

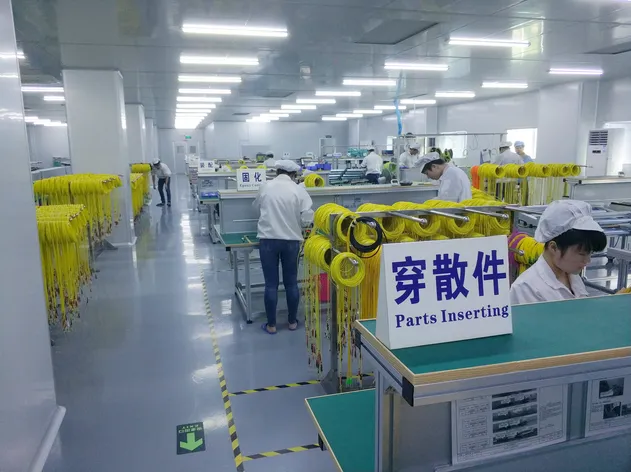

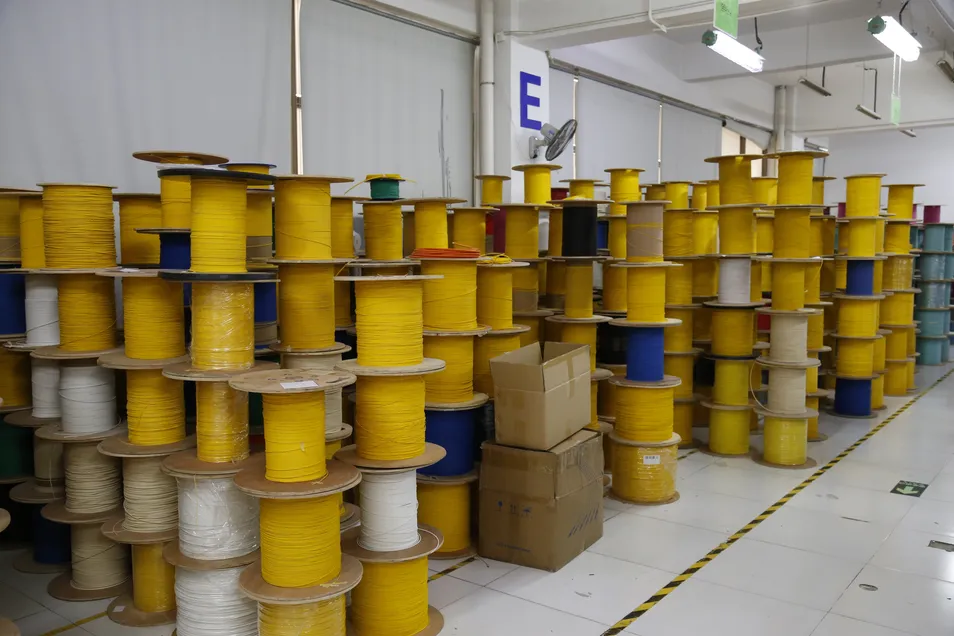

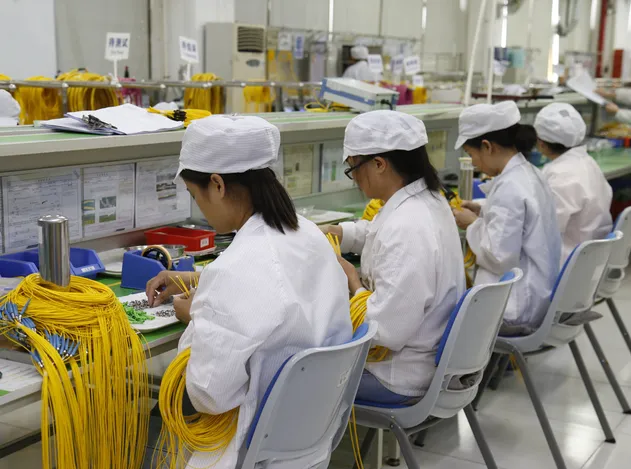

Production Process Overview

Company Profile

With over 25 years of experience, we are a global supplier of fiber optic components. Established in 2001, our group is a state-level high-tech enterprise. We specialize in telecommunications, fiber optic network connections, passive devices, and data center cabling.

Our products are extensively used by telecom operators and in fiber optic engineering, CCTV, broadband networks, FTTH, and data centers in more than 80 countries worldwide. We provide reliable products and services oriented towards high quality.

Frequently Asked Questions

Q1: What is your professional background?

Established in 2001, we are a high-tech company with decades of experience in the fiber optic industry, providing global connection solutions.

Q2: What quality certifications do your products hold?

We hold specific telecom equipment permits, software copyrights, and international management system certifications for quality and safety.

Q3: Do you offer product customization?

Yes! We specialize in customized solutions for telecom, fiber connections, and data cabling to meet various project specifications and models.

Q4: What kind of support do you provide?

We provide 7x24 online consultation with a 12-hour response time, including free pre-sales fiber solutions and dedicated after-sales service.

Q5: What are the primary applications for your patch cables?

Our products are suitable for CATV, LAN/WAN, data processing networks, FTTH, and telecommunication test equipment.

Q6: What standards do your fiber components follow?

All our fiber components are manufactured to meet high industry standards, specifically following Telcordia GR-326-CORE for performance and reliability.
