Product Description
🌐
FTTH 96 Cores Single Mode G652D Fiber Optic Indoor Cable (Model: GJFJV). Complies with IEC332-1 fire performance tests.

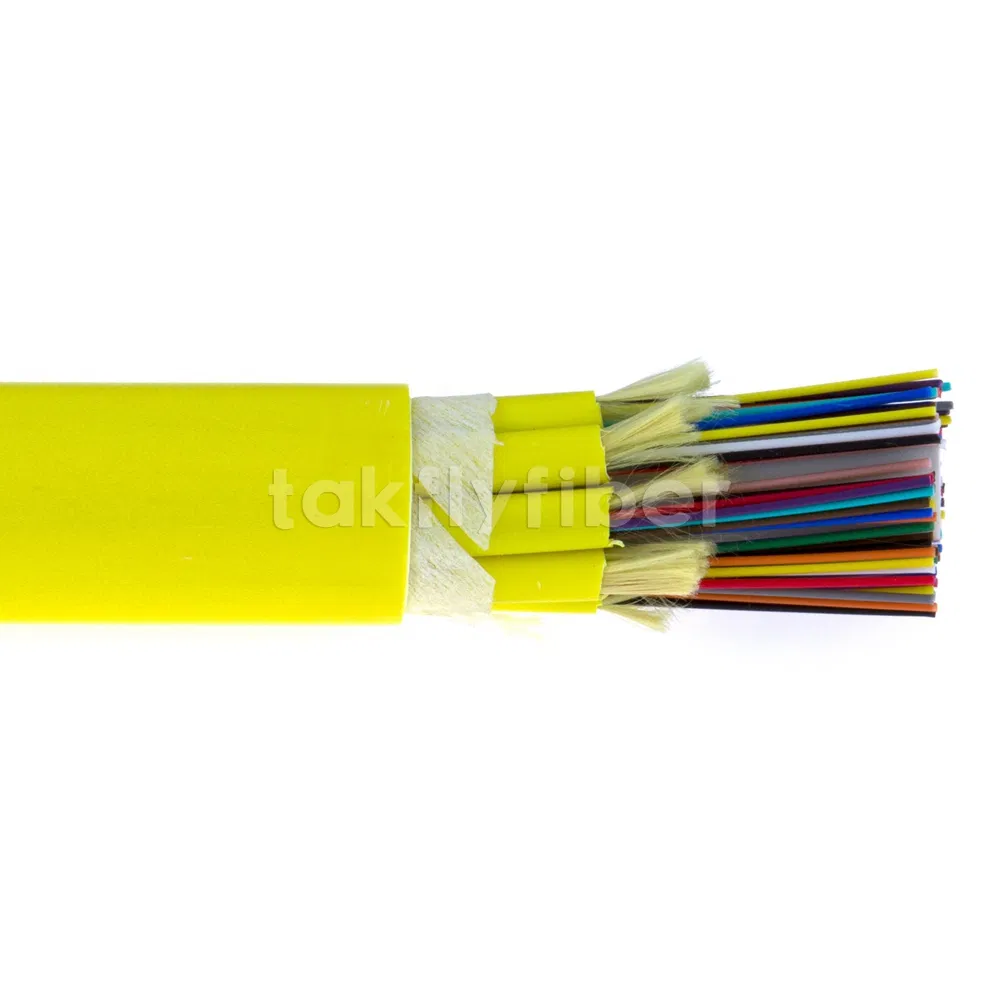

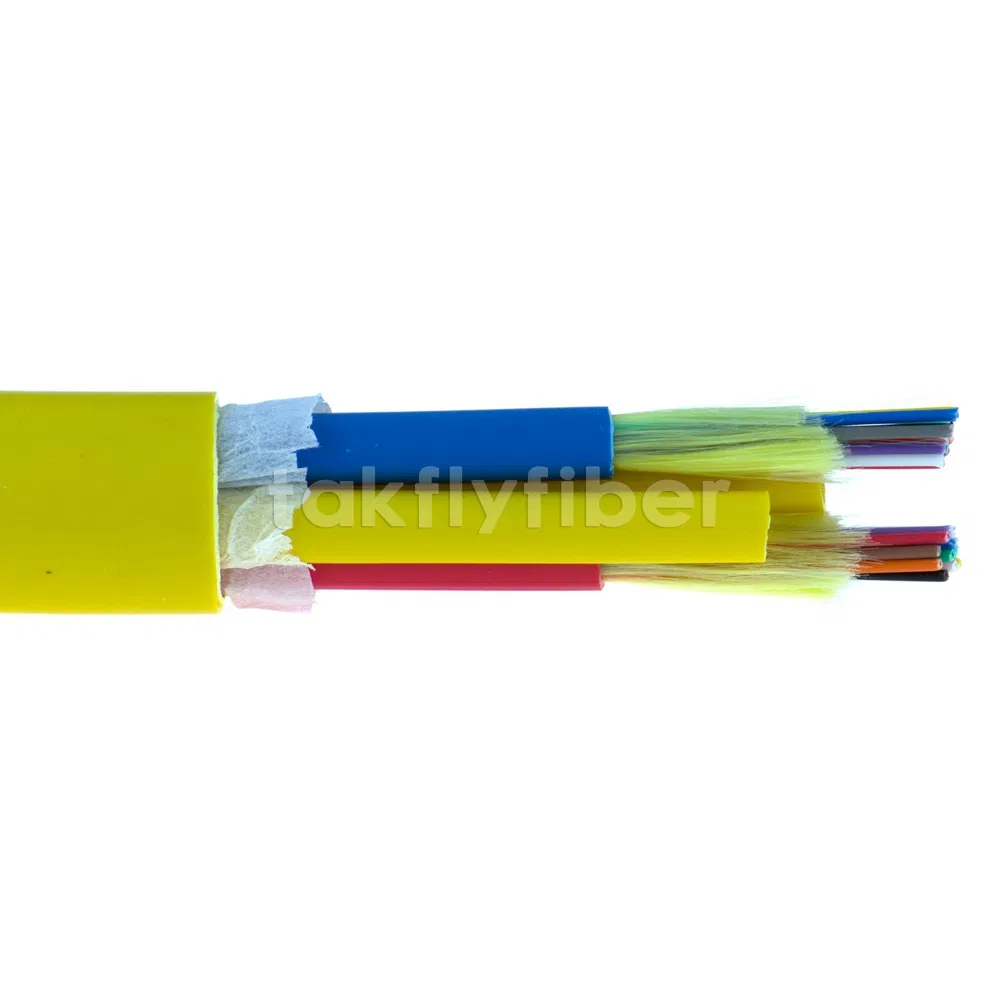

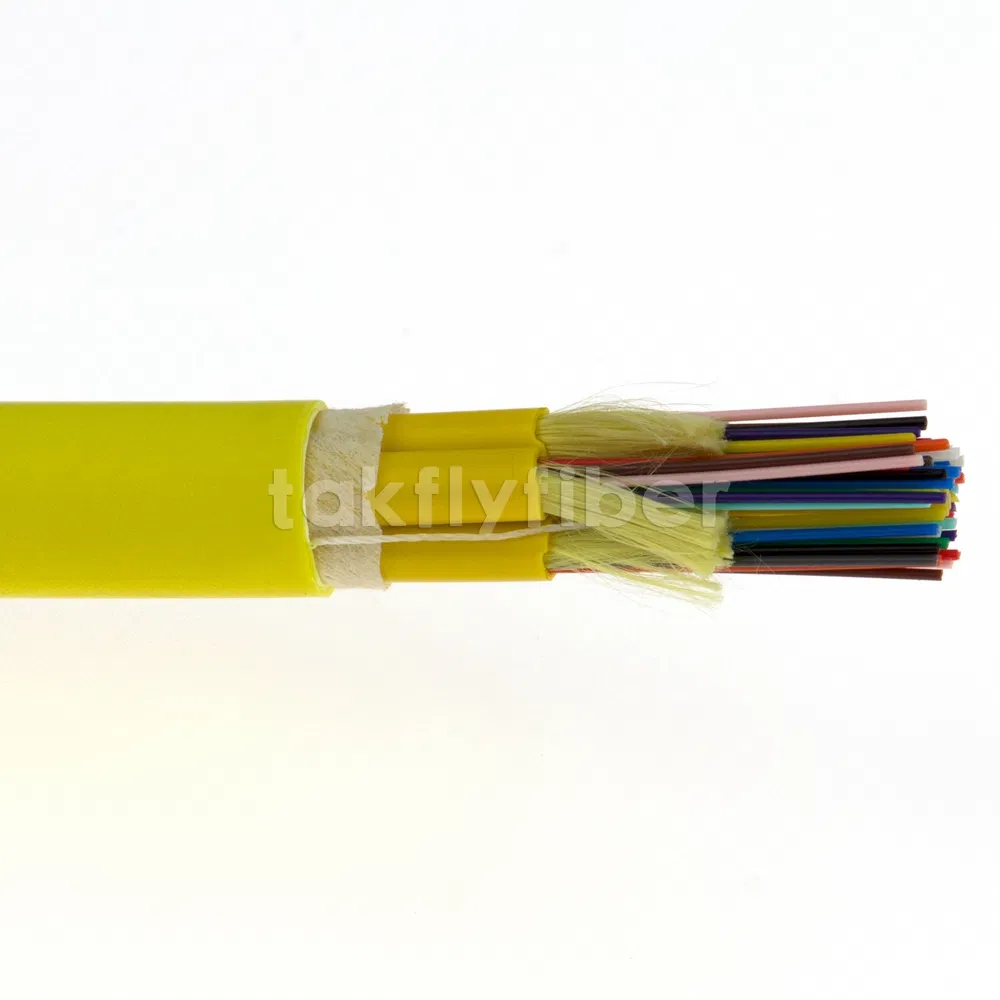

Distribution Tight Buffer Optical Cable utilizes 48~144 core 900μm or 600μm flame-retardant tight buffer fiber. The fiber is wrapped with a layer of aramid yarn as a strength member and finished with a PVC or LSZH outer jacket.
Key Features
- Multi-cable design with independent strength members
- Non-metal central strength member
- Fiber Count range: 12~144 cores
- Internal wiring and backbone LAN applications
Applications
- Interconnect for various connector models
- Ceiling and surface laying
- Indoor level and vertical installation
- Backbone in LANs and indoor/outdoor ducts
Why Choose Our Solutions
🛠️
Advanced Manufacturing: Over 18 years of experience with 16 sets of imported injection machines and 30+ sets of specialized testing instruments (OTDR, 3D, VFL).
✅
Rigorous Quality Control: Full inspections after every process, from raw material incoming to finished products before shipping.
🚀
Efficient Delivery: Samples in 1-3 working days; Mass production in 3-7 working days.
Frequently Asked Questions
Q: What is the main benefit of LSZH jacket for this 96-core cable?
A: LSZH (Low Smoke Zero Halogen) material reduces the amount of toxic and corrosive gas emitted during combustion, making it ideal for indoor installations with poor ventilation.
Q: Can this indoor cable be used for vertical backbone laying?
A: Yes, the GJFJV model is specifically designed for both horizontal and vertical indoor laying, including backbone systems in LANs.
Q: What is the maximum tensile strength during installation?
A: The cable is rated for a maximum installation loading of 1320N, ensuring durability during pulling and routing.
Q: Are different fiber types compatible with this cable structure?
A: Yes, we support G652D, G657A1, G657A2 for single mode, and OM1, OM2, OM3, OM4 for multimode configurations.
Q: What testing standards are applied to these fiber optic cables?
A: All cables undergo comprehensive testing for Insertion Loss (IL < 0.3dB), Return Loss (RL), crush resistance, and comply with IEC332-1 fire safety standards.
Q: Is it possible to order custom lengths and connector types?
A: Absolutely. While standard lengths are 1m, 2m, and 5m, we offer full customization for length and connector types including LC, SC, ST, and FC.
