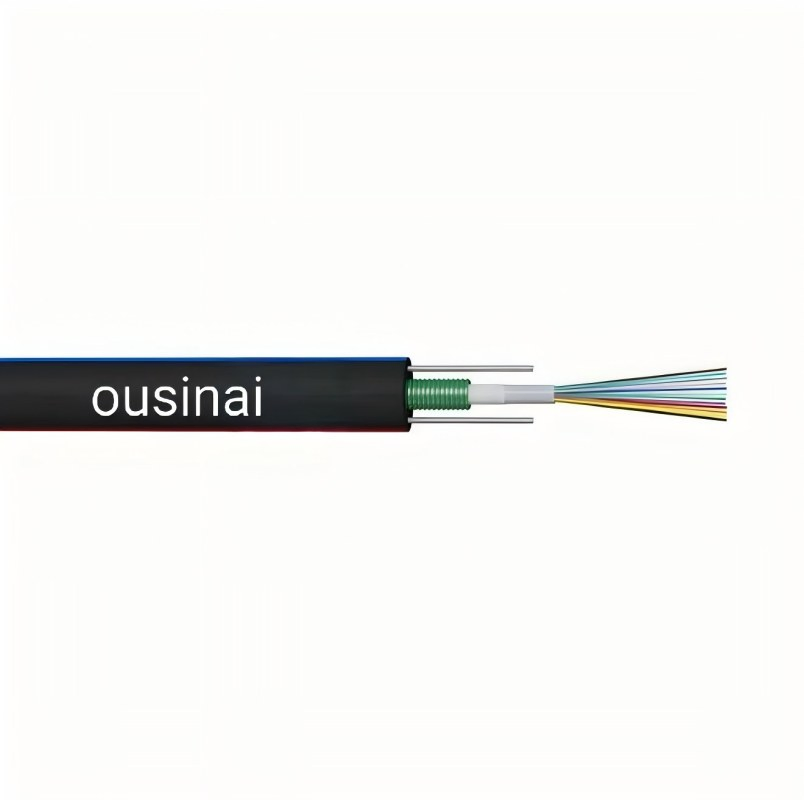

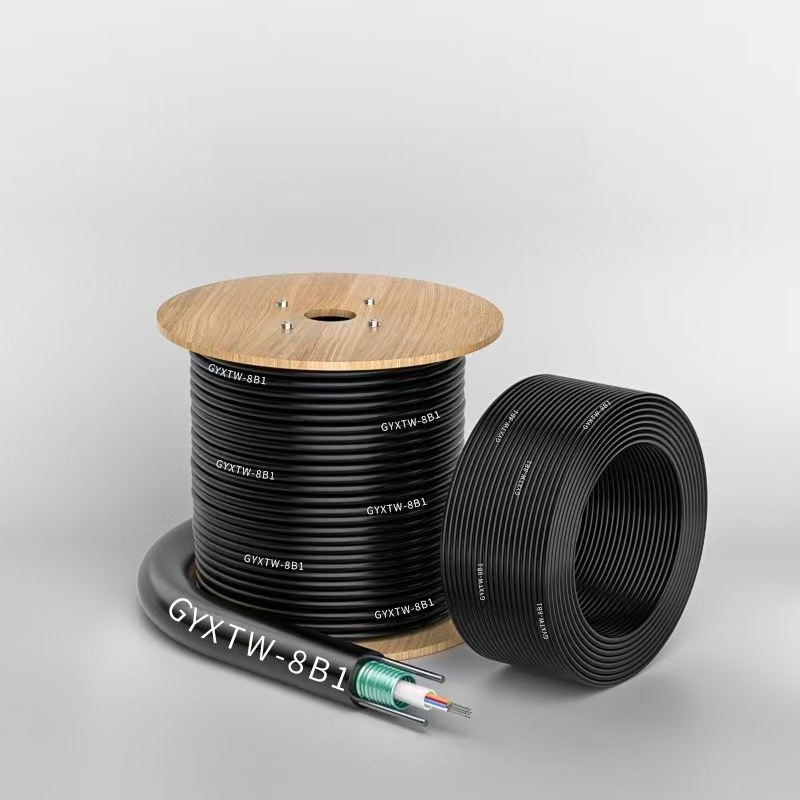

GYXTW Outdoor Cable is a highly reliable central loose tube armored optical cable engineered for outdoor telecommunication infrastructure. It features Low Smoke Zero Halogen (LSZH) materials, making it safe for residential Fiber-to-the-Home (FTTH) projects.

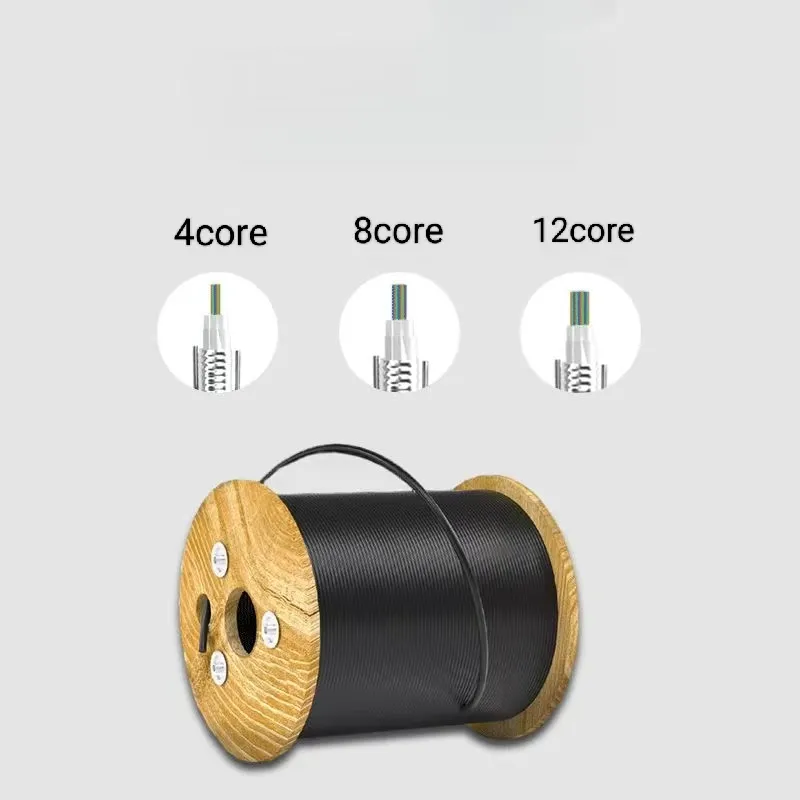

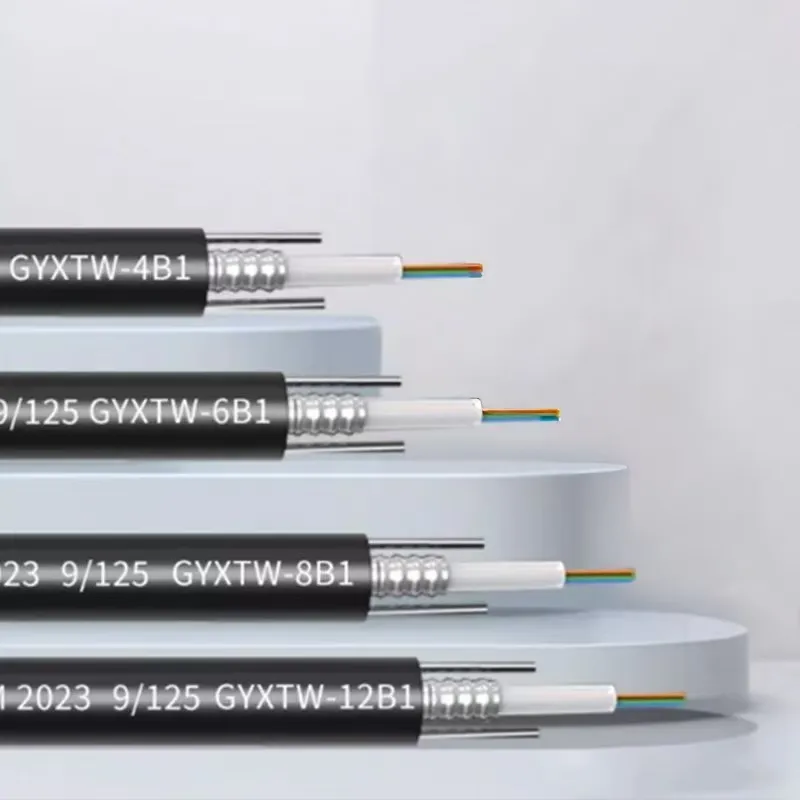

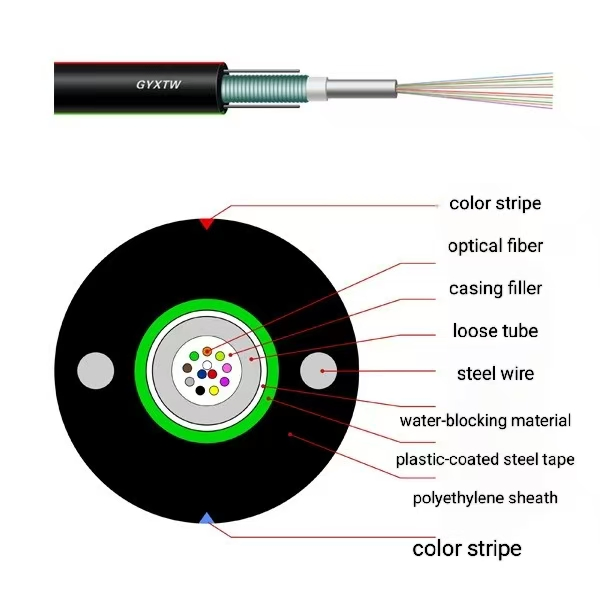

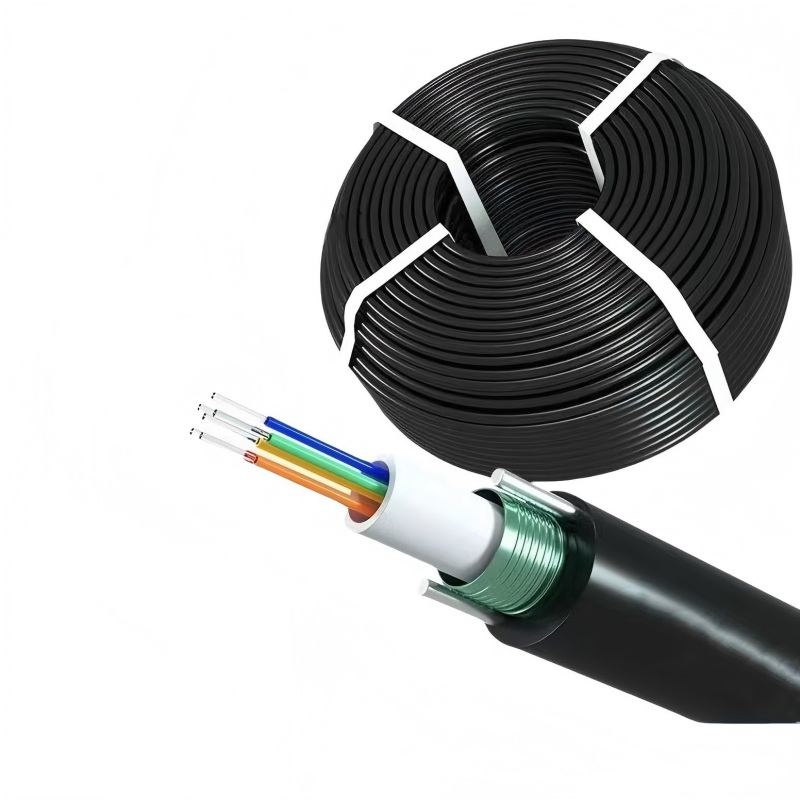

Boasting a compact structure with a single loose tube housing 2-12 optical fibers, it is reinforced with water-blocking yarn and steel tape armor, and protected by a black PE outer sheath. Ideal for aerial, direct burial, and duct installations.
| Fiber Count | Cable Diameter (mm) | Weight (kg/km) | Supporting Wire | Tensile Strength (L/S Term) | Crush Resistance (L/S Term) | Bending Radius (S/D) |
|---|---|---|---|---|---|---|
| 2~12 | 7.65 x 14.5 | 118 | D 1.0mm*7 | 1000/2500 N | 300/1000 N | 80/160 mm |
| 14~24 | 8.2 x 15.1 | 129 | D 1.0mm*7 | 600/1500 N | 300/1000 N | 90/180 mm |
