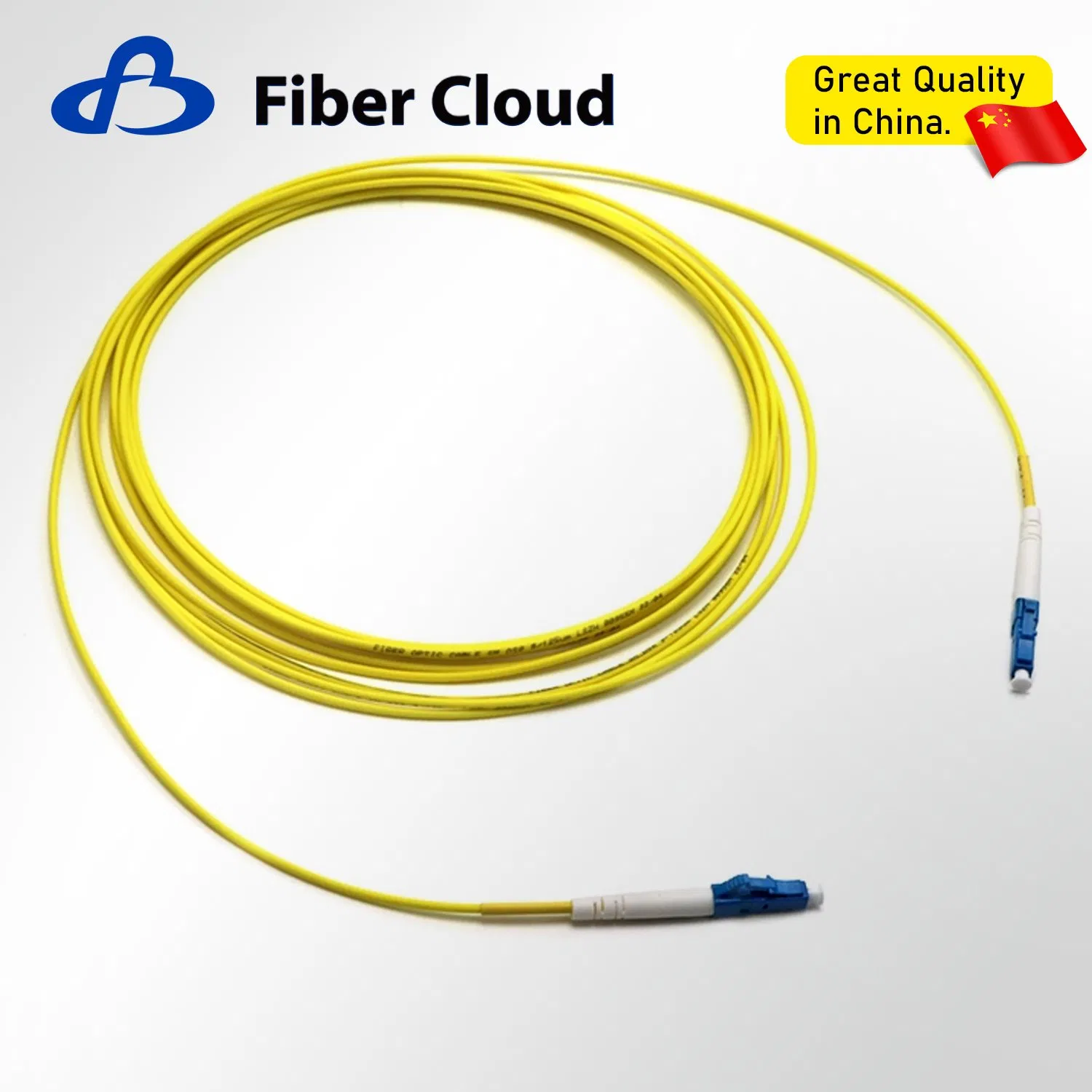

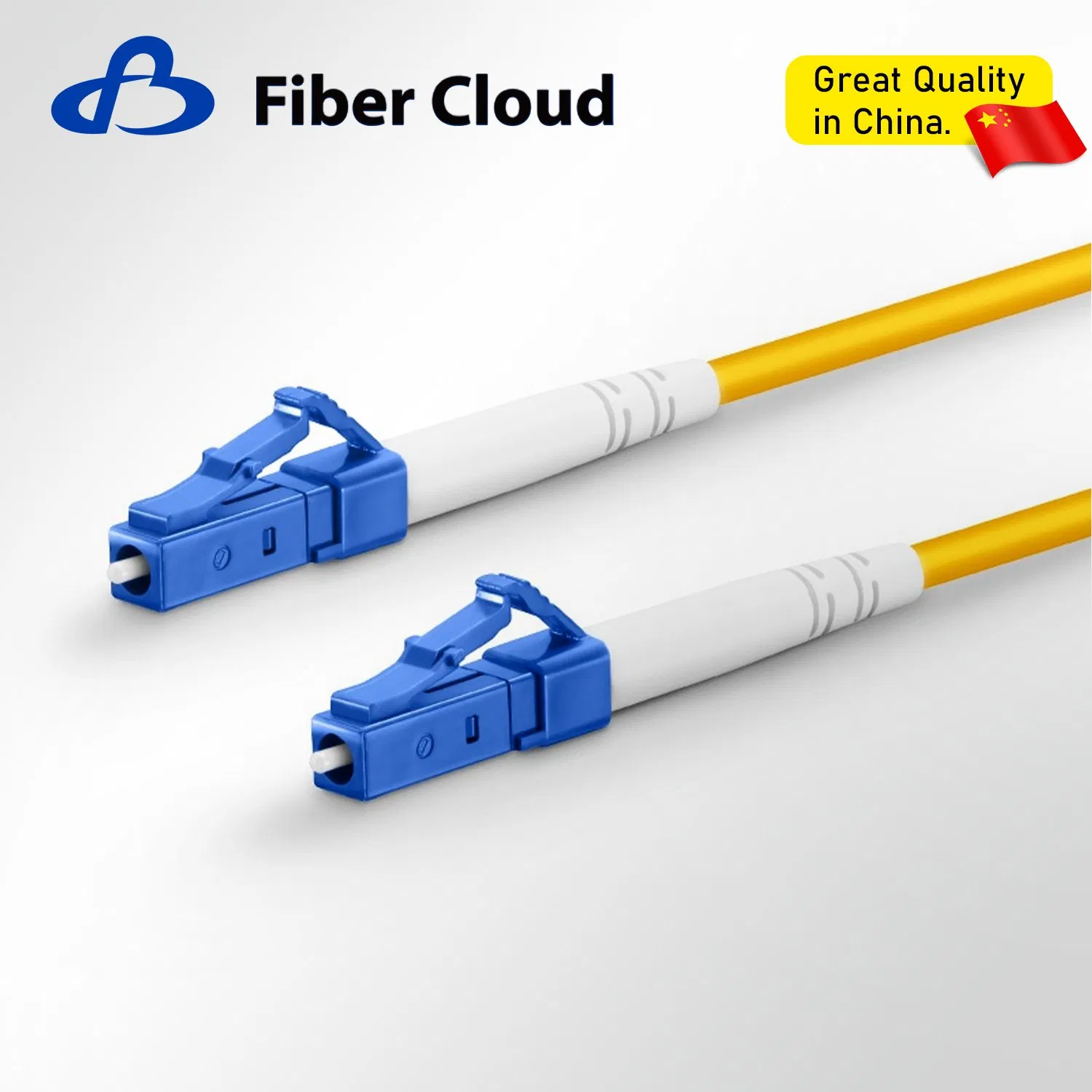

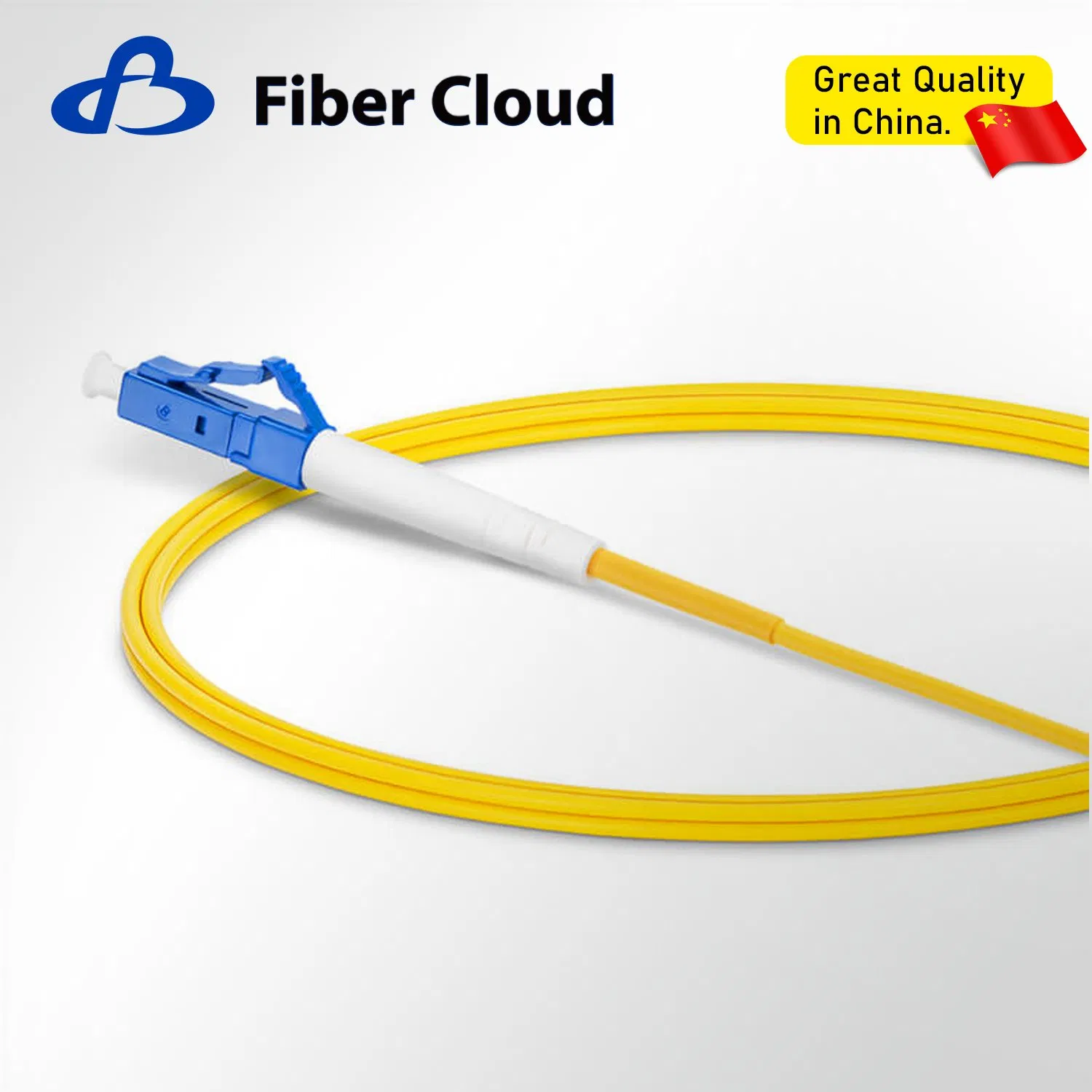

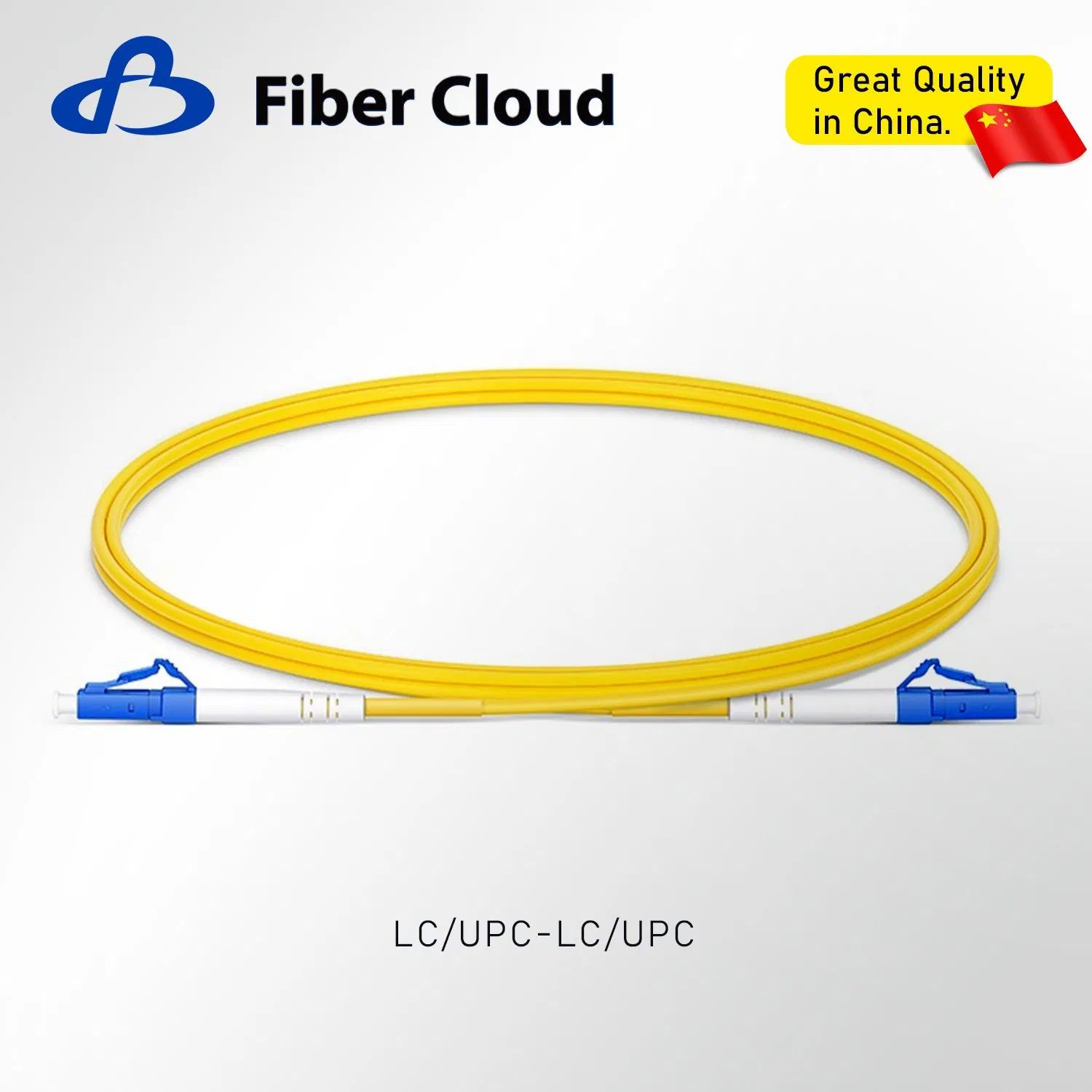

The 9/125μm OS2 single mode bend insensitive fiber optic cable has less attenuation when bent or twisted compared with traditional optical fiber cables, making installation and maintenance more efficient. It saves space for high-density cabling in data centers, enterprise networks, telecom rooms, server farms, and cloud storage networks.
Ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It supports data transport up to 10km at 1310nm, or up to 40km at 1633nm.

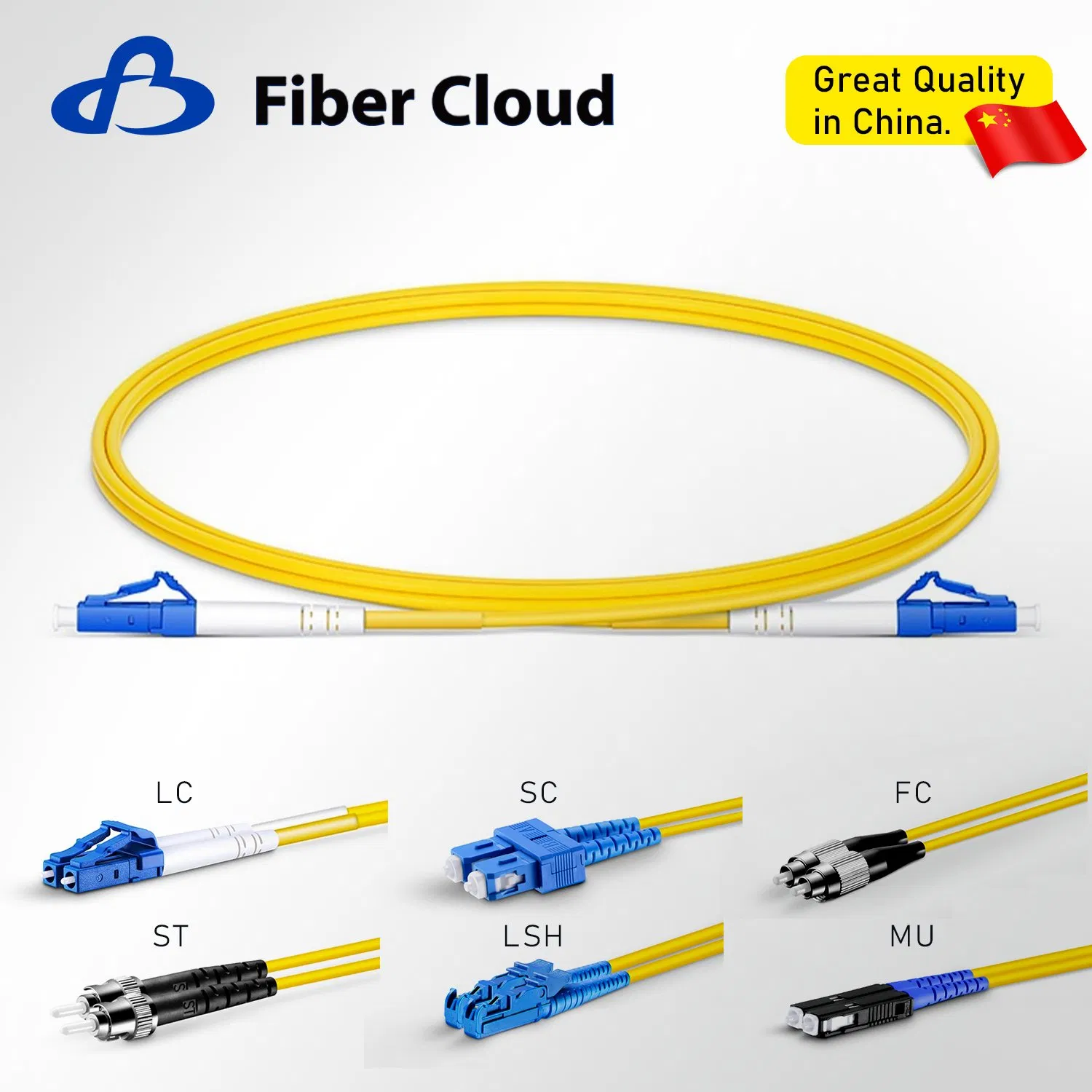

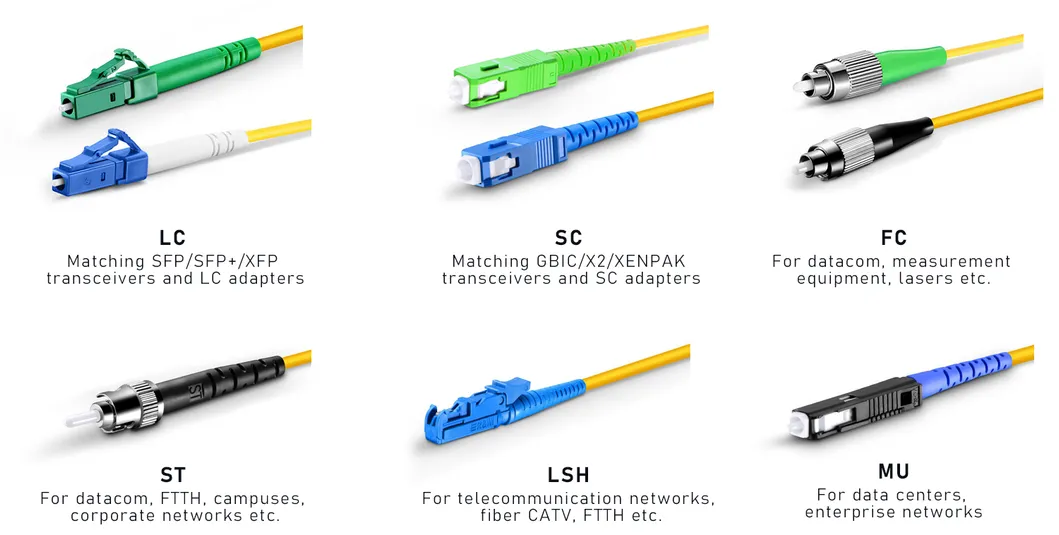

Six Connectors Support Custom-tailored Installations
| Parameter | Specifications | Parameter | Specifications |
|---|---|---|---|
| Connector Type | LC/SC/ST/FC/LSH/MU/MTRJ | Polish Type | APC/UPC |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Insertion Loss | ≤0.2dB | Return Loss | UPC≥50dB, APC≥60dB |
| Fiber Grade | G.657.A1 / G.657.A2 | Min. Bend Radius | 10/5D (Dynamic/Static) |

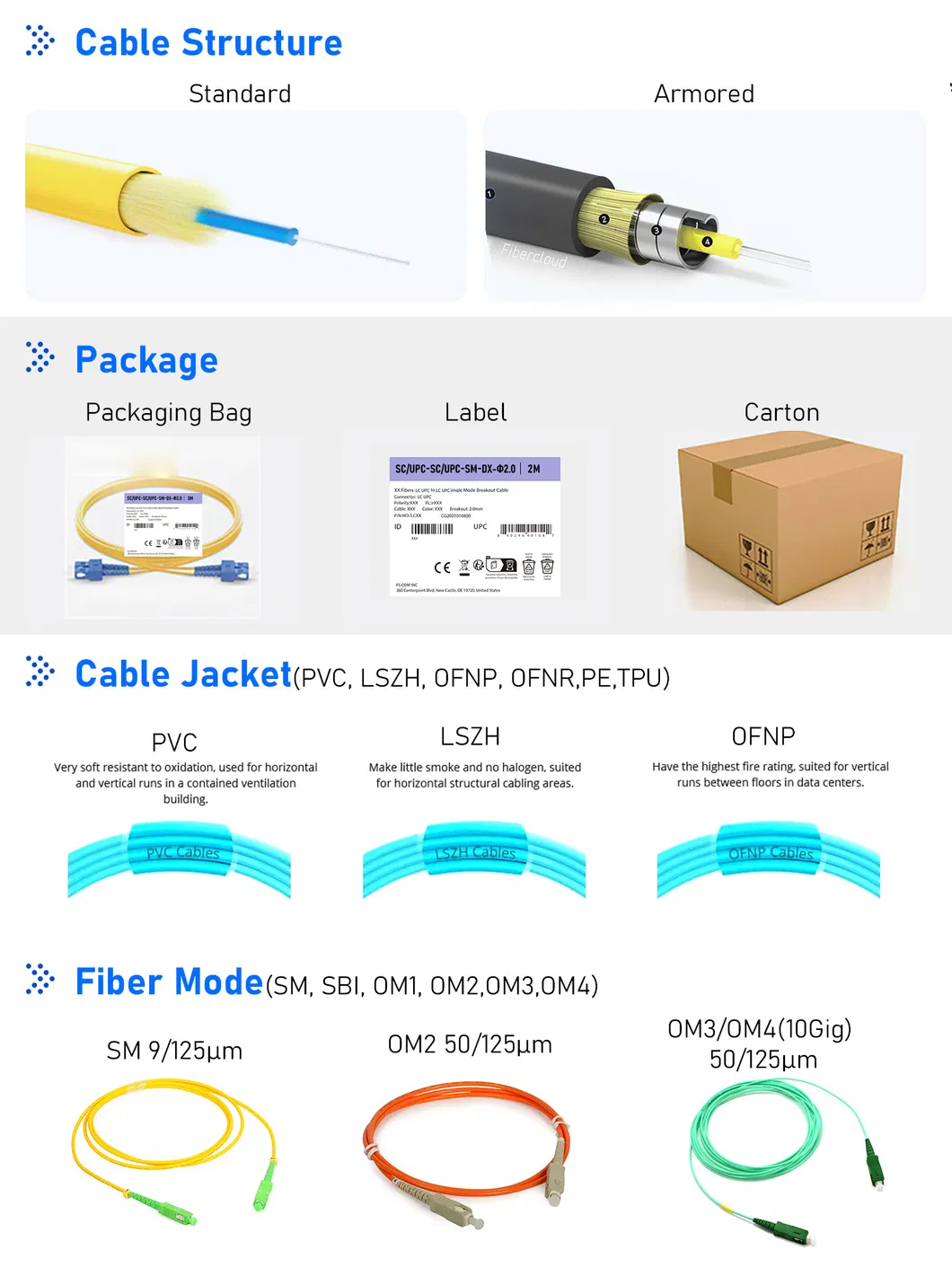

| Fiber Count | Duplex | Cable Jacket | PVC, LSZH, OFNP, OFNR, PE, TPU |
| Operating Temp | -20 to 70°C | Storage Temp | -40 to 80°C |
