| Parameters | G.652 | G.655 | 50/125μm | 62.5/125μm | |
|---|---|---|---|---|---|
| Attenuation (+20ºC) | @850nm | - | - | ≤3.0 dB/km | ≤3.0 dB/km |
| @1300nm | - | - | ≤1.0 dB/km | ≤1.0 dB/km | |
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | - | - | |
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | - | - | |
| Bandwidth (Class A) | @850nm | - | - | ≥500 MHz·km | ≥200 MHz·km |
| @1300nm | - | - | ≥1000 MHz·km | ≥600 MHz·km | |

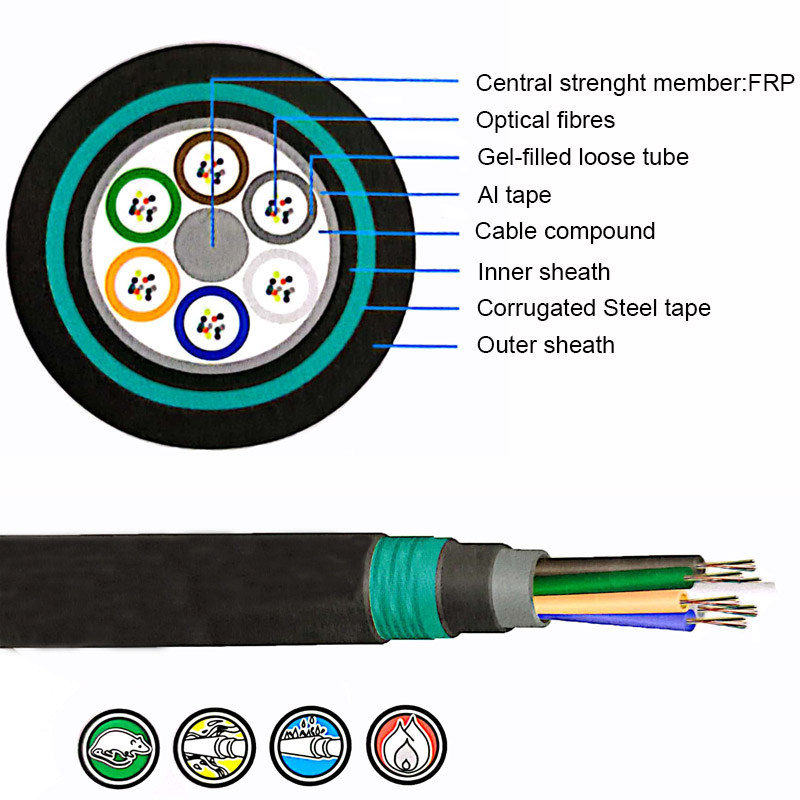

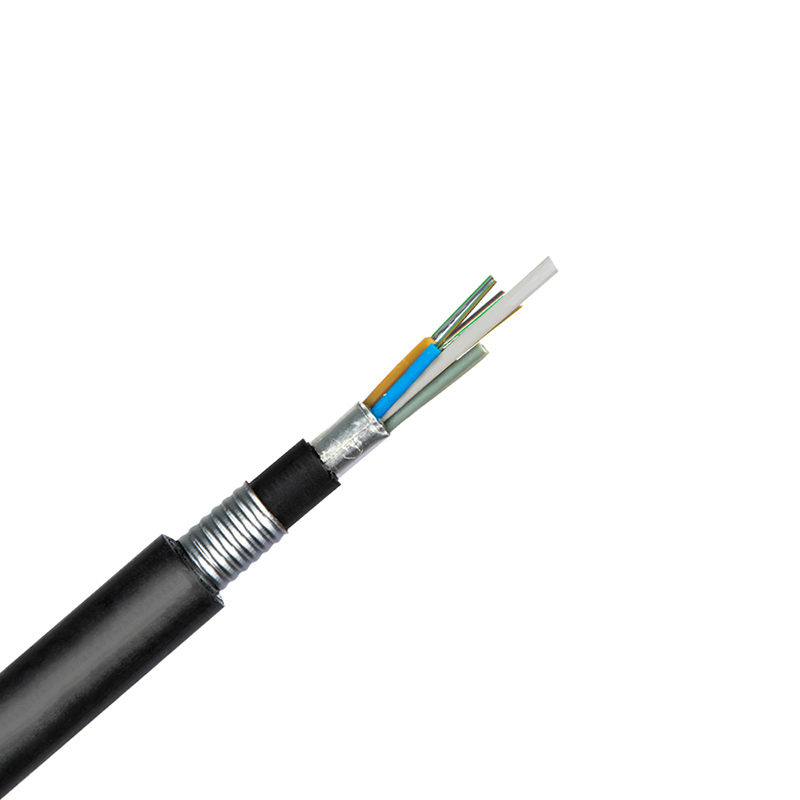

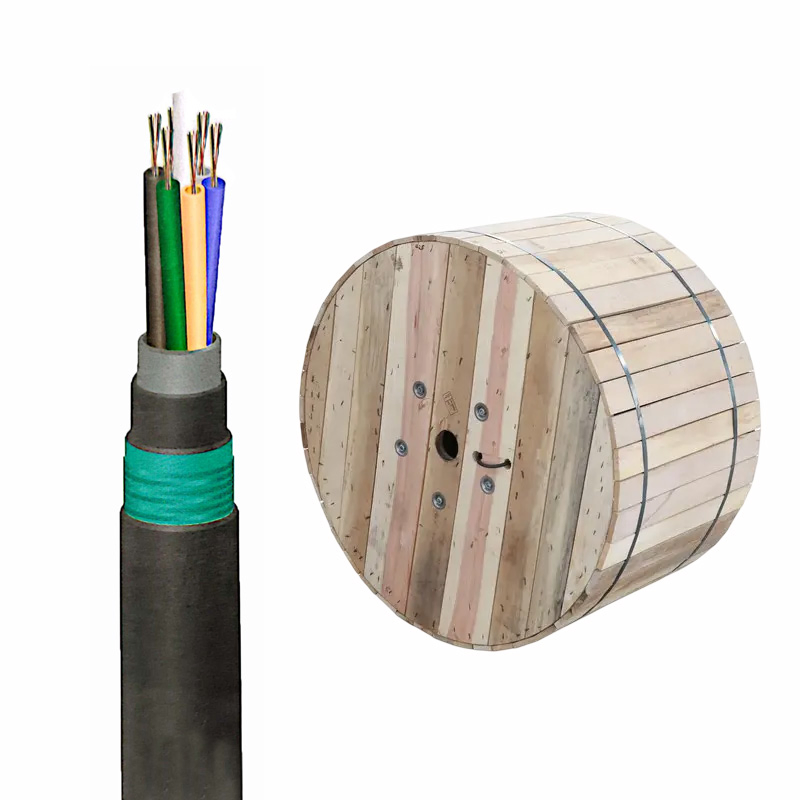

| Cable Type | Fiber Count | Tubes | Diameter (mm) | Weight (kg/km) | Tensile (L/S Term N) | Crush (L/S Term N/100mm) |
|---|---|---|---|---|---|---|
| GYFTY53-2~6 cores | 2~6 | 1 | 15.8 | 230 | 1000/3000 | 1000/3000 |
| GYFTY53-8~12 cores | 8~12 | 2 | 15.8 | 230 | 1000/3000 | 1000/3000 |
| GYFTY53-24 cores | 24 | 4 | 15.8 | 230 | 1000/3000 | 1000/3000 |
| GYFTY53-48 cores | 48 | 8 | 15.8 | 230 | 1000/3000 | 1000/3000 |
| GYFTY53-96 cores | 96 | 8 | 16.8 | 255 | 1000/3000 | 1000/3000 |
| GYFTY53-144 cores | 144 | 12 | 21.2 | 380 | 1000/3000 | 1000/3000 |
●Storage/Operating Temperature: -40ºC to + 70ºC
