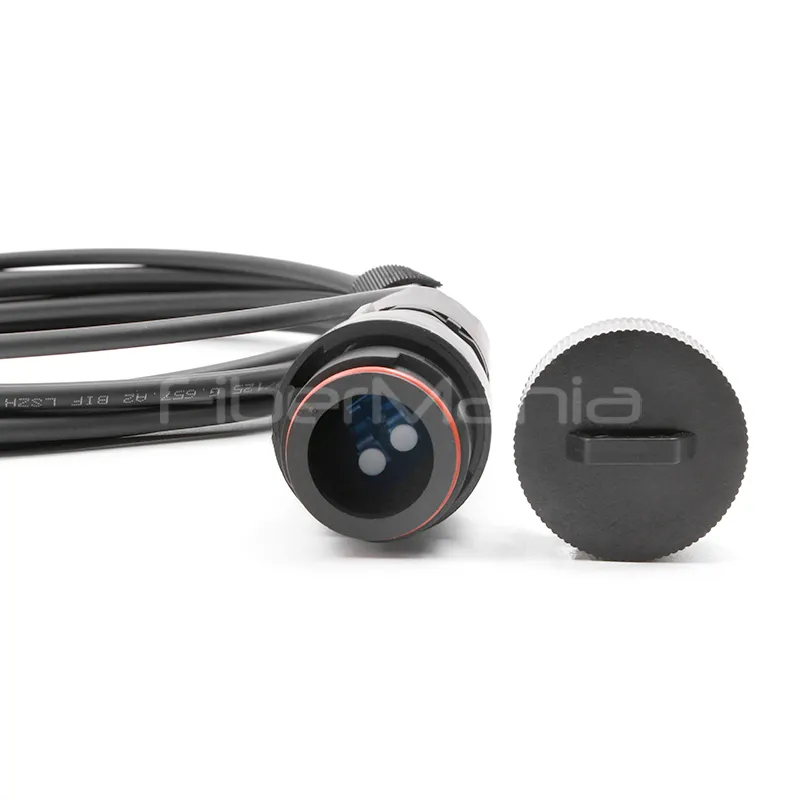

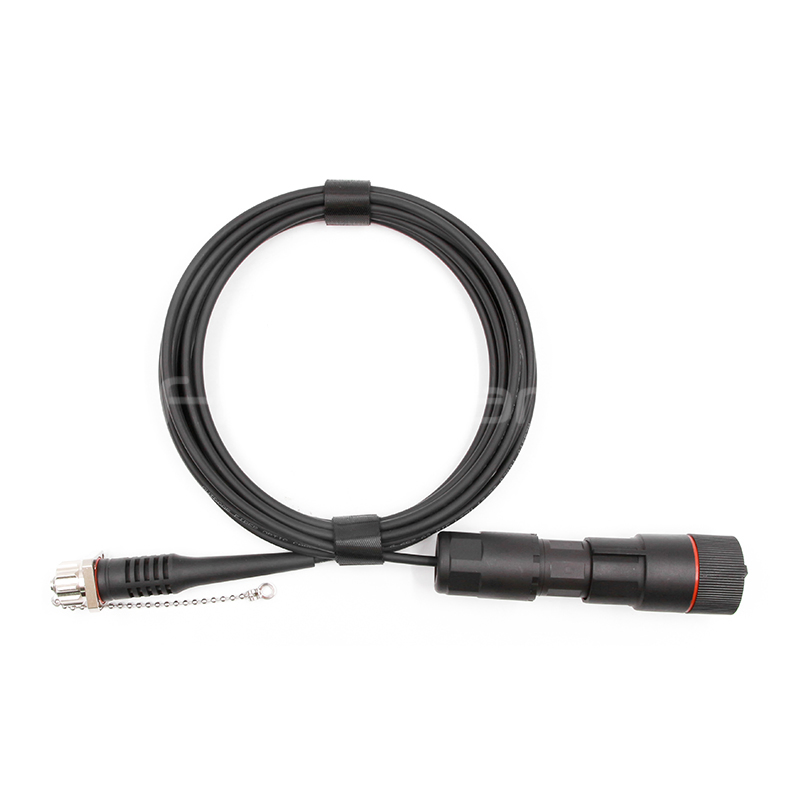

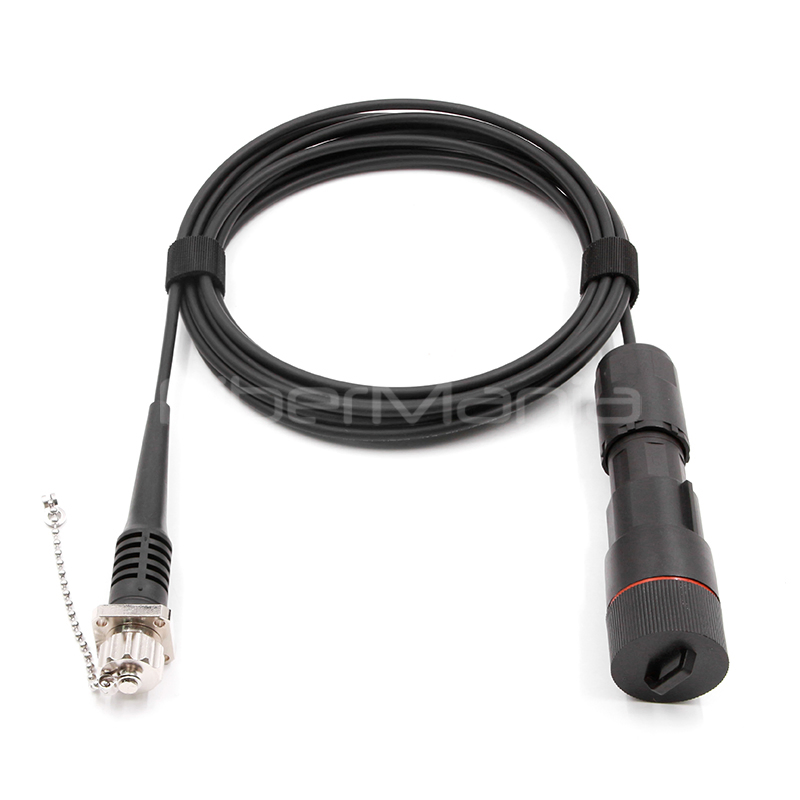

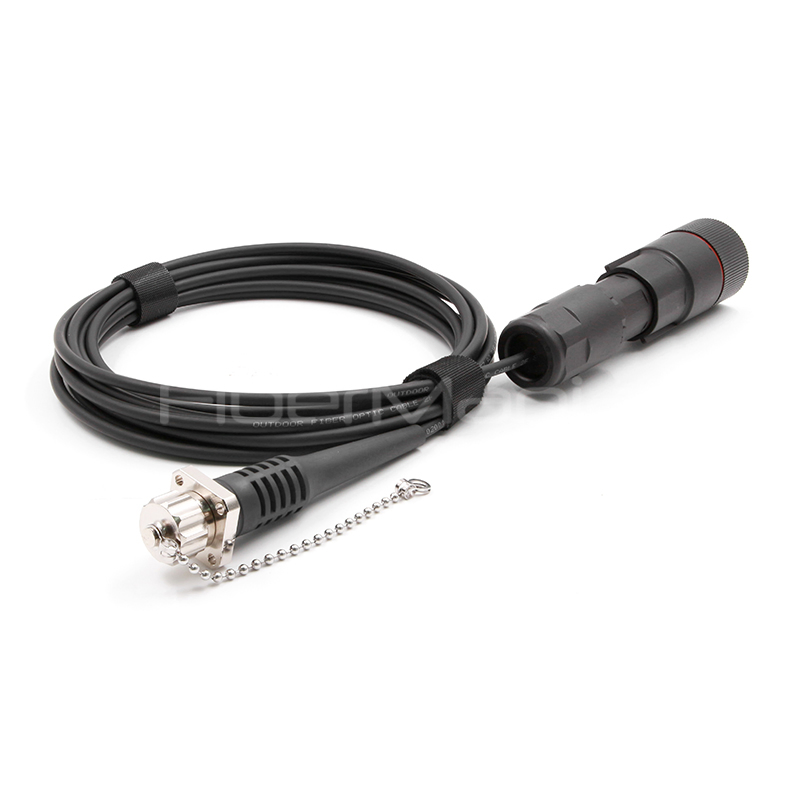

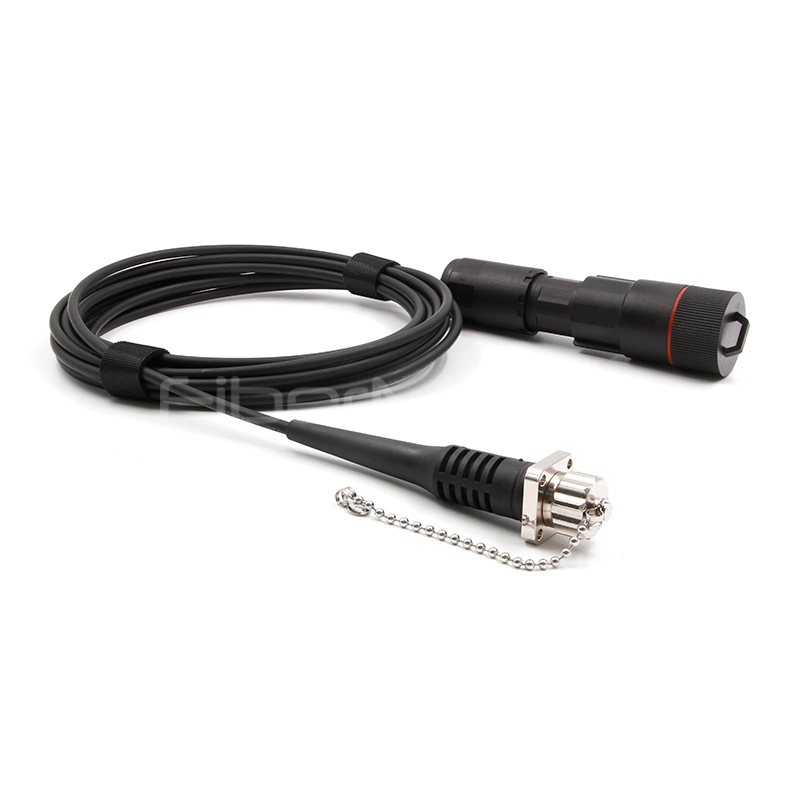

FTTA Outdoor Fiber Optic Patch Cable FPM Duplex LC to ODC 2 Cores Single Mode G657A2 Waterproof IP67 LSZH / OFNR for 4G 5G Base Station RRU Connection

Customization:	Available
Application:	Communication
Type:	Single-mode Fiber

Basic Information

Model NO.:FPMOS-SM024TBK

Structure:FPM DLC-ODC

Allowed Pressure:>1000(N/100mm)

Tensile Strength:100N<1000N

Core:Double Core

Certification:RoHS, CE, ISO9001, VDE, CCC

Sheath Material:LSZH

Fiber Mode:OS2 9/125μm

Wavelength:1310/1550nm

Cable Diameter:4.8mm

Operating Temp:-20 to 70°C

Protection:IP67 Waterproof

Product Description

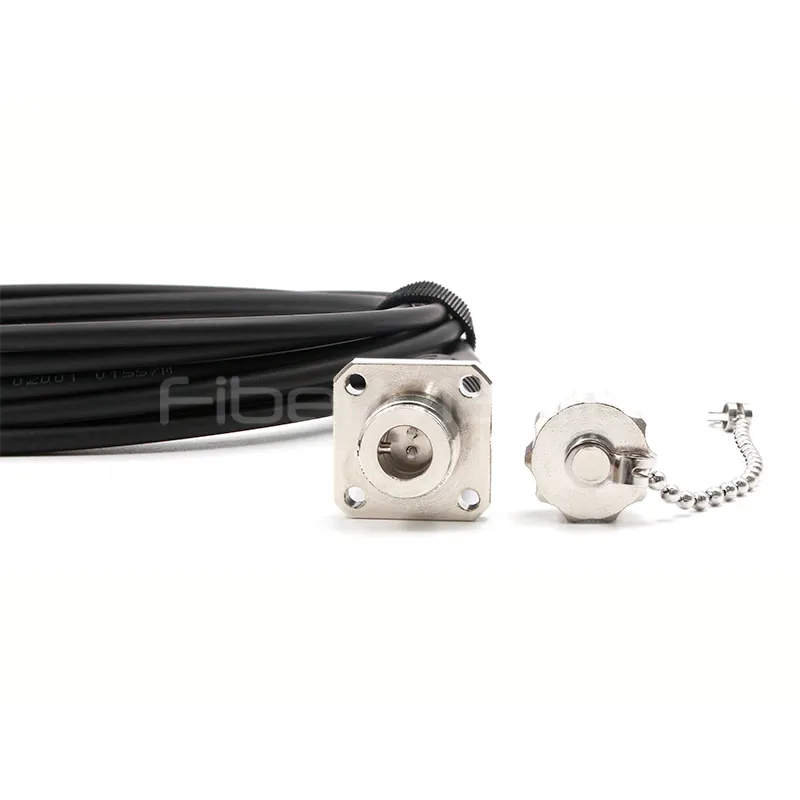

FPM/DLC to ODC Socket Outdoor Telecom Cable 2 Cores Single Mode Compatible

Fiber-to-the-antenna (FTTA) is a wireless site architecture where optical fiber is run all the way up the tower to replace heavier coax cabling. Important components such as remote radio units (RRUs) are positioned at the top of the tower. Our solutions provide cable connectivity and electrical protection for remote radio head (RRH) equipment placed on cellular towers, rooftops, and other structures. The patch cords consist of two single mode fibers terminated to IP series waterproof connectors and regular connectors compatible with RRU interface such as LC duplex.

Key Features: Uses high-quality fibers (e.g., Corning G.657A1) with insertion loss ≤0.3dB and IP67+ rating for harsh weather.

Stability: Resists long-term sunlight and extrusion; withstands external forces while avoiding fiber damage.

Detailed Specification

Parameter Category	Specific Parameter	Detailed Specifications	Test Standard
Optical	Fiber Type	G.652D, G.657A1, G.657A2	CPRI protocol compatible
Performance	Insertion Loss	≤0.3dB	IEC 61300-2-4
Mechanical	Tensile Strength	Short-term: 400N; Long-term: 200N	Outdoor installation grade
Environmental	Protection Grade	IP67	Dustproof, Water immersion 30min
Structural	Outer Sheath	LSZH, PVC, PE	UV resistant / Fire safety

Product Applications

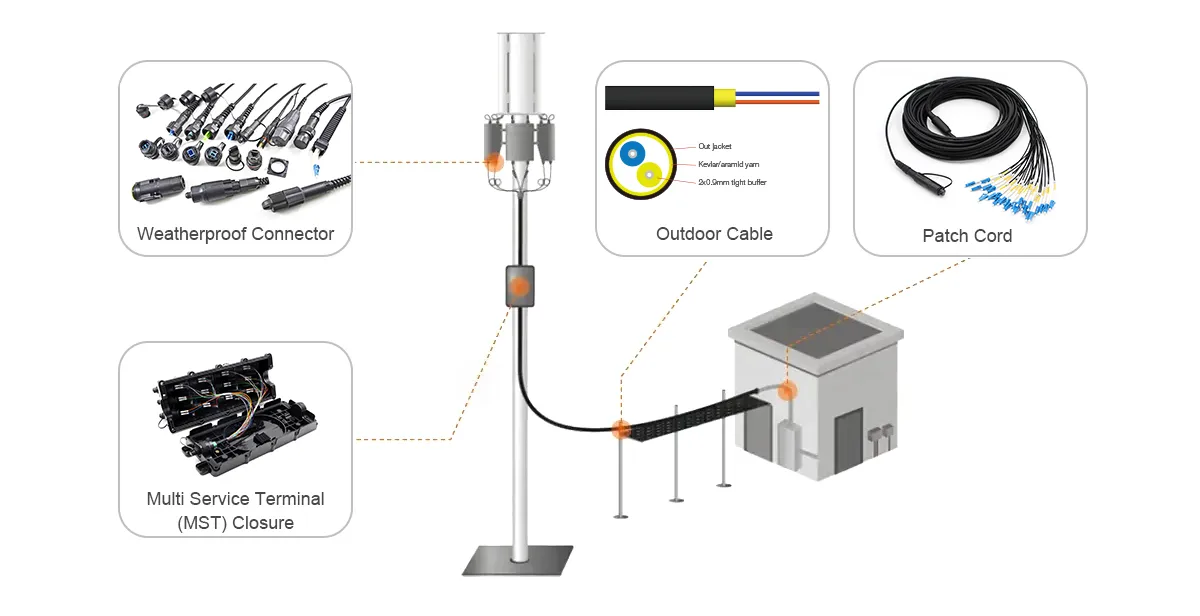

FTTA jumpers are critical in wireless communication networks. They are widely used in 4G and 5G base stations, acting as the vital link between AAU and DU, and RRU and BBU. They also serve wireless access networks like WiMAX and are suitable for outdoor horizontal/vertical routing on communication towers and building exteriors.

4G/5G Base Stations

WiMAX Networks

Power Systems

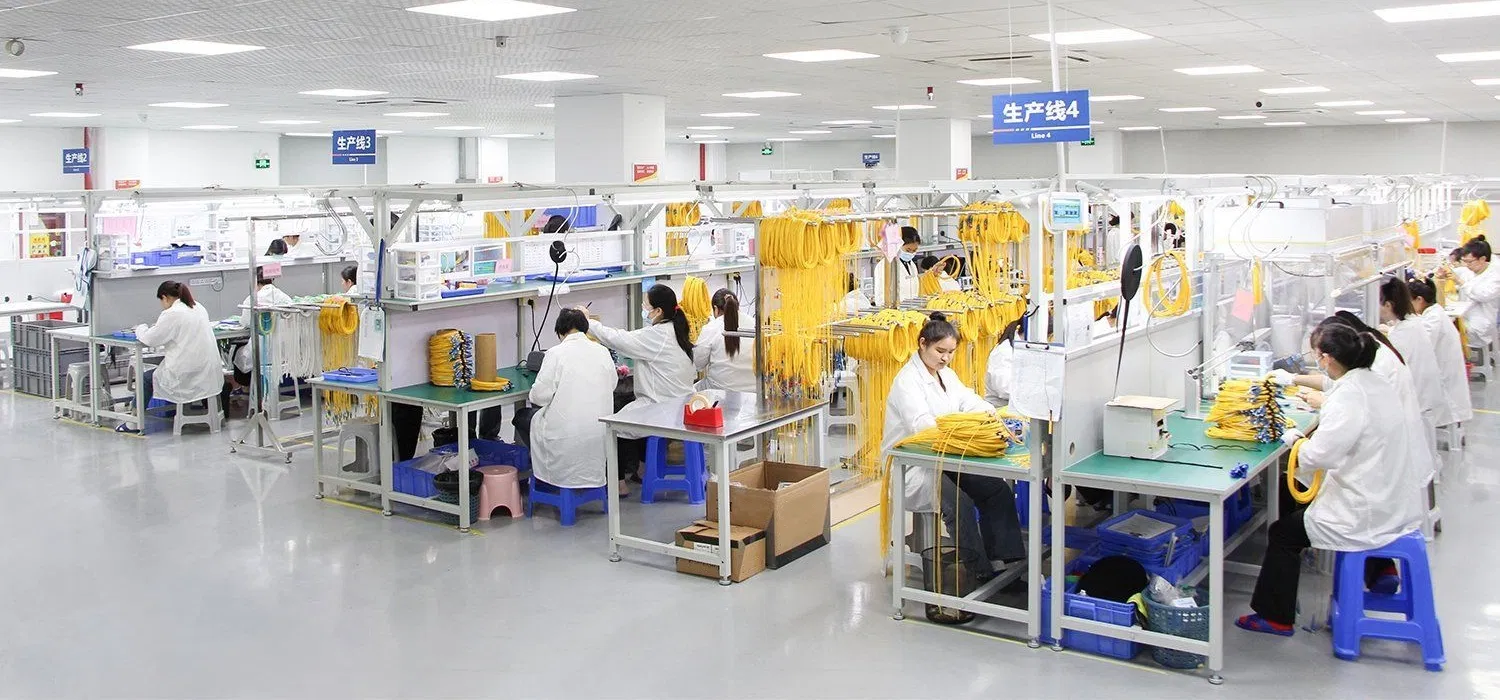

Production & Workshop

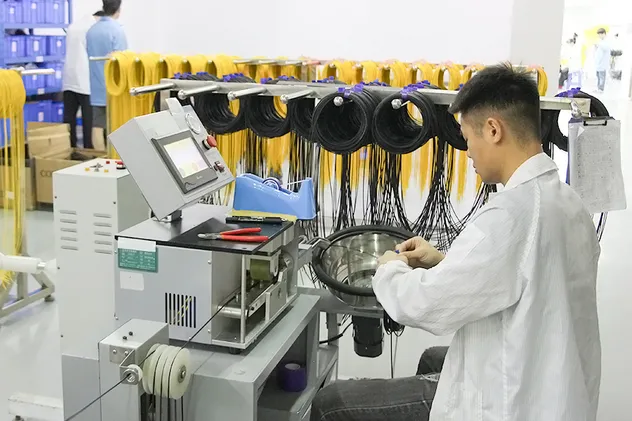

Cable Cutting

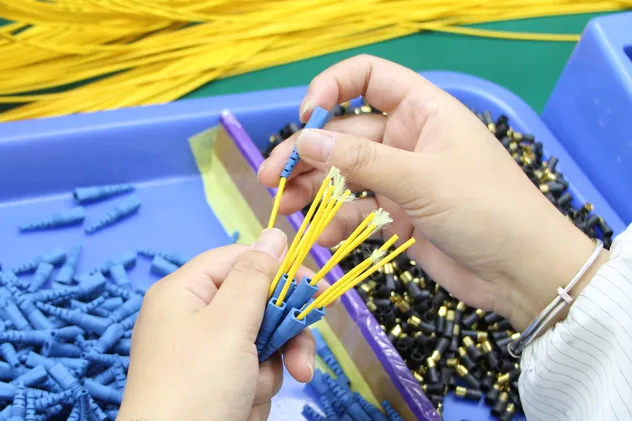

Pre-Assembling

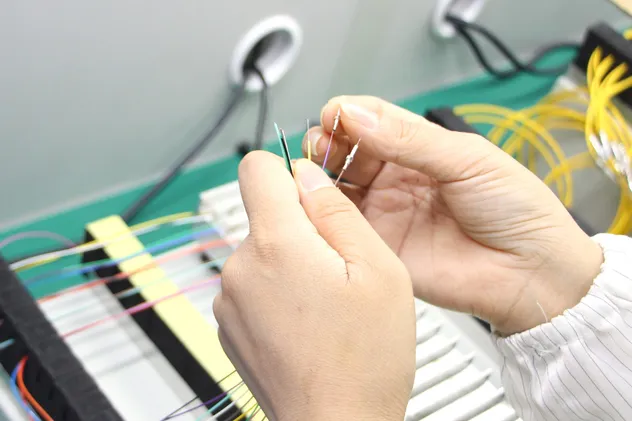

Fiber Insertion

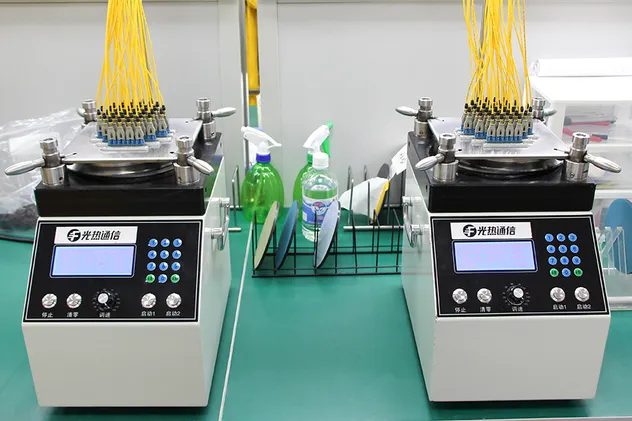

Ferrule Polishing

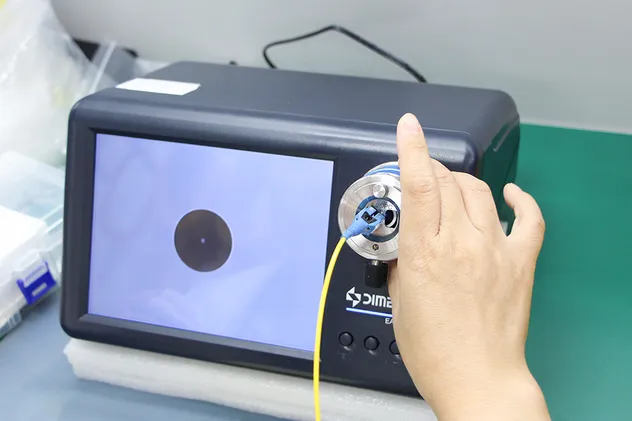

Magnifier Checking

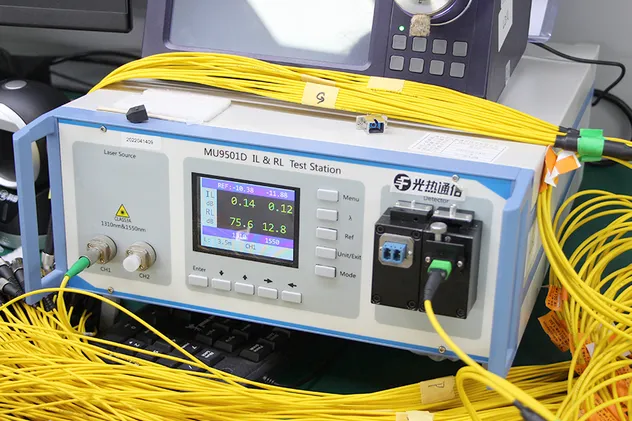

IL & RL Inspection

Certifications & Shipping

Frequently Asked Questions

Q1: What is the warranty for these fiber patch cords?

A: We warrant that all fiber patch cords supplied are free from defects in material and workmanship for a period of five (5) years from the date of supply. All cables are 100% tested.

Q2: Can we customize the brand information on the cable jacket?

A: Yes, we can print specific brand names onto the cable jacket. Usually, a minimum total cable length of 1KM is requested for this service.

Q3: Do you perform 3D interferometer tests?

A: Yes, we conduct 3D tests upon request. We can achieve a pass rate of over 90% and up to 100% if specifically required for the project.

Q4: What is the Minimum Order Quantity (MOQ)?

A: We only have MOQ for special customized bulk cable orders, which typically require a total length of 1km. Standard items may have more flexible requirements.

Q5: Are free samples available for testing?

A: Yes, we offer free samples for project evaluation provided the total sample cost is under 50 US dollars.

Q6: What protection rating do these outdoor cables have?

A: These cables feature an IP67 protection grade, making them dustproof and capable of withstanding short-term water immersion (up to 30 minutes at 1-meter depth).
