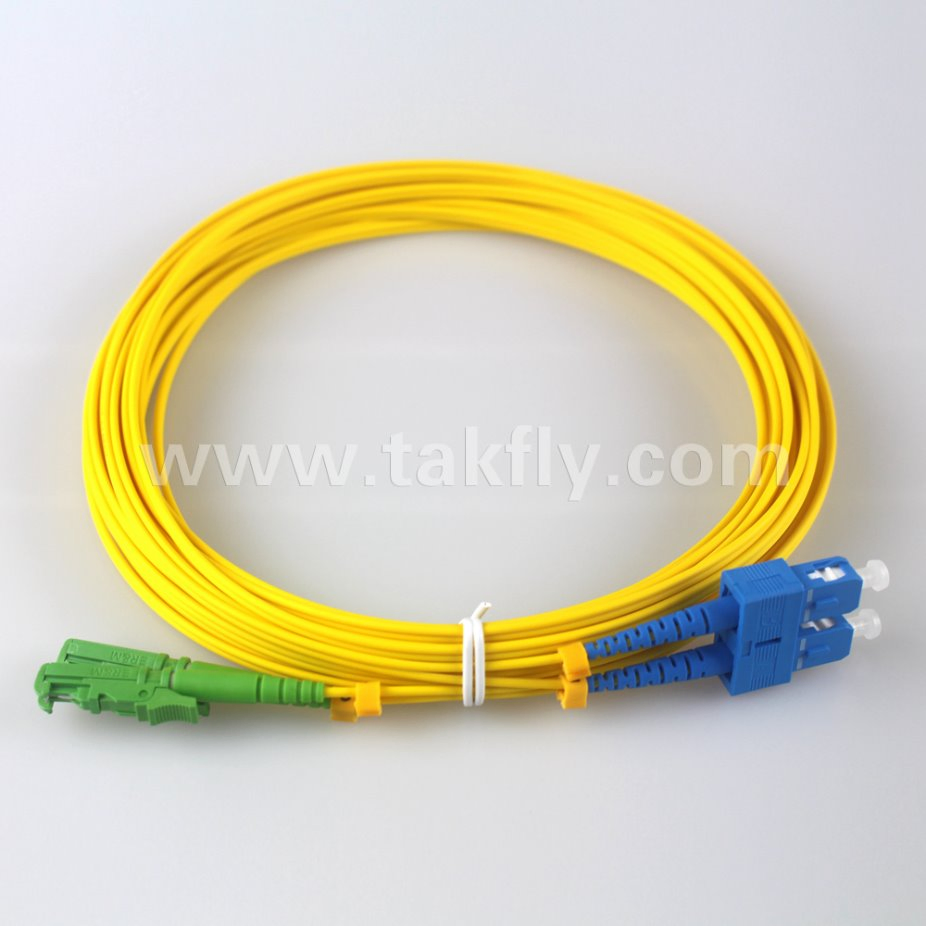

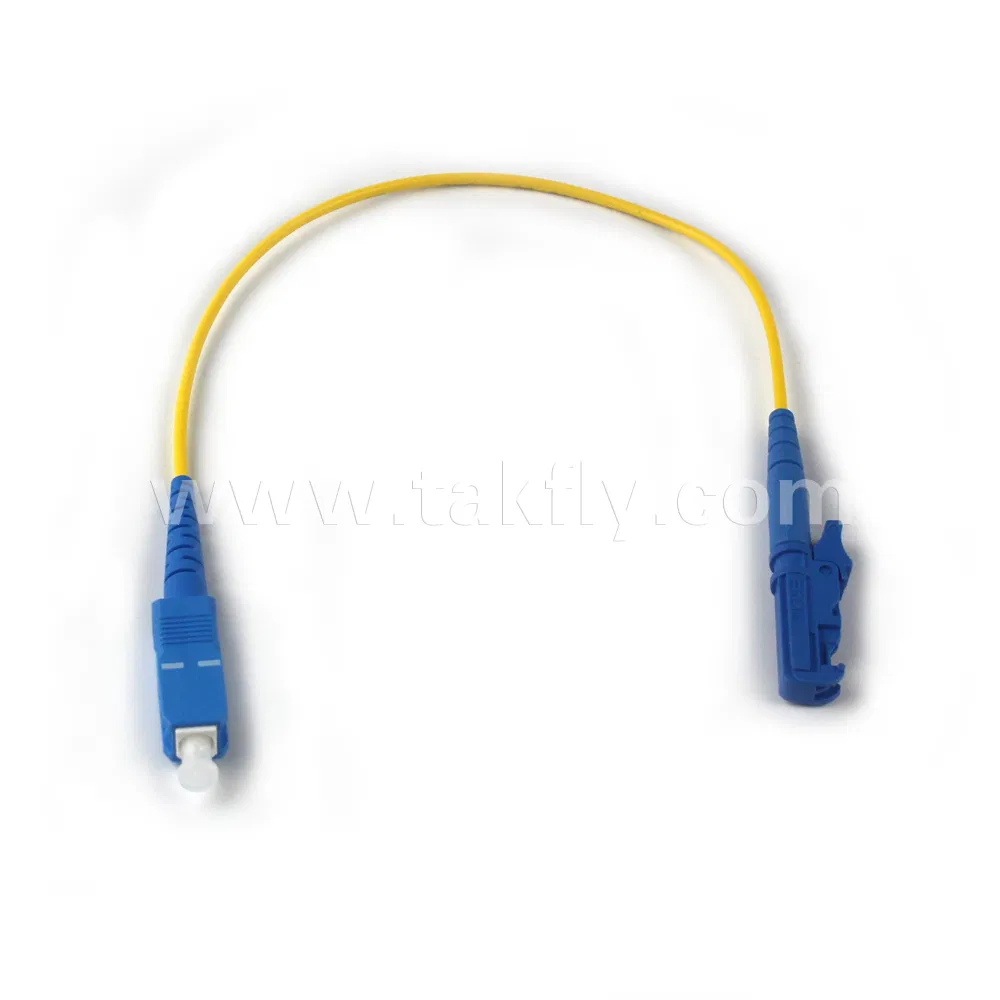

FTTH Sc/Upc-E2000/APC LSZH Single Mode Multi Mode Duplex Fiber Optic Patchcord Jumper Cable RoHS Compliant

1 / 5

FTTH Sc/Upc-E2000/APC LSZH Single Mode Multi Mode Duplex Fiber Optic Patchcord Jumper Cable RoHS Compliant

Customization:	Available
Transmission Medium:	Multimode
Structure:	E2000

Send Inquiry

Product Description

Basic Specifications

Model NO.SC/APC-E2000/APC Fiber Optic Patchcord

Number of CoresMulti-Core

Ferrule EndfacePC(UPC)

ShapeRound Wire

Fabrication ProcessMoulded

ApplicationFiber Distribution Frame, Network Equipment

Connector TypeSc-E2000

BrandOEM

Fiber TypeSm(G652 G655 G657)mm(Om1-Om5)

Insertion LossLess Than 0.3dB

Return LossSm More Than 55dB APC More Than 60dB

Operating Temp-20c~70c

Sheath MaterialPVC/LSZH/PU/Ofnp

TrademarkOEM/Neutral

Capacity5, 000/Week

Product Description

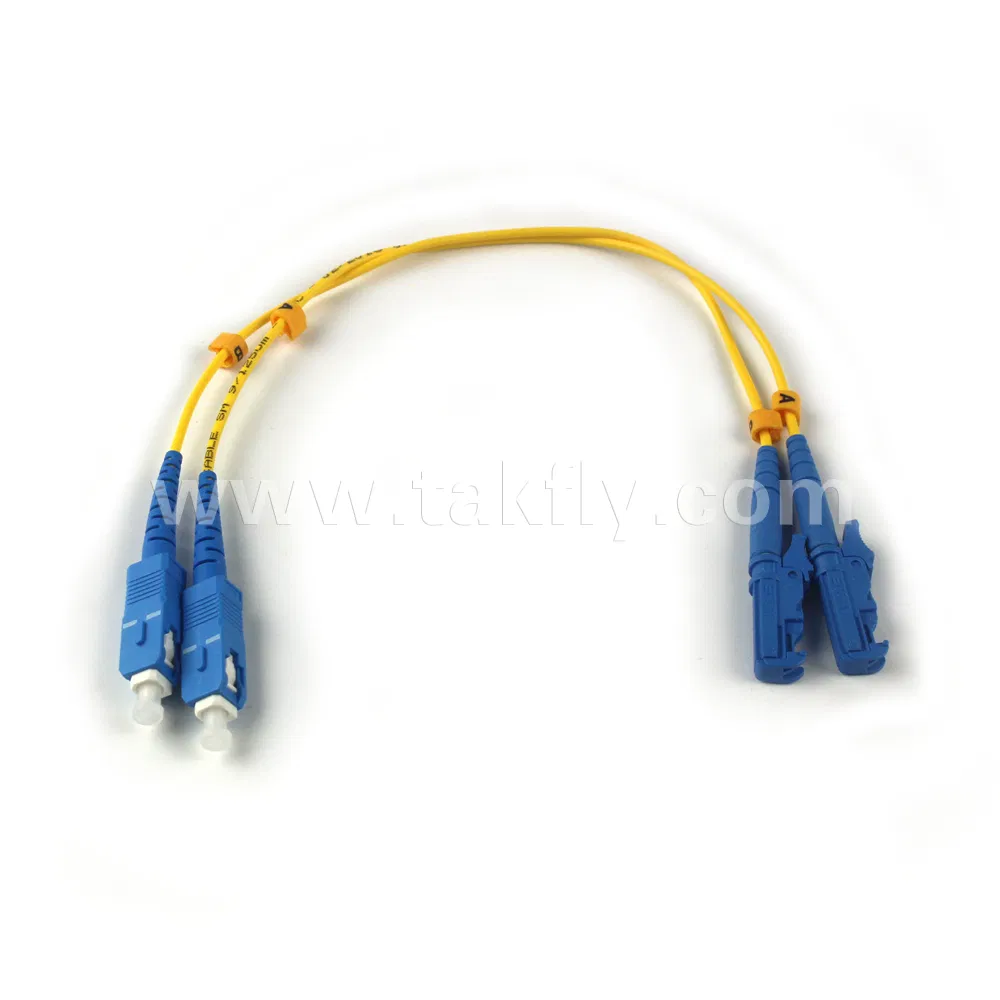

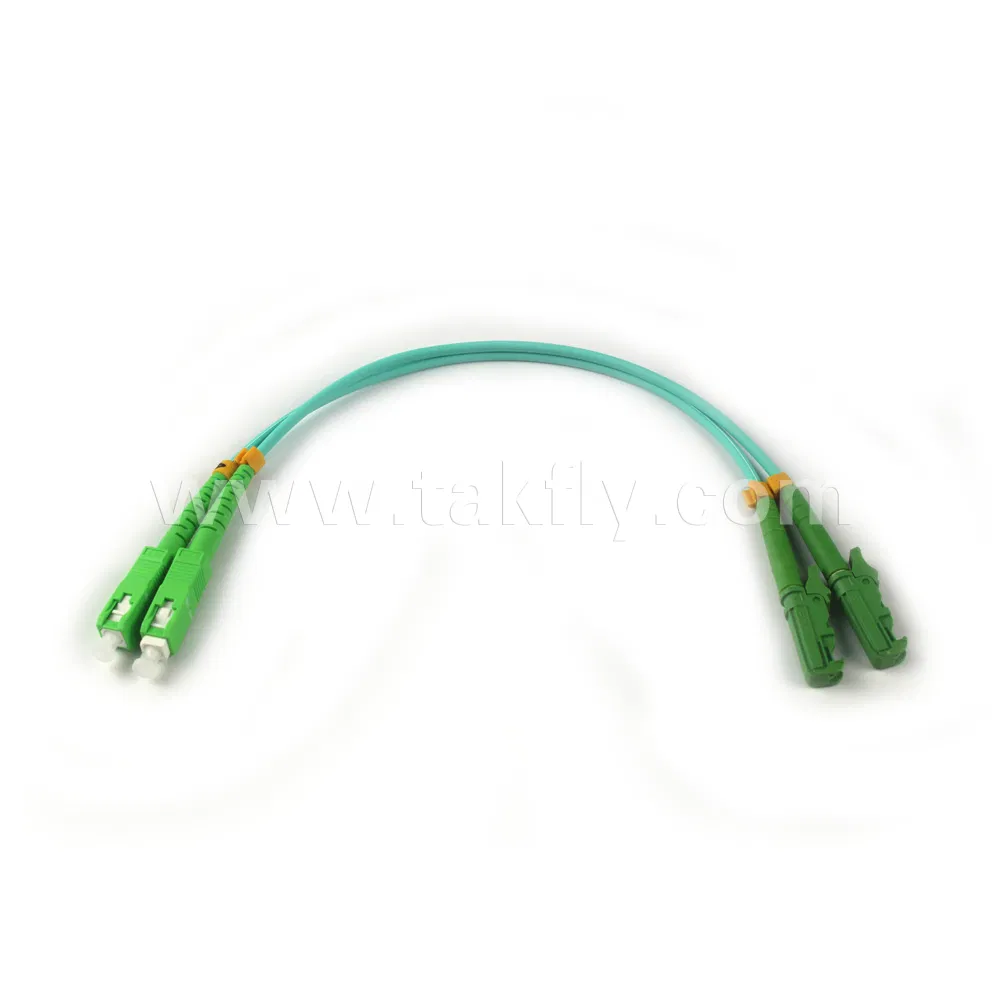

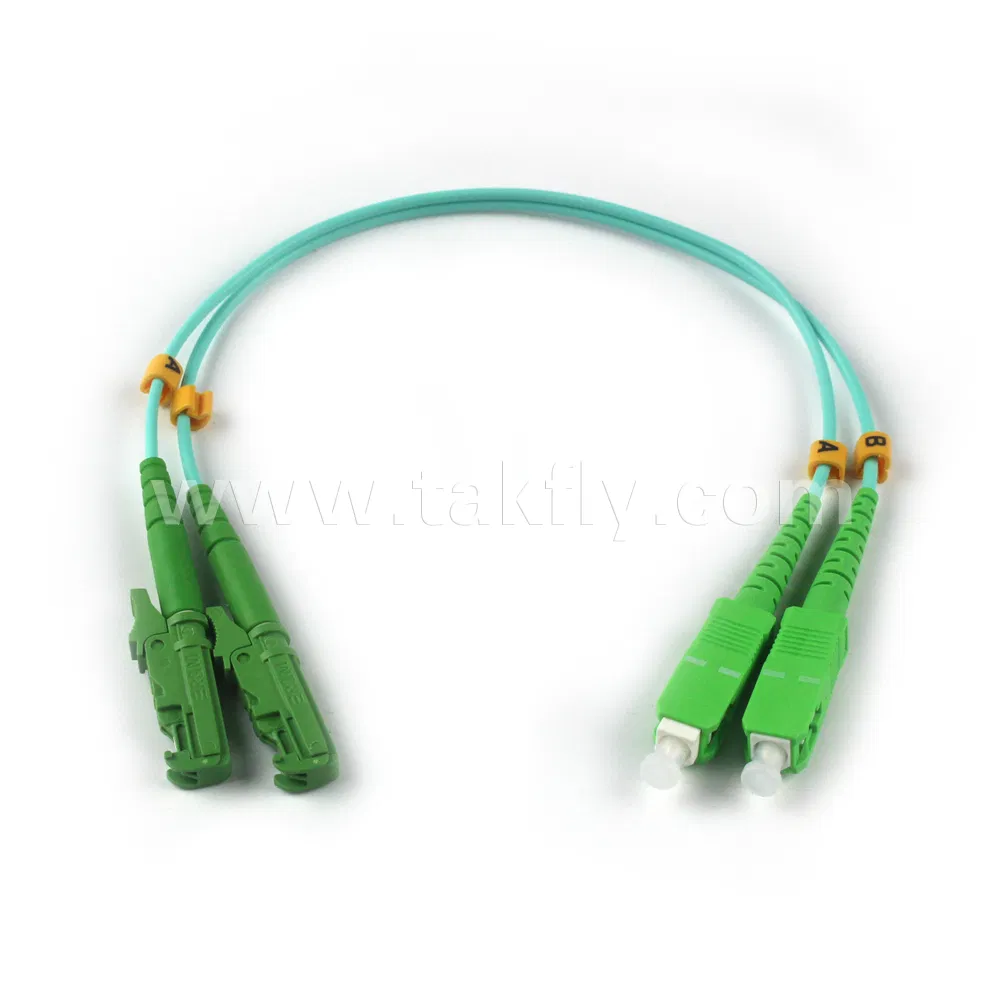

SC/UPC-E2000/APC Single Mode Duplex Fiber Optic Patchcord

Key Applications

CATV and Telecommunication networks
Active device termination
Local area networks (LANS)
Data processing networks
Test equipment and Wide area networks (WANS)

Main Features

Low insertion loss and High reflection loss
Excellent exchangeability and durability
High temperature stability
Standard compliance: Telcordia GR-326-CORE

Parameter	Specifications
End face type	PC, UPC and APC
Fiber type	SM(G652, G655, G657); MM(OM1-OM5)
Cable Diameter	2.0, 3.0 or customized (Simplex/duplex)
Insertion loss	≤ 0.3 dB
Return loss	UPC SM≥50dB; APC SM≥ 60 dB; PC MM≥ 35 dB; APC MM ≥ 35dB
Repeatability	≤ 0.1dB
Durability	≤ 0.2dB
Tensile strength	Long term 200N(Max); Short Term 350N(Max)
Operating Temperature	-20ºC~70ºC
Storage Temperature	-40ºC~80ºC
Outer Sheath Material	PVC/LSZH/PU/OFNP

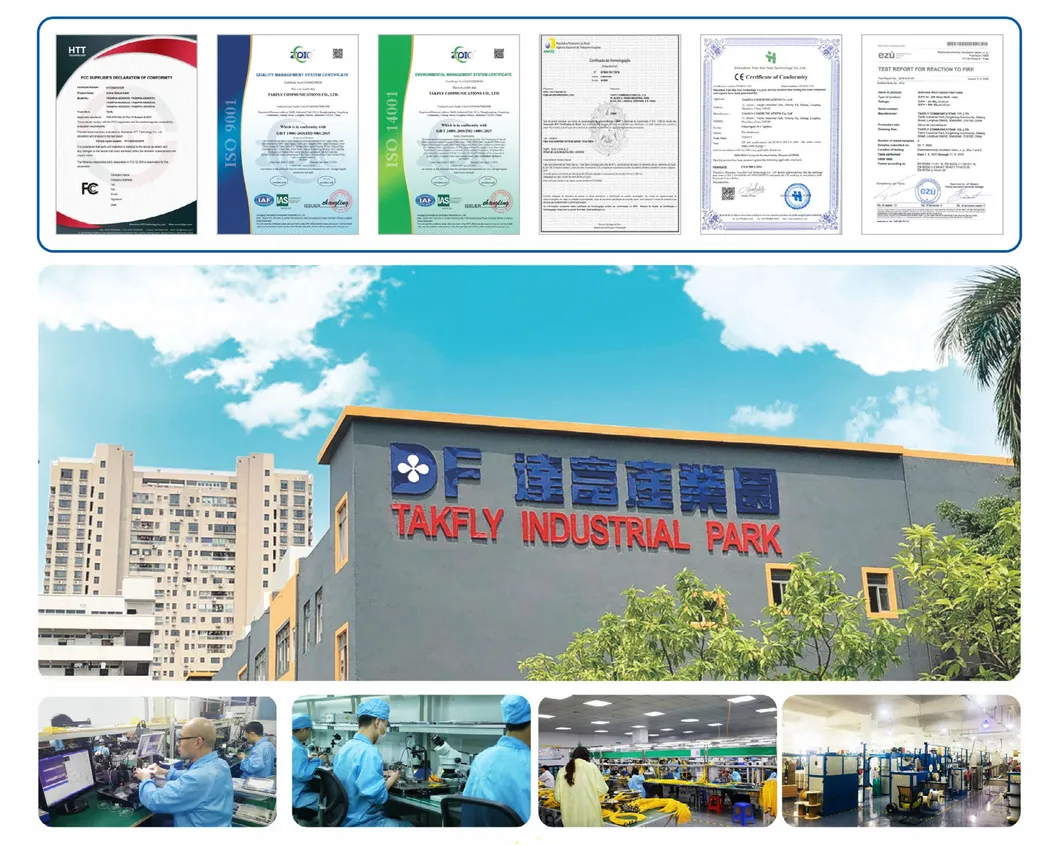

Quality Control & Service

Service Standards

Customer's logo: Acceptable
General inspection on fixing before packing
Third party inspection: Acceptable

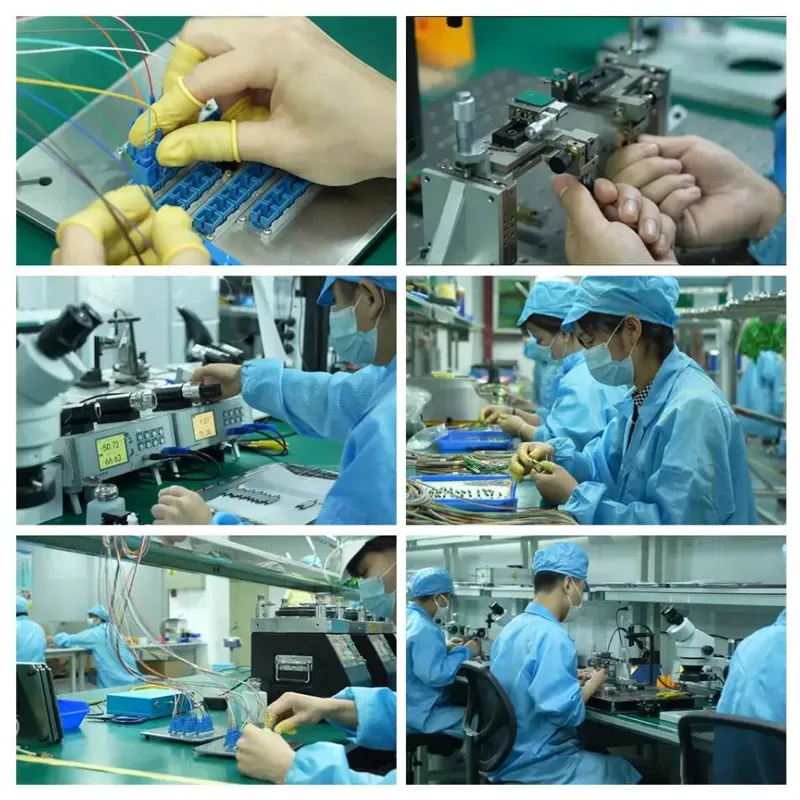

Manufacturing Quality Check

Material incoming inspection before production
Full check after every individual process finished
Full check after production half-done
Full check before packing
Spots check after production packed before shipping

Product Gallery

Frequently Asked Questions

Q1: What is the main advantage of the E2000/APC connector? A: The E2000 connector features a spring-loaded shutter which fully protects the ferrule from dust and prevents laser beam emissions. The APC (Angled Physical Contact) polish ensures higher return loss, making it ideal for high-precision networks.

Q2: Can I request a customized cable length for my project? A: Yes, we provide fully customized cable lengths and sheath materials (PVC, LSZH, OFNP) to meet specific installation requirements.

Q3: What fiber types are supported for these patchcords? A: We support a full range of fibers including Single Mode (G652, G655, G657) and Multi Mode (OM1, OM2, OM3, OM4, OM5).

Q4: How do you ensure the quality of each patchcord? A: Every product undergoes a 5-stage quality check process, including material inspection, in-process checks, and a final performance test (Insertion Loss and Return Loss) before shipping.

Q5: Are these patchcords compatible with standard network equipment? A: Absolutely. Our patchcords are manufactured to Telcordia GR-326-CORE standards, ensuring full compatibility with standard fiber distribution frames and network hardware.

Q6: What is the typical lead time for an order? A: Order lead times generally range from 2 to 7 working days, depending on the specific quantity and customization requirements.
