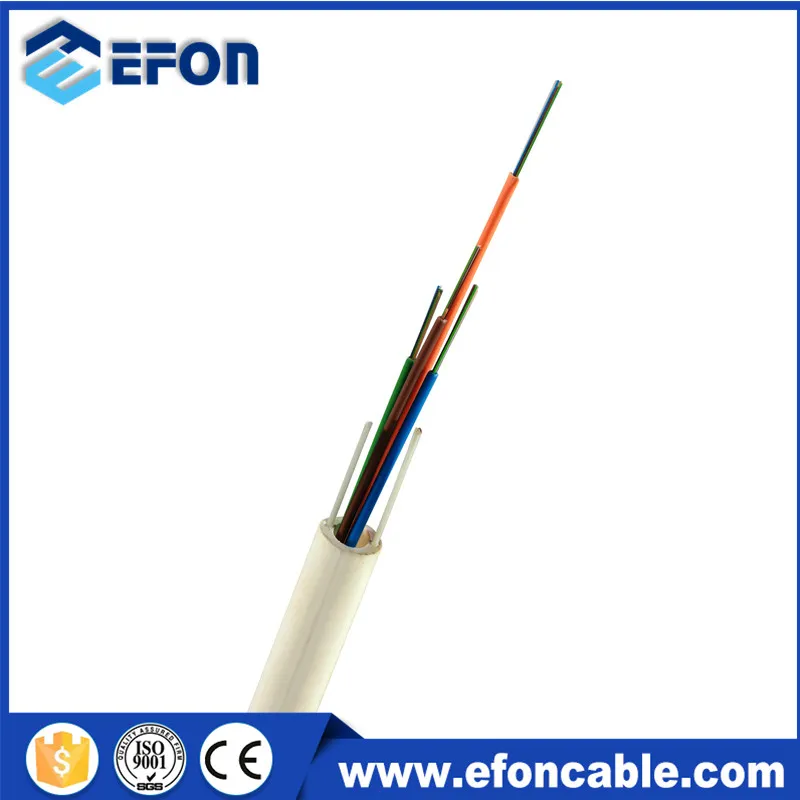

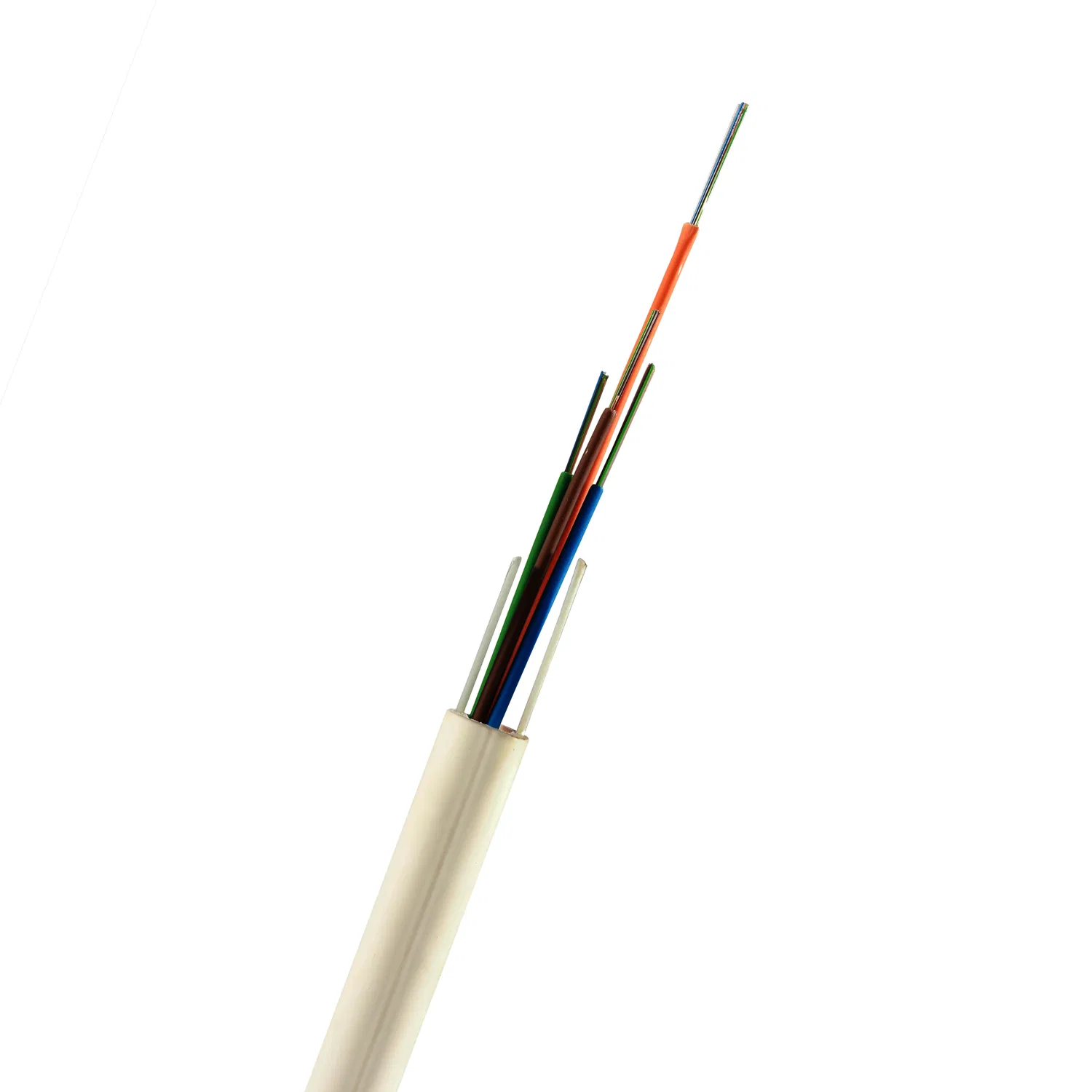

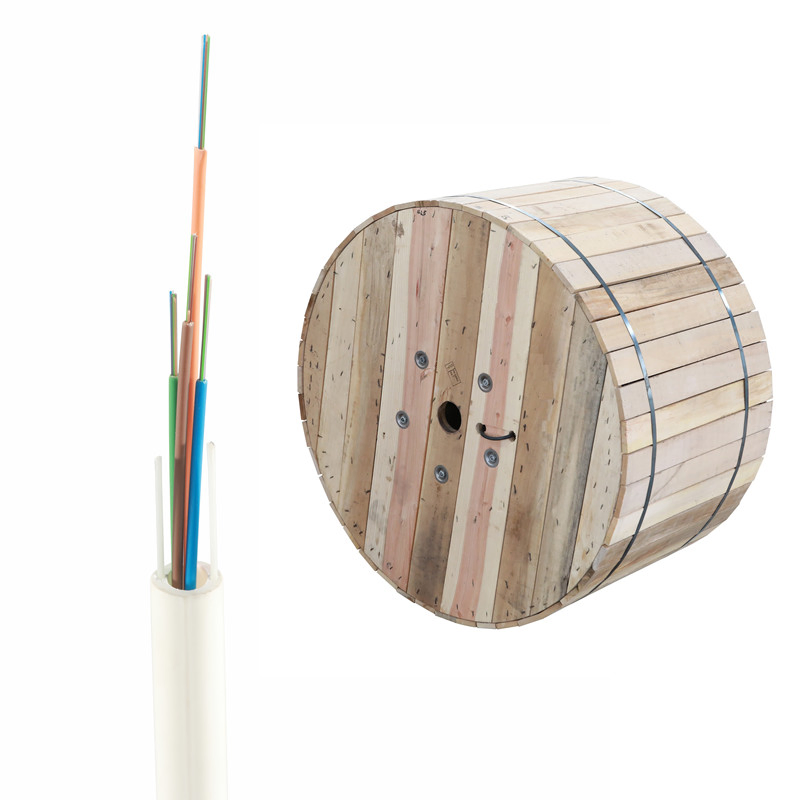

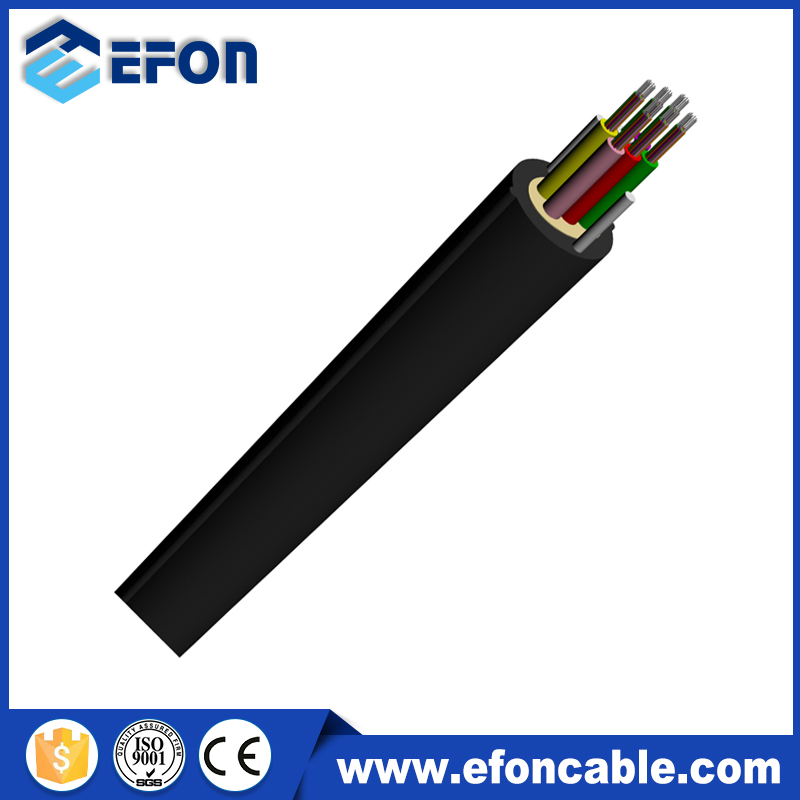

FTTH Tight-buffered LSZH Indoor Multi Fiber Easy Access 48 Core Optical Fiber Cable
The GJYFJBH Indoor Multi Fiber Easy Access cable is specifically designed for access networks or as an access cable extending from outdoor to indoor in customer premises. It serves as an ideal building access cable in premises distribution systems, particularly suited for indoor or outdoor aerial access cabling.

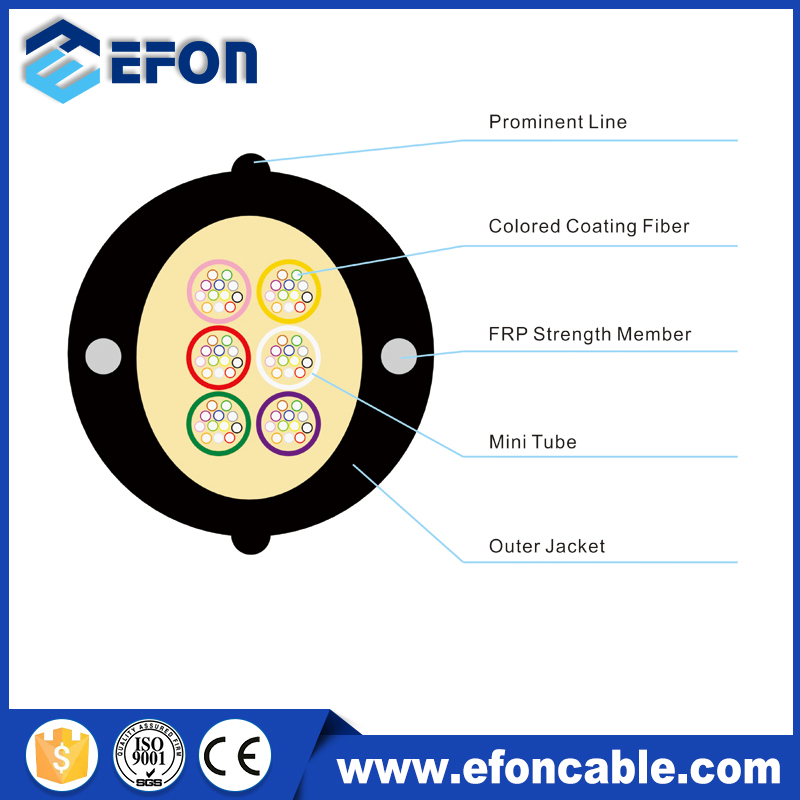

Fiber range: 72-288 fibers with tight-buffered design.
Strength Member: Embedded Fiberglass reinforced plastic (FRP).
Outer Jacket: UV and flame resistant LSZH material.
Mechanical: Excellent environmental characteristics for branch optical lines.
Flexibility: Soft and easy to lay, splice, and maintain.
Transmission: High capacity data transmission capability.
Access networks and customer premises connectivity.
Building access cabling in premises distribution systems.
Indoor and outdoor aerial access cabling.
O
Optical Characteristics
| Fiber Type |
Attenuation (dB/km) |
Bandwidth (MHZ.km) |
Min Bending Radius (mm) |
| G652D |
0.36/0.22 (1310/1550nm) |
- |
16 |
| G657A1 |
0.36/0.22 (1310/1550nm) |
- |
10 |
| G657A2 |
0.36/0.22 (1310/1550nm) |
- |
7.5 |
| OM3 |
3.0/1.0 (850/1300nm) |
≥1500/500 |
30 |
| OM4 |
3.0/1.0 (850/1300nm) |
≥3500/500 |
30 |
S

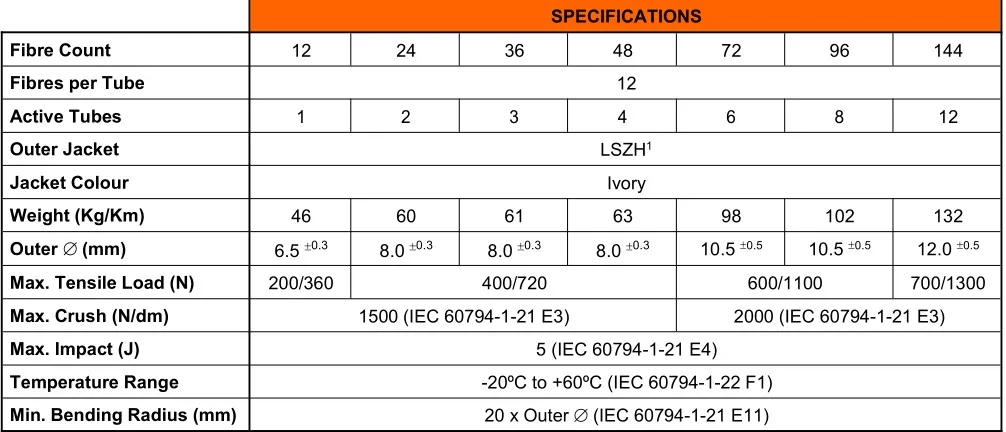

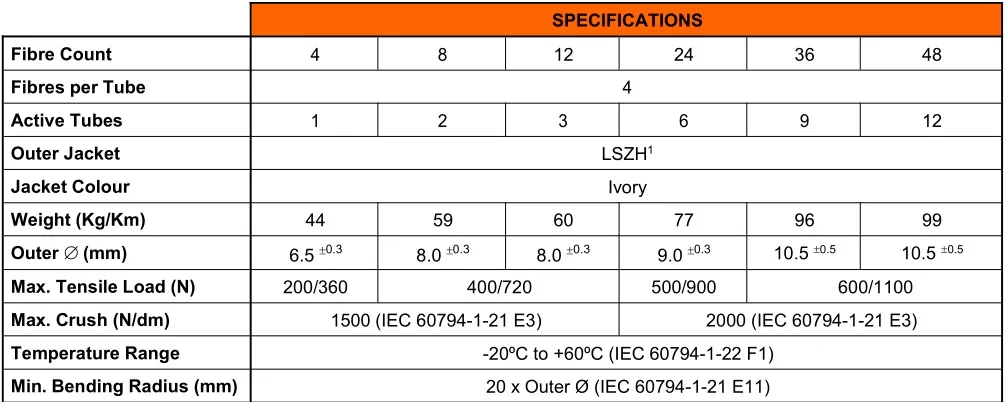

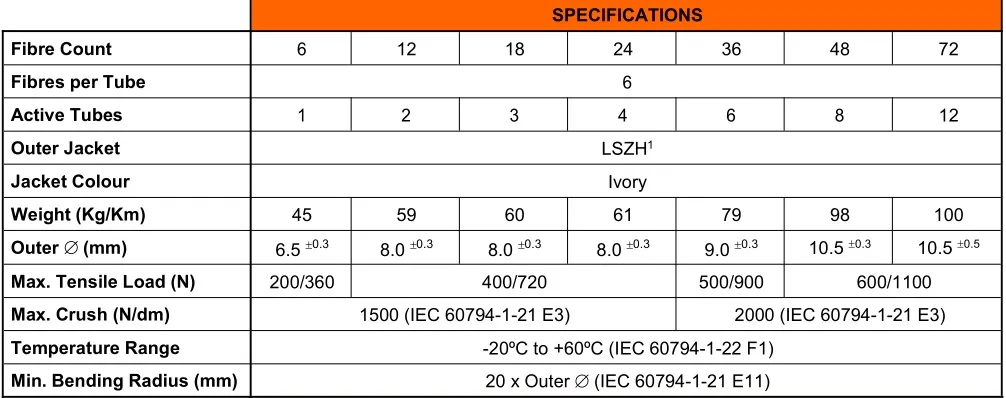

Technical Specifications
?
Frequently Asked Questions
What is the primary advantage of the Easy Access design?
The Easy Access design allows for convenient branching of optical lines within a building, making it easier to route fibers to different floors or units without complex splicing.
Is the cable jacket suitable for indoor safety requirements?
Yes, the jacket is made of LSZH (Low Smoke Zero Halogen) material which is UV and flame resistant, meeting strict indoor safety and fire retardant standards.
What type of strength member is used in this cable?
This cable utilizes FRP (Fiberglass Reinforced Plastic) as the strength member, providing excellent tensile strength while remaining non-metallic and lightweight.
Can this cable be used for outdoor aerial installations?
Yes, it is designed for both indoor and outdoor aerial access cabling, featuring a UV-resistant jacket to withstand outdoor exposure.
What fiber counts are available for the GJYFJBH model?
The cable is available in various configurations, typically ranging from 1 to 48 cores, with some specialized designs supporting up to 288 fibers.
What is the warranty period for this optical cable?
The product comes with a standard 2-year warranty covering manufacturing defects and performance specifications.
