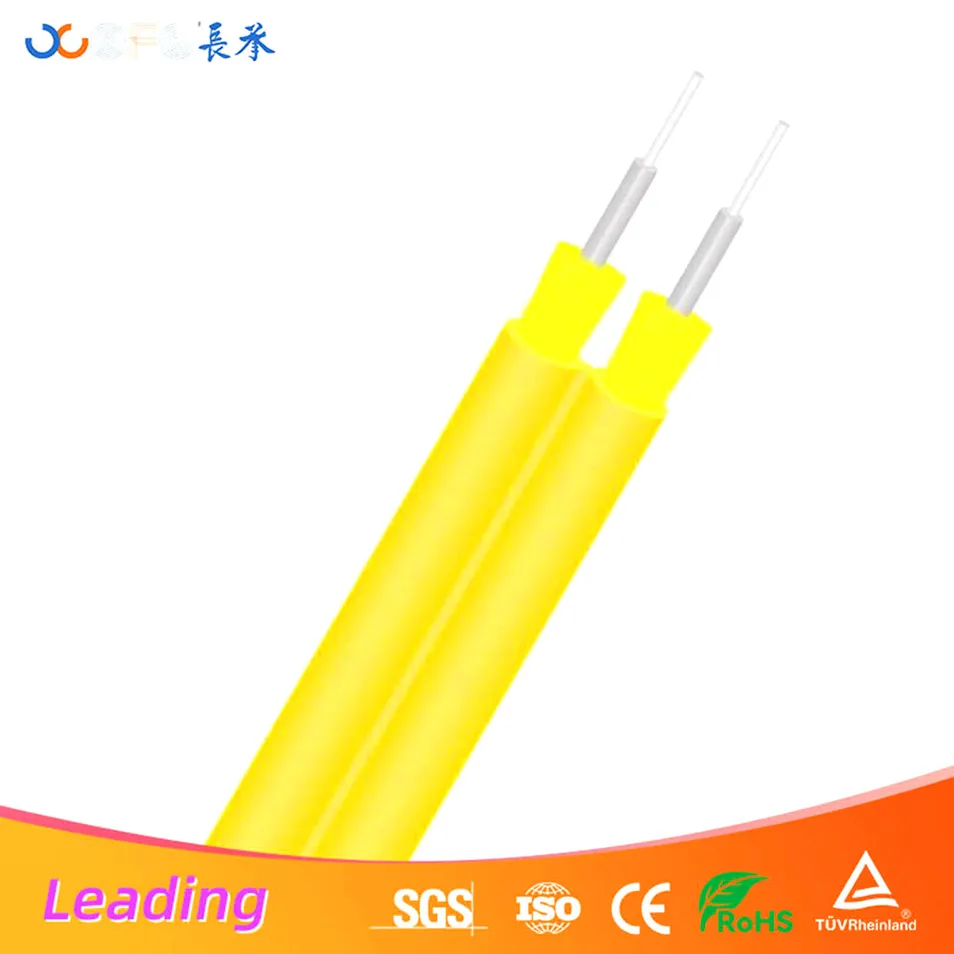

Singlemode GJFJBV Double Core Tight Buffered Indoor Weak Current Fiber Cable

1 / 5

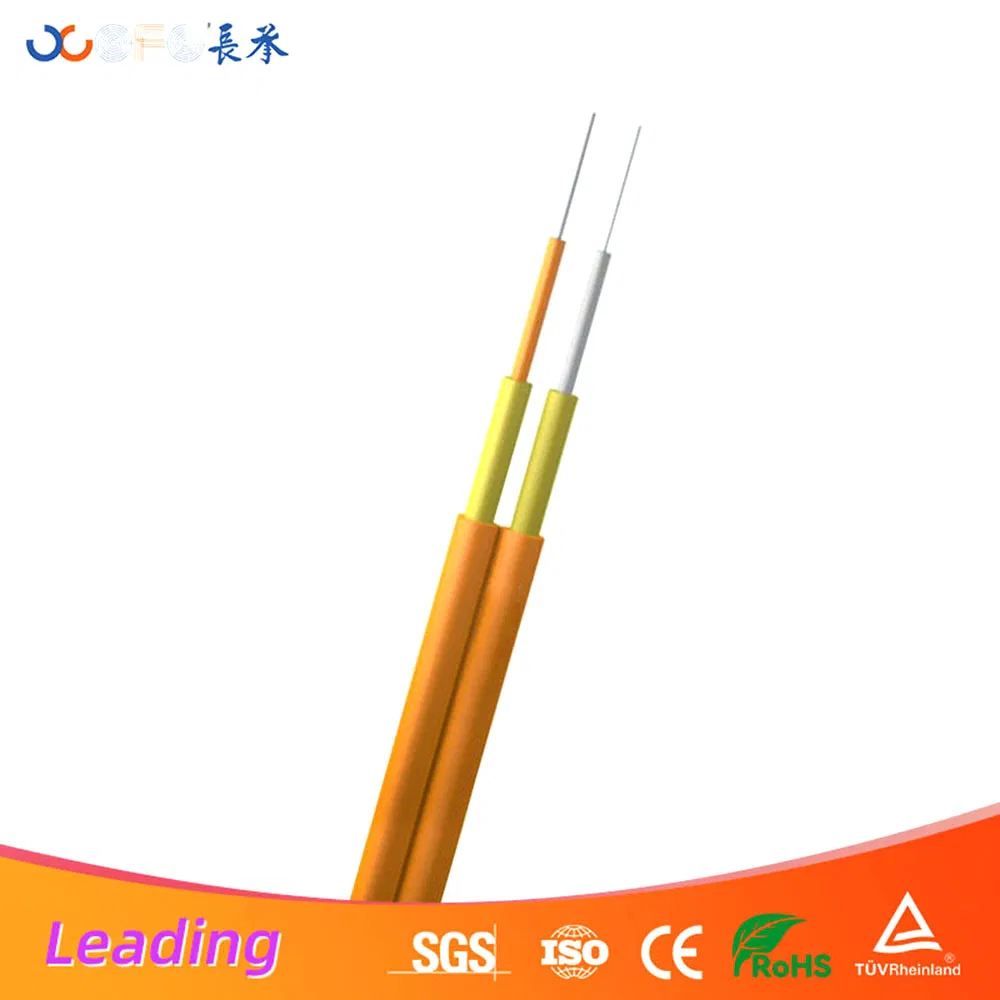

Singlemode GJFJBV Double Core Tight Buffered Indoor Weak Current Fiber Cable

Customization:	Available
Application:	Communication
Type:	Single/Multi-Mode Fiber

Send Inquiry

Product Description

📋 Basic Information

Model NO.	GJFJBV
Material Shape	Round Wire
Allowed Lateral Pressure	100(N/100mm) < 1000(N/100mm)
Allowed Tensile Strength	100N < 1000N
Core Count	Double Core (2C)
Sheath Material	LSZH (Low Smoke Zero Halogen)
Product Type	Indoor Duplex Tight-Buffered Fiber Optic Cable
Flame Resistance	International Safety Standards / LSZH

🔍 Product Description

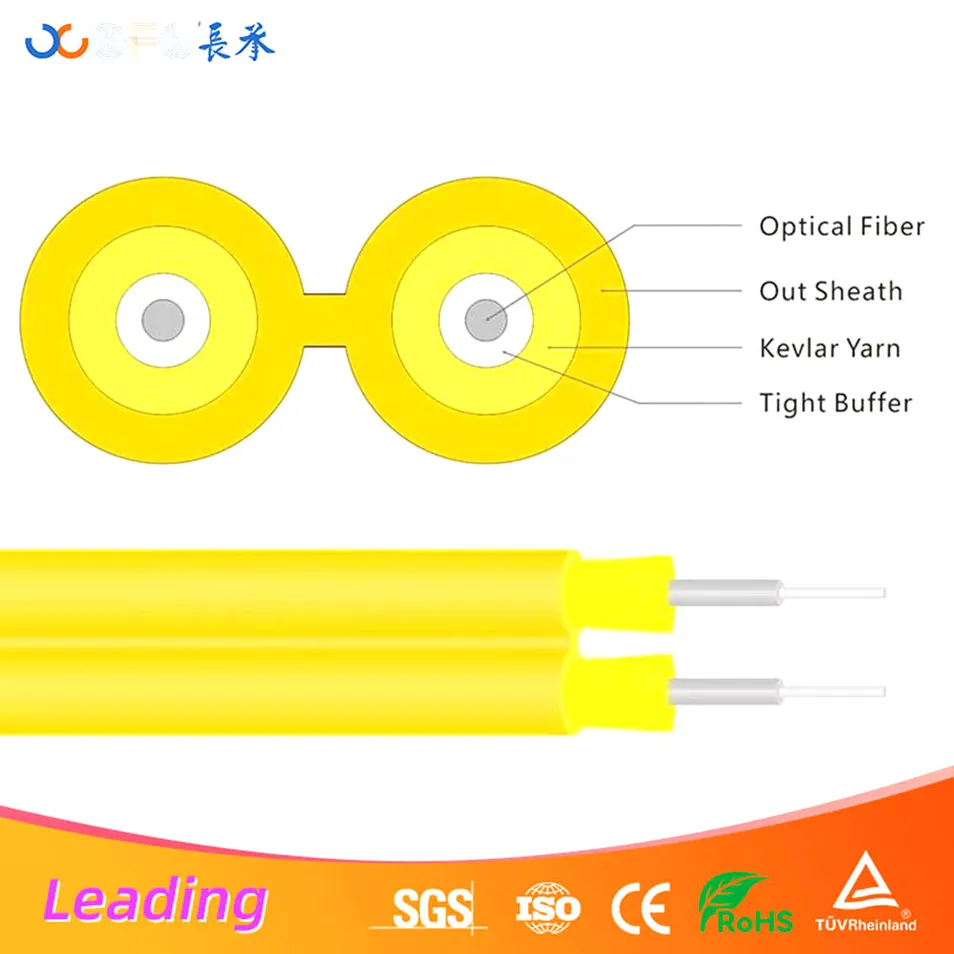

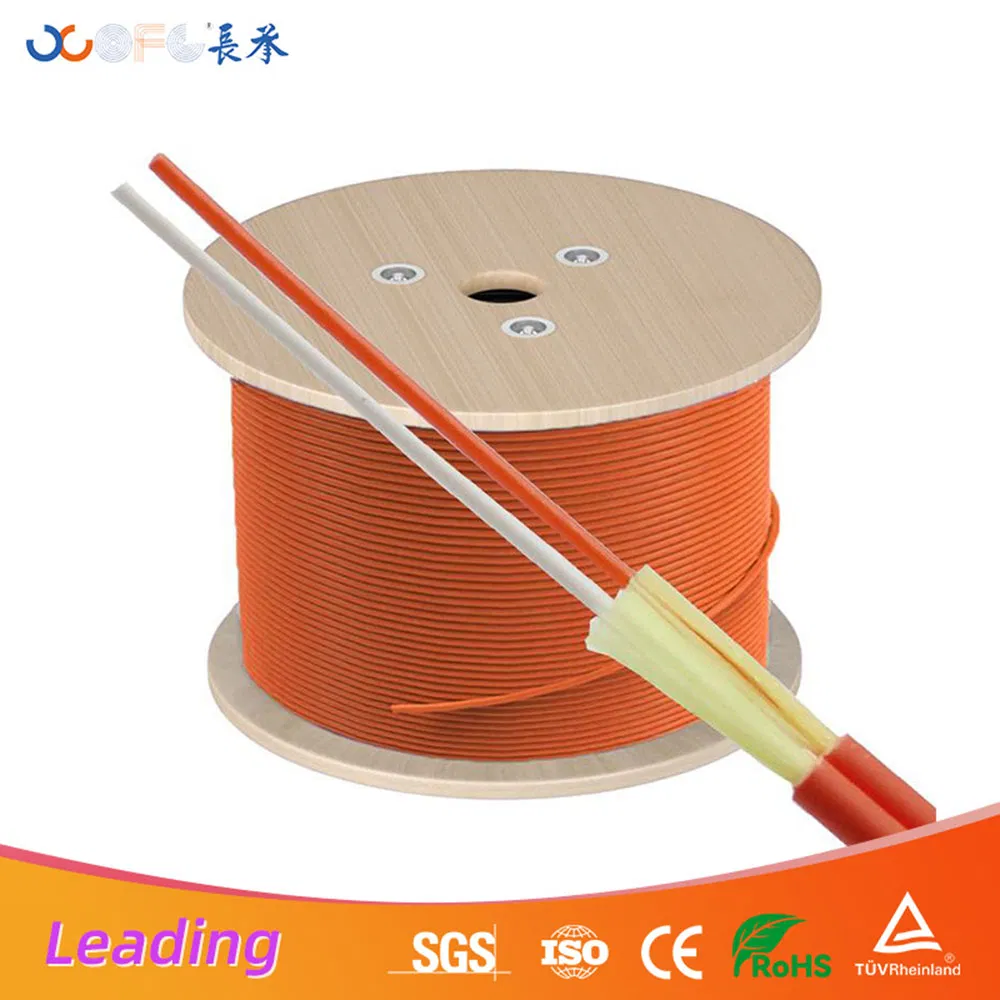

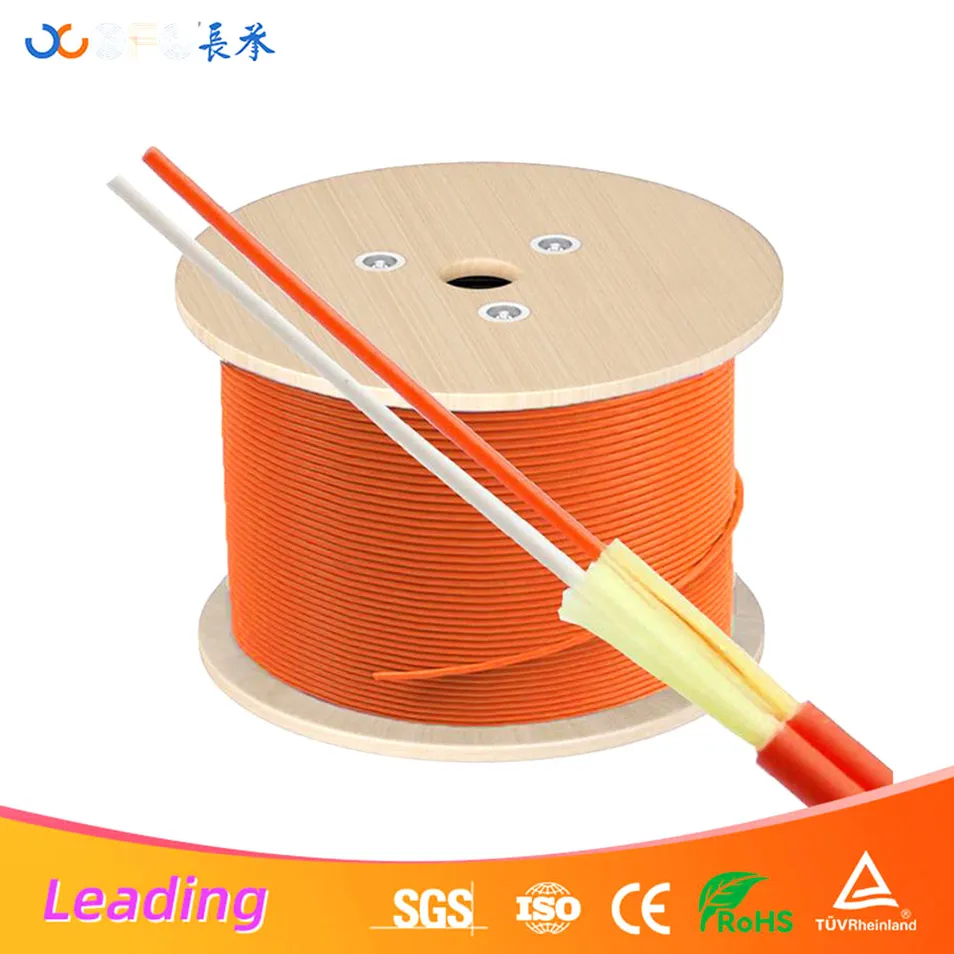

GJFJBV twin-core optical cable is made of Φ900µm or Φ600µm tightly sheathed optical fibre as the optical transmission medium, covered with a layer of aramid as the stress-reinforcing unit, and extruded with a sheath of polyvinyl chloride (PVC) or low smoke and halogen-free material (LSZH, flame retardant).

Applications:

Fibre optic movable connection patch cords or pigtails
Indoor shaft level and forced ventilation level cabling
Interconnection of instruments, communication equipment
Office Networking and Data Center Connections

⚙️ Technical Parameters

Cable Type	Outer Dia (mm)	Weight (kg/km)	Bending Static/Dynamic	Tensile Short/Long
CC-1.9	(4.0±0.3)×(1.9±0.3)	8.6	30 / 60 mm	200 / 100 N
CC-2.8	(5.8±0.3)×(2.8±0.3)	14.7	30 / 60 mm	200 / 100 N

📸 Detailed Features

Tight-Buffered Construction Provides superior protection against physical stress and environmental factors, ensuring stable signal transmission.

Aramid Yarn Reinforcement High-strength aramid fiber layer delivers excellent pull resistance and durability during installation.

Flexible & Lightweight Duplex configuration enables easy routing through tight spaces, conduits, and cable trays.

Flame-Retardant Outer sheath materials meet international fire safety standards, preventing flame propagation.

❓ FAQ

Q1: What types of optical fiber cables are available? A: We specialize in a wide range including Outdoor/Indoor Optical Fiber Cables, FTTH Drop Cables, and Composite Overhead Ground Wires (OPGW). Q2: What standards and certifications do your cables meet? A: Our products comply with international standards like ISO, IEC, CE, UL, and RoHS. We hold certifications such as ISO9001 and ISO14001. Q3: Can you produce cables according to specific custom requirements? A: Absolutely! As an OEM/ODM manufacturer, we can customize cable diameter, fiber count, color, sheath material, and length for your project. Q4: What is the typical production lead time? A: For standard products, it is usually 15-30 days after order confirmation. Large or customized orders will be confirmed via proforma invoice. Q5: Can you provide samples for quality verification? A: Yes, samples can be provided for quality verification, usually shipped via express couriers like DHL or FedEx. Q6: What is the warranty policy for the fiber cables? A: We offer a comprehensive 15-year warranty on our optical fiber cables, covering any manufacturing defects.
