Communication Optical Indoor Tight Buffered Simplex Fiber Optic Cable-GJFJV

Send Inquiry

Product Description

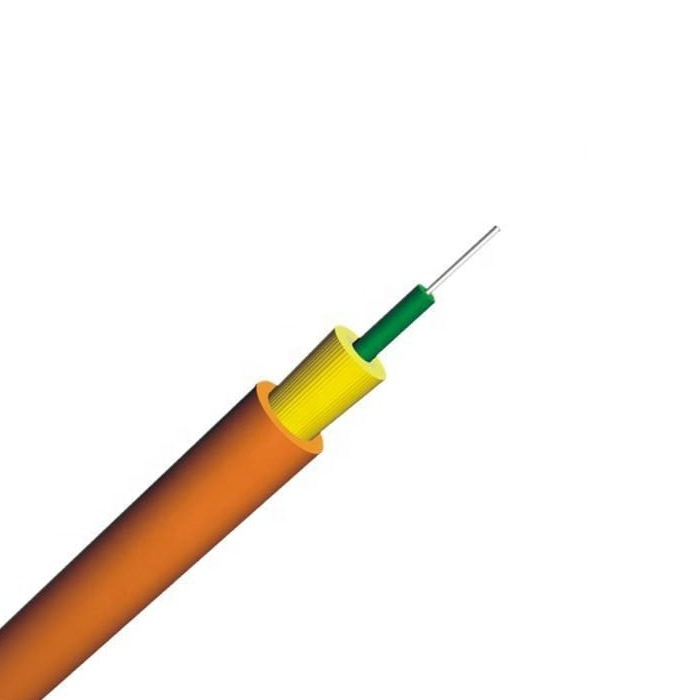

Communication Optical Indoor Tight Buffered Simplex Fiber Optic Cable-GJFJV

This simplex fiber optic cable is designed for high-performance indoor communication applications, featuring a scientific design and serious processing art to ensure reliable connectivity.

Key Features

✔ Tight buffer fiber for easy stripping and handling.

✔ Excellent flame-retardant performance for indoor safety.

✔ Aramid yarn strength members providing superior tensile strength.

✔ Environmentally friendly jacket: anti-corrosion, anti-water, and UV resistant.

✔ Flat structure ensures compact arrangement of fibers.

✔ All-dielectric structure protects against electromagnetic interference.

Technical Parameter

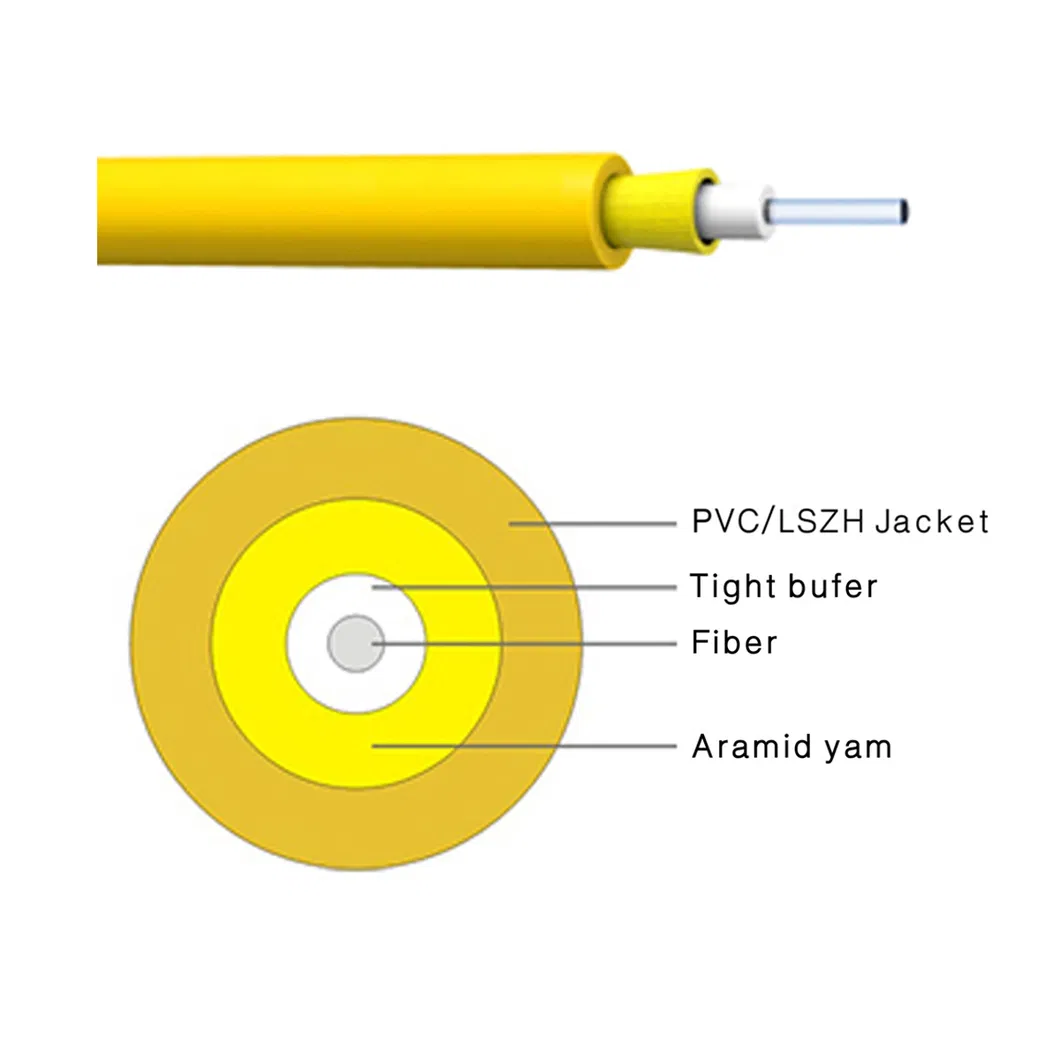

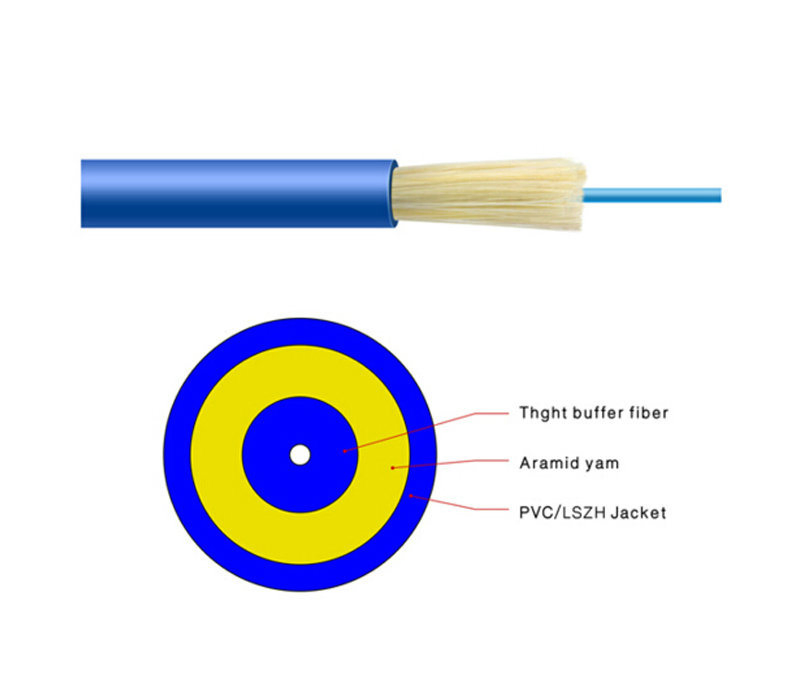

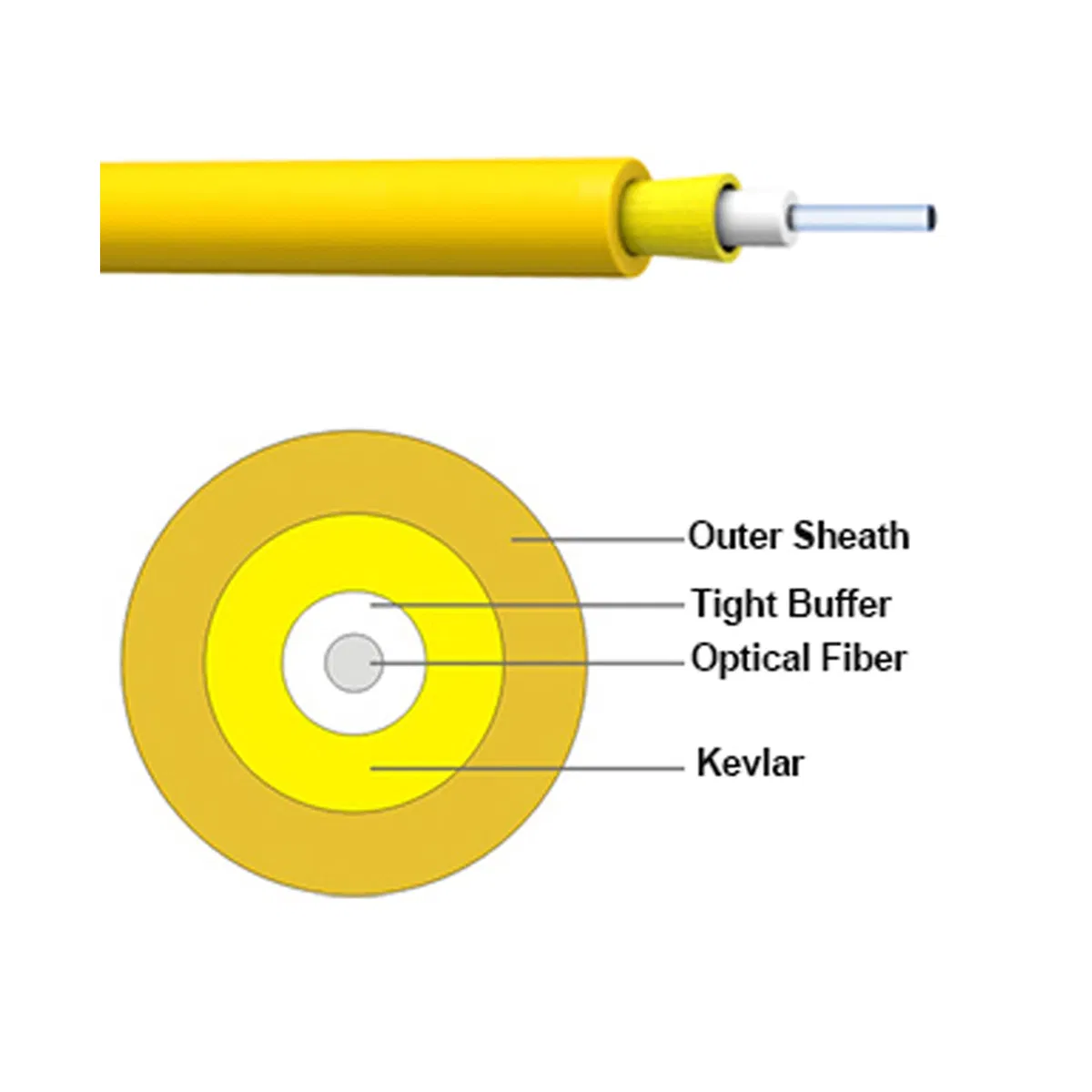

Cable Construction Items		Description
Fiber Counts		1 Core
Strength Member	Material	Aramid yarn
Strength Member	Color	Yellow
Tight Buffer	Dia (mm)	0.6±0.05mm or 0.9±0.05mm
	Material	PVC (LSZH, Hytrel, PA or Required)
	Color	Yellow and White
Outer Jacket	Material	PVC (LSZH or Required)

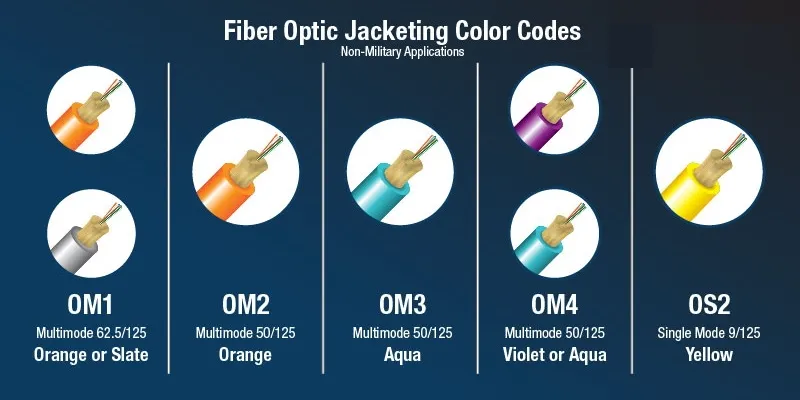

	Color	Yellow, Aqua, Purple or Orange
	Thickness	≥0.20mm (Φ1.6) / ≥0.30mm (Φ2.0) / ≥0.40mm (Φ2.8)

Mechanical & Environmental Characteristics

Cable Dia (mm)	Weight (kg/km)	Tensile Long/Short Term (N)	Crush Long/Short Term (N/100mm)	Bending Radius (Static/Dynamic)
1.6 (±0.2)	2.6	40 / 80	100 / 500	10D / 20D
2.0 (±0.2)	3.9	80 / 150	100 / 500	10D / 20D
2.8 (±0.2)	5.8	150 / 300	100 / 500	10D / 20D
Temp Range: Installation: -5 ~ +50ºC \| Operation: -20 ~ +60ºC

Ordering Requirements

01 Fiber Sort: G652D, G657A1, G657A2, OM1, OM2, OM3, OM4
02 Fiber Brand: YOFC, Corning, Fiberhome, Fujikura, OFS etc.
03 Jacket Material: PVC, LSZH (Customizable)
04 Color Coding: Customizable according to requirements

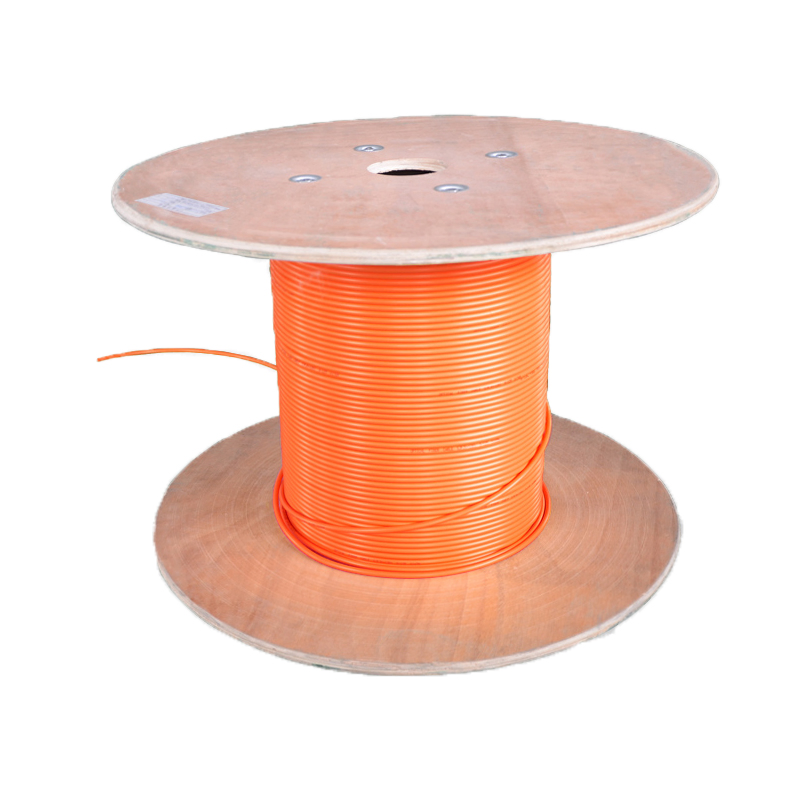

05 Cable Length: Standard 2KM/drum or customized

Frequently Asked Questions

Q1: What are the primary applications for GJFJV fiber optic cables? A: These cables are primarily designed for indoor communication, patch cords, and interconnection between telecommunication equipment.

Q2: Can the jacket material be customized for fire safety? A: Yes, we offer both PVC and LSZH (Low Smoke Zero Halogen) materials to meet specific indoor fire safety regulations.

Q3: What makes tight-buffered fiber different from loose-tube designs? A: Tight-buffered fibers are easier to strip and terminate directly with connectors, making them ideal for indoor environments where flexibility is key.

Q4: Does the cable protect against electromagnetic interference? A: Yes, the all-dielectric structure ensures the cable is immune to electromagnetic influence, providing stable data transmission.

Q5: What fiber brands are available for this cable? A: We use high-quality fibers from top brands including YOFC, Corning, Fiberhome, and Fujikura.

Q6: What is the standard delivery length for GJFJV cables? A: The standard length is generally 2KM per drum, though specific lengths can be negotiated based on project needs.
