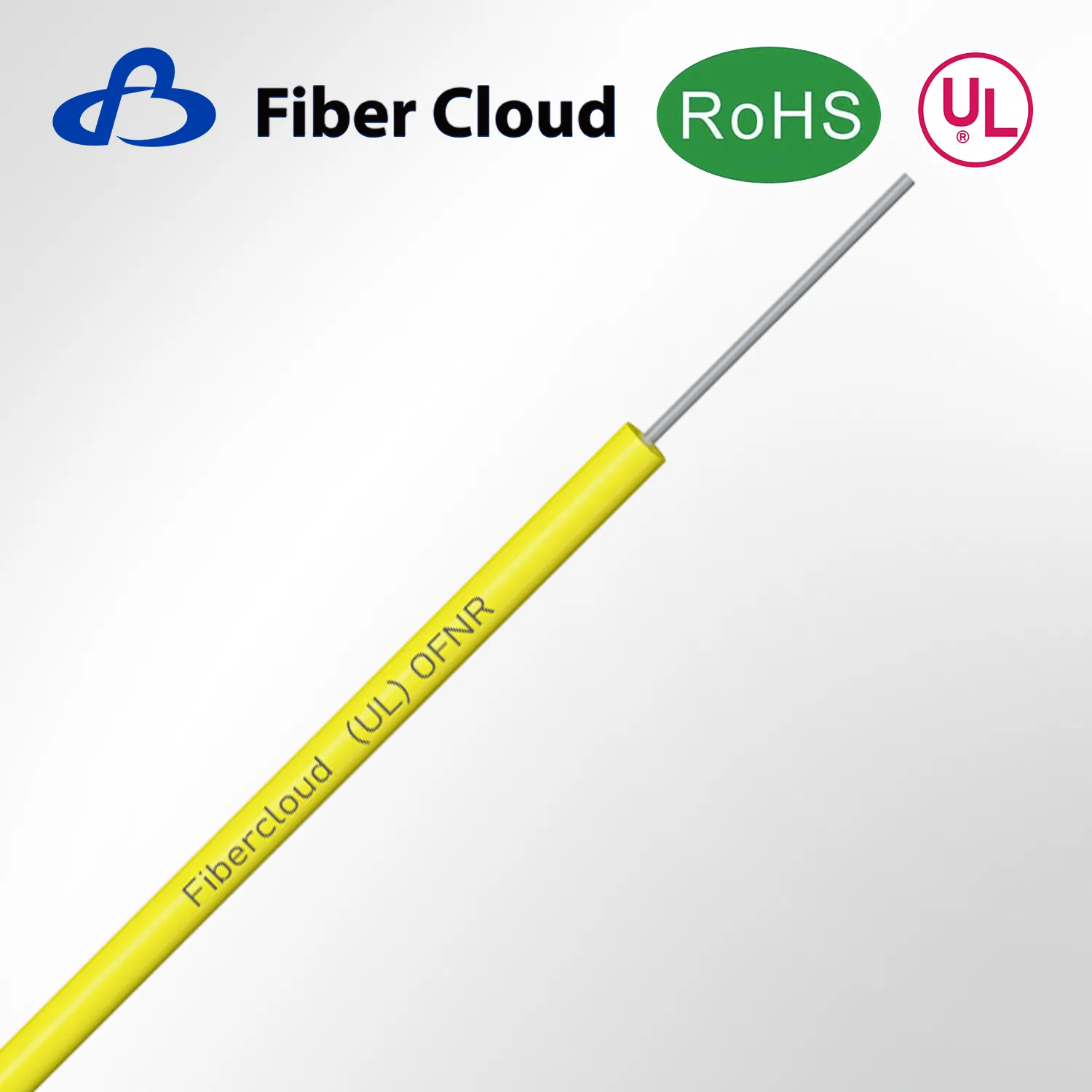

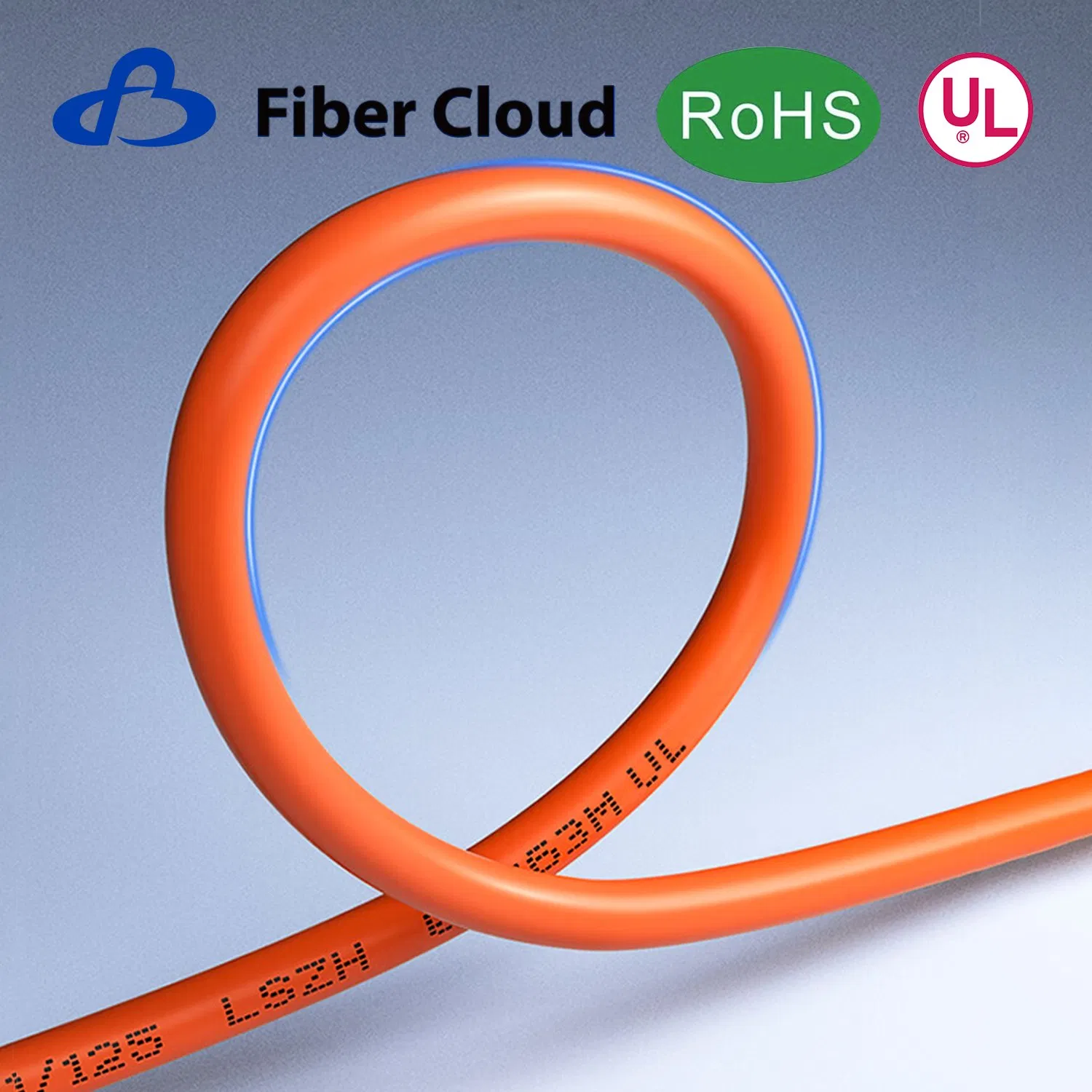

0.9mm TPU Hytrel LSZH G652D G657A2 G657b3 Tight Buffered Optical Fiber Cable

Basic Info

Model NO.

TBF

Connection Structure

SC

Material Shape

Round Wire

Allowed Lateral Pressure

>1000(N/100mm)

Allowed Tensile Strength

1000N<10000N

Core

12-288xn

Certification

RoHS, CE, ISO9001

Sheath Material

at

Working Temperature

-40~+120

Mixmium Bend Radius

5mm

Flame-Retardant

LSZH/Ofnp

Tight Buffer Diameter

250-900±50μm

Transport Package

Reclaimed Wood Pallets

Origin

China

HS Code

8544700000

Product Description

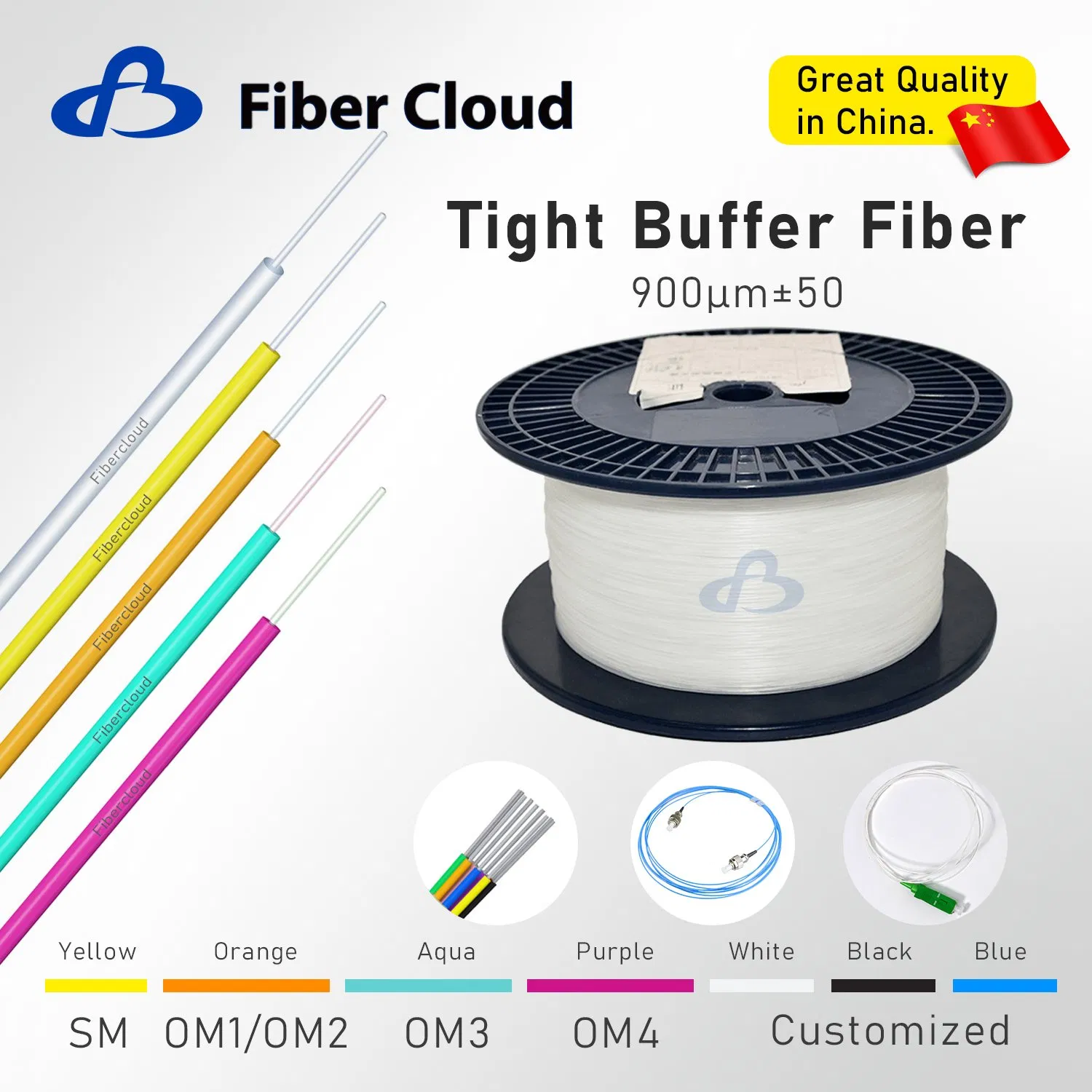

900μM TPE HYTREL LSZH Jacketed Tight Loose Buffer Optical Fiber

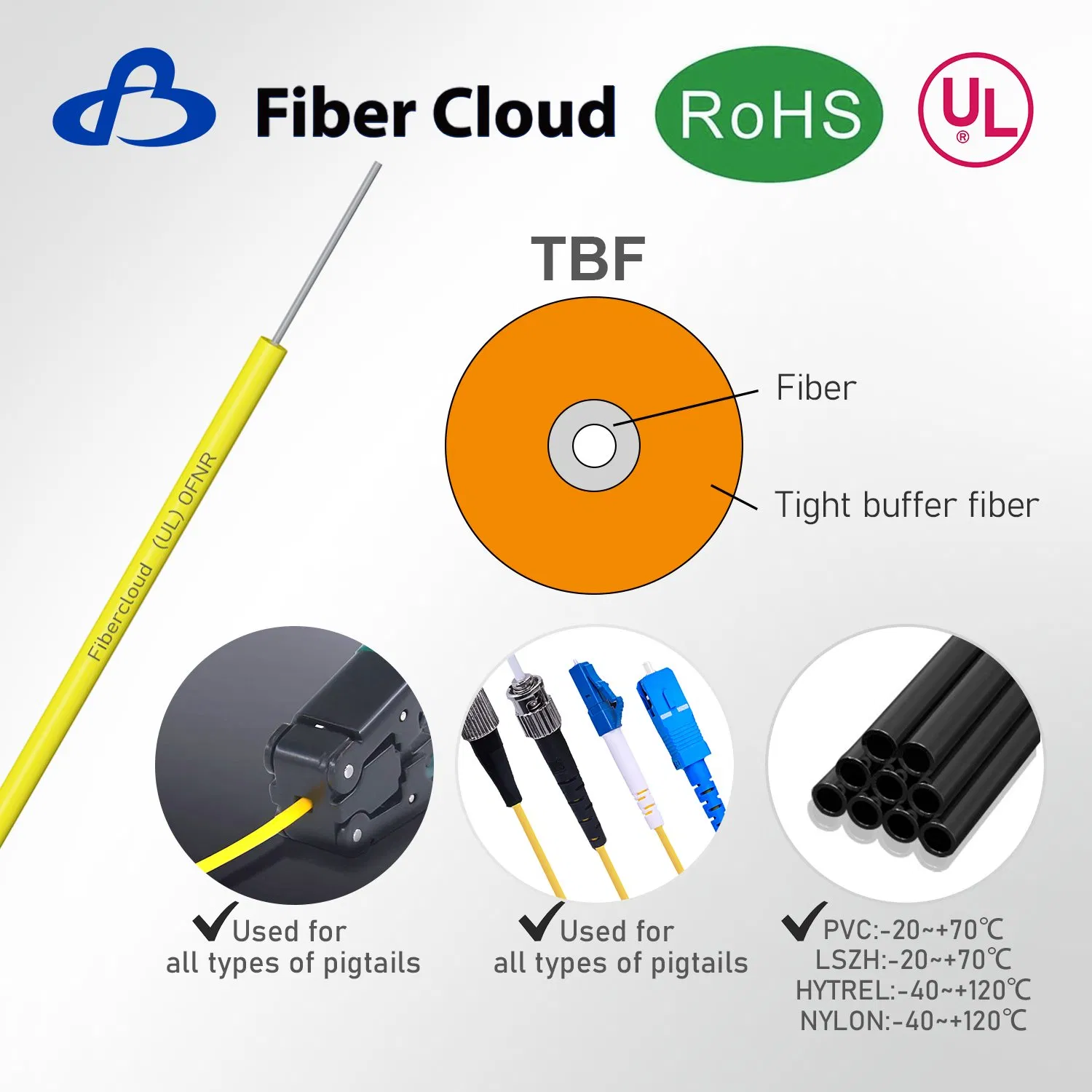

Tight Buffer Fiber is produced as that fiber is sheathed by buffer material. The selection of top-quality fiber, the specific production equipment and the accurately designed die make the performance of product.

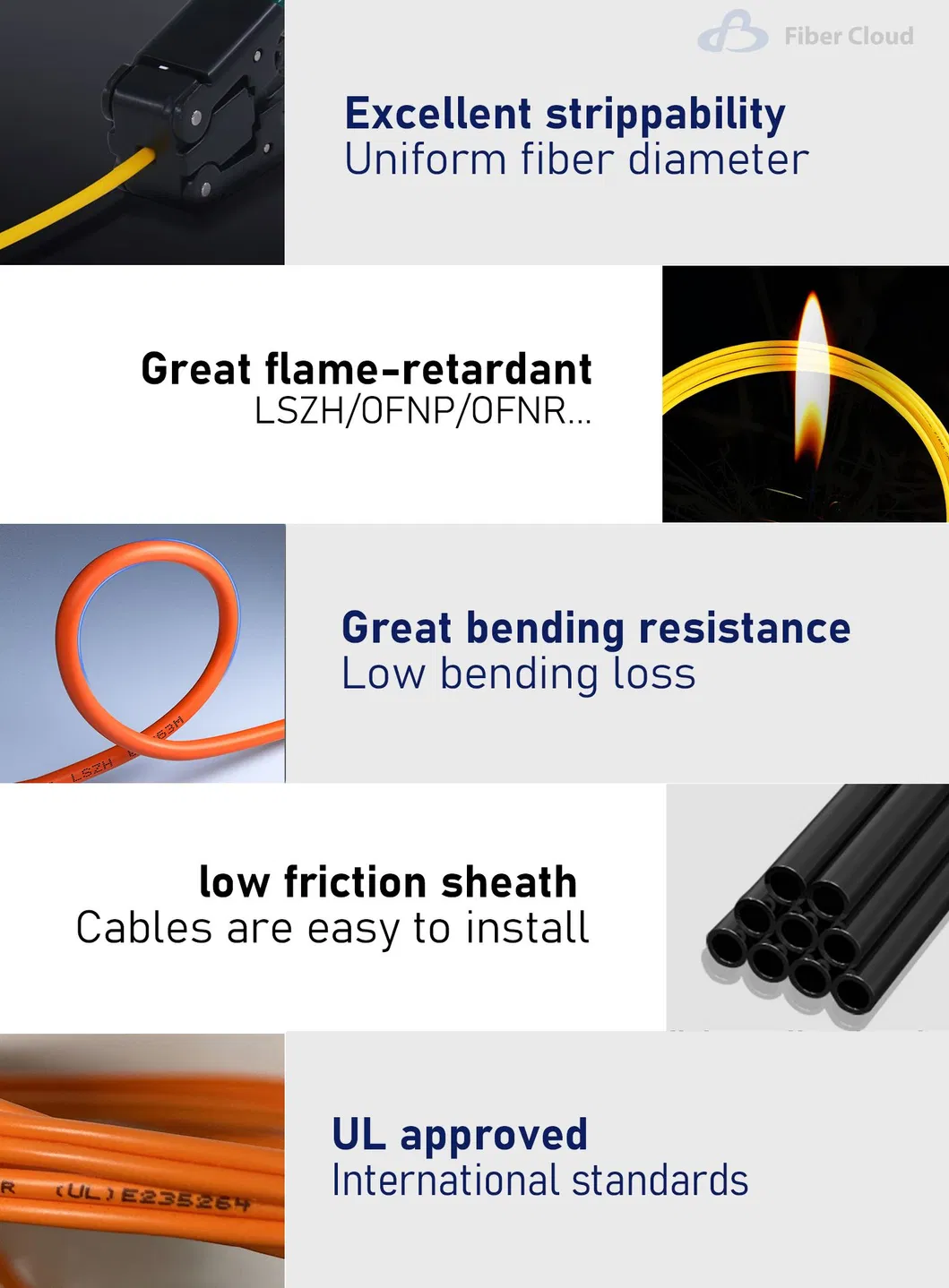

🔷Tight buffer fiber is easy to strip off.
🔷Excellent flame-retardant performance.
🔷Aramid reinforcement elements give optical cables excellent tensile properties.
🔷The outer protective material is corrosion-resistant, waterproof, UV-proof, and environmentally friendly.

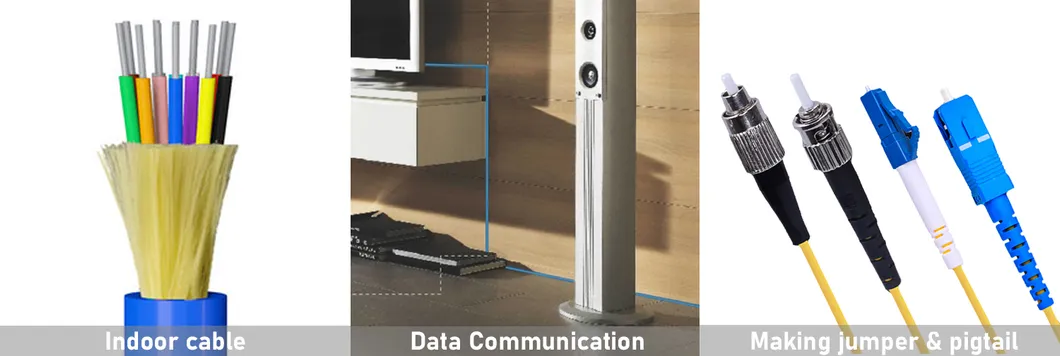

Applications:

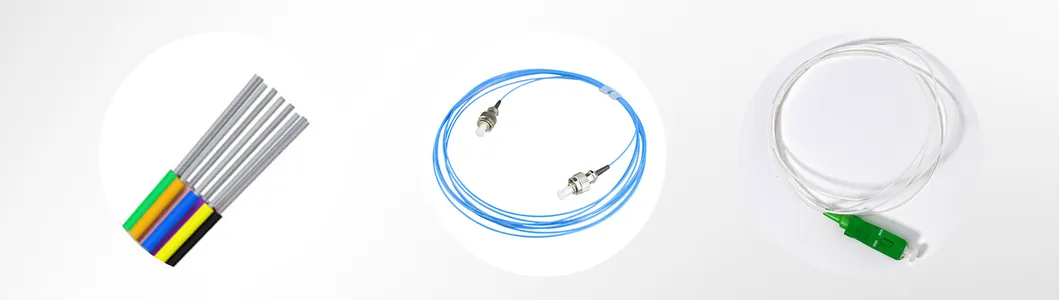

✔Optical fiber jumper or pigtail.
✔Indoor riser level and plenum level cable distribution.
✔Interconnect between instruments and communication equipments.

Product Parameters

Cable Type	Fiber Coating Diameter (µm)	Cable Weight (Ref kg/km)	Tight Buffer Fiber (µm)	Tensile Strength (N)	Crush Resistance (N/100mm)	Bending Radius (Dyn/Stat)
TBF-I	245±7	0.9	900±50	3/6	100/500	20D/10D
TBF-II	400±50	0.7	900±50	3/6	100/500	60/30

Optical Properties

Fiber Type	Attenuation (dB/km) 1310/1550nm	Attenuation (dB/km) 850/1300nm	Bandwidth (850/1300nm)	Min Bending Radius (mm)
G652D	0.36/0.22	---	---	16
G657A2	0.36/0.22	---	---	7.5
OM3	---	3.0/1.0	≥1500/500	30
OM4	---	3.0/1.0	≥3500/500	30

Certifications & Packaging

Our Service

🛡️Customers solutions provided in days, not weeks.
🛡️Specific inquiry responses within 24 hours.
🛡️10 years of professional experience in the optical fiber field.
🛡️Products meet strict international quality standards.
🛡️Strict quality inspections and test reports issued before shipment.

Frequently Asked Questions

Q1: How do you guarantee the delivery time?

We utilize a complete professional procedure system from production to delivery. We also include penalty clauses in contracts for any late delays to ensure accountability.

Q2: Can I print our own logo on the optical fiber products?

Yes, we provide comprehensive OEM and ODM services. You can send us your logo and specific requirements for customization.

Q3: What is the quality control process for faulty items?

Our products are produced under a strict quality control system with a defective rate of less than 0.2%. We conduct rigorous inspections and provide test reports before every shipment.

Q4: What is the operating temperature range for these cables?

The storage and use temperature for our tight buffer fibers ranges from -40ºC to +70ºC, while some specific models can handle up to +120ºC.

Q5: Which fiber types can you provide?

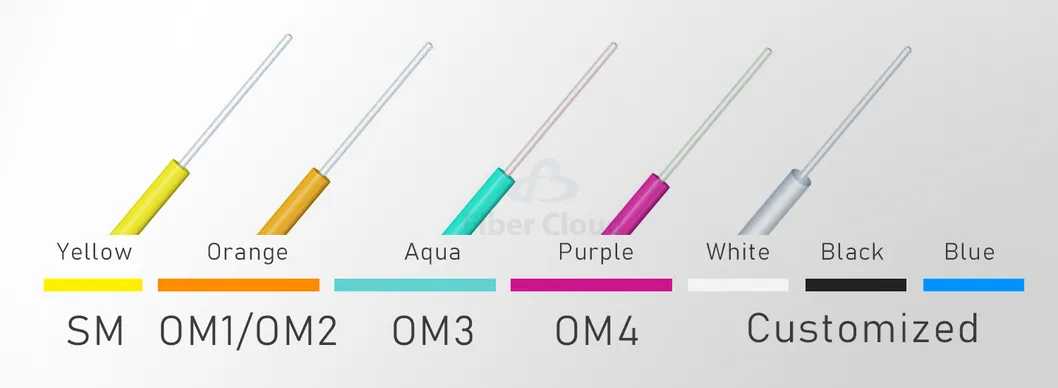

We offer a wide range of options including Single-mode (G652D, G657A1, G657A2, G657B3) and Multi-mode (50/125, 62.5/125, OM3, OM4) fibers.
