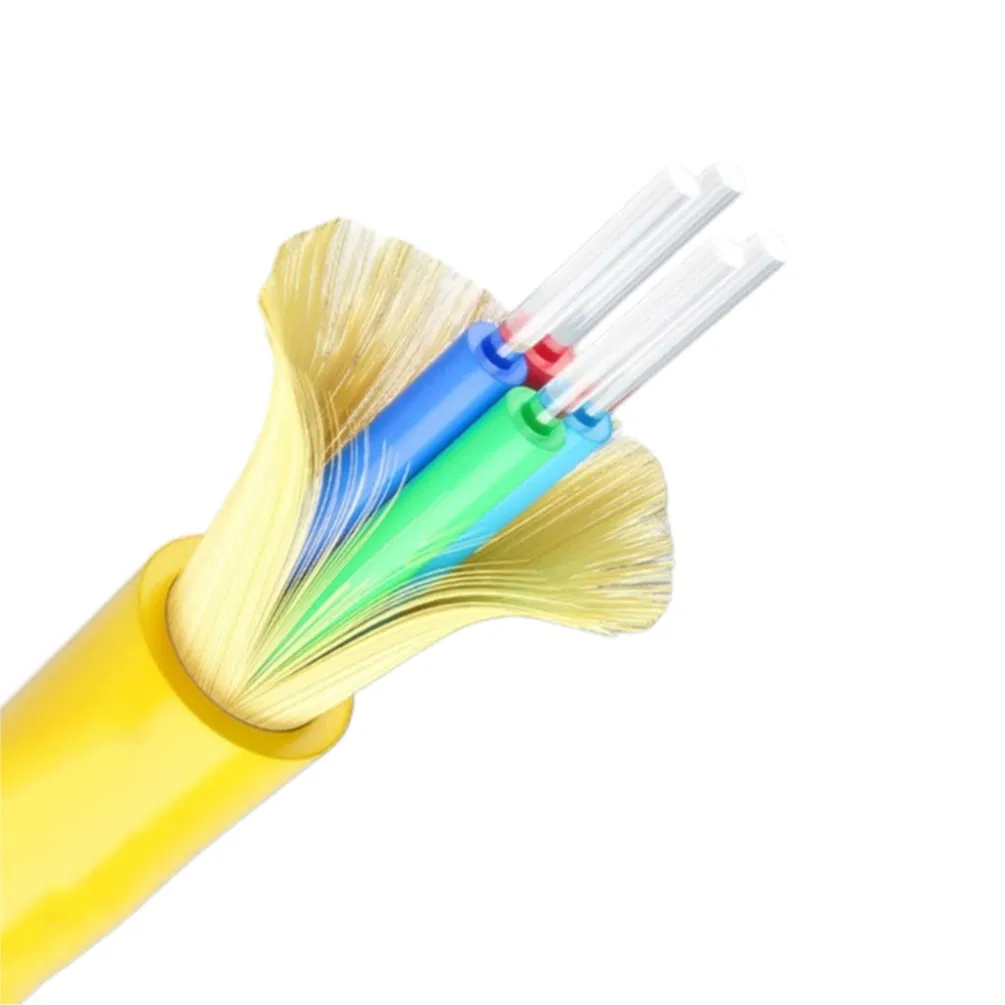

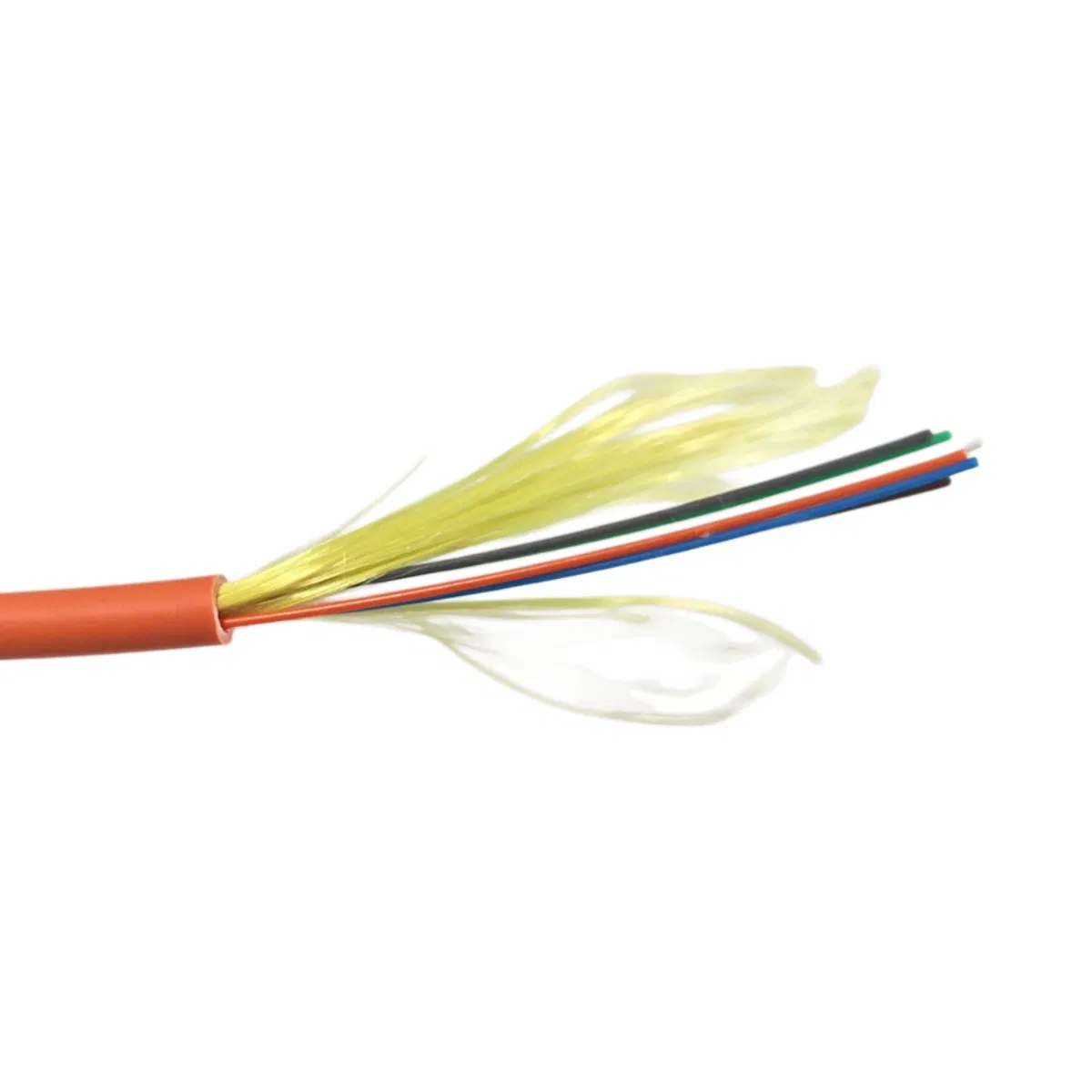

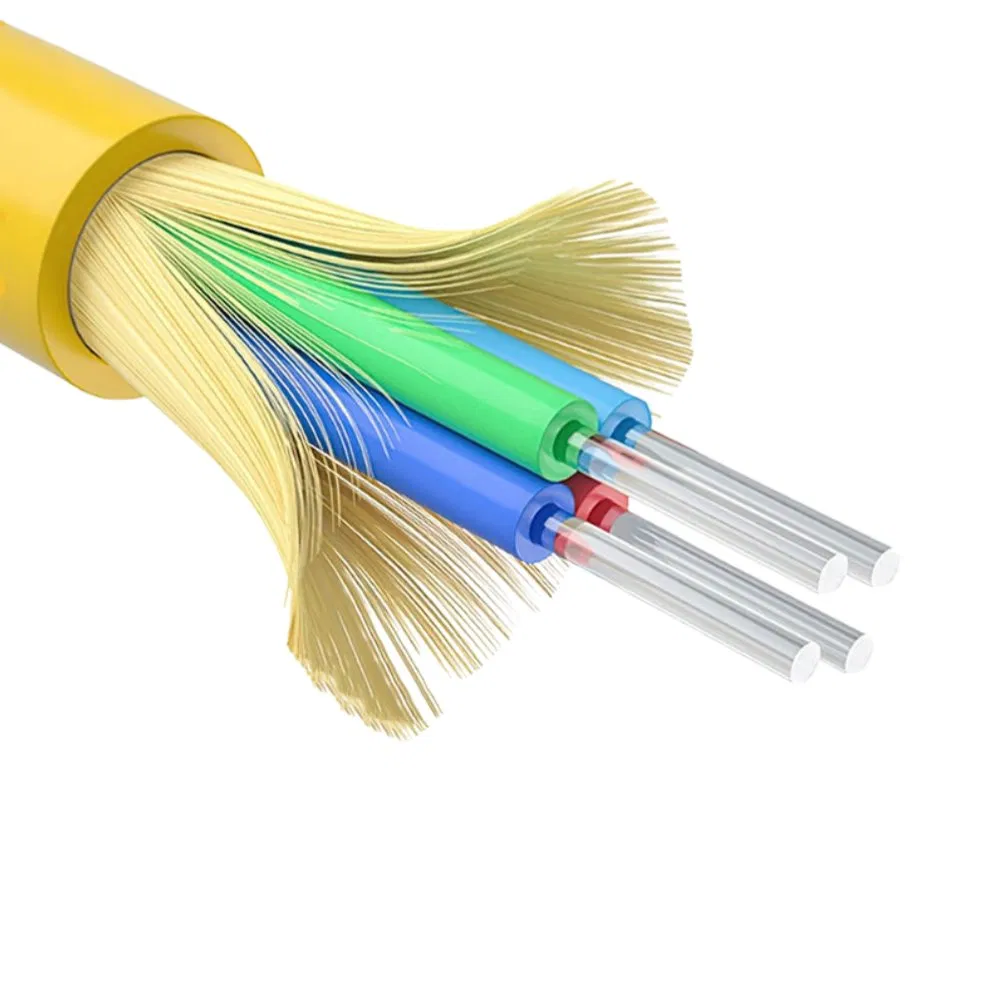

Gjfjh Tight Buffered Indoor Fiber Optic Cable FTTH Aramid Yarn Strength Members

Basic Specifications

Model NO.

GJFJH

Connection Structure

SC

Material Shape

Round Wire

Lateral Pressure

100-1000 N/100mm

Tensile Strength

<100N

Core

Double Core

Certification

RoHS, CE, ISO9001

Sheath Material

LSZH

Out Diameter

2.0/3.0mm

Strength Member

Aramid Yarn

Product Description

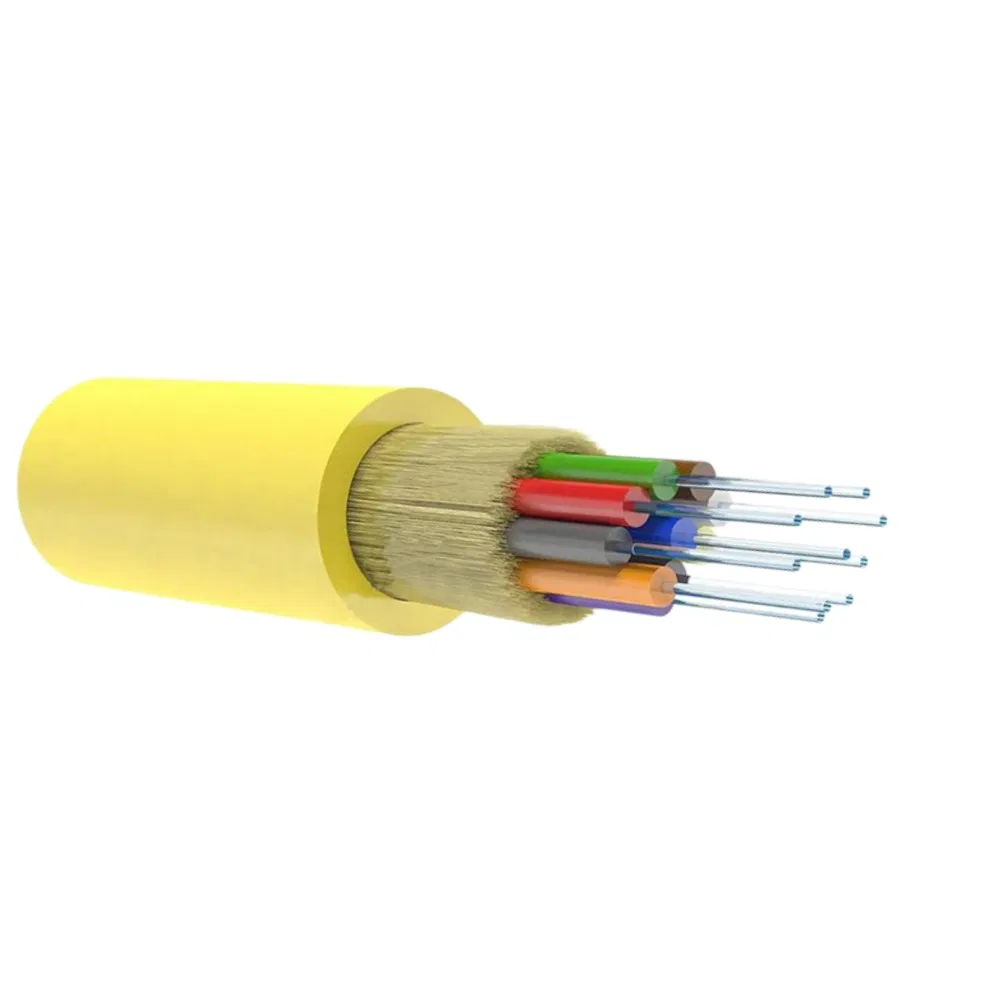

Simplex Optical Fiber Cable GJFJH/V-1C

The GJFJH Tight Buffered Indoor Fiber optic cable is designed with FTTH Aramid Yarn Strength Members for superior performance. This cable features tight buffering and aramid yarn strength for added durability and reliability. Ideal for indoor use, it is perfect for FTTH (Fiber to the Home) applications.

The tight buffering ensures protection against external elements, while the aramid yarn strength members provide robust support. This high-quality cable is suitable for a wide range of indoor optical fiber installations, making it a versatile choice for fast and efficient data transmission.

Applications

Process to armored patch cords.
Cabling on walls, ceilings, tubes, and cases.
Cabling on outer walls and between buildings.
Used in access networks or as access cables from outdoor to indoor in customer premises.
Premises distribution systems and aerial access cabling.

Key Features

Crush Resistance

Mini diameter SUS spring tube reinforced ensures resistance up to 3000N.

High Tensile

Kevlar strengthened members provide tensile strength above 200N.

Compliance

Outer jacket complies with UL and RoHS; light, flexible, and easy to bend.

Technical Specifications

Mechanical and Environmental Performance

Items	Out Diameter (mm)	Short-term	Long-term
Tensile (D≤1.6)	≤1.6	80N	40N
Tensile (1.6>D≤2.8)	1.6-2.8	100N	60N
Crush Resistance	/	500N/100mm	100N/100mm
Bending Radius	Static: 10D / Dynamic: 20D
Temperature	Operation: -20℃ to 60℃ / Installation: -10℃ to 50℃

Service & Support

Standard Warranty

12 months basic coverage.

Extended Warranty

Optional coverage up to 36 months.

Global Support

24/7 technical assistance.

Expert Training

On-site or remote operation training.

Why Choose Our Solutions?

Advanced OEM/ODM capabilities for customized requirements.
Competitive pricing structures and bulk discount options.
Fast global shipping and customs clearance support.
Comprehensive turnkey project solutions for telecom networks.

Frequently Asked Questions

What is GJFJH fiber optic cable used for?

It is primarily designed for indoor FTTH (Fiber to the Home) applications, including cabling on walls, ceilings, and in premises distribution systems.

What are the main strength members in this cable?

The cable utilizes Aramid Yarn (Kevlar) as the primary strength member, providing excellent tensile strength while remaining flexible.

Is the outer sheath flame retardant?

Yes, the cable features an LSZH (Low Smoke Zero Halogen) or PVC sheath, making it safe for indoor installations.

What is the difference between FTTH, FTTB, and FTTC?

FTTH connects fiber directly to the home; FTTB connects to the building; and FTTC connects to the curb or nearest distribution point.

What is the bending radius of the GJFJH cable?

The static bending radius is 10 times the cable diameter (10D), and the dynamic bending radius is 20 times the diameter (20D).

What color coding is used for the fiber types?

Typically, yellow is used for Single Mode (SM), aqua for OM3, and violet or aqua for OM4.
