Sm G652D Fiber Aluminum Armored GYTA 48core PE Sheath Fiber Optic Cable
Sm G652D Fiber Aluminum Armored GYTA 48core PE Sheath Fiber Optic Cable
Sm G652D Fiber Aluminum Armored GYTA 48core PE Sheath Fiber Optic Cable
Sm G652D Fiber Aluminum Armored GYTA 48core PE Sheath Fiber Optic Cable
Sm G652D Fiber Aluminum Armored GYTA 48core PE Sheath Fiber Optic Cable
1 / 5
Sm G652D Fiber Aluminum Armored GYTA 48core PE Sheath Fiber Optic Cable
Sm G652D Fiber Aluminum Armored GYTA 48core PE Sheath Fiber Optic Cable
Sm G652D Fiber Aluminum Armored GYTA 48core PE Sheath Fiber Optic Cable
Sm G652D Fiber Aluminum Armored GYTA 48core PE Sheath Fiber Optic Cable
Sm G652D Fiber Aluminum Armored GYTA 48core PE Sheath Fiber Optic Cable

Sm G652D Fiber Aluminum Armored GYTA 48core PE Sheath Fiber Optic Cable

Customization: Available
Application: Local Communication Cable, Fiber Optic Cable
Conductor Material: Fiber Core
Send Inquiry

Product Description

i

Basic Information

Model NO.
GYTA-48
Cover Material
PE
Material Shape
Round Wire
Conductor Type
Solid
Certification
ISO, RoHS
Fiber
G652D
Loose Tube
PBT
Armored
Aluminum Tape
★

Product Description

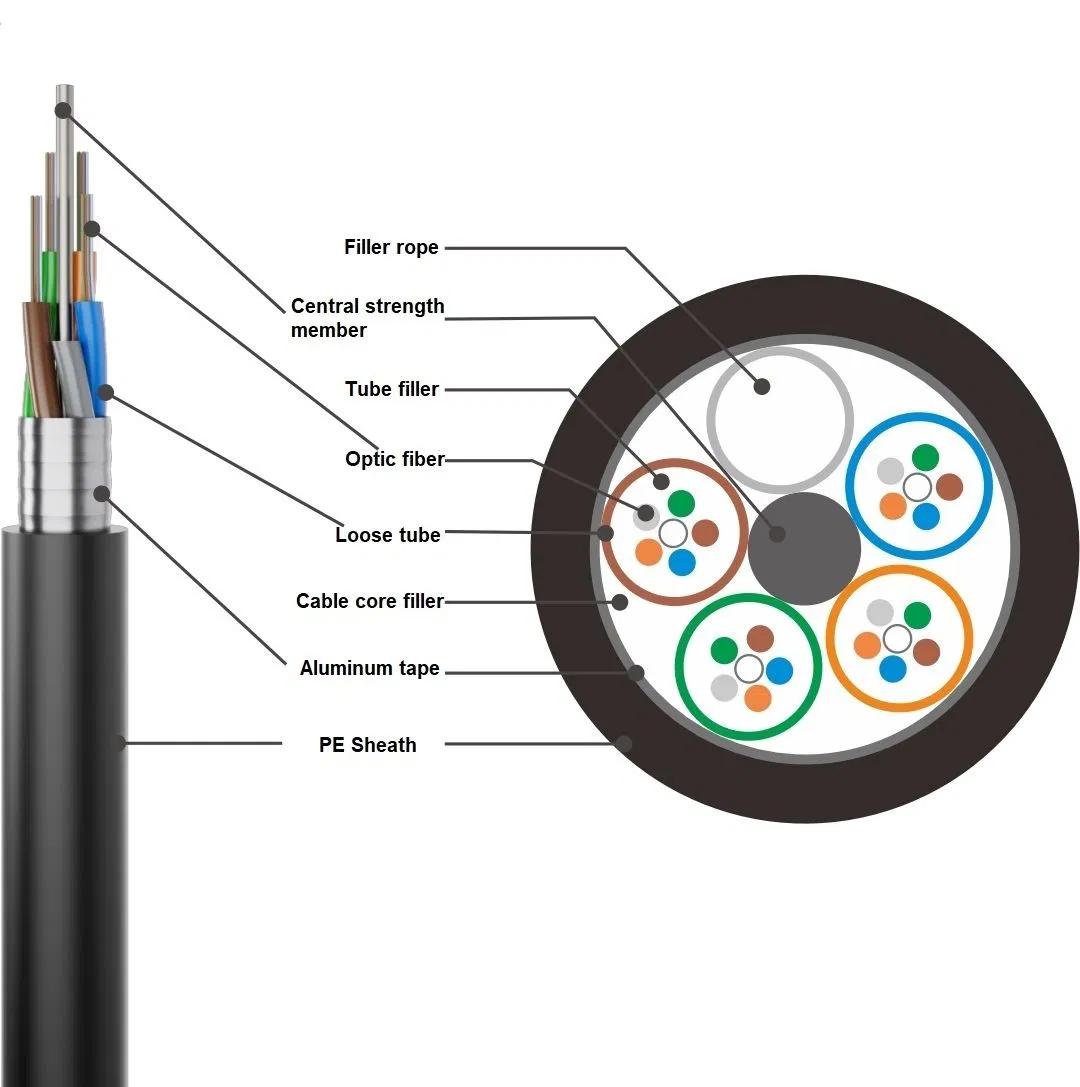

DESCRIPTION: The product features optical fibers inserted into high-modulus loose tubes filled with water-blocking compounds. A polyethylene layer is extruded outside the metal reinforced core. The compact and round cable core is formed by winding loose tubes and filling ropes around the center, with gaps filled by water-blocking material. It is finished with an aluminum strip package and extruded PE sheath.
Fiber Optic Cable

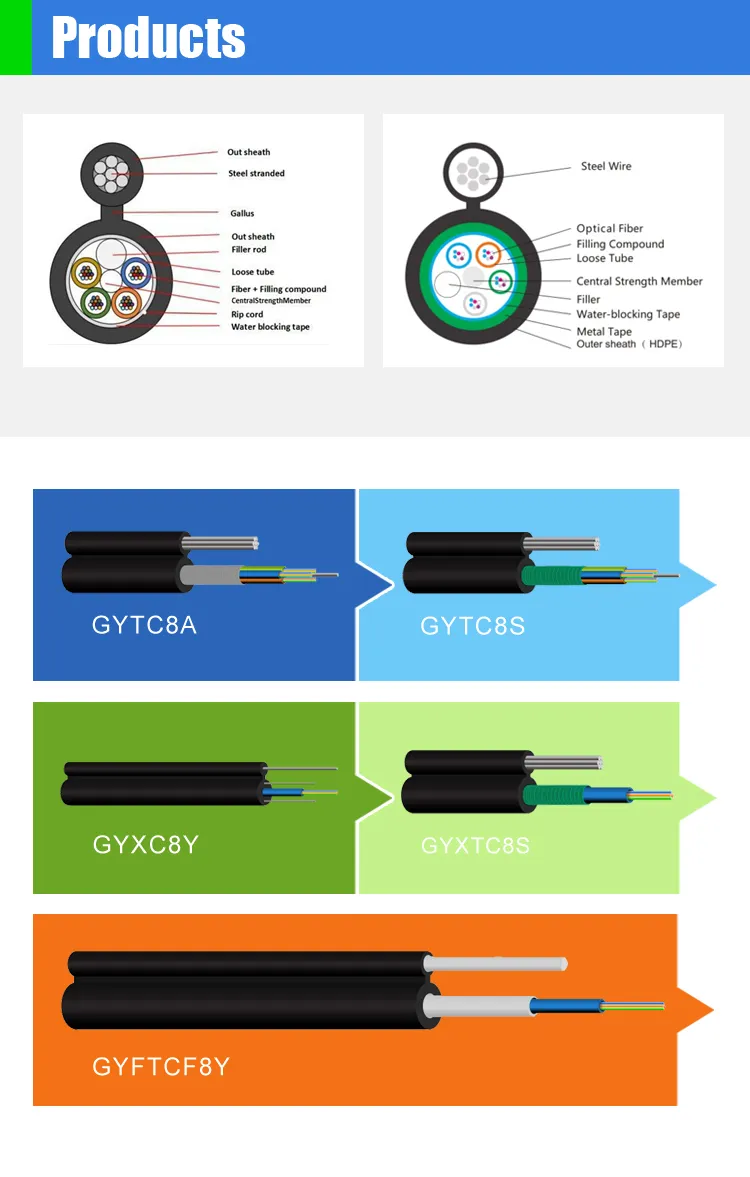

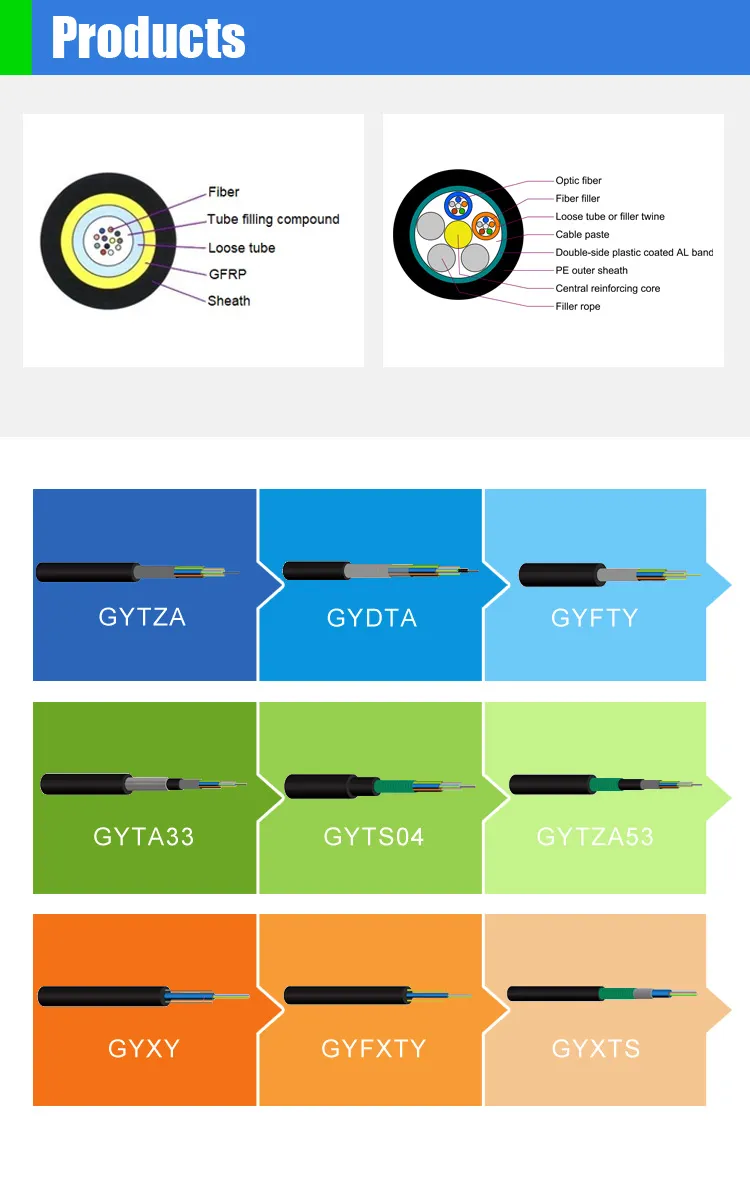

Fiber Optic Cable Structure
FEATURES:
  • Full cross-section water-blocking structure ensures excellent moisture-proof performance.
  • Compact structure prevents casing retraction effectively.
  • PE sheath provides superior radiation resistance and environmental stress cracking resistance.
APPLICATIONS: Aerial and Duct installation.
Product View
Product Detail
Fiber Detail
📋

Technical Specification

Type Max. Attenuation (dB/km) Tensile Strength (N) Crush Resistance (N) Min. Bending Radius
1310nm 1550nm Short Term Long Term Short Term Long Term
GYTA-48 0.36 0.21 1500 600 1000 300 20D
Production Process
Quality Control

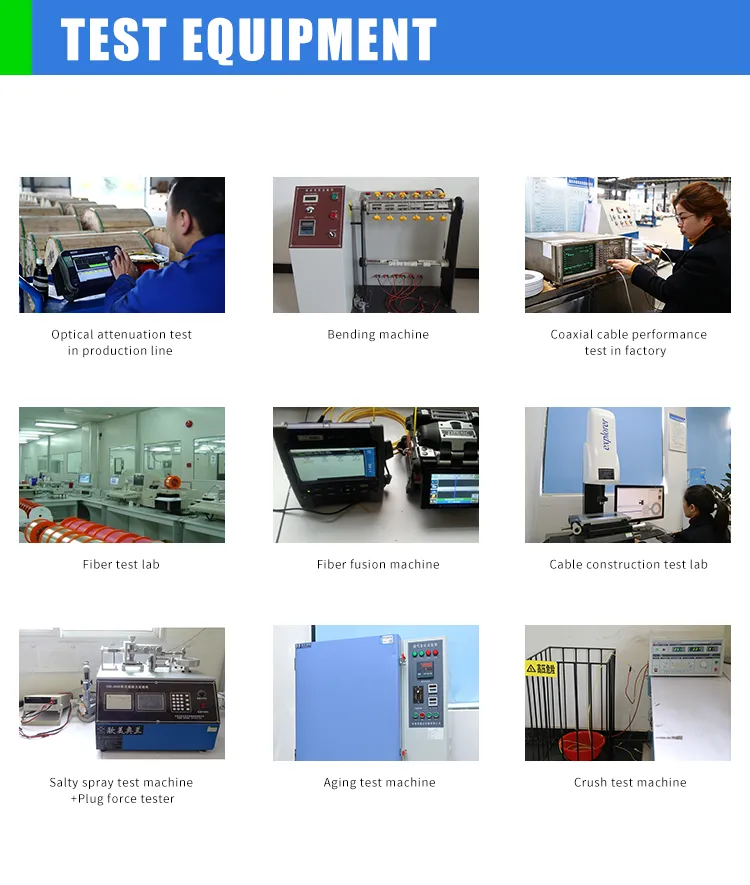

Testing
▶

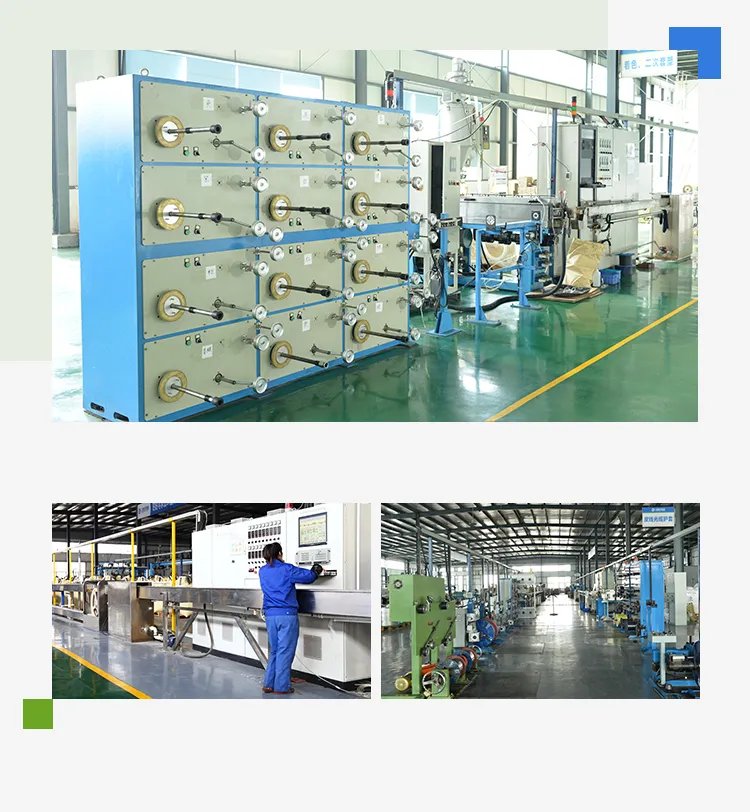

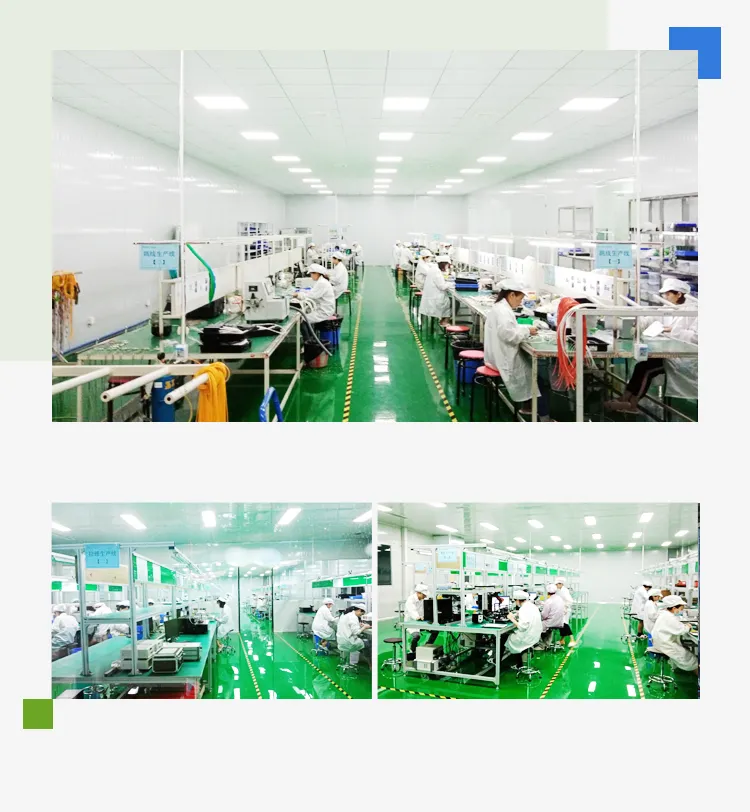

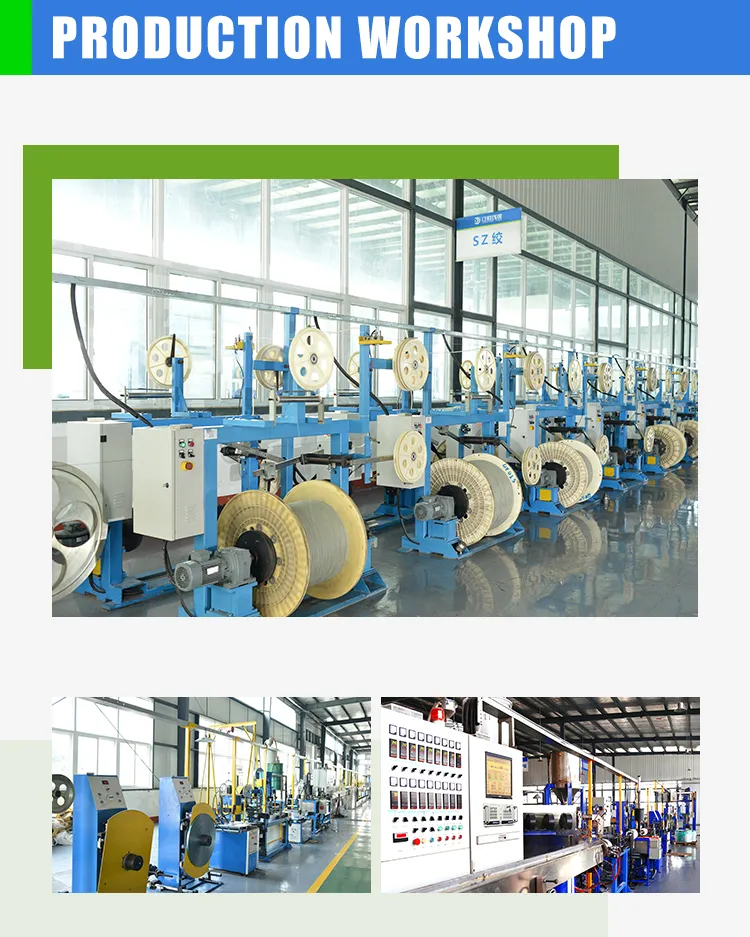

Professional Production

Production Video Cover
📦

Packing & Delivery

Package Size
110.0cm * 116.0cm * 90.0cm
Gross Weight
450.0kg
Lead Time
5 days (1-10000 Meters)
Package Type
Wooden Drum
Packaging
Delivery
?

Frequently Asked Questions

1. What are your main fiber optic products?
Our main products include outdoor and indoor fiber optic cables, FTTH drop cables, ADSS, and various loose tube configurations.
2. Do your materials meet environmental standards?
Yes, we cooperate with qualified suppliers and all our raw materials meet ISO9001 and RoHS certification standards.
3. What is the typical lead time for an order?
Samples are usually ready in 2-3 days, while mass production typically takes between 7 to 14 days depending on the volume.
4. What is the Minimum Order Quantity (MOQ)?
The MOQ for fiber optic cables is 2KM. For coaxial cables, it is 1KM. Some stock items may not have MOQ requirements.
5. How are the products shipped?
Large orders are shipped via sea (FCL or LCL). Smaller orders can be sent by sea, air, or courier services depending on your preference.
6. Do you offer customized cable combinations?
Yes, we provide various combination cables including Coaxial & Fiber optical combinations and RVV & Data cable combinations.
