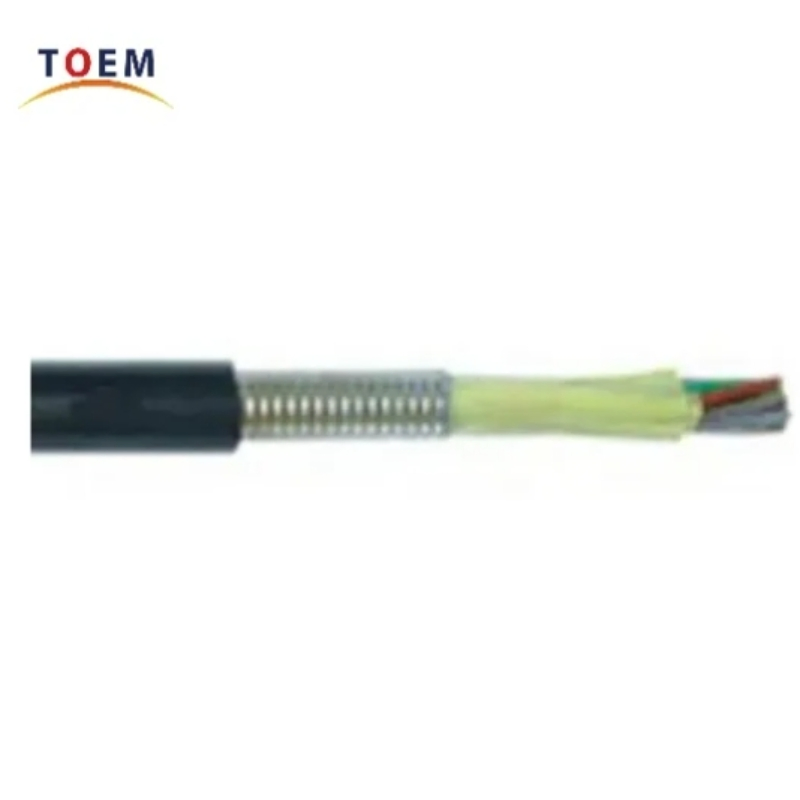

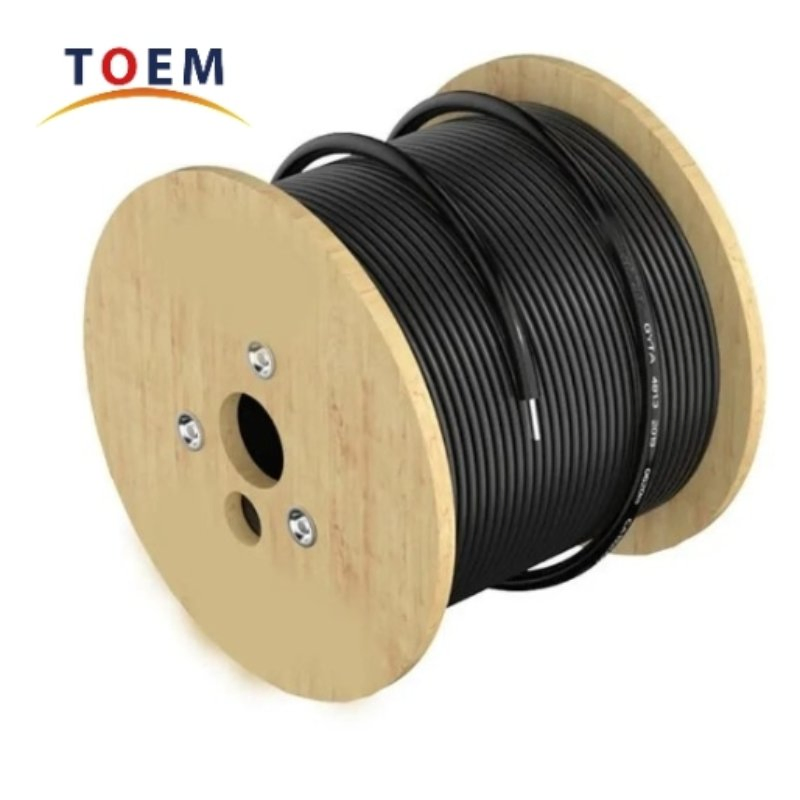

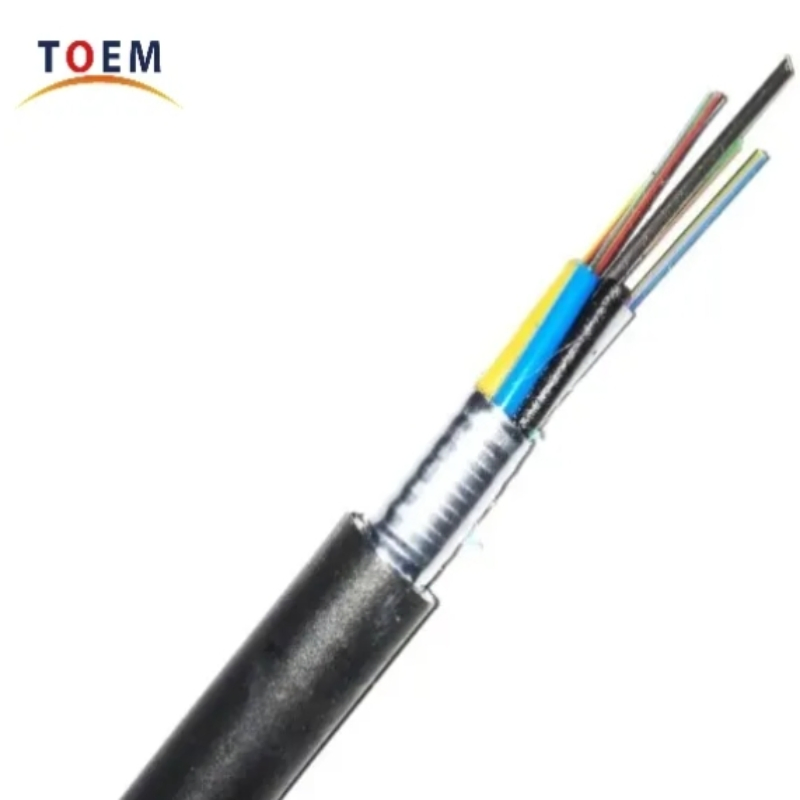

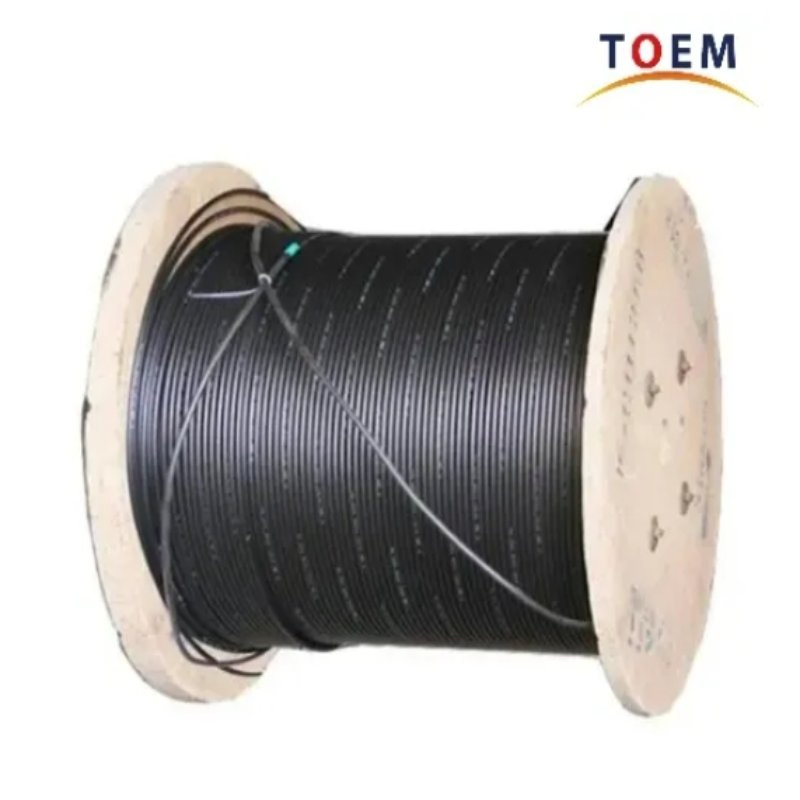

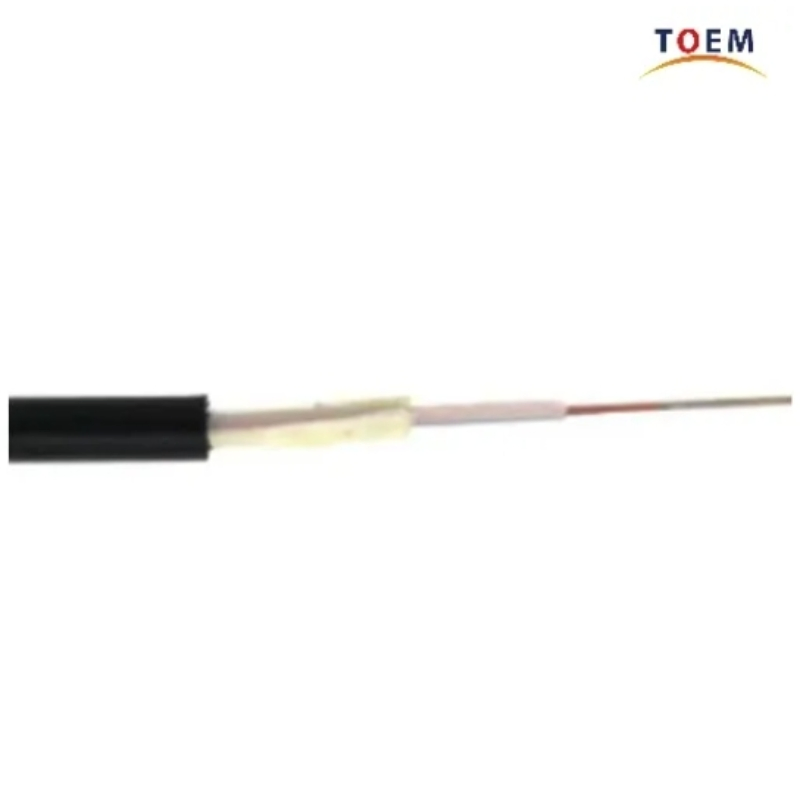

High Compaction Resistance Mini Tight Buffered Fiber Optic Cable
High Compaction Resistance Mini Tight Buffered Fiber Optic Cable
High Compaction Resistance Mini Tight Buffered Fiber Optic Cable
High Compaction Resistance Mini Tight Buffered Fiber Optic Cable
High Compaction Resistance Mini Tight Buffered Fiber Optic Cable
1 / 5
High Compaction Resistance Mini Tight Buffered Fiber Optic Cable
High Compaction Resistance Mini Tight Buffered Fiber Optic Cable
High Compaction Resistance Mini Tight Buffered Fiber Optic Cable
High Compaction Resistance Mini Tight Buffered Fiber Optic Cable
High Compaction Resistance Mini Tight Buffered Fiber Optic Cable

High Compaction Resistance Mini Tight Buffered Fiber Optic Cable

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
T-FC372
Material Shape
Round Wire
Lateral Pressure
100(N/100mm) < 1000(N/100mm)
Tensile Strength
100N < 1000N
Core
Customized
Certification
CE, ISO9001
Brand
OEM
Sheath Material
Customized
Package Size
36.00cm * 36.00cm * 35.00cm
Gross Weight
11.000kg
Origin
China
Product Characters
High Compaction Resistance tight buffered Mine Fiber Optic Cable/T-FC372 features superior performance for challenging environments.
  • Small diameter, multi cores, high compaction, light weight, and low cost.
  • Mini fiber optic cable ensures convenient operation, simple construction, soft texture, and corrosion resistance.
  • Excellent abrasion resistance, acid and alkali resistance, hydrolysis, and high temperature resistance.
Cable Parameters
Diameter (mm) Weight Core Tensile (N) Temp (ºC) Crush (N/10cm) Thermal/4h -40-120ºC
kg/km Long Short Storage Operation Long Short
3.5±0.2 24.8 1 ≤240 ≤480 -40~80 -40~95 ≤3000 ≤5000 ≤5%
6.5±0.2 56.5 2/4 ≤400 ≤800 -40~80 -40~95 ≤2000 ≤4000 ≤5%
7.2±0.3 76.2 6 ≤500 ≤1000 -40~80 -40~95 ≤2000 ≤3000 ≤5%
8.5±0.3 116.7 12 ≤600 ≤1200 -40~80 -40~95 ≤2000 ≤3000 ≤5%
Application & Packaging
Application Active and passive optical device pigtails and jumpers, high capacity data communication transmission.
Packaging Standard Wooden Export Packing.
* Quotation varies according to requirements and quantity.
Industry Capabilities
  • Mature and efficient supply chain system and rich industrial resources.
  • Complete materials demand solutions for cable manufacturing and technical services.
  • Overall solutions and customized services in factory design, equipment configuration, product development, and raw material supply.

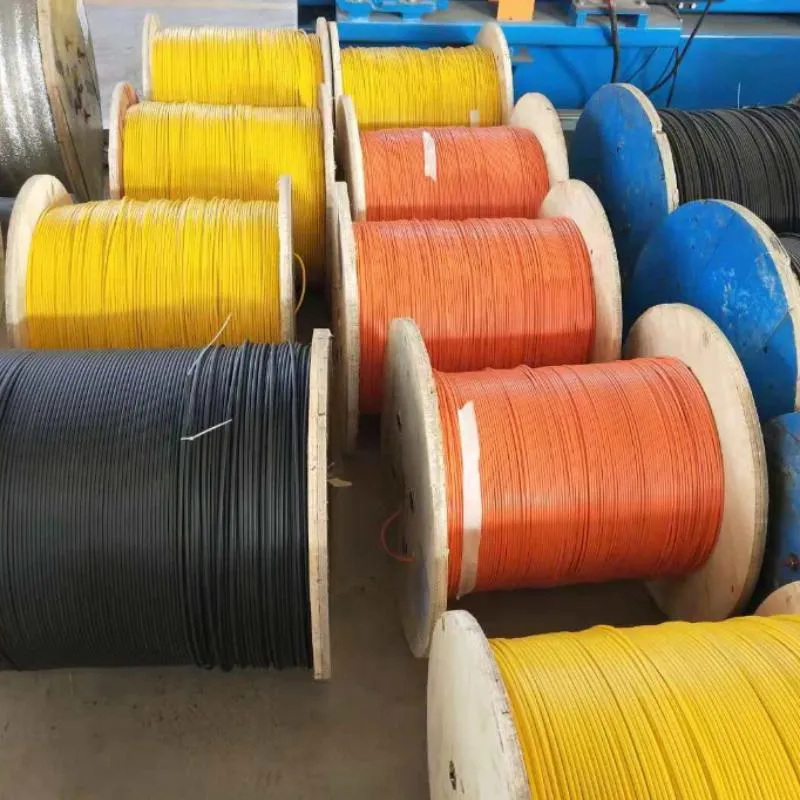

Fiber Optic Cable Detail 1

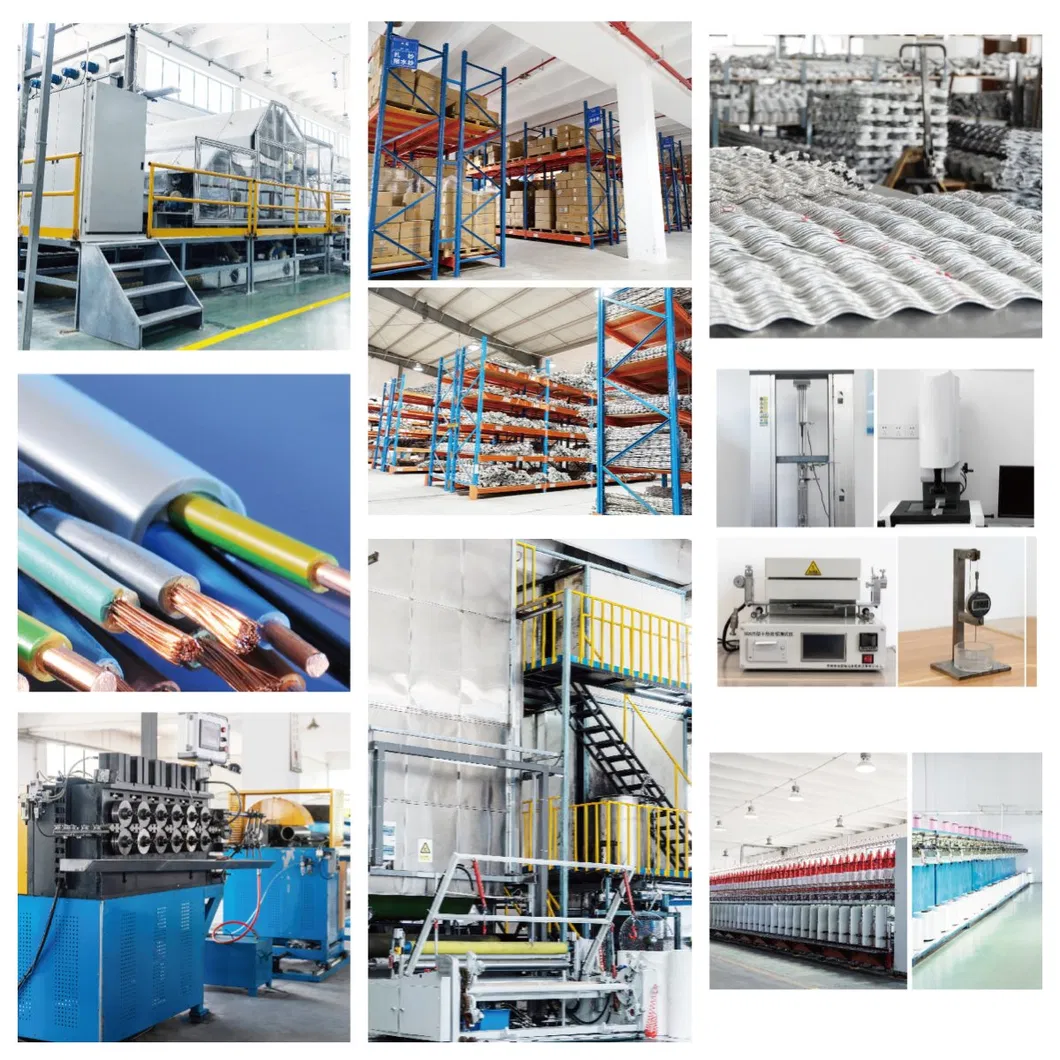

Fiber Optic Cable Detail 2
Fiber Optic Cable Detail 3
Frequently Asked Questions
What materials and equipment are provided?
We provide raw materials like PE, PVC, FRP, PBT, aramid yarn, and equipment including high-speed fiber coloring, rewinding, and special fiber drawing machines.
Are samples available for evaluation?
For most raw materials and optical cables, samples can be provided (shipping costs may apply); for equipment, factory test reports of various indicators are available.
Is customization supported for these cables?
Yes, we provide professional optoelectronic cable solutions and support product customization including core counts and sheath materials.
What are the main advantages of the T-FC372 cable?
It offers a small diameter, high compaction, light weight, and excellent resistance to abrasion, acids, alkalis, and high temperatures.
Are the products compliant with industry standards?
Yes, our products and raw materials are 100% in line with industry standards, ensuring reliable performance in communication applications.
What is the typical operating temperature for these cables?
The cables are designed to operate in temperatures ranging from -40ºC to 95ºC, making them suitable for extreme environments.
