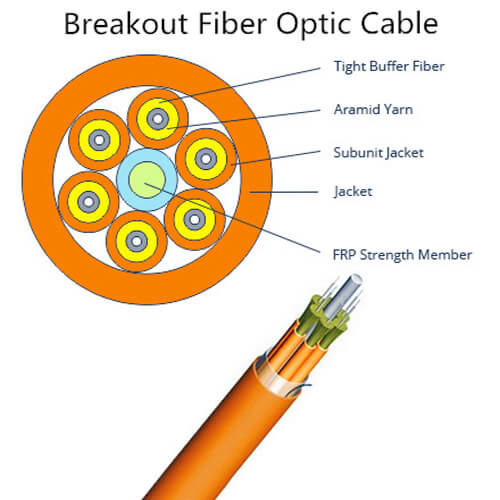

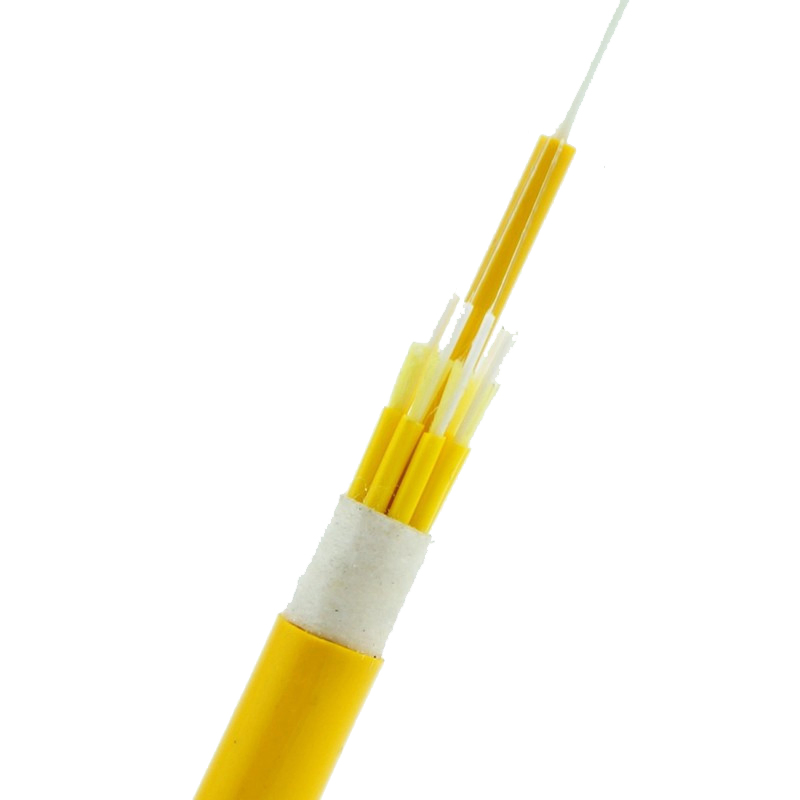

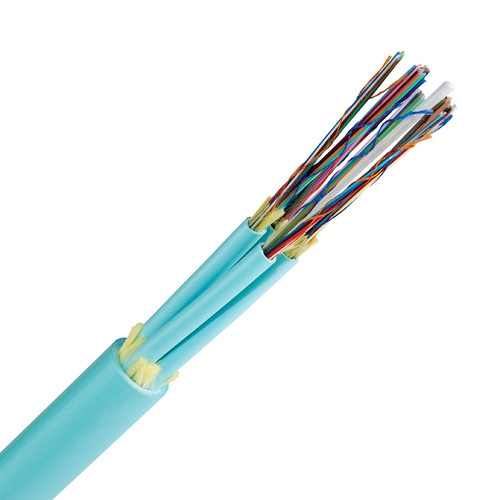

Indoor Flame Retardant Optical Fiber Optic Cable with Tight Buffered Multimode Om3 for FTTH
Indoor Flame Retardant Optical Fiber Optic Cable with Tight Buffered Multimode Om3 for FTTH
Indoor Flame Retardant Optical Fiber Optic Cable with Tight Buffered Multimode Om3 for FTTH
Indoor Flame Retardant Optical Fiber Optic Cable with Tight Buffered Multimode Om3 for FTTH
Indoor Flame Retardant Optical Fiber Optic Cable with Tight Buffered Multimode Om3 for FTTH
1 / 5
Indoor Flame Retardant Optical Fiber Optic Cable with Tight Buffered Multimode Om3 for FTTH
Indoor Flame Retardant Optical Fiber Optic Cable with Tight Buffered Multimode Om3 for FTTH
Indoor Flame Retardant Optical Fiber Optic Cable with Tight Buffered Multimode Om3 for FTTH
Indoor Flame Retardant Optical Fiber Optic Cable with Tight Buffered Multimode Om3 for FTTH
Indoor Flame Retardant Optical Fiber Optic Cable with Tight Buffered Multimode Om3 for FTTH

Indoor Flame Retardant Optical Fiber Optic Cable with Tight Buffered Multimode Om3 for FTTH

Customization: Available
Application: Communication
Type: Single-mode Fiber
Send Inquiry

Product Description

Basic Specifications

Model NO.
GJFJH
Structure
SC Connection
Core Count
2 Cores to 288 Cores
Fiber Type
SM (OS2, G657) / MM (OM1-OM5)
Sheath Material
LSZH / PVC
Lateral Pressure
100N - 1000N/100mm
Tensile Strength
100N - 1000N
Certification
RoHS, CE, ISO9001
Production
50000m/Day
HS Code
8544700000

Indoor Flame Retardant Optical Fiber Cable

Premium OM3 Multimode Tight Buffered Fiber for FTTH Solutions

Tight buffer fiber design for easy stripping and handling.
Excellent flame-retardant performance for indoor safety.
Aramid yarn strength members provide superior tensile strength.
Corrosion-resistant, anti-water, and anti-UV jacket materials.
All-dielectric structure protects against electromagnetic interference.
Environmentally friendly LSZH jacket options available.
Fiber Cable View 1

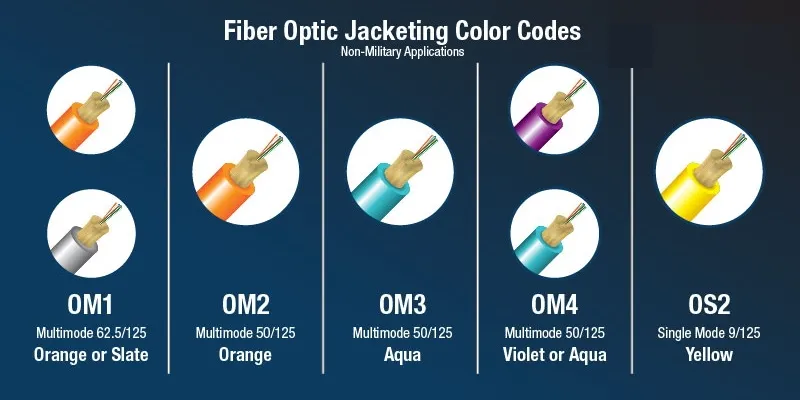

Fiber Cable View 2

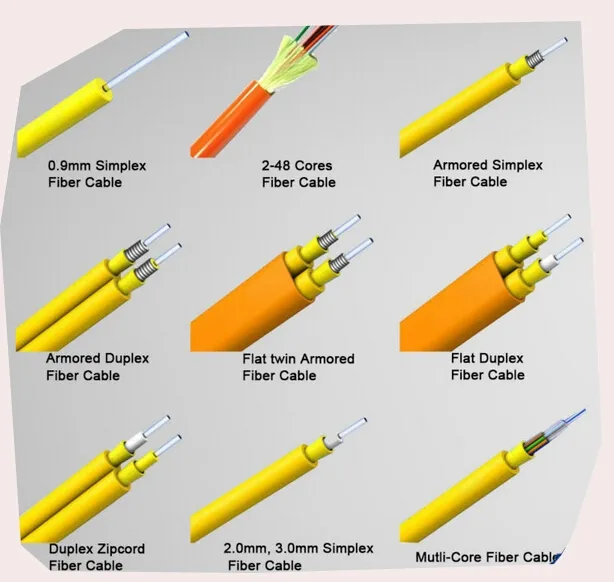

Fiber Cable View 3
Fiber Cable View 4

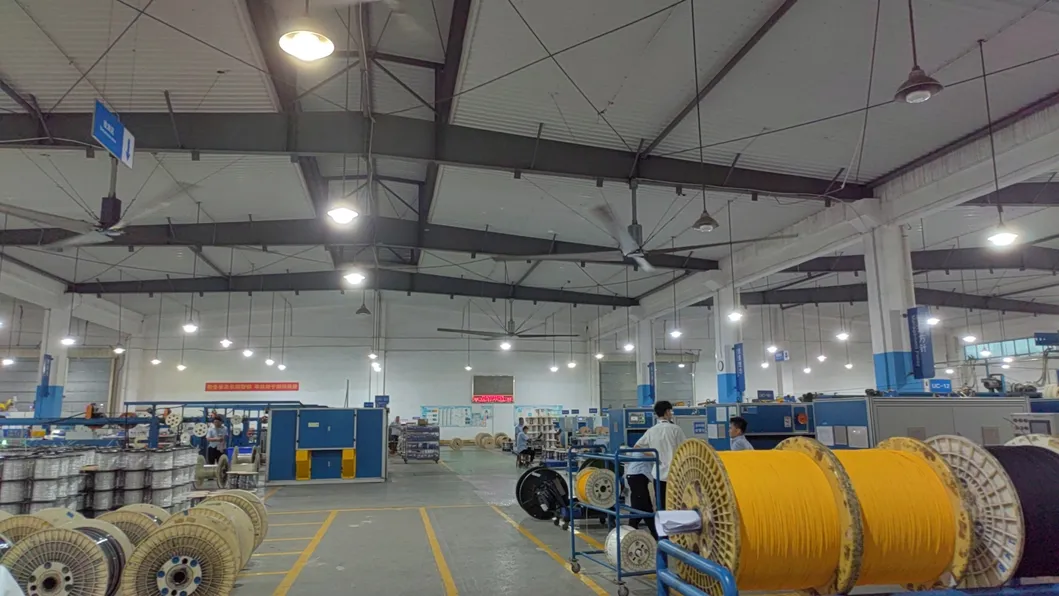

Fiber Cable View 5

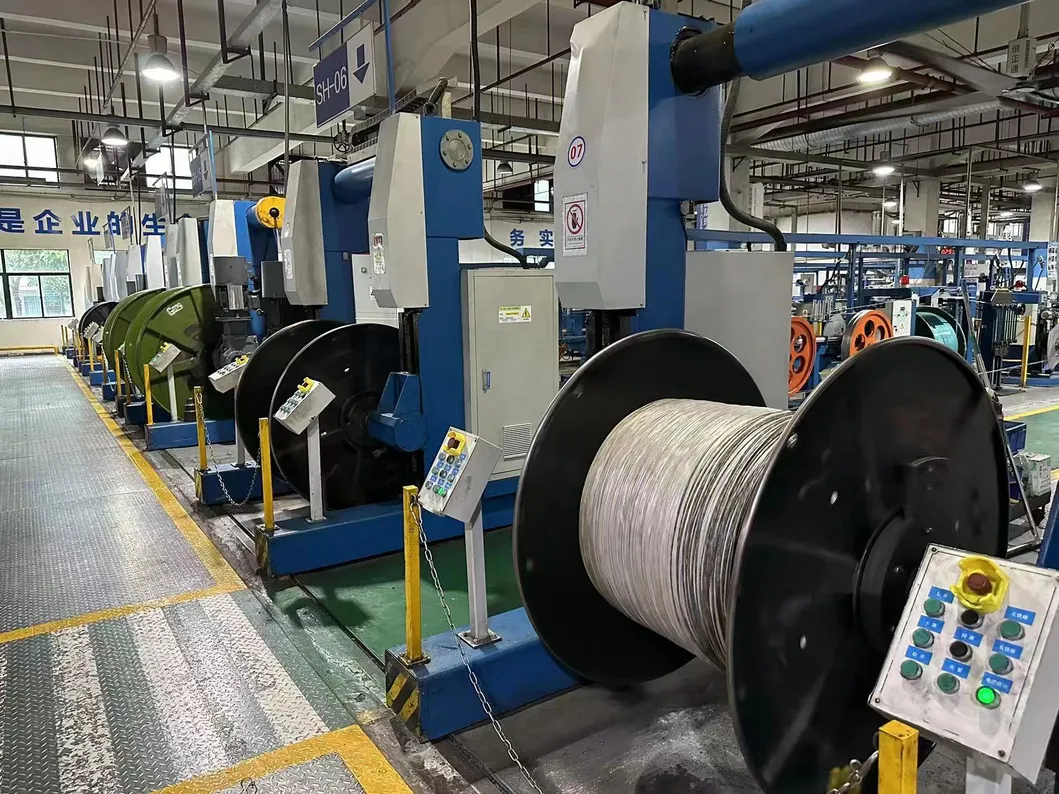

Fiber Cable View 6

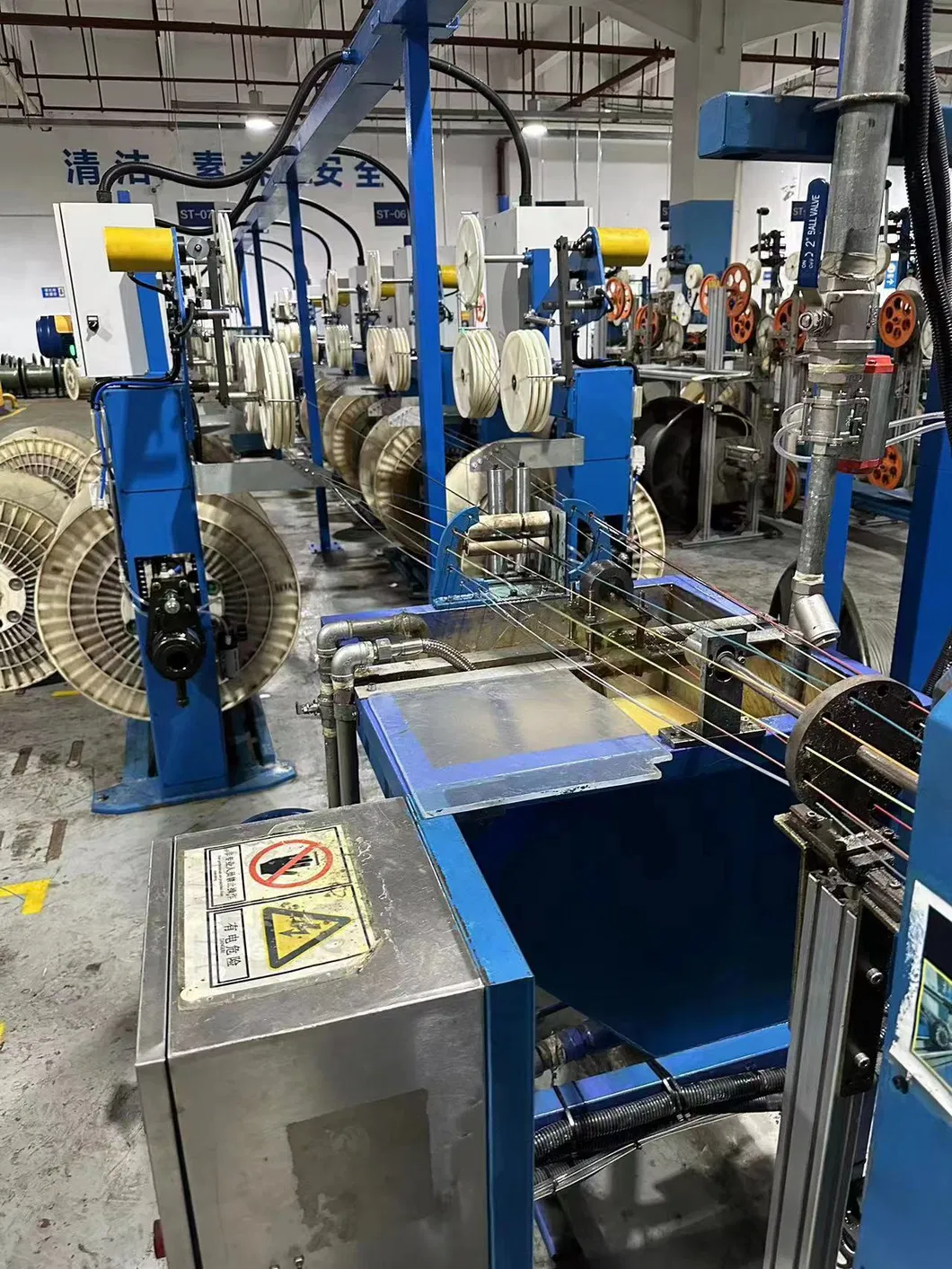

Fiber Cable View 7

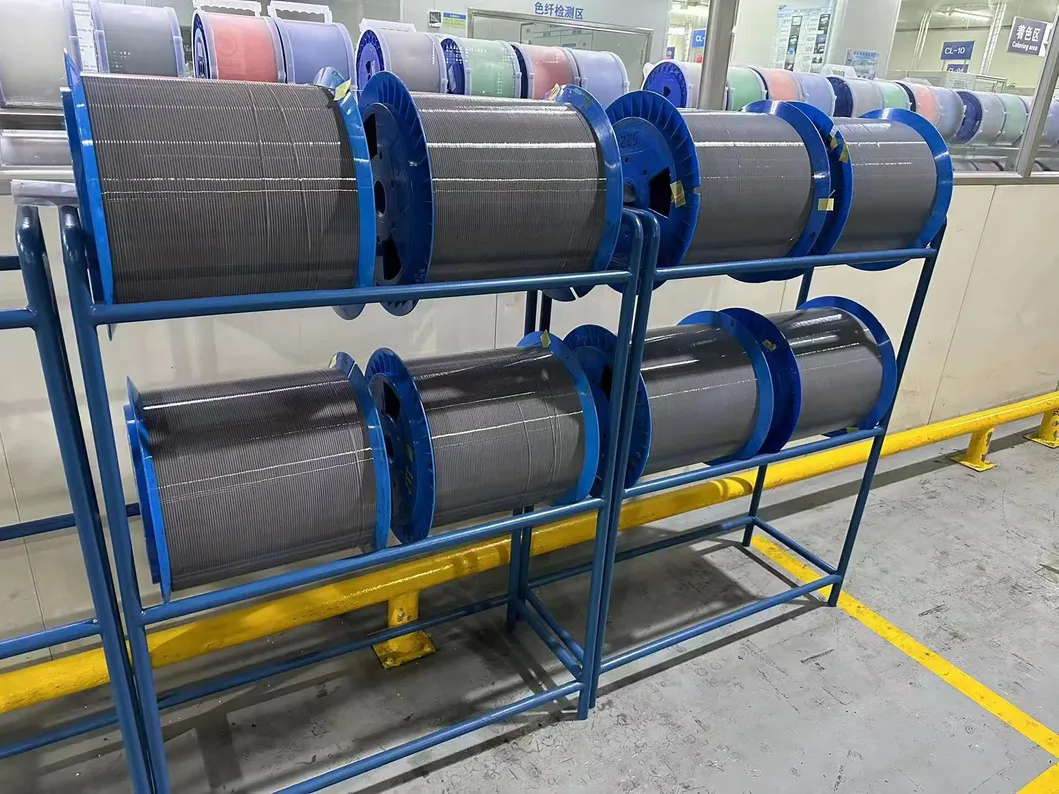

Fiber Cable View 8

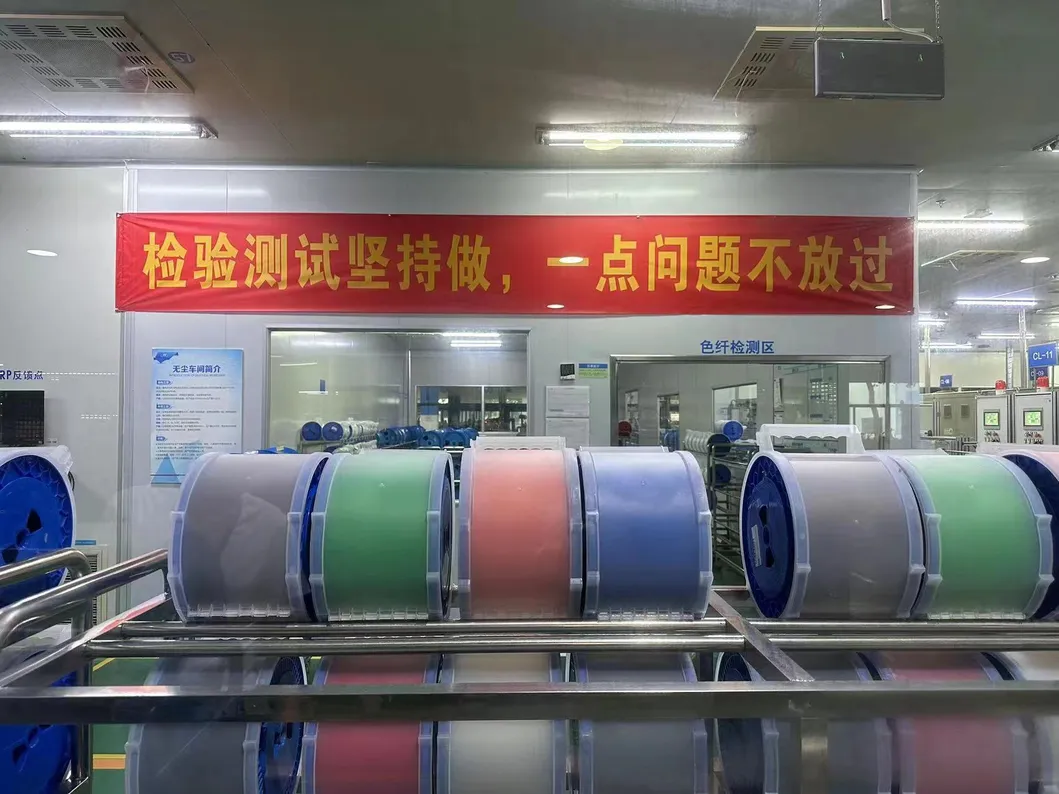

Fiber Cable View 9

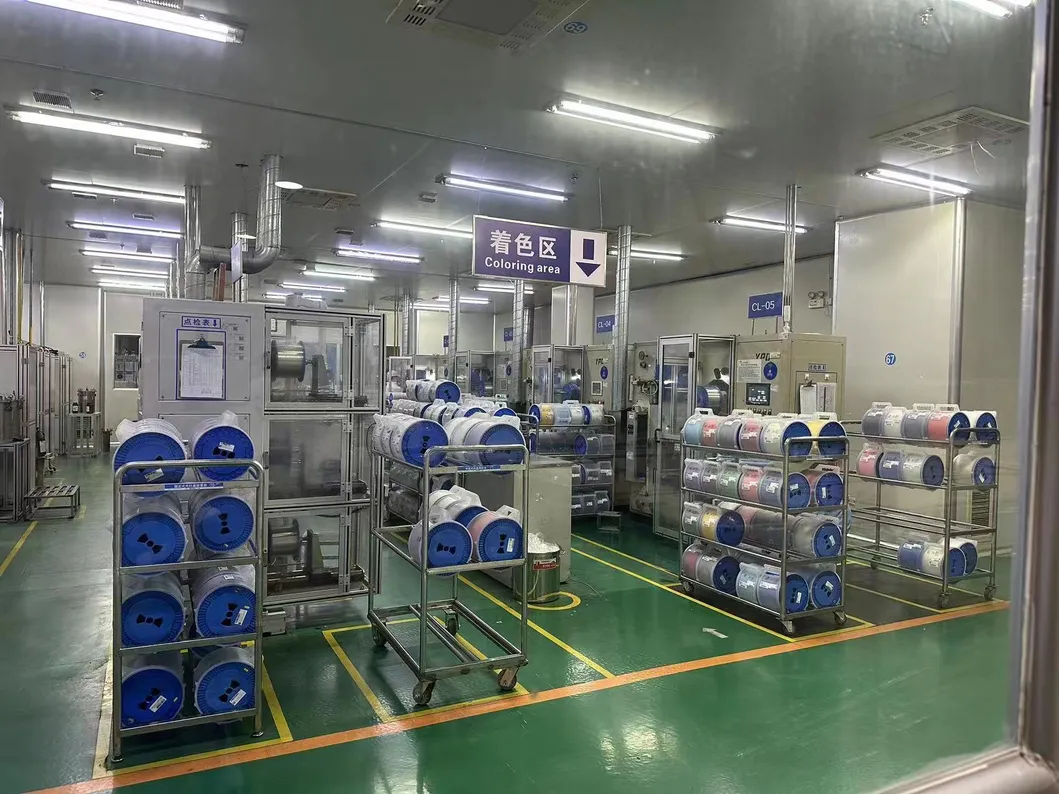

Fiber Cable View 10

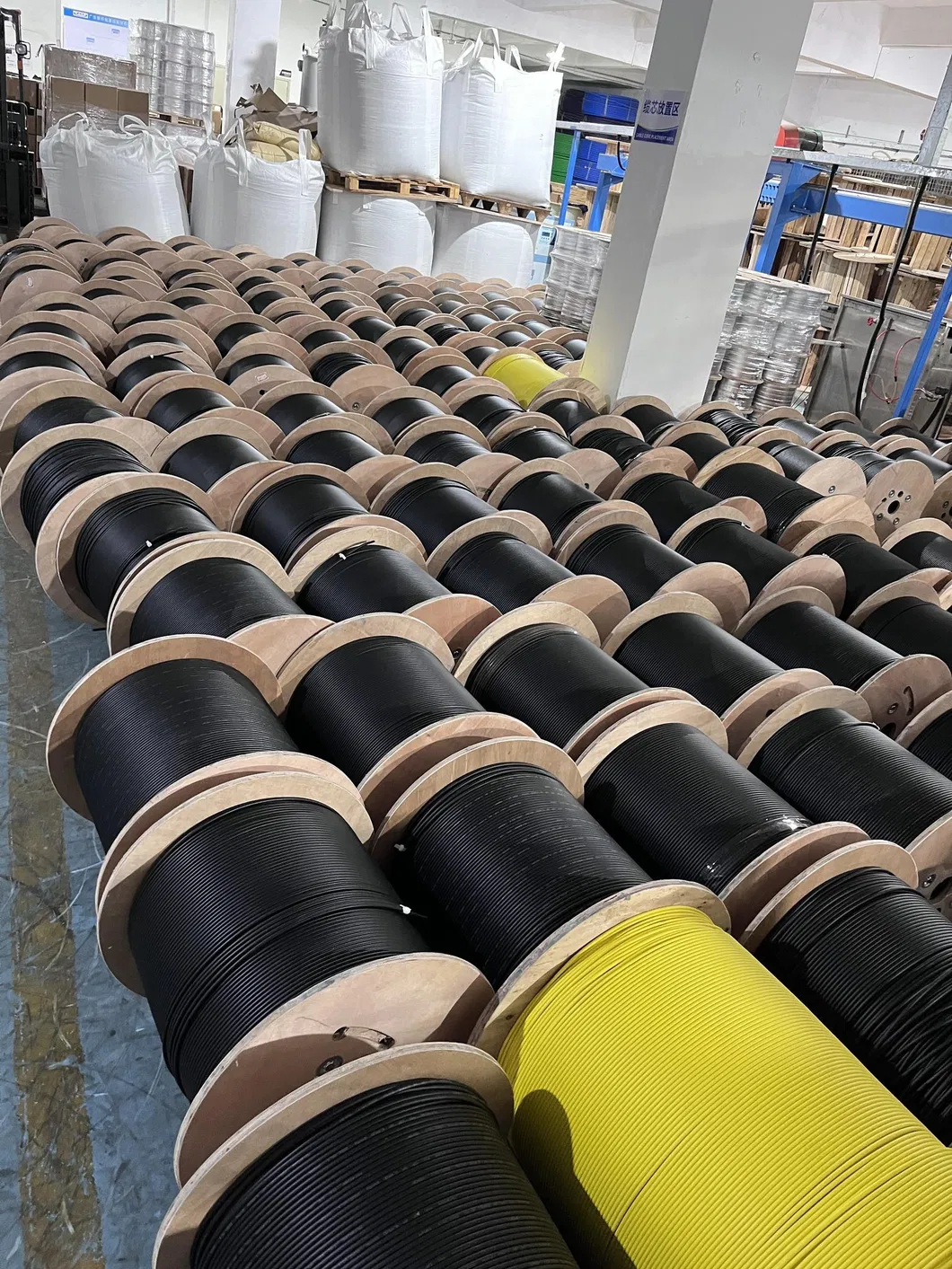

Fiber Cable View 11

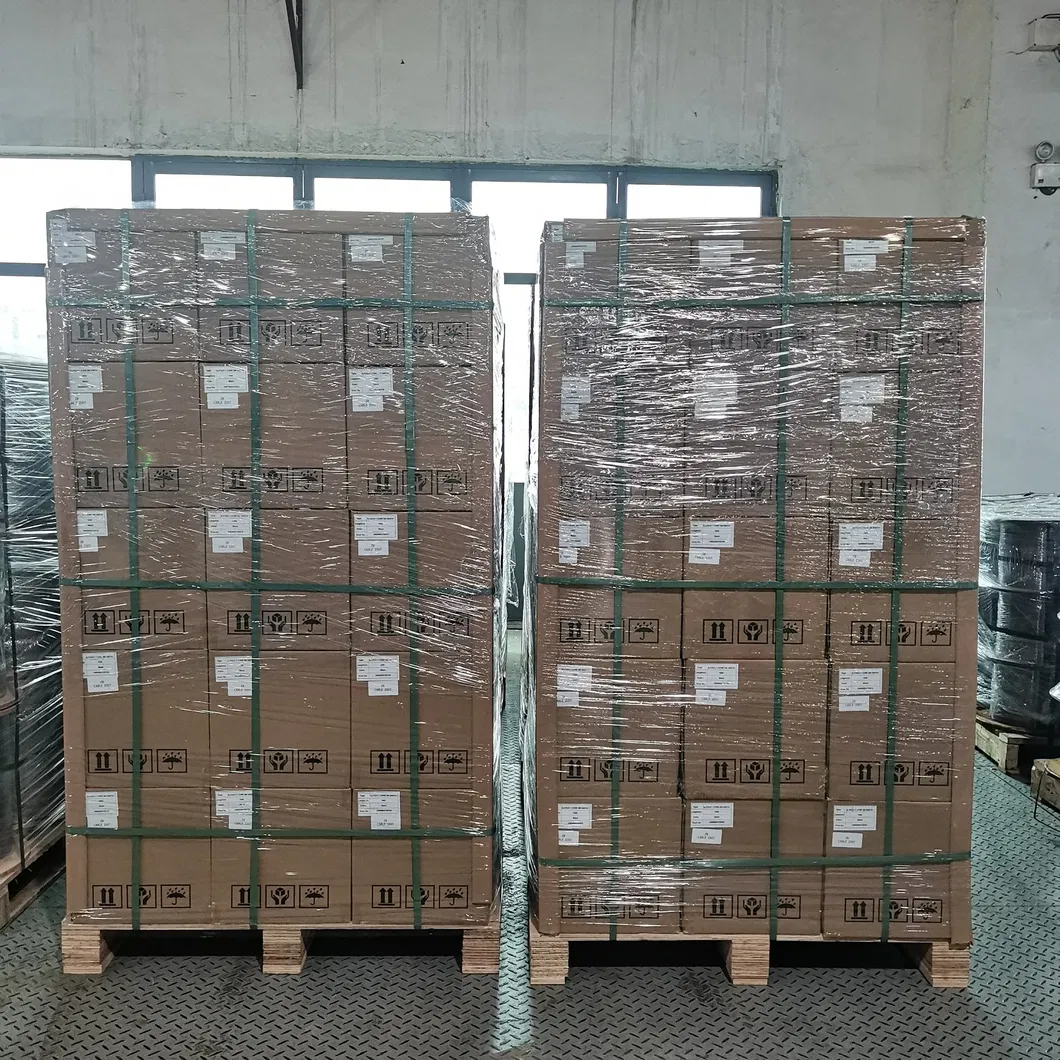

Fiber Cable View 12

Technical Parameters

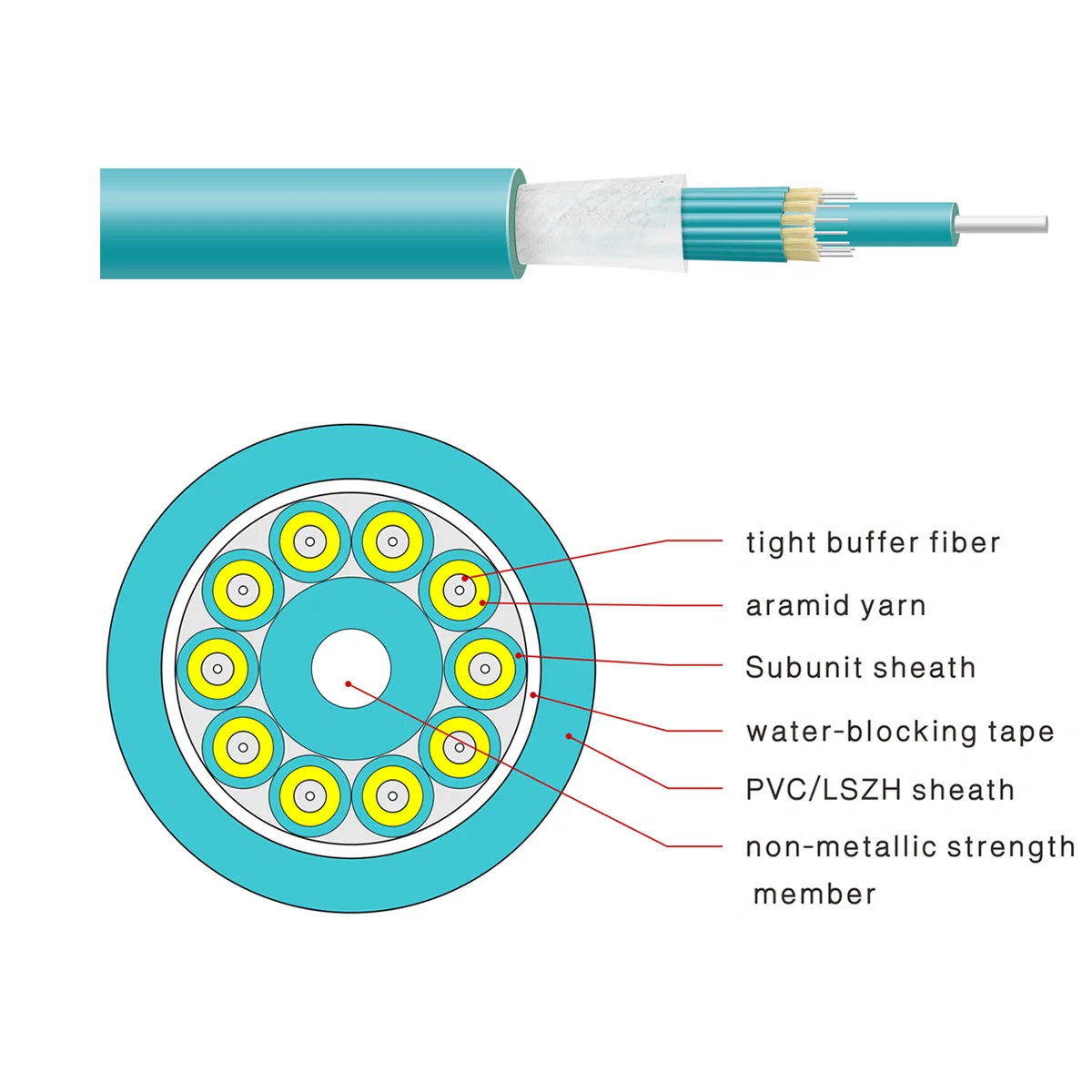

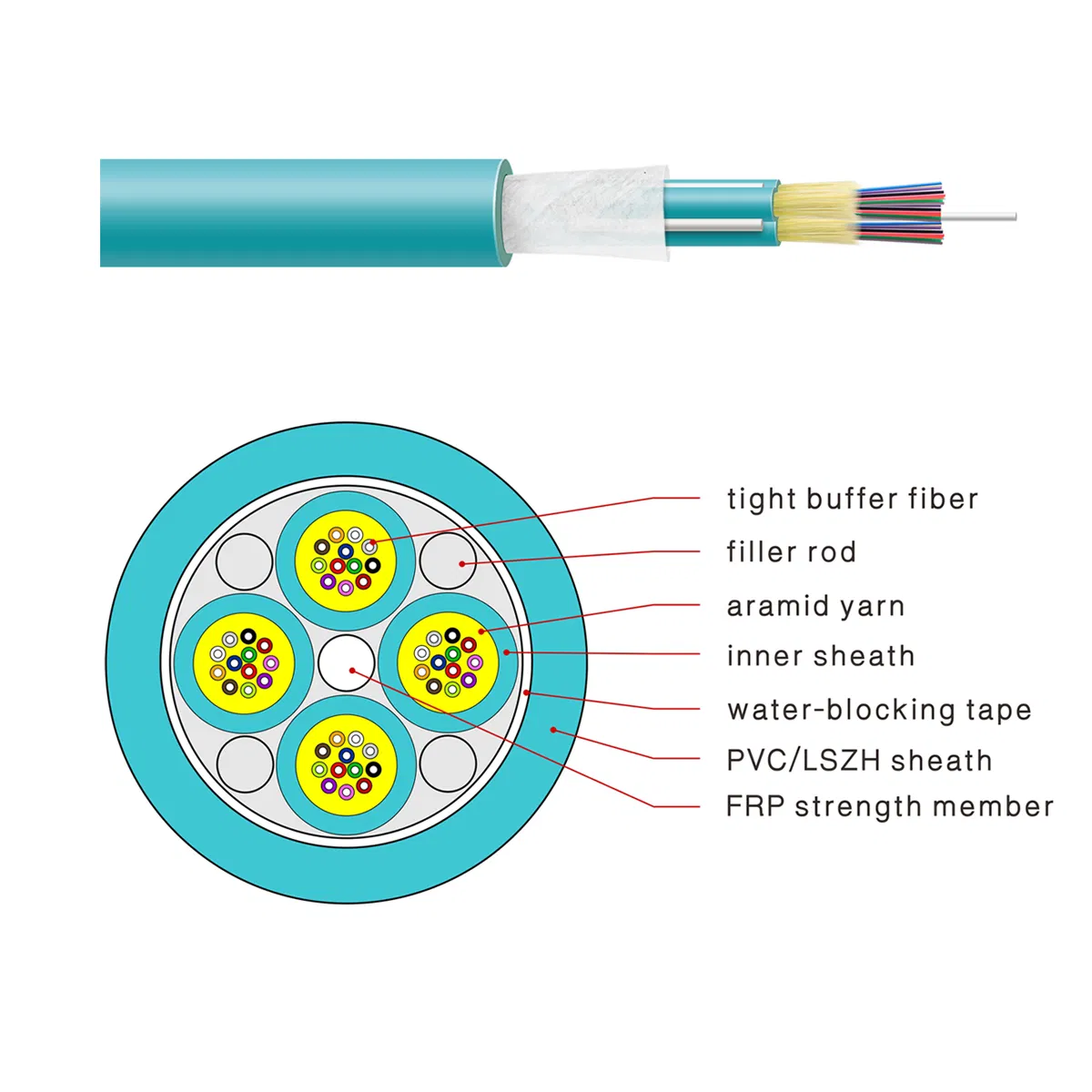

Cable Construction Details Mechanical Characteristics
Fiber Count 1 - 48 Cores Max Tensile (Short Term) 80N - 300N
Strength Member Aramid Yarn (Yellow) Max Crush (Short Term) 500 N/100mm
Tight Buffer Dia 0.6mm / 0.9mm Bending Radius (Static) 10D
Jacket Material PVC / LSZH Bending Radius (Dynamic) 20D
Operation Temp -20 ~ +60ºC Installation Temp -5 ~ +50ºC

Fiber Optical Characteristics

Fiber Type Attenuation (850/1300nm) Bandwidth (MHz.km) 10Gb/s Link (m)
OM1 (62.5/125)≤3.5 / 1.5 dB/km≥160 / 500-
OM2 (50/125)≤3.0 / 1.0 dB/km≥500 / 500-
OM3-150≤3.0 / 1.0 dB/km≥700 / 500150m
OM3-300≤2.5 / 0.8 dB/km≥1500 / 500300m
OM4-550≤2.5 / 0.8 dB/km≥3500 / 500550m

Frequently Asked Questions

What are the main applications for this indoor optical cable?
This cable is specifically designed for indoor FTTH (Fiber to the Home) applications, building backbones, and distribution systems where flame retardancy and easy handling are required.
Can I choose different jacket materials for this cable?
Yes, we offer PVC and LSZH (Low Smoke Zero Halogen) jacket materials. LSZH is recommended for environments with strict fire safety and low-toxicity requirements.
What types of fiber cores are available?
We provide both Single Mode (G652D, G657A1, G657A2) and Multi Mode (OM1, OM2, OM3, OM4) fibers from top-tier brands like YOFC and Corning.
Why is aramid yarn used in the cable construction?
Aramid yarn acts as a strength member, providing excellent tensile strength and flexibility while keeping the cable lightweight and non-conductive.
What is the standard delivery length for orders?
The standard length is generally 2KM per wooden drum, but custom lengths can be negotiated based on your project requirements.
Is the cable protected against electromagnetic interference?
Yes, because the cable utilizes an all-dielectric structure (no metal components), it is completely immune to electromagnetic influence.
