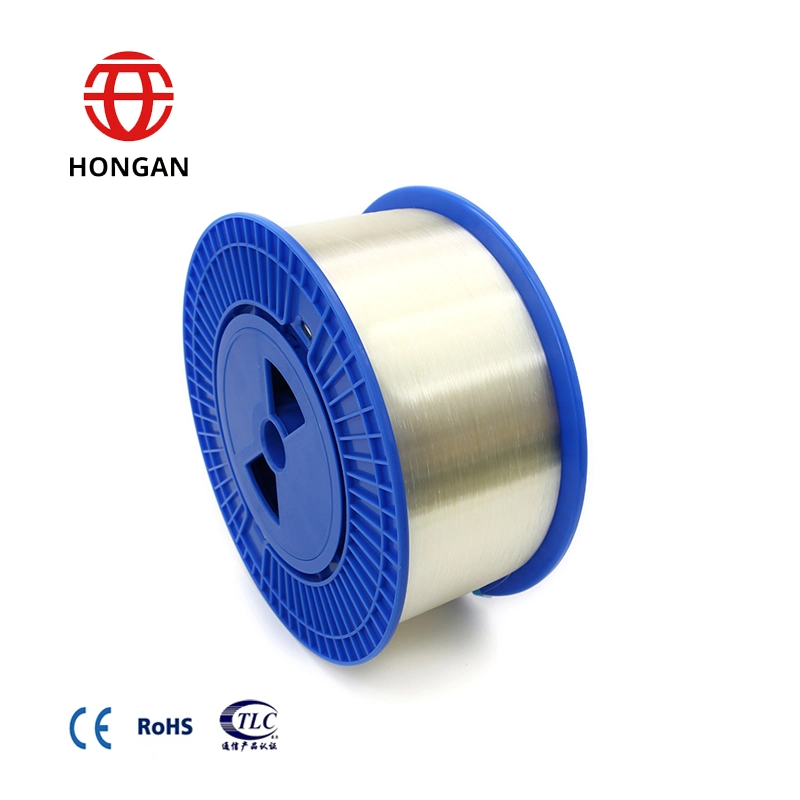

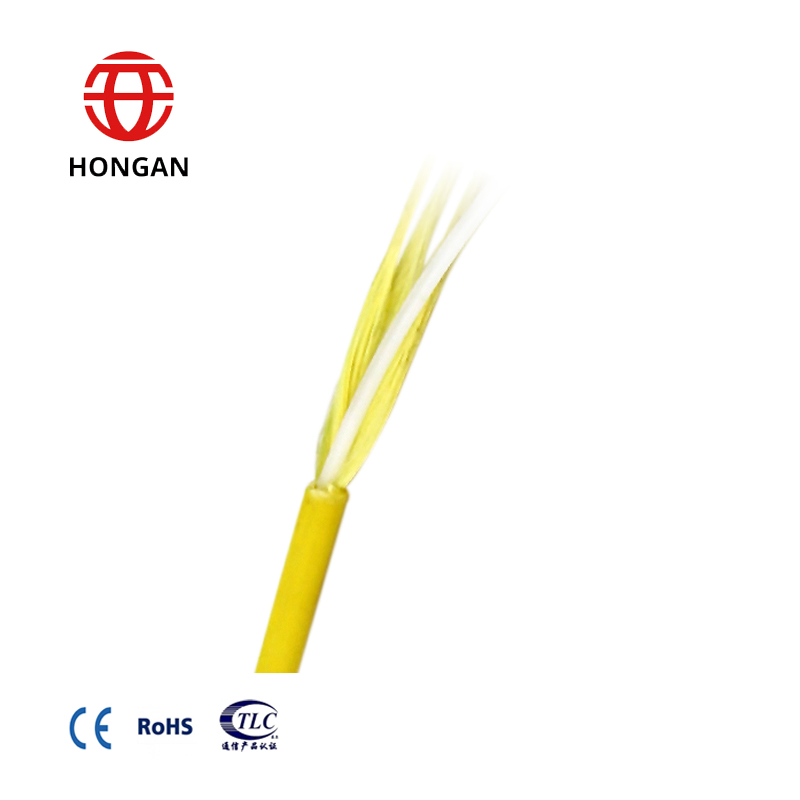

Indoor Multi-Core Round Tight Buffered Fiber Optic Cable

1 / 5

Indoor Multi-Core Round Tight Buffered Fiber Optic Cable

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

GJFJH

Connection Structure

Material Shape

Round Wire

Lateral Pressure

100(N/100mm) < 1000(N/100mm)

Tensile Strength

< 100N

Core Type

Multicore

Certification

RoHS, CE, ISO9001, VDE, CCC

Sheath Material

LSZH (Low Smoke Zero Halogen)

Environment

Environment Friendly

HS Code

8544700000

Production Capacity

5990km/Month

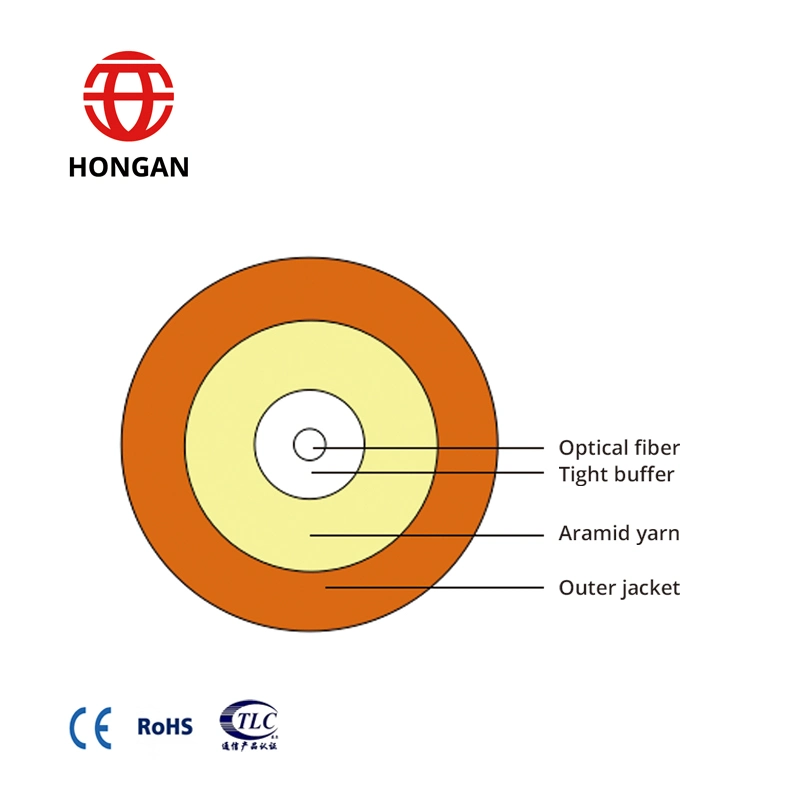

Product Description & Structure

Key Feature: Indoor Multi-Core Round Tight Buffered Fiber Optic Cable with LSZH protection.

Item		Parameters
Tight buffer fiber	Diameter	0.9±0.05mm
	Material	LSZH
	Number of cores	1
	Buffer color	White
	Fiber color	Natural color
Strength member	Material	Aramid yarn
Outer jacket	Diameter (mm)	1.9±0.1	2.9±0.1
	Thickness (mm)	0.35±0.05	0.45±0.05
	Material	LSZH
	Color Options	G.652/G.657: Yellow; OM1-OM4: Orange
Bending radius	Static	10 times cable diameter
Bending radius	Dynamic	20 times cable diameter

Technical Specifications

Item	Standard	Parameters
Operation temperature	IEC 60794-1-2 F1	0ºC~+50ºC

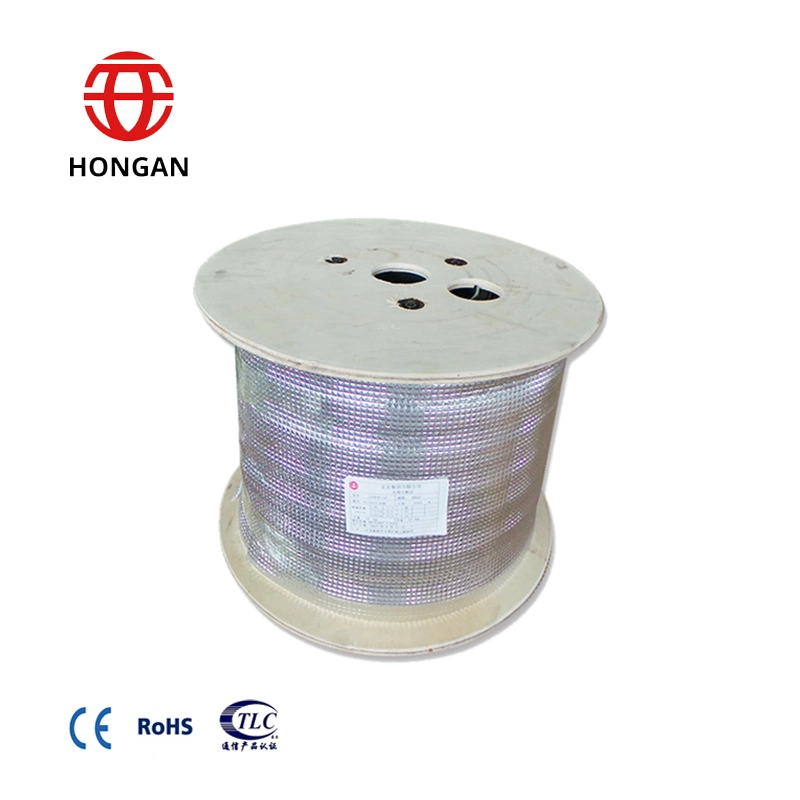

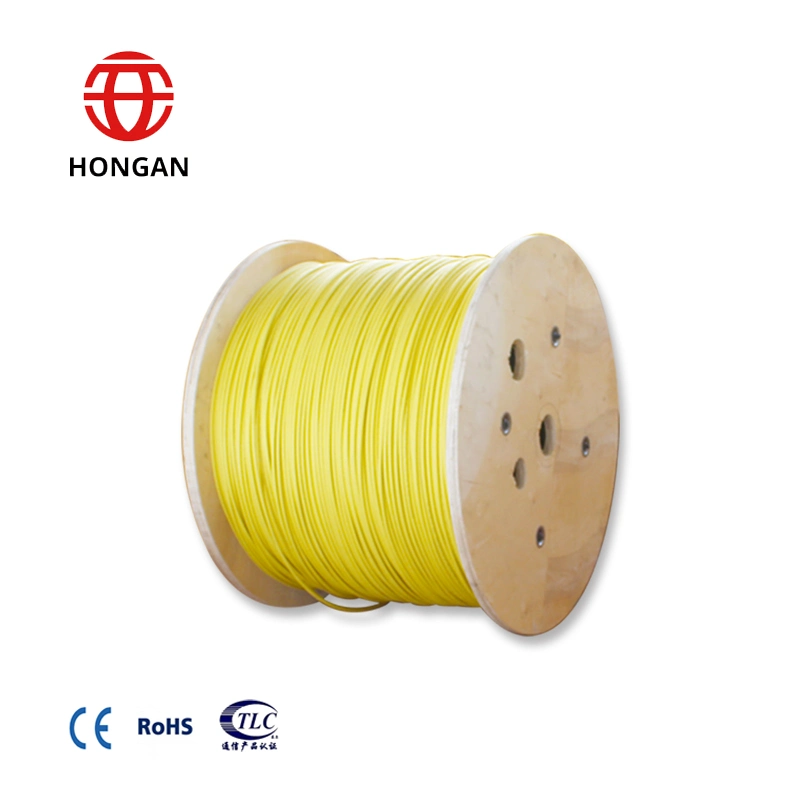

Packaging & Drum Info

Cable type	Height (mm)	Width (mm)	Inner (mm)	Length (km)	Drum type
GJFJH(2.0)	250	275	110	1	Plywood wood drum
GJFJH(3.0)	300	275	110	1	Plywood wood drum

Operating temperature: -40ºC~+60ºC

Installation temperature: -5ºC~+50ºC

Certifications

Frequently Asked Questions (FAQ)

What is the main application of the GJFJH cable?

The GJFJH is an indoor multi-core round tight-buffered fiber optic cable designed for high-performance data communication and network connections.

What materials are used for the outer jacket?

The cable uses LSZH (Low Smoke Zero Halogen) material for the outer jacket, making it environmentally friendly and safe for indoor installation.

What is the allowed tensile strength for this cable?

The cable is designed to withstand a short-term tensile performance of up to 100N.

How does the cable handle bending during installation?

The minimum bending radius is 10 times the cable diameter for static environments and 20 times the cable diameter for dynamic conditions.

Which fiber types are compatible with the jacket colors?

Typically, Yellow jackets are used for Single-mode fibers (G.652, G.657A1/A2), while Orange jackets are used for Multi-mode fibers (OM1, OM2, OM3, OM4).

What certifications does this fiber cable meet?

The product meets several international standards including RoHS, CE, ISO9001, VDE, and CCC requirements.
