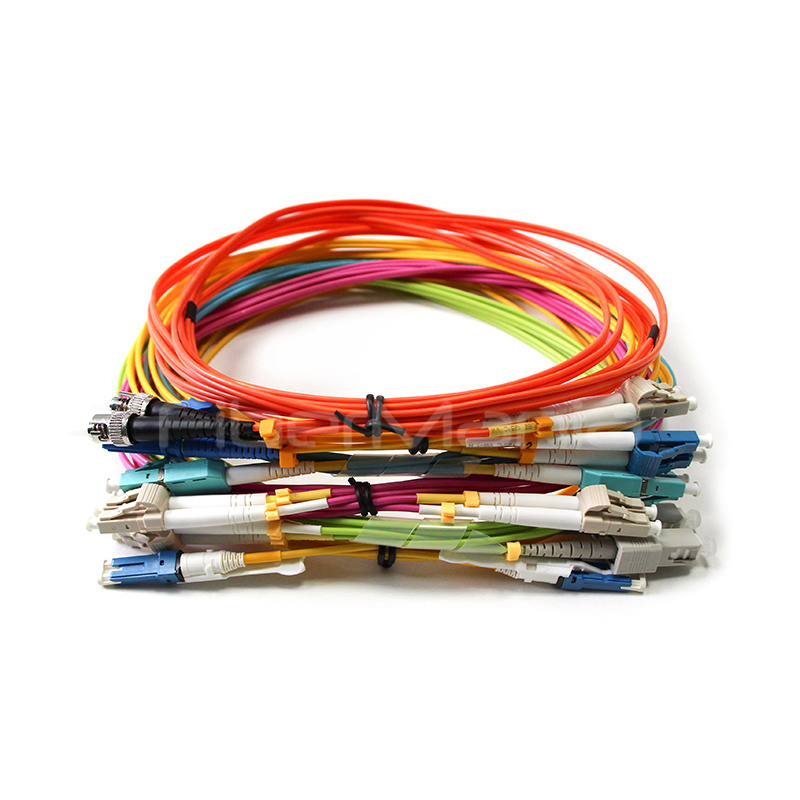

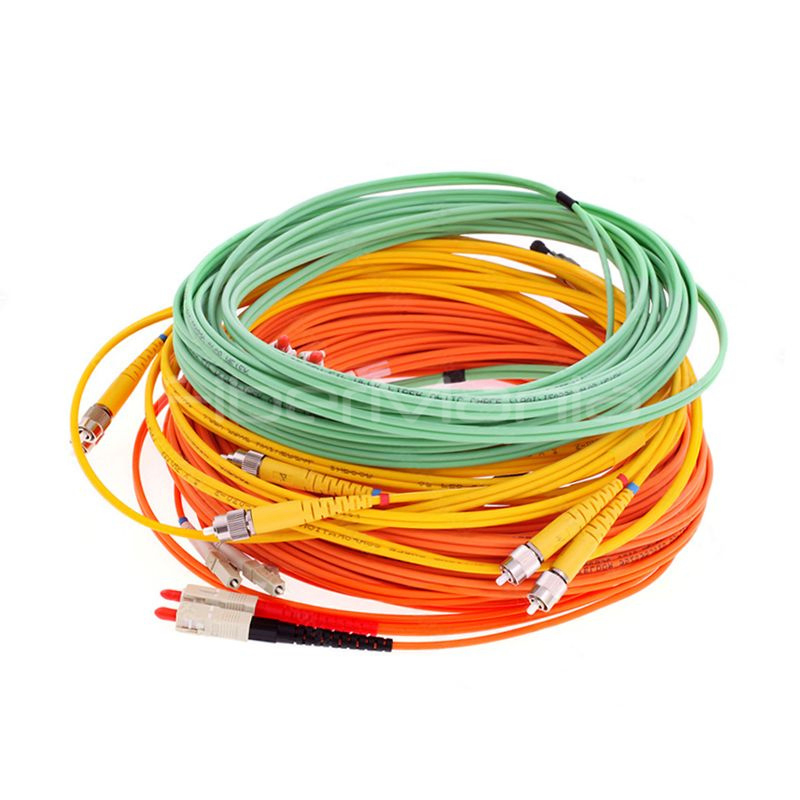

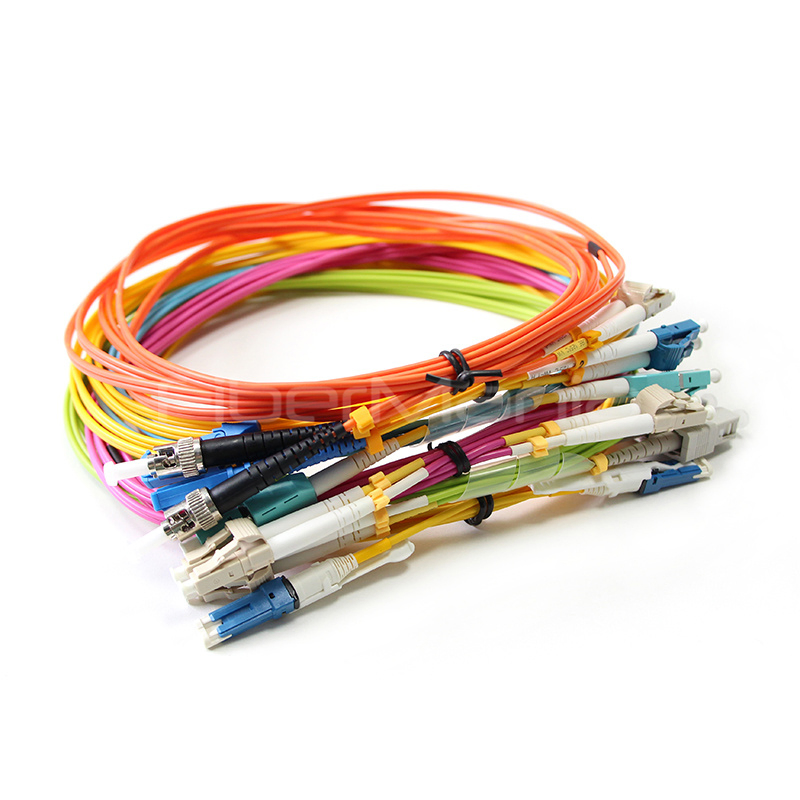

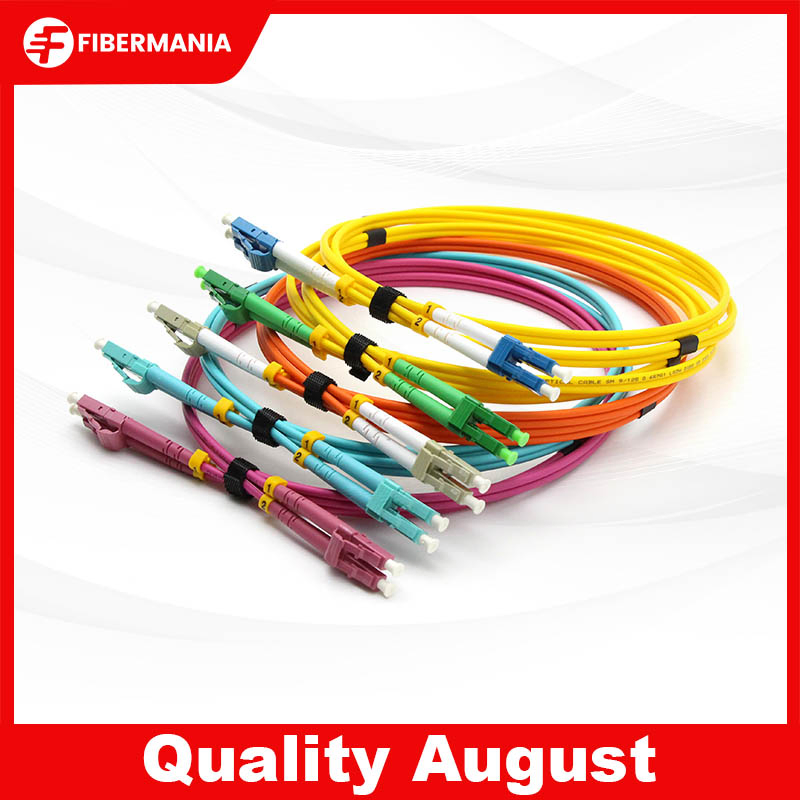

LC to SC Duplex OS2 Single Mode Armored Fiber Optic Patch Cable 9/125 LSZH Indoor for FTTH Data Center Telecom LAN Network Cabling

Customization:	Available
Application:	Communication
Type:	Single-mode, Multimode

ℹ️Basic Information

Model NO.

Fiber Optic Patch Cord

Connection Structure

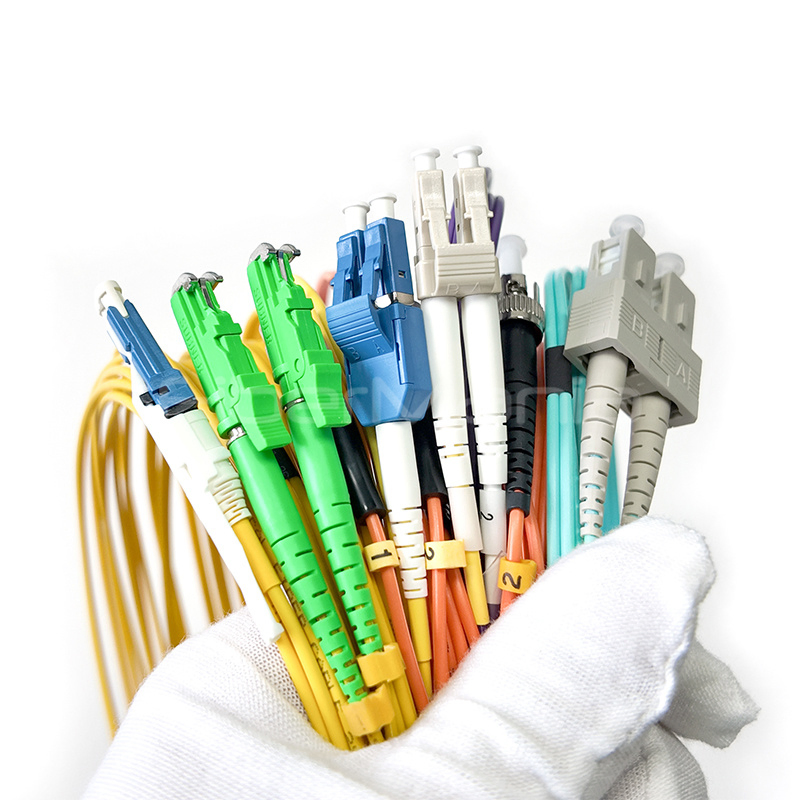

LC, SC, FC, ST, E2000, MTRJ, MPO, MTP, MU

Material Shape

Round Wire

Allowed Lateral Pressure

100-1000 (N/100mm)

Core

Double Core

Certification

RoHS, CE, ISO9001, VDE, CCC

Sheath Material

LSZH, PVC

Fiber Mode

OS2 9/125μm

Insertion Loss

≤0.3dB

Operating Temp

-10 to 70°C

📄Product Description

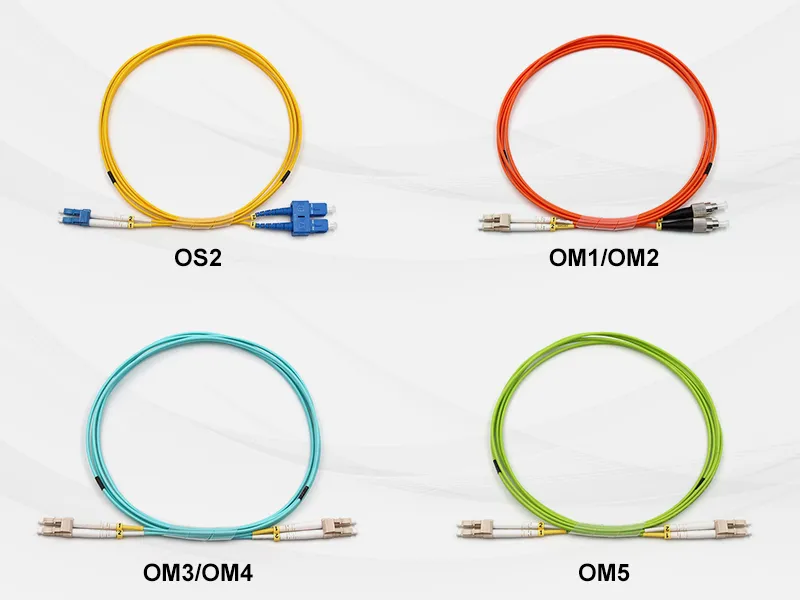

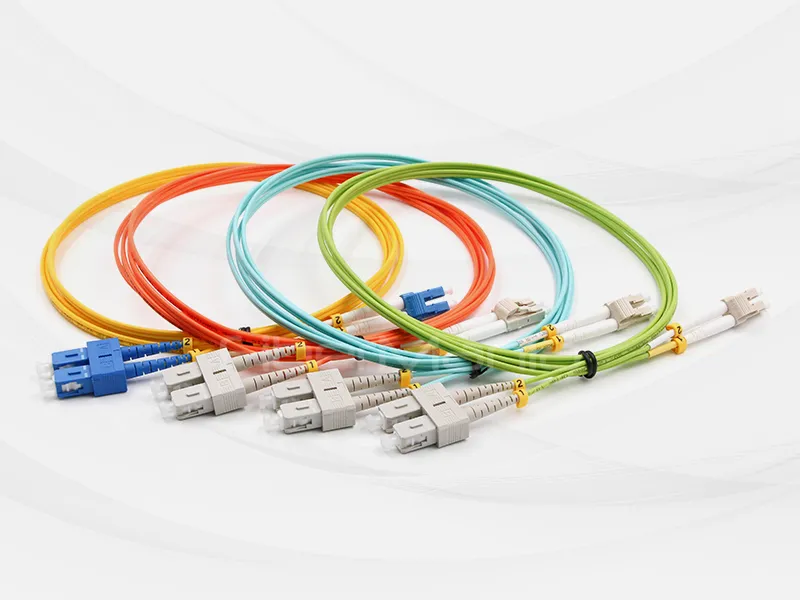

Factory LC/SC/FC/ST/MTRJ Patch Cord OS2/OM1/OM2/OM3/OM4/OM5 Indoor Armored
Fiber patch cables provide interconnect and cross-connect applications over data centers, telecommunication networks, and enterprise environments. Pre-terminated cables allow for the implementation of complete Plug & Play solutions to install even large cabling systems rapidly. This OS2 fiber patch cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections.

⚙️Key Features

Eliminates modal dispersion for ultra-long-distance transmission.
Minimal signal loss ensures high-quality signals over 10+ km.
Supports 10Gbps+ speeds for gigabit/terabit data transfer.
Standardized LC/SC/ST/FC with low insertion/return loss.
PVC/LSZH protection for indoor, outdoor, and industrial use.
Operates at 1310nm (low dispersion) and 1550nm (low loss).

🚀Applications

High-density server/switch connections for low-latency transfer.
Long-haul networks for intercity/international voice/data.
Reliable last-mile broadband delivery (FTTH).
Harsh-environment sensor/machinery connectivity.
Long-distance HD video transmission for security networks.
Low-latency data transfer in medical imaging equipment.

📊Technical Specifications

Category	Parameter	Specification
Physical	Fiber Type	Single-mode (ITU-T G.652D/G.657A)
Physical	Core/Cladding	9μm (core) / 125μm (cladding)
Optical	Wavelengths	1310nm, 1550nm, 1625nm
Optical	Attenuation	≤0.35dB/km @ 1310nm; ≤0.25dB/km @ 1550nm
Optical	Return Loss	≥60dB (APC); ≥50dB (UPC)
Environmental	Temperature	-40°C to +85°C
Mechanical	Bend Radius	10x Cable Diameter (Dynamic)

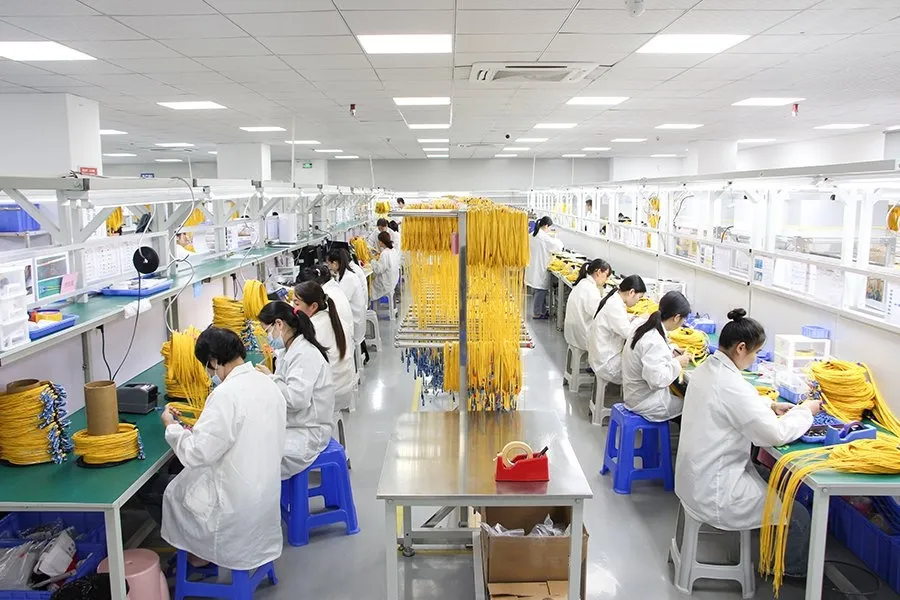

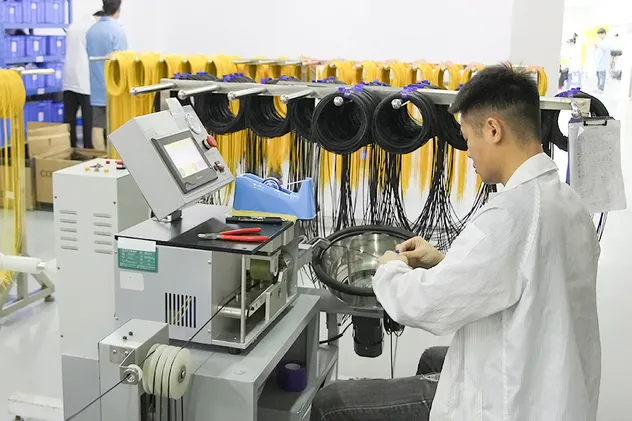

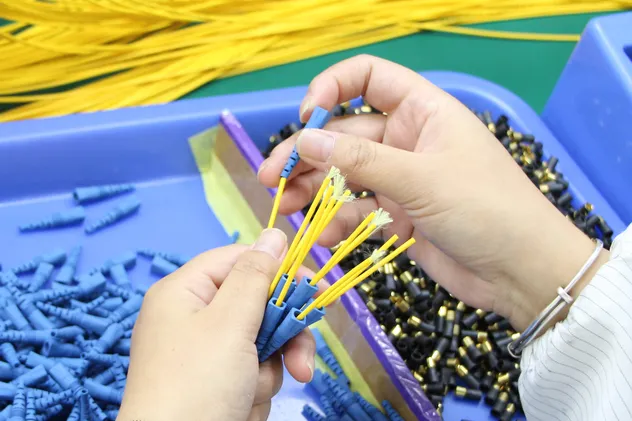

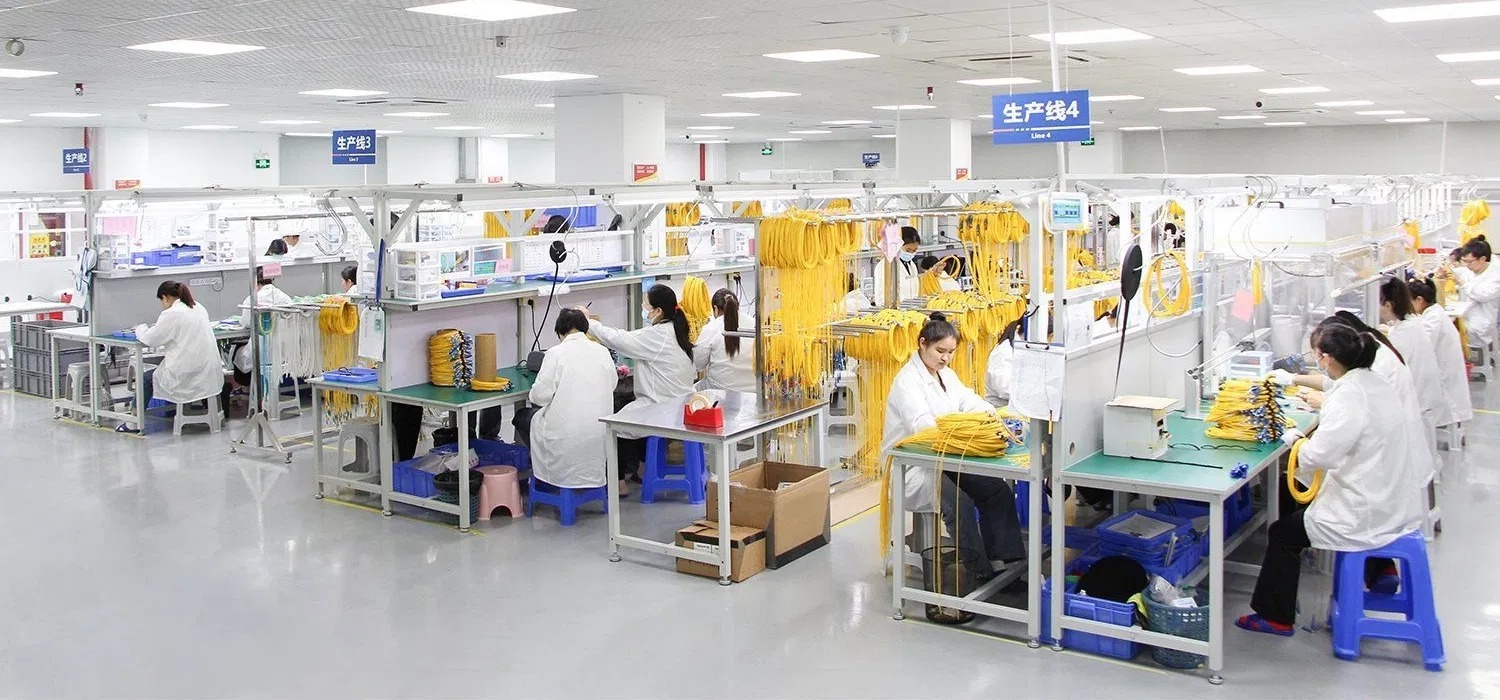

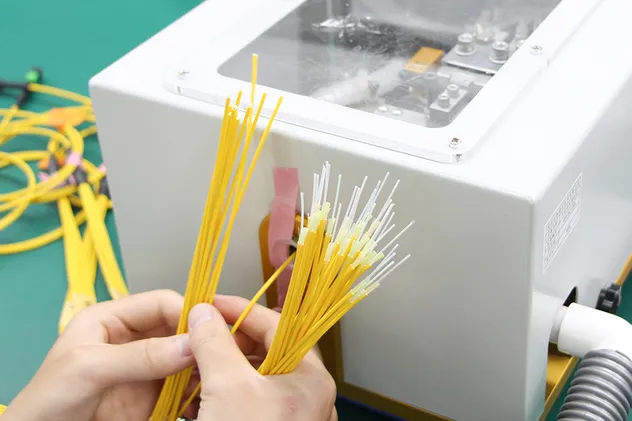

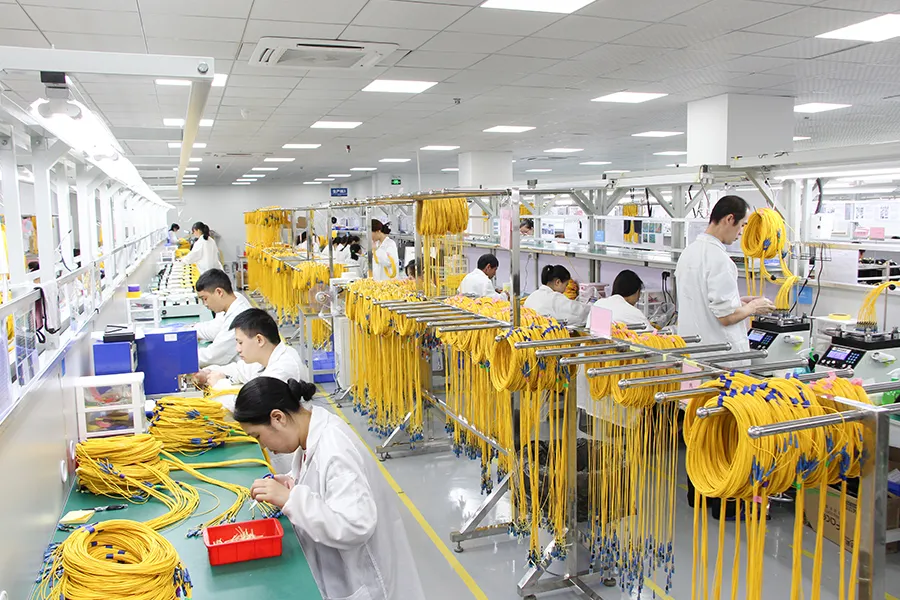

🏭Workshop & Production

📜Certifications & Shipping

❓Frequently Asked Questions

What is the warranty for your fiber patch cords?

All fiber patch cords are warranted to be free from defects in material and workmanship for five (5) years. Every cable is 100% tested and UL profiled.

Can I customize the brand information on the cable jacket?

Yes, brand name printing is available on the cable jacket, typically requiring a minimum total cable length of 1KM.

Do you perform 3D interferometer testing?

Yes, we conduct 3D tests upon request, maintaining a pass rate of over 90%, and up to 100% if specifically required for high-precision projects.

What is the Minimum Order Quantity (MOQ)?

Standard products have a very low MOQ. Special customized cables may require a 1km minimum for the bulk cable production.

Are free samples available for testing?

Yes, we offer free samples for customer projects where the total sample value is under 50 US dollars.

What fiber modes and connectors are supported?

We support a full range of modes (OS2, OM1-OM5) and connectors including LC, SC, FC, ST, MTRJ, MPO, and MTP for various network environments.
