| Model NO. | LCSC-SM022RYL | Connection Structure | LC-SC |
| Material Shape | Round Wire | Core | Double Core |
| Certification | RoHS, CE, ISO9001, VDE, CCC | Connector Type | LC UPC to SC UPC |
| Fiber Mode | OS2 9/125μm | Fiber Grade | G652D/G.657.A1 |
| Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
| Operating Temp. | -10 to 70°C | Production Capacity | 800,000 Connections/Month |

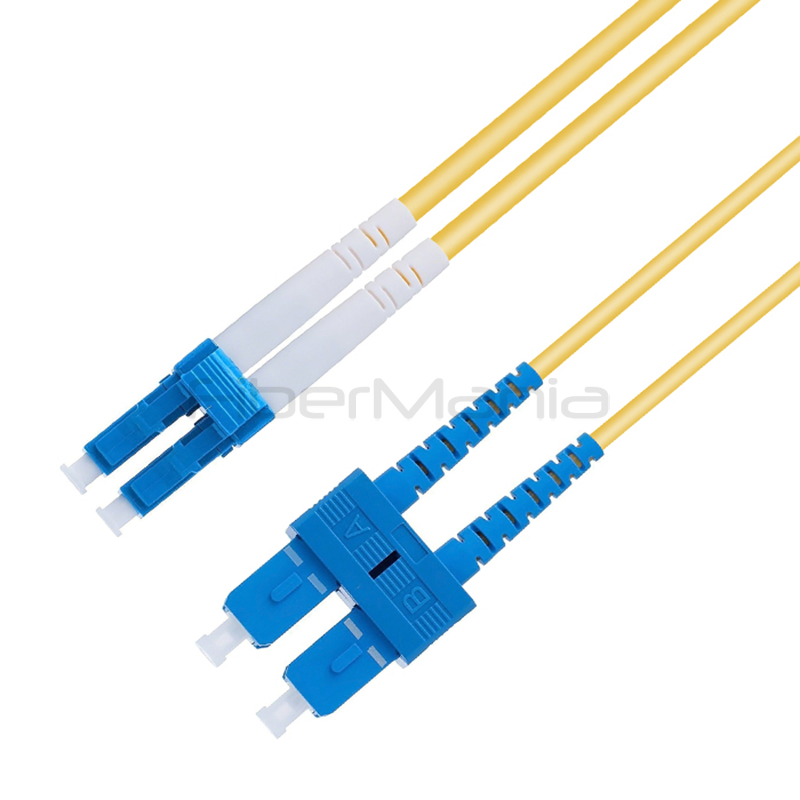

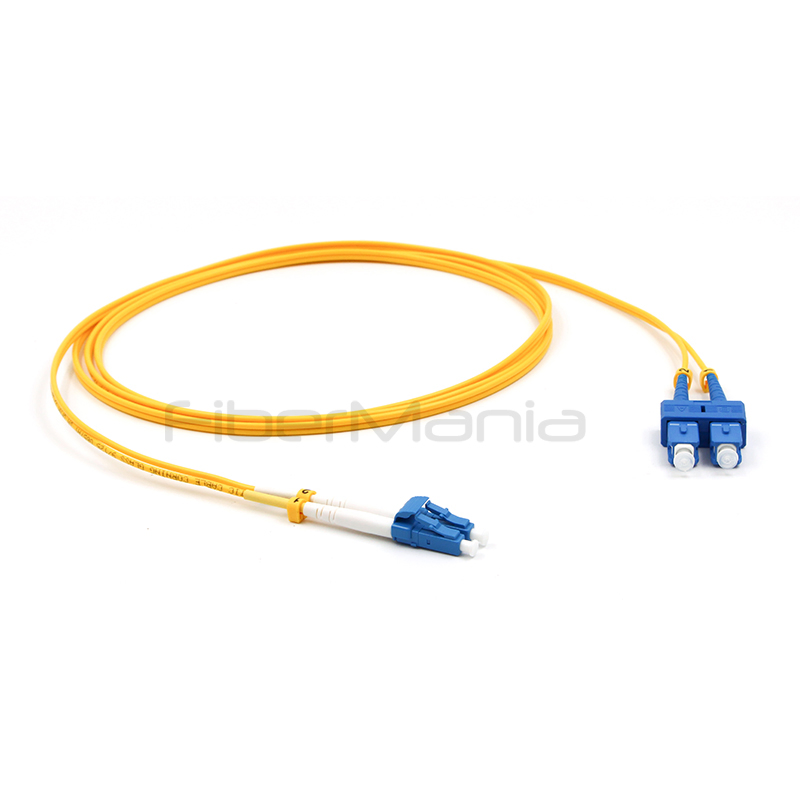

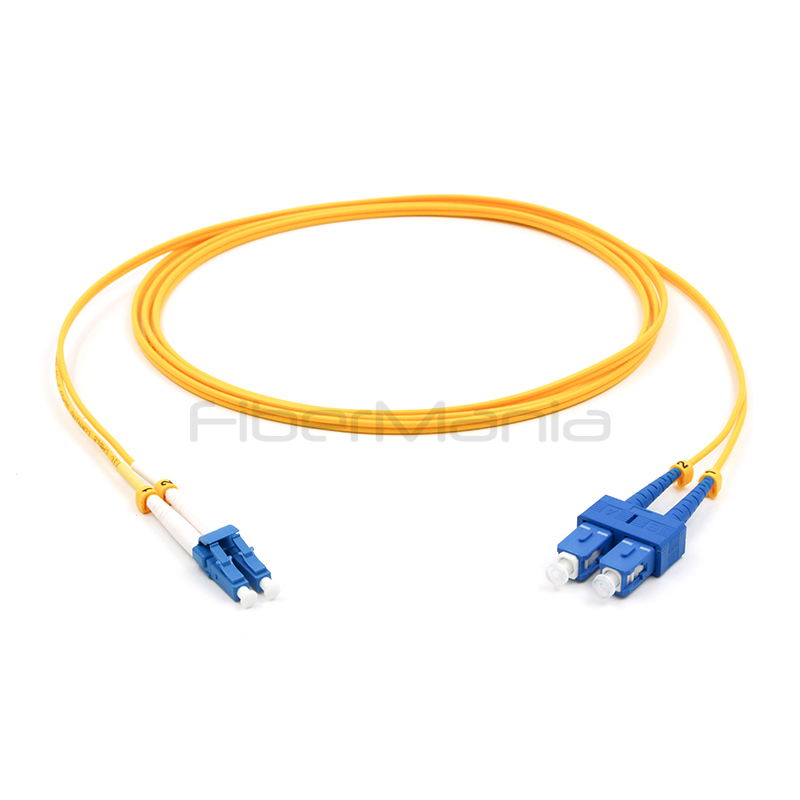

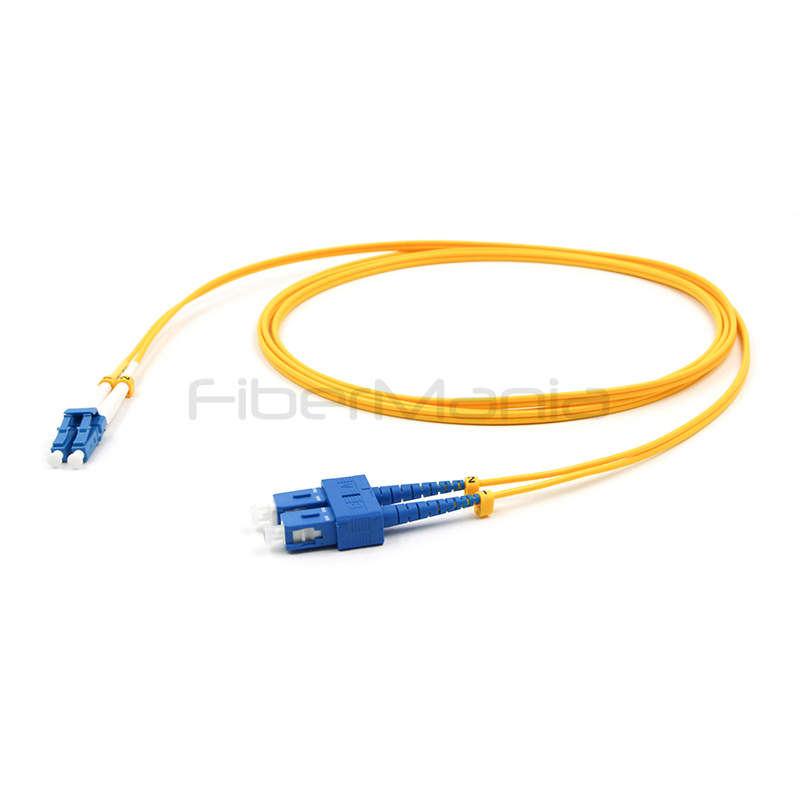

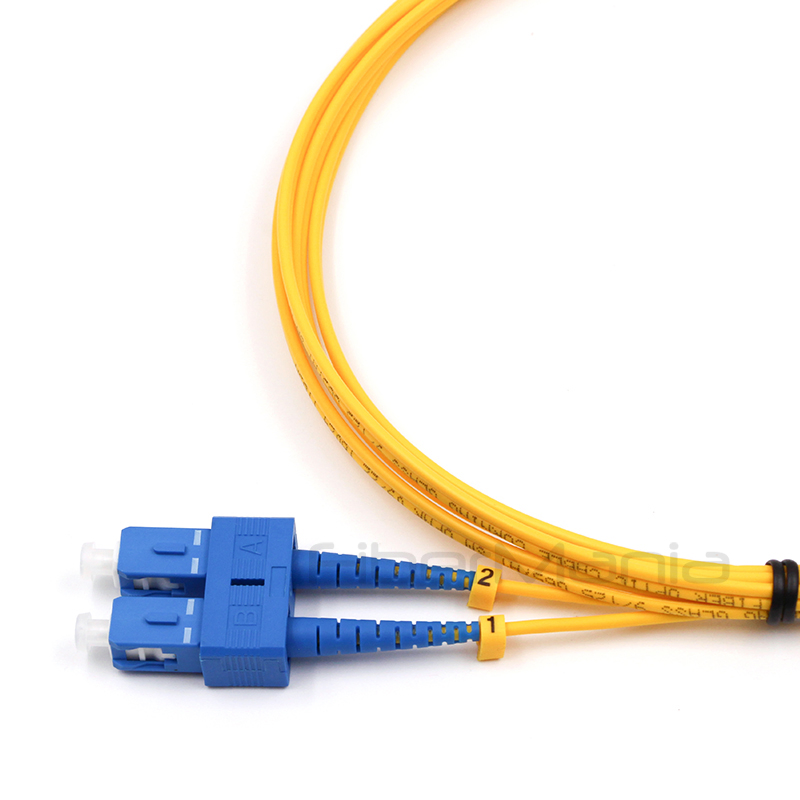

LC UPC to SC UPC Duplex OS2 Single Mode OFNR Yellow Fiber Optic Patch Cable
A single-mode fiber patch cord enables high-speed, long-distance data transmission with a 9μm core allowing one light mode, minimizing modal dispersion. Its ultra-pure silica core ensures low signal loss (0.35dB/km at 1310nm, 0.25dB/km at 1550nm), critical for long-haul connectivity.
| Category | Parameter | Specification |
|---|---|---|
| Physical | Fiber Type | Single-mode (ITU-T G.652D/G.657A) |
| Core/Cladding | 9μm / 125μm | |
| Jacket Diameter | 0.9mm, 2.0mm, 3.0mm (Customizable) | |
| Optical | Wavelengths | 1310nm, 1550nm, 1625nm |
| Insertion Loss | ≤0.3dB (Typical), ≤0.5dB (Max) | |
| Return Loss | ≥60dB (APC); ≥50dB (UPC) | |
| Mechanical | Bend Radius | 10x Diameter (Dynamic); 5x Diameter (Static) |
| Durability | ≥1000 Mating Cycles |
Fiber optic patch cords are essential for ensuring high-quality signal integrity in local, data, and image transmission networks. They are widely used in CATV systems, data networks to prevent latency, and broadcasting networks for high-definition video. Advanced photoelectric systems also utilize these cables for automated industrial processes and real-time adjustments.

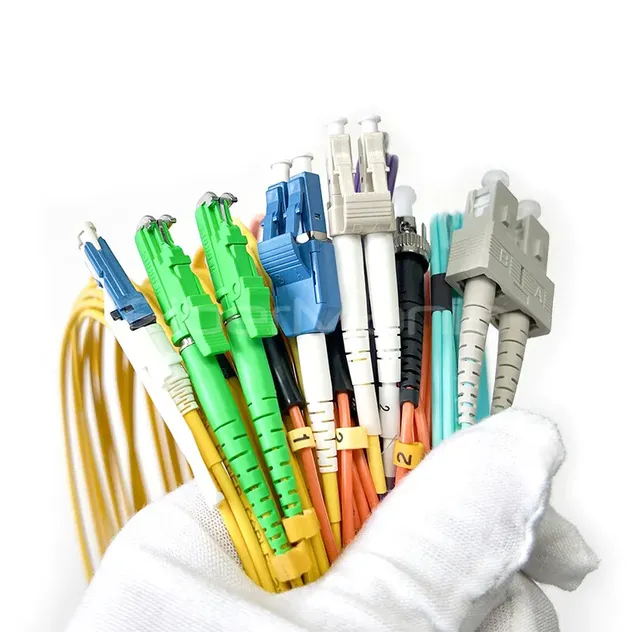

Fiber Optic Cables

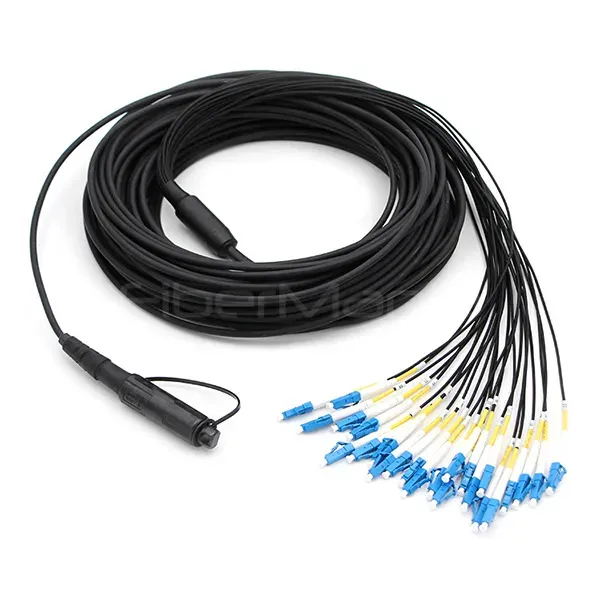

FTTA Solutions

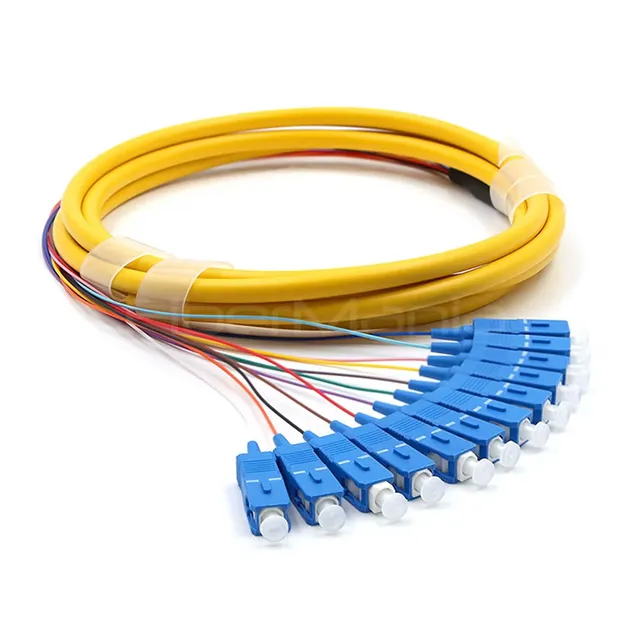

MPO/MTP Solutions
