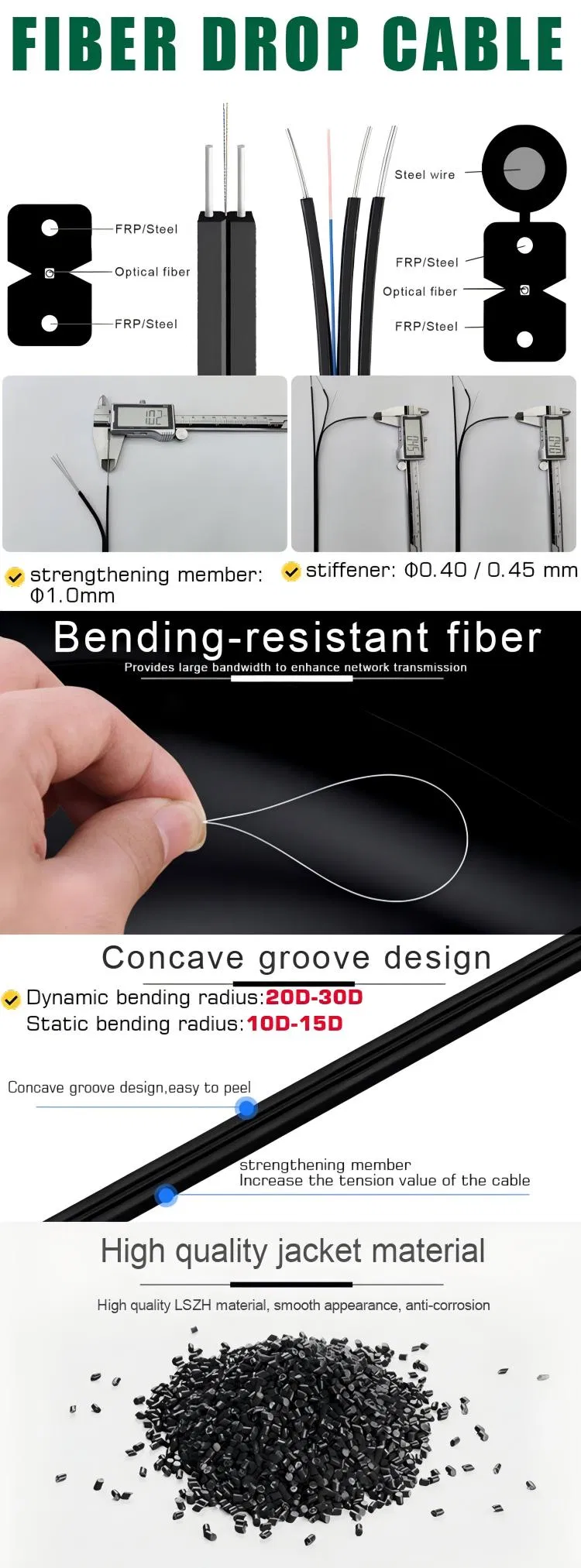

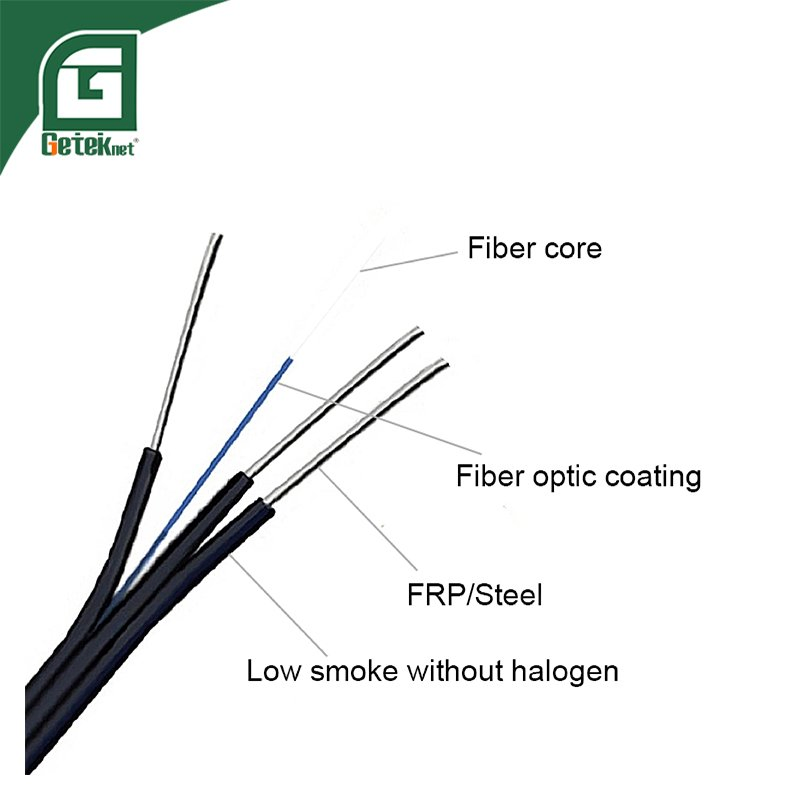

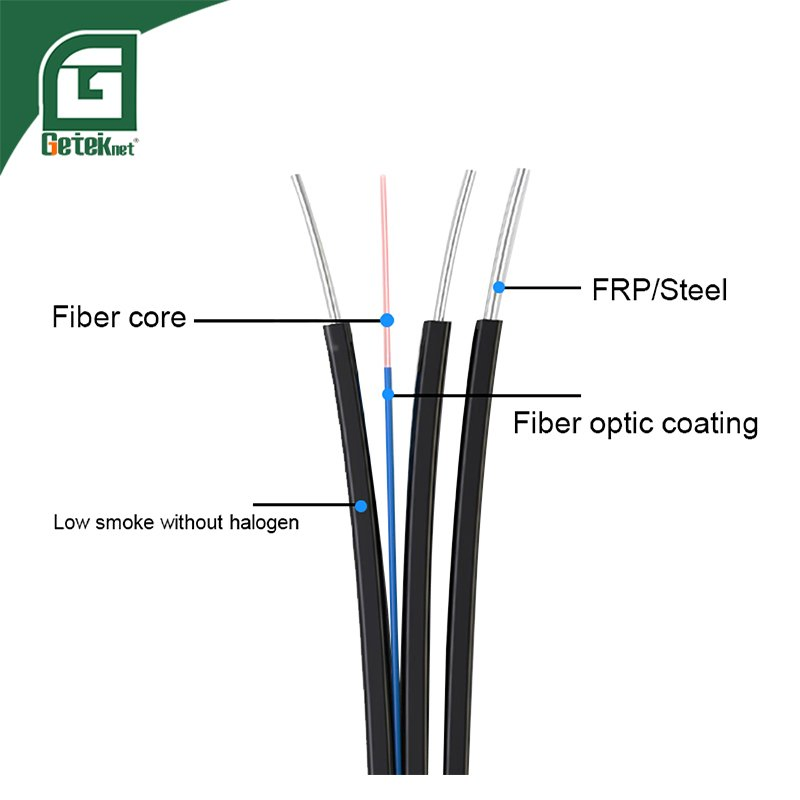

The standard structure of cable is shown in the following tables. We provide high-quality fiber optic and copper cabling solution products designed for network infrastructure systems. Our products ensure a stable and ideal high-performance overall link result.
| SN | Item | Unit | Value |
|---|---|---|---|
| 1 | No. of fibers | count | 1-8 |
| 2 | Strengthening wire (FRP/steel) size | mm | 1.0 |
| 3 | FRP / Steel wire size | mm | 0.5 / 0.45 / 0.40 |
| 4 | Sheath material | - | LSZH |
| 5 | Cable diameter | mm | 2.0*3.0 or 2.0*5.0 |
| 6 | Cable weight | kg/km | 10-19 |
| 7 | Crush resistance(N/100mm) | Long/Short | 1000/2200 |
| 8 | Tensile strength(N) | Long/Short | 300/600 |
| Characteristic of Optical Cable - Min. bending radius | ||||
|---|---|---|---|---|
| Min. bending radius | G. 652D | G. 657A1 | G. 657A2 | G. 657B3 |
| Static | 15 D | 10 D | 10 D | 7.5 D |
| Dynamic | 30 D | 20 D | 20 D | 15 D |
Our team specializes in designing and manufacturing high-quality fiber optic and copper cabling solutions. Through over 14 years of industry experience, we have built deep collaborations with leading partners to offer a complete one-stop supply chain for network infrastructure including fiber optic cables, ethernet cables, patch cords, distribution boxes, and server rack cabinets.

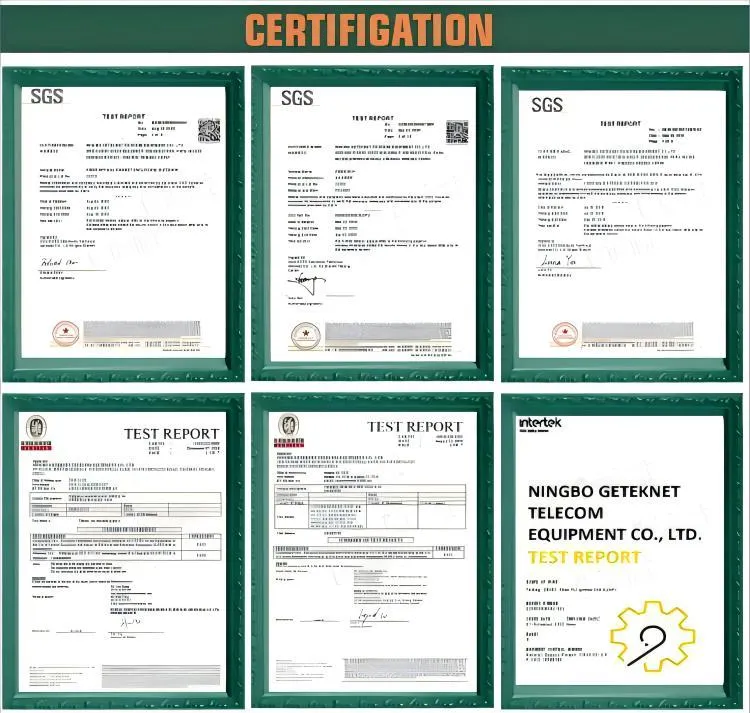

Our products are tested by authoritative labs such as Intertek, SGS, and UL, and manufactured under ISO 9001 quality management systems to ensure compliance with international standards.
