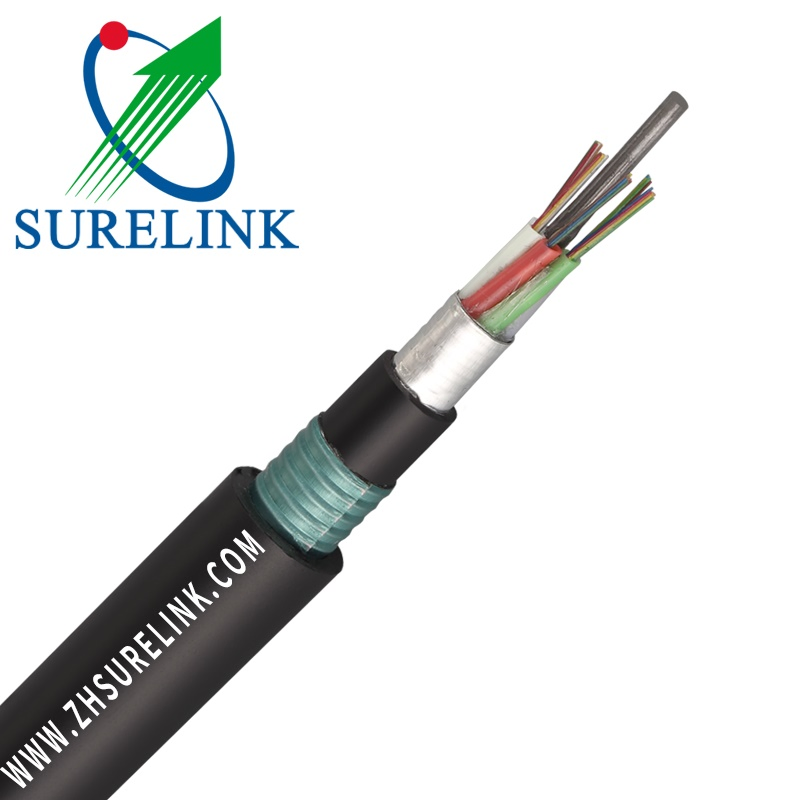

Underground Direct Burial Steel Tape Armoured and Double Sheathed Optic Fiber Cable GYTA53
Underground Direct Burial Steel Tape Armoured and Double Sheathed Optic Fiber Cable GYTA53
Underground Direct Burial Steel Tape Armoured and Double Sheathed Optic Fiber Cable GYTA53
Underground Direct Burial Steel Tape Armoured and Double Sheathed Optic Fiber Cable GYTA53
Underground Direct Burial Steel Tape Armoured and Double Sheathed Optic Fiber Cable GYTA53
1 / 5
Underground Direct Burial Steel Tape Armoured and Double Sheathed Optic Fiber Cable GYTA53
Underground Direct Burial Steel Tape Armoured and Double Sheathed Optic Fiber Cable GYTA53
Underground Direct Burial Steel Tape Armoured and Double Sheathed Optic Fiber Cable GYTA53
Underground Direct Burial Steel Tape Armoured and Double Sheathed Optic Fiber Cable GYTA53
Underground Direct Burial Steel Tape Armoured and Double Sheathed Optic Fiber Cable GYTA53

Underground Direct Burial Steel Tape Armoured and Double Sheathed Optic Fiber Cable GYTA53

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
GYTA53
Connection Structure
SC
Material Shape
Round Wire
Lateral Pressure
>1000(N/100mm)
Tensile Strength
1000N - 10000N
Core
Multicore
Certification
RoHS, CE, ISO9001, VDE, CCC, Anatel
Sheath Material
PE
Fiber Mode
Single Mode and Multi Mode
OEM
Available
Fiber Type
G652D
Loose Tube
PBT Material, SZ Stranded
Origin
China
Capacity
30000km/Month
📦 Product Description
Underground Direct Burial Steel Tape Armoured and Double Sheathed Optic Fiber Cable GYTA53
GYTA53 Fiber Optic Cable View 1
GYTA53 Fiber Optic Cable View 2
GYTA53 Fiber Optic Cable View 3
🔍 Cable Structure

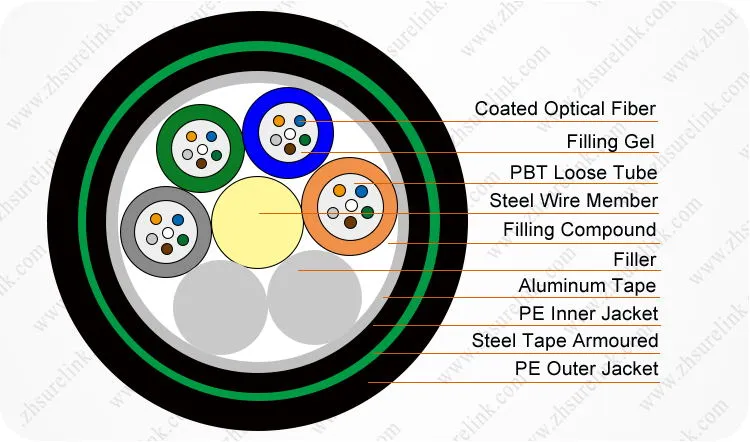

GYTA53 Cable Structure Diagram

Armored Loose Tube Double Jacket/Double Armor fiber optic cables are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including direct buried. With fiber counts up to 288 and S-Z strand designs.

🌟 Features

  • Loose tube gel-filled construction for superior fiber protection.
  • Double jacket single armored (GYTA53) for rodent protection.
  • UV and moisture-resistant design ideal for direct burial.

🚀 Applications

  • Direct buried and Underground conduits.
  • Backbone network installations.
📊 Structure and Technical Specifications
Fiber Count Nominal Diameter (mm) Nominal Weight (kg/km) Allowable Tensile Load (N) Crush Resistance (N/100mm)
Short Term Long Term Short Term Long Term
2~3013.21623000100030001000
32~4813.81753000100030001000
50~7214.62053000100030001000
74~9616.02303000100030001000
98~14417.62853000100030001000
⚙️ Optical Characteristics
Fiber typeG.652D(9/125)
Loose tubePBT Loose Tube
Attenuation @1310nm≤ 0.36 dB/km
Attenuation @1550nm≤ 0.22 dB/km
Temperature rangeTransport/Operating -40~+70°C
StandardsComplies with YD/T901-2001 and IEC60794-1
🔥 Related Models & Workshop

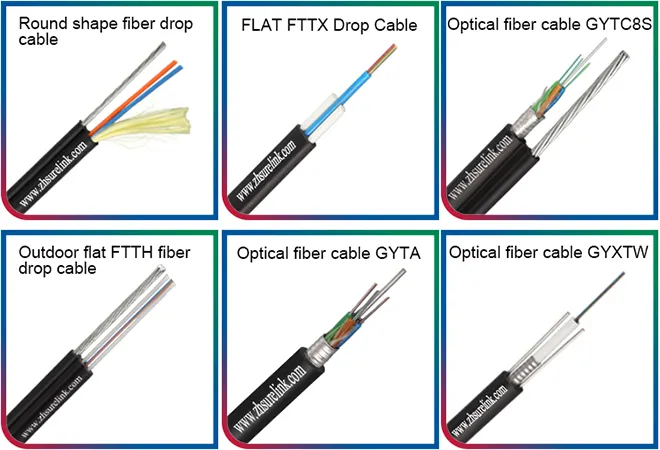

Related Model 1

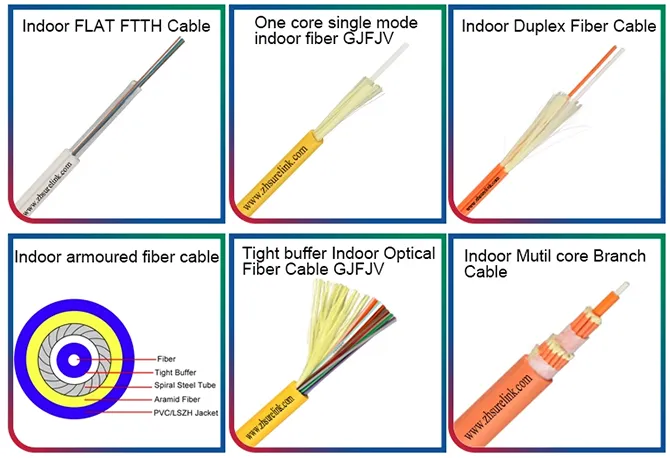

Related Model 2

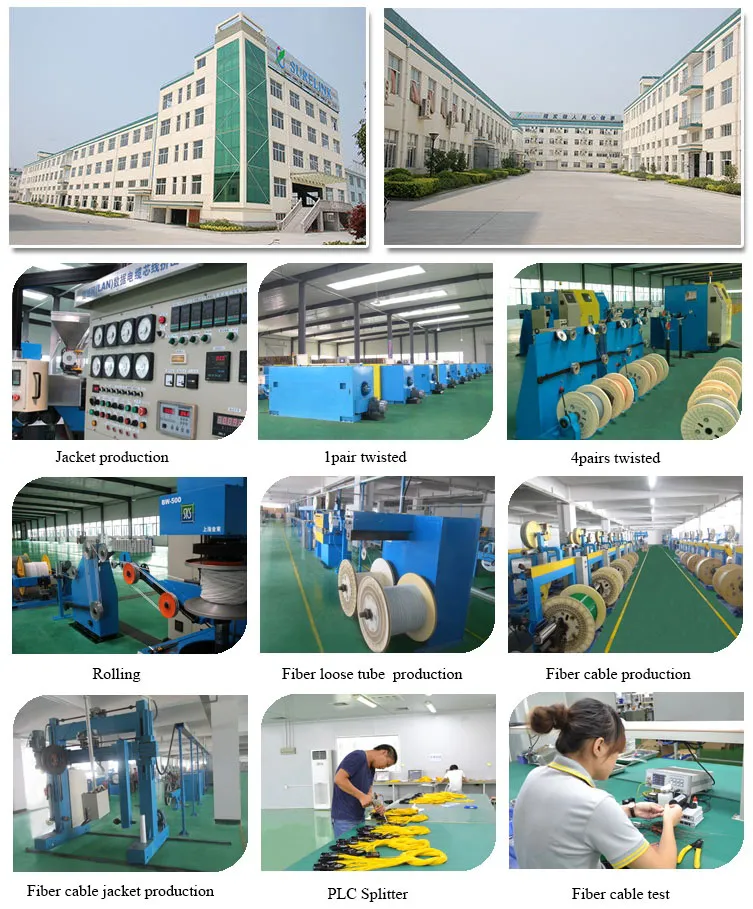

Workshop and Production Show
🚛 Package and Delivery
Packaging Details

Payment Terms: T/T (Deposit before production, balance upon shipment), Western Union, Escrow, Paypal, L/C.

Shipping Methods: Express (TNT, DHL, UPS, FEDEX, EMS) for small orders; Air or Sea freight for bulk orders.

Customer Support
❓ Frequently Asked Questions (FAQ)
What does the "53" in GYTA53 stand for?
The "53" indicates that the cable has a corrugated steel tape armor and a double PE outer sheath, making it suitable for direct burial.
Is this cable suitable for direct burial?
Yes, GYTA53 is specifically designed for underground direct burial applications thanks to its robust steel tape armoring and moisture-resistant double jackets.
What is the maximum fiber count available for GYTA53?
We provide standard counts up to 144 fibers, but custom requests for counts up to 288 fibers or more are available.
Can it withstand rodent damage?
Yes, the corrugated steel tape (CST) armor provides excellent protection against rodents and mechanical impact.
What are the storage and operating temperature ranges?
The cable is designed to operate and be stored in temperatures ranging from -40ºC to +70ºC.
Does this cable comply with international standards?
Yes, it fully complies with YD/T901-2001 and IEC60794-1 standards.
