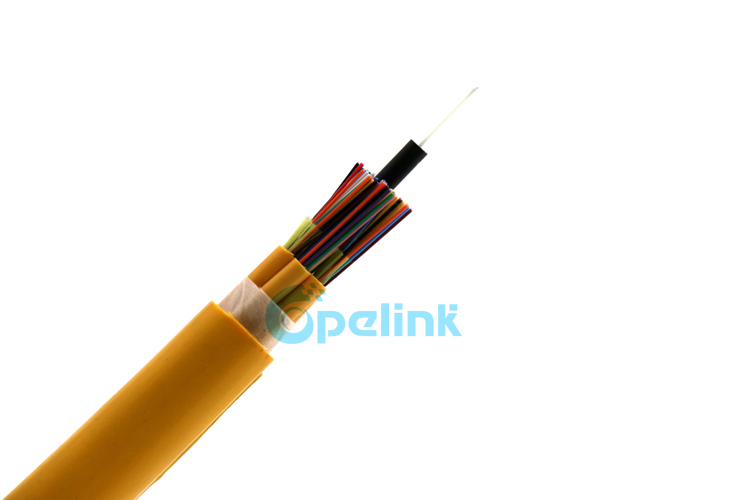

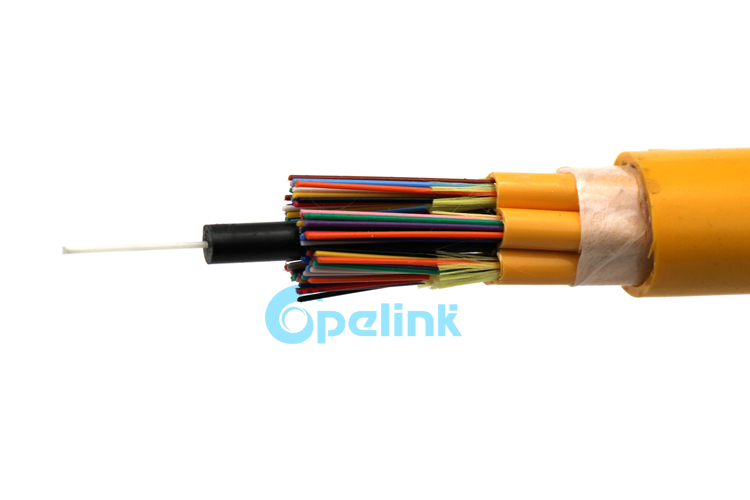

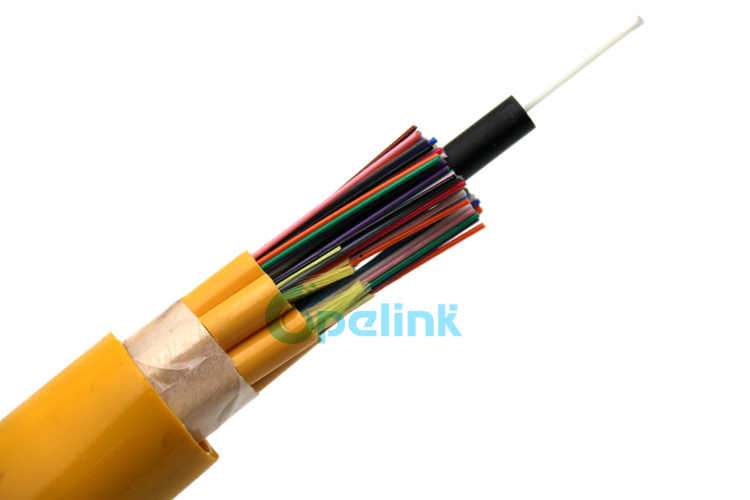

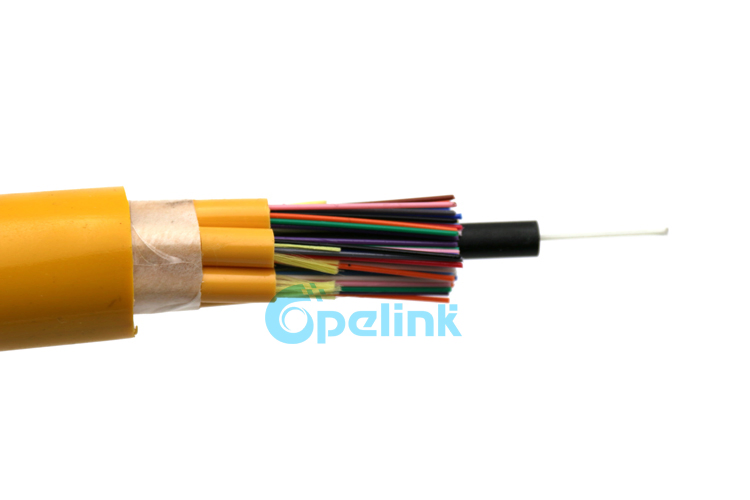

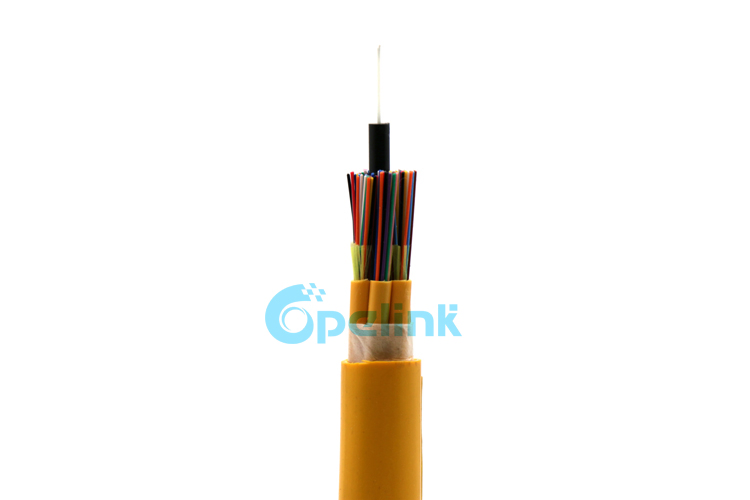

Optical Fiber 8 Fibers Single-Mode Multi-Core Round Tight Buffered Distribution Indoor Fiber Optic Cable LSZH/PVC
Optical Fiber 8 Fibers Single-Mode Multi-Core Round Tight Buffered Distribution Indoor Fiber Optic Cable LSZH/PVC
Optical Fiber 8 Fibers Single-Mode Multi-Core Round Tight Buffered Distribution Indoor Fiber Optic Cable LSZH/PVC
Optical Fiber 8 Fibers Single-Mode Multi-Core Round Tight Buffered Distribution Indoor Fiber Optic Cable LSZH/PVC
Optical Fiber 8 Fibers Single-Mode Multi-Core Round Tight Buffered Distribution Indoor Fiber Optic Cable LSZH/PVC
1 / 5
Optical Fiber 8 Fibers Single-Mode Multi-Core Round Tight Buffered Distribution Indoor Fiber Optic Cable LSZH/PVC
Optical Fiber 8 Fibers Single-Mode Multi-Core Round Tight Buffered Distribution Indoor Fiber Optic Cable LSZH/PVC
Optical Fiber 8 Fibers Single-Mode Multi-Core Round Tight Buffered Distribution Indoor Fiber Optic Cable LSZH/PVC
Optical Fiber 8 Fibers Single-Mode Multi-Core Round Tight Buffered Distribution Indoor Fiber Optic Cable LSZH/PVC
Optical Fiber 8 Fibers Single-Mode Multi-Core Round Tight Buffered Distribution Indoor Fiber Optic Cable LSZH/PVC

Optical Fiber 8 Fibers Single-Mode Multi-Core Round Tight Buffered Distribution Indoor Fiber Optic Cable LSZH/PVC

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
Indoor Distribution Cable
Connection Structure
Fiber Cable
Material Shape
Distribution
Allowed Lateral Pressure
100(N/100mm) < 1000(N/100mm)
Allowed Tensile Strength
100N < 1000N
Core
Multicore
Certification
RoHS, ISO9001
Sheath Material
PVC
Transport Package
Carton Box
Origin
China
HS Code
85447000
Production Capacity
50,000 Core Km
Product Description

Multimode Indoor Distribution Optical Fiber Bundle Cable

Description:
Indoor Distribution Optical Fiber bundle cable is made by evenly applying strands of Aramid yarns or High strength glass Yarns as the strength member over 900μm or 600μm tight buffer fibers and then is completed with PVC (LSZH) jacket.
Optical Fiber Distribution Cable

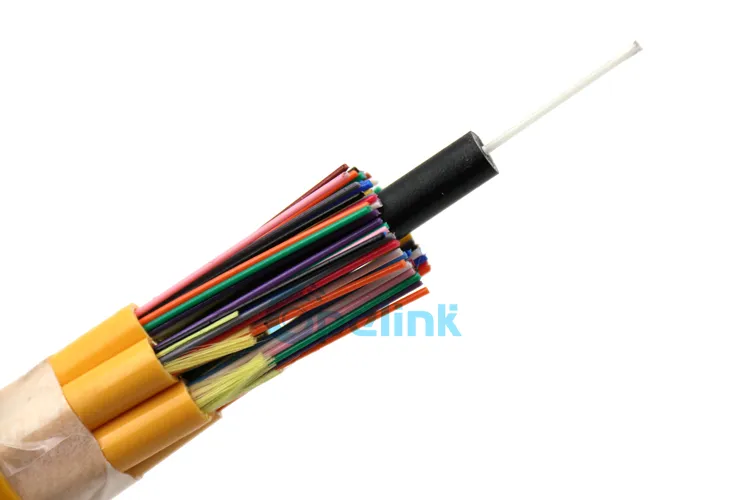

Multi-Core Round Tight Buffered Fiber

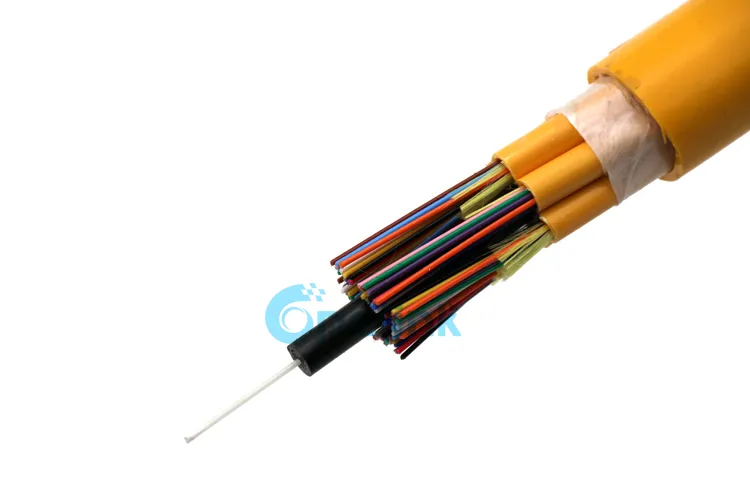

Indoor Fiber Optic Cable
Features
  • High tensile strength due to aramid strength member;
  • Good flame retardant properties;
  • Stable temperature performance;
  • Excellent stripability with tight buffered fiber;
  • High uniformity of geometrical characteristics.
Application
  • Used in indoor cabling, especially used as distribution cable;
  • Used in pigtails and patch cords;
  • Used as interconnect lines of equipment, and used in optical connections in optical communication equipment rooms and distribution frames.
Technical Parameters
Fiber count 6 12 24 48
Outer diameter (mm) 5.2 6.8 8.2 12.5
Nominal Weight (kg/km) 23 38 60 128
Crush Resistance Long/Short term (N/100mm) 300 / 1000 300 / 1000 300 / 1000 300 / 1000
Tensile Strength (N) Long/Short term 110 / 330 200 / 600 240 / 720 520 / 1200
Min. Bending Radius (mm) Dynamic 20D
Static 10D
Temperature Range -20ºC to 70ºC
Type Standard Specification Jacket Color
MM G.651 A1a.1: 50/125 Orange or other
A1a.2: OM3 Aqua or other
A1a.3: OM4 Violet or other
A1b: 62.5/125 Orange or other
SM G.652D Yellow or other
G.657 (A1, A2, B3) Green or other
Jacket material: PVC, LSZH or Other
Order Information
Fiber Core Fiber Type Count Cable OD Reinforcer Fiber Jacket Jacket Color
1=G652D
2=G657A1
3=G657A2
4=50/125
5=62.5/125
6=OM3
7=OM4		 S=Simplex
Z=Zipcord Duplex
Y=Round Duplex
F=Flat Duplex
B=Breakout
D=Distribution
R=Ribbon
W=Waterproof		 001=1 core
002=2 cores
003=3 cores
024=24 cores
XXX=other		 01=0.9mm
02=2.0mm
03=3.0mm
07=9.0mm
08=11.2mm		 1=Kevlar
2=FRP
3=Armoured steel tape
4=Steel wire		 PR=PVC-OFNR
PP=PVC-OFNP
LH=LSZH
PE=PE
PU=TPU		 01=Blue
02=Orange
09=Yellow
10=Violet
12=Aqua
Fiber Cable View 1

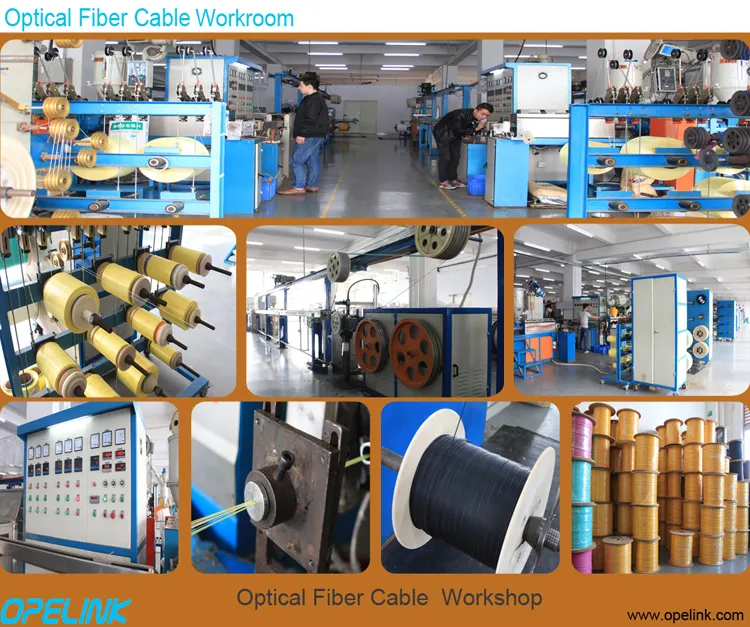

Fiber Cable View 2
Fiber Cable View 3
Fiber Cable Technical Detail

Frequently Asked Questions

Q1. Can I have a sample order for this product? What is the MOQ? A: Yes, we welcome sample orders for testing. The MOQ is 1 piece.
Q2. What about the lead time? A: Samples need 3-5 days, while mass production time typically requires 1-2 weeks.
Q3. What are the available payment terms? A: We usually accept T/T (Telegraphic Transfer) in advance and Western Union. Other payment methods are negotiable.
Q4. How do you ship the goods and how long does it take to arrive? A: We usually ship via DHL, UPS, FedEx, or TNT, taking 3-5 days to arrive. Airline and sea shipping are also optional.
Q5. Do you offer a guarantee for the products? A: Yes, we offer a 1-2 year warranty depending on the specific product type.
Q6. What action will you take if there are product quality problems? A: If there are defective units in a batch, we will provide spare replacements to ensure your requirements are met.
