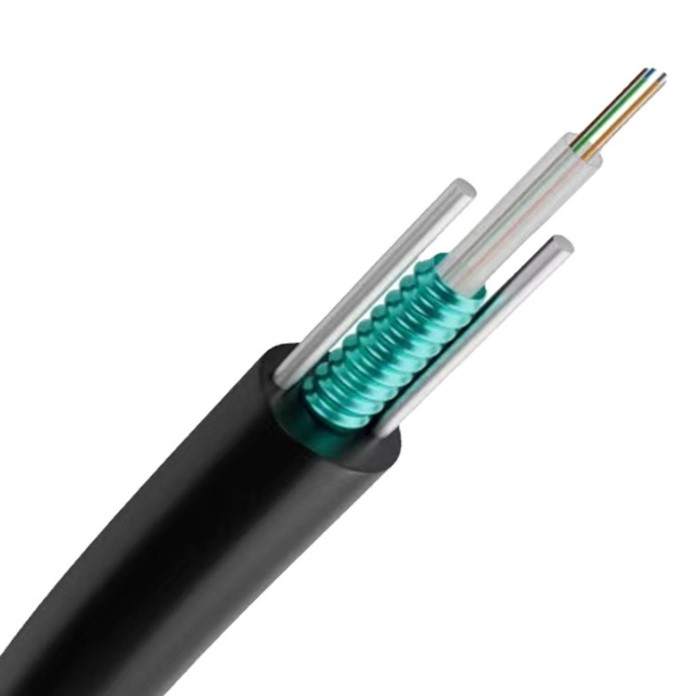

Communication Optical Cable Direct Buried Armored Outdoor 6/8/12/24/48 Cores Fiber Optic Cable
Communication Optical Cable Direct Buried Armored Outdoor 6/8/12/24/48 Cores Fiber Optic Cable
Communication Optical Cable Direct Buried Armored Outdoor 6/8/12/24/48 Cores Fiber Optic Cable
Communication Optical Cable Direct Buried Armored Outdoor 6/8/12/24/48 Cores Fiber Optic Cable
Communication Optical Cable Direct Buried Armored Outdoor 6/8/12/24/48 Cores Fiber Optic Cable
1 / 5
Communication Optical Cable Direct Buried Armored Outdoor 6/8/12/24/48 Cores Fiber Optic Cable
Communication Optical Cable Direct Buried Armored Outdoor 6/8/12/24/48 Cores Fiber Optic Cable
Communication Optical Cable Direct Buried Armored Outdoor 6/8/12/24/48 Cores Fiber Optic Cable
Communication Optical Cable Direct Buried Armored Outdoor 6/8/12/24/48 Cores Fiber Optic Cable
Communication Optical Cable Direct Buried Armored Outdoor 6/8/12/24/48 Cores Fiber Optic Cable

Communication Optical Cable Direct Buried Armored Outdoor 6/8/12/24/48 Cores Fiber Optic Cable

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
SH721S
Connection Structure
LC/Sc/FC/St
Material Shape
Round Wire
Allowed Lateral Pressure
>1000(N/100mm)
Allowed Tensile Strength
>10000N
Core
Multicore
Certification
ISO9001
Sheath Material
PE
Operating Temperature
-40--60
Number of Cores
2--48
Color
Black
Usage Scenarios
Outdoors
Origin
China
Production Capacity
20000m/Day
Packaging & Delivery
Package Size
600.00cm * 300.00cm * 580.00cm
Package Gross Weight
85.000kg
Product Description
Fiber Optic Cable
Armored Outdoor Cable
Direct Buried Cable
Communication Optical Cable
Outdoor Optical Fiber

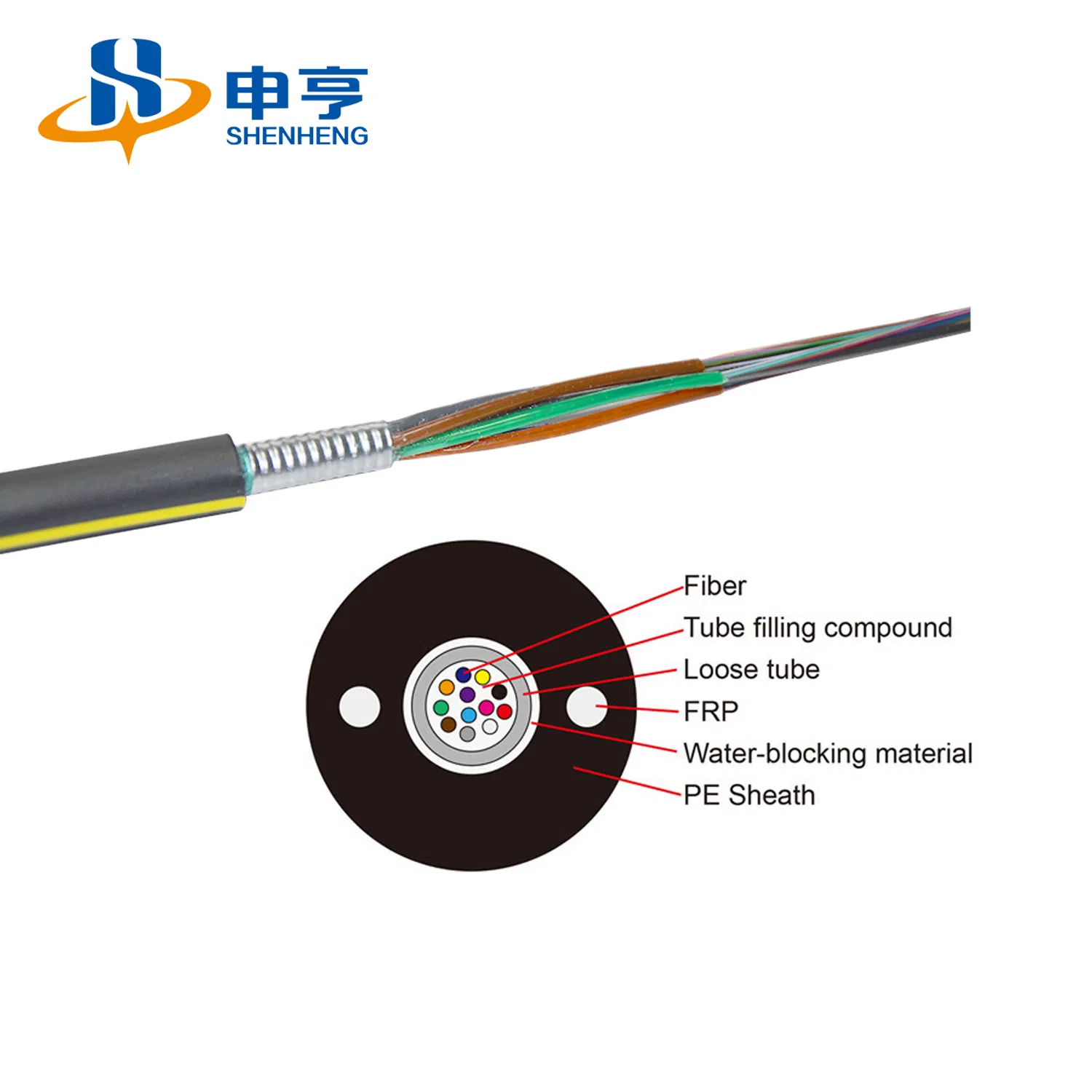

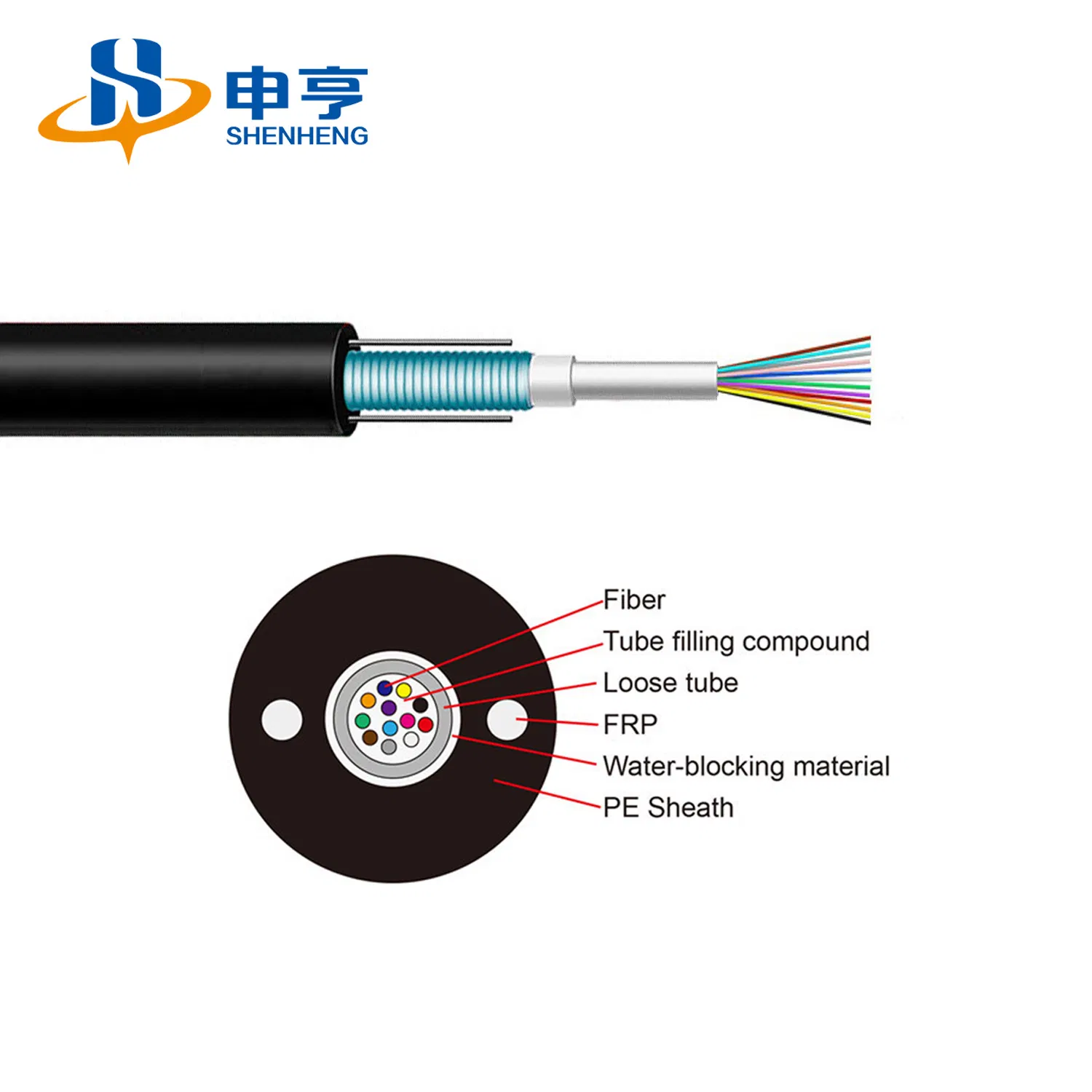

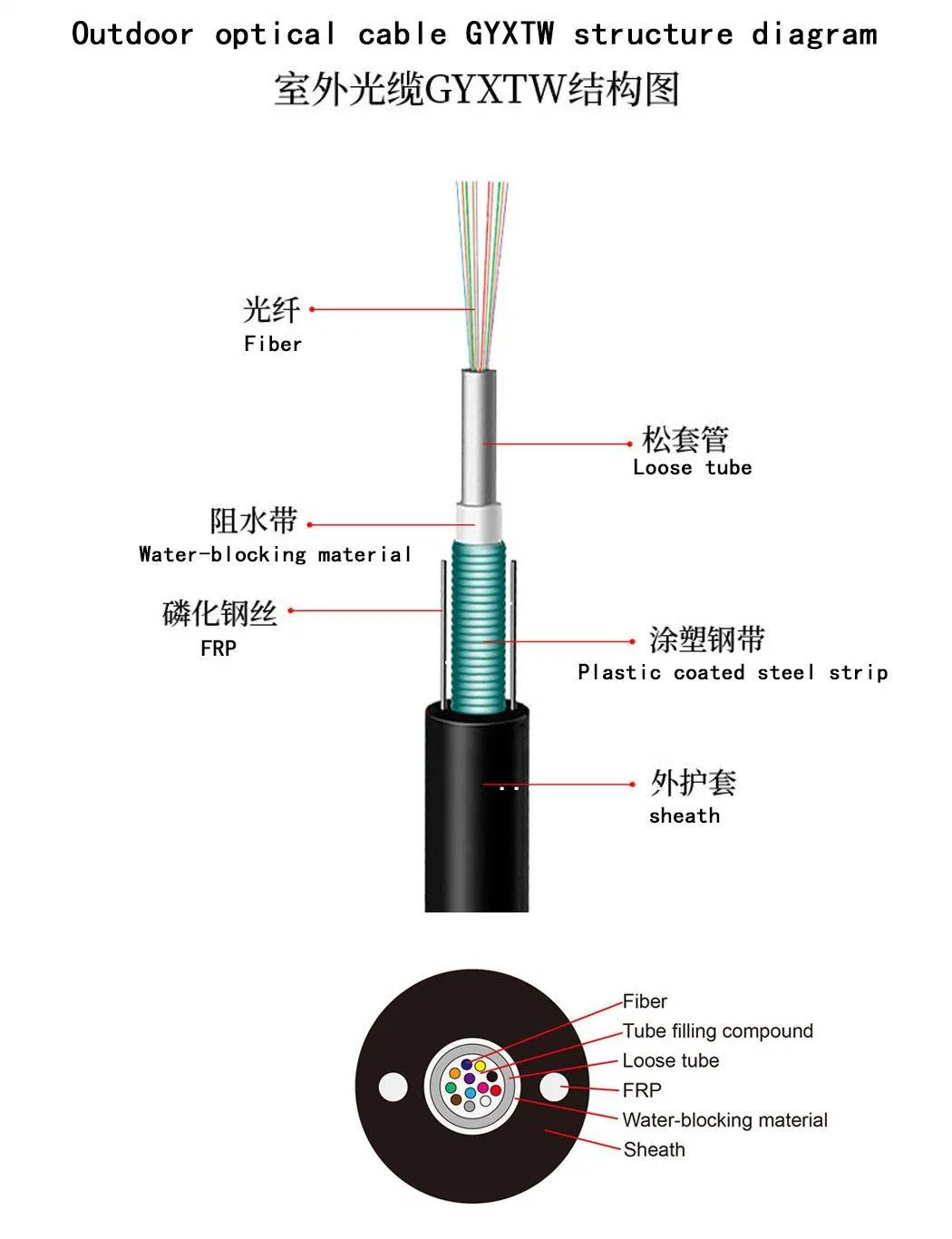

This style is an outdoor use optical fiber cable suitable for duct and aerial applications. GYXTW is available from 2 fiber cores to 24 fiber cores. Both single mode type and multi mode types are available.

Key Features
✓
Good tensile strength and crush resistance performance.
✓
Excellent moisture-resistance, water blocking, and flexibility.
✓

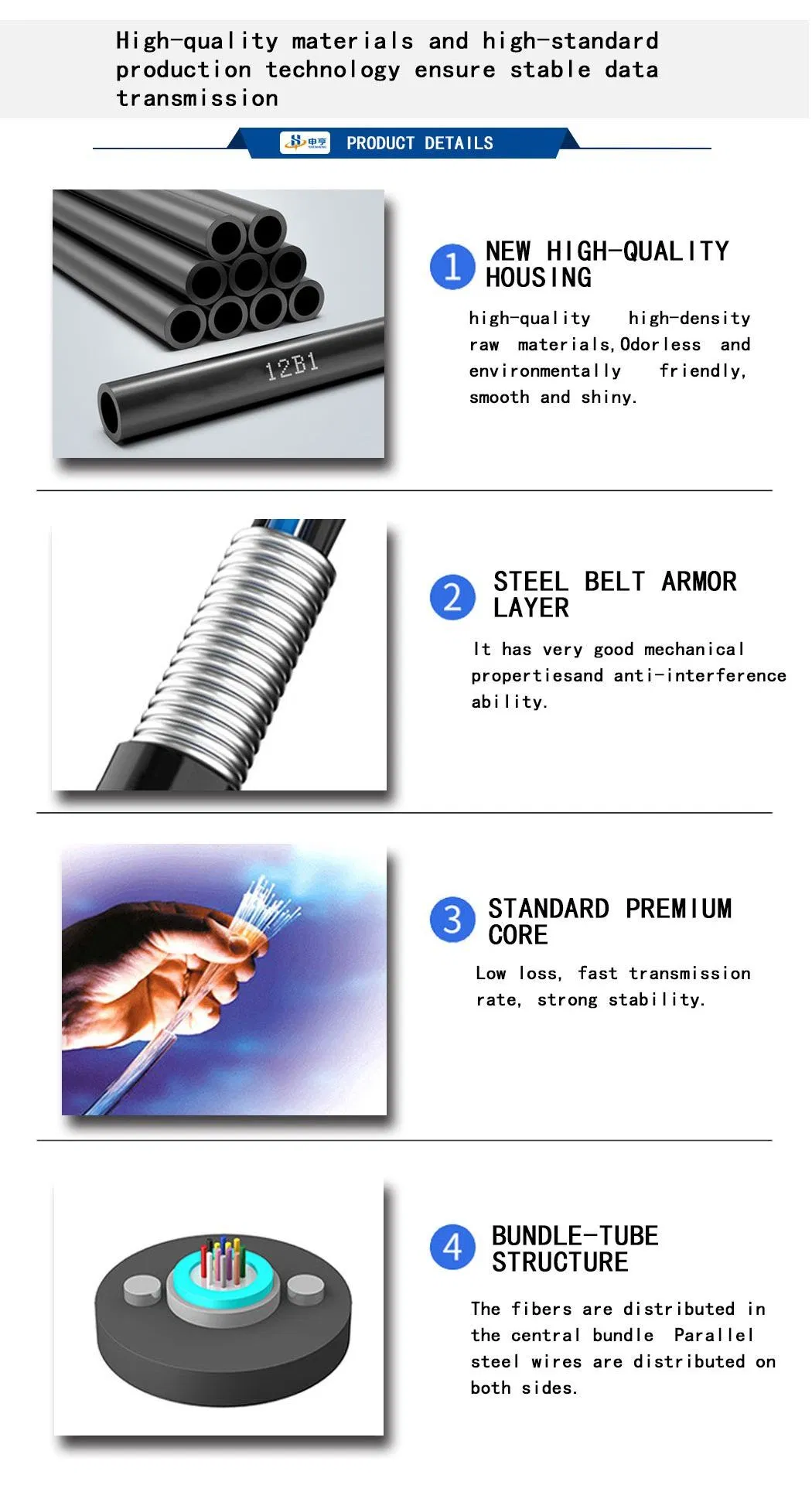

Double wire as strength member provides excellent strain performance.
Applications
●
Access network and Bureaus network.
●
Aerial and duct applications.
●
Metropolitan network.
Technical Parameters
Cable Type
GYXTW-2~24Xn
OD (mm)
8.0±0.2
Nominal Weight
110.0 kg/km
Tensile Strength
Short-term: 1500N / Long-term: 600N
Crush Resistance
Short-term: 3000N / Long-term: 1000N
Bending Radius
Dynamic: 20D / Static: 15D
Storage Temp
-40~+70 (ºC)
Property G652D G655 50/125μm 62.5/125μm
Attenuation @850nm - - ≤ 3.0dB/KM ≤ 3.0dB/KM
Attenuation @1300nm - - ≤ 1.0dB/KM ≤ 1.0dB/KM
Attenuation @1310nm ≤ 0.36 dB/KM - - -
Attenuation @1550nm ≤ 0.22 dB/KM ≤ 0.23dB/KM - -
Bandwidth @850nm - - ≥ 500 MHz-KM ≥ 200 MHz-KM
Bandwidth @1300nm - - ≥ 1000 MHz-KM ≥ 600 MHz-KM
Numerical Aperture - - 0.200±0.015NA 0.275±0.015NA
Frequently Asked Questions
1. What is the main application for the GYXTW fiber optic cable? The GYXTW cable is primarily designed for outdoor use in duct and aerial applications, as well as metropolitan and access networks.
2. How many fiber cores can this cable accommodate? This model supports a wide range of core counts, typically from 2 to 48 cores, depending on the specific requirements.
3. Does the cable have water-blocking features? Yes, it is designed with good moisture-resistance and water-blocking properties to ensure long-term performance in outdoor environments.
4. What is the operating temperature range for this armored cable? The cable is designed to operate reliably in temperatures ranging from -40ºC to +70ºC.
5. What makes this cable suitable for burial and aerial installation? It features a double wire strength member and armored design which provide excellent tensile strength and crush resistance.
6. Is it compatible with both single-mode and multi-mode fibers? Yes, the GYXTW cable structure is compatible with various fiber types including G652D, G655, and multi-mode 50/125μm or 62.5/125μm.
