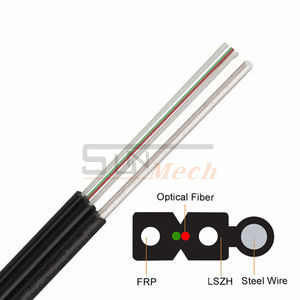

Outdoor and Indoor Fiber Cable Drop Cable Single Mode Fiber Optical Cable
Outdoor and Indoor Fiber Cable Drop Cable Single Mode Fiber Optical Cable
Outdoor and Indoor Fiber Cable Drop Cable Single Mode Fiber Optical Cable
Outdoor and Indoor Fiber Cable Drop Cable Single Mode Fiber Optical Cable
Outdoor and Indoor Fiber Cable Drop Cable Single Mode Fiber Optical Cable
1 / 5
Outdoor and Indoor Fiber Cable Drop Cable Single Mode Fiber Optical Cable
Outdoor and Indoor Fiber Cable Drop Cable Single Mode Fiber Optical Cable
Outdoor and Indoor Fiber Cable Drop Cable Single Mode Fiber Optical Cable
Outdoor and Indoor Fiber Cable Drop Cable Single Mode Fiber Optical Cable
Outdoor and Indoor Fiber Cable Drop Cable Single Mode Fiber Optical Cable

Outdoor and Indoor Fiber Cable Drop Cable Single Mode Fiber Optical Cable

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
GYTA/GYTS/GYTY/GYTA53/GYTY53/GYTA54/GYTA33/GYFTA
Sheath Material
LSZH/PE Sheath/Flame Retardant Sheath/Anti-Rodent
Insulating Material
PE
Conductor Type
Stranded
Certification
ISO9001
Wire Core Material
Steel
Transport Package
Wooden Drum
Specification
2-288
Trademark
OEM
HS Code
8544700000
Production Capacity
10000000 Cores Km/Year
Packaging & Delivery
Package Size
52.00cm * 25.00cm * 25.00cm
Package Weight
8.000kg
Product Description
Description:
Fiber optic cable structure is a single mode or multi-mode fiber into the loose sleeve, cable core center is a non-metal reinforced piece, loose sleeve around its twisting and synthesis of compact and round cable core, cable core gap filled to prevent water compounds extruded by a layer of polyethylene inner sheath, aramid yarn armor extruded into polyethylene outer sheath cable.
Features:
  • Excellent mechanical and environmental performance
  • Good waterproof performance
  • Gel-filled Loose tube protect the fiber well
  • All dielectric material good for application in thunder area
  • Light weight and small diameter reducing the load caused by towers and backprops
  • Large span lengths and the largest span is over 1000m
Compliance Standards
Standard Description
ITU-T G.652Characteristics of a single-mode optical fibre
IEC 60794-1-1Optical fibre cables-part 1-1: Generic specification-General
IEC 60794-1-2Optical fibre cables-part 1-2: Generic specification-Basic optical cable test procedure
IEC 60794-3Optical fibre cables-part 3: Sectional specification-Outdoor cables
Product Gallery

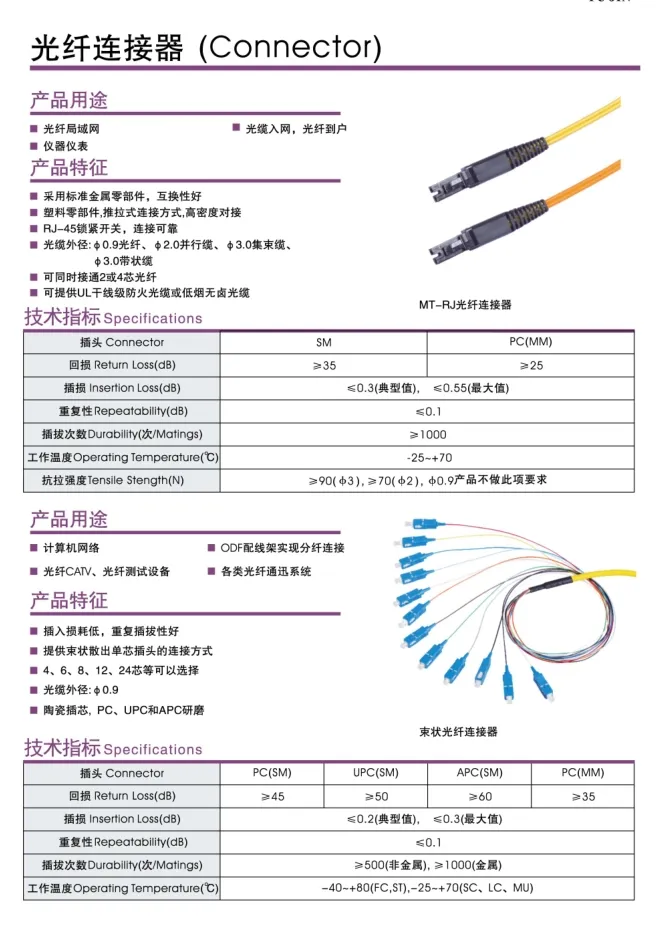

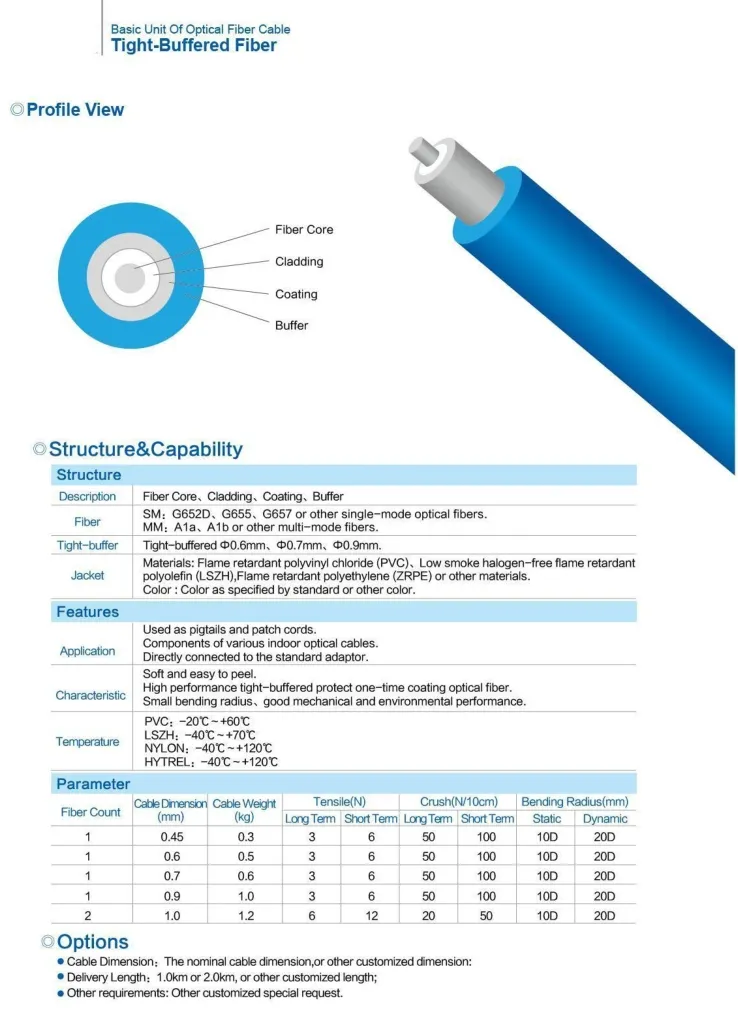

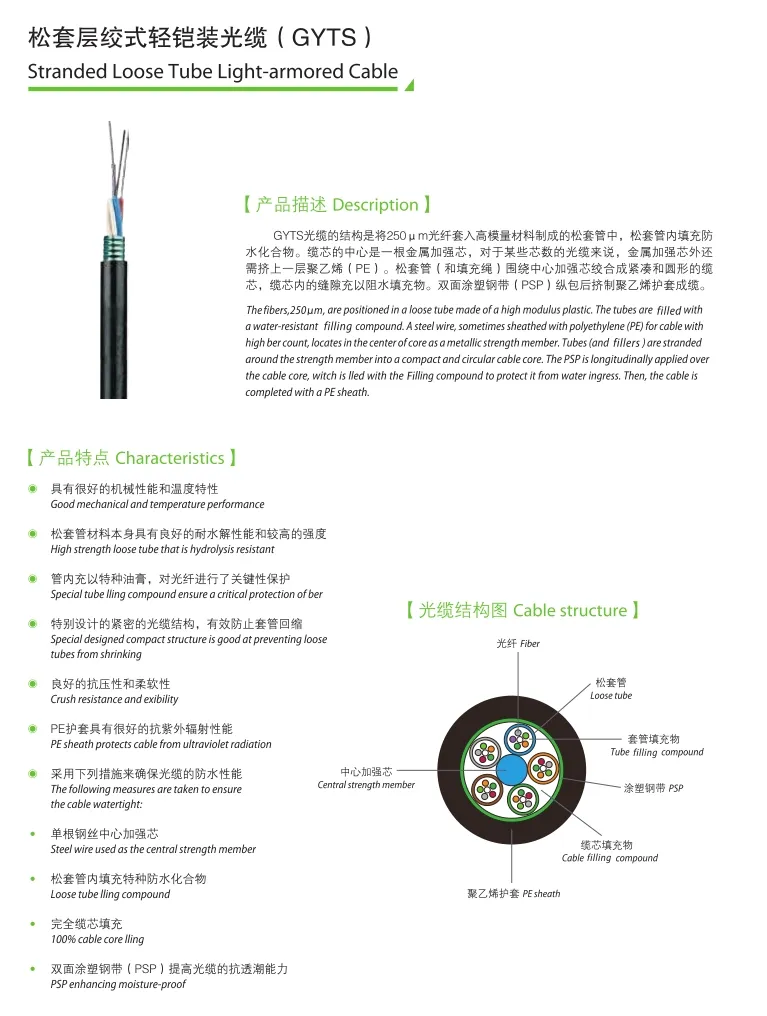

Fiber Cable Fiber Cable View Fiber Cable Detail

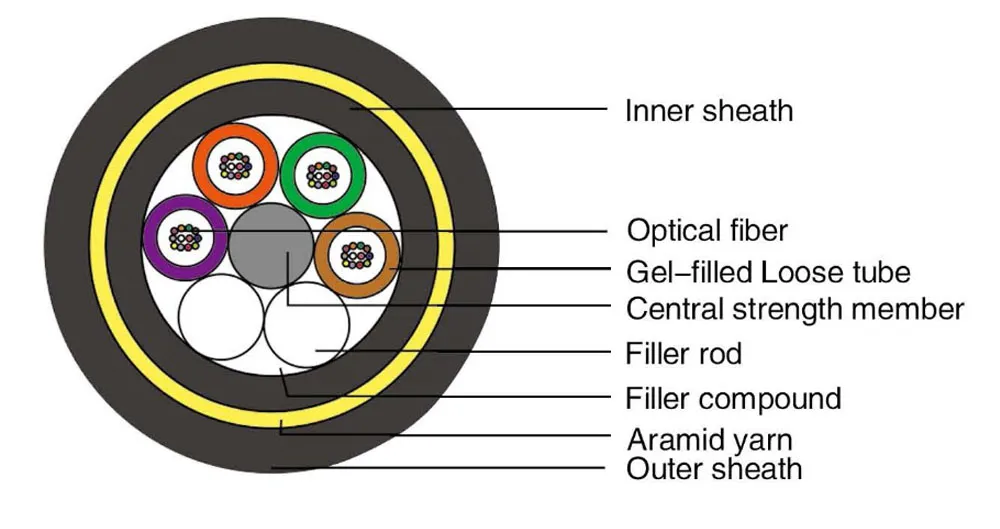

Cable Cross-section: Cable Cross-section
Cable Identification:

The color code of fibers and loose tube will be identification in accordance with the following color sequence. Can be customized according to requirements.

Cable Identification
Technical Specification

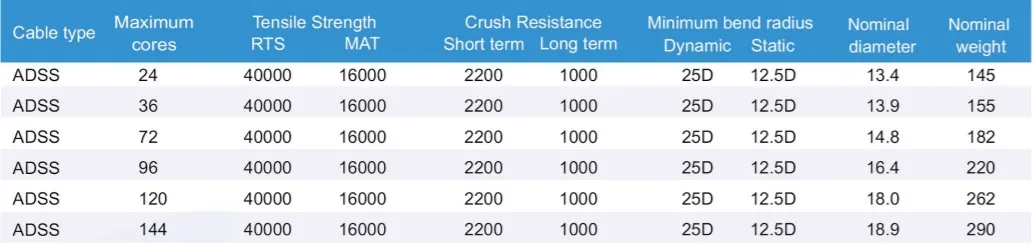

Technical Specification Table
Remark: 1. D is the diameter of the cable; 2. The above parameters are typical value; 3. The cable spec can be designed according to requirements.
Optical Fiber Characteristics (ITU-T Rec. G.652D)
G.652.D Single Mode Fiber
Characteristics Conditions Units Specified values
Optical properties
Attenuation1310nmdB/km≤0.35
Attenuation1550nmdB/km≤0.21
Dispersion Coefficient1550nmps/(nm.km)≤18
Zero dispersion wavelength-nm1300nm~1324nm
PMDSingle fiber maxps/≤0.20
Mode field diameter MFD1310nmμm9.2±0.4
Geometric characteristics
Cladding diameter-μm124.5±1.0
Coating diameter-μm242±7
Mechanical properties
Proof test-GPa≥0.69(100kpsi)
Frequently Asked Questions
What is your experience in the cable industry?
We have been specialized in cable manufacturing since 2006, serving markets across Europe (28%), Middle East (26%), Africa (25%), and Asia.
How do you ensure product quality?
We maintain strict quality control by always providing pre-production samples before mass production and conducting a final inspection before every shipment.
What types of cables can I purchase from you?
We offer a wide range including Fiber Optic cables, Coaxial cables, Network cables, Patch cords, Telephone and Alarm cables, Electric wires, and related accessories.
Why should I choose your products over other suppliers?
Our professional technician team provides honest, warm-hearted service. We focus on guiding you to the most suitable goods for your specific market rather than just the cheapest options.
What is the Minimum Order Quantity (MOQ)?
Typically, the MOQ is 30km for cable products, but we consider every inquiry individually to meet specific project needs.
What delivery and payment terms do you accept?
We accept FOB, CFR, and CIF delivery terms. Payment can be made via T/T, L/C, D/P, or Western Union in USD, EUR, GBP, or CNY.
