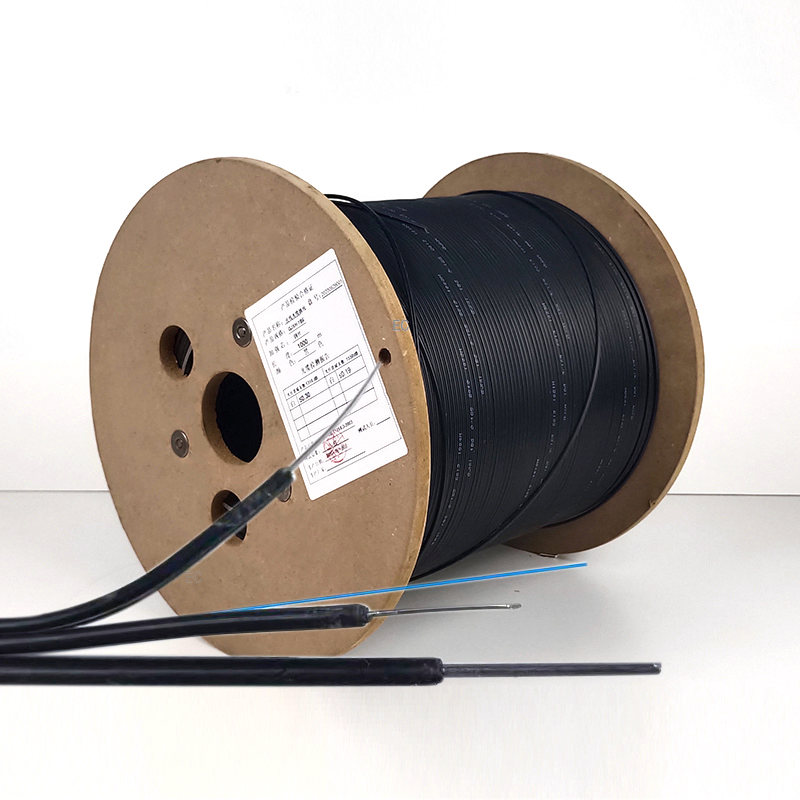

Single Mode Fiber Cable 1km Price Gjyxch GJYXFCH Fiber Optic Cable Price List FTTX FTTH 1 2 4 Core G657A2 Fiber Optic Drop Cable

1 / 5

Single Mode Fiber Cable 1km Price Gjyxch GJYXFCH Fiber Optic Cable Price List FTTX FTTH 1 2 4 Core G657A2 Fiber Optic Drop Cable

Customization:	Available
Application:	Outdoor Overhead
Type:	Fiber Optic Cable

Send Inquiry

Product Description

Basic Specifications

Model NO.

GJYXCH

Connection Structure

Material Shape

Flat Wire

Lateral Pressure

>1000(N/100mm)

Tensile Strength

1000N - 10000N

Core

Single Core

Certification

CE/RoHS/ISO9001

Sheath Material

LSZH

Product Name

Optic Fiber Cable

Jacket Material

LSZH HDPE

Color

Black/White/Customized

Messenger Wire

Steel or FRP

Fiber Type

G657A1

HS Code

8544700000

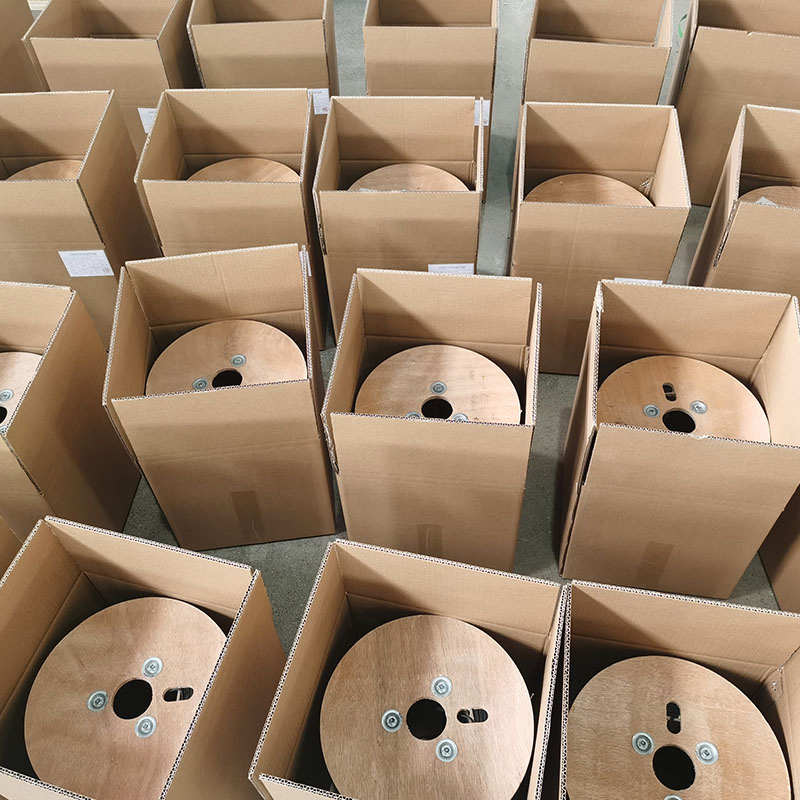

Package Size

31.0cm * 31.0cm * 24.0cm

Gross Weight

20.000kg

★

Product Characteristics

Flex durable fiber to provide greater bandwidth and enhance network transmission characteristics.

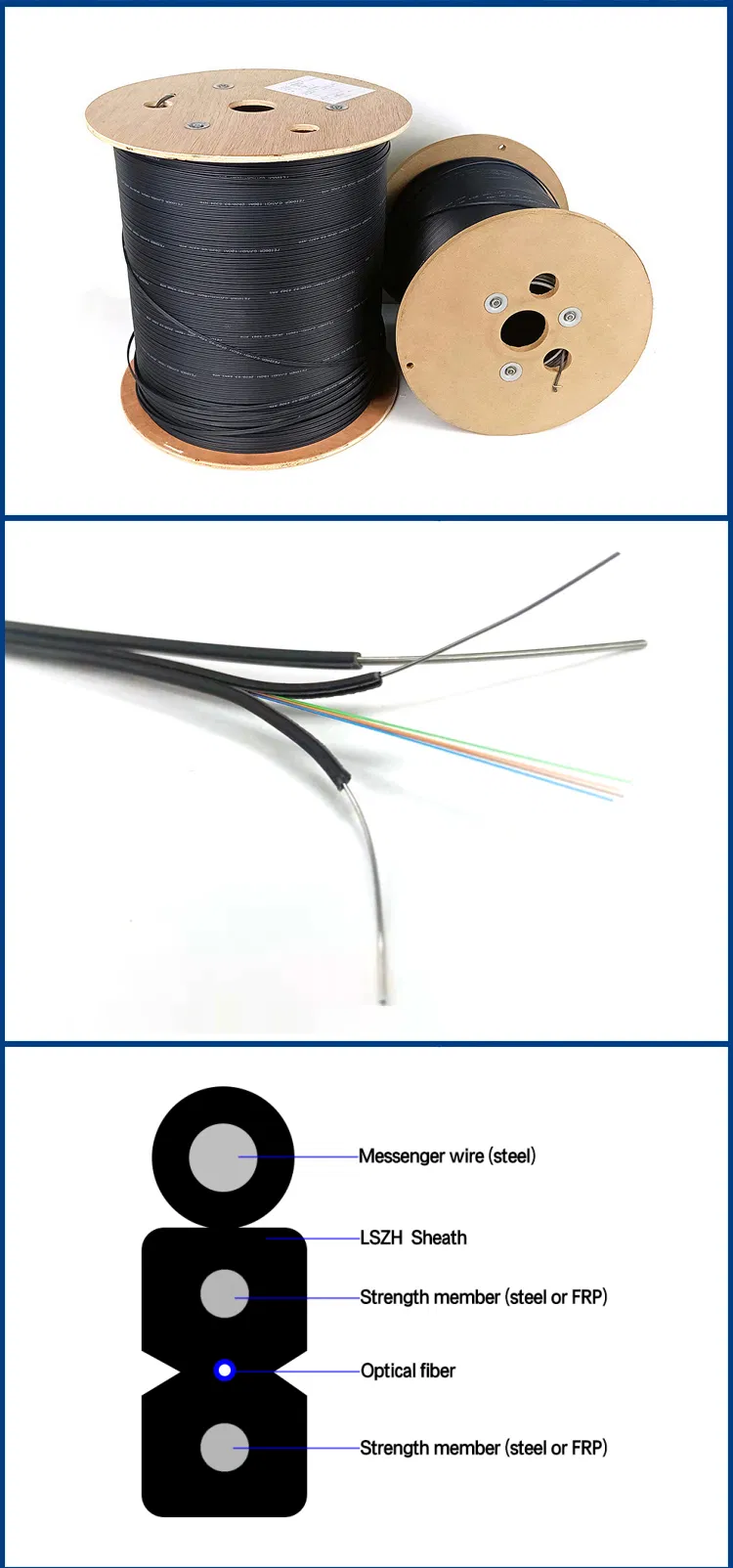

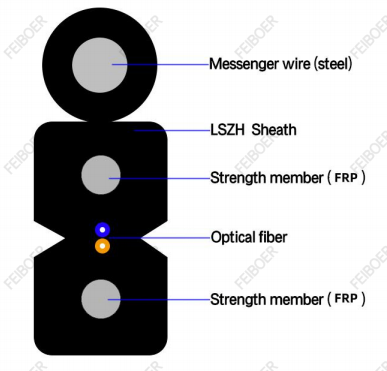

Two parallel metallic strength members to protect the fiber and provide adequate tension and pressure.
Single metallic strength member ensures excellent tensile performance.
Simple structure, light weight, and strong practicability.
Unique groove design, easy to peel and splice, simplifying installation and maintenance.
Low smoke halogen-free (LSZH) flame-retardant sheath, environmentally friendly.

Applications

Indoor and outdoor wiring systems
FTTH (Fiber to the Home) terminal systems
Indoor and outdoor shaft and building wiring

Technical Parameters

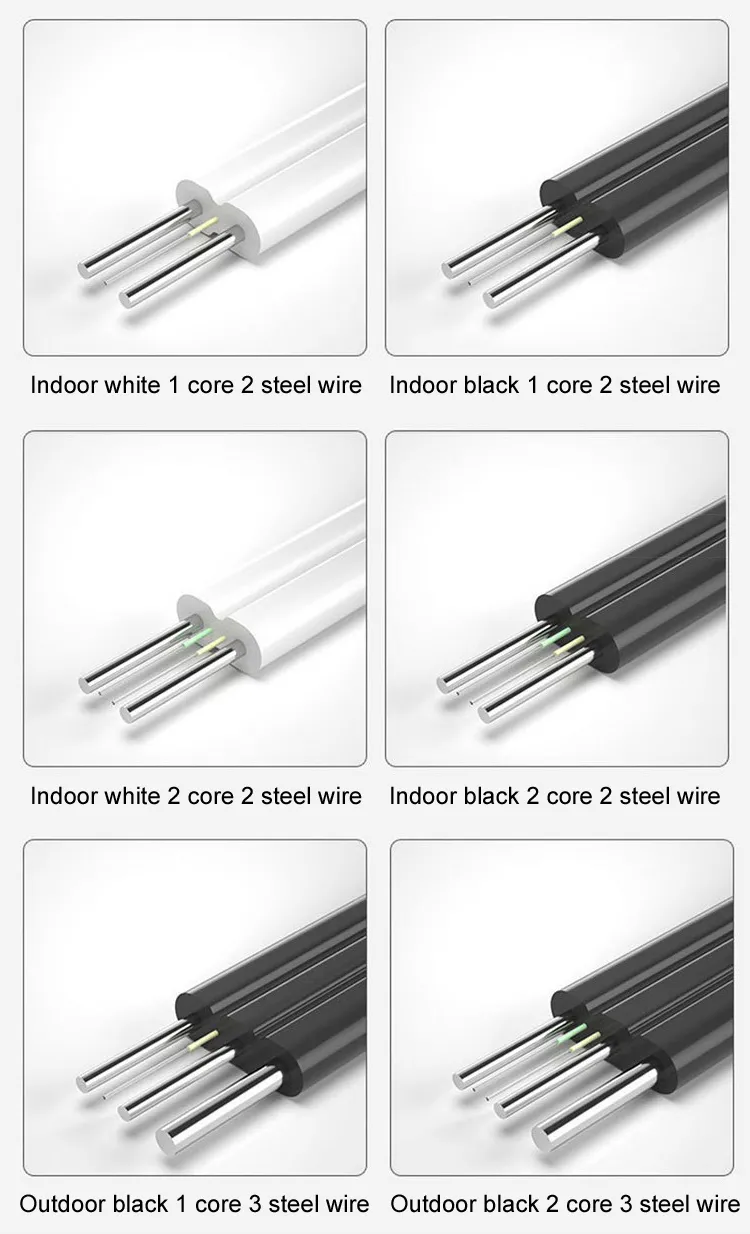

Fiber Count	1/2/4
Fiber Type	G657A1/A2
Strength Member	Steel/FRP
Outer Sheath	LSZH (Low Smoke Zero Halogen, Flame Retardant & UV Anti)
Cable Dimensions	5.0*2.0mm
Operation Temperature	-40ºC to +70ºC
Installation Temperature	-5ºC to +50ºC
Tension Load (N)	Short term: 1000N / Long term: 600N
Crush Load (N)	Long term: 1000N/100mm / Short term: 2200N/100mm
Min. Bending Radius	Installation: 30 x OD / Operation: 15 x OD

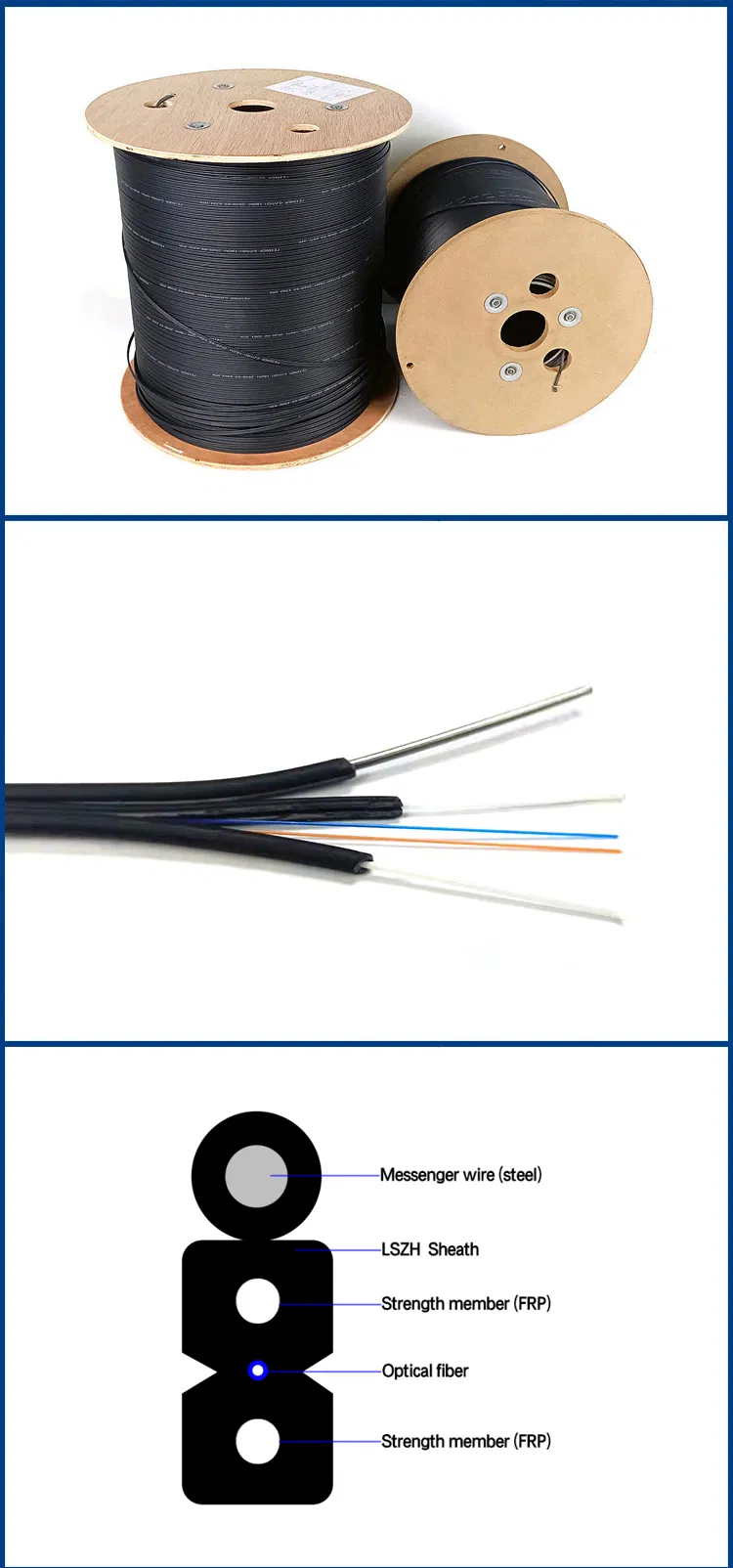

Product Gallery

Frequently Asked Questions

Q: What is the main advantage of the GJYXCH drop cable? A: It features a self-supporting structure with a messenger wire, making it ideal for outdoor aerial applications into buildings, and uses G657A flex-durable fiber for superior bending performance.

Q: Is the cable jacket fire-resistant? A: Yes, the cable uses LSZH (Low Smoke Zero Halogen) material, which is flame-retardant and environmentally safe for both indoor and outdoor use.

Q: What are the options for the strength members? A: The strength members can be made of either Steel or FRP (Fiber Reinforced Plastic) depending on the specific mechanical requirements of the installation.

Q: Can this cable withstand extreme temperatures? A: Absolutely. It is designed to operate in a wide temperature range from -40ºC to +70ºC, ensuring stability in various climates.

Q: How many fiber cores are available in this model? A: This specific drop cable is typically available in 1, 2, or 4 core configurations to suit different network capacity needs.

Q: Is the installation process difficult? A: No, the cable features a unique groove design that makes it easy to peel and splice, significantly simplifying the installation and maintenance process.
