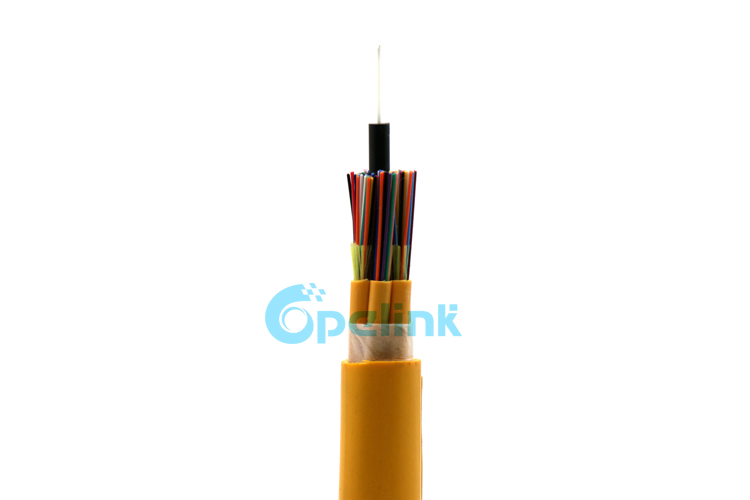

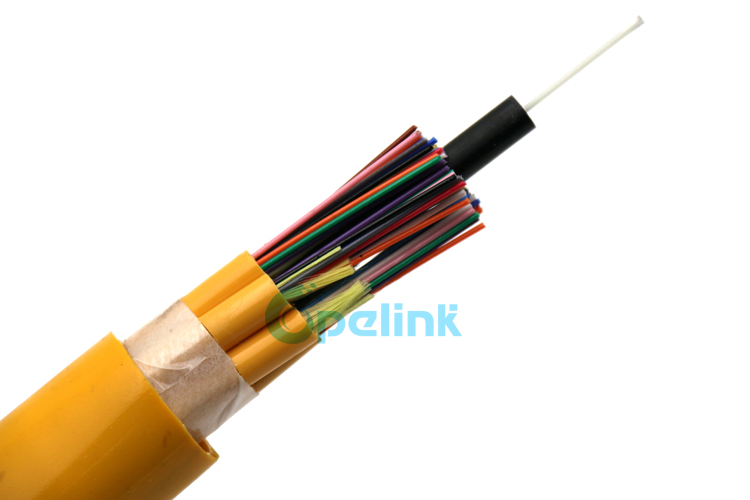

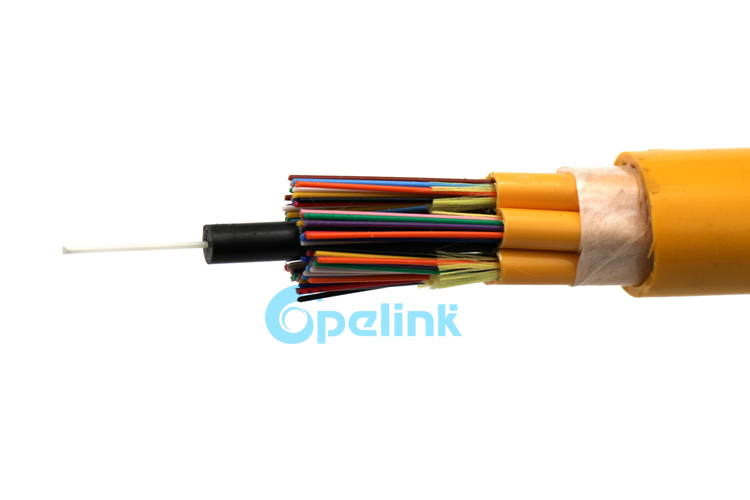

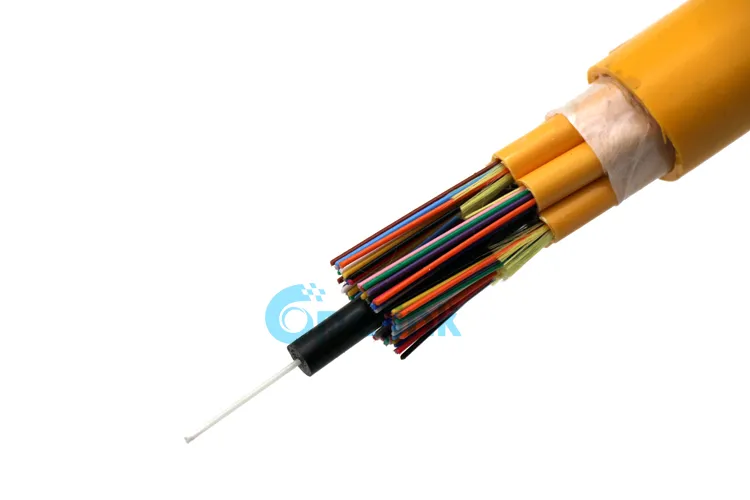

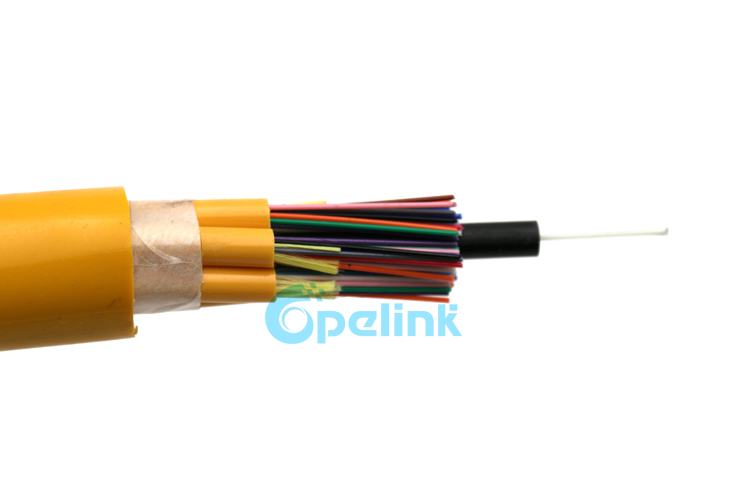

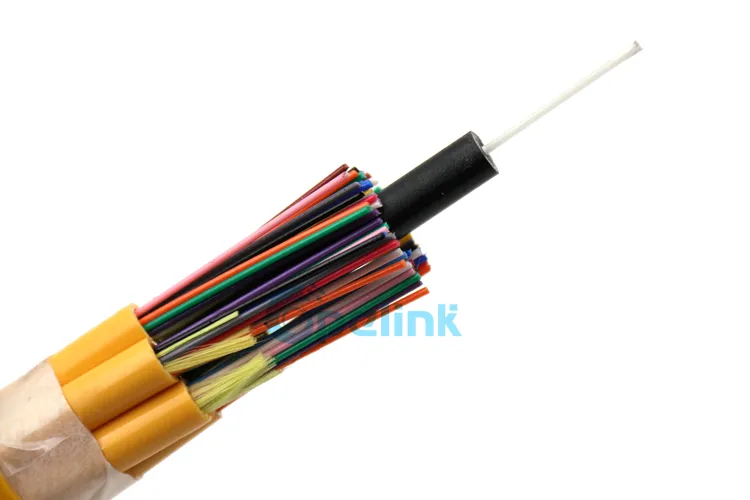

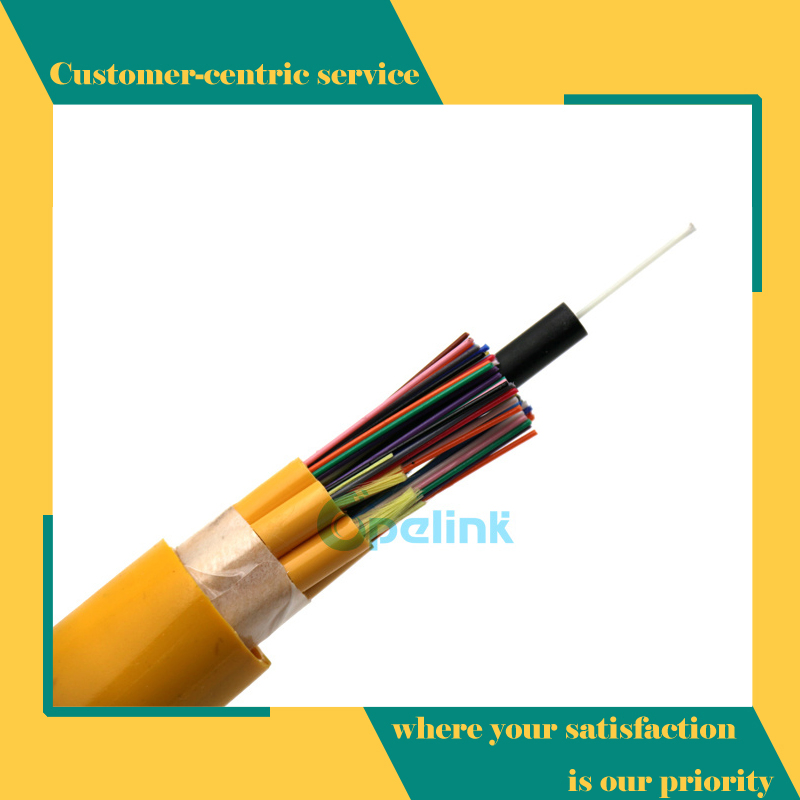

Indoor Distribution Optical Fiber bundle cable is made by evenly applying strands of Aramid yarns or High strength glass Yarns as the strength member over 900μm or 600μm tight buffer fibers and then is completed with PVC(LSZH) jacket.
| Fiber count | 6 | 12 | 24 | 48 | |
| Outer diameter (mm) | 5.2 | 6.8 | 8.2 | 12.5 | |
| Nominal Weight (kg/km) | 23 | 38 | 60 | 128 | |
| Crush Resistance (N/100mm) Long/Short | 300 / 1000 | 300 / 1000 | 300 / 1000 | 300 / 1000 | |
| Tensile Strength (N) Long/Short | 110 / 330 | 200 / 600 | 240 / 720 | 520 / 1200 | |
| Min. Bending Radius (mm) | Dynamic | 20D | |||
| Static | 10D | ||||
| Temperature Range | -20ºC to +70ºC | ||||
| Type | Standard | Specification | Color Reference |
|---|---|---|---|
| MM | G.651 | A1a.1: 50/125 | Orange or other |
| A1a.2: OM3 | Aqua or other | ||
| A1a.3: OM4 | Violet or other | ||
| A1b: 62.5/125 | Orange or other | ||
| SM | G.652D | Yellow or other | |
| G.657 (A1, A2, B3) | Green or other | ||
| Fiber Core | Fiber Type | Count | Cable OD | Reinforcer | Jacket | Color |
|---|---|---|---|---|---|---|
| 1=G652D 4=50/125 6=OM3 7=OM4 |
S=Simplex D=Distribution B=Breakout A=Armored |
001=1 core 012=12 cores 024=24 cores |
01=0.9mm 02=2.0mm 03=3.0mm 07=9.0mm |
1=Kevlar 2=FRP 3=Steel Tape |
PR=PVC LH=LSZH PE=PE |
01-12 Colors available |
