Basic Info
Model NO.
4 Core Heavy Duty TPU Optical Cable
Allowed Lateral Pressure
100(N/100mm)<1000(N/100mm)
Allowed Tensile Strength
100N<1000N
Certification
RoHS, CE, ISO9001
Micro Loose Tube
2.4±0.1μm
Micro Loose Tube Material
LSZH
Strength Member
Armid Yarn
Outer Jacket Dimension
3.2±0.15mm

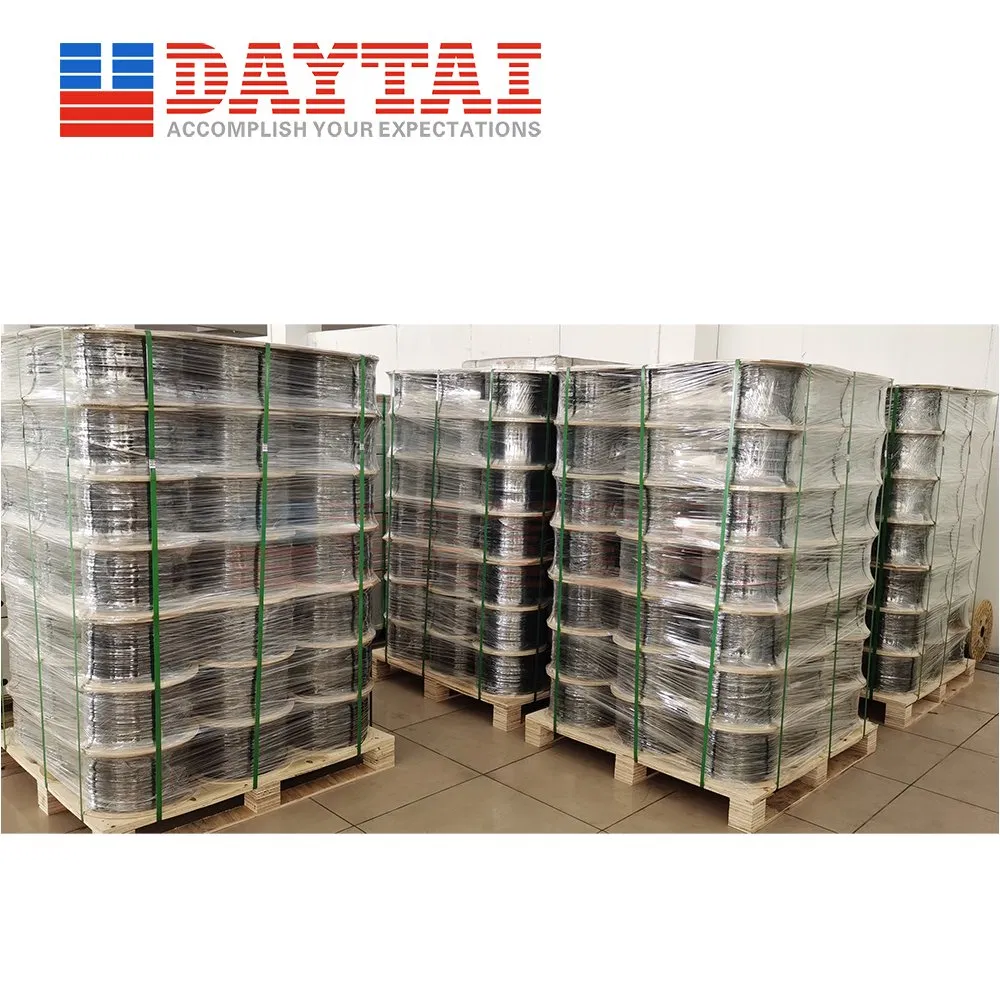

Transport Package

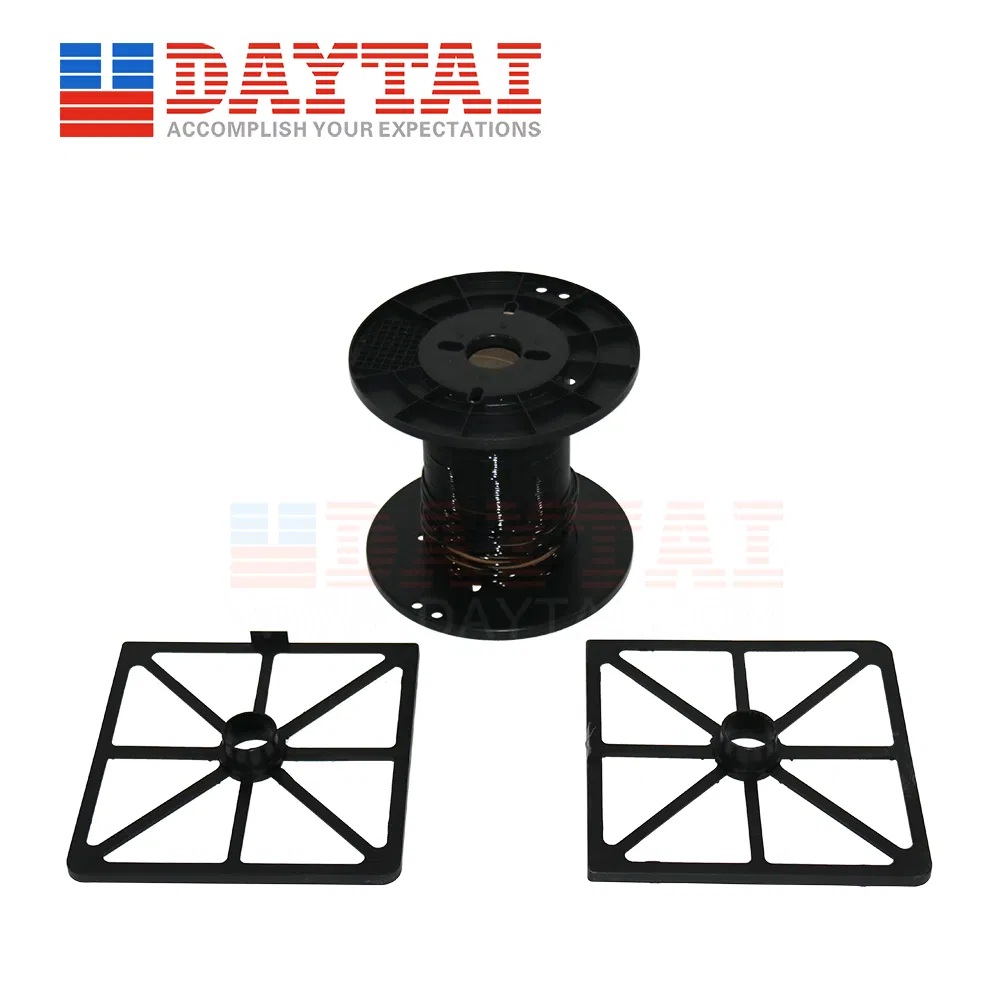

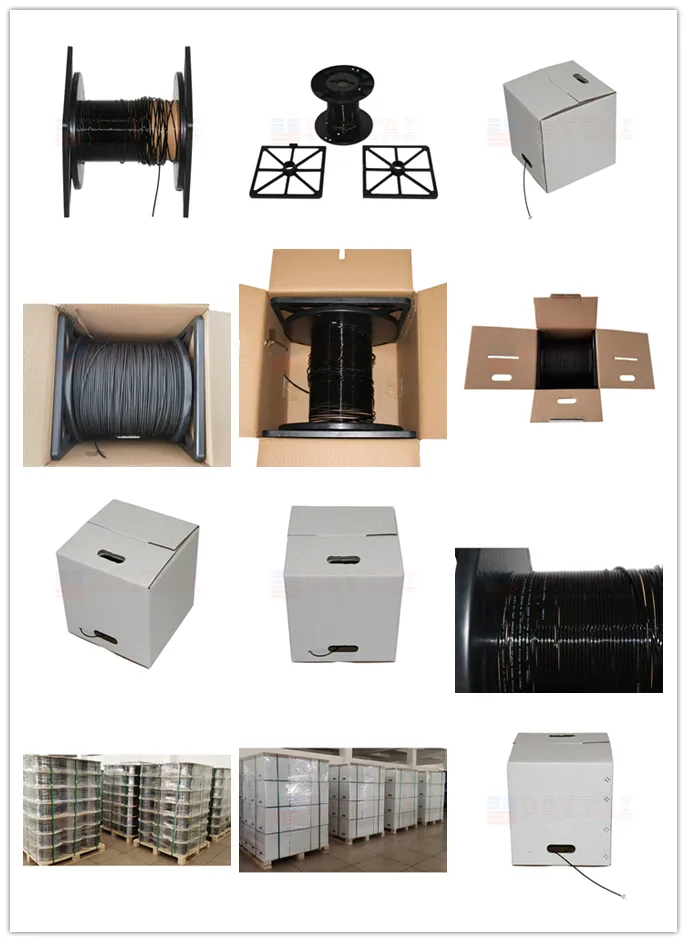

1km/Pull-out Box
Production Capacity
2000 Km/Month
Features
✓It is suitable for mechanical splicing technology, fast, and flexible.
✓It uses TPU Material: Advantage Cold-resistant, Rub resistance, More tension.
✓The optical cable has small diameter, lightweight, low cost, low construction cost.
✓The optical fiber is the bend insensitive fiber which can meet requirement of ITU-T G.657A2.
✓The optical cable has high-tension and anti-squash force, SPAN Reference Value 100Meter.
✓The optical cable is soft, good bending performance, and ensure that the bending performance can meet the requirements.
✓High-carbon steel wire should be used for Self-supporting strengthen device of optical cable, superior tensile properties contented.
Applications
With the development of the telecommunications industry, the communications networks develop from the unitary voice service to the full-service integrated communications network with various digital services of voice, data, and video. The construction of optical networks develops from the backbone network, core network to the MAN and access networks. Since the fiber with frequency bandwidth has the strengths of high transmission capacity and low attenuation, FTTH supports various kinds of services, the features such as wider bandwidth, convenient maintenance are the foundation for designing the drop optical cable, which is applicable to the accession of the user's end in the broadband access network.
Fiber Parameters (G.657A2)
| No. |
Item |
Unit |
Specification |
| 1 | Mode Field Diameter (1310nm / 1550nm) | μm | 8.6±0.4 / 9.6±0.5 |
| 2 | Cladding Diameter | μm | 124.8±0.7 |
| 3 | Cladding Non-Circularity | % | ≤0.7 |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 |
| 5 | Coating Diameter | μm | 245±5 |
| 6 | Coating Non-Circularity | % | ≤6.0 |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 |
| 9 | Attenuation (1310nm/1550nm/1383nm/1625nm) | dB/km | ≤0.36 / ≤0.24 / ≤0.40 / ≤0.30 |

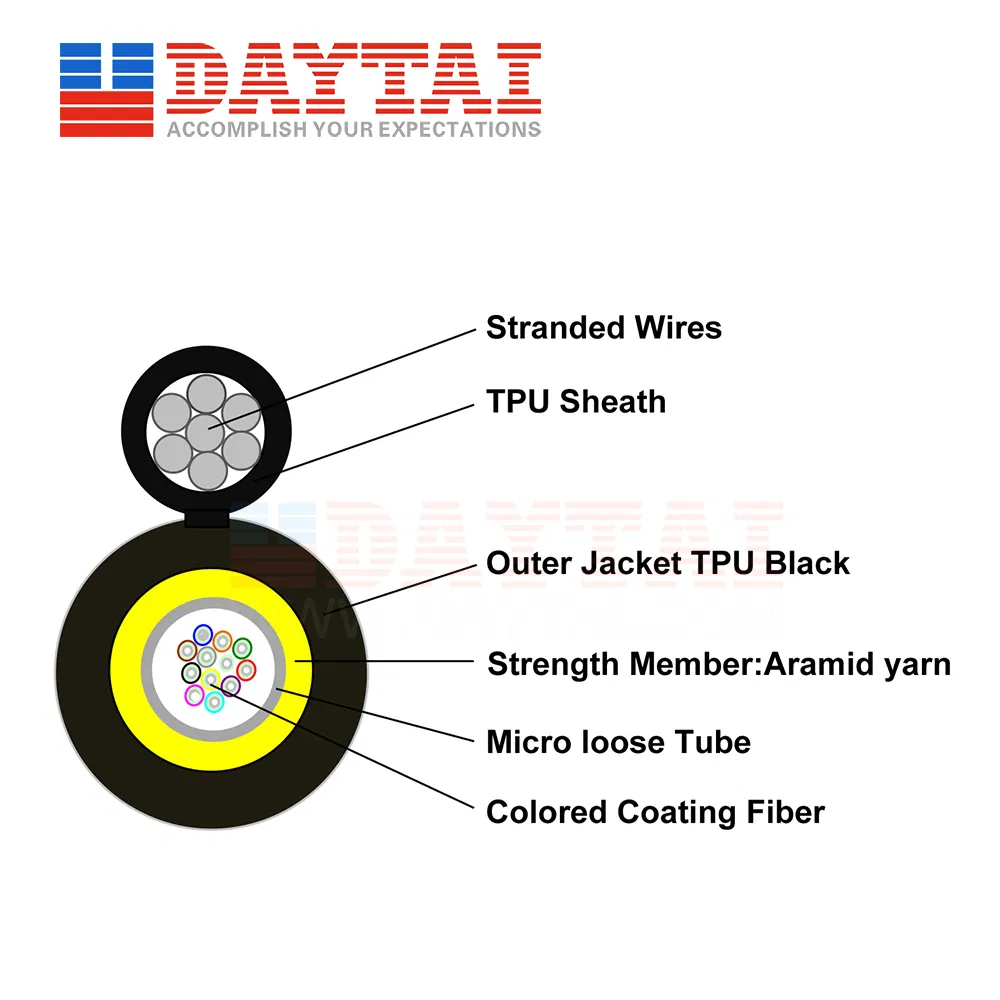

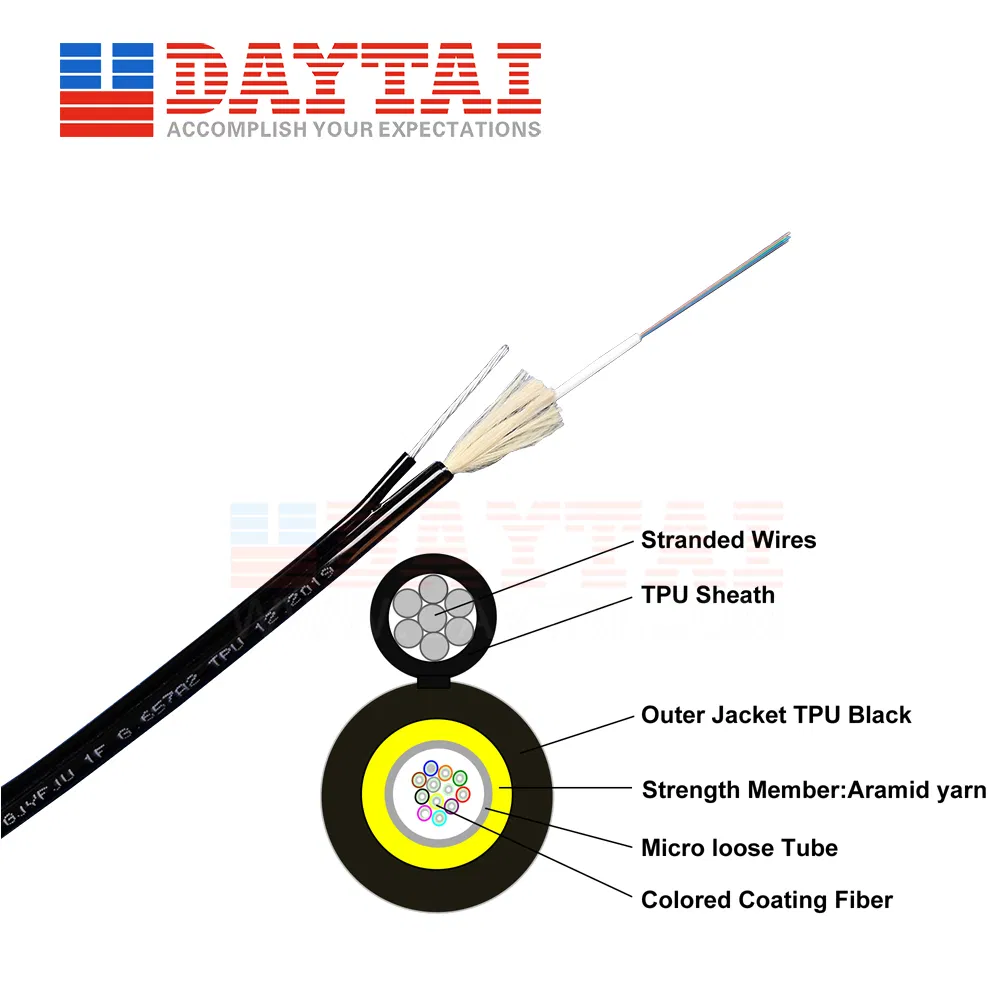

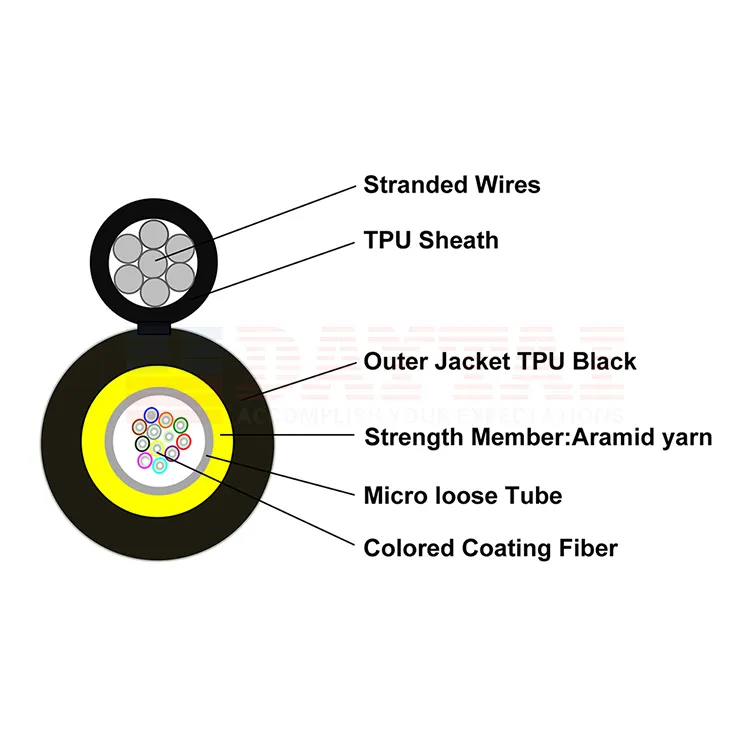

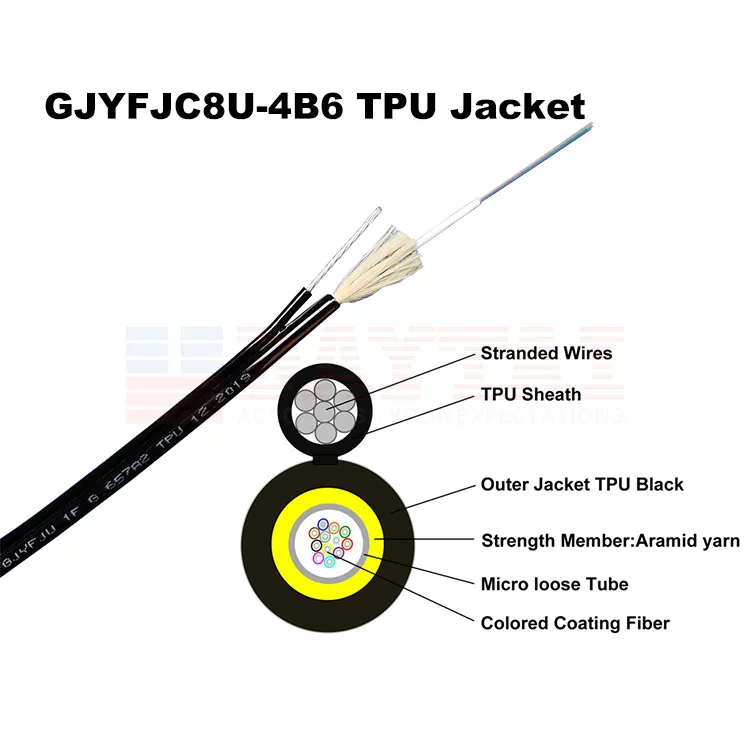

Cable Parameters
| Item |
Specifications |
| Fiber Count | 4 |
| Color Fiber Dimension | 250±5μm |
| Fiber Color | Blue, Orange, Green, Brown |
| Micro Loose Tube Material/Dimension | LSZH / 2.4±0.1μm |
| Strength Member | Armid Yarn |
| Outer Jacket Material/Dimension | TPU / 3.2±0.15mm |
| Outer Jacket Color | Black |
Mechanical & Environmental Characteristics
| Item |
Test Standard |
Unit |
Specifications |
| Tension (Long/Short Term) | IEC60794-1-2-E1A | N | 500 / 1200 |
| Crush (Long/Short Term) | IEC60794-1-2-E3 | N/10cm | 300 / 600 |
| Min. Bend Radius (Dynamic/Static) | IEC60794-1-2-E11A | mm | 20D / 10D |
| Operating Temperature | ------- | ºC | -40~+80 |
| Cable weight | ------ | Kg/km | 17.17 |

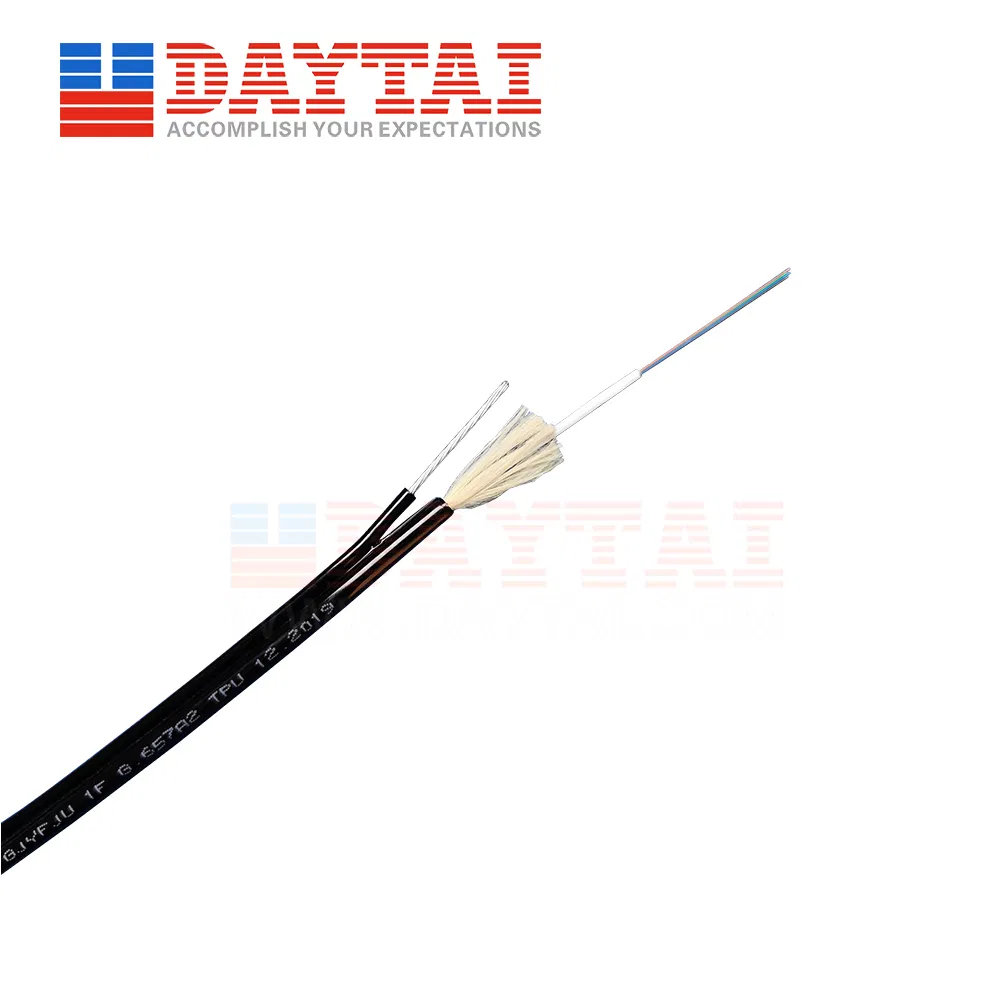

Product Gallery
Frequently Asked Questions
Q1: What's the delivery time for the TPU Optical Cable?
Re: The lead time is typically 10~15 days after the order is confirmed.
Q2: Can you provide a free sample for testing?
Re: We are willing to send you a free sample if you would like to cover the shipping costs.
Q3: What are your standard payment terms?
Re: Our terms are 30% in advance and 70% balance before shipment.
Q4: What payment methods do you accept?
Re: We accept T/T, Western Union, and Paypal.
Q5: How are the items shipped?
Re: We offer shipping via Courier (DHL, TNT, FEDEX, UPS, EMS), by Air, or by Sea depending on your needs.
Q6: What are the main advantages of TPU material for this cable?
Re: TPU material provides superior cold resistance, rub resistance, and higher tension compared to standard materials.
